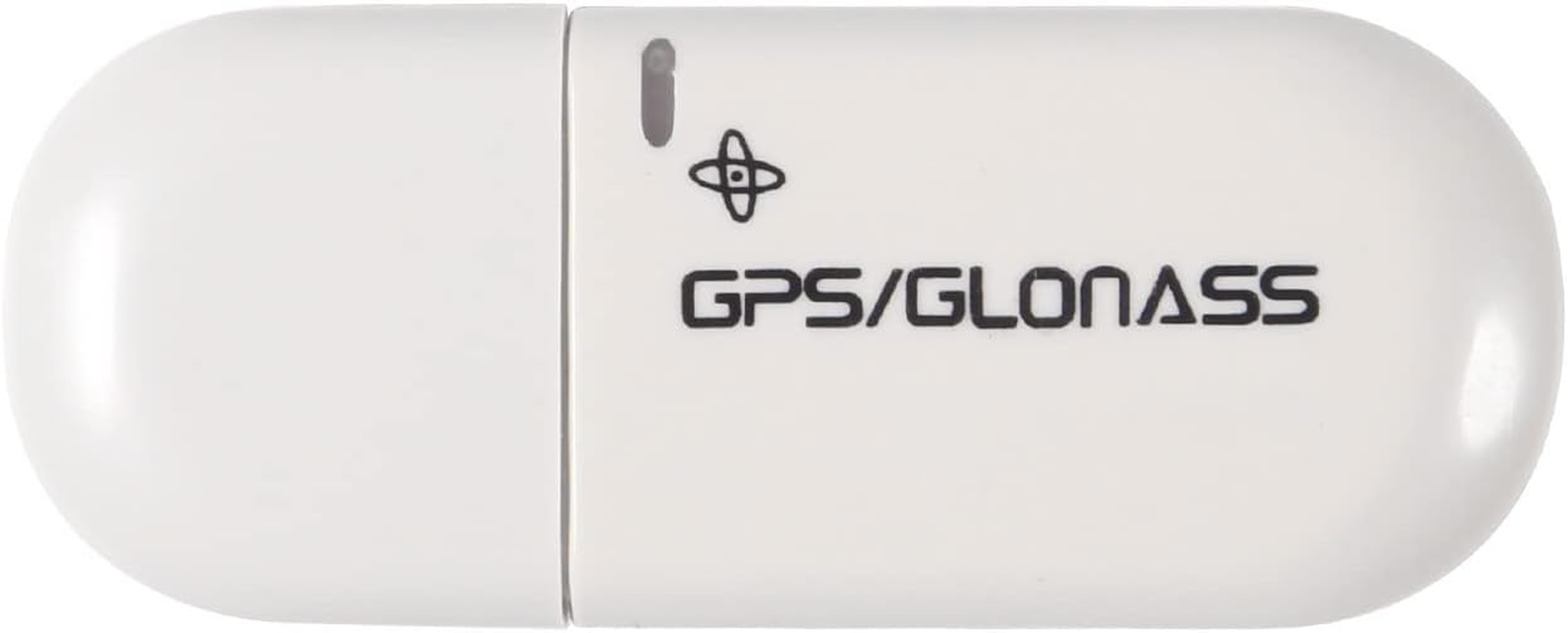

VK172 G-Mouse USB GPS Dongle for Windows & Raspberry Pi Vehicle Tracker
Specification
| Compatible with Vehicle Type | Car, Truck, Motorcycle, Boat |
| Additional Features | DGPS Support, Advanced Hardware, Customizable Baud Rate and Protocol |
| Connectivity Technology | Auxiliary, Cellular, USB |
| Map Types | Satellite |
| Mounting Type | Dashboard Mount, found in image |
| Operating System | Linux, Windows 10, Windows 7, Windows ME, Windows Vista, Windows XP |
| Human-Interface Input | Mouse |
| Compatible Devices | Windows 10/8/7/Vista/XP/CE, Linux, Raspberry Pi |
| Control Method | App, Push Button |
| Supported Satellite Navigation System | GLONASS, GPS |
| Item Weight | 0.04 kg |
| Model Name | VK172 |
| Built-In Media | 1 X VK172 gmouse USB gps/glonass usb gps receiver |
| Mfr Part Number | AUB09Q2ZYRCS |
| Vehicle Service Type | Car, Truck, Motorcycle, Boat |
| Special Feature | DGPS Support, Advanced Hardware, Customizable Baud Rate and Protocol |
| Map Type | Satellite |
| Included Components | 1 X VK172 gmouse USB gps/glonass usb gps receiver |
. Weight: 0.04 kg
Item Description
Specification:
Supported operating systems: Windows 10/8/7/Vista/XP/CE
Support Google Earth
C / A code, 1.023MHz stream
Receive Band: L1 [1575.42MHz] Tracking Channels: 56
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance: 2D plane: 5m [average]
2D plane: 3.5m [average], has DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 m
Maximum speed: 500m / s
Acceleration: <4g Electrical properties:
Tracking sensitivity:-162dBm
Acquisition sensitivity:-160dBm
Cold Start Time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature: -30 to +80
Support system:
Linux, Windows ME/98/CE, server 2003, server 2008, vista, XP, Windows 7, Windows 8,Windows 10, all windows series system.
GGA: Time, Location, Location Type
GLL: Longitude, Latitude, UTC Time
GSA: GPS receiver operation mode, positioning satellite, DOP value GSV: visible GPS satellite information, elevation, azimuth, signal-to-noise ratio (SNR) RMC: time, date, position, speed
VTG: Ground Velocity Information
Packing includes:
1 X VK172 gmouse USB gps/glonass usb gps receiver
NOTE:
The default output is the product GPS protocol data.
You can test the software or serial commands to modify switch PS / GLONASS protocol data
- This usb gps works with Windows, Linux, Raspberry PI and Google Earth, not for IOS Android
- The vk-172 gps is NOT plug and play for most device. You need to install driver before make it work. Raspberry Pi and linux no need driver.
- VK-172 automatically adapt the baud rate, The baud rate has any data output.
- The default output is GPS protocol data,you can modify the PS/GLONASS protocol data by testing software or serial commands.
- VK-172 built-in high-gain LNA, dual-channel LDO, large area radiation GPS optional baud rate 4800, 9600, 19200, 38400, 5700, 115200, etc.
