4X I-BEAM EN24 4340 CONNECTING RODS FOR HONDA ACURA LS INTEGRA B18B B18A 94-01

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

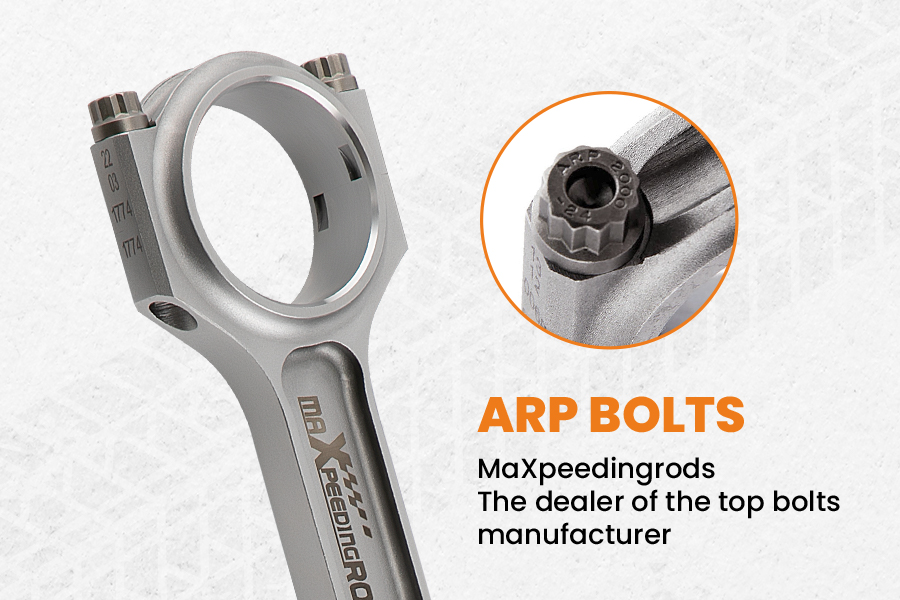

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

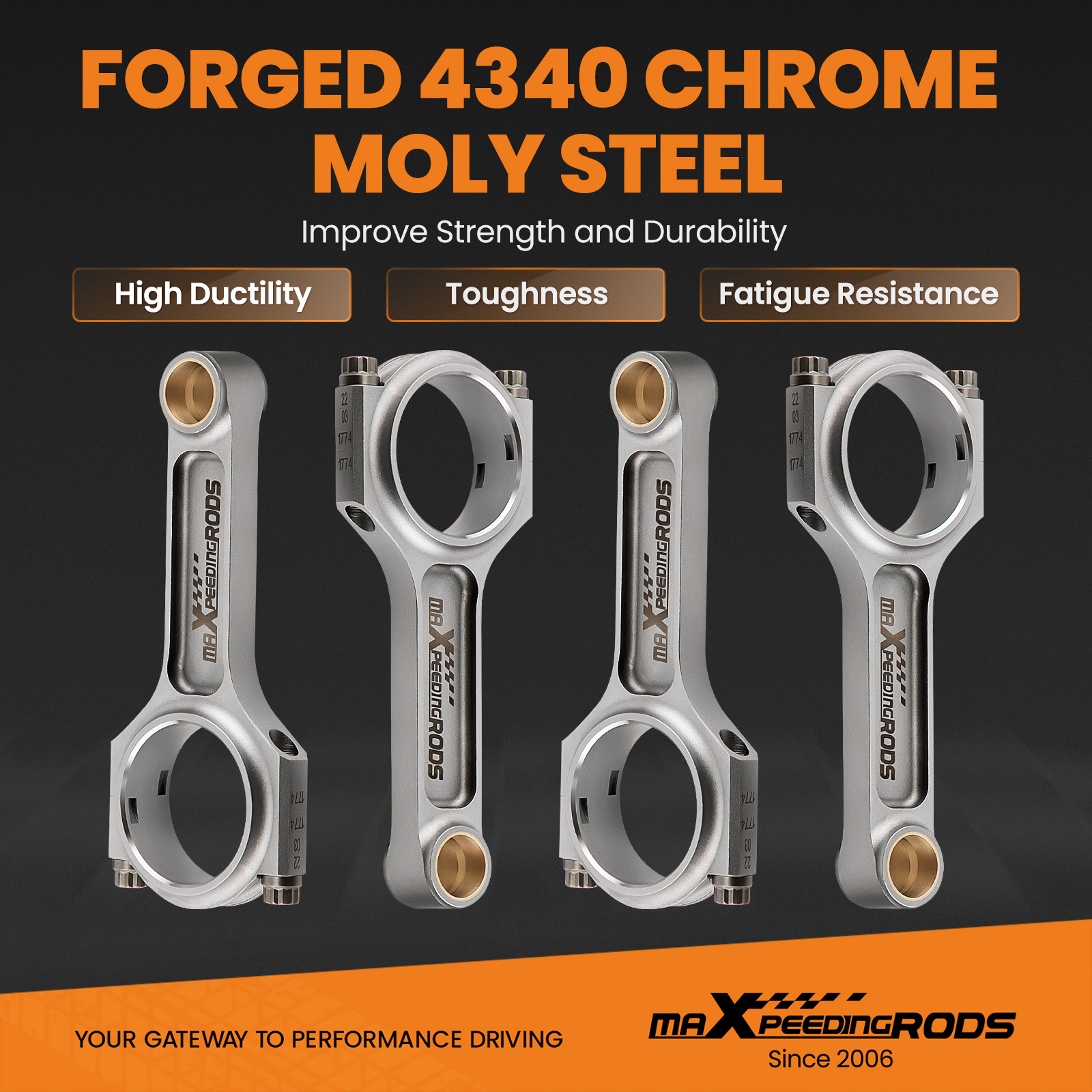

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

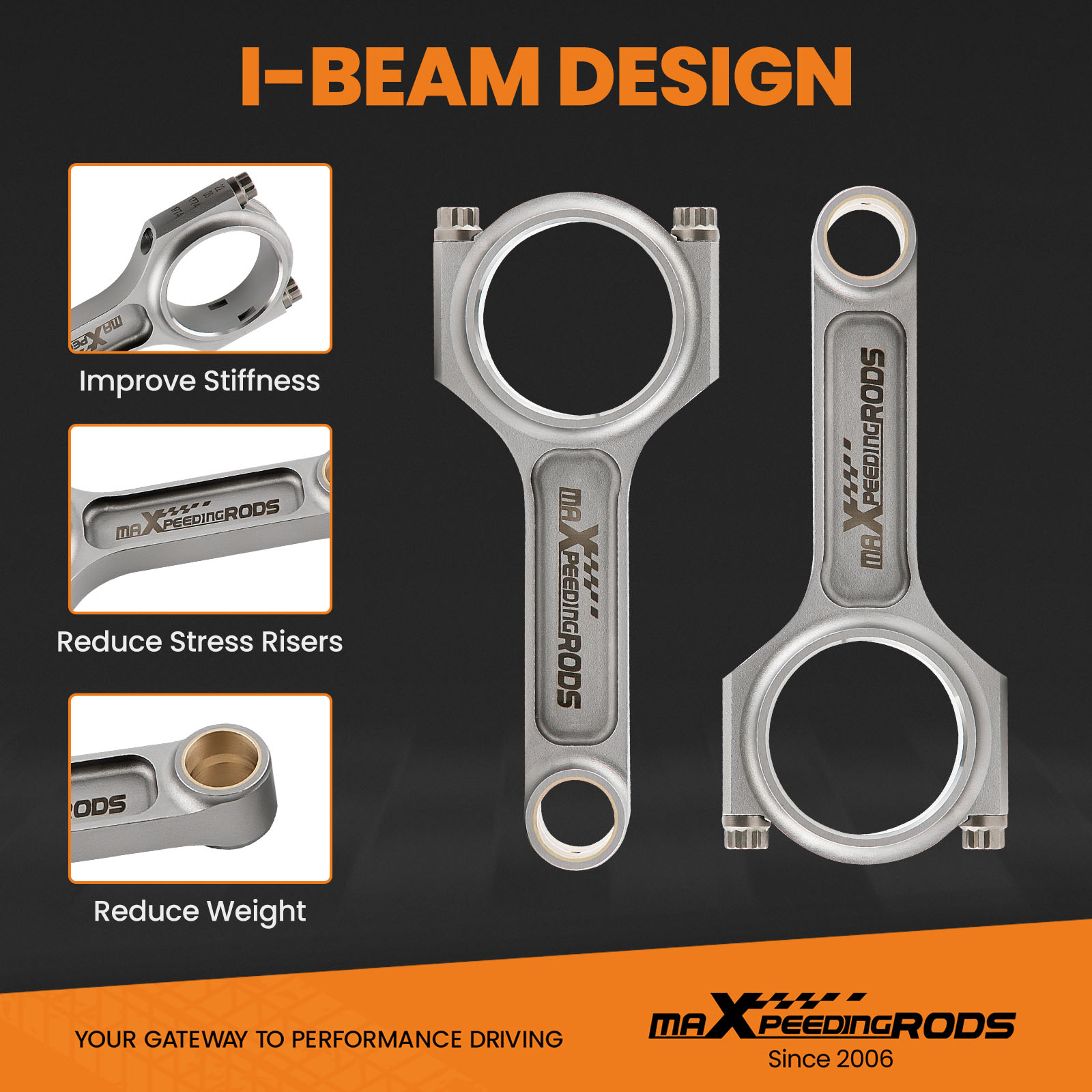

I-Beam Design

I-Beam helps improve stiffness, reduce stress risers and weight.

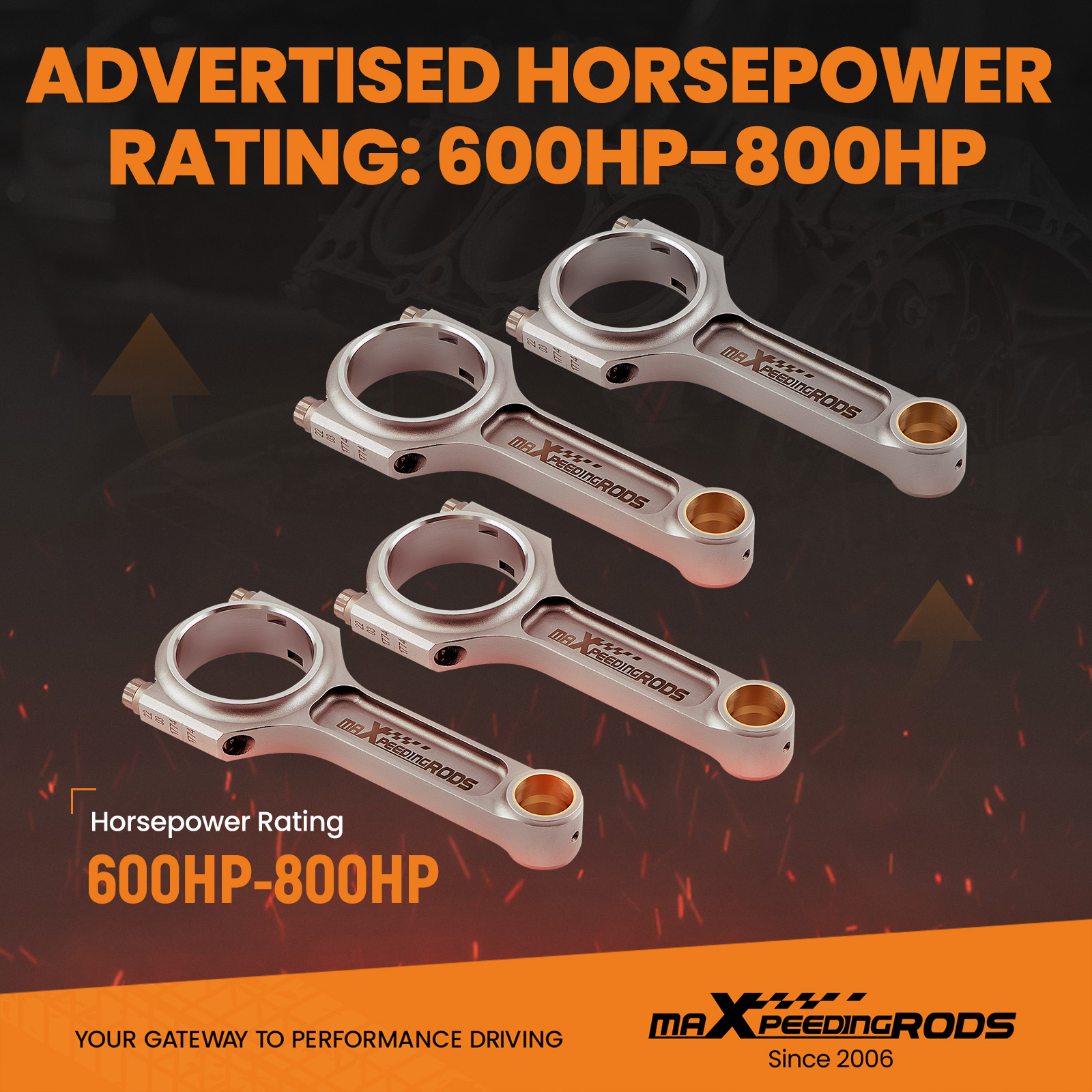

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

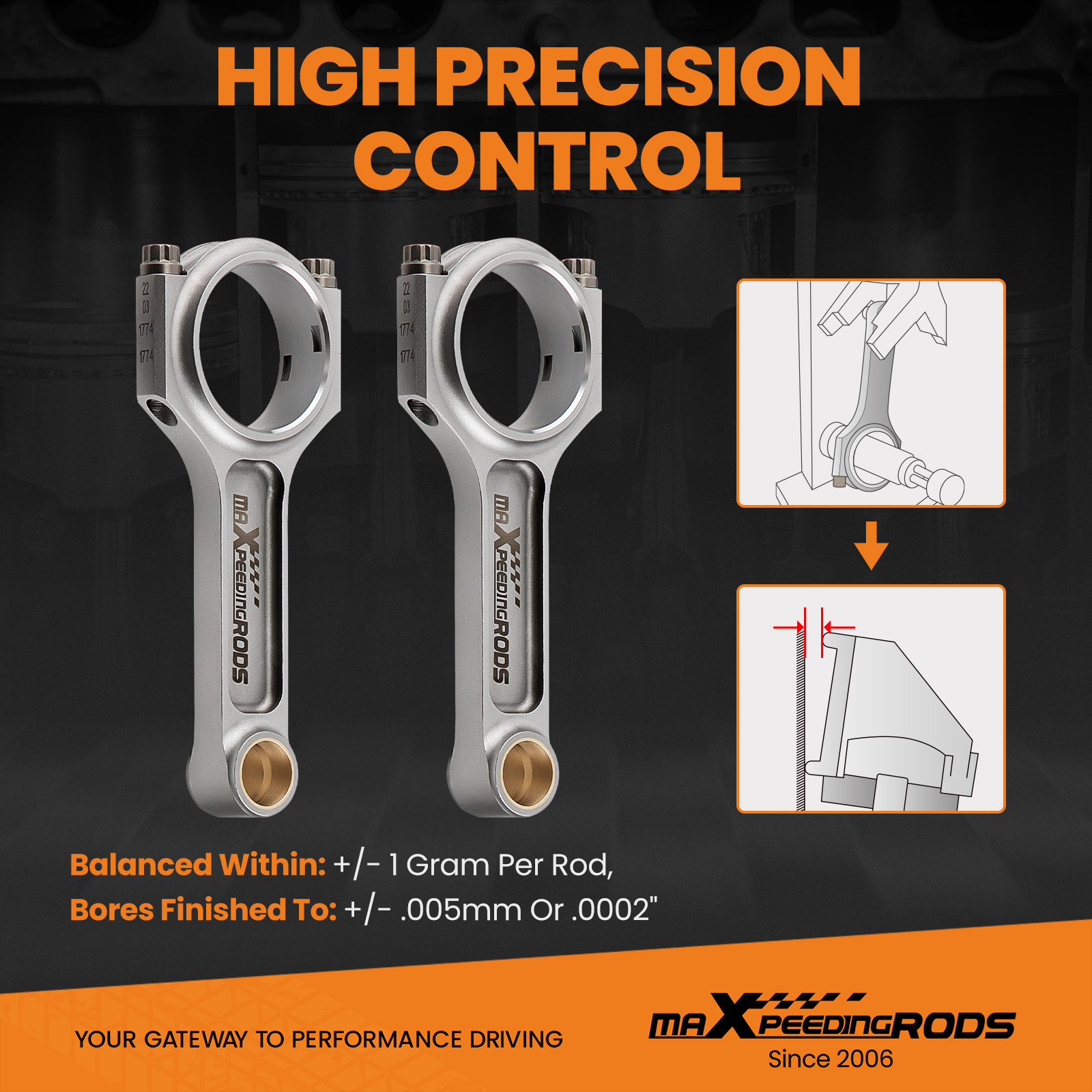

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

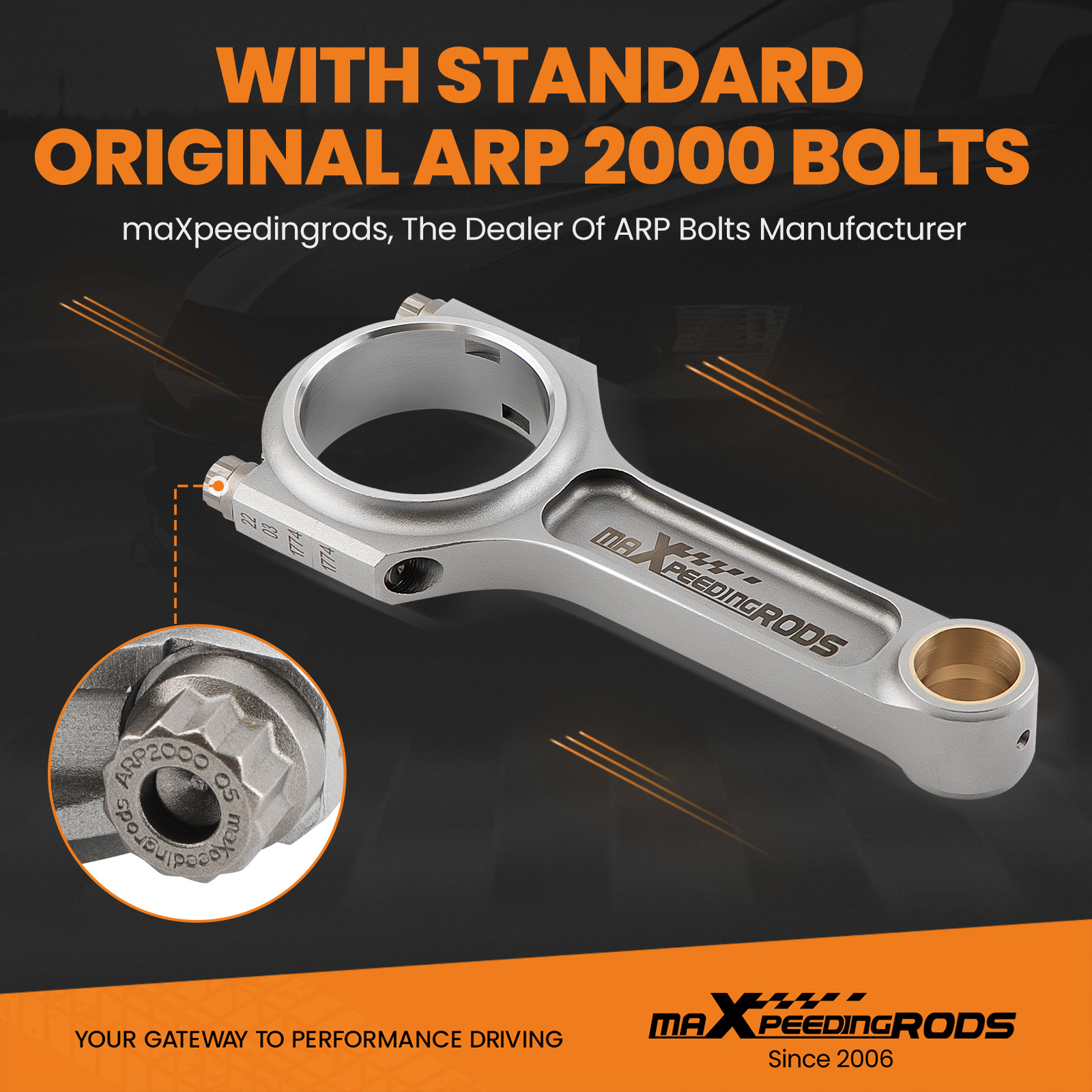

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

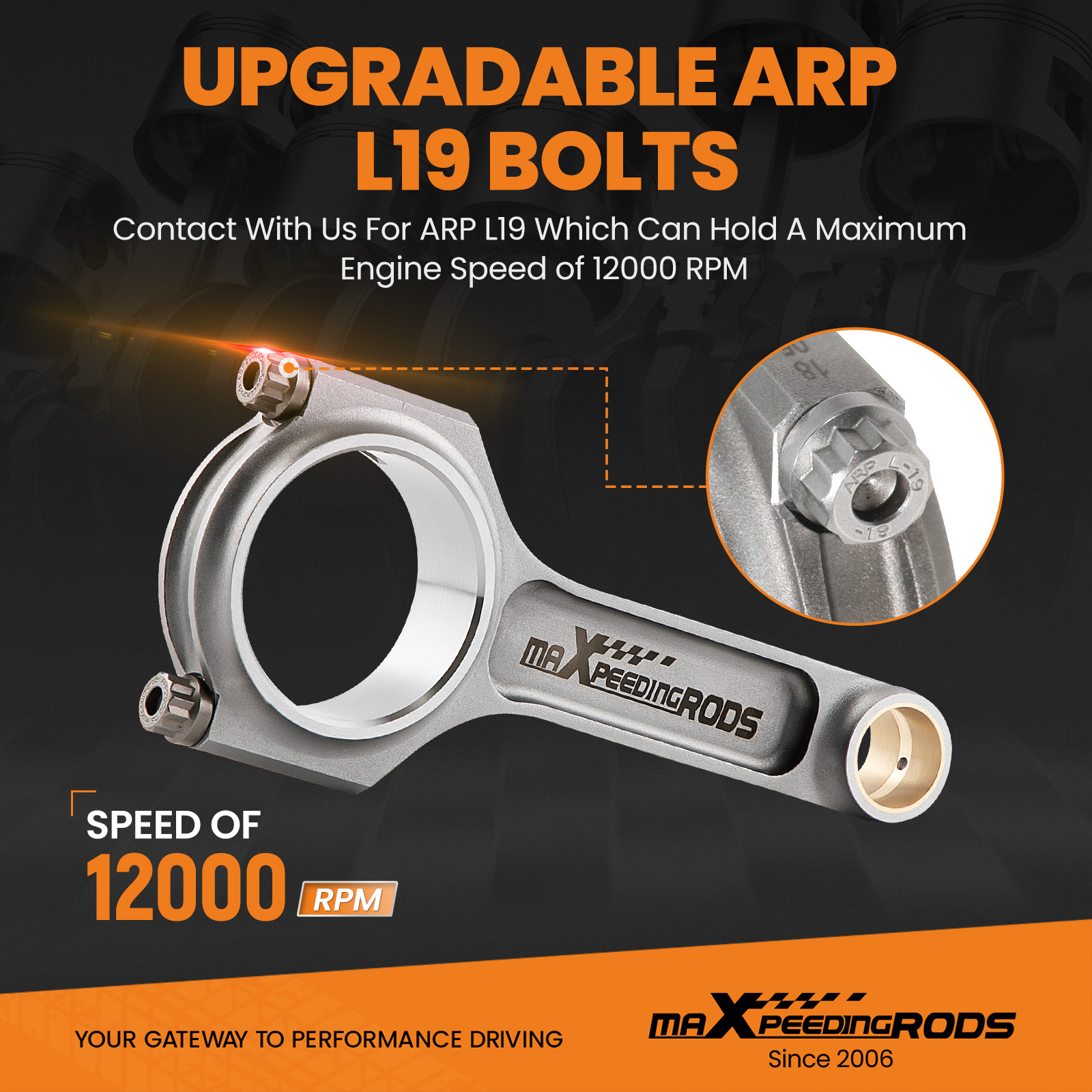

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

FOR ENGINE MODELS	B18A1, B18B1, B18B2, B20B4, B20Z2
For Acura	Integra 1.8L L4 B18A1 1990-1993
For Acura	Integra 1.8L L4 B18B1 1994-2001
For Honda	CR-V 2.0L L4 B20B4 1997-1998
For Honda	CR-V 2.0L L4 B20Z2 1999-2001
Pin Type	Floating Pin Piston

Dimension

Connecting Rod Length Center to Center	137.00mm/5.394in
Big End Bore Diameter	48.00mm/1.890in
Pin End Bore Diameter	21.00mm/0.827in
Big End Width	23.75mm/0.935in
Small End Width	21.00mm/0.827in

Specification

Beam Style: I-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 3/8"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Upgrade Fasteners: ARP L19 (260,000 psi) optional

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 9,000rpm

Packaging

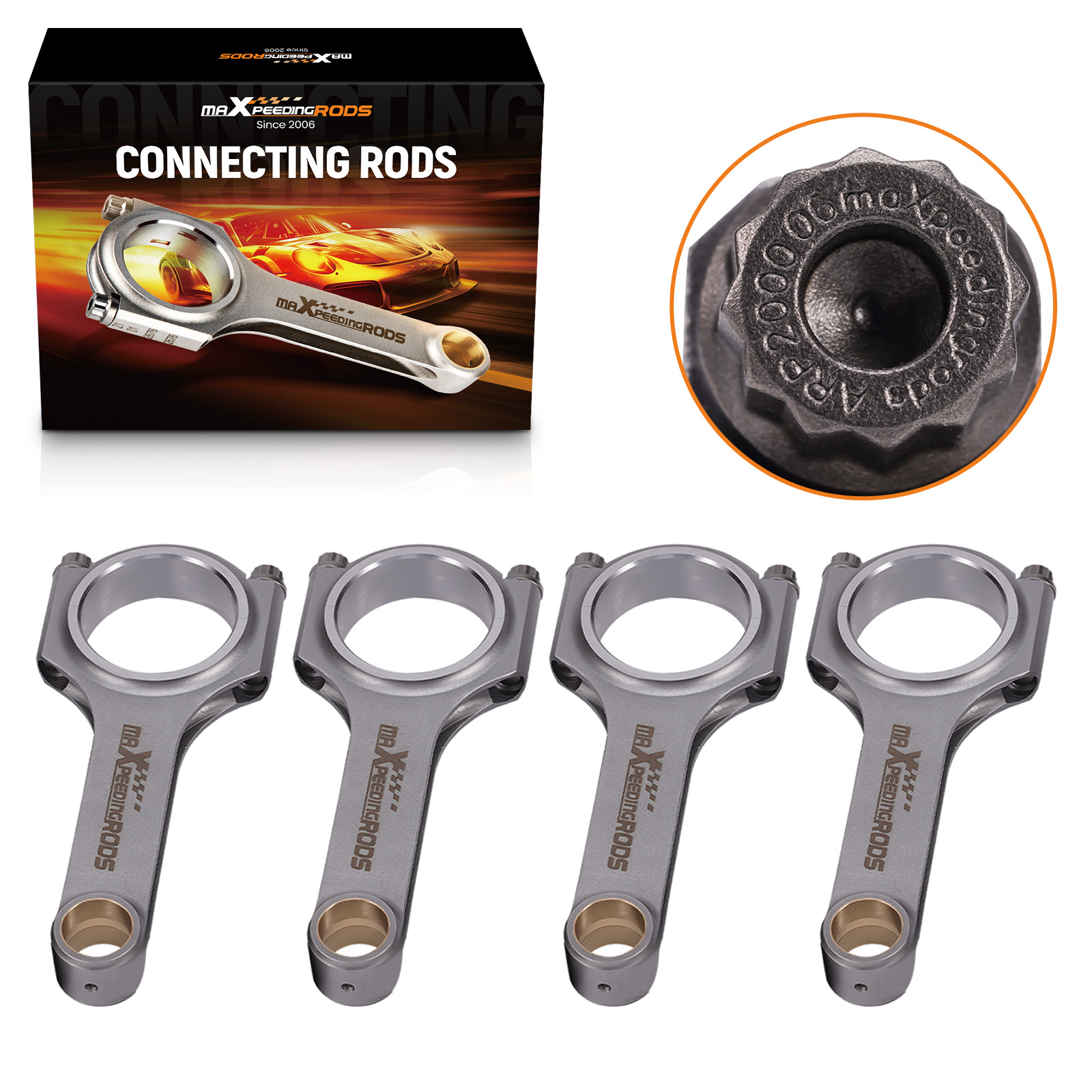

Quantity: Sold as a set of 4

Package Size: 28CM*21CM*10CM

	See Details
Beam Type	H-Beam
Material	Forged 4340 Chrome Moly Steel
Application	For Acura Honda B18A B18B B20B B20Z Engine
C-C Length	137mm / 5.394"
Big end diameter	48mm / 1.890"
Small end diameter	21mm / 0.827"
Big end width	23.75mm / 0.935"
Small end width	21mm / 0.827"
