. Specifications and Features (Specifications)
Name: Forging Furnace
Furnace Body Material: Iron

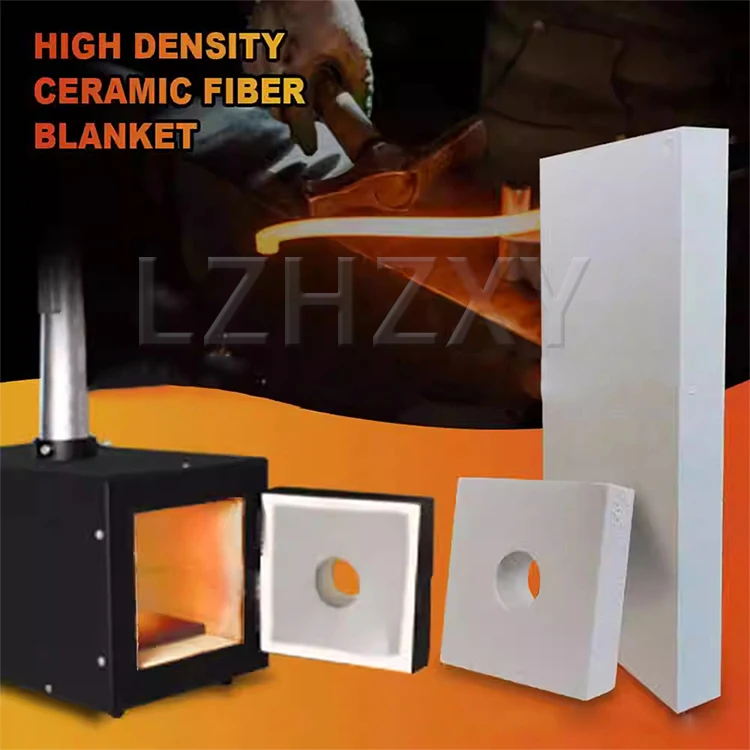

Inner Lining Material: Aluminum Silicate Refractory Board
Inner Lining Thickness: 5 cm
Internal Dimensions: 14 × 14 × 38 cm
Maximum Temperature: 1350°
Product Weight: 13 kg
Packaging Dimensions: 40 × 25 × 20 cm
2. (Advantages)

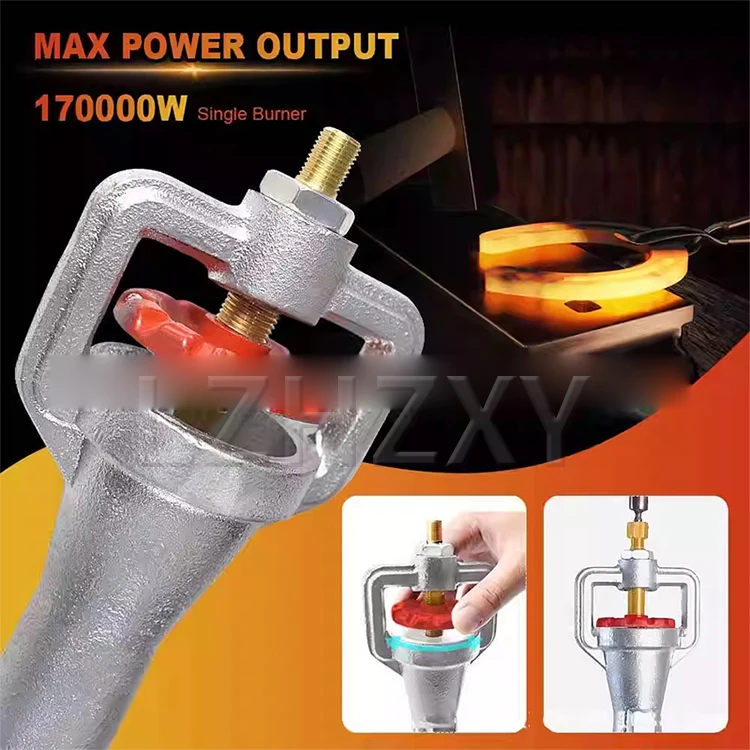

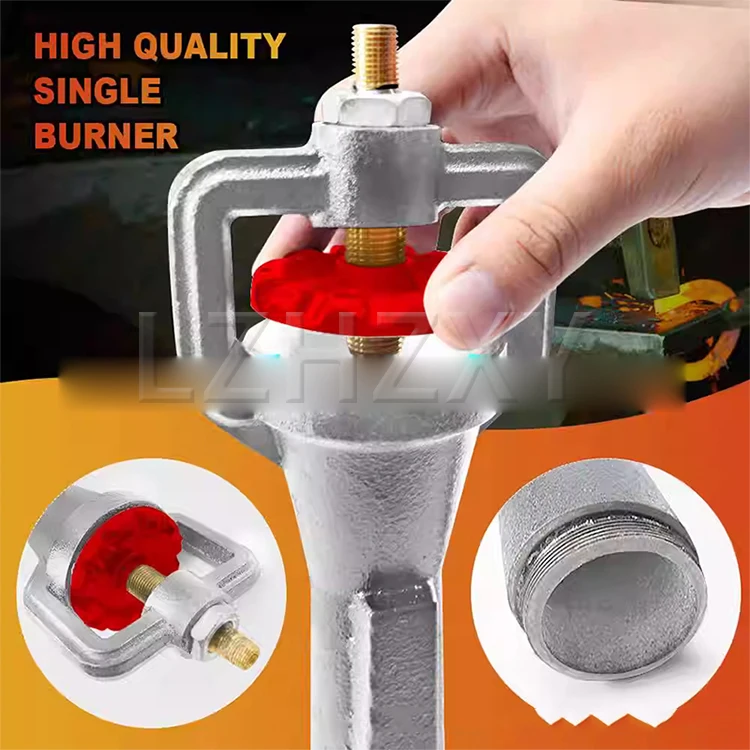

1. Equipped with a burner rated at 0.8–17,000 W.
2. Adjustable air intake valve to control combustion power.
3. Lining dimensions: 14 × 14 × 30 cm.
4. Operates at a pressure of 1.5 MPa. It takes only 10 minutes to burn through a φ6 cm iron rod.
5. Can be used for metal forging, melting metals with a melting point below 1,300°C, quenching, annealing, and heat treatment.
3. Details
(1) Equipped with a burner rated at 0.8–50,000 W/h, achieving a combustion efficiency of 99%. Fuel is completely burned.
(2) The air intake valve is adjustable to control combustion power. The valve can be adjusted according to different pressures to ensure complete combustion of the packaged gas.

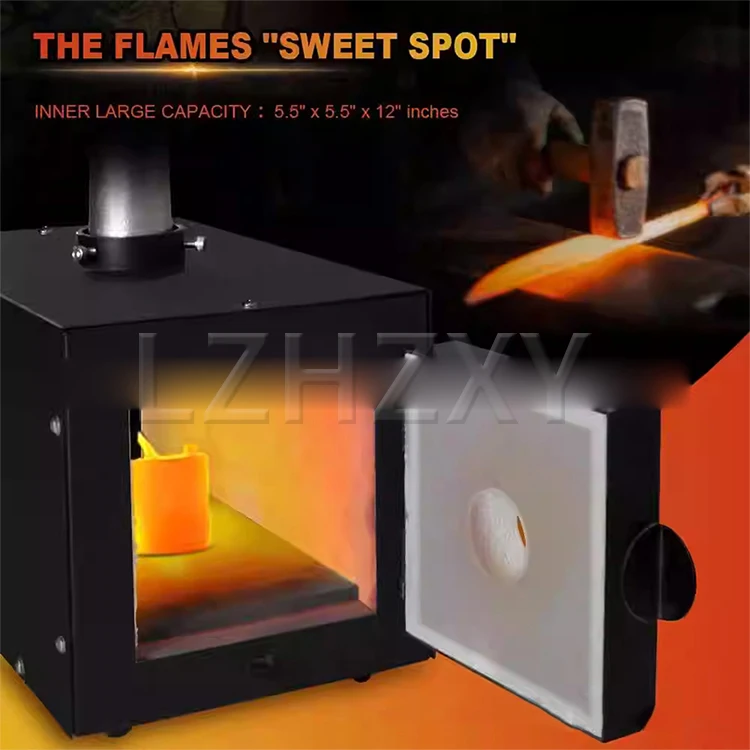

(3) The inner chamber measures 14 × 14 × 30 cm. With its spacious interior, many components are forged.
(4) Combustion operates at a pressure of 1.5 MPa. It takes only 10 minutes to burn through a φ6 cm iron rod, ensuring high operational efficiency.
(5) It can be used for metal forging, melting metals with a melting point below 1,300 degrees Celsius, quenching, annealing, and heat treatment.



Pressure Relief Valve | No Pressure Relief Valve

5. Application Areas (Uses)
It can be used for metal forging, melting metals with a melting point below 1,300 degrees Celsius, quenching, annealing, and heat treatment.
6. Precautions
1. Before each use, inspect the burner for cracks or fissures. If any are found, stop using it immediately.
2. Ignition procedure: Install the burner, connect the air hose, and open the gas inlet valve 25%. Ignite the fuel in the furnace, then open the natural gas (LPG, propane) inlet valve. Once the flame is lit, fully open the air valve.
3. After extinguishing the flame, do not use liquids to rapidly cool the burner.
4. Observe safety precautions during use. Wear personal protective equipment such as insulated gloves and an insulated helmet.
5. Use in an open area, ensuring there are no flammable materials within 10 meters. Keep a fire extinguisher within easy reach.
All products come with a one-year warranty and lifetime technical support.
7. Product Images
