Attention

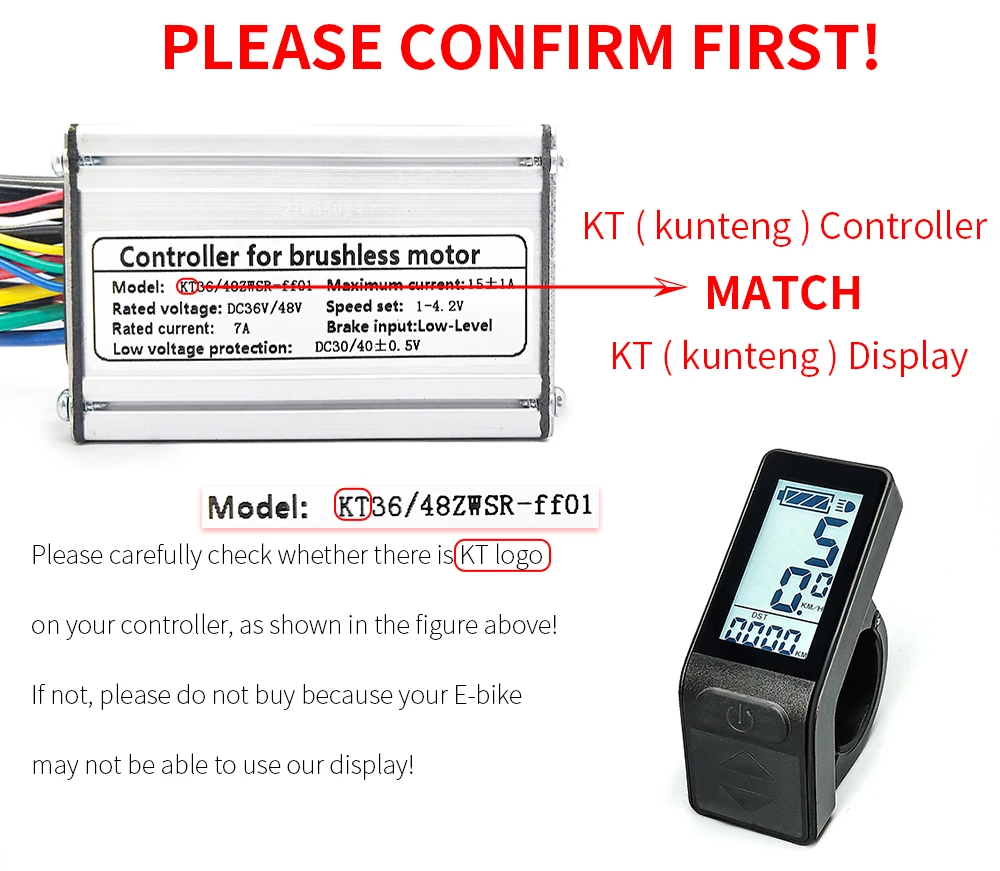

You must make sure that your controller is a KT controller. Because this KT LCD4 display is only compatible with the Kunteng controller. They have the same communication protocol.

Scope

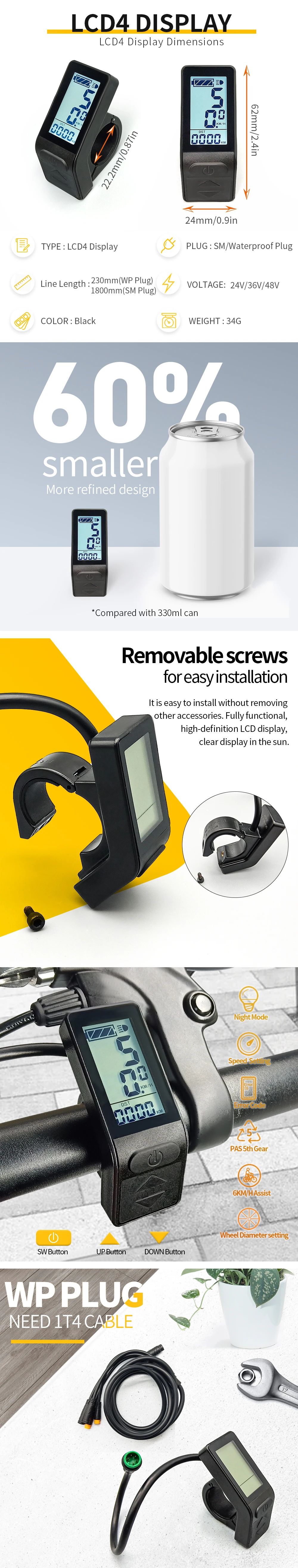

Type: KT-LCD4 display

Voltage: 24V, 36V, 48V

Colour: Black

Weight: 200g

Grip size: Φ22.2mm

Display line length: SM connector, about 180cm/WP connector, about 25cm

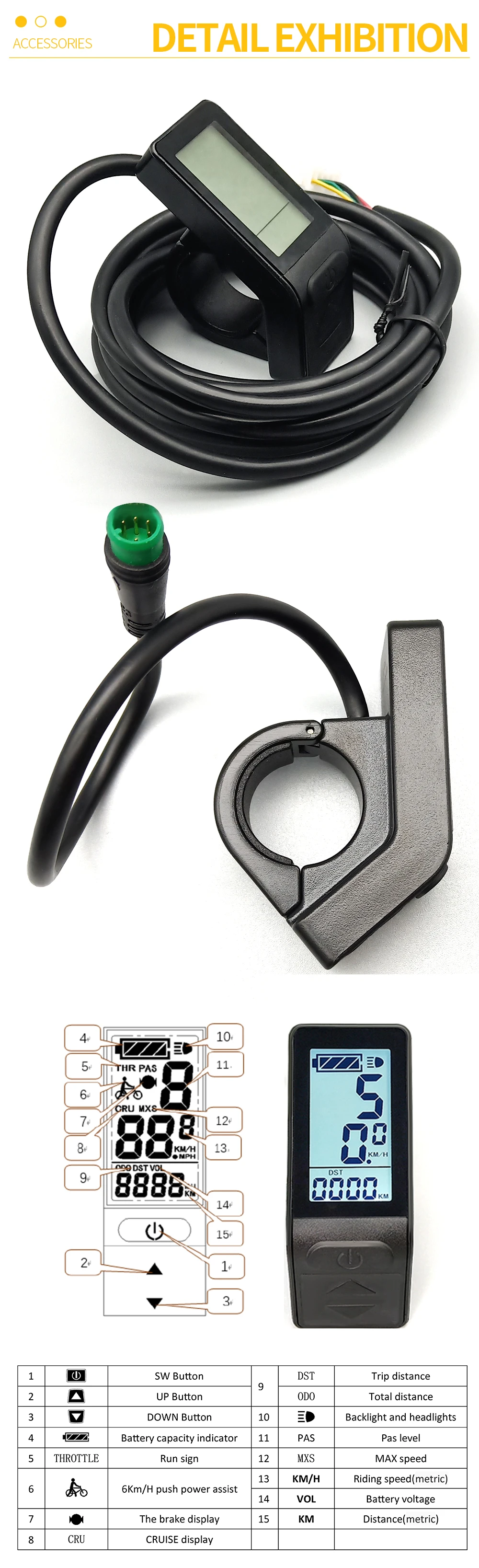

Function

1. Travel time display (single travel time (TM) and total travel time (TTM) display);

2. Driving speed display (real-time speed (KM/H or MPH), single maximum speed (MXS) and single average speed (AVS) display;

3. Travel distance display (single travel distance (DST) and total travel distance (ODO) display;

4. Turn on the throttle display (THROTTLE);

5. Power-assisted start (PAS) display;

6. Assist ratio (or throttle) gear (ASSIST) switch;

7.6KM/H power assisted push function;

8. Cruise function (CRUISE);

9. Bluetooth function;

10. Battery capacity indicator;

11. Real-time battery voltage (VOL) display;

12. Brake display;

13. Turn on the backlight and lights;

14. Data cleaning;

15. Fault code display;

16. User parameter setting

17.24V, 36V, 48V power supply voltage can be automatically identified and compatible.

Packing List

1.KT LCD4 display

2. Display the manual
