Description:

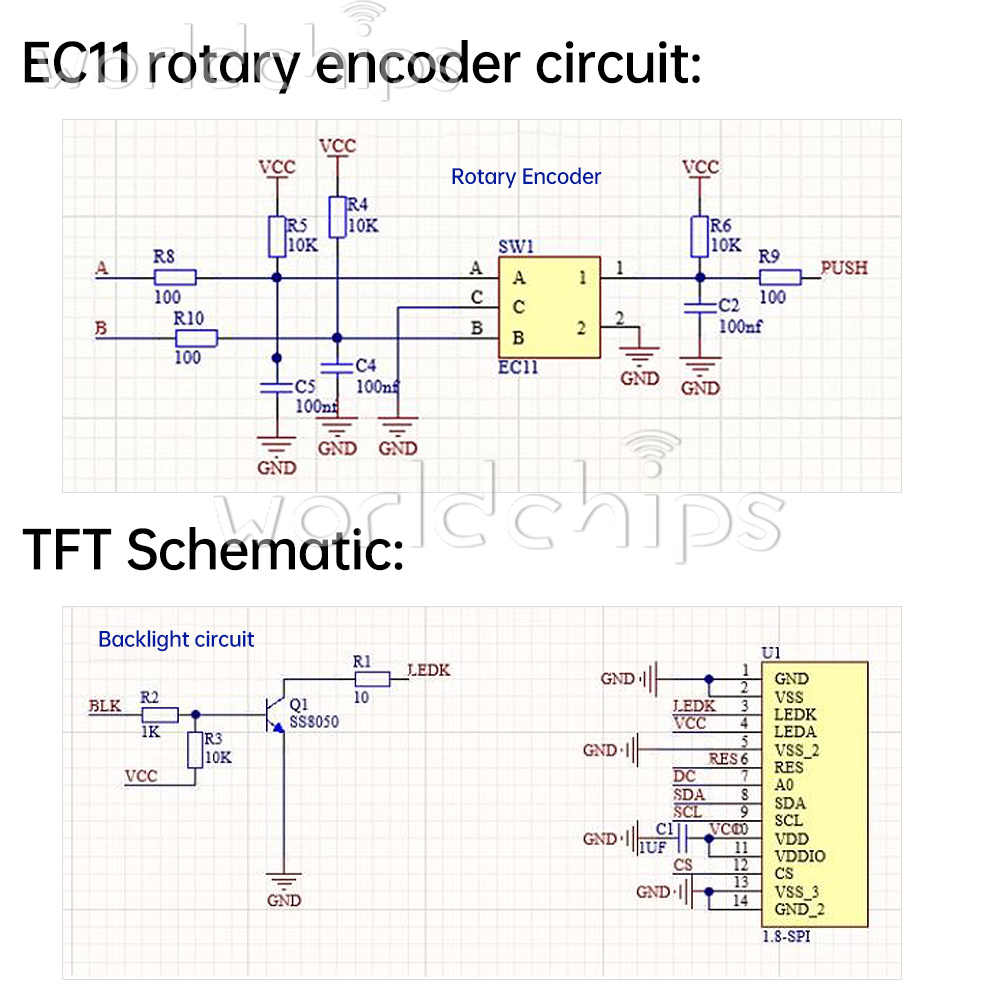

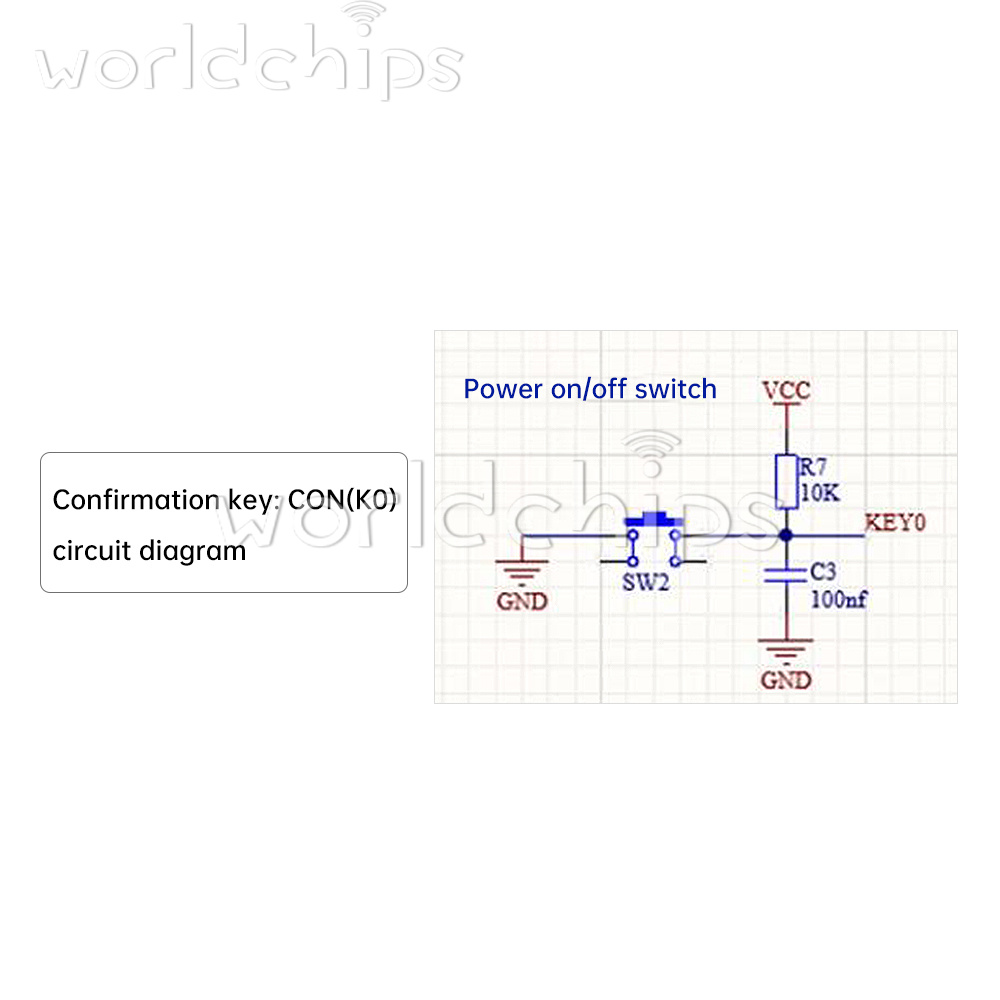

The module is a combination of 1.8 inch/2.4 inch SPI interface display module and EC11 rotary encoder, the two are not related, just put on a board, made into an integrated module, with an additional key, the key interface is also independent, you can choose to use it according to the actual use of the situation. All-in-one design, more simple and beautiful, convenient DIY.



Features:
1.All-in-one design: display and encoder are integrated, simple and beautiful, convenient for DIY
2.Multiple size options: 1.8-inch and 2.4-inch TFT display, to meet different needs
3.High-resolution display: 1.8-inch 128x160, 2.4-inch 320x240 resolution, clear and delicate
4.SPI interface support: SPI interface, strong compatibility, easy to connect and program
5.Encoder with switch: EC11 rotary encoder, 20 pulses 20 positioning, with switch function

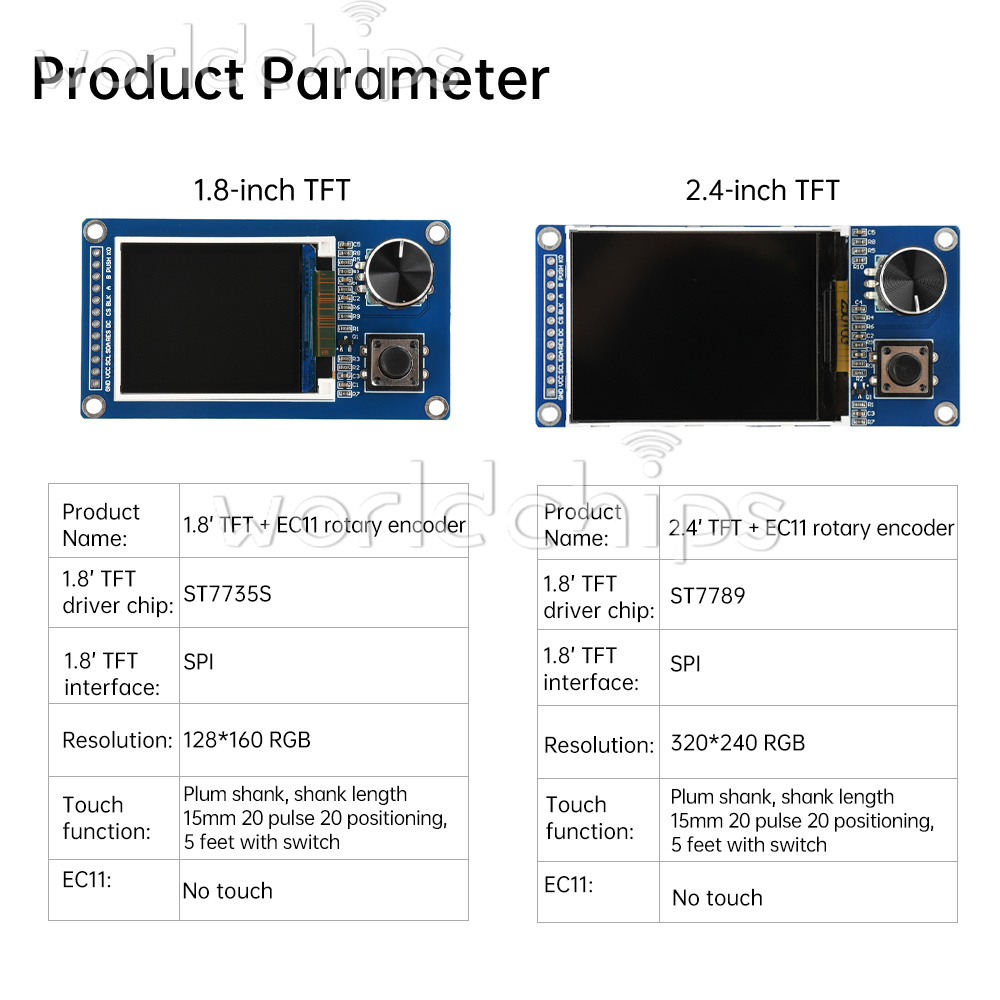

Parameter:
Product name: 1.8/2.4 inch TFT+EC11 rotary encoder

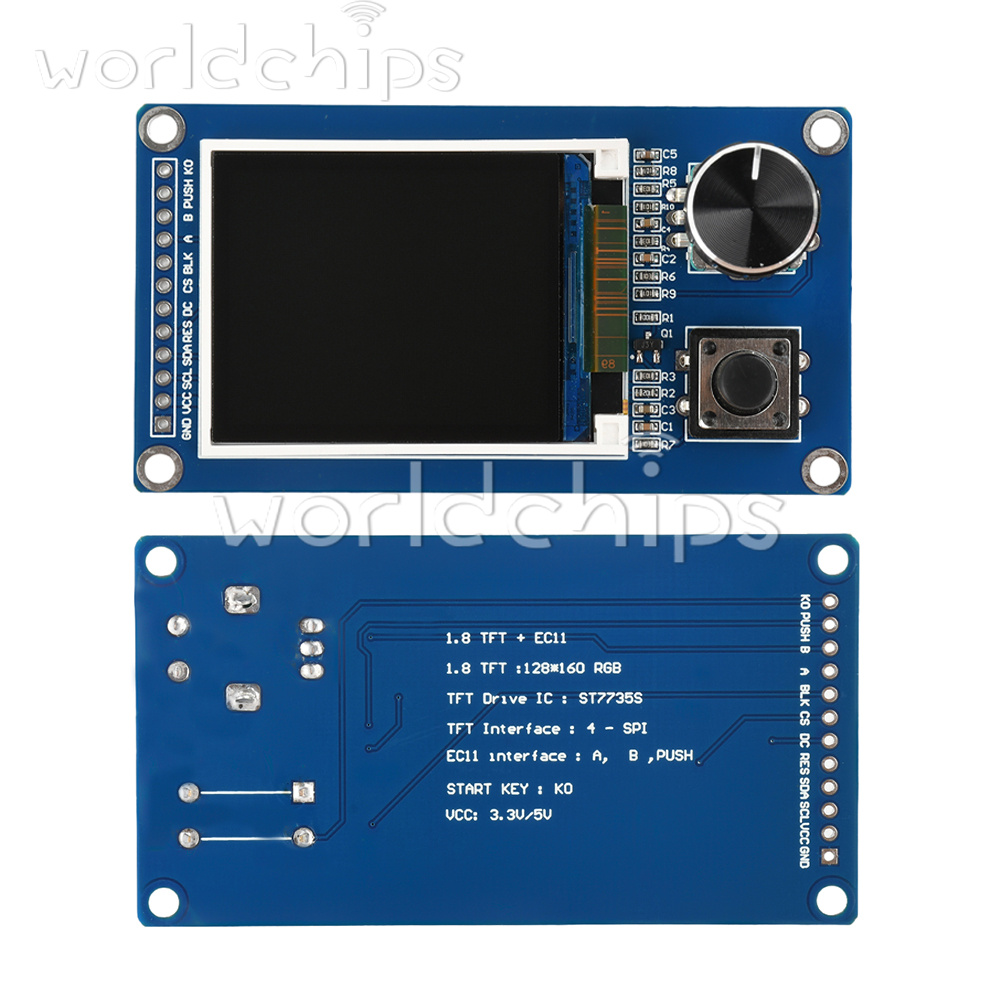

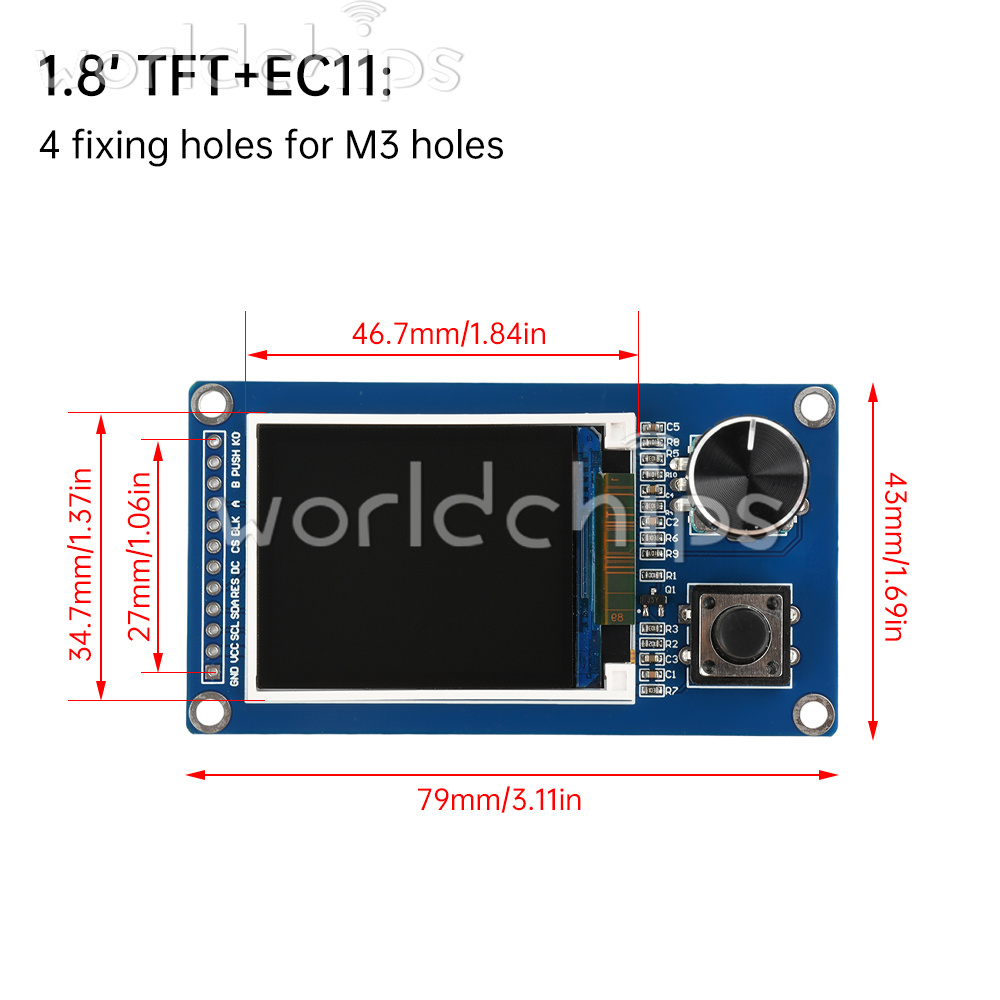

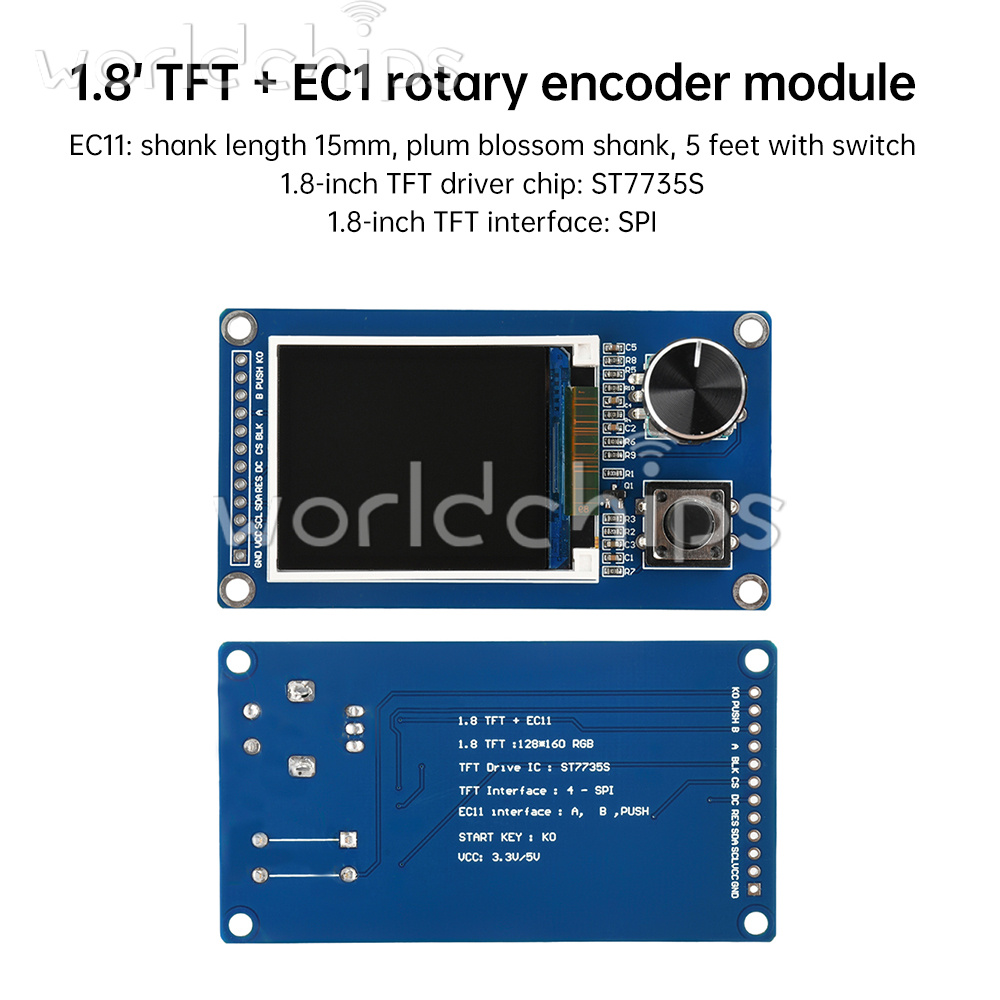

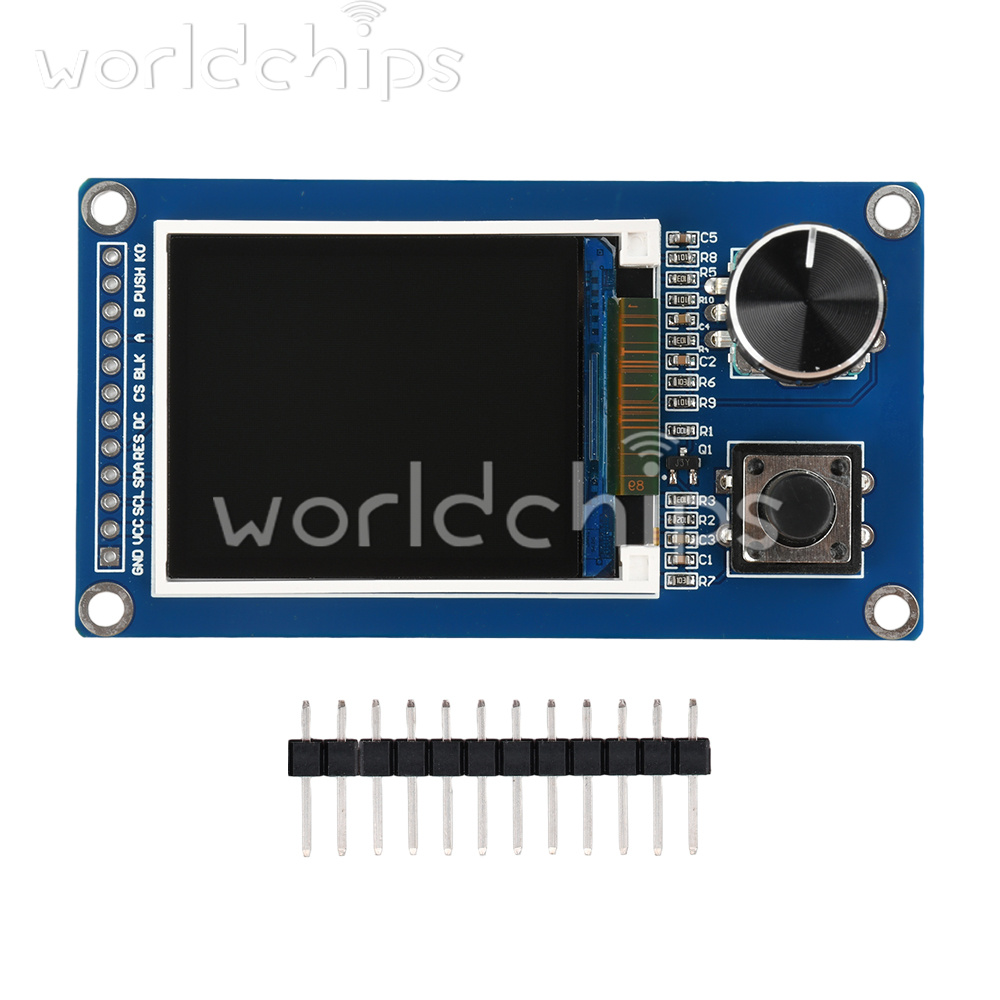

1.8 inch TFT+EC11 rotary encoder:
1.8 inch TFT driver chip: ST7735S
1.8 inch TFT interface: SPI
Resolution: 128*160 RGB
EC11: plum blossom shank, shank length 15mm, 20 pulses 20 positioning, 5 feet with a switch
Touch function: without touch

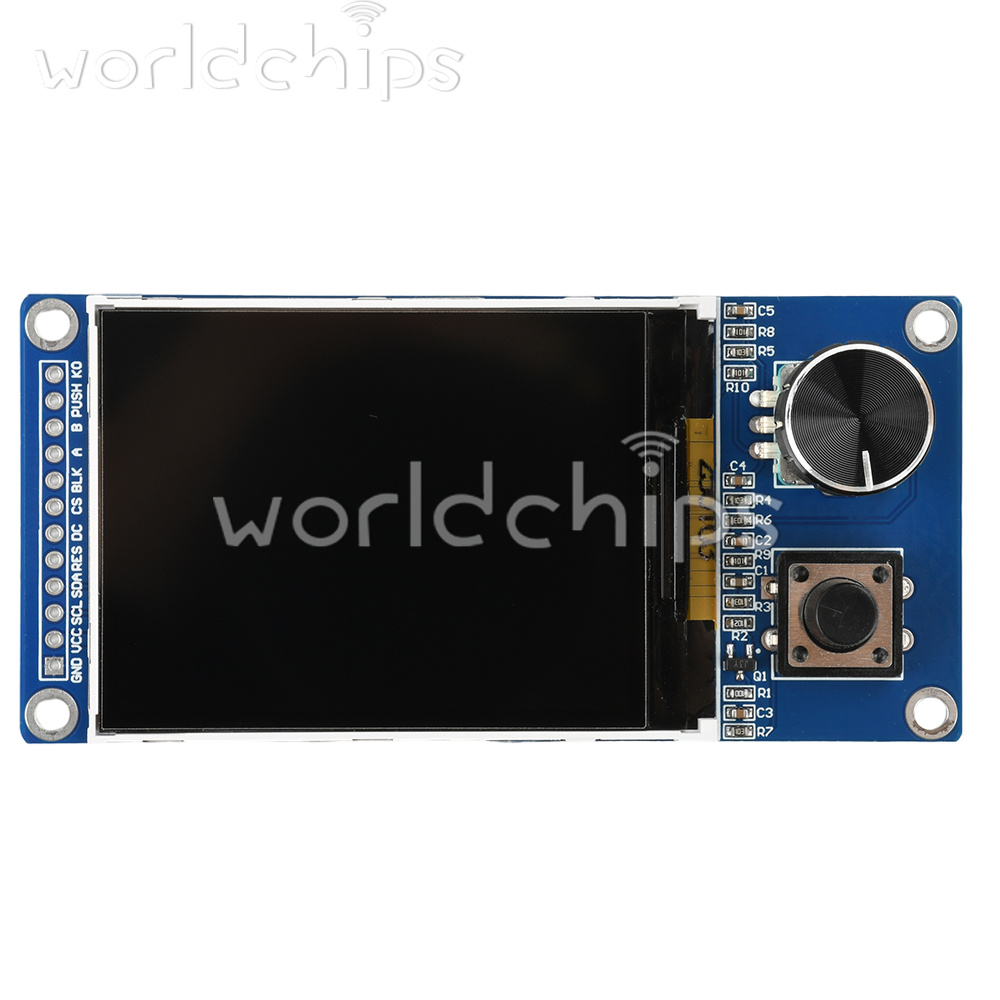

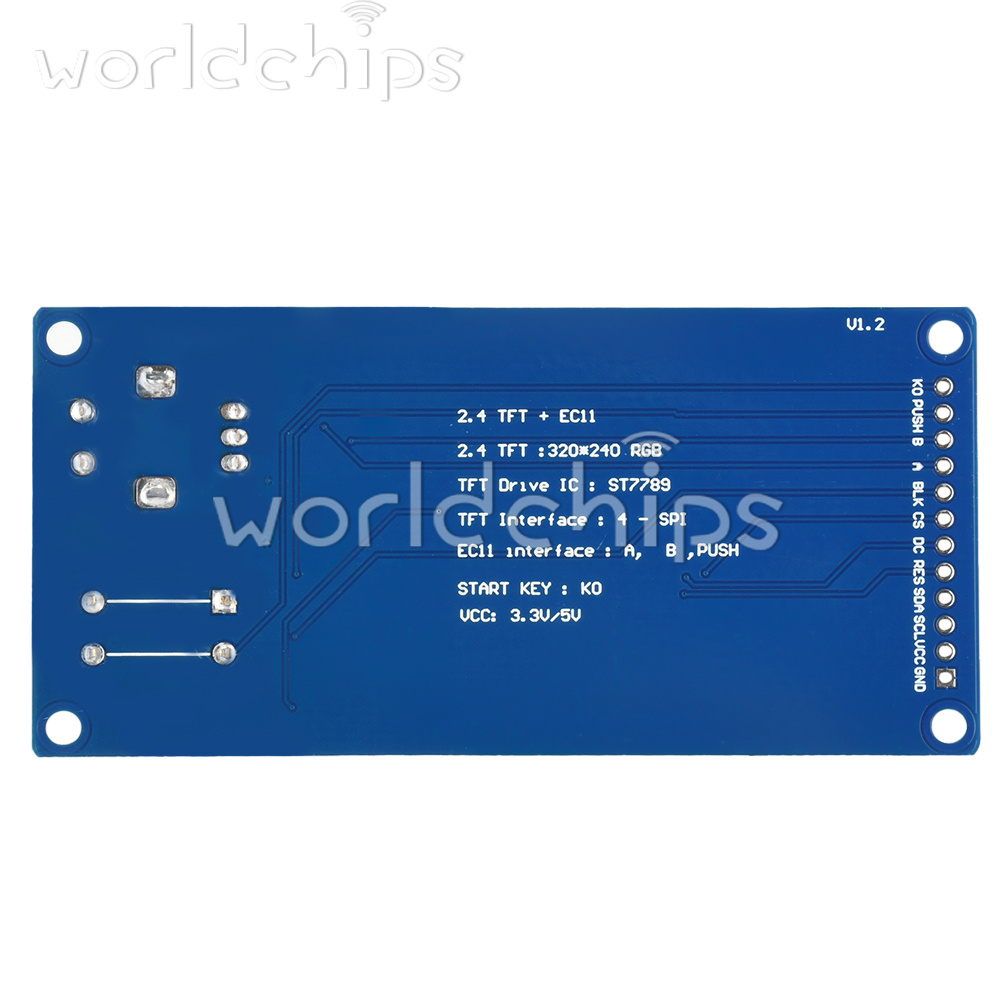

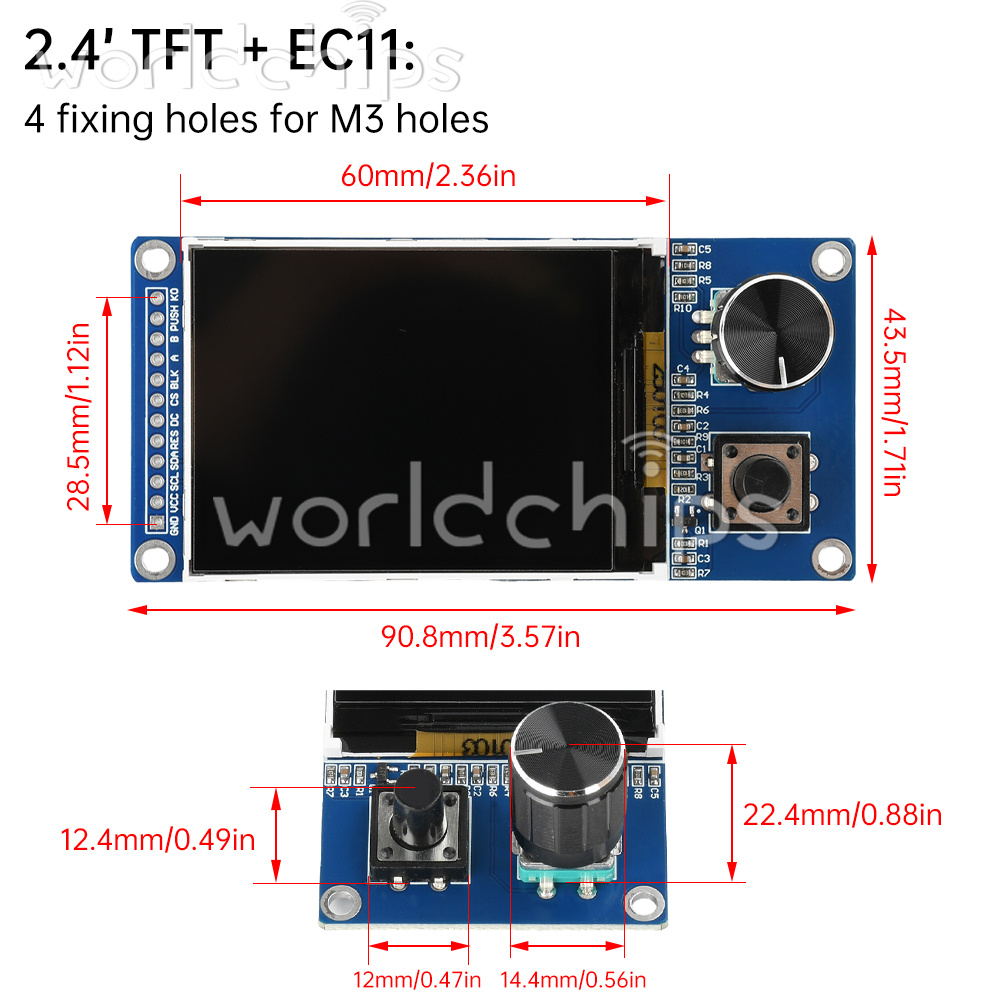

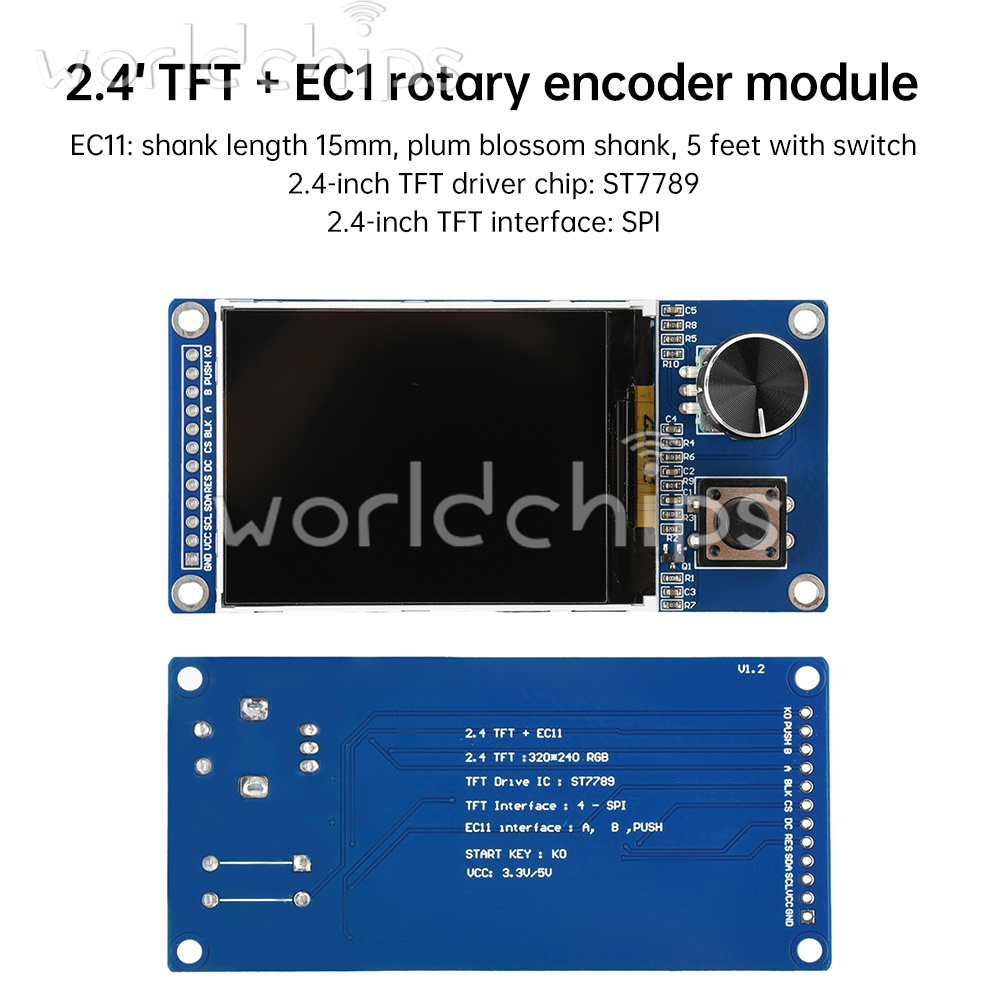

2.4 inch TFT + EC11 rotary encoder:
2.4 inch TFT driver chip: ST7789
2.4 inch TFT interface: SPI
Resolution: 320*240 RGB
EC11: plum blossom handle, handle length 15mm, 20 pulses 20 positioning, 5 feet with switch
Touch function: without touch



Package include:
Module x 1
Pin x 1
