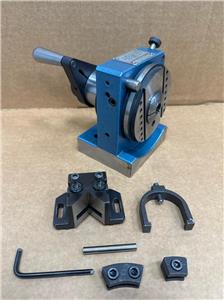

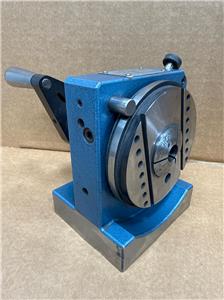

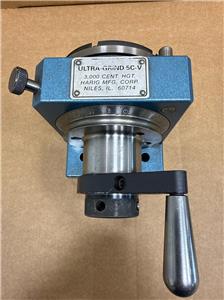

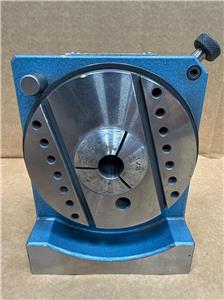

HARIG Ultra-Grind 5C-V Spin Indexer, enhanced version of the Grind-All No. 1

INV 8831

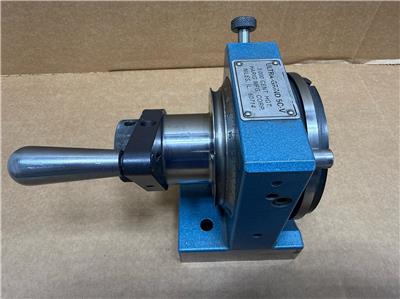

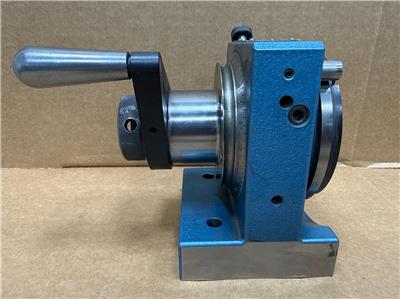

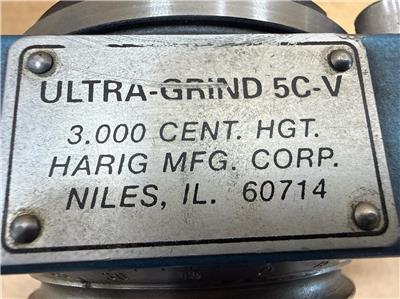

HARIG Ultra-Grind 5C-V Spin Indexer

3” Center Height

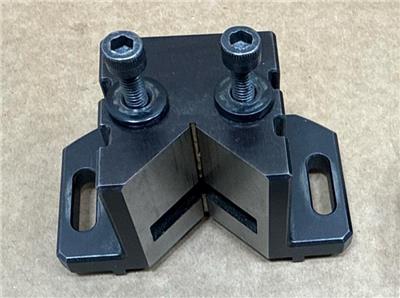

V-Block Fixture

24 division index plate with precision index pin locks in every 15° to ±10 seconds.

360° graduated dial and purge system.

Stop pin and adjustable stops with sine arrangement for other angles plus handy lock (triple positioning, arcing and sine setting system).

Includes 1/2" 5C collet and carrying case.

Harig's enhanced version of the Grind-All No. 1; this ultra-precise combination 5C collet/v-block fixture is the most versatile unit in the Harig line. Quick, easy changeover from collet to v-block while maintaining "tenths" accuracy, the Ultra-Grind is the toolroom solution for grinding punches, core pins, and EDM electrodes.

Also used for precision indexing, inspecting, milling, boring, and radius dressing. Lube and purge port permits additional EDM applications, while advanced bearing is ideal for motorization. Complete line of accessories complements the Ultra-Grind.

When a precision combination 5C collet/v-block fixture is needed, the Ultra-Grind is up to any toolroom task. Reliability backed by Harig's trademark service.

Features:

Hardened and ground tool steel with solid one piece construction

Preloaded ball and race design provides highest accuracy bearing, ideal for motorization

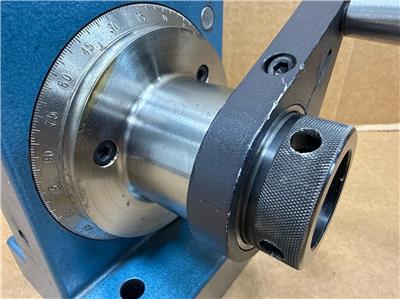

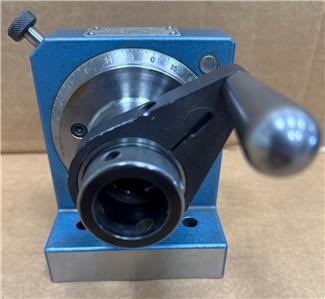

360 degree graduated dial for convenience

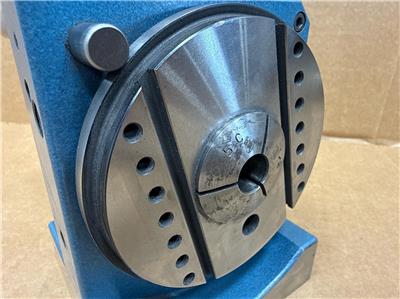

24 division index plate with precision index pin locks in every 15 degrees to +/- 10 seconds

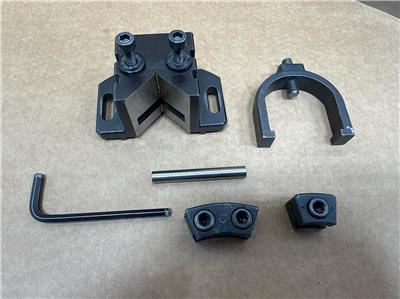

2 adjustable stops work with stop pin to set accurate angles between index locations

Locking screw locks spindle at any position between indexes

U-Clamp and screw secure piece part in v-block

Removable v-block makes accurate 5C collet use easy

Lube and purge port permits more EDM applications

Narrow profile maximizes work area under grinding wheel

Mounting holes on base of unit for use with Harig accessories

Lightest fixture of its kind for easy handling

1/2" 5C collet included

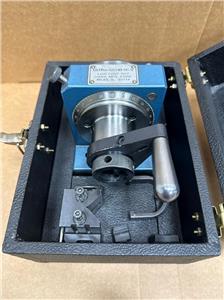

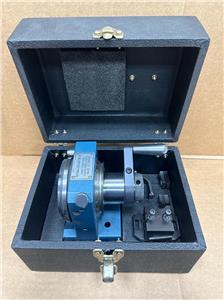

Includes carrying case for protective, dust-free storage

Full repair service and replacement parts available

Specifications:

V-Block Capacity: 1-1/4"

Collet: 5C up to 1"

Center Height: 3.000"

Through Hole: 1-3/16"

Graduation: 360 degree

24 division indexing ± 10 seconds

Purge Port: 1/8 NPT tapped every port

Spindle Run-out: 0.00005

V-Block within 0.0001

Square and parallel to 0.0001

Weight: 14 lbs.
