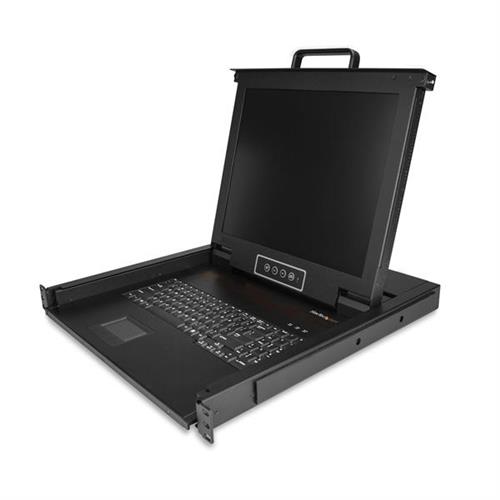

StarTech Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

---

StarTech Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF, 43.2 cm (17"), 1280 x 1024 pixels, 250 cd/m, 1000:1, 170, 16

• FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
• VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
• 1U height
• 99 key full keyboard with numeric keypad + Trackpad
• Supports VGA and USB

KVM Console - 1U - VGA - 1280x1024 - Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

1 VGA KVM Cable

Mounting Rails

M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech 2-year warranty and free lifetime technical support.

The StarTech Advantage

- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height

Feature	Value
Brand	Startech
Manufacturer Product Type	Startech Rack Consoles
Product Type	Rack Consoles
Collection Model	Startech Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully F
Response Time	5 ms
Material	Steel
Display diagonal	17"
Display Resolution	1280 x 1024 pixels
Year	2018
Compatible Brand	Universal
MPN	RKCONS1701
Display type	LCD
Keyboard port type	USB
Contrast ratio (typical)	1000:1
Cable Length	1.82 m
Rack mounting	Yes
IP control	No
Certification	CE, FCC, PSE, UL
Included power plug types	ANZ, EU, JP, NA, UK
Quantity per master (outer) case	1 pc(s)
Master (outer) case height	18.5 cm
Master (outer) case height	185 mm
Master (outer) case height	196 mm
Master (outer) case length	624 mm
Master (outer) case length	76.5 cm
Master (outer) case length	765 mm
Master (outer) case width	61.5 cm
Master (outer) case width	615 mm
Package height	185 mm
Package weight	17.1 kg
Package height	190 mm
Package height	196 mm
Mean time between failures (MTBF)	50000 h
Package depth	765 mm
Package width	615 mm
Package width	781 mm
Compliance certificates	RoHS
Daisy chain	No
Key lock	No
Master (outer) case width	781 mm
Mounting brackets included	Yes
Number of screws	8
Pixel Pitch	0.264 x 0.264 mm
Rack mount kit	Yes
Sustainability certificates	RoHS
Power consumption (typical)	13 W
Weight	11.6 kg
Weight	11.7 kg
Cage nuts included	Yes
Input current	1.5 A
Number of cage nuts	8
Depth	42.5 mm
LED indicators	Power, Status
Included power plug types	ANZ,EU,JP,NA,UK
Colour depth	8 bit
Operating relative humidity (H-H)	10 - 80%
Package depth	624 mm
Display brightness	250 cd/m
Storage temperature (T-T)	-20 - 60 C
Mounting depth (max)	79 cm
Mounting depth (min)	45 cm
Operating temperature (T-T)	0 - 40 C
Screws included	Yes
Mouse port type	USB
AC adapter input voltage	100 - 240 V
Height	471 mm
Width	448 mm
Products per master (outer) case	1 pc(s)
Quick installation guide	Yes
Rack capacity	1U
Cables included	KVM
Display number of colours	16.78 million colors
Display number of colours	16.78 million colours
Viewing angle, vertical	160
Viewing angle, horizontal	170
LED indicators	Power,Status
Aspect Ratio	5:4
Video port type	VGA

Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

StarTech Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS1701)
