4x H-Beam Connecting Rods for Suzuki Swift GTi 1300 G13B 1.3L engine AA33S 120mm

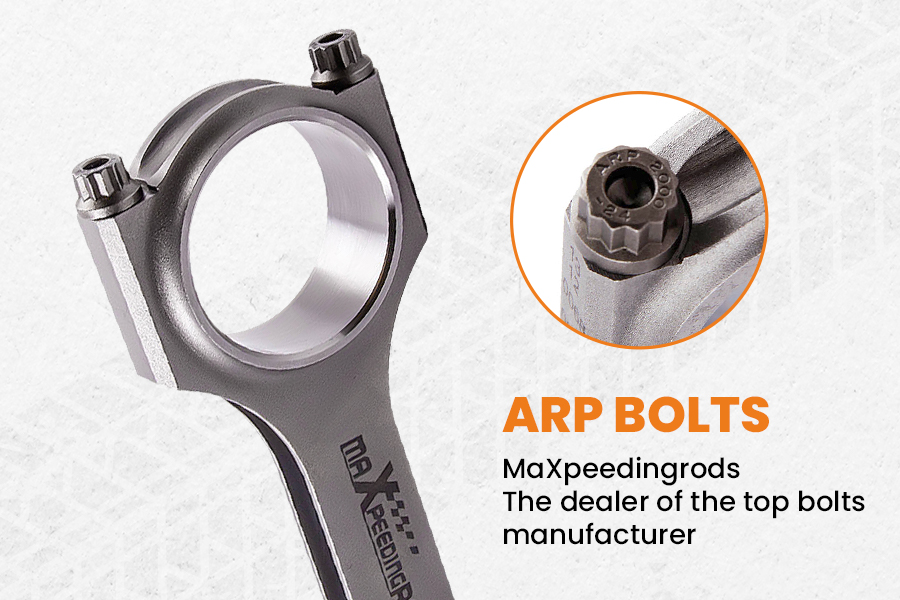

ARP Bolts



The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

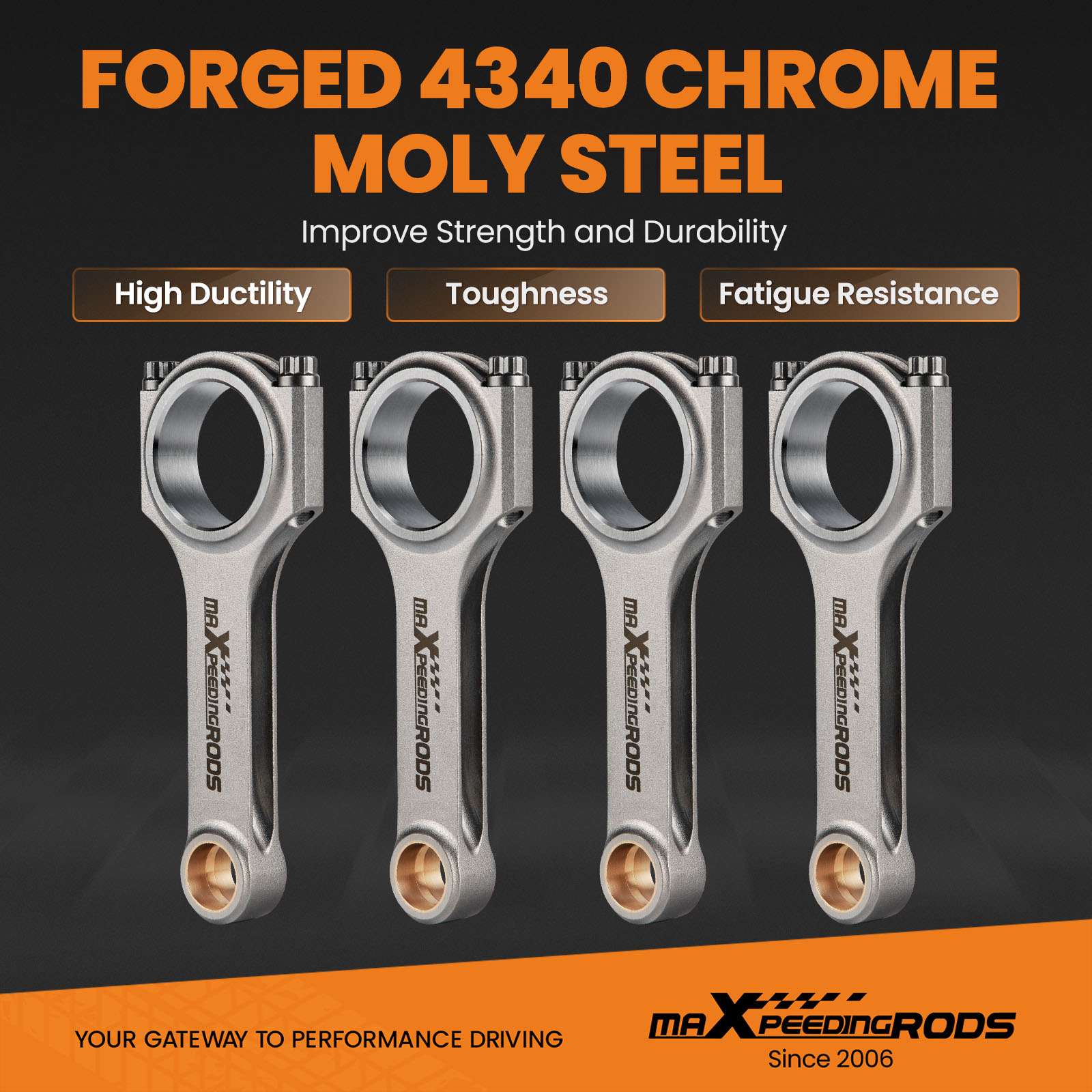

Forged 4340 Steel

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

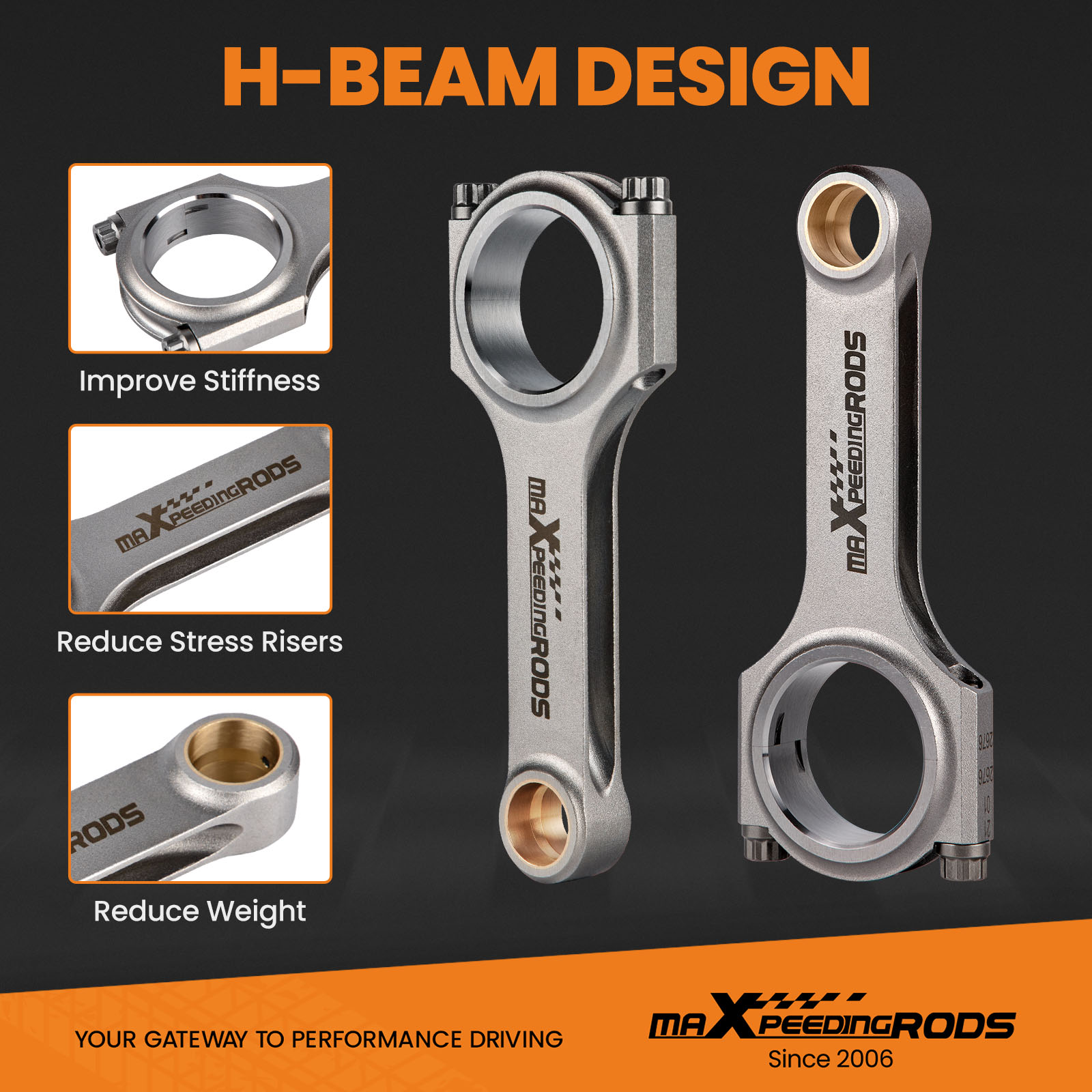

H-Beam Design

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

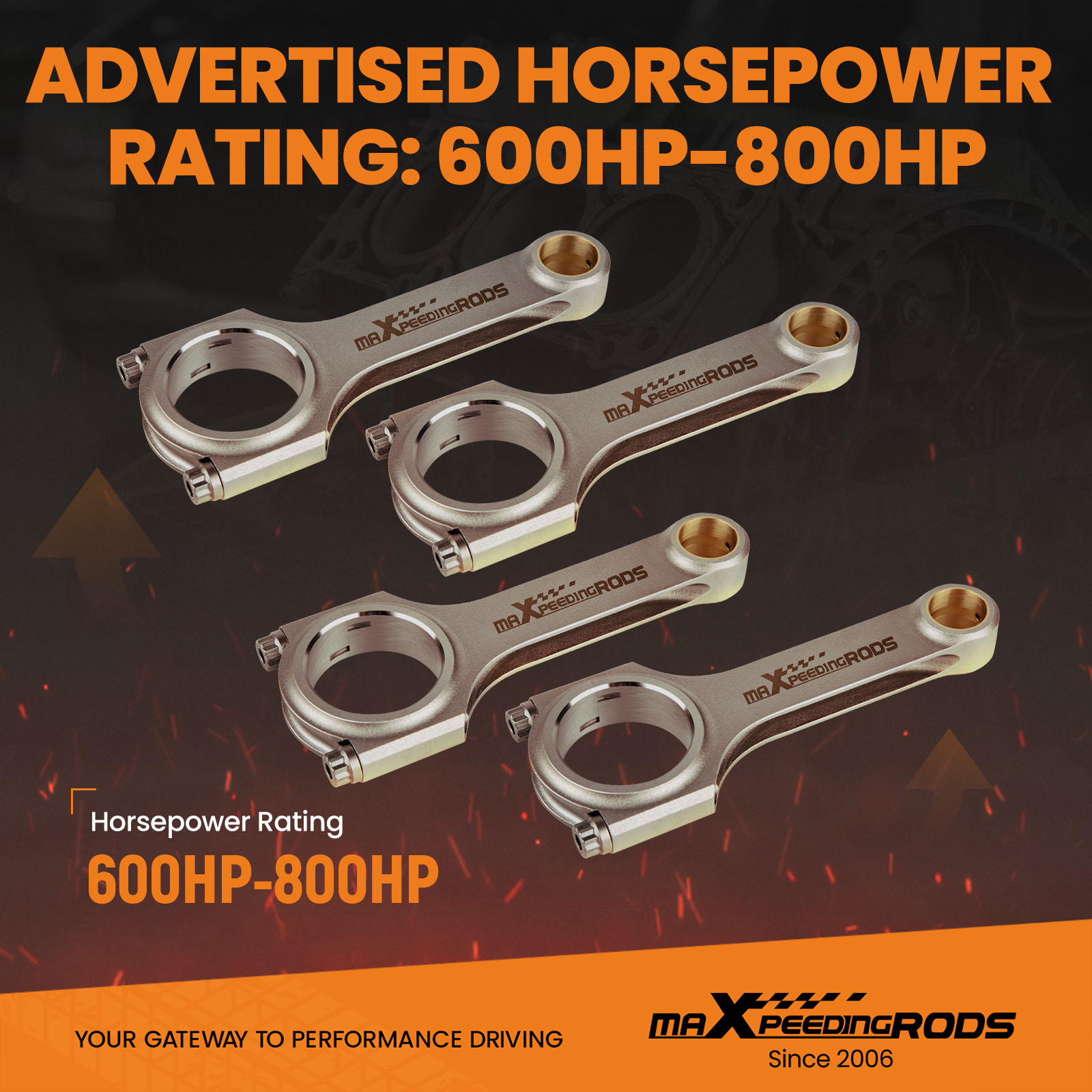

Horsepower Rating

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

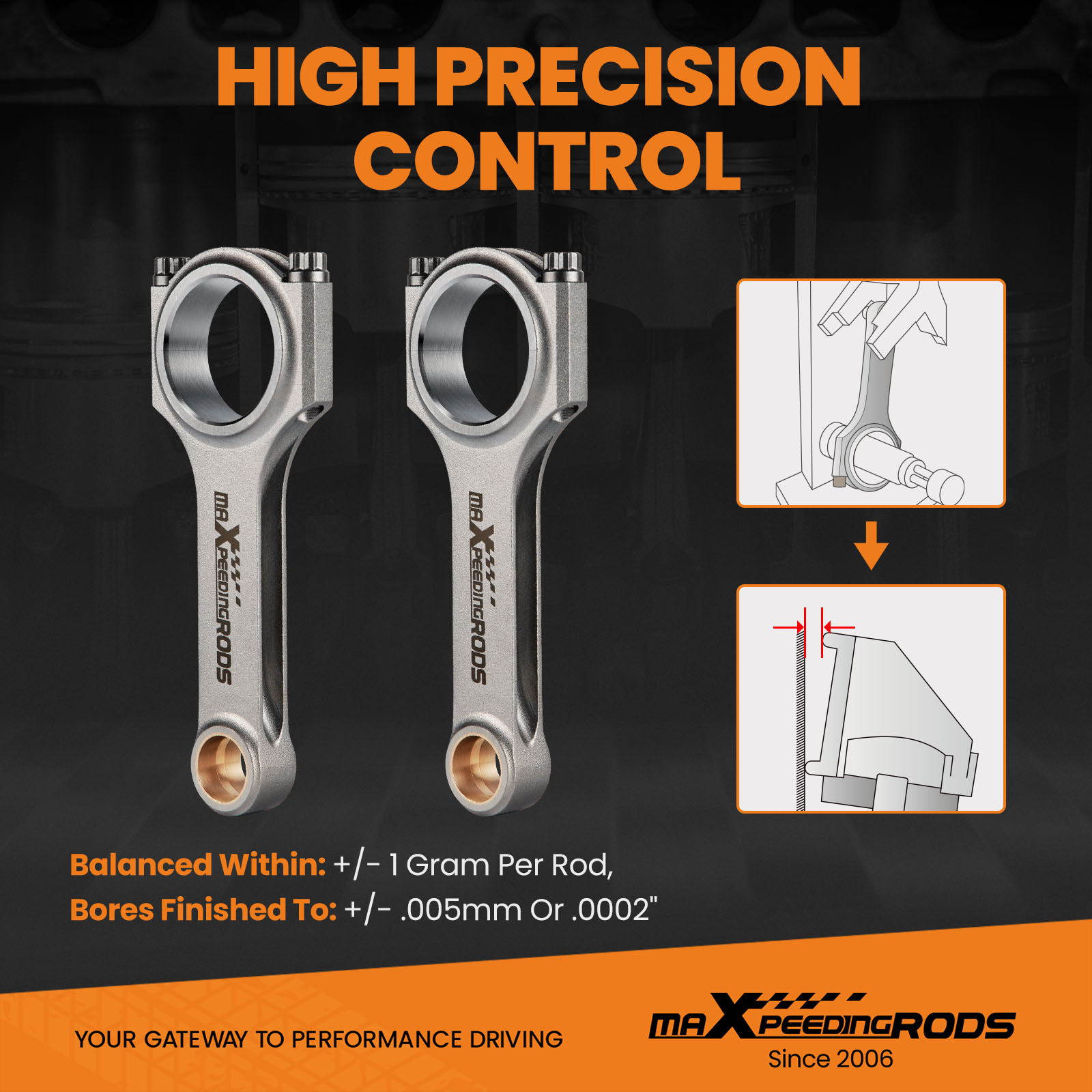

High Precision Control

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

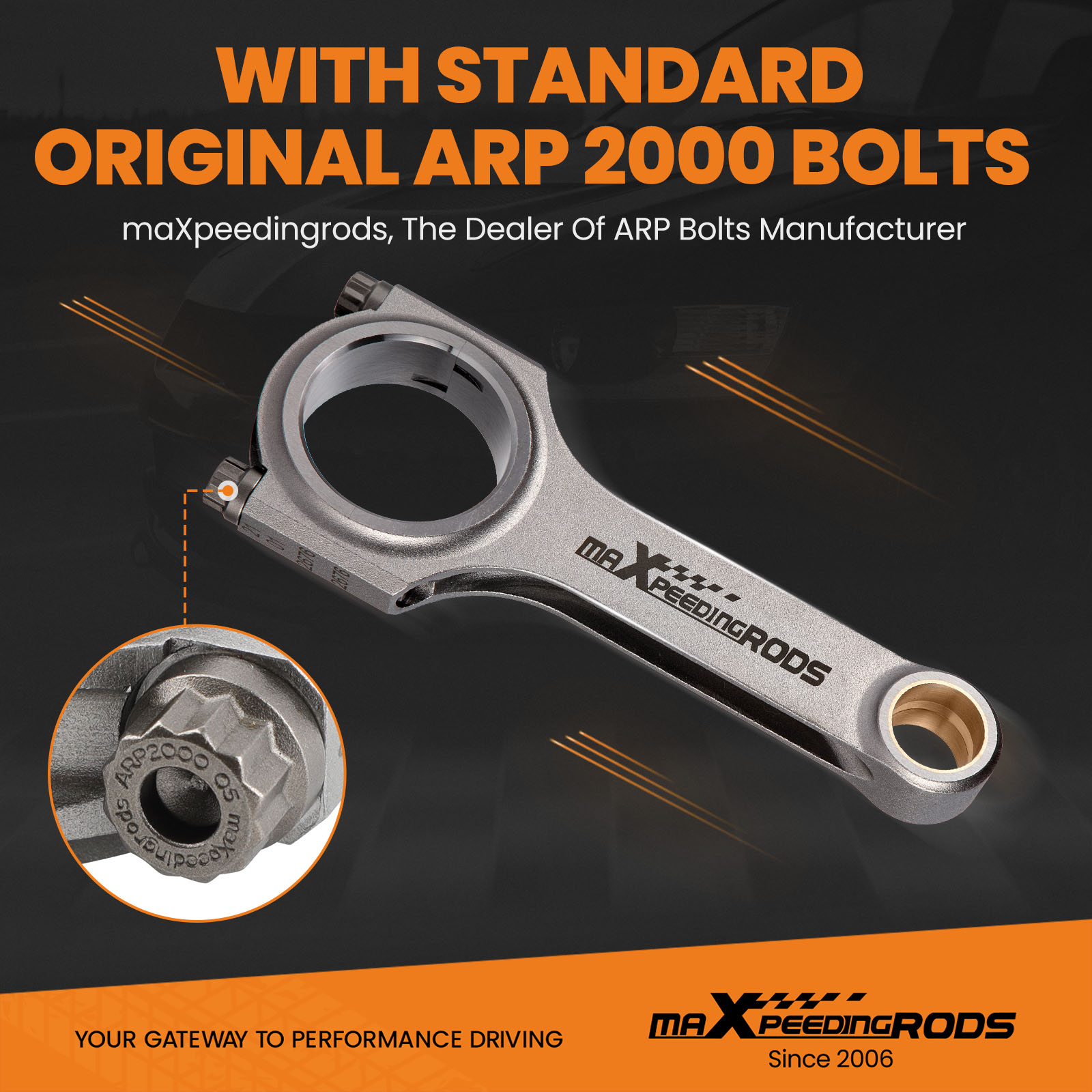

ARP 2000 Bolts

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

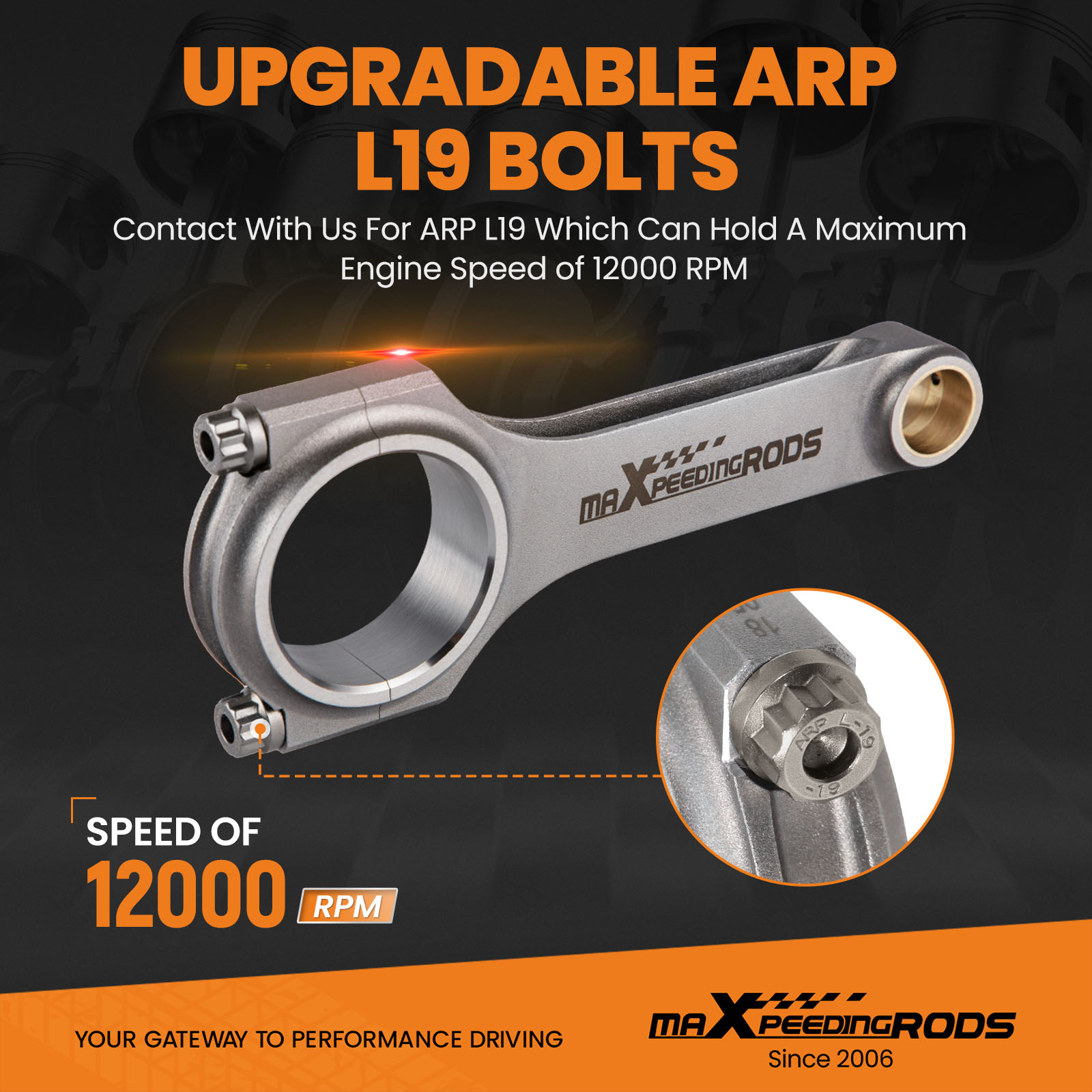

Upgradable ARP L19 Bolts

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.









Application

For Suzuki 1.3L G13b Engine

Dimension


Connecting Rod Length Center to Center 120.00mm/4.724in
Approximate Connecting Rod Weight 428g
Big End Bore Diameter 45.00mm/1.772in
Pin End Bore Diameter 19.00mm/0.748in
Big End Width 22.00mm/0.866in
Small End Width 22.00mm/0.866in

Specification

Beam Style: H-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 5/16"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Upgrade Fasteners: ARP L19 (260,000 psi) optional

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 7,000rpm

Packaging

Quantity: Sold as a set of 4

Package Size: 28CM*20CM*10CM





See Details
Beam Type
H-Beam
Material
Titanizing Forged 4340 Chrome Moly Steel
