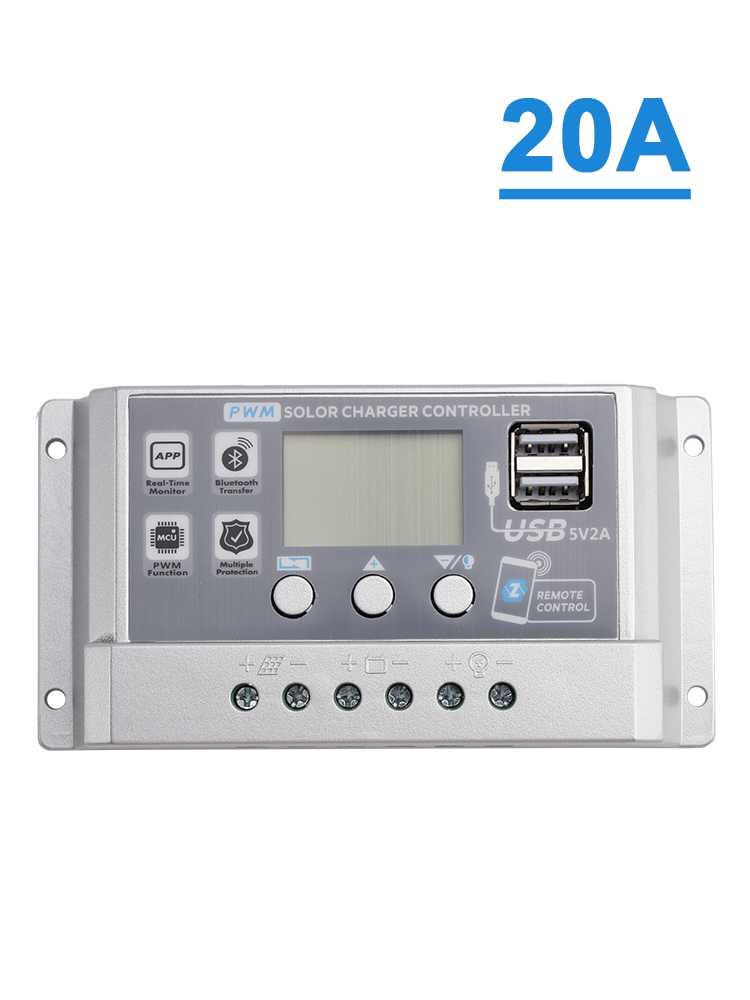

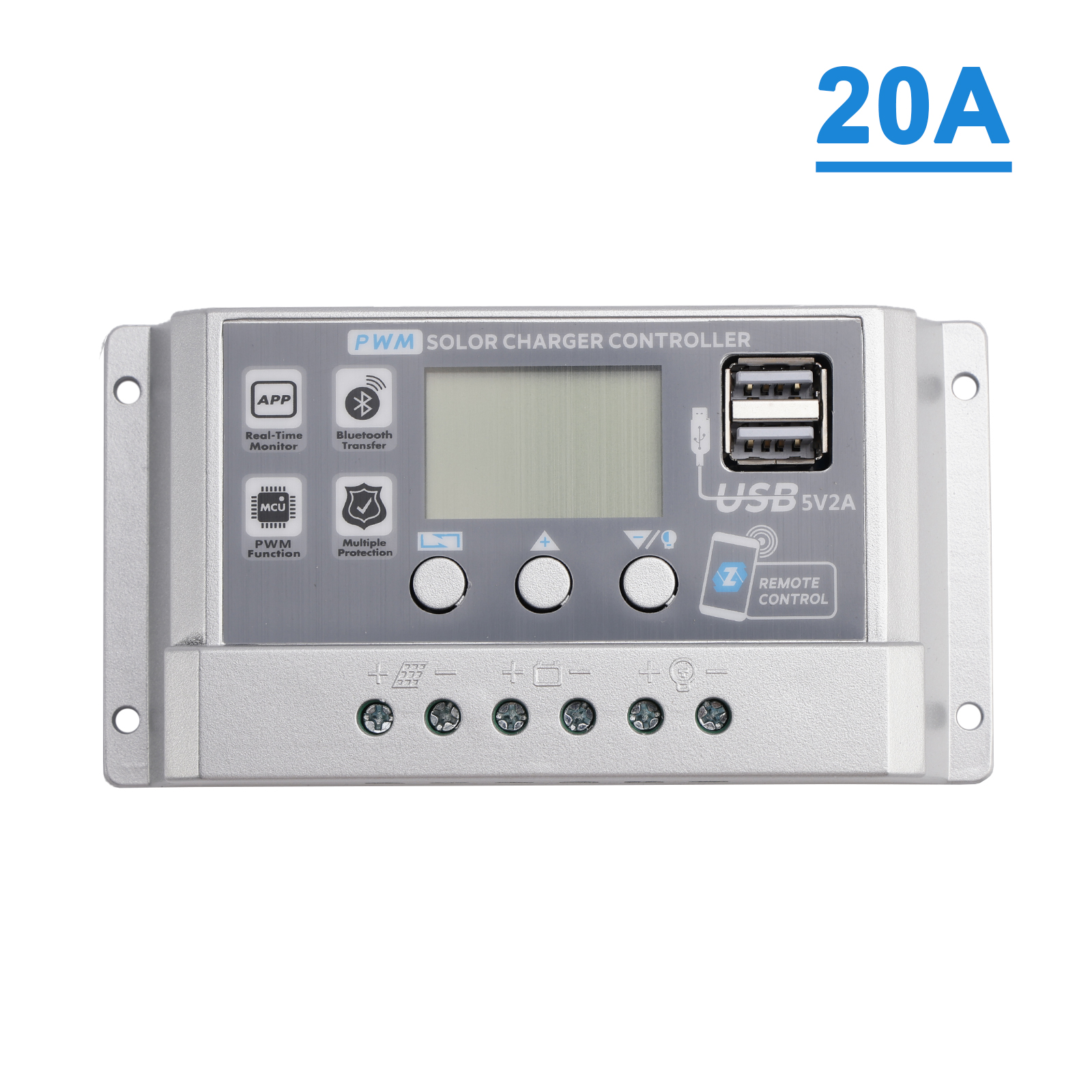

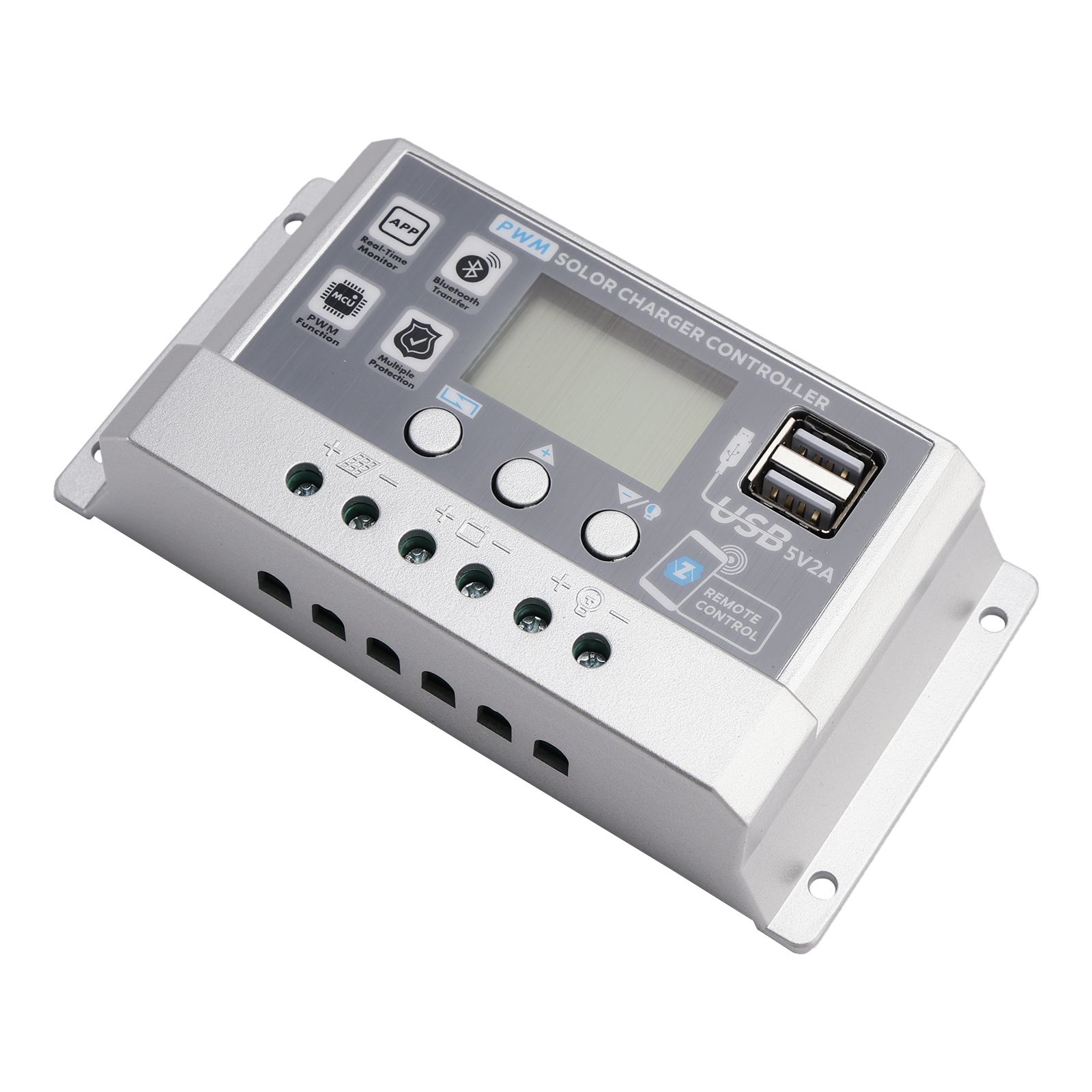

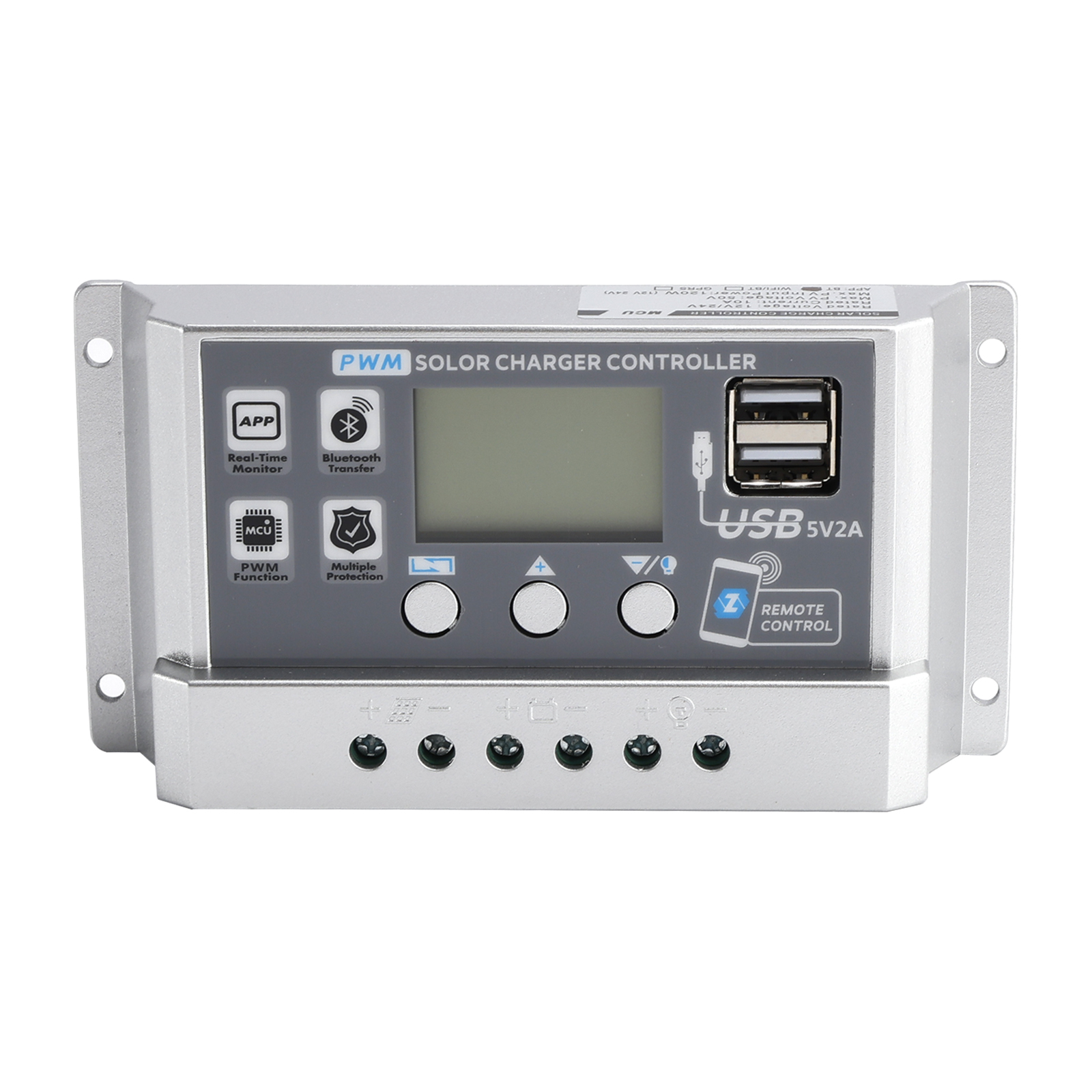

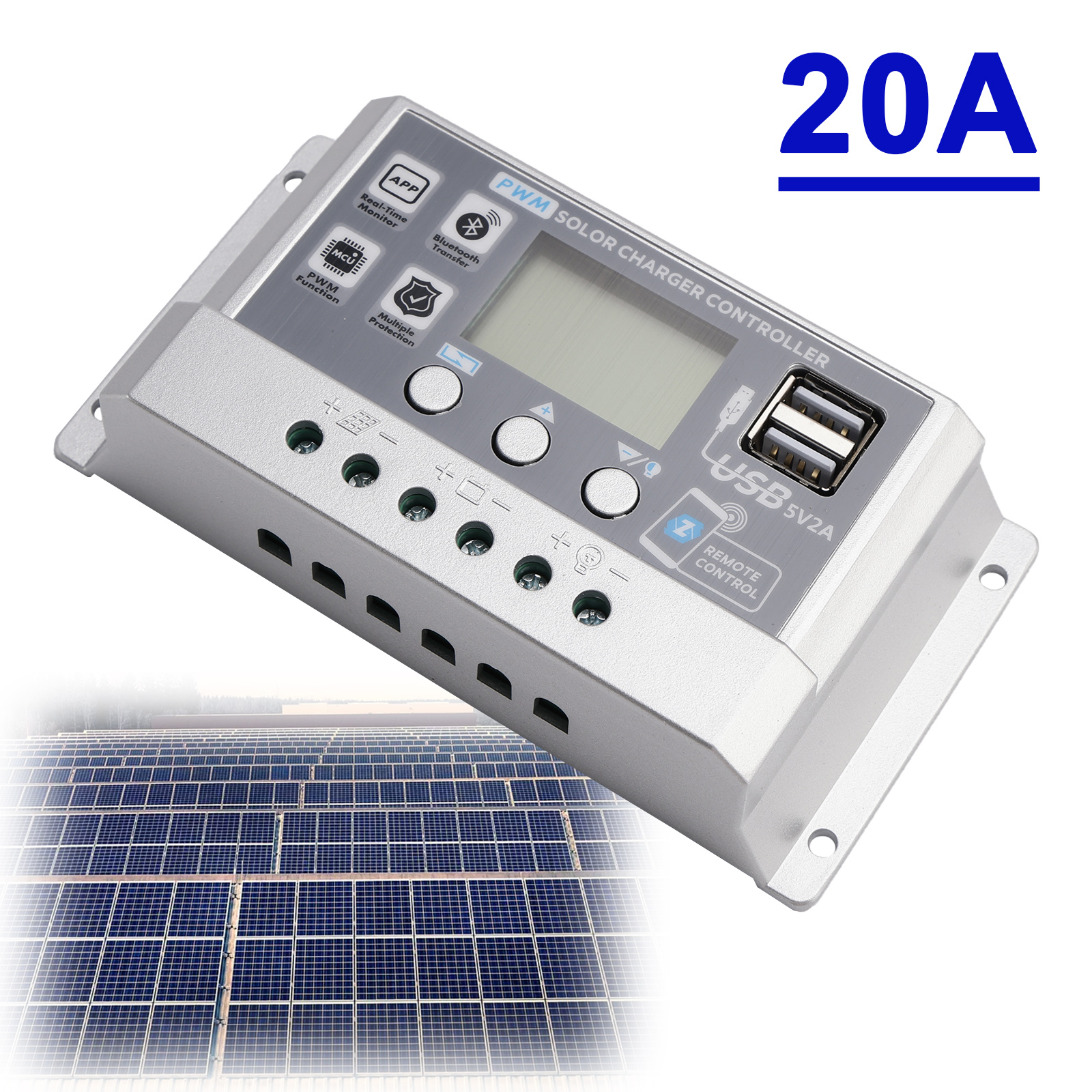

20A PWM Solar Controller Mobile APP Intelligent Control 12V24V Solar Controller Display Current Solar Street Light Controller 0V Start

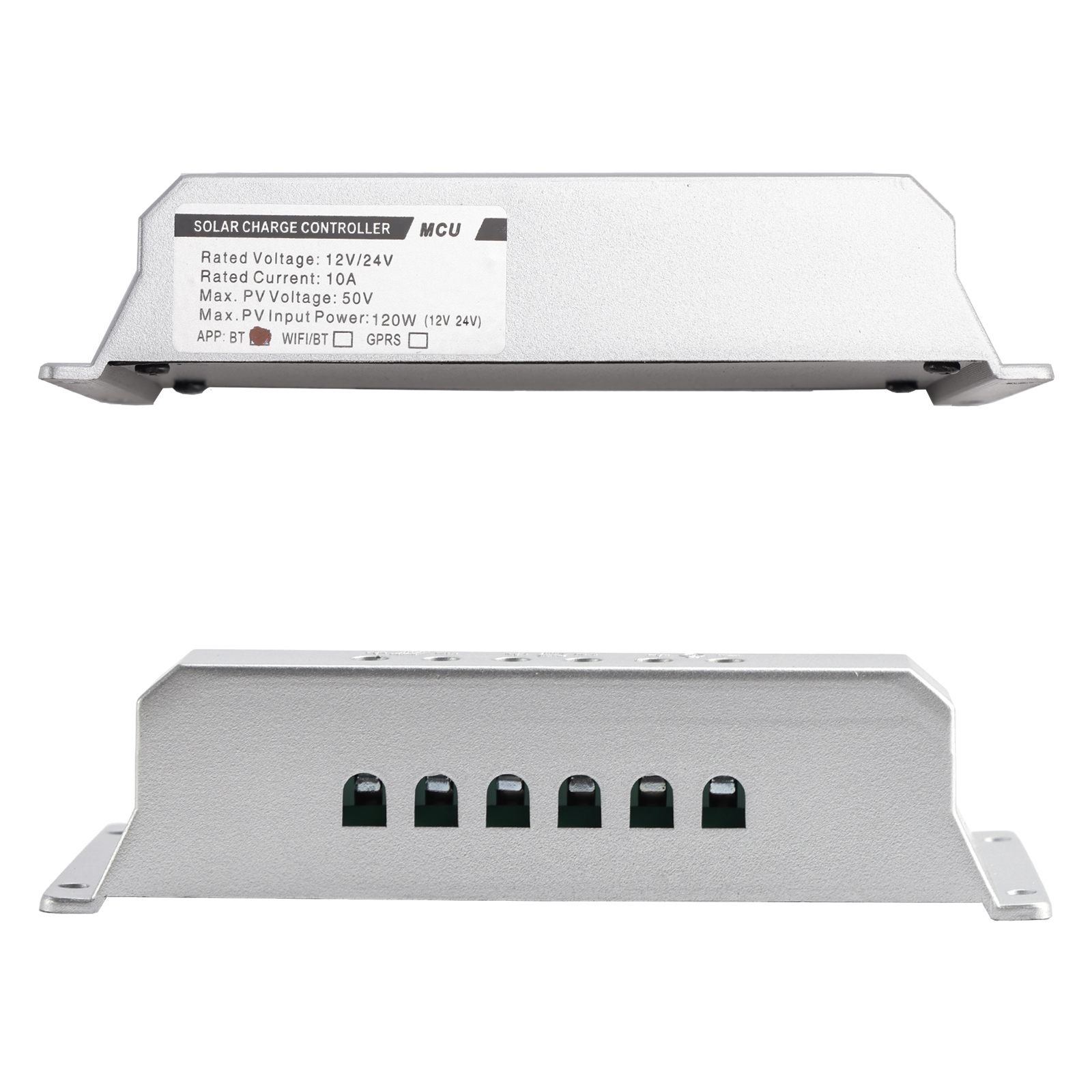

The Specifications:
1. Rated Voltage: 12V/24V Auto
2. Charge Current: 20A
3. Discharge Current: 10A
4. Application: Solar System Controller
5. Size: 134*70*35mm
6. Weight: 150g
7. Standby current: <10mA

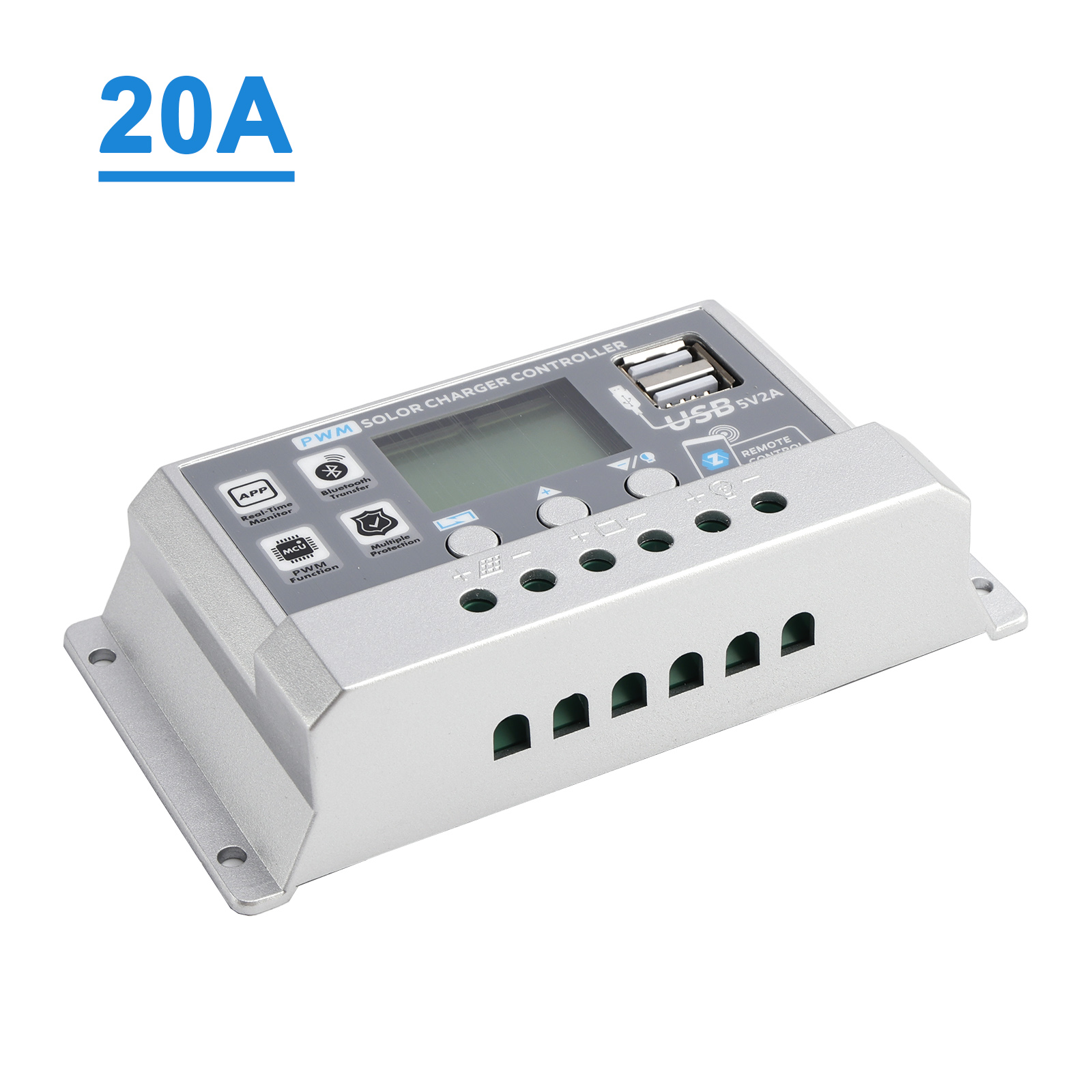

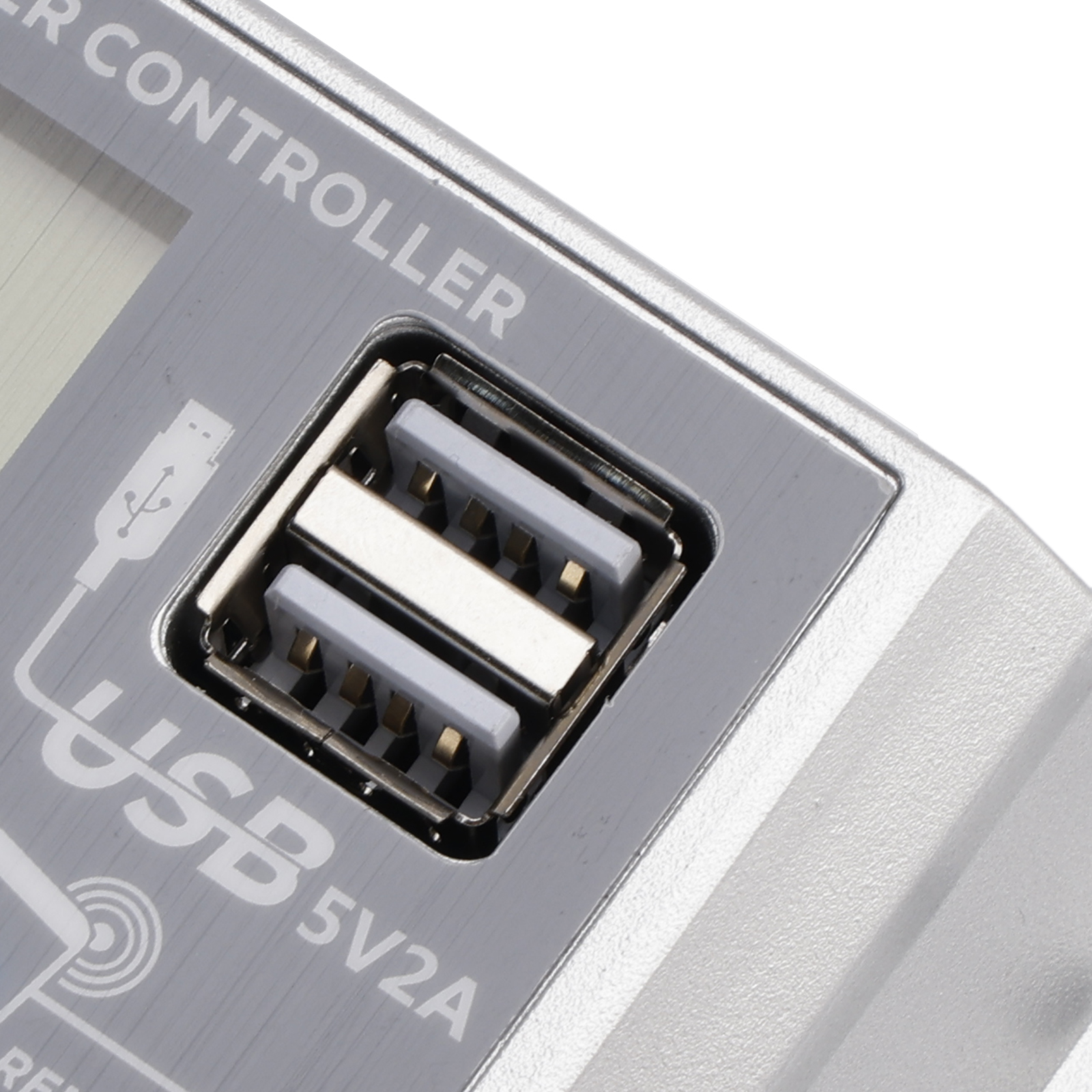

8. USB Output: 5V/2A MAX
9. Operating Temperature: -35～+60℃
Safety Instructions:
1. This controller automatically adapts to 12V/24V or manually set the appropriate battery charging mode. When installing for the first time, please make sure the battery has enough voltage to start and automatically set the controller parameters.
2. Install the controller as close to the battery as possible to avoid voltage drop caused by too long wires and affecting normal voltage judgment.
3. This controller is suitable for charging lead-acid, solid, lithium batteries, lithium iron phosphate and other batteries; if charging lithium batteries, you must be familiar with its battery characteristics, and the charging parameters must be set after connecting to power before use. For example: when charging a 12V lithium battery, the output prohibition protection is set to 9.5V, the full protection is 12.2V, and the charging voltage is 11.5V when the battery drops.
4. This controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as the charging source.
5. This controller will generate heat when running. Please be sure to install the controller on a flat, well-ventilated surface.
6. When charging lithium batteries, you must wear a battery protection board, and be sure to choose products from lithium battery manufacturers that are certified and meet national requirements.Direct charging without a protective board is strictly prohibited, and unauthorized modification of lithium battery packs for charging is strictly prohibited.
System connection

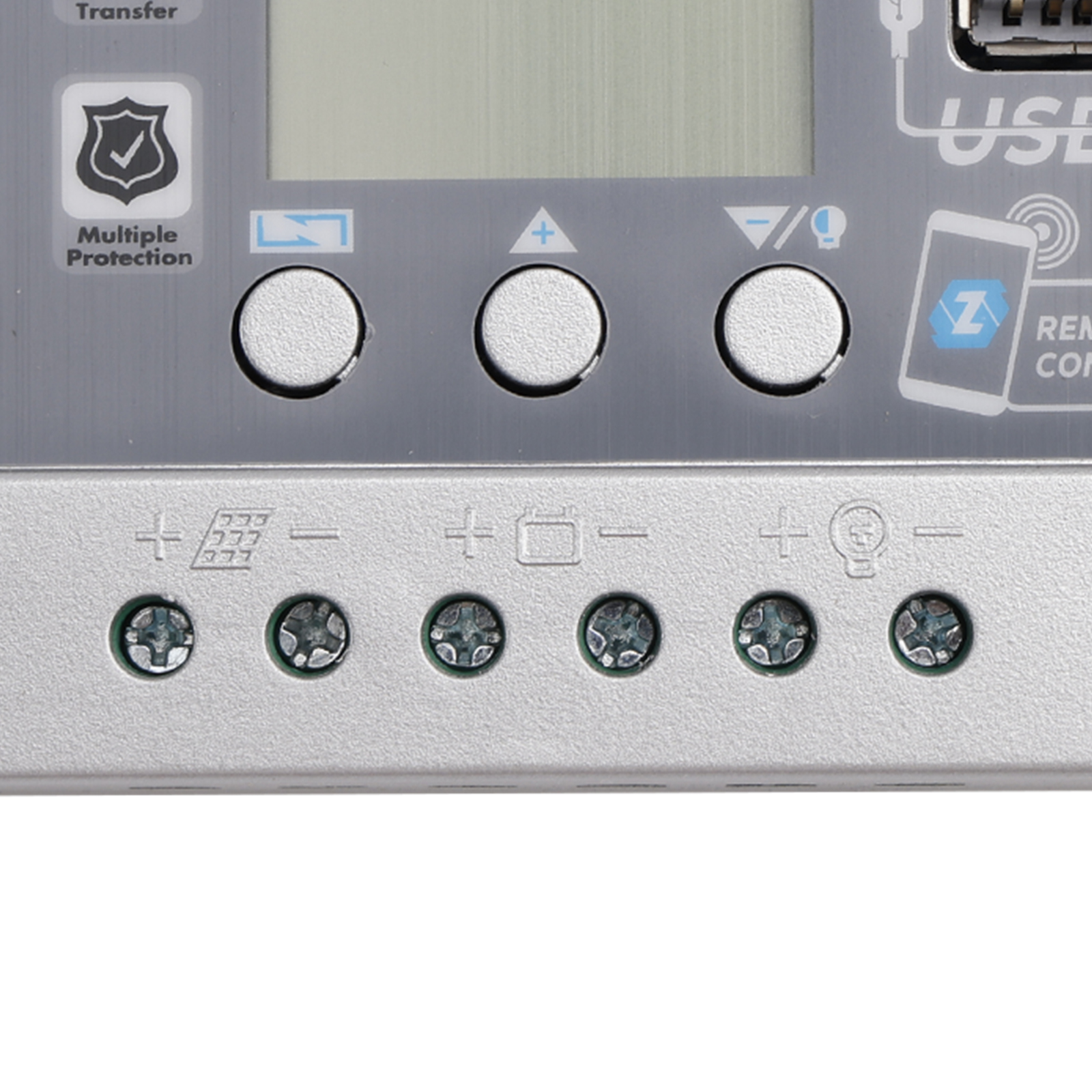

1. Connect the positive and negative poles of the battery to the controller as shown in the manual, and the controller will automatically detect the battery voltage.
2. Connect the positive and negative poles of the load to the controller as shown in the manual, and be careful not to connect them in reverse.
3. Connect the positive and negative poles of the solar panel to the controller as shown in the manual.
Note:
When using Battery 0V start and battery repair function must remember to charge the battery voltage value of electricity.
For example: repair battery for 12V, set bt12V and memory after the battery no power can do 0V start.
Package included:

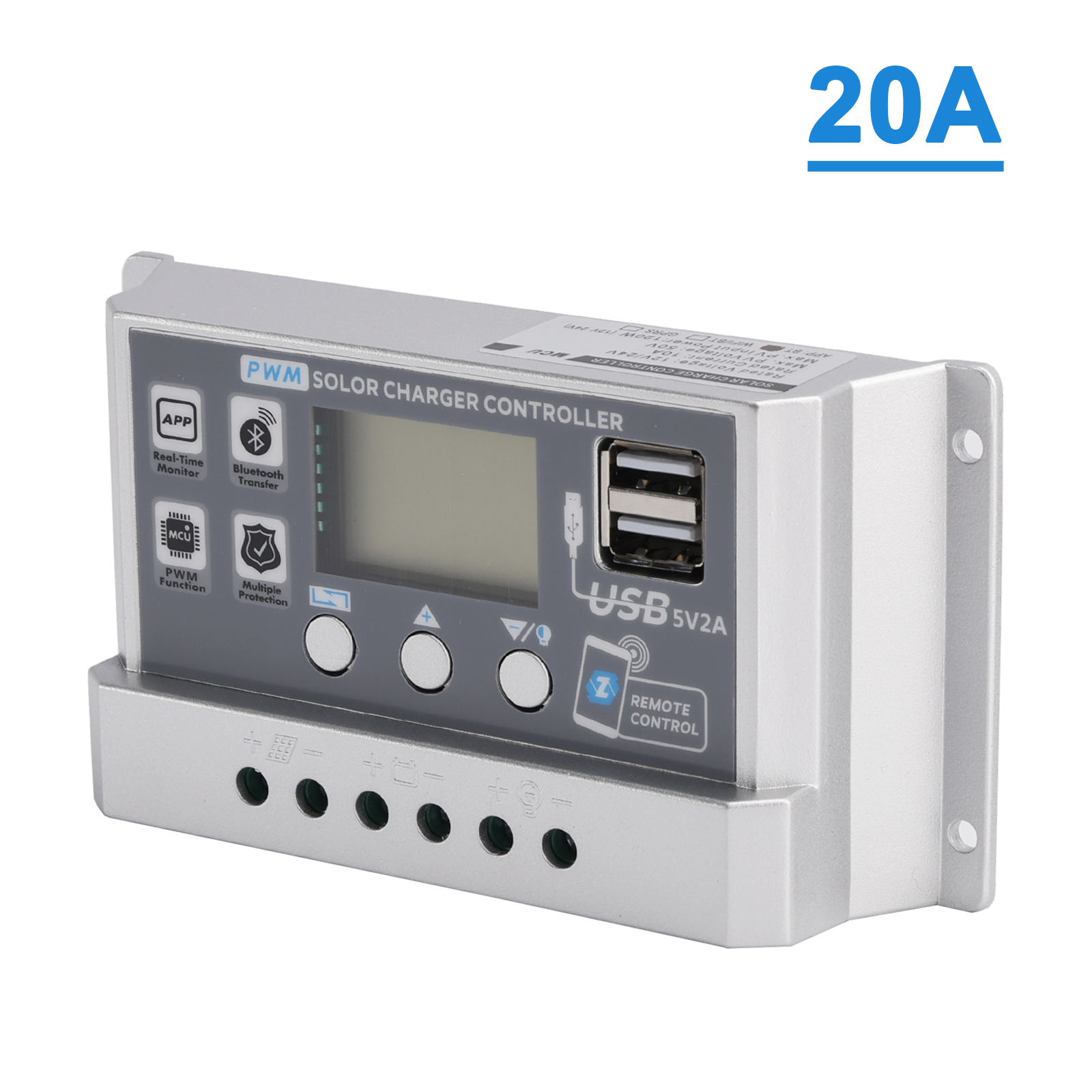

1x PWM Solar Controller

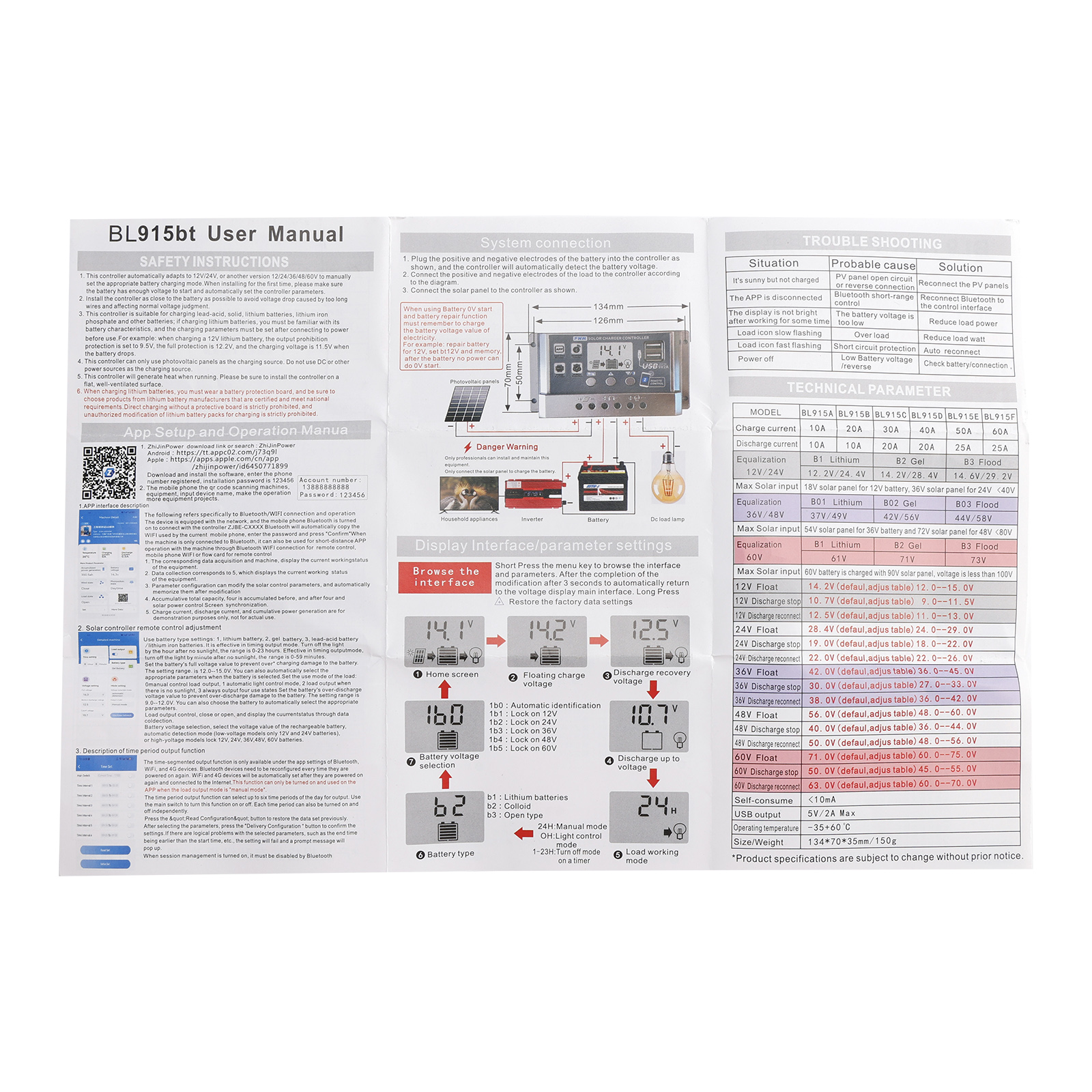

1 x User Manual
