- High-concerned chemical:None
- Switch Pin:5P ON OFF
- Switch base:5p on-off
- Special Features:Car Modification Switch
- Item Weight:0.03kg
- Item Height:1.37inch
- Item Width:0.7inch
- Item Length:2.2inch
- Product Type:Switches and accessories
- Is It Charged:No
- Rated Current(A):≤5A
- Pattern Type:fog lights
- Material:ABS
- Item Type:BUTTON SWITCH
- Package Contents:1 x Car Switch, 1 x Connector with cable
- LED color:Red
1Pc For Mitsubishi Pajero V73 V93 V97 Lancer Outlander ASX L200 RED LED key switch fog light daytime running light DRL Switch Button

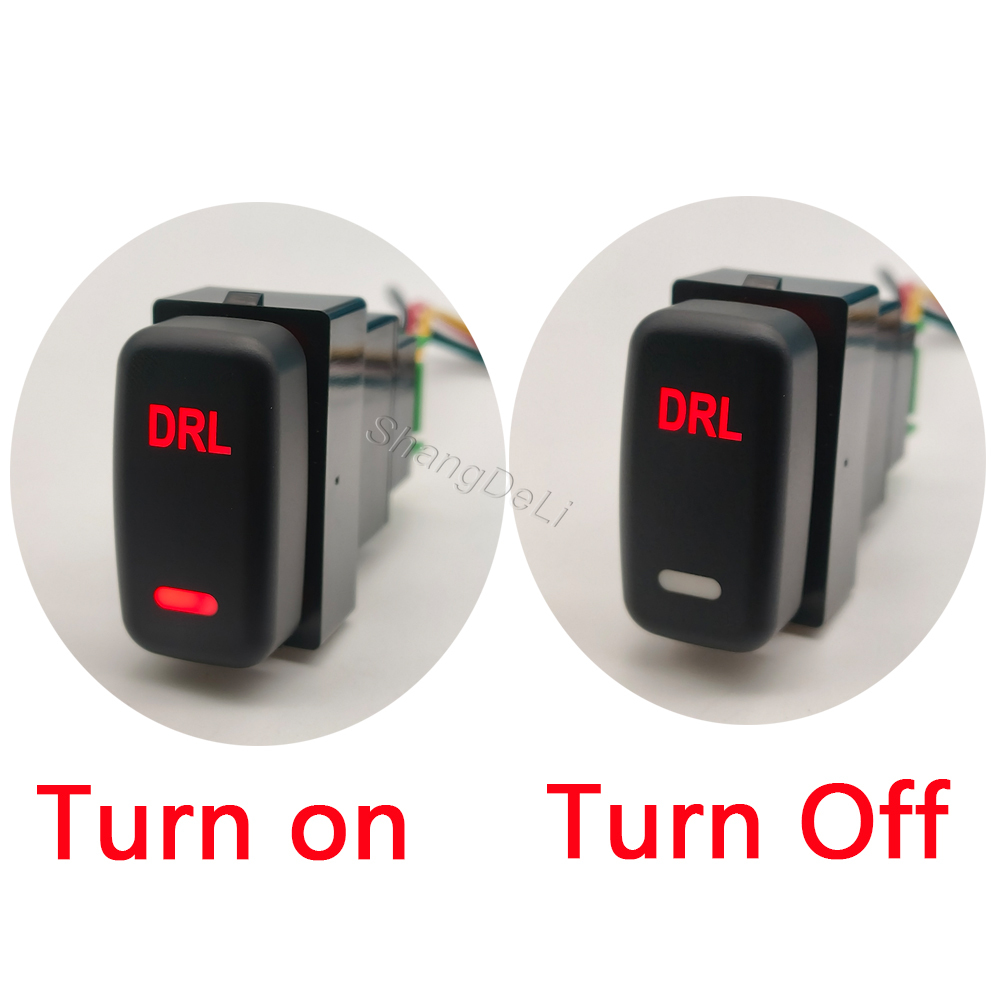

Features: When you press the button ,it will stay in position, On-Off model. It is latching button. ( press to turn it on, press again to switch off.)
Size: 18 x 35 x 58mm
Backlight color: Red
Fitment: For Lancer/Outlander 2006-2012/Grandis/Pajero V73 ; for ASX 2013-2018/L200 Triton 2013-
Package Contents:
1 x Car switch, 1 x Connector with cable
Wiring diagram:
Black wire: Switch negative wire
Red wire: Positive wire of backlight
Green wire: Switch positive output wire
Yellow wire: Switch positive input wire
NOTE: this listing has multiple option to select, please select the correct item according to your needs at the colour name options!
