12V to 5V 6V 9V DC Step Down Converter 24V to 10V 13.8V 15V 19V DC Buck Adjustable Voltage Car Regulator 24 Volt to 12 Volt
Specification
|
Product Name |
8-35V to 3-24V Adjustable DC Converter |
|
|
|
|
|
|
Model No. |
F35J5A4L-ADJ (Old:3005ADJ) |
|
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input(cable length: 12cm) |
||
|
Input Voltage |
DC 12V 24V |
|
|
InputVoltage Range |
DC 8-35V |
|
|
Output(cable length: 12cm) |
||
|
Output Voltage |
DC 3-24V Adjustable (minimum pressure difference: 3V) |
|
|
Output Current |
5A Max |
|
|
Output Power |
25W Max |
|
|
Conversion Efficiency |
>93% |
|
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Over heat protection |
||
|
Input Reverse Polarity Protection: NONE(Please Series diode at the input port if need.) waterproof IP68 design, anti-shock protection |
||
|
Application |
mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
|
|
Case Material |
Die-casting aluminum alloy |
|
|
Product Size (L x W x H) |
66*60*22mm |
|
|
Product Weight |
106g |
|
|
Warranty |
12 months |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Acceptable |
|

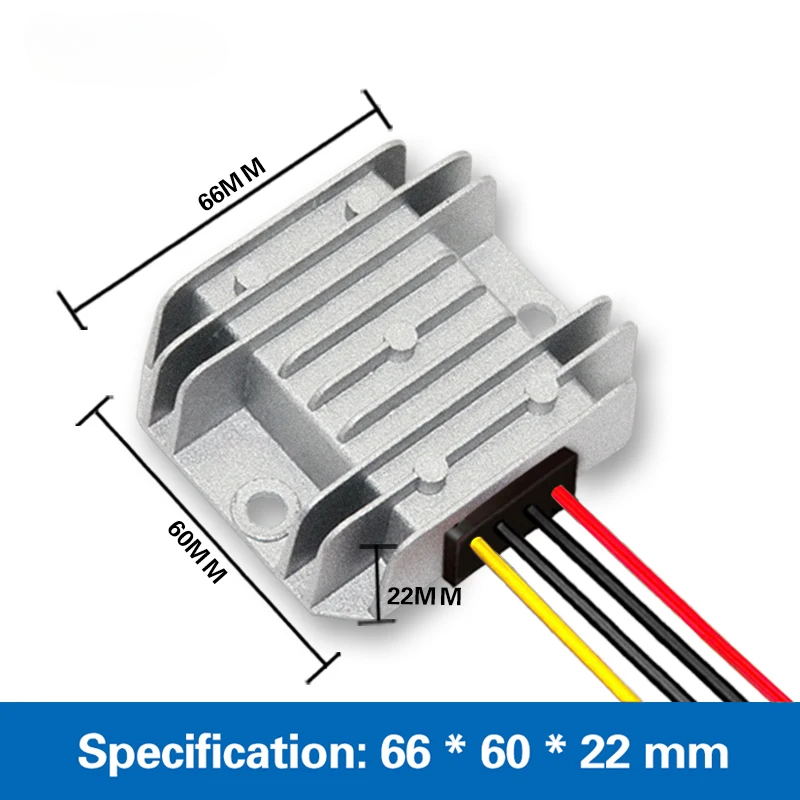

Dimension

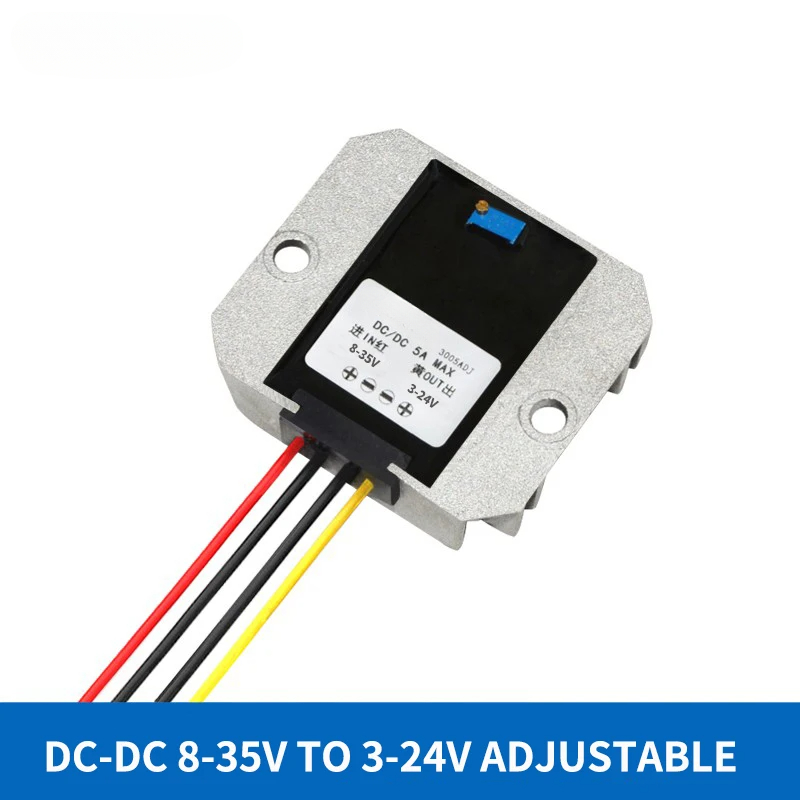

Product Photograph
Applications
