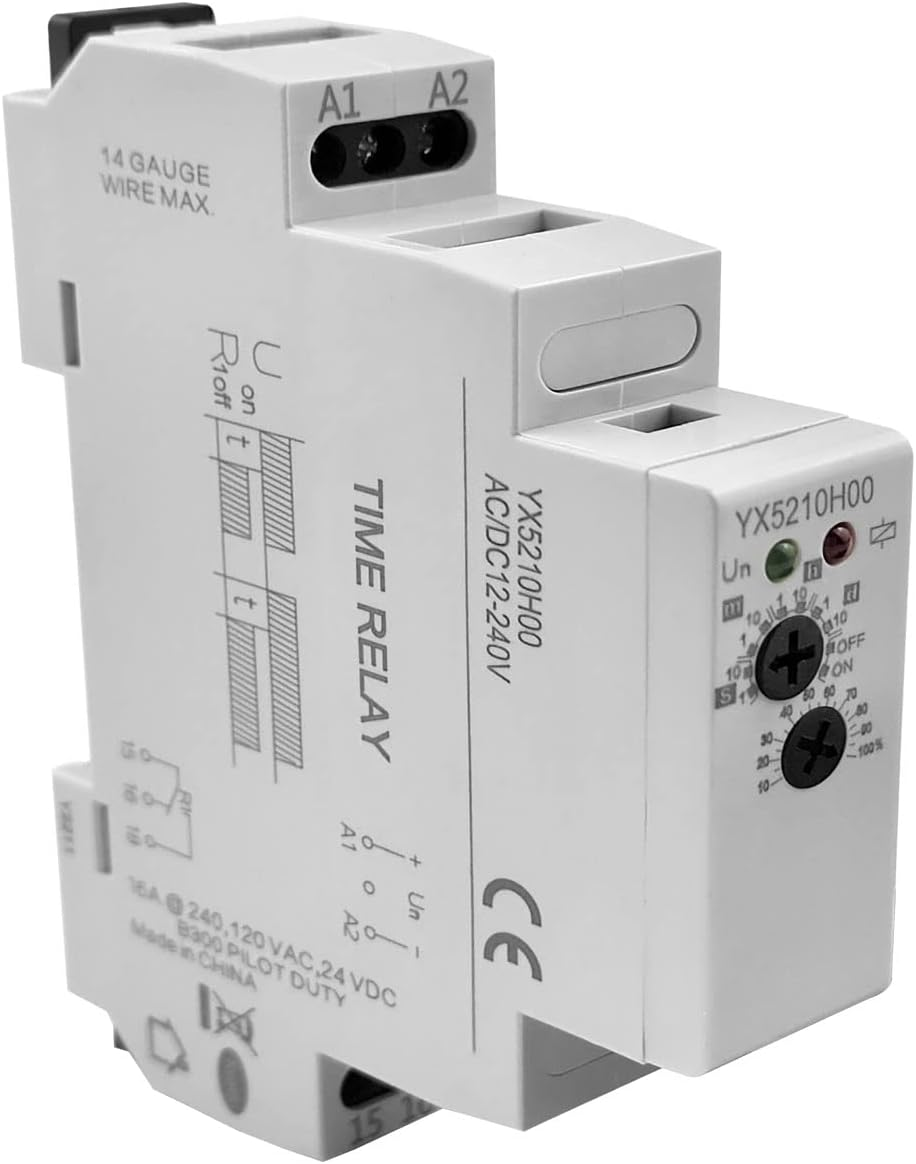

Delay Timer Switch, AC/DC 12V~240V Mini Power on Delay Time Relay Din Rail Timer Relay Mini Power on off Delay Relay with Adjustable Knob (Power on Delay)
Description
| Maximum Switching Voltage | 240 Volts |
| Current Rating | 16 Amps |
| Coil Voltage | 12 Volts |
| Item Type Name | Delay Timer Switch |
| Specification Met | Din |
| Unit Count | 1.0 Count |
| Contact Current Rating | 16 Amps |
| Operating Time | 10 Seconds |
| Connector Type | Screw |
| Item Weight | 0.04 Kilograms |
| Model | 2022116 |
| Maximum Switching Current | 16 Amps |
| Part Number | 2022116 |
| Mounting Type | DIN Rail Mount |
| Color | Power On Delay |
| Wattage | 1.7 watts |
| Operation Mode | On |
| Contact Type | Normally Open, Closed |
| Number of Terminals | 2 |
| Contact Material | Copper Alloy |
- Panel Knob: This power on delay relay can be set directly through the panel knob, which is convenient and intuitive
- 10 Kinds of Delay Settings: This time delay relay has 10 kinds of delay settings, the ultra-wide delay range is 0.1s-10 days
- Indicating Light: The working status of this 120 volt delay relay is indicated by the indicator light
- Ultra Small Size: This time delay relay can be installed on a 35mm din rail
- Application: This din rail timer delays the connection or disconnection of the line, such as controlling the power-on time of the heating element, the working time of the water pump, and the delayed disconnection of the fan
Features:
1. This is a single function power-on delay relay and time delay can be set by panel knob.
2. Super wide time delay range, 0.1s - 10days (10 kinds of settings).
3. AC/DC 12V-240V working voltage.
4. Relay working status is indicated by LED indicators.
5. With super small volume, this relay can be mounted on 35mm DIN rail.
Specification:
Function: Delay ON
Rated power supply voltage: AC/DC 12-240V (50-60Hz)
Power terminal: A1-A2
Power consumption: AC 0.09-3VA/DC 0.05-1.7W
Setting method: knob
Power indicator: Green LED
Delay range: 0.1s-10 days, normally open, normally closed
Setting accuracy: 10%
Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Output relay indication: red LED
Mechanical life: 1x107
Reset time: Max 200ms
Working temperature: -20℃~55℃
Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Weight: Approx. 75g/2.6oz
Package list:
1 x On Delay Time Relay
