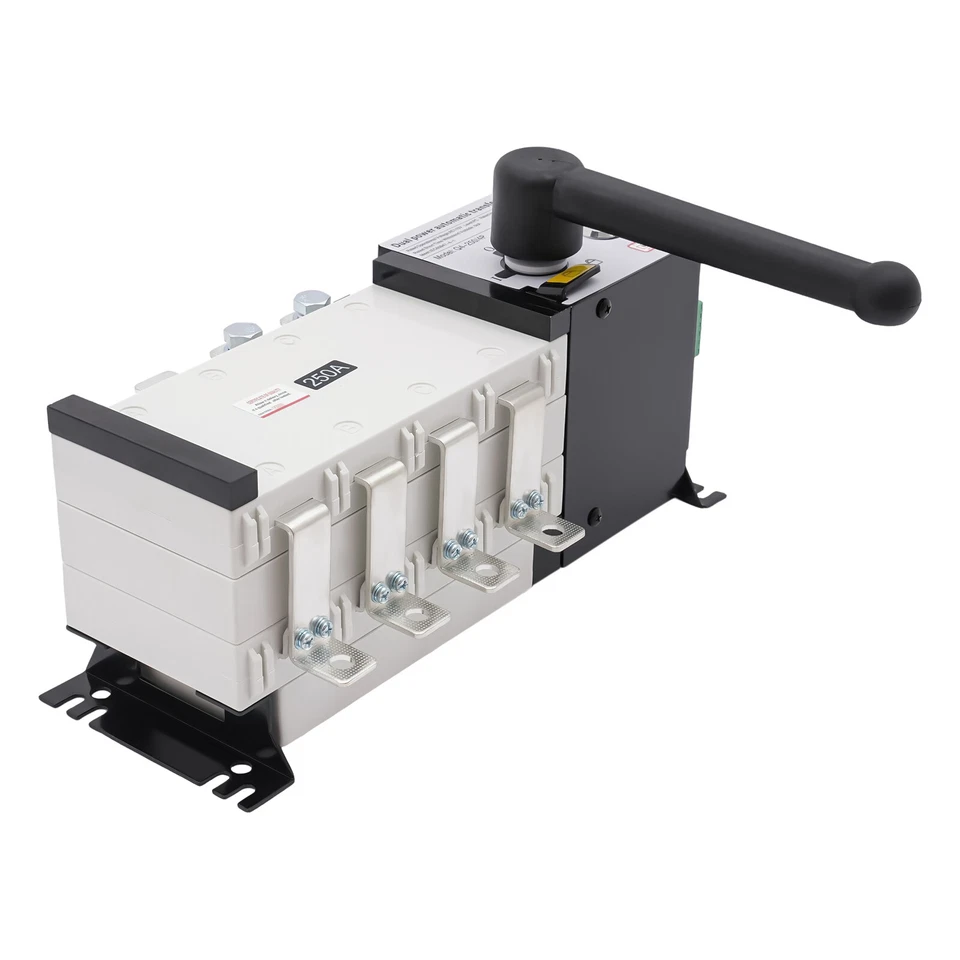

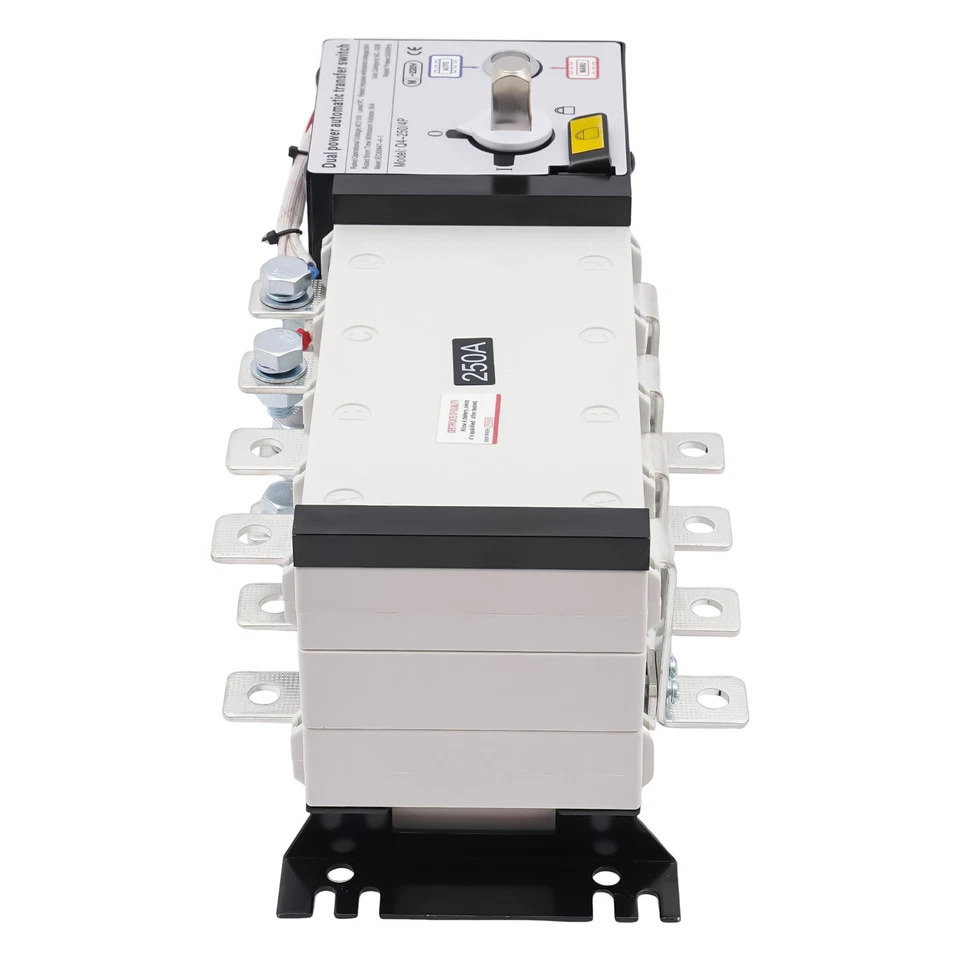

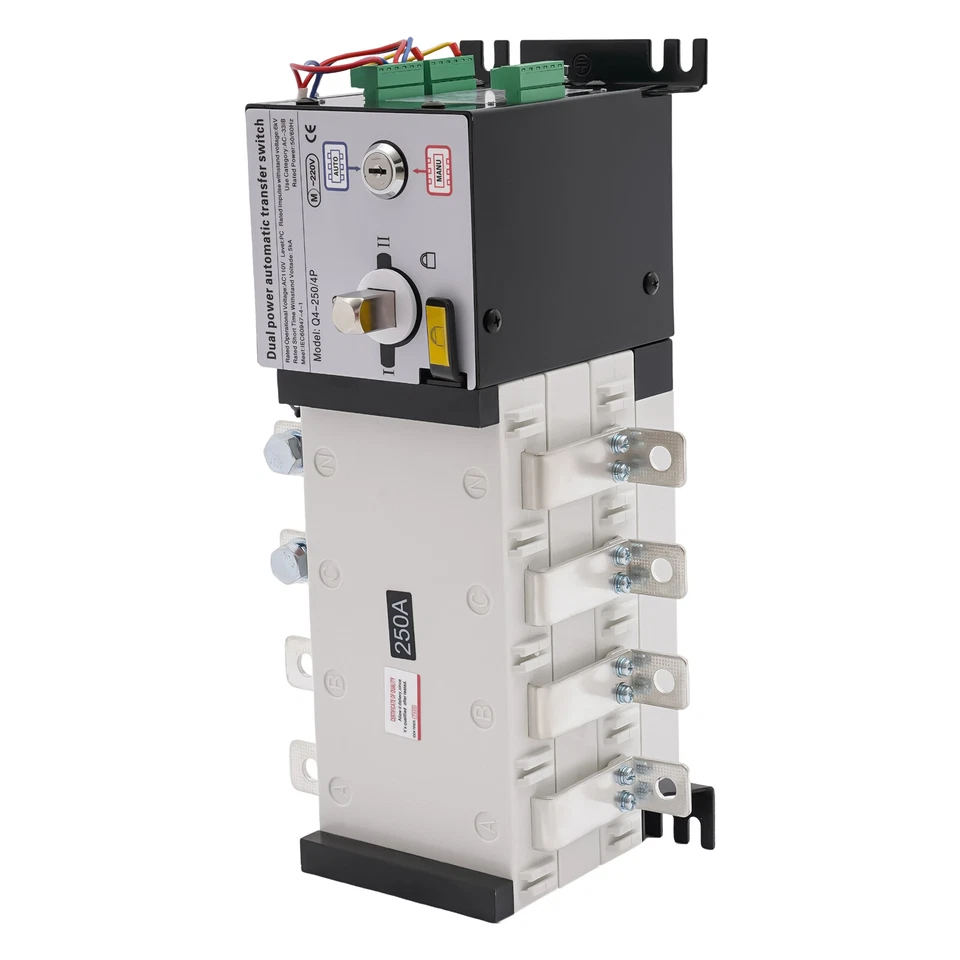

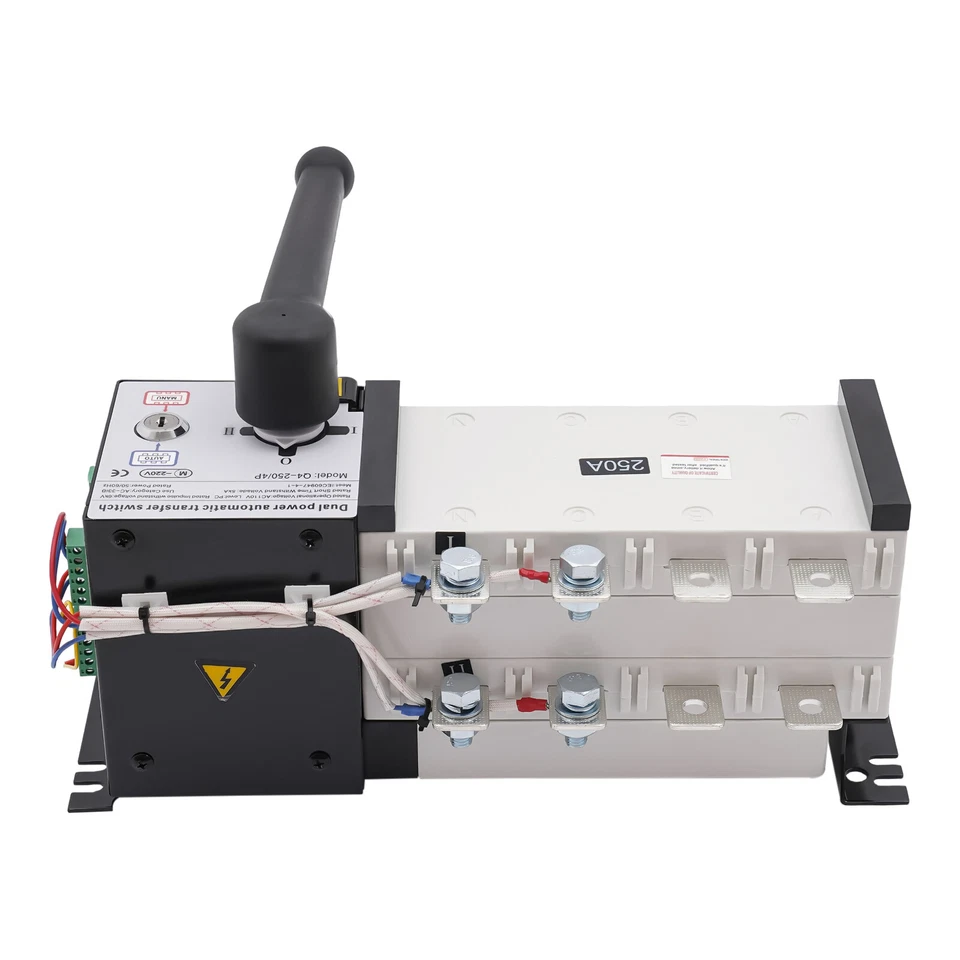

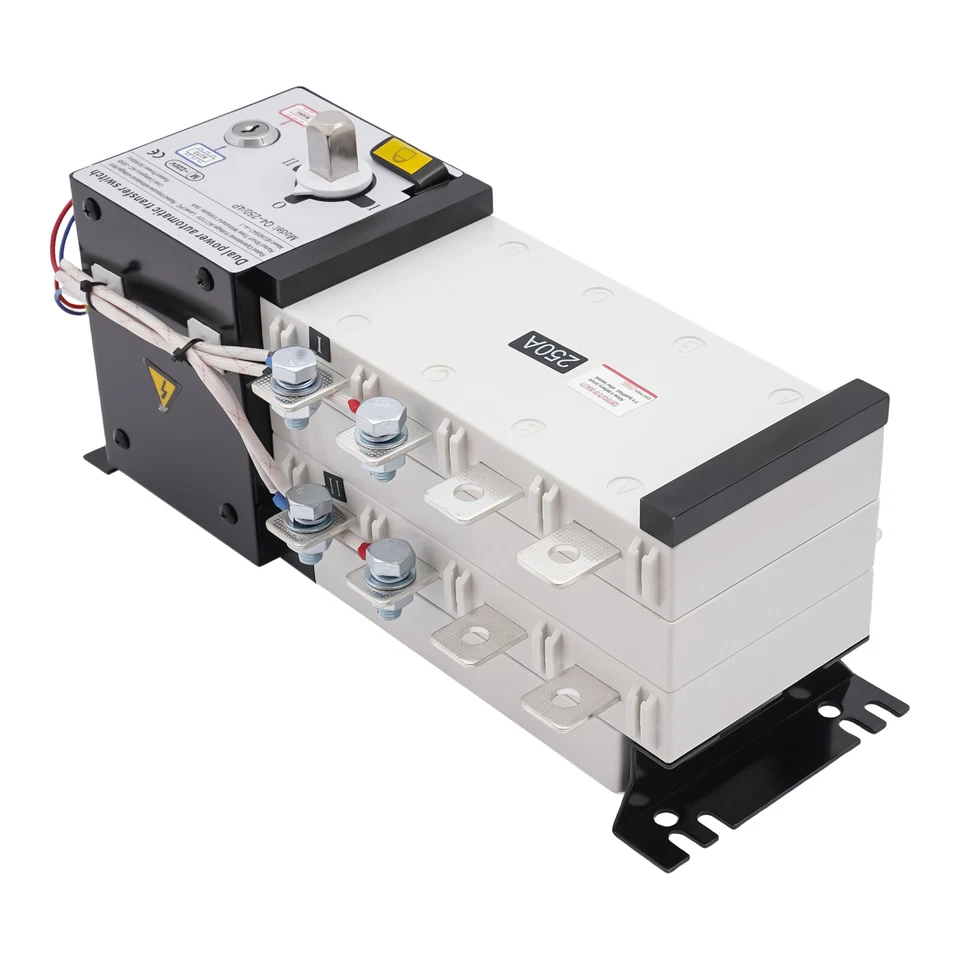

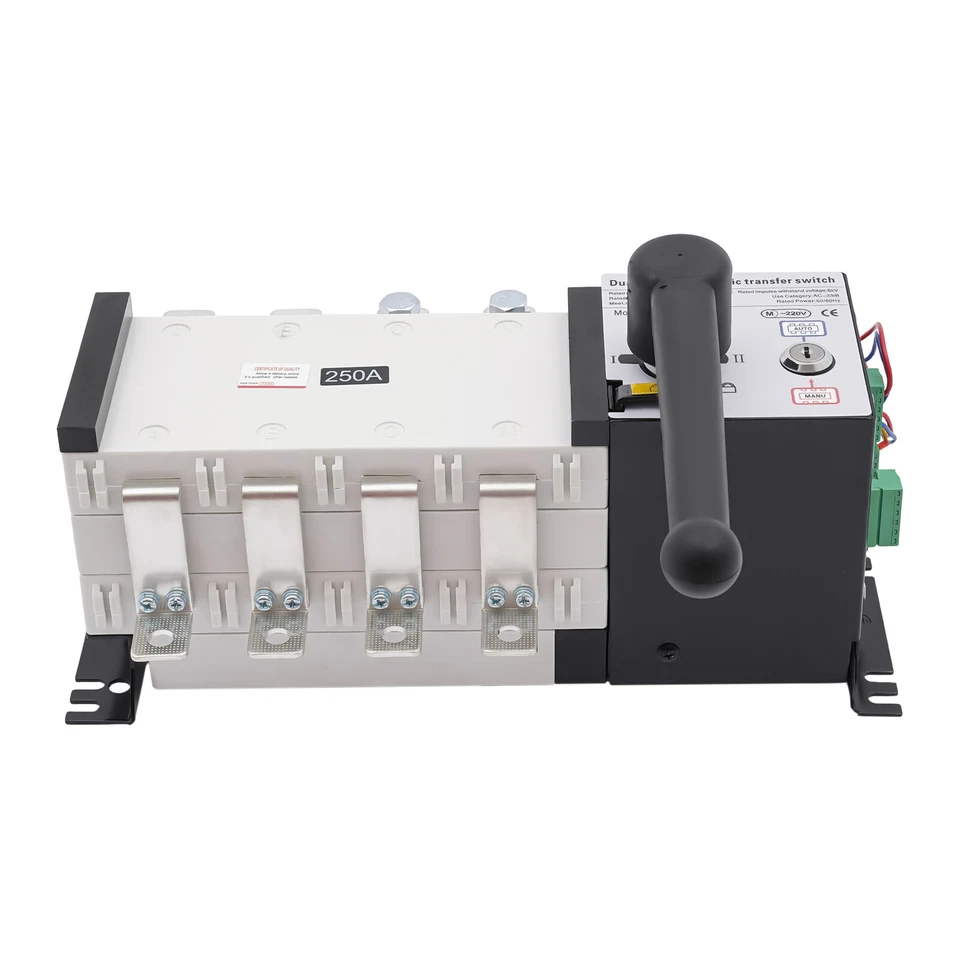

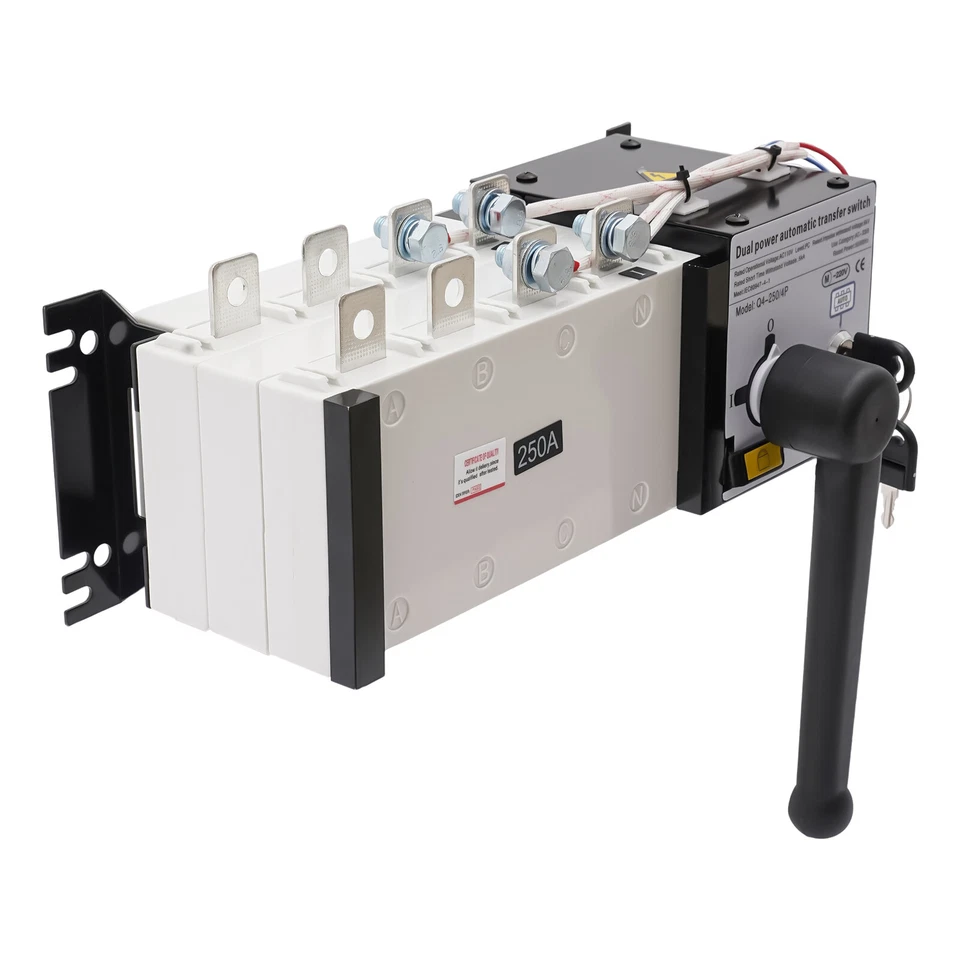

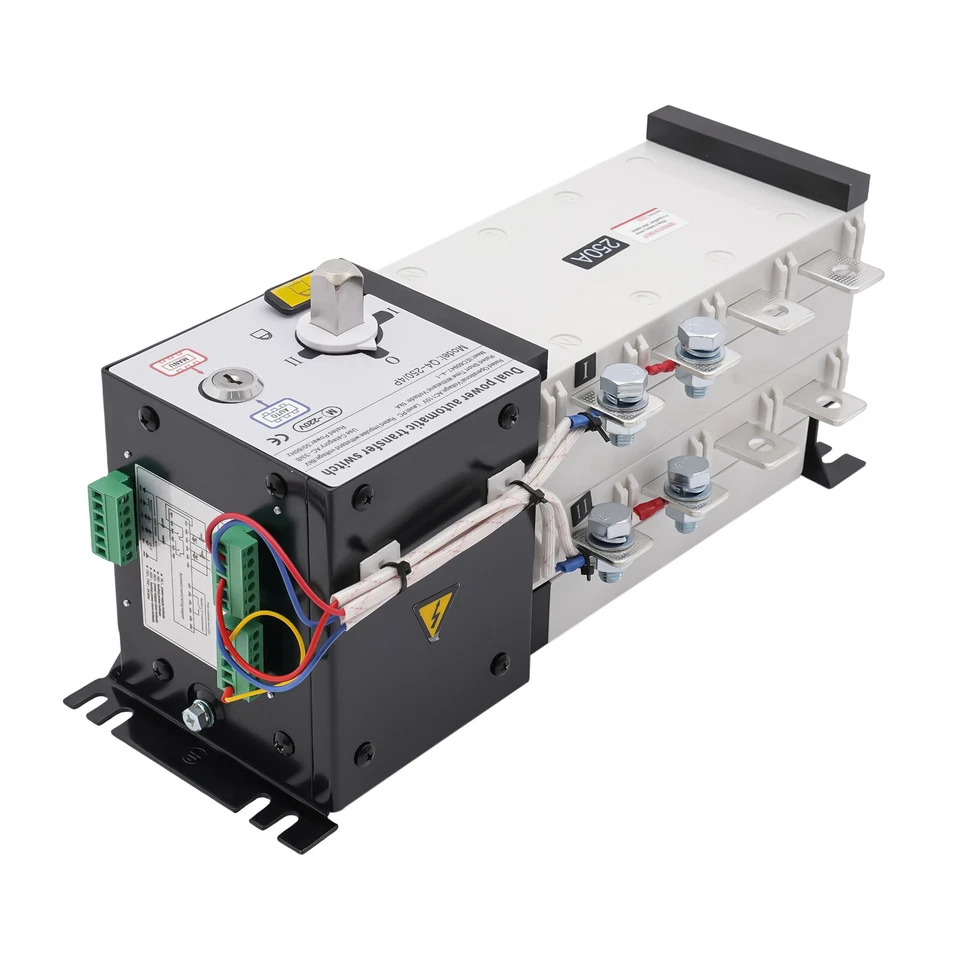

250 AMP 110V GENERATOR AUTOMATIC TRANSFER SWITCH 4P 50/60Hz Dual Power PC Level

Description:



Series dual power automatic transfer switches are newly developed industrial power transfer switches.This switch is mainly used to test whether the normal or standby power supply is normal.When the narmal power supply is abnormal,the backup power supply will work immediately to ensure the continuity,reliability and safety of the power supply.

Auto mode : Common power supply and backup power could be City Grid Power, AC genarator and solar generator. When there is only one power supply is working, the product will automatically switch to that power supply. When the common power supply and the backup power supply are supplied at the same time, the common power supply is used Preferentially.
(Attention: in automatic mode, forcibly rotating the power switch handle will cause damage to the transfer switch)

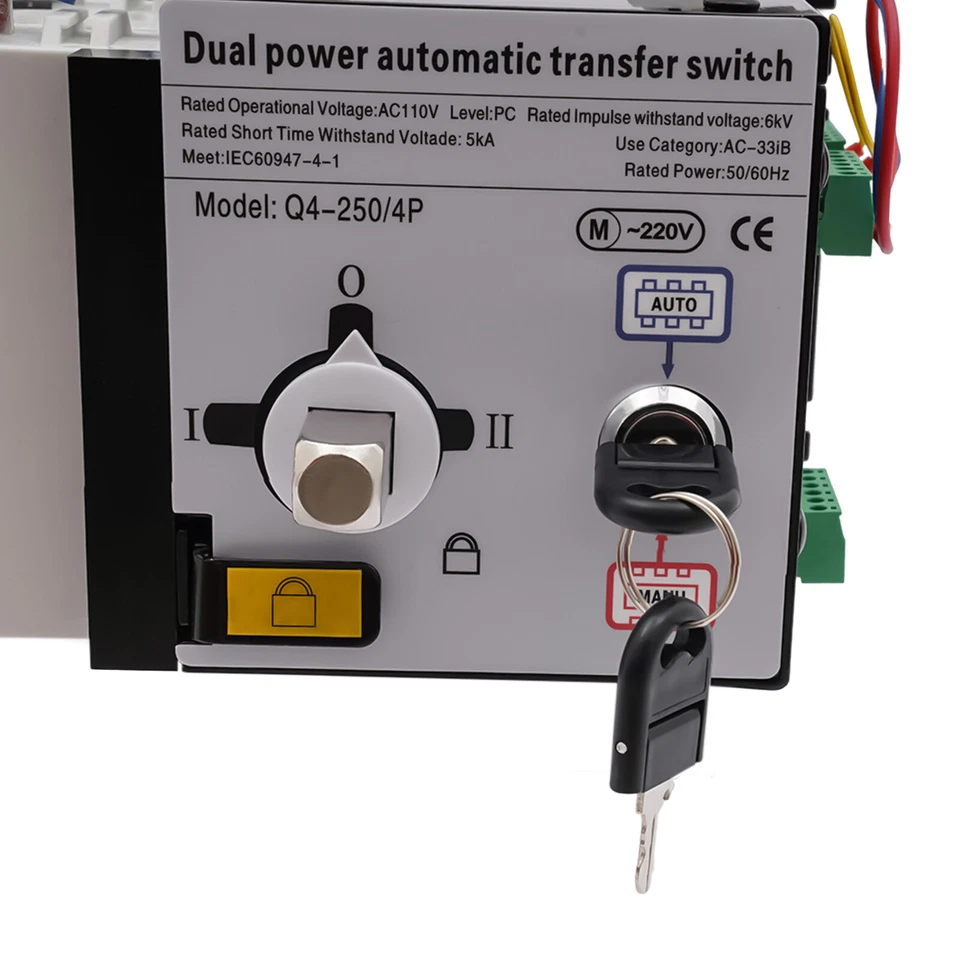

Manual mode : Power supply should be transfered manually by rotating the handle.

Application:

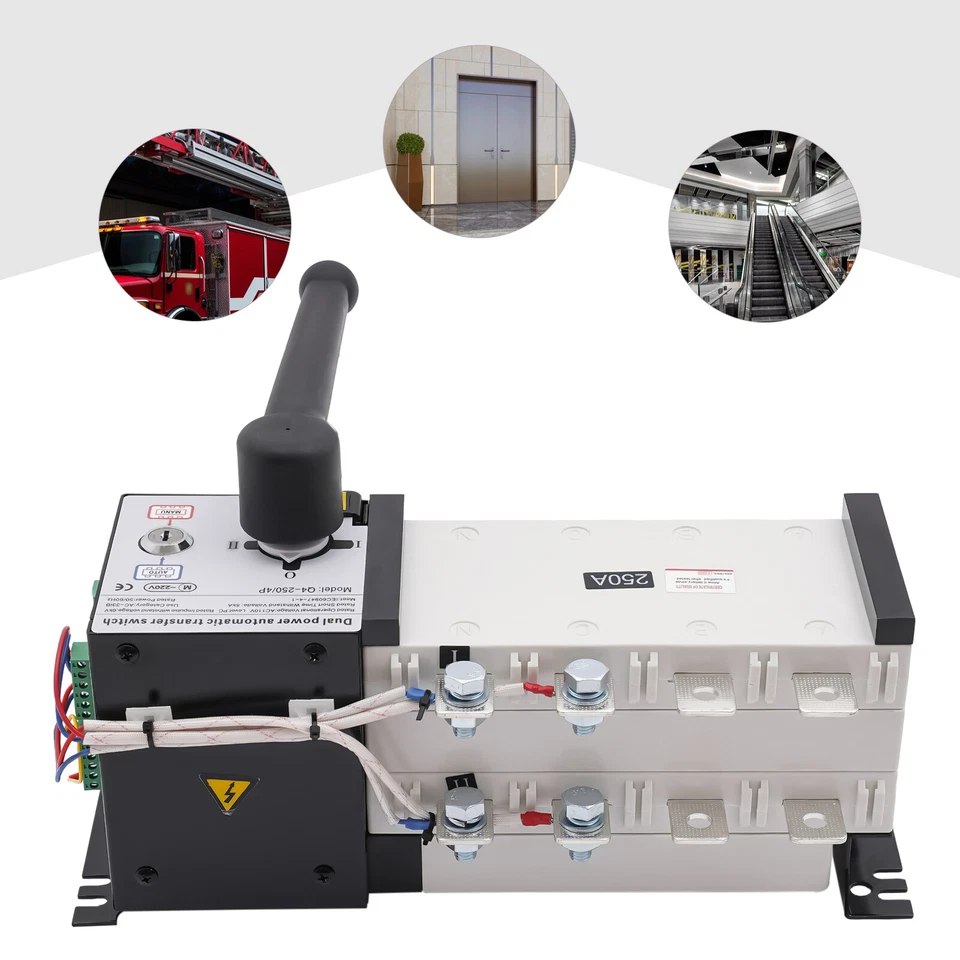

Industrial, residential and various occasions where continuous power failure is not allowed.

Function

Auto mode and Manual mode for choise.

Installation:

Distribution cabinet / Screw



Features :

Brand New

250A 4P Dual Power Automatic Transfer Switch

Specification:

Model No.:Gats-G-250-4p

Rated Current Ie(A): 250a

Installation:Screw / Distribution Cabinet

Rated Insulation Voltage Ui (V):8kv

Rated Control Voltage Ue (V):Ac110v/60hz

Rated Signal Terminal Voltage: Ac110v

Rated Operational Voltage:Ac110v

Model:Q4-250/4p

Level:Pc

Color:as picture

Use Category:Ac-338

Rated Impulse Withstand Voltage(Kv):6kv

Life    Electrical:8000times; Mechanical: 3000times

Rated Short-Circuit Current Connection Capacity:8ka

Rated Short-Time Withstand Current(Icw):5ka/30ms

Transfer/Return Time:2.5s-3s

Weight:8kg

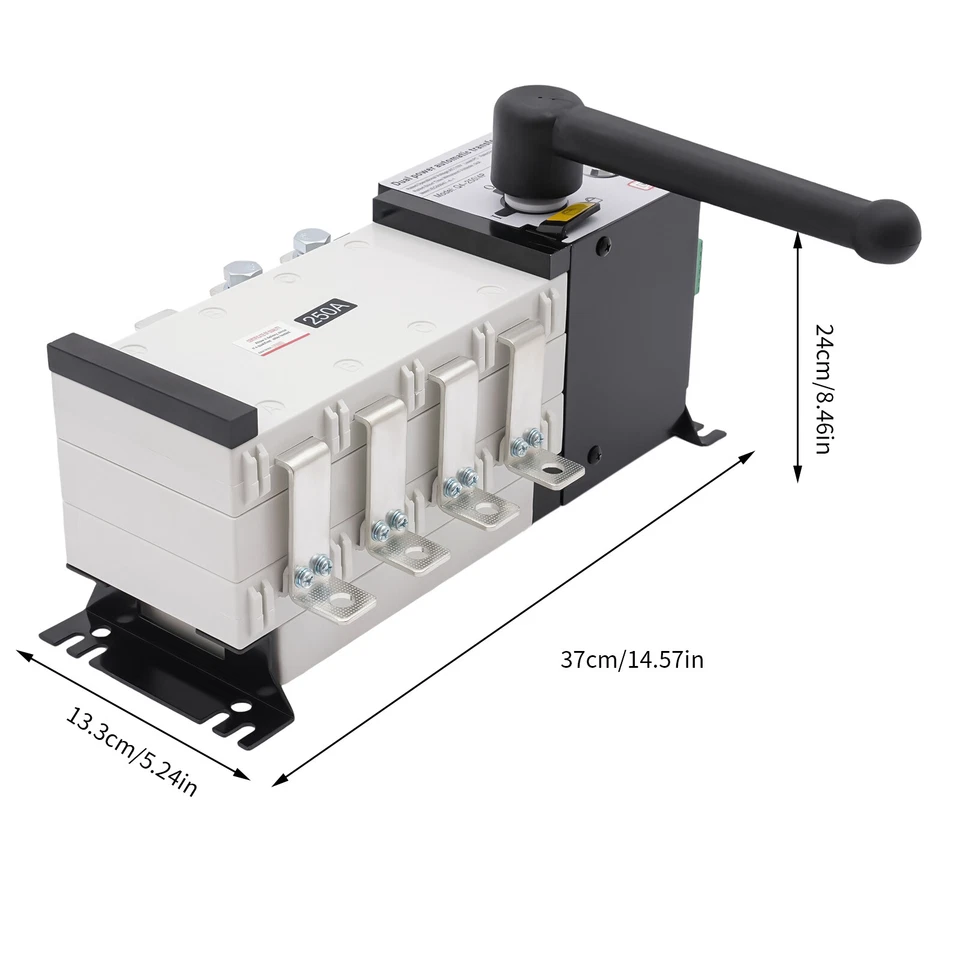

Size:340*130*118mm

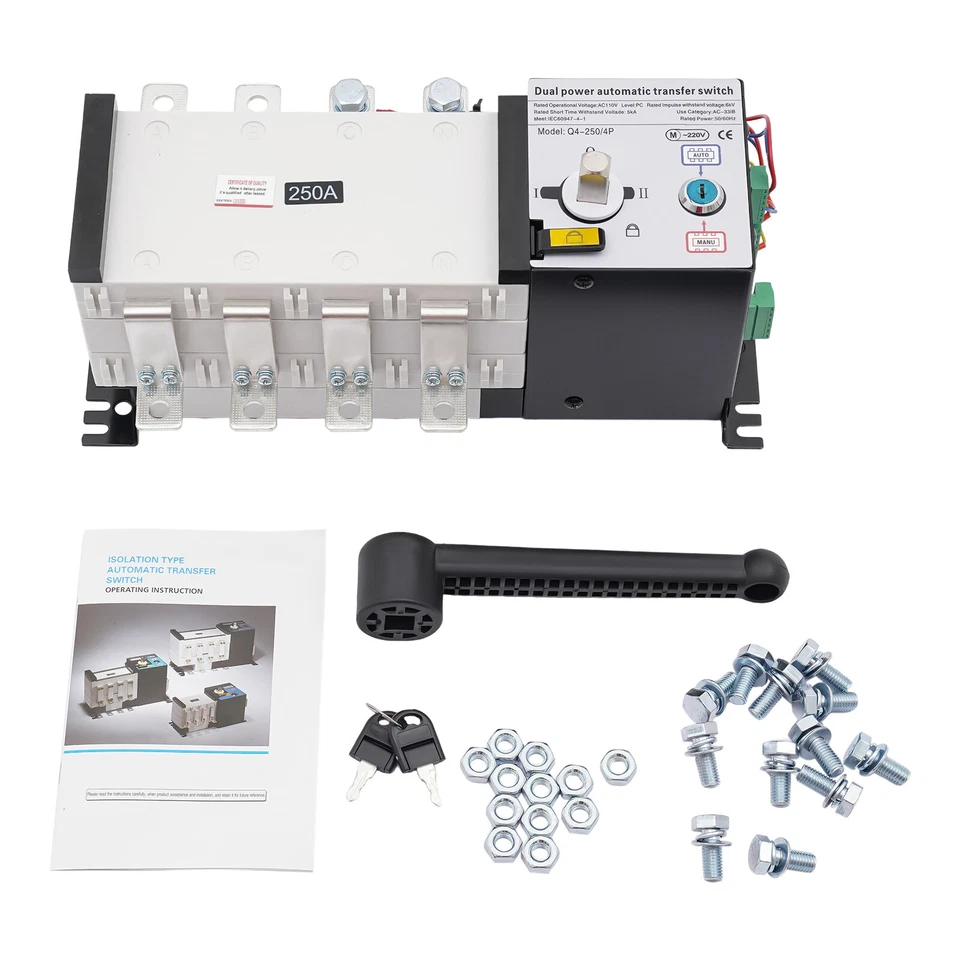

 Package Included:

1*Automatic Transfer Switch

1* Manual Book
