24V to 12V 3A 5A 10A 20A 30A 40A DC DC Buck Power Converter 24 Volt to 12 Volt Step Down Voltage Reducer Regulator Transformer
Specification
|
Model |
Input Voltage Range |
Output Voltage |
Output current |
Output power max |
Conversion Efficiency |
Dimension excluding cable |
Net Weight |
|
F35J12V1.5A2L |
DC 15-35V |
DC 12V |
1.5A max |
18W max |
95% |
45*25*21mm |
50g |
|
F35J12V1.5A1S |
DC 15-35V |
DC 12V |
1.5A max |
18W max |
95% |
46*27*14mm |
35g |
|
F35J12V3A2L |
DC 15-35V |
DC 12V |
3A max |
36W max |
95% |
45*25*21mm |
50g |
|
F35J12V3A4L1 |
DC 15-35V |
DC 12V |
3A max |
36W max |
95% |
66*60*22mm |
109g |
|
F35J12V5A2L |
DC 15-35V |
DC 12V |
5A max |
60W max |
95% |
45*25*21mm |
50g |
|
F35J12V5A4L |
DC 15-35V |
DC 12V |
5A max |
60W max |
95% |
66*60*22mm |
109g |
|
F35J12V5A4L1 |
DC 15-35V |
DC 12V |
5A max |
60W max |
95% |
66*60*22mm |
109g |
|
F35J12V10A4L1 |
DC 15-35V |
DC 12V |
10A max |
120W max |
95% |
66*60*22mm |
109g |
|
F35J12V10A5L |
DC 15-35V |
DC 12V |
10A max |
120W max |
95% |
74*74*32mm |
280g |
|
F35J12V15A5L |
DC 15-35V |
DC 12V |
15A max |
180W max |
95% |
74*74*32mm |
280g |
|
F35J12V20A5L |
DC 15-35V |
DC 12V |
20A max |
240W max |
95% |
74*74*32mm |
280g |
|
F35J12V30A5L |
DC 15-35V |
DC 12V |
30A max |
360W max |
95% |
74*74*32mm |
280g |

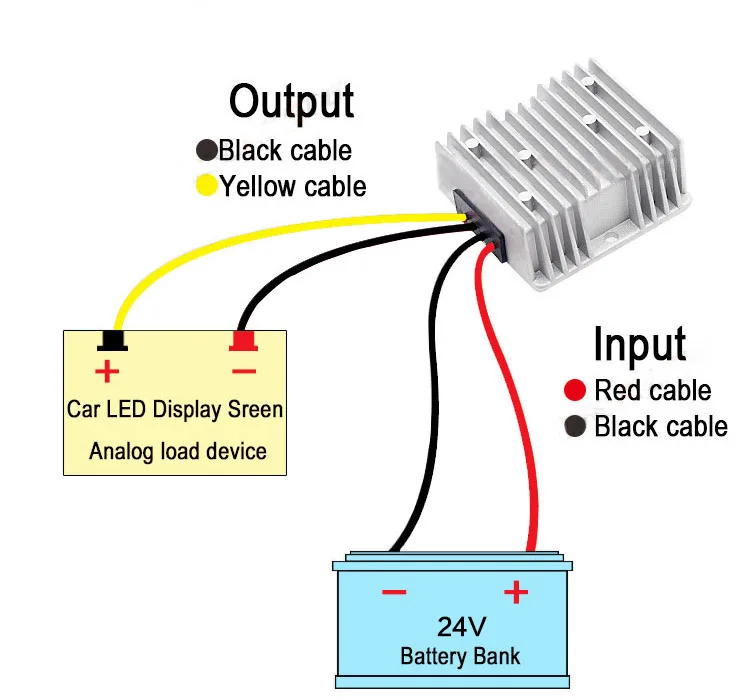

Connection

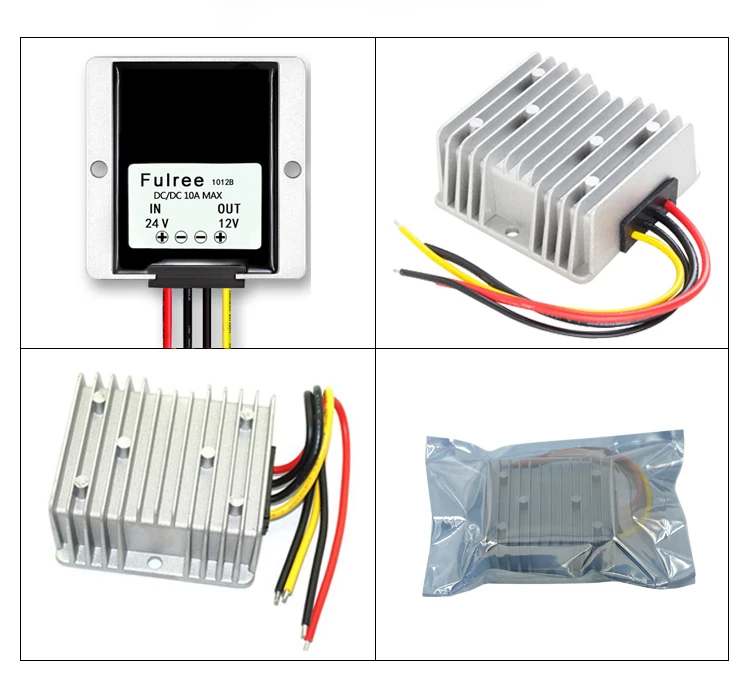

Product Photograph
Applications
