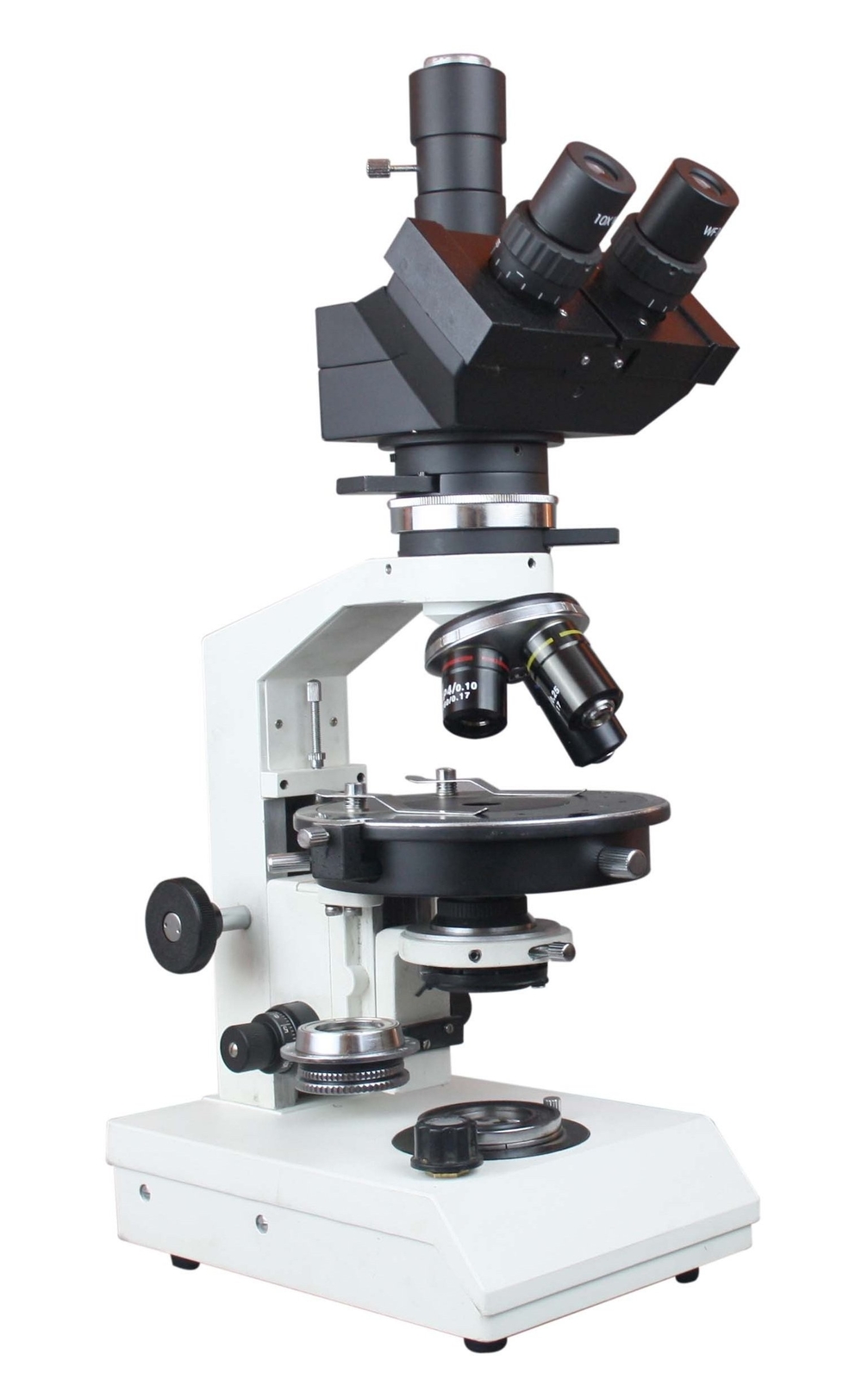

Polarizing Microscope with Rotary Stage, Dye Plates
This product datasheet was originally written in English. Below you can find an automatic translation into Spanish. If you have any questions please contact us.
Key Features
- Orthoscopic and connecopic observation: Easily switch between glass morphology and interference figure analysis
- Rotating circular stage: 360° rotation with centering, ideal for mineral and fiber orientation studies
- Dye plates / compensators: Includes λ (full wave), 1/4λ, retarders for birefringence analysis
- Polarizer and analyzer: Cross-polarization system for optical mineralogy, fibers, and stress analysis
- Robust construction, precise mechanics and strainless optics for accurate results
Orthoscopic and connoscopic polarizing microscope with rotating stages and dye plates
A versatile polarizing microscope designed for advanced optical analysis in geology, mineralogy, and materials science. Equipped with a rotating circular stage, dye plates (retarders), and orthoscopic/conoscopic modes, this instrument enables accurate study of birefringence, interference figures, and crystal orientation.
Applications
- Geology and petrology: Identify minerals, extinction angles, and interference colors
- Optical mineralogy: Observe connoscopic interference figures using the Bertrand lens and dye plates
- Materials and ceramics: Analyze stress, birefringence, and crystal structures
- Fiber and polymer analysis: Use retarders to measure optical properties in fibers and plastics
Optical and mechanical details
- Strainless lenses and wide-field eyepieces for clarity
- Polarizer and analyzer, fully rotating
- Rotary circular stage with centered screws
- Compensating slot with dye plates: λ (full wave)
- Orthoscopic and connecopic imaging modes
- Bertrand lens (if included) for interference figure observation
Typical package includes
- Polarizing microscope body with rotating circular stage
- Voltage-free lenses and eyepieces
- Polarizer and Analyzer Assembly
- Dye plates (retardants): λ, 1/4λ
- Compensator slot and Bertrand lens (if model is equipped)
- User manual and basic accessories
Sample interference images can be provided upon request.
Study interference and birefringence figures accurately
Order today for geology, materials science, and optical mineralogy applications.
