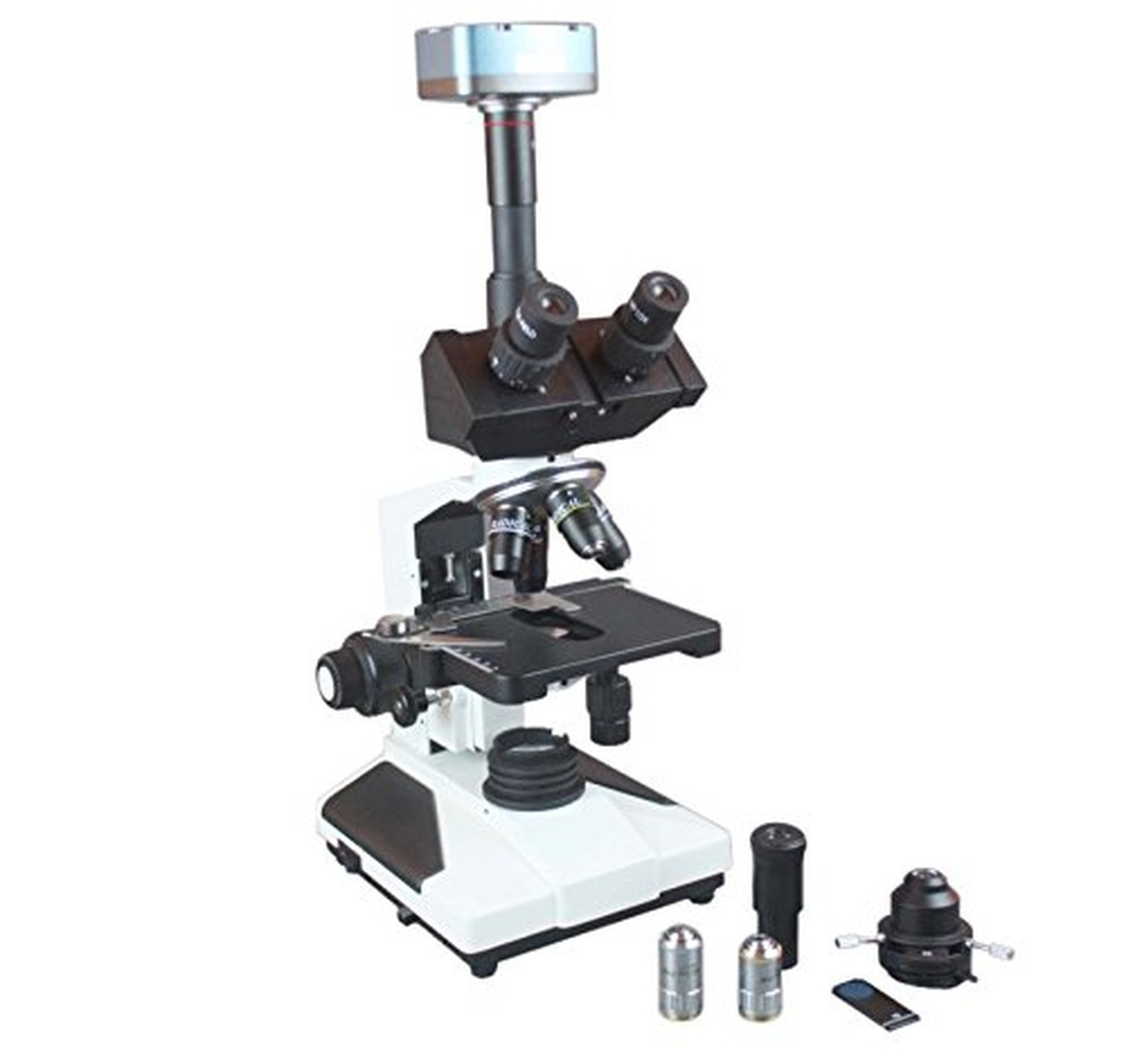

2000x Phase Contrast LED Microscope w 9Mp USB Camera for WIN & MAC & Measuring Software*
| |
Please refer to the packing list for the exact list of parts.
Item Description
Features
Condenser: Movable Condenser Abbe Type NA 1.25 w Diaphragm & Filter Holder
Slot For Phase Annular
Perfect tool for teaching demos, clinical examinations and lab application
Digital Camera Interface to view and record Live Video & Still Images
Software for Linear Measurements
Economical Phase Contrast Kit for Professional Results
Solid Rugged Metal Construction
SEMI PLAN Objectives!!!!!!
Semi Plan Objectives have 25% more clarity & Flatness than standard Achromat
Seperate Trinocular Camera Port for Light Transfer with C Mount Adapter
Digital Camera Interface to view and record Live Video & Still Images
Software for Linear Measurements
Economical Phase Contrast Kit for Professional Results
Solid Rugged Metal Construction
SEMI PLAN Objectives!!!!!!
Semi Plan Objectives have 25% more clarity & Flatness than standard Achromat
Seperate Trinocular Camera Port for Light Transfer with C Mount Adapter
Anti Fungus, Anti Reflection & Hard Coating on all Optical Components
8 Level Magnification - 40x, 80x, 100x, 200x, 400x, 800x, 1000x & 2000x
Phase Contrast Magnification - 100x, 200x, 400x & 800x
UNIQUE Phase Contrast Condenser with Annular Slot & Centering Screws
Phase Contrast Magnification - 100x, 200x, 400x & 800x
UNIQUE Phase Contrast Condenser with Annular Slot & Centering Screws
Movable Condenser with abbe condenser 1.25NA and Filter Holder
Adjustable interpupillary distance with diopter adjustment
Low Drive Mechanical Stage for smooth scan of specimens
Seperate Coarse & Fine Focusing - METAL RACK & PINION - NO PLASTIC GEAR
Focusing Limit Adjuster for Slide Protection
Variable LED Illumination
(LED Illumination - True Colors & Halogen - Rich Contrast) You can decide!!!
Focusing Limit Adjuster for Slide Protection
Variable LED Illumination
(LED Illumination - True Colors & Halogen - Rich Contrast) You can decide!!!
FREE Blank Slides
CE, UL & ISO confirmations
Best Price to performance Ratio
Specifications
Model : RMH-4TL - PH1-900M
Head: Trinocular Inclined at 45 Degrees & 360 Degree Rotatable
Ocular: With Diapotric Adjustment for Eye Power
Interpupilary: Sliding Adjustment for eye to eye distance
Photoport: Trinocular port with 100% light Transfer & C Mount Adapter
Ocular: With Diapotric Adjustment for Eye Power
Interpupilary: Sliding Adjustment for eye to eye distance
Photoport: Trinocular port with 100% light Transfer & C Mount Adapter
Nosepiece: Quadruple revolving with positive centering & click stops
Illumination: 3W LED with Intensity Control. 110V/240V Option
Objectives: SEMI PLAN Achromatic 4x, PH10x, PH40x SL & 100x OIL SL
Eyepieces: WF 10x & WF 20x, Centering Telescope
Mechanical Stage: Built in Mechanical Stage 135x120mm, 75x50mm movement
Focus Stopper for Slide protectionCondenser: Movable Condenser Abbe Type NA 1.25 w Diaphragm & Filter Holder
Slot For Phase Annular
Filters: Darkfield & Blue
Camera: 9 Mega Pixels with 0.5x Reduction Lens
Software: For viewing & capturing Video & Still Images - WIN & MAC
(Standard Driver for WINDOWS are sent, you need to mail us for MAC Drivers)
Measuring Software: For Windows ONLY!
Camera: 9 Mega Pixels with 0.5x Reduction Lens
Software: For viewing & capturing Video & Still Images - WIN & MAC
(Standard Driver for WINDOWS are sent, you need to mail us for MAC Drivers)
Measuring Software: For Windows ONLY!
Packing List
Microscope Body with Trinocular Head
Objectives Semi Plan 4x, Phase 10x, Phase 40x & 100x Oil
Eyepiece WF 10x & 20x
Telescopic Eyepiece
Abbe Brightfield Condenser w NA 1.25 with Annular Slot
Blue & Green Filter, Immersions Oil & Spare BulbTelescopic Eyepiece
Abbe Brightfield Condenser w NA 1.25 with Annular Slot
Darkfield Stop
Blue Filter, Immersions Oil & Spare Bulb
Camera with reduction lens
USB cable
Driver & Software CD
Camera with reduction lens
USB cable
Driver & Software CD
Cleaning Cloth
Dust Cover
Free Slides
Instruction manual
Optional Accessories
WF 15x eyepiece
Spare Bulb
Prepared Slides
Darkfield 100x Oil Objective w Diaphragm
Darkfield Condenser
Phase 100x
Polarizing Kit
Darkfield Condenser
Phase 100x
Polarizing Kit
USB or TV Camera
Heating Stage
Blank Slides & Cover Slips
Wooden carrying case
