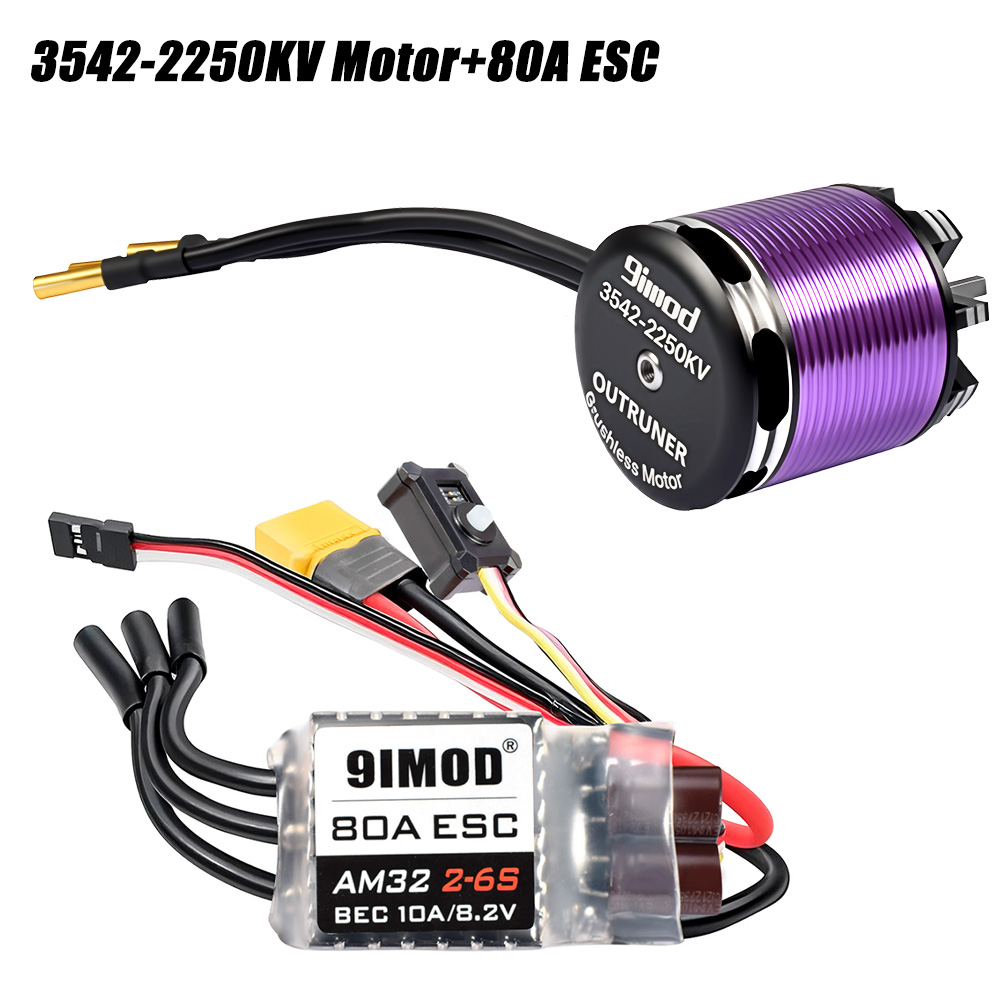

9IMOD Brushless Motor ESC Combo 3542 Outrunner Motor 80A ESC for 1/10 1/12 RC Crawler Car Axial SCX10 Traxxas TRX-4 TRX-6 Tamiya

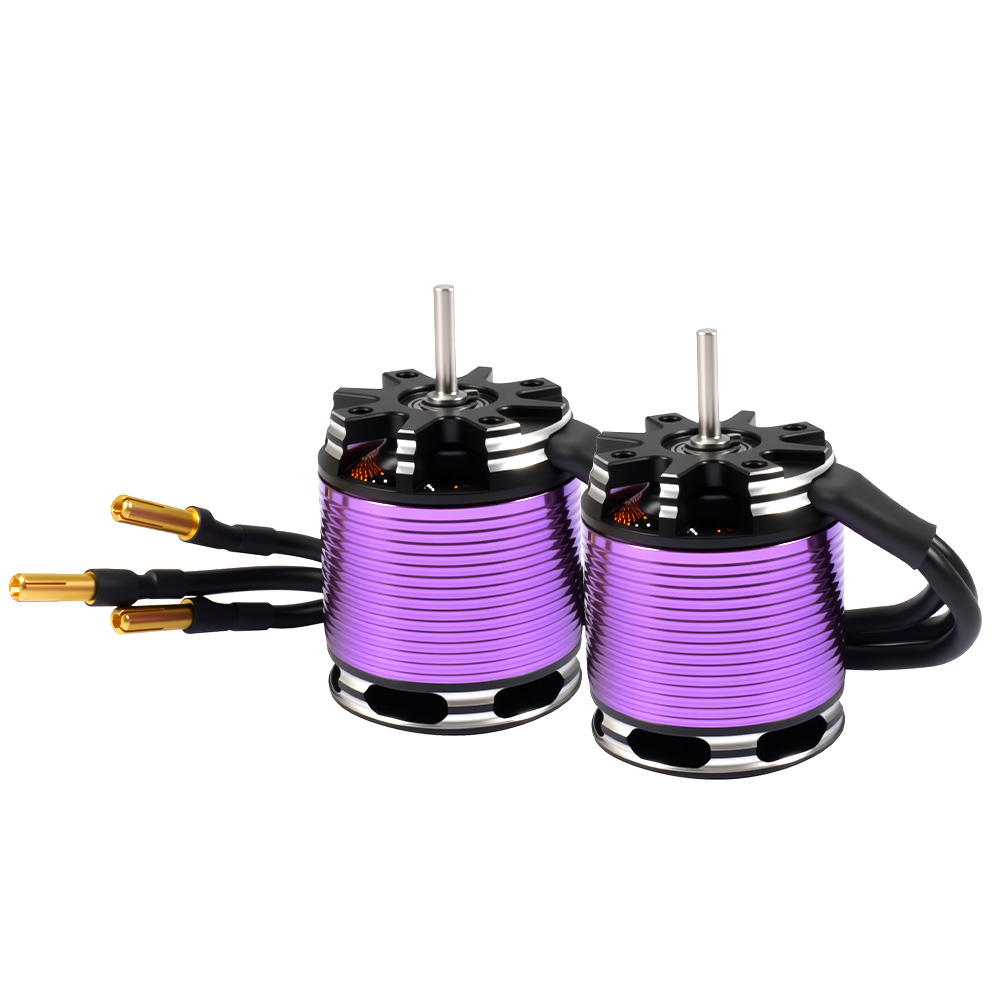

Motor Features:
1. Stable Output Power:14 Pole 12 Slot Hi-torque rotor design
2. Suit For:Special made for RC 1/10 1/12 brushless crawler cars,for Axial SCX10 TRX-4 TRX-6 Tamiya and pair with Mamba Micro X ESC(ESC is suggested,not included.).Multi-mounting system for M3 screws.

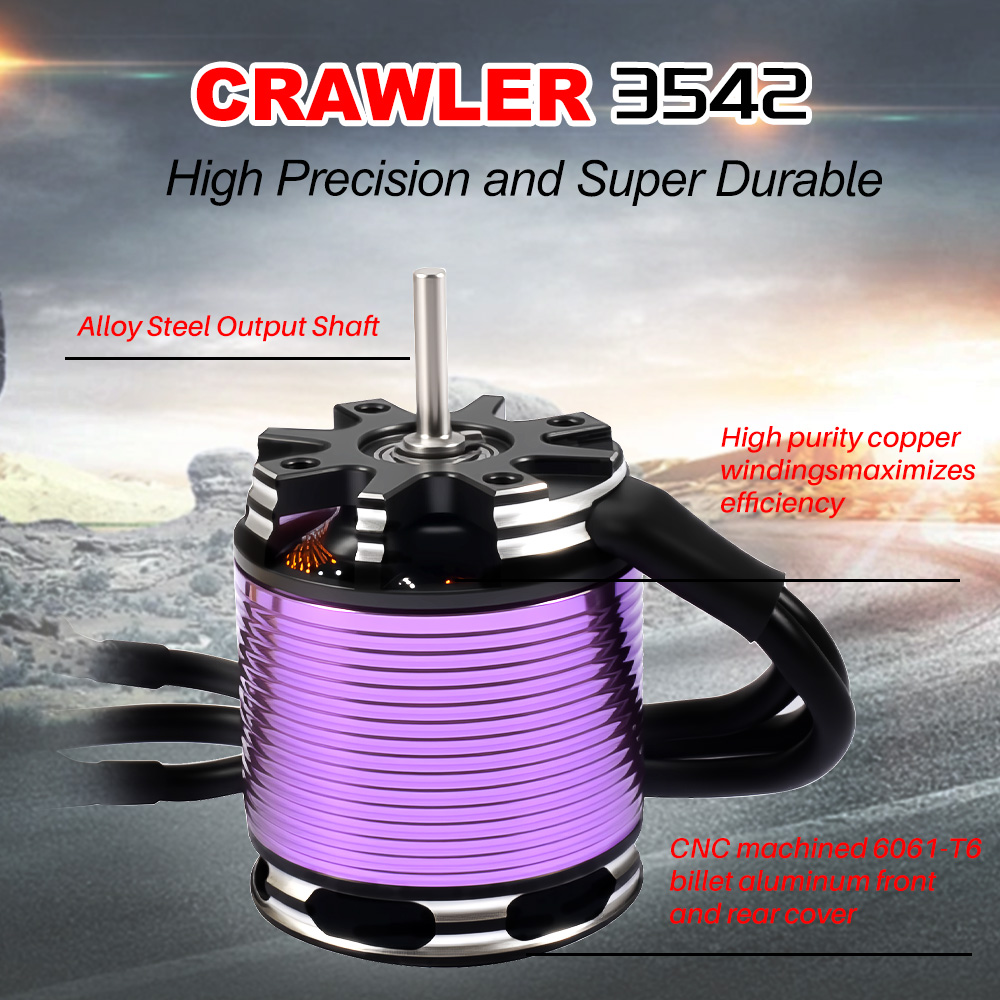

3. Material:CNC Machined 6061 T6 aluminum front and rear cover.High purity copper windings maximizes efficiency.High toughness stainless steel shaft( Φ 3 . 175mm), high precision and high quality bearing make the motor super durable.

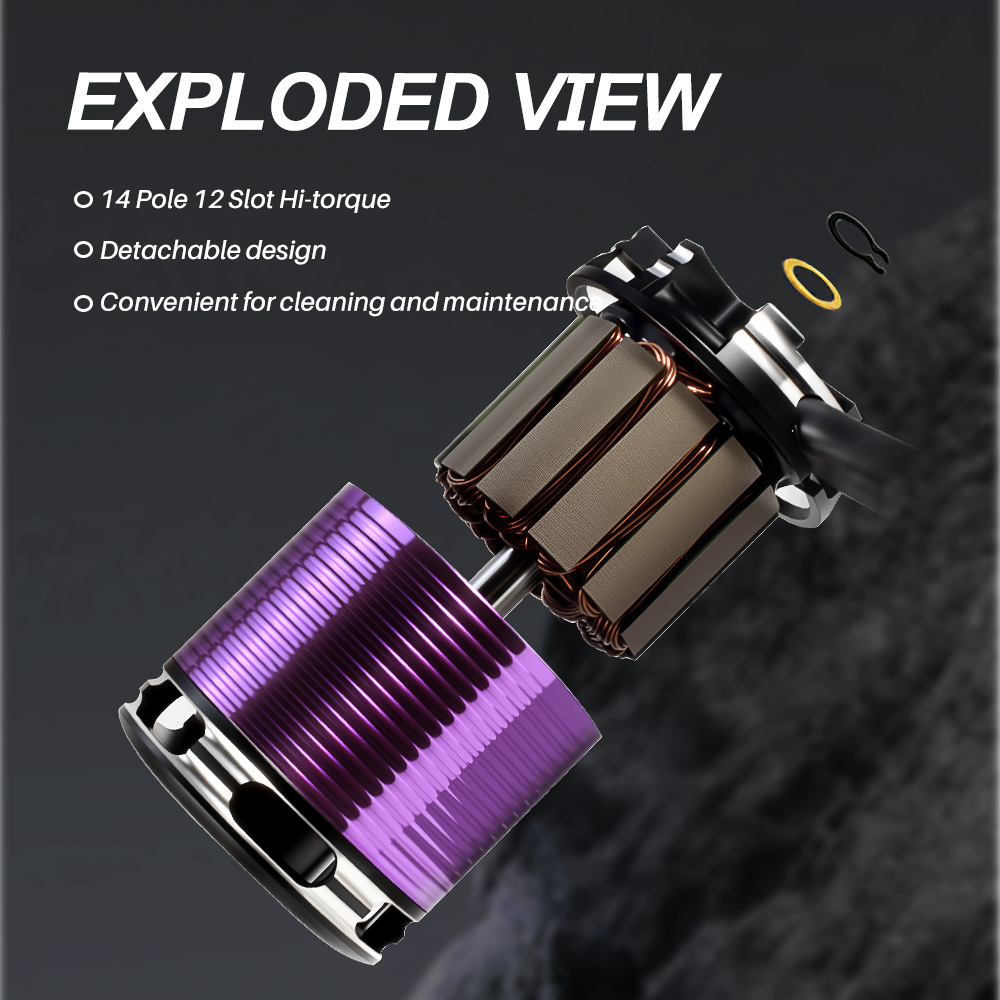

4. Removable/Replaceable Design:Detachable design, Convenient for cleaning and maintenance, Effectively extend the service life of the motor and improve work efficiency.
5. High Performance:Excellent torque and drive ability, engineered for maximum energy conversion.

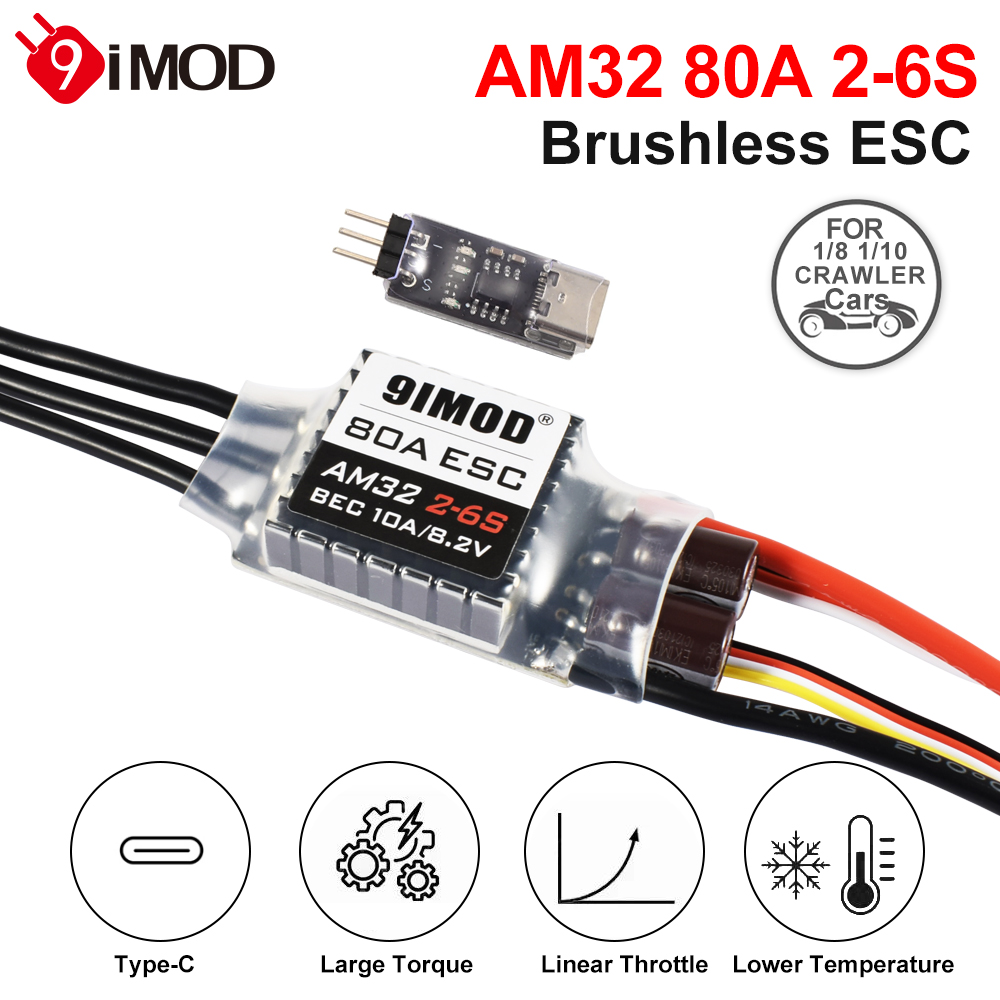

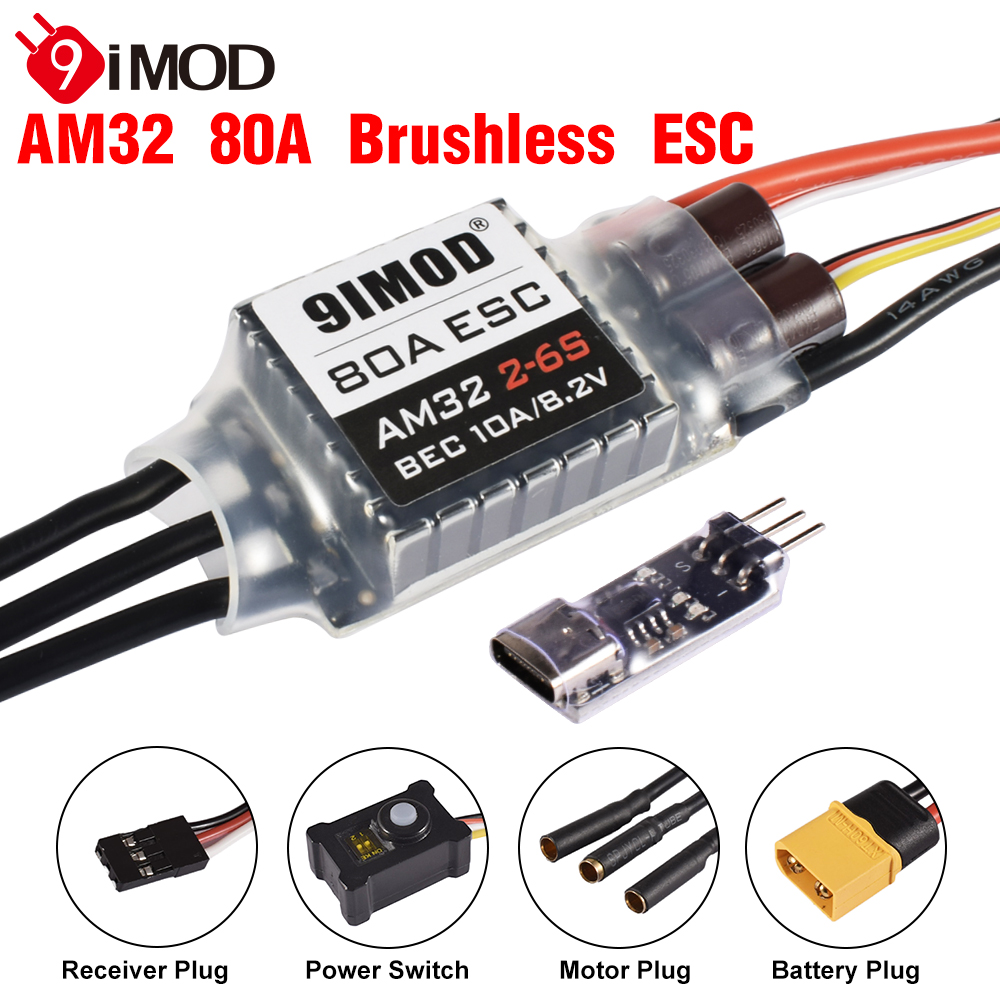

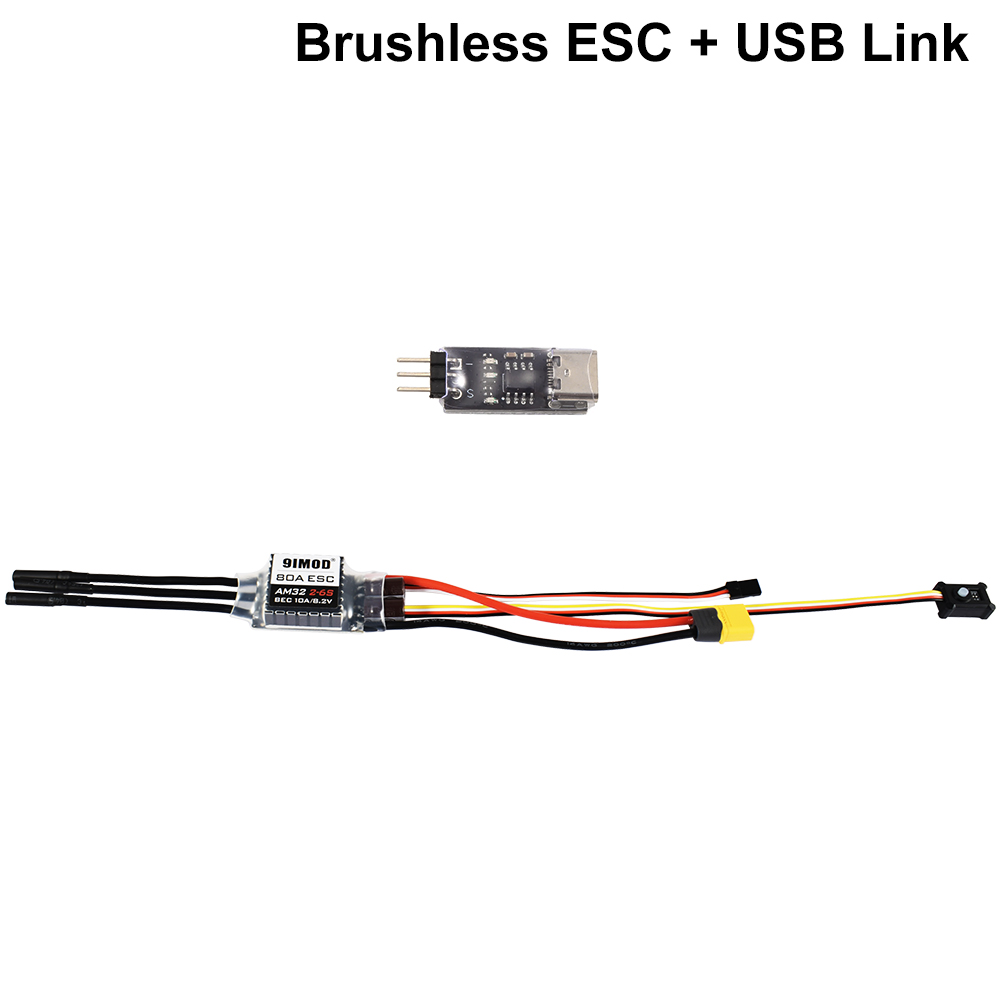

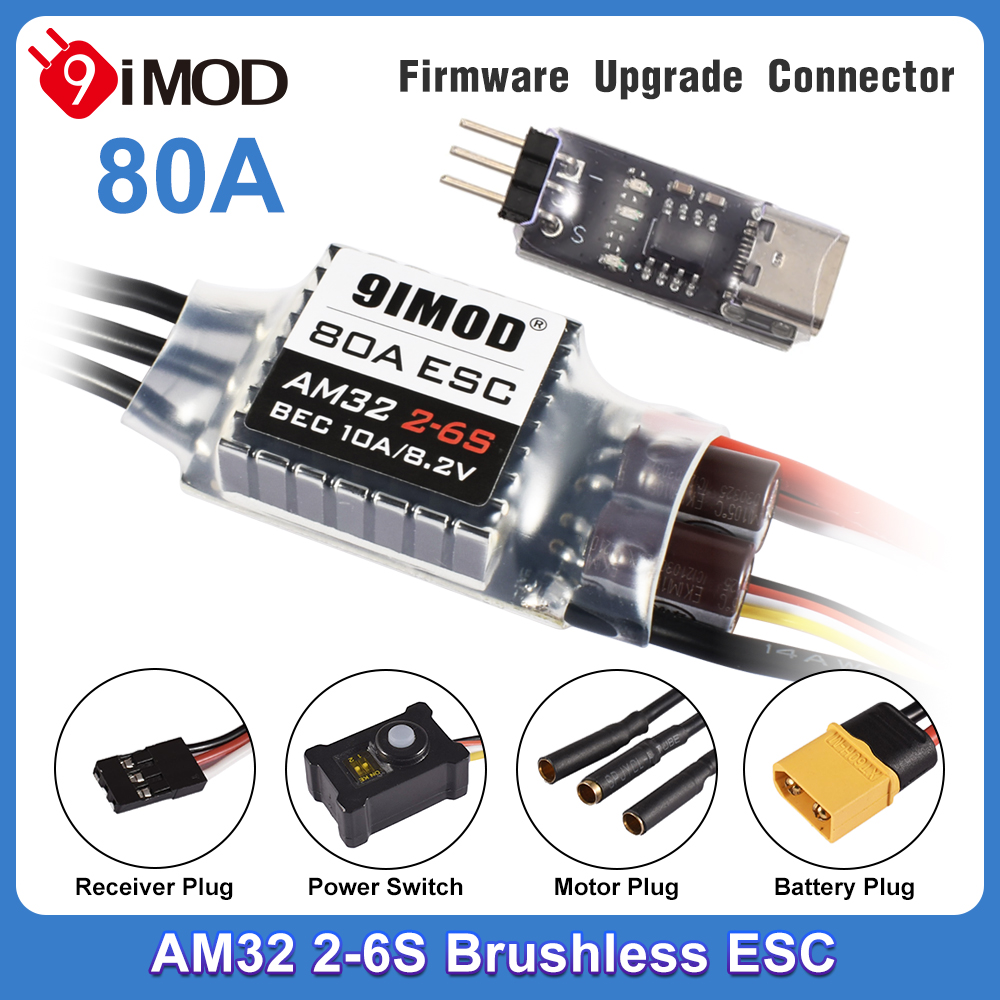

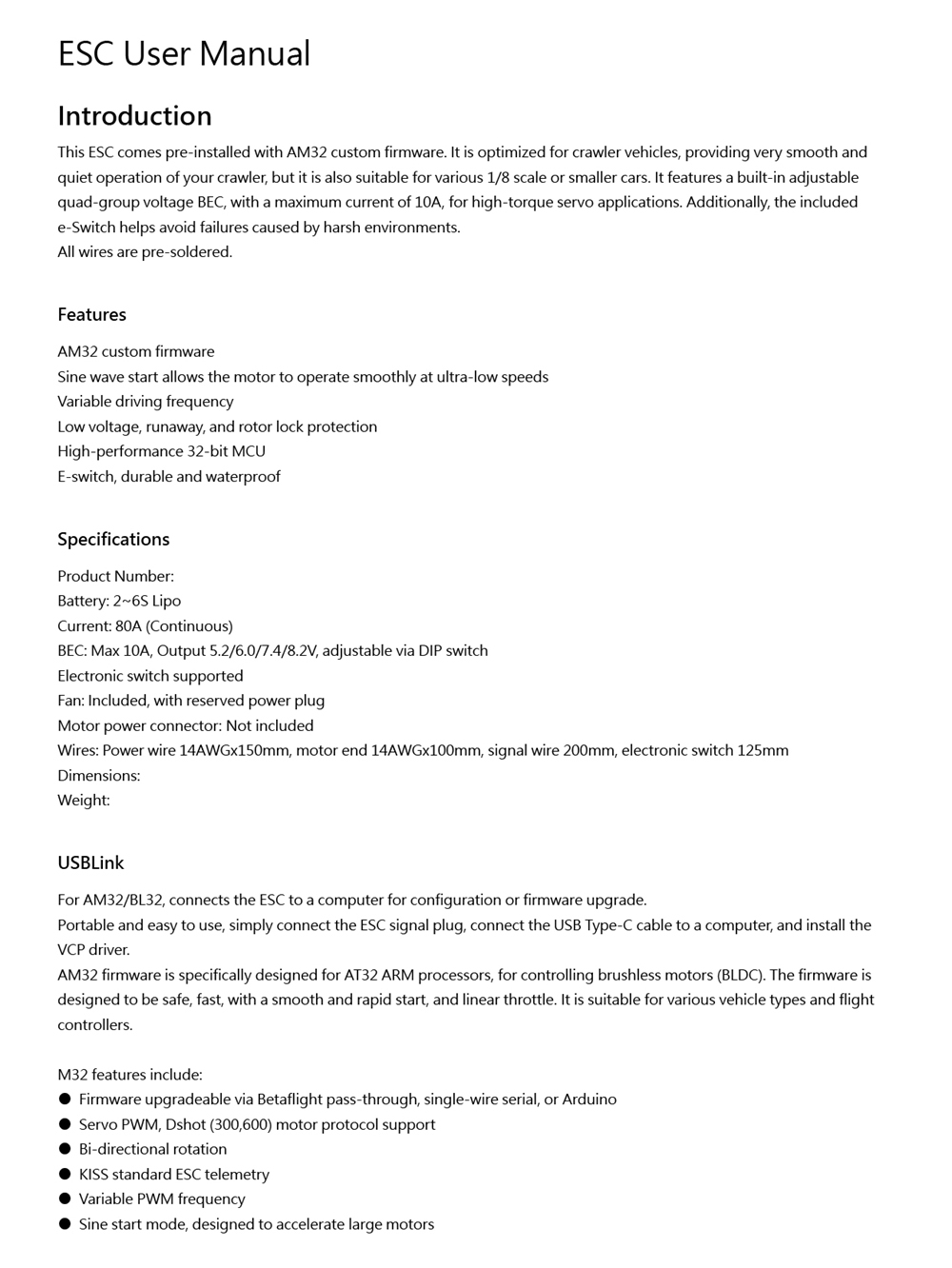

ESC Features:
1. AM32 custom firmware
2. Sine wave start allows the motor to operate smoothly at ultra-low speeds
3. Variable driving frequency
4. Low voltage, runaway, and rotor lock protection
5. High-performance 32-bit MCU
6. E-switch, durable and high-quality components

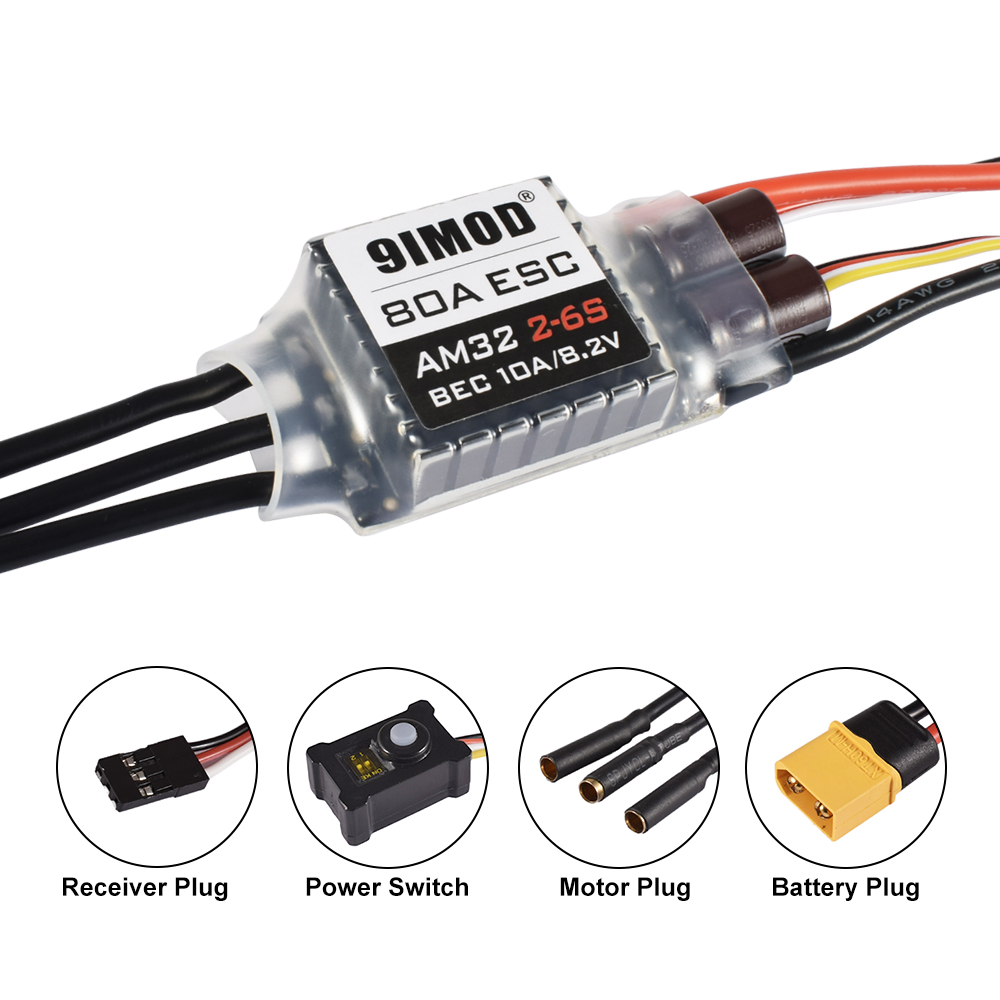

7. All wires are pre-soldered

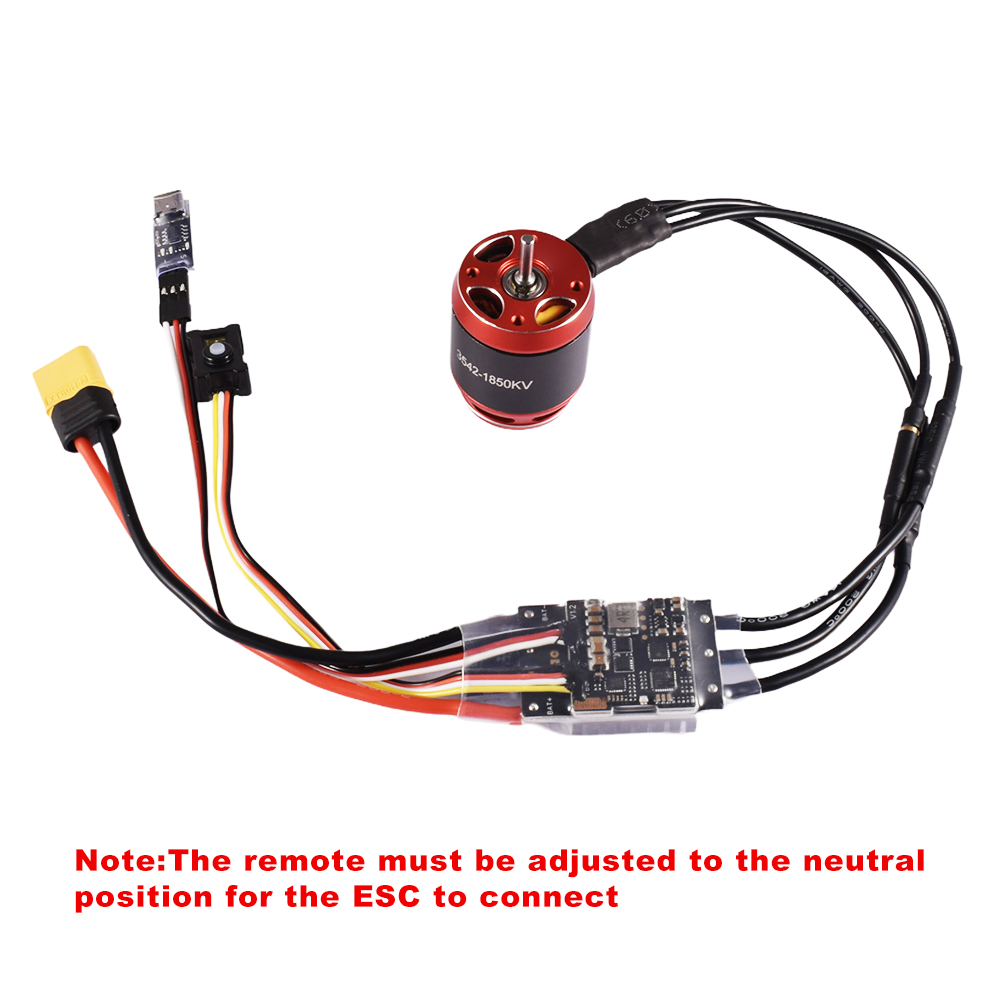

(Note:The remote must be adjusted to the neutral position for the ESC to connect)
Description:

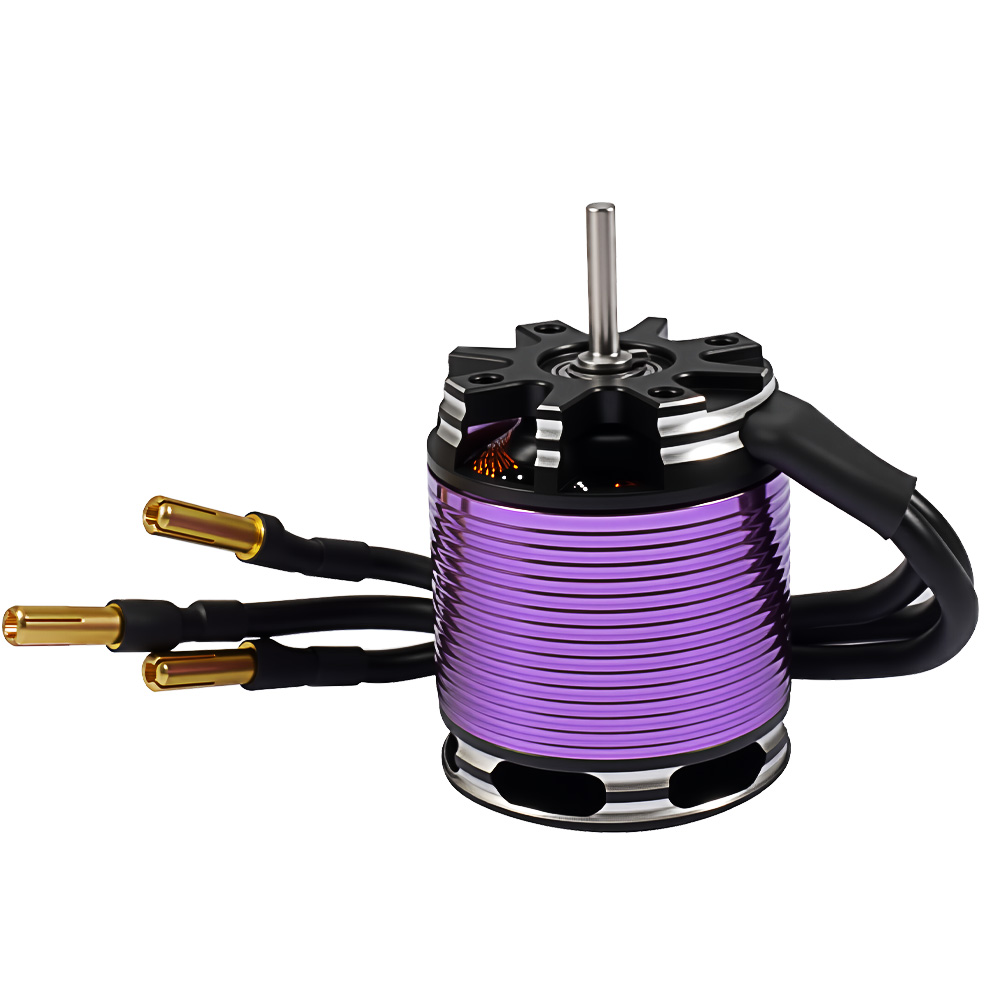

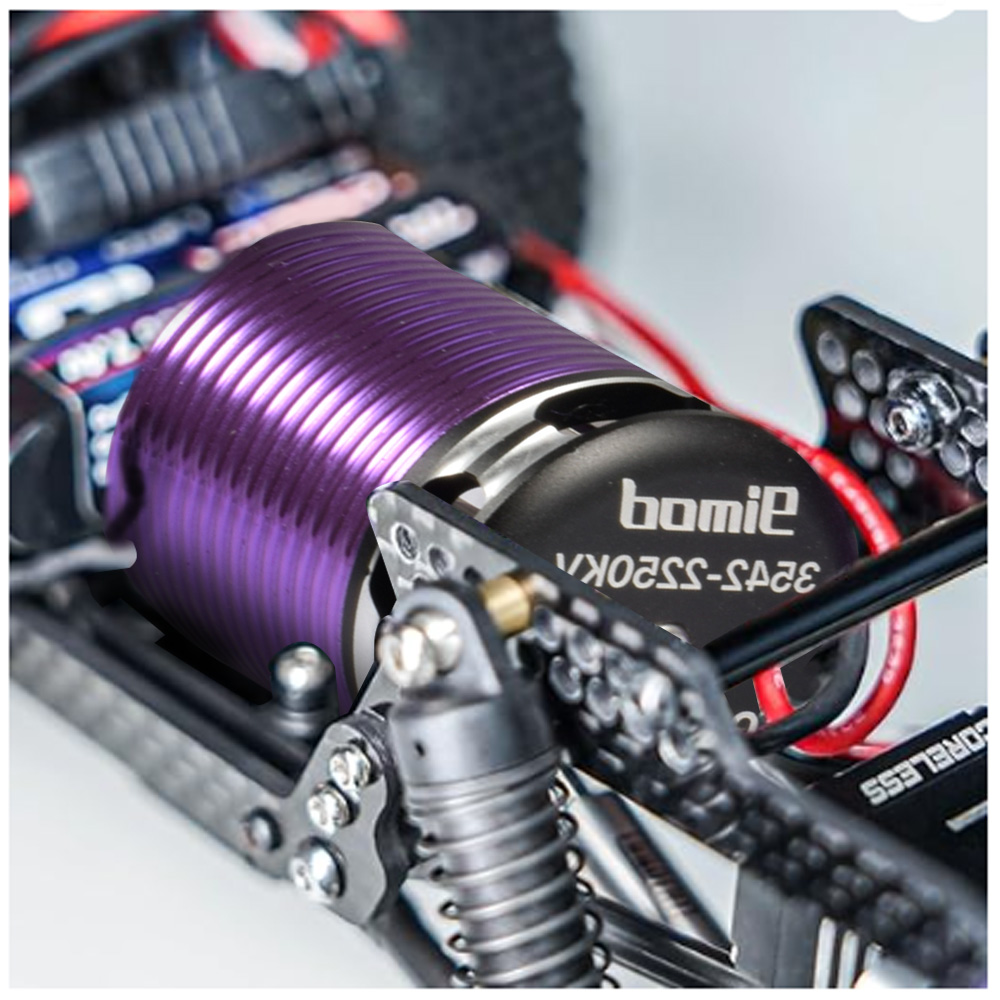

3542 Crawler Outrunner Brushless Motor is special made for 1：10 1：12 RC Crawler Axial SCX10 TRX-4 TRX-6Tamiya,come with 3.175 mm diameter drive shaft.Completely smooth under low linearity in Crawler.Removable/Replaceable rotor design, Convenient for cleaning and maintenance, Effectively extend the service life of the motor and improve work efficiency.

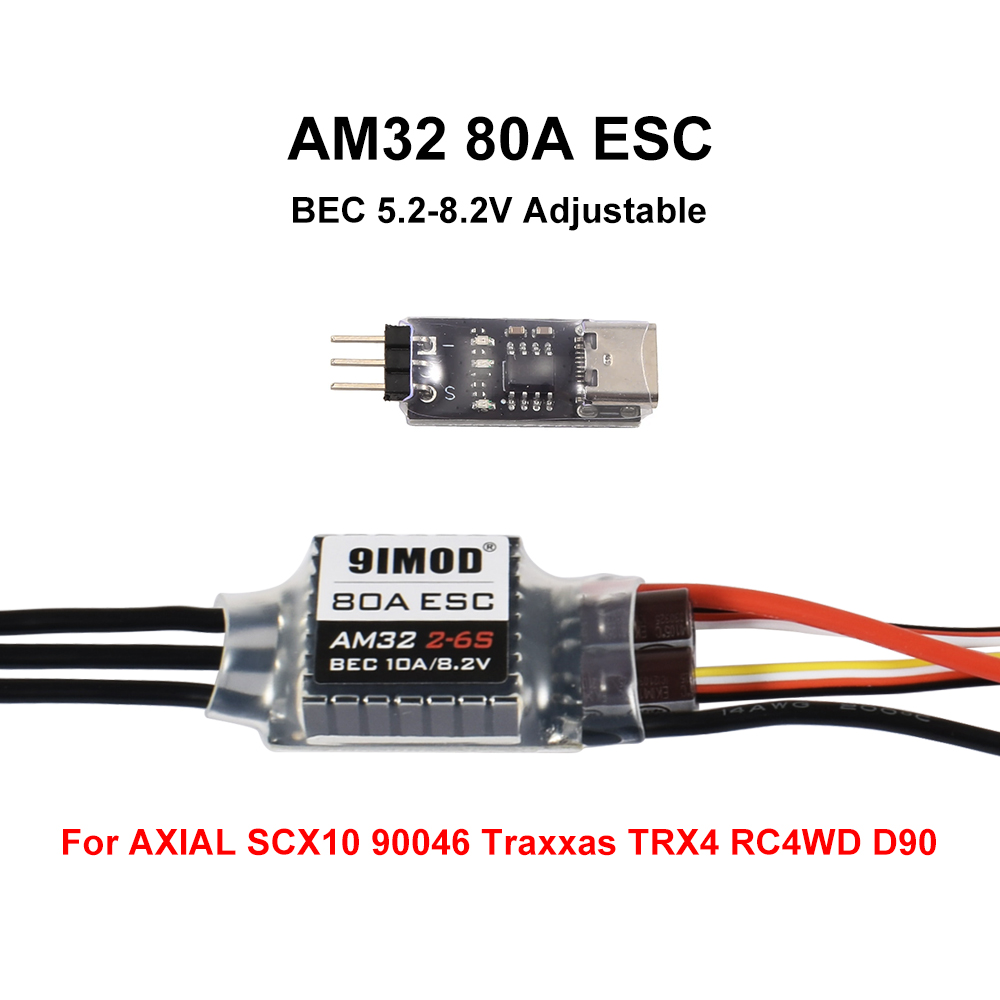

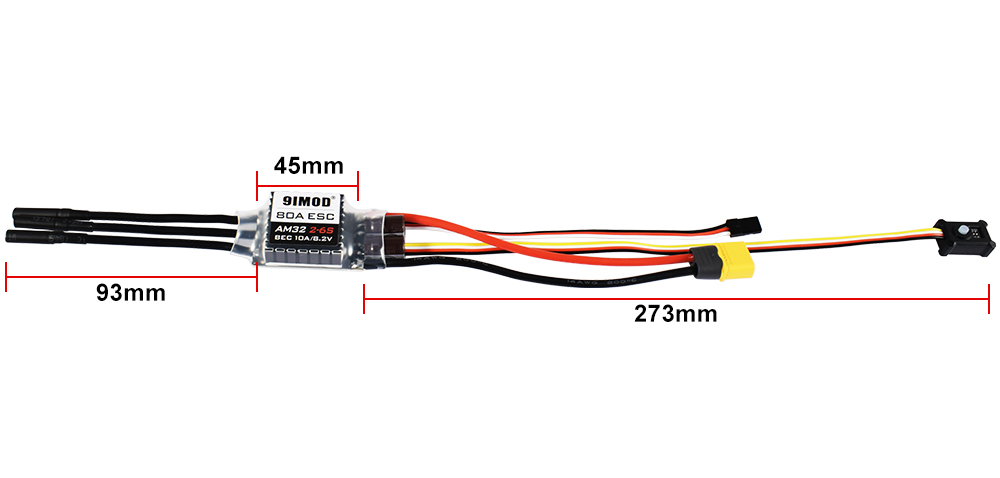

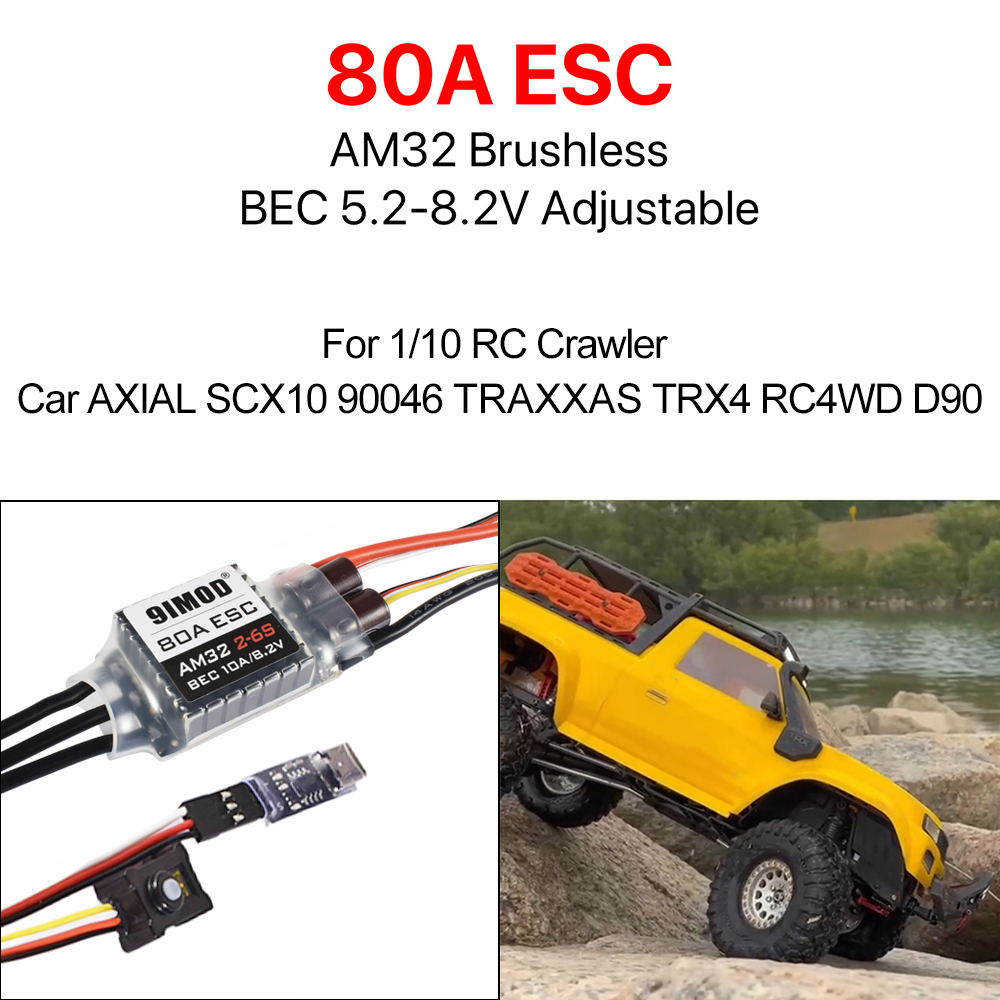

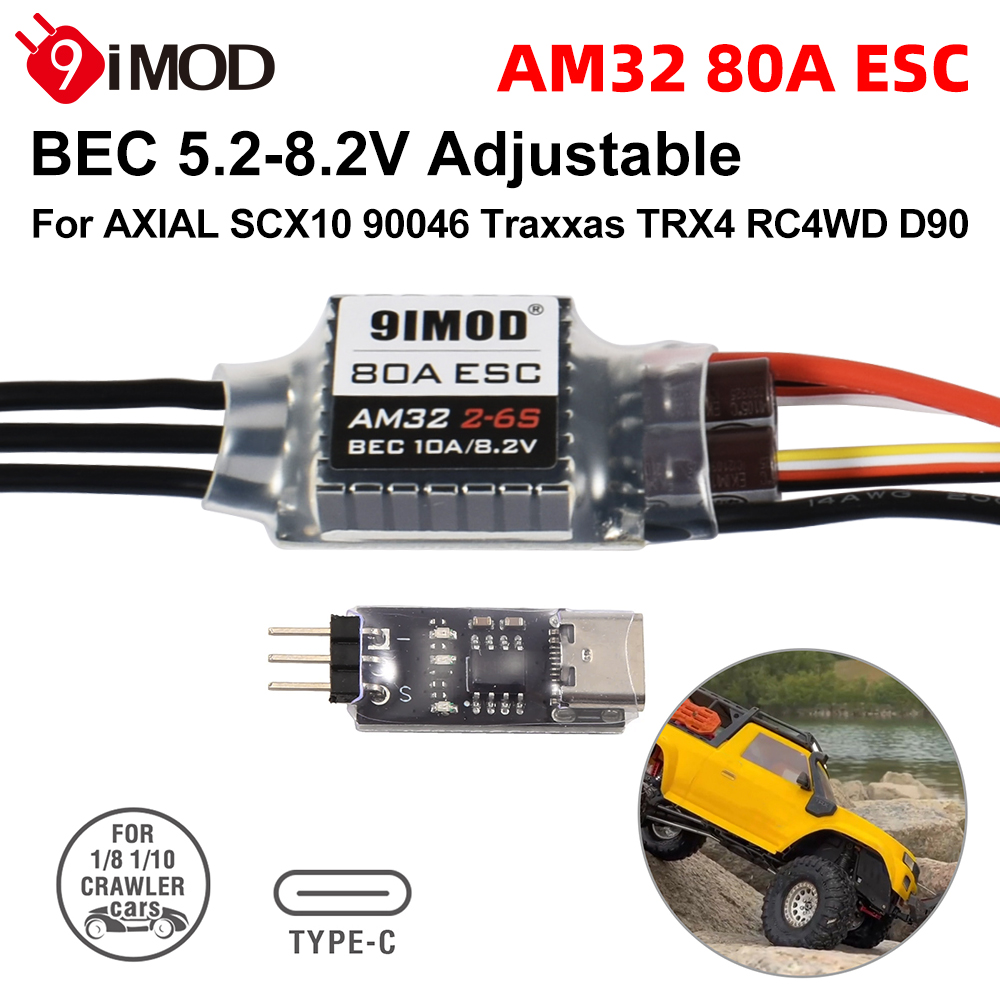

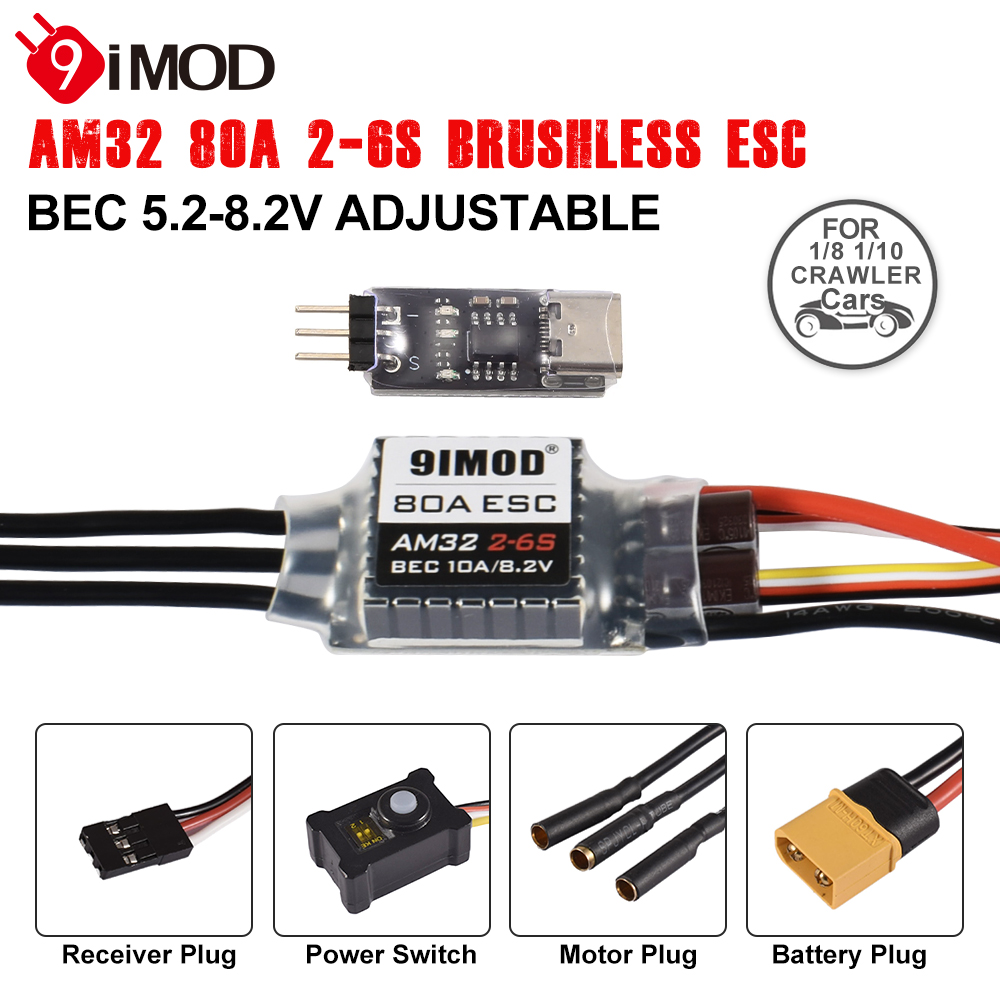

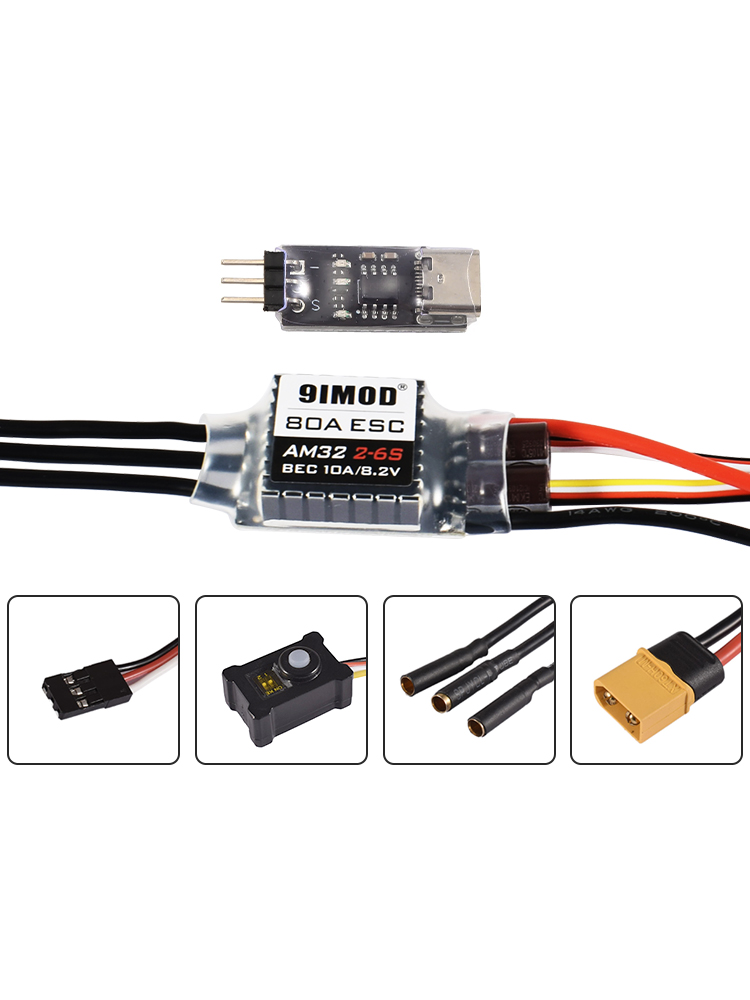

80A Specifications:
Brand: 9IMOD
Battery: 2~6S Lipo
Current: 80A (Continuous)

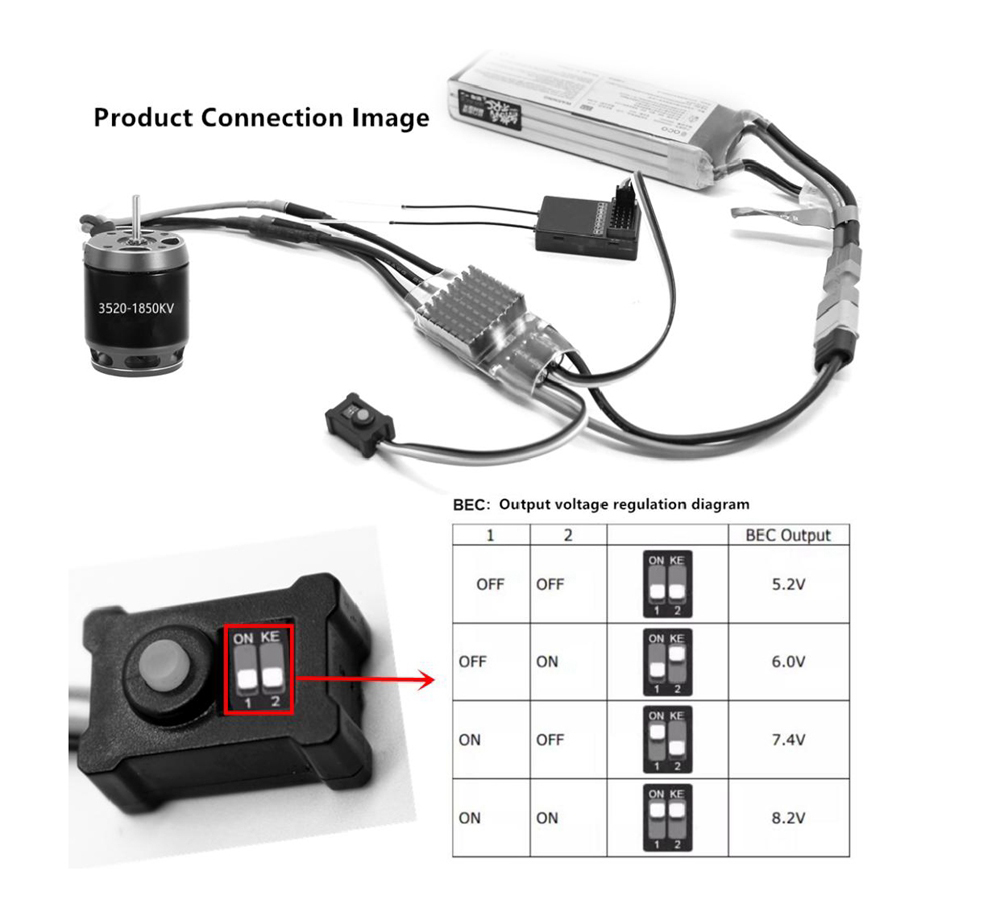

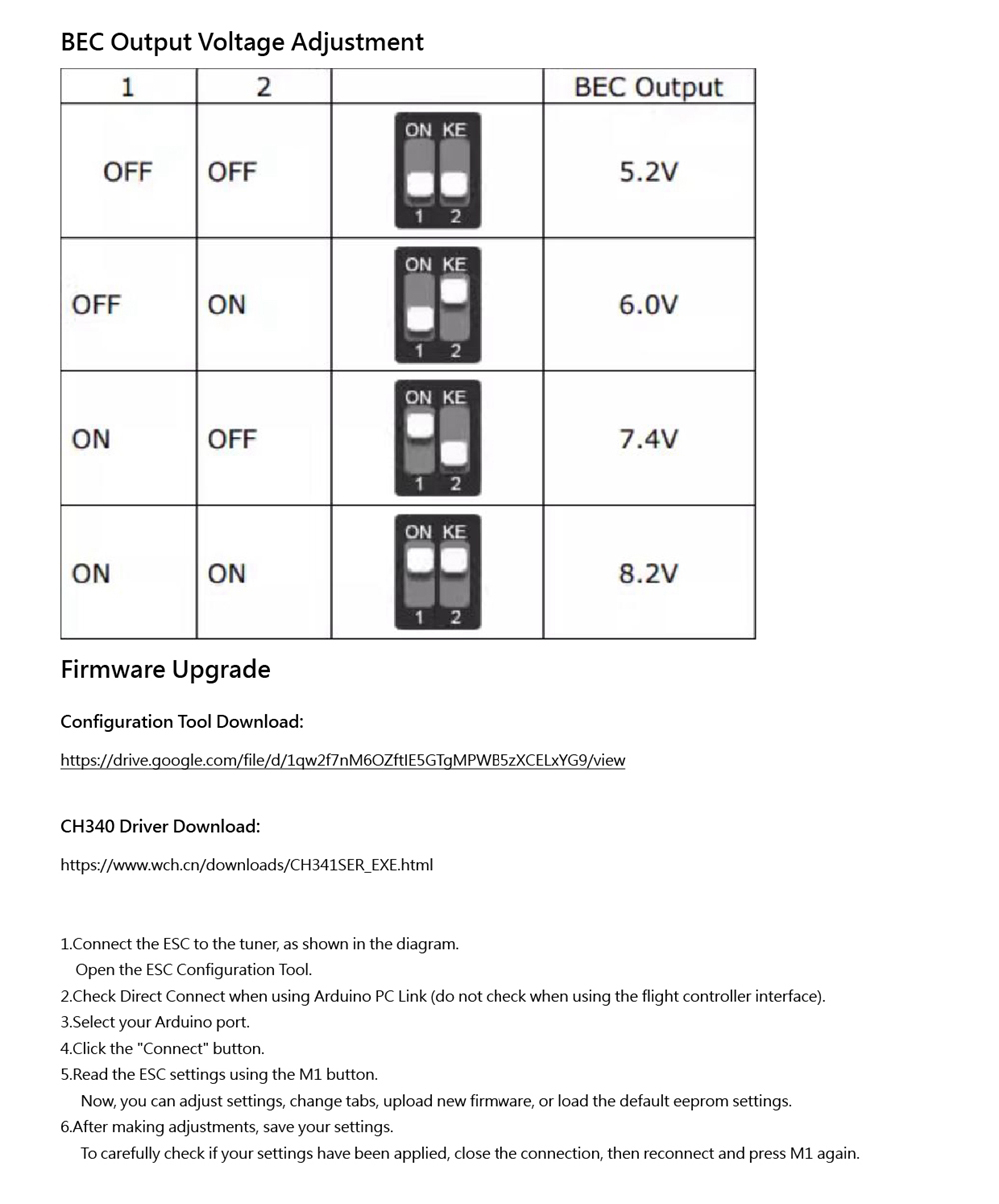

BEC: Max 10A, Output 5.2/6.0/7.4/8.2V, adjustable via DIP switch
Electronic switch supported

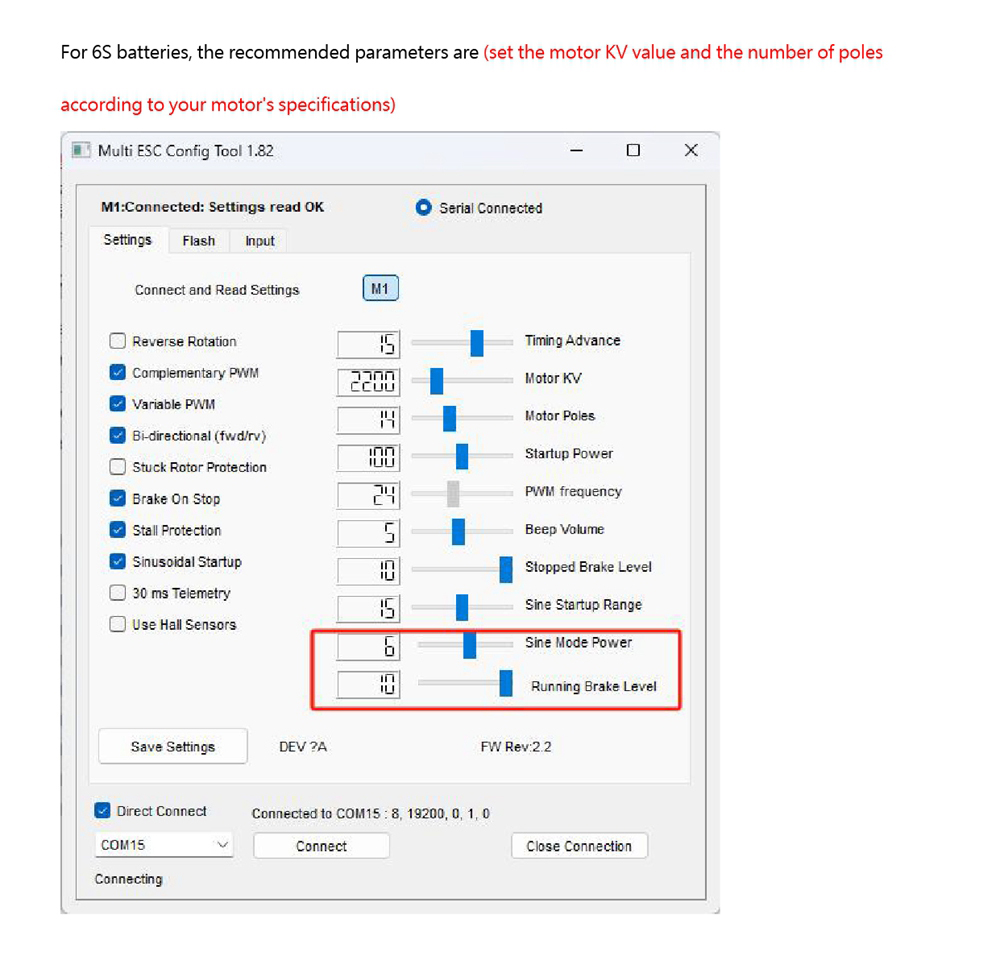

AM32 firmware is specifically designed for AT32 ARM processors, for controlling brushless motors (BLDC). The firmware is designed to be safe, fast, with a smooth and rapid start, and linear throttle. It is suitable for various vehicle types and flight controllers.

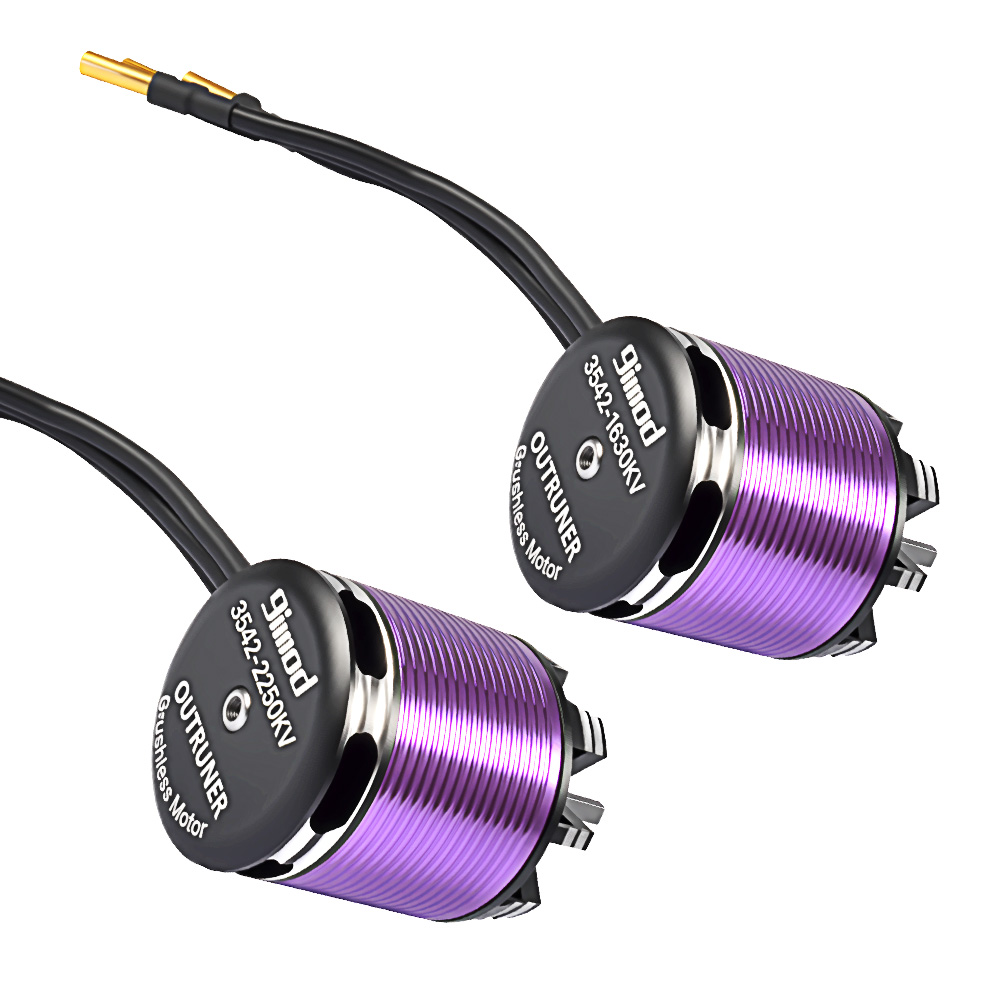

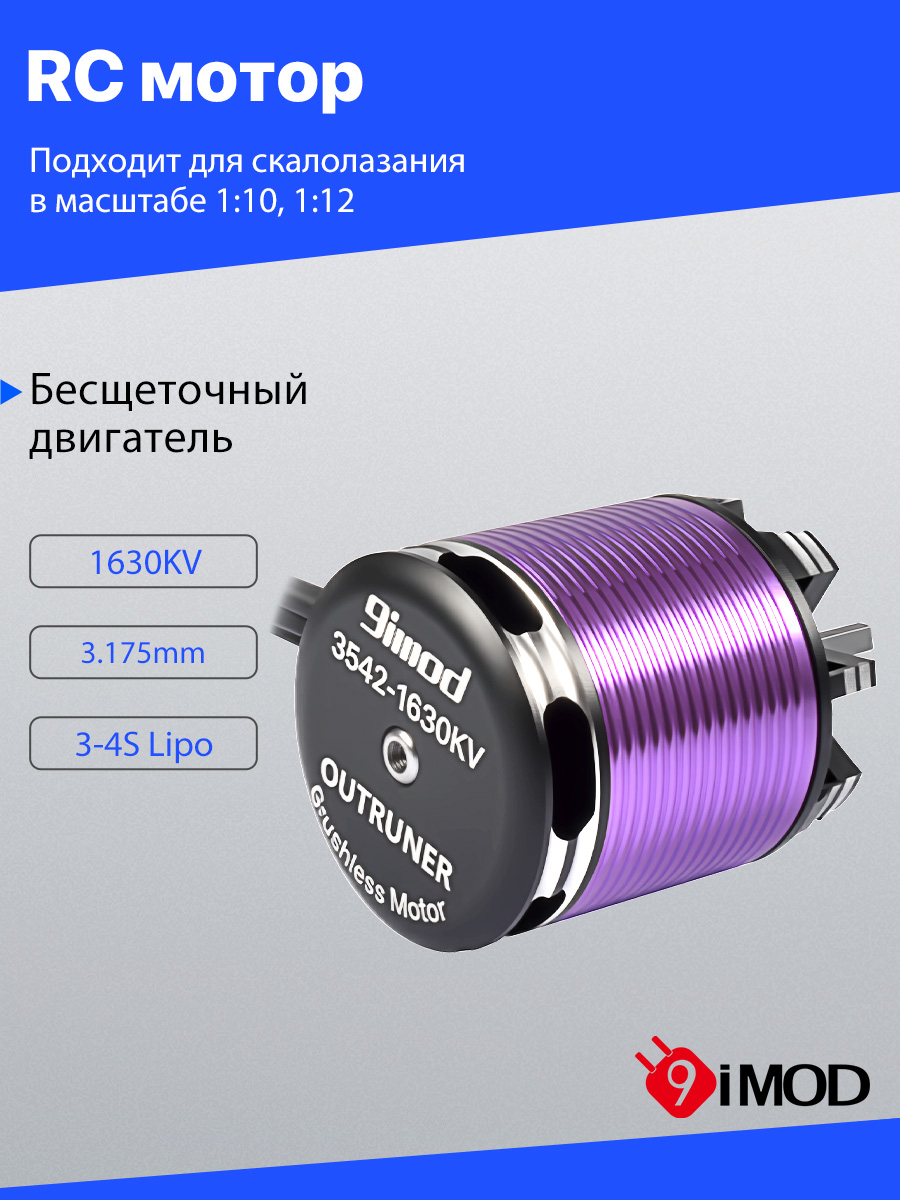

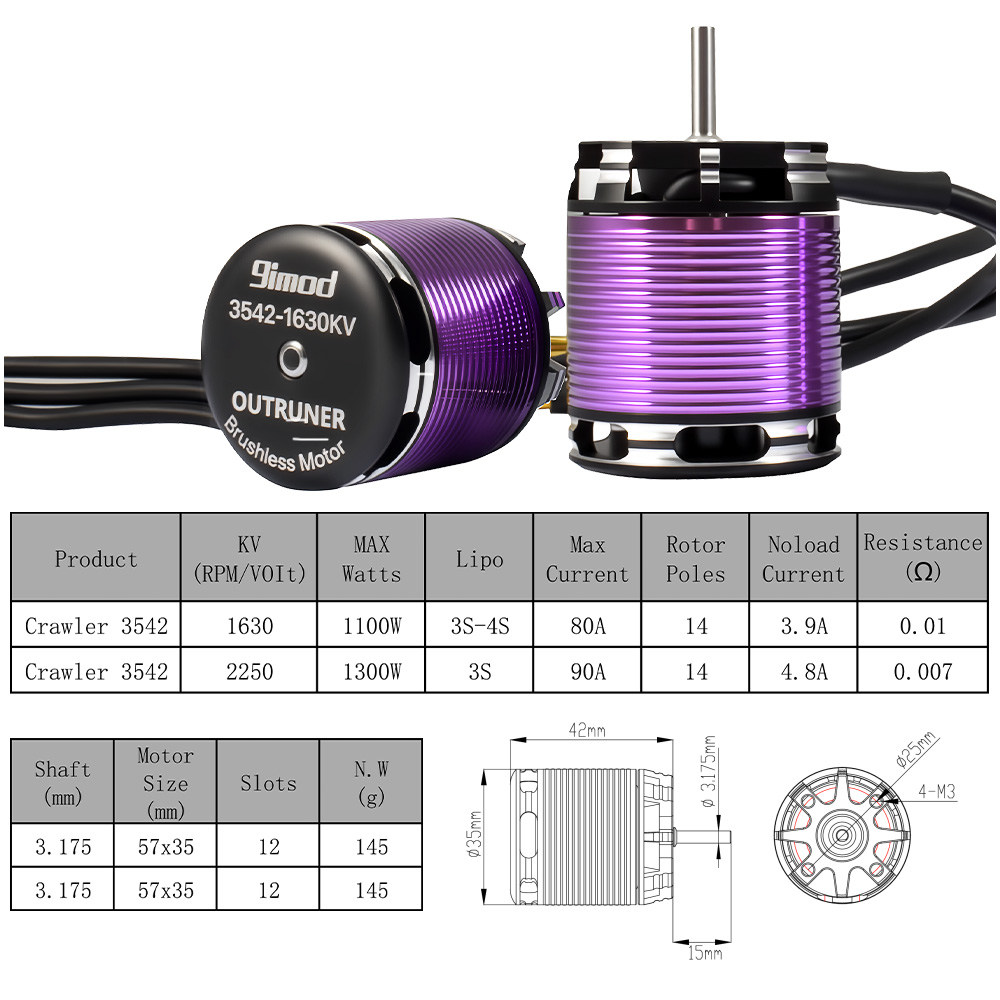

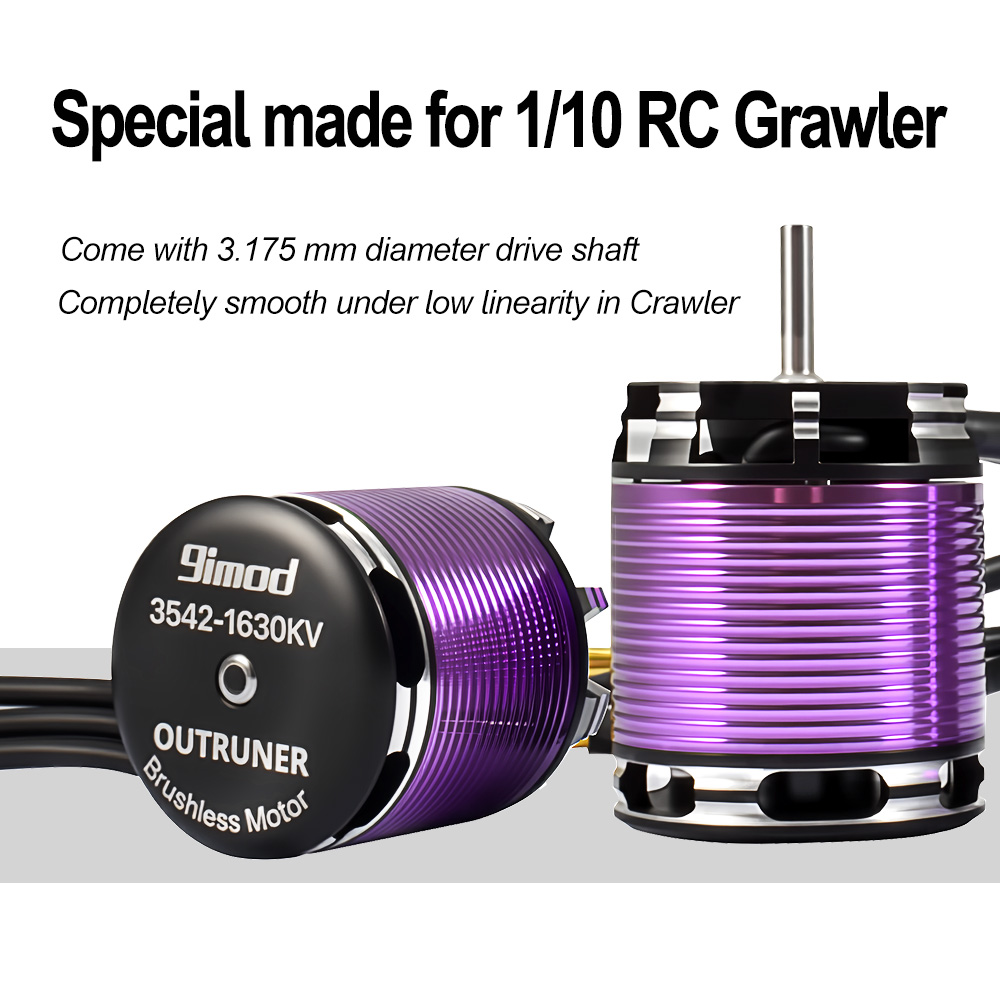

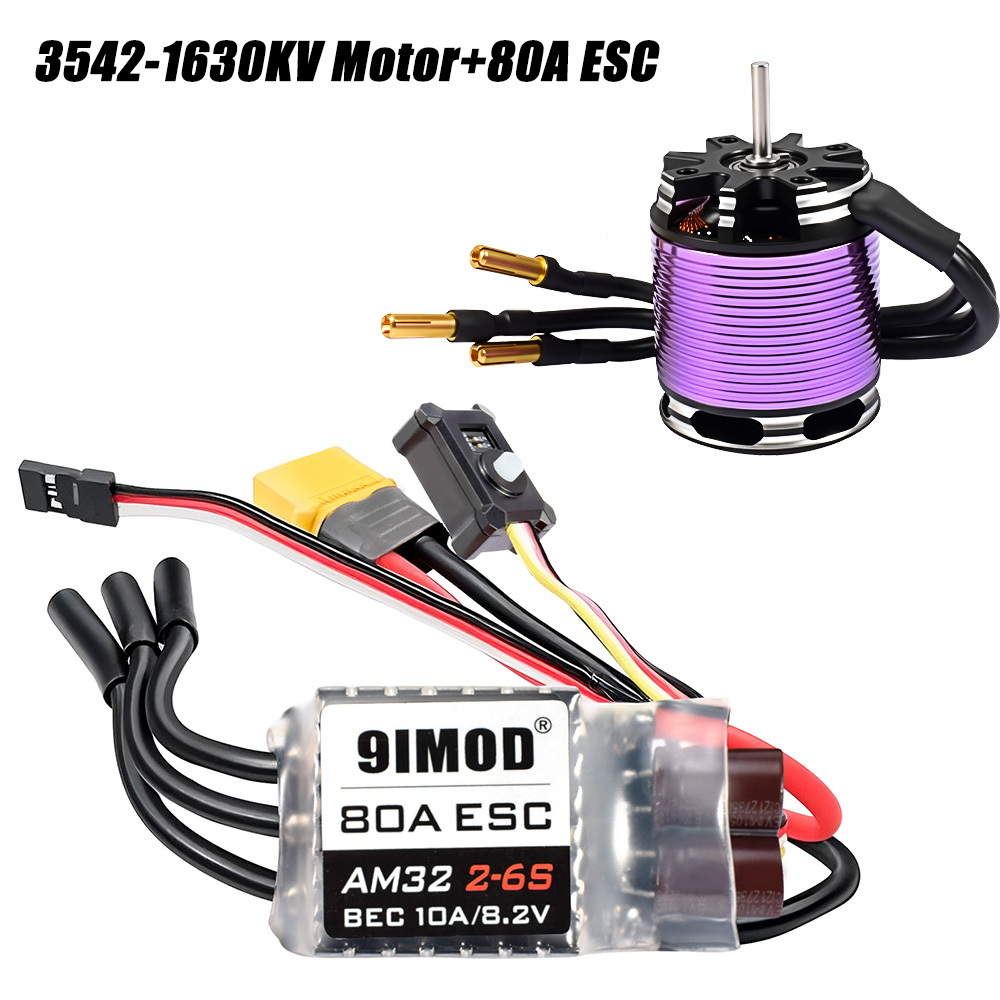

3542-1630KV Specifications:
MAX Watts: 1100w
lipo: 3s-4s
max current: 80A
Rotor Poles: 14
Noload Current: 3.9A
Resistance (Ω): 0.01
Shaft(mm): 3.175

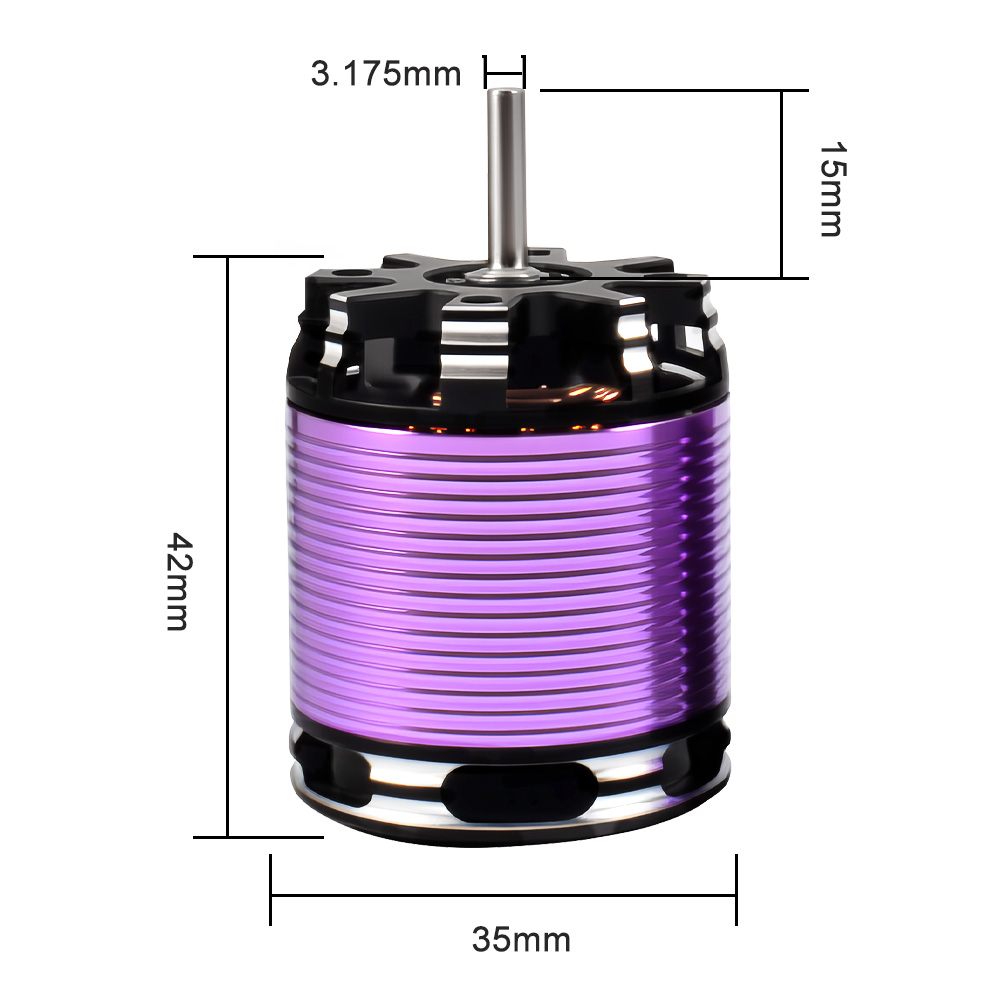

Motor Size(mm): 57*35
Slots: 12

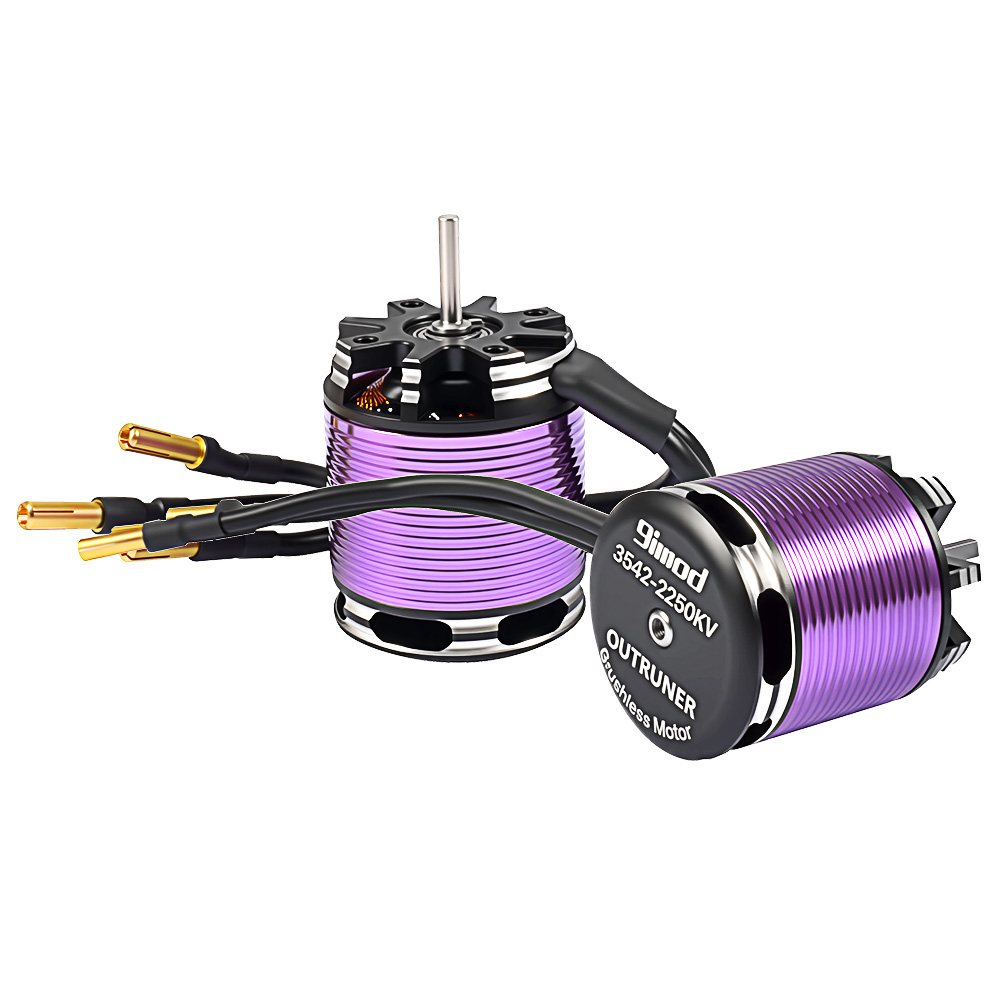

3542-2250KV Specifications:
MAX Watts: 1300w
Lipo: 3S
max current: 90A
Rotor Poles: 14
Noload Current: 4.8A
Resistance (Ω): 0.007
Shaft(mm): 3.175
Motor Size(mm): 57*35
Slots: 12

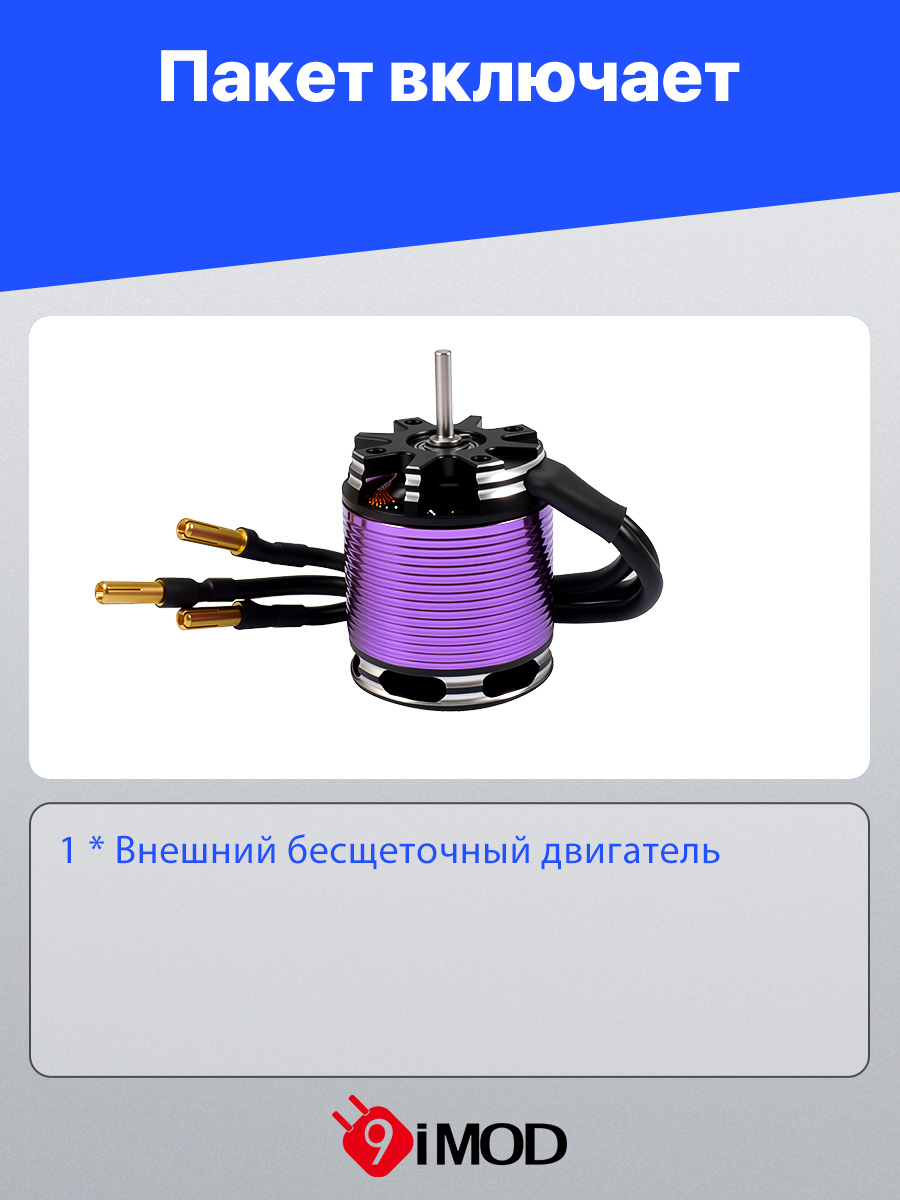

Package contents:
1* 3542 brushless motor
Only the above package content, other products are not included.
