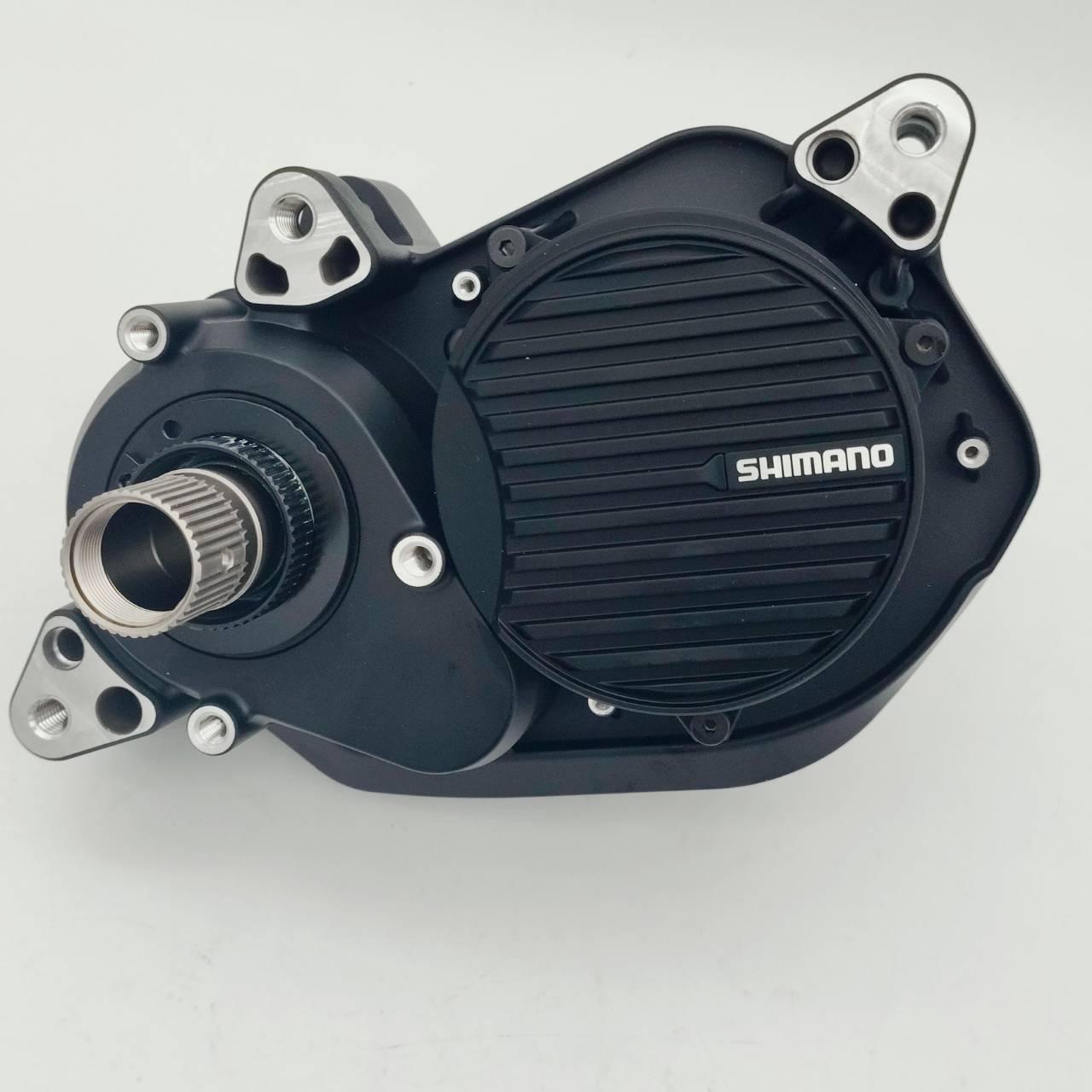

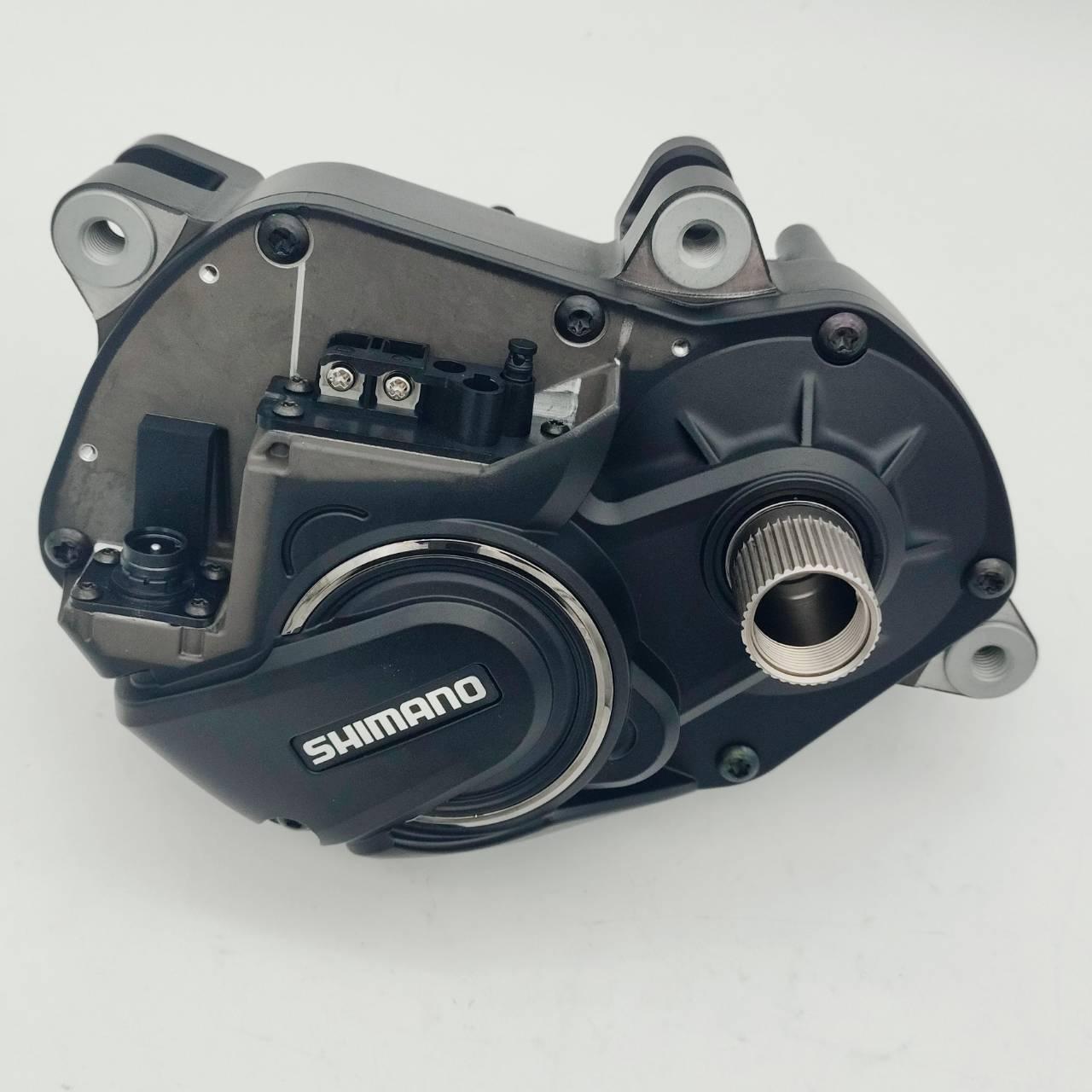

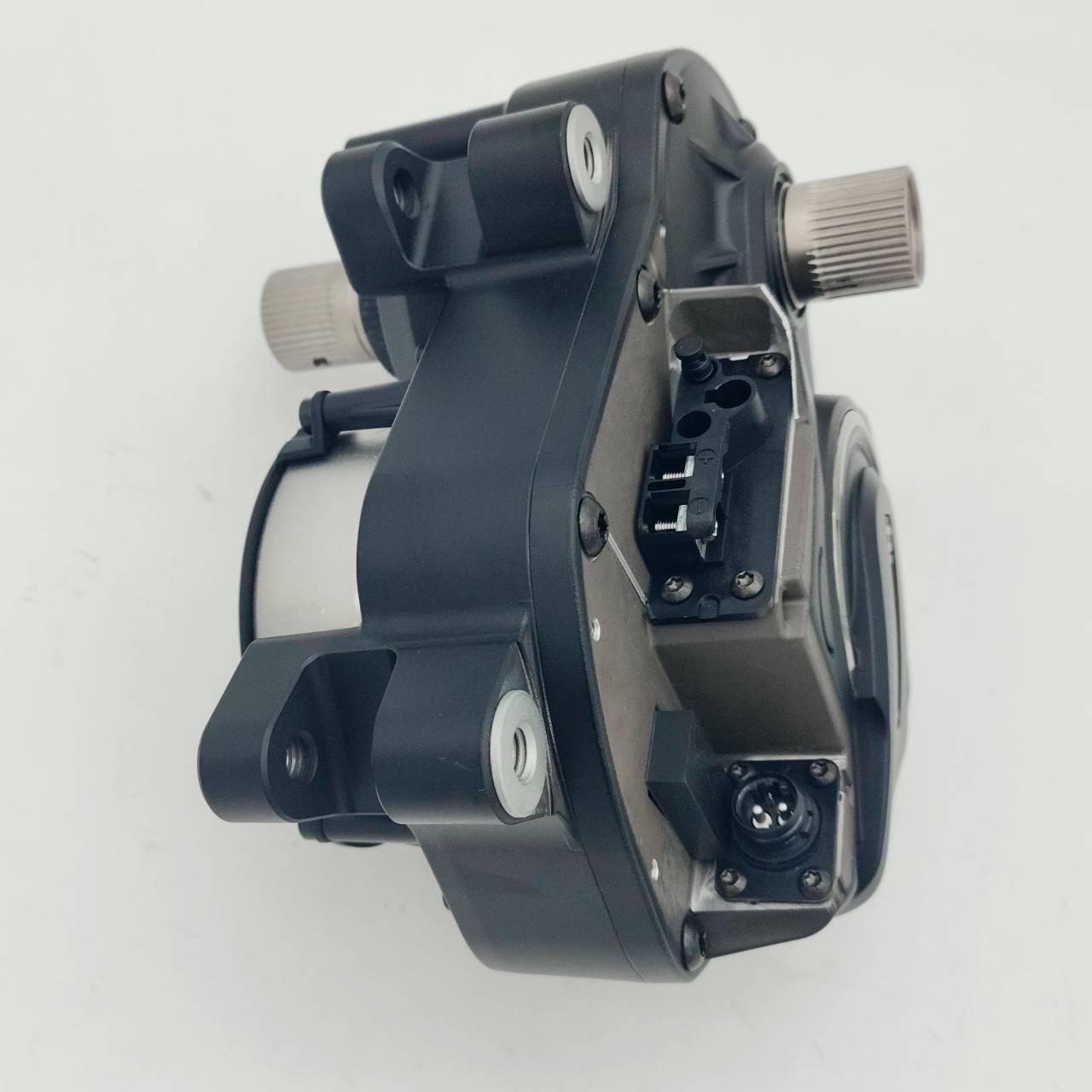

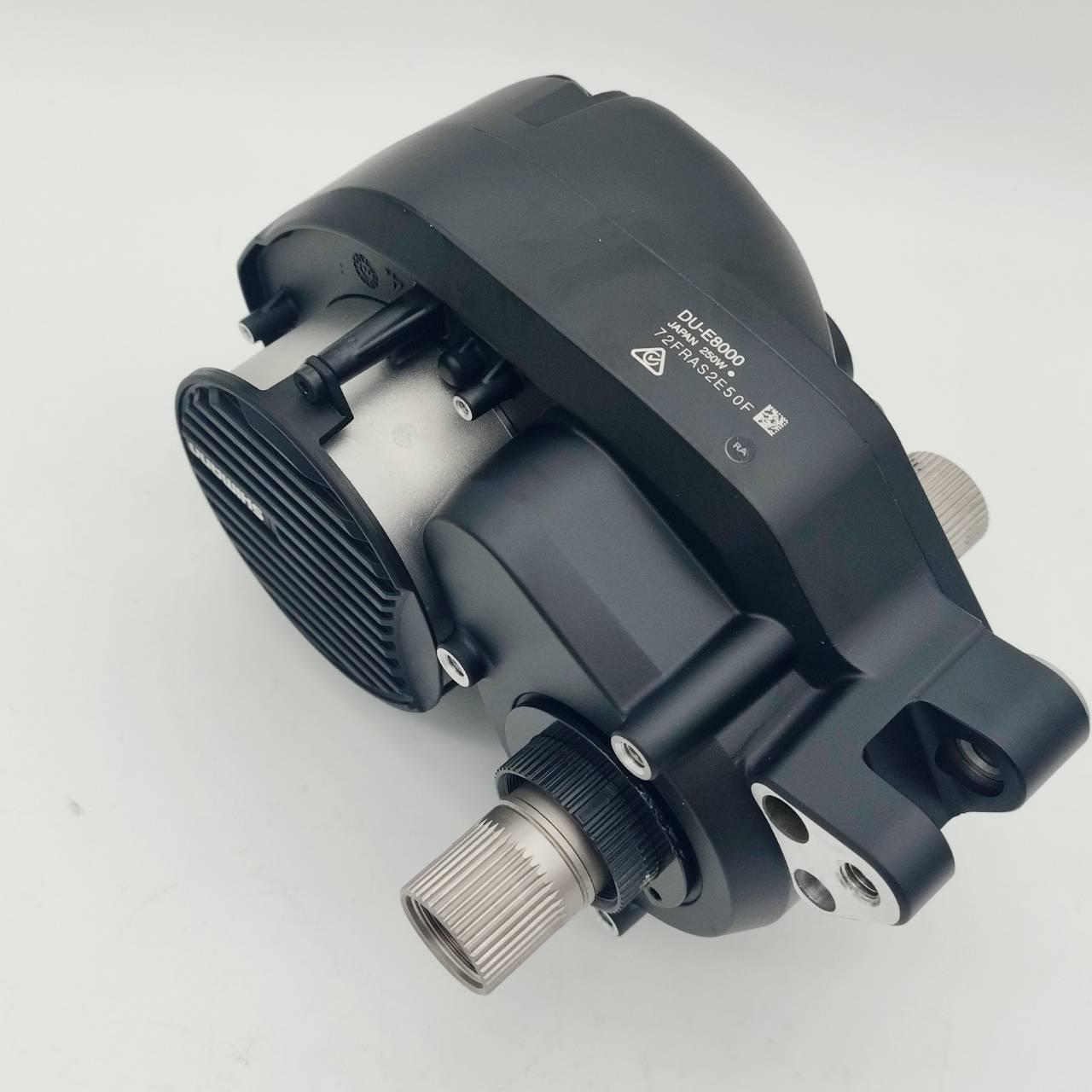

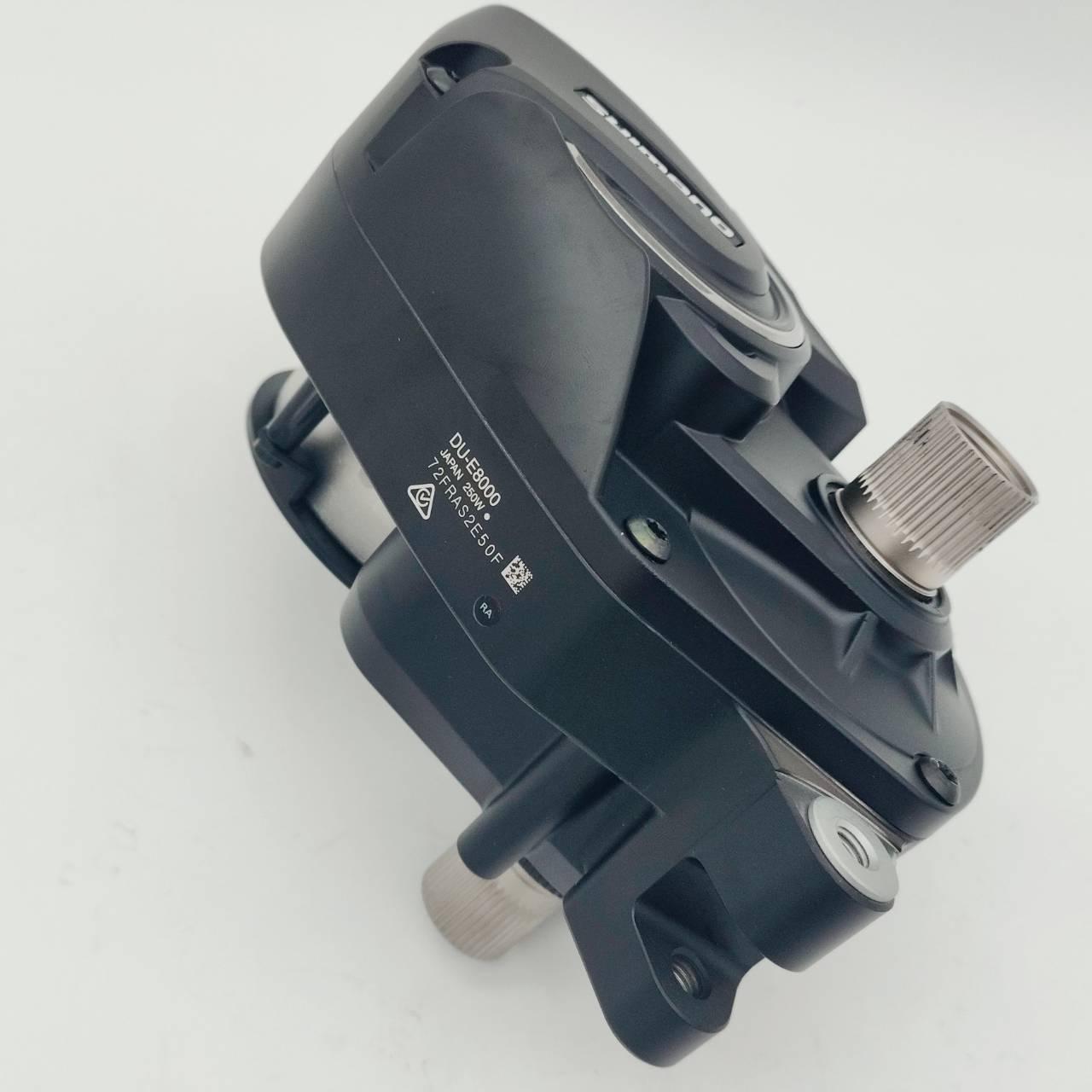

DU-E8000
SHIMANO STEPS E8000 - Drive Unit for V-BRAKE, Disc Brake - E-MTB
Lighter than the E6002 Drive Unit, the SHIMANO STEPS E8000 Drive Unit has a short rear center in order to increase clearance for suspension and large tires. It provides a stable assist power output and a direct pedaling feel whether the assist is on or off. It offers 70 Nm of torque and 250 watts output and a 24mm spindle bb.
Compact drive unit
Shorter chain stay possible
More clearance (suspension/tire)
Power output
70 N·m (max.), 250W
Lightweight
Lighter than DU-E6002
Improves bike handling
Drive unit characteristics
Direct pedaling feel in on and off assist power
Stable Assist Power output
PRODUCT SPECIFICATIONS
MODEL NO DU-E8000
SERIES SHIMANO STEPS E8000 Series
Color Black
Average weight 2.88 kg
Remarks * Set by E-TUBE PROJECT. ** By using SM-DUE10/SM-DUE11. *** By using RD-M9050/RD-M8050
Compatible Brake type Disc brake, V-BRAKE
Motor type Brushless motor
Position Mid ship
Compatible Wheel Size * 1,300-3,000
Maximum Rated Power (Watt) 250
Maximum torque (Nm) 70
Rated Voltage DC 36 V
Maximum Assist ratio (%)_ECO ✔
Power supply for front light DC 6 V
Power supply for rear light DC 6 V
Communication E-TUBE
Torque sensor ✔
Crank arm position sensor ✔
Bike speed sensor ** X
Cadence sensor ✔
Compatible BB type 24 mm Axle Serration
Chain Device compatible ✔
DI2 compatible_RD *X
E-tube connector (pcs) 0
E-tube port (pcs) 2
Firmware update by E-tube Project ✔
Master unit ✔
Maximum Assist ratio (%)_BOOST ✔
Maximum Assist ratio (%)_TRAIL ✔
Maximum Current supply Front and Rear light total (A) 2
Maximum support bike speed20mph *X
Maximum support bike speed_25km/h *X
Port for Speed Sensor (pcs) 1
Port for Light (pcs) 0
Riding Characteristics_Customize *X
Riding Characteristics_Dynamic *X
Riding Characteristics_Explorer *X
Safe way home function ✔
Terminal for Light (pcs) 1
Walk assist function_Intelligent *** X
Walk assist function_On/Off ✔
Walk assist function_Quick ✔
Walk assist function_Standard ✔

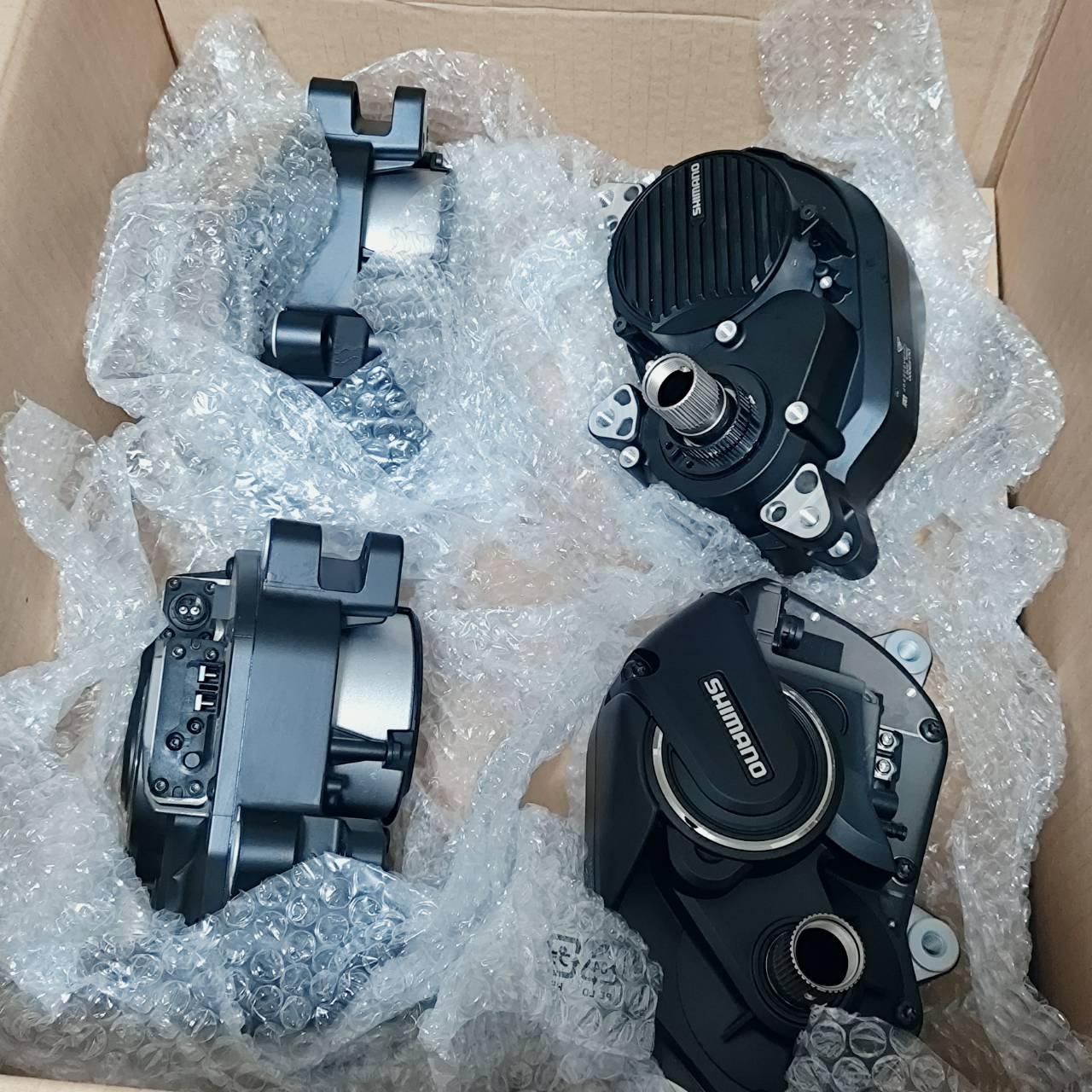

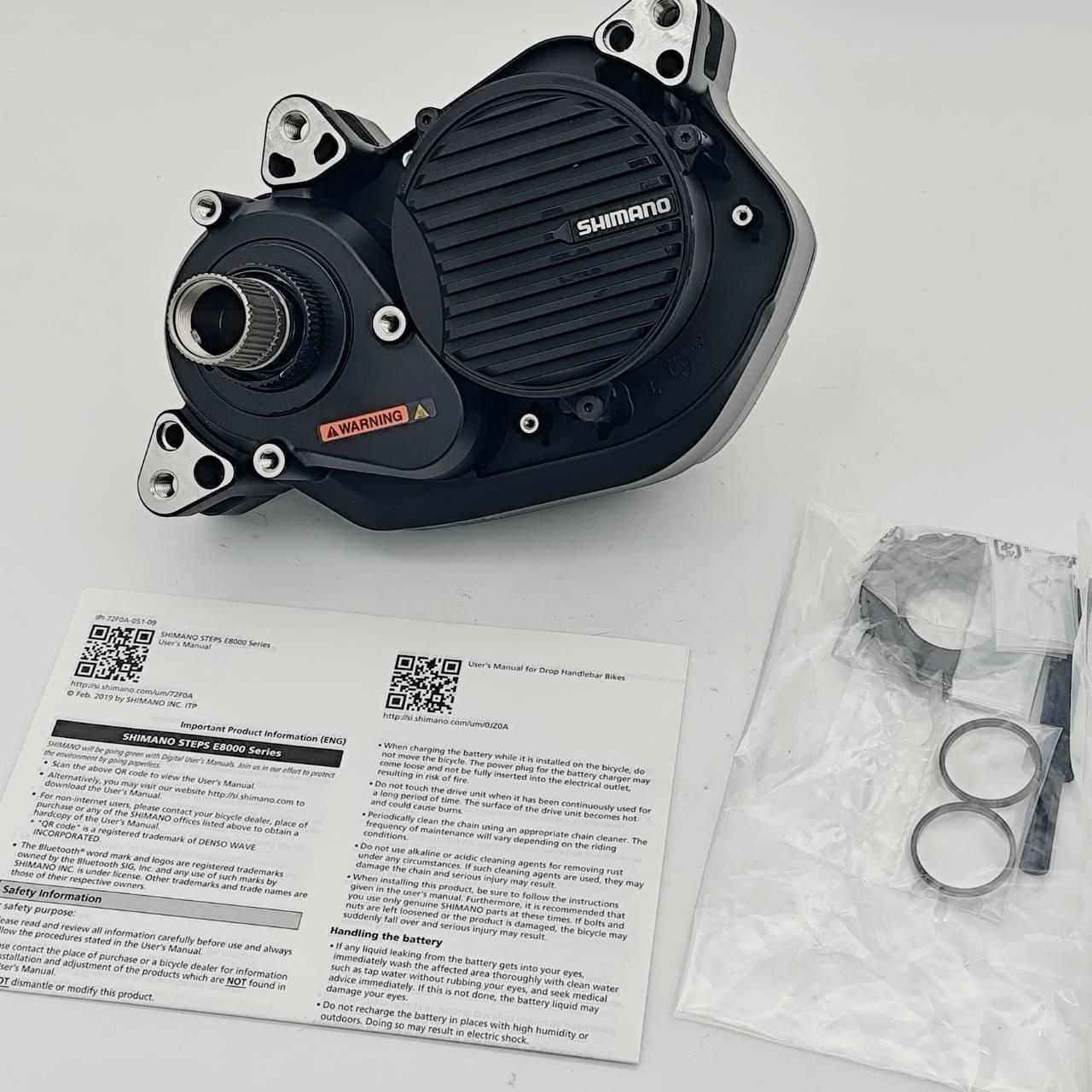

Brand new, no used, no original package, only motor for sale.
