Features:

Locate open circuit: Powered by 2pcs*9V batteries (notes: not included). It detects and alerts immediately where a circuit is open. You can quickly locate short circuits, open connections, broken wires.

Check short circuit: You can also find intermittent circuit problems by flexing wires or connectors and listening for a change in the receiver tone, ** Flexible probe: Flexible probe help reach wires in congested places and hard-to-reach area.

Multifunction: It is designed to identify and trace wires or cables without damaging the insulation. I t also can be used in checking short circuit, locating open circuit, wire tracing, wire identification and more.

Quick and easy: Judge continuity of the cables or wires, and diagnose the break point, making your repairs quick.

Function:

* Tracing of wires is made possible even inside bundles, co-nduits, behind panels, under carpets, upholstery, etc

* Easy to use: simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot

* 42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems

* Operates on DC voltages from 6 to 42 volts

* Internally protected against power surges and overloads

* 7" flexible probe allows reaching wires in congested places

* Transmitter and Receiver LEDs show open or short circuit conditions

* Adjustable sensitivity for all tracing situations

* No wire piercing required, non-contact technology!

How to Use the Probe?

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings,

the probe will pick up the signal from the wire in a range of positions. However, for the best possible range the Receiver's probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.

Specifications:

Receiver: 240x44mm/ 9.45x1.73in

Transmitter: 58x68mm/ 2.28x2.68in

Color: black

Material: ABS

Battery: 6F22 9V battery (not included)

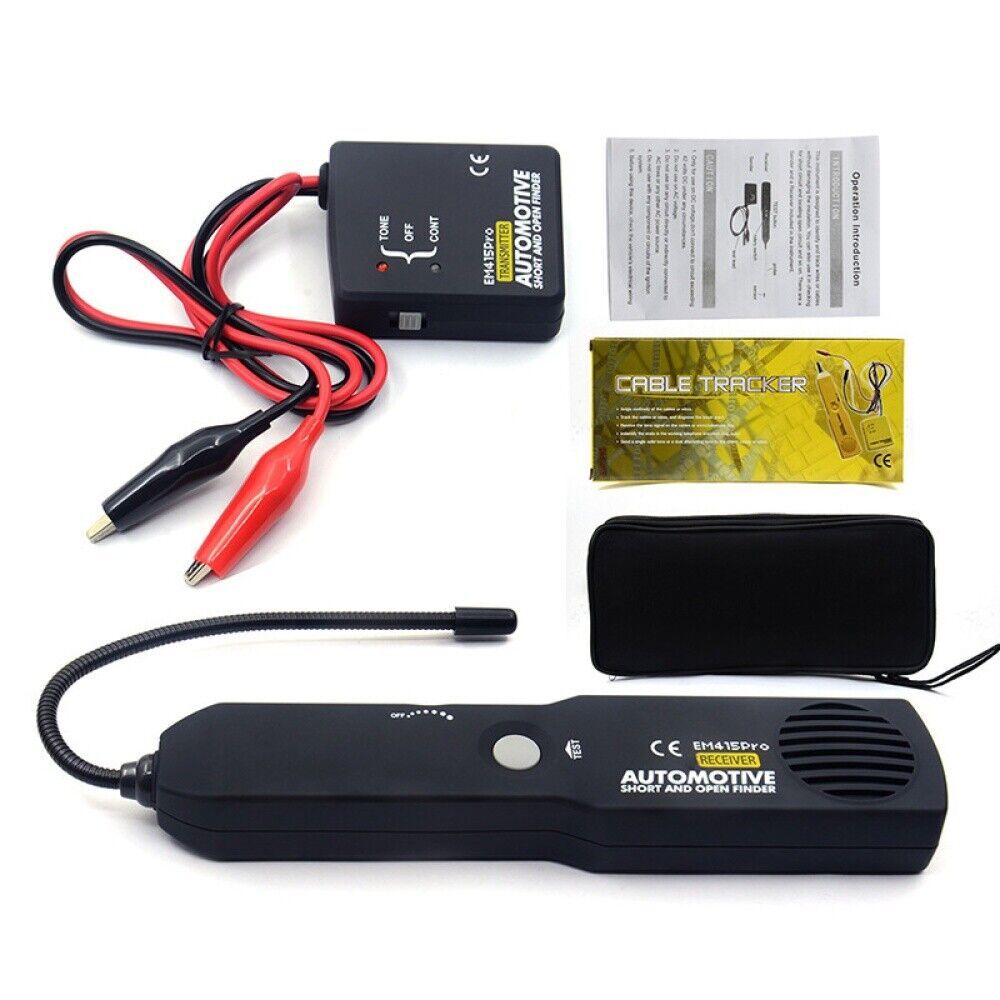

Package list:

1 x automotive short and open finder transmitter

1 x automotive short and open finder receiver

1 x carrying bag

1 x user manual
