Application:

for Cadillac Escalade V8 5.7L Rear 1999-2000

for Chevrolet Blazer V8 5.7L Rear 1994

for Chevrolet C1500 V8 5.0L Rear 1994-1999

for Chevrolet C1500 V8 5.7L Rear 1994-1999

for Chevrolet C1500 Suburban V8 5.7L Rear 1994-1999

for Chevrolet C2500 V8 5.0L Rear 1994-1998

for Chevrolet C2500 V8 5.7L Rear 1994-2000

for Chevrolet C2500 Suburban V8 5.7L Rear 1994-1999

for Chevrolet C35 V8 5.7L Rear 1995-2000

for Chevrolet C3500 V8 5.7L Rear 1993-2000

for Chevrolet Cargo Van V8 5.7L Rear 1997-1999

for Chevrolet Express 1500 V8 5.0L Rear 1996-2002

for Chevrolet Express 1500 V8 5.7L Rear 1996-2002

for Chevrolet Express 2500 V8 5.0L Rear 1996-2002

for Chevrolet Express 2500 V8 5.7L Rear 1996-2002

for Chevrolet Express 3500 V8 5.7L Rear 1996-2002

for Chevrolet G10 V8 5.0L Rear 1993-1995

for Chevrolet G10 V8 5.7L Rear 1993

for Chevrolet G20 V8 5.0L Rear 1993-1995

for Chevrolet G20 V8 5.7L Rear 1993-1995

for Chevrolet G30 V8 5.7L Rear 1993-1996

for Chevrolet K1500 V8 5.0L Rear 1993-1999

for Chevrolet K1500 V8 5.7L Rear 1993-1999

for Chevrolet K1500 Suburban V8 5.7L Rear 1993-1999

for Chevrolet K2500 V8 5.0L Rear 1993-1995

for Chevrolet K2500 V8 5.0L Rear 1997-1998

for Chevrolet K2500 V8 5.7L Rear 1993-2000

for Chevrolet K2500 Suburban V8 5.7L Rear 1993-1999

for Chevrolet K3500 V8 5.7L Rear 1993-2000

for Chevrolet P30 V8 5.7L Rear 1993-1997

for Chevrolet Silverado V8 5.7L Rear 1995-1999

for Chevrolet Sonora V8 5.7L Rear 2000-2002

for Chevrolet Tahoe V8 5.7L Rear 1995-2000

for GMC C1500 V8 5.0L Rear 1993-1999

for GMC C1500 V8 5.7L Rear 1993-1999

for GMC C1500 Suburban V8 5.7L Rear 1993-1999

for GMC C2500 V8 5.0L Rear 1993-1998

for GMC C2500 V8 5.7L Rear 1993-2000

for GMC C2500 Suburban V8 5.7L Rear 1993-1999

for GMC C3500 V8 5.7L Rear 1993-2000

for GMC G1500 V8 5.0L Rear 1993-1995

for GMC G1500 V8 5.7L Rear 1993

for GMC G2500 V8 5.0L Rear 1993-1995

for GMC G2500 V8 5.7L Rear 1993-1995

for GMC G3500 V8 5.7L Rear 1993-1996

for GMC K1500 V8 5.0L Rear 1993-1999

for GMC K1500 V8 5.7L Rear 1993-1999

for GMC K1500 Suburban V8 5.7L Rear 1993-1999

for GMC K2500 V8 5.0L Rear 1993-1995

for GMC K2500 V8 5.0L Rear 1998

for GMC K2500 V8 5.7L Rear 1993-2000

for GMC K2500 Suburban V8 5.7L Rear 1993-1999

for GMC K3500 V8 5.7L Rear 1993-2000

for GMC P3500 V8 5.7L Rear 1993-1999

for GMC Savana 1500 V8 5.0L Rear 1996-2002

for GMC Savana 1500 V8 5.7L Rear 1996-2002

for GMC Savana 2500 V8 5.0L Rear 1996-2002

for GMC Savana 2500 V8 5.7L Rear 1996-2002

for GMC Savana 3500 V8 5.7L Rear 1996-2002

for GMC Yukon V8 5.7L Rear 1993-2000



OE/Part number:

GMP02A,264-100,IGMP02A,10055761,10108676

10110837,10147897,12518044,12524690

12528916,12557558,14088506



Specification:

Condition: 100% New
Material: Steel
Fitment Type: Direct Replacement
Engine: V8 5.7L, V8 5.0L
Gasket or Seal Included：No
Drain Plug Included：Yes
Drain Thread Size：M14 x 1.5 mm
Installation Hardware Included：No
Bolt Hole Quantity：18
Package Contents：1x Engine Oil Sump Pan
Sump Type：Wet
Sump Location：Rear
Length：21.75 IN
Maximum Depth (IN)： 8 IN
Maximum Width（IN）：10.75 IN
Capacity：3.8000 LT
Color：Black
Crank Shaft Wiper Included：Yes
Oil Level Sensor Port：No
Pickup Included：No
Windage Tray Included：Yes
Dipstick Port：No
Engine Oil Cooler Return Fitting：No
Kick Out Type Pan：No



Package included:

1x Oil Pan

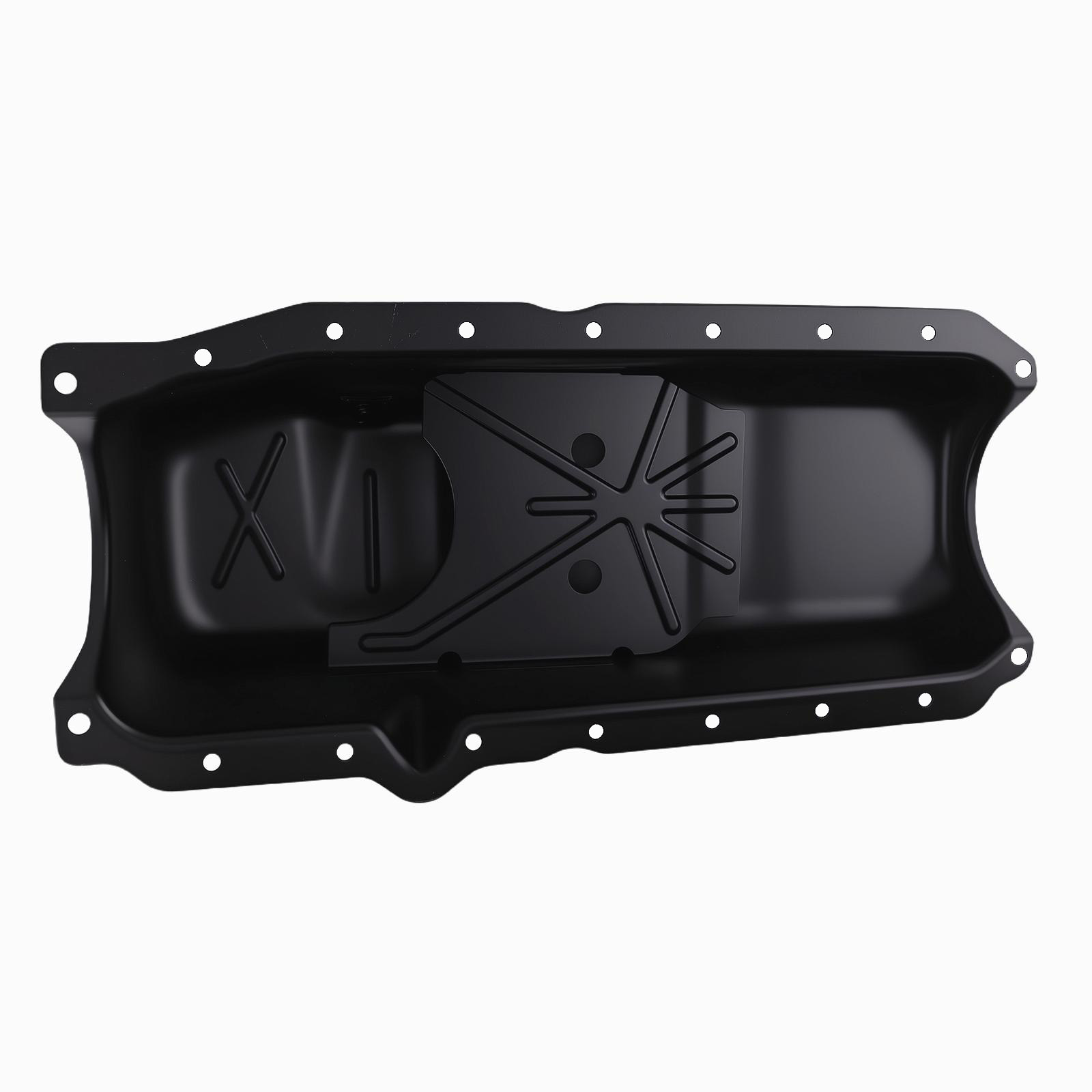

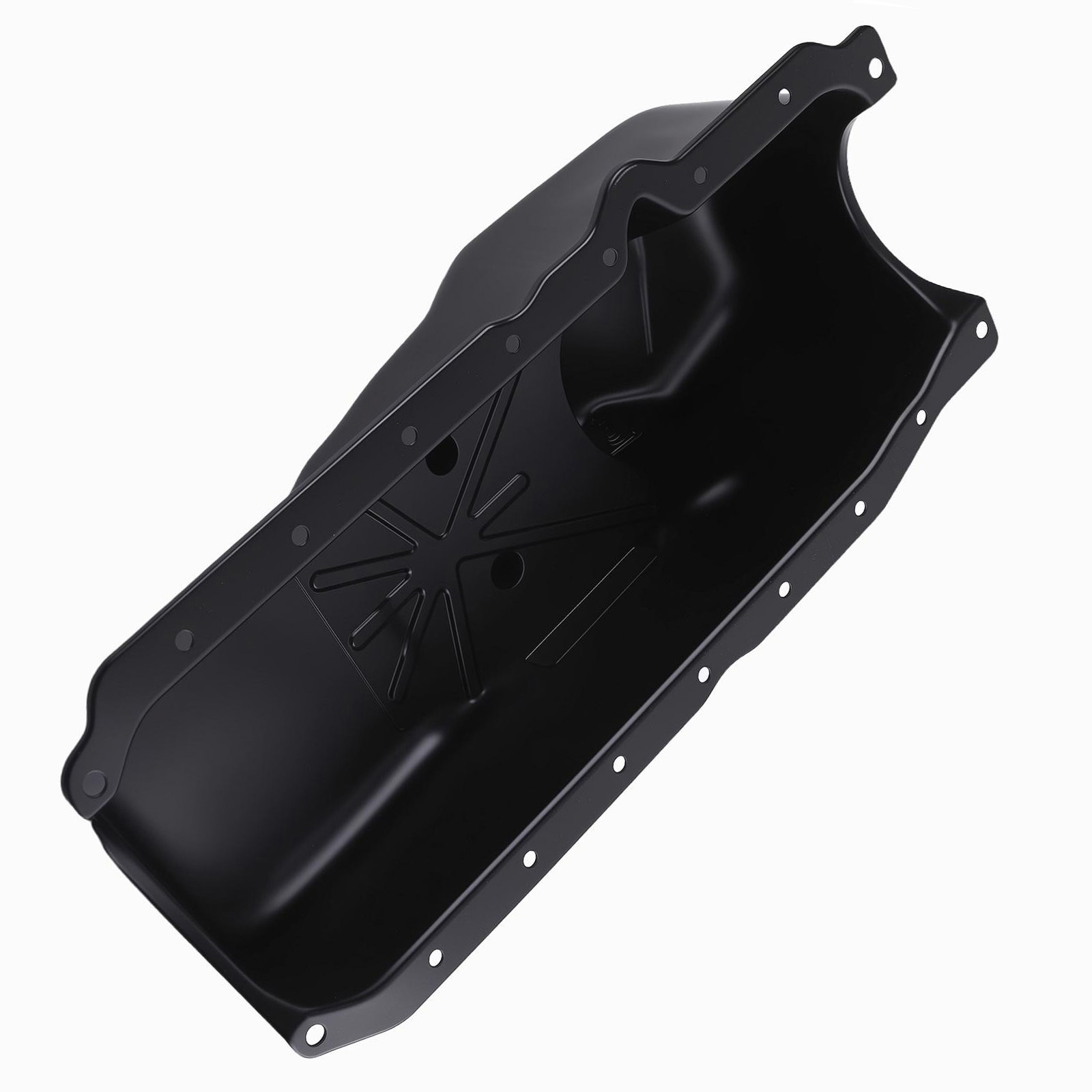

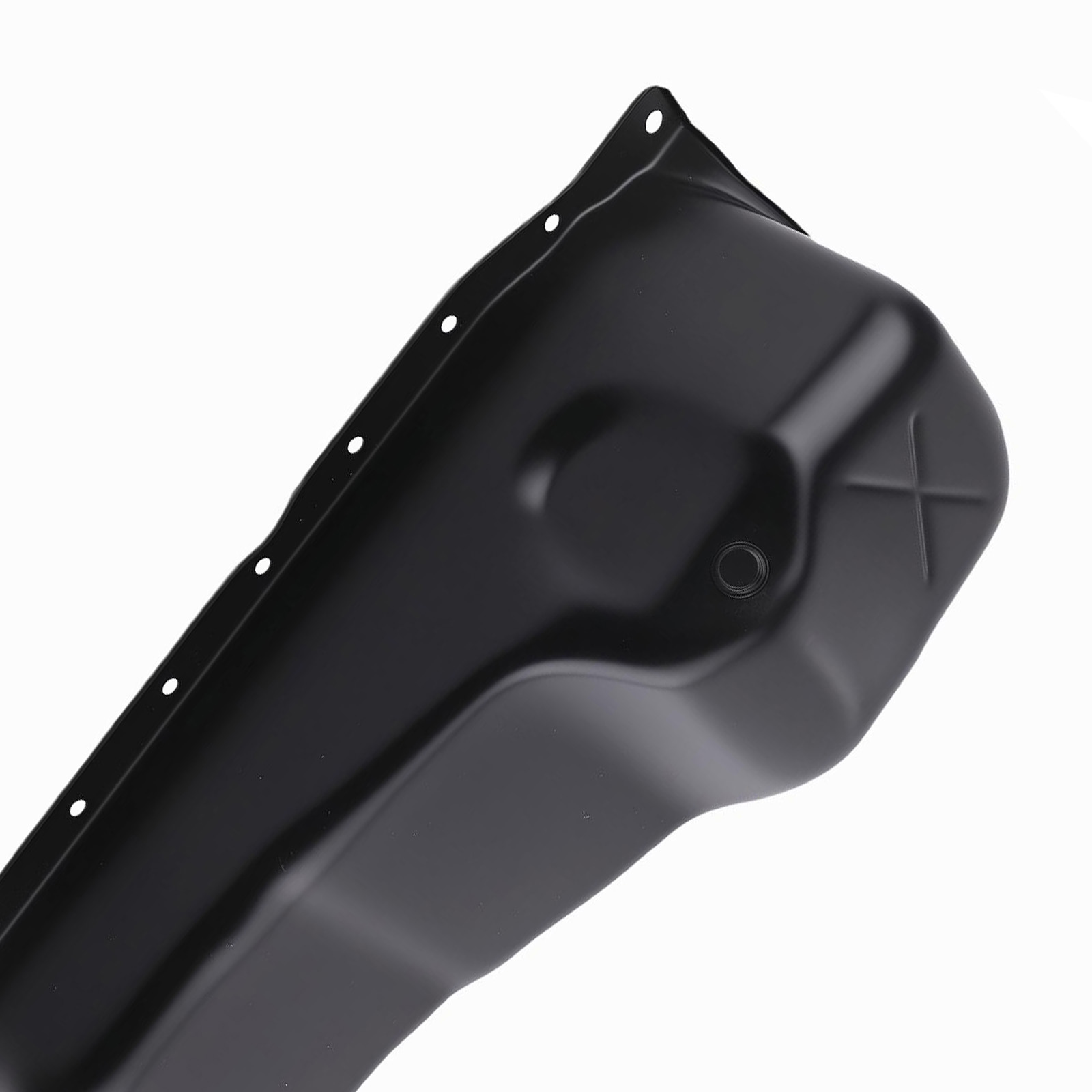

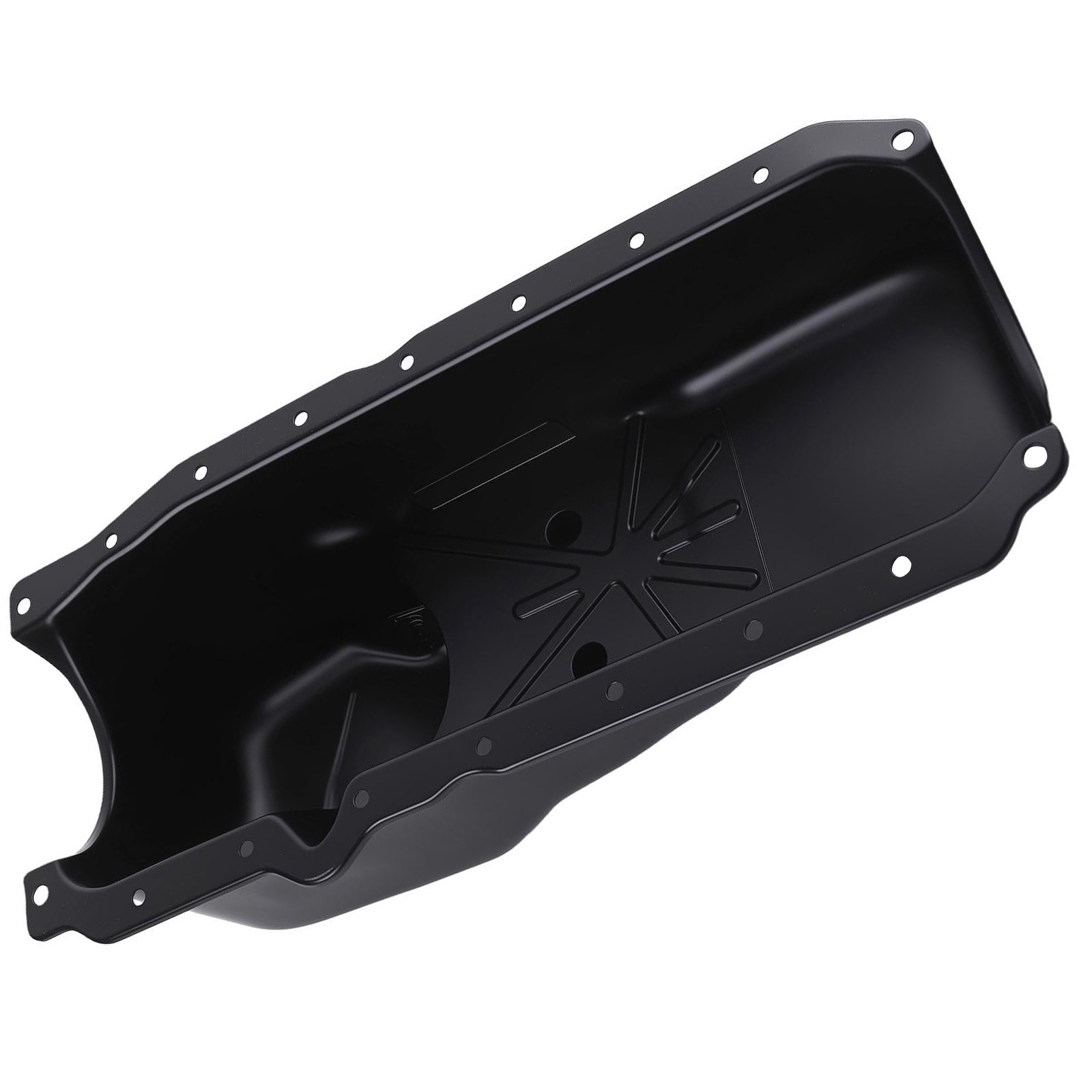

(Showing as the picture)



Feature:

1.This is a high quality aftermarket parts.

2.This product comes with best after-sales service.



Note:

1.Professional installation is highly recommended.

2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
