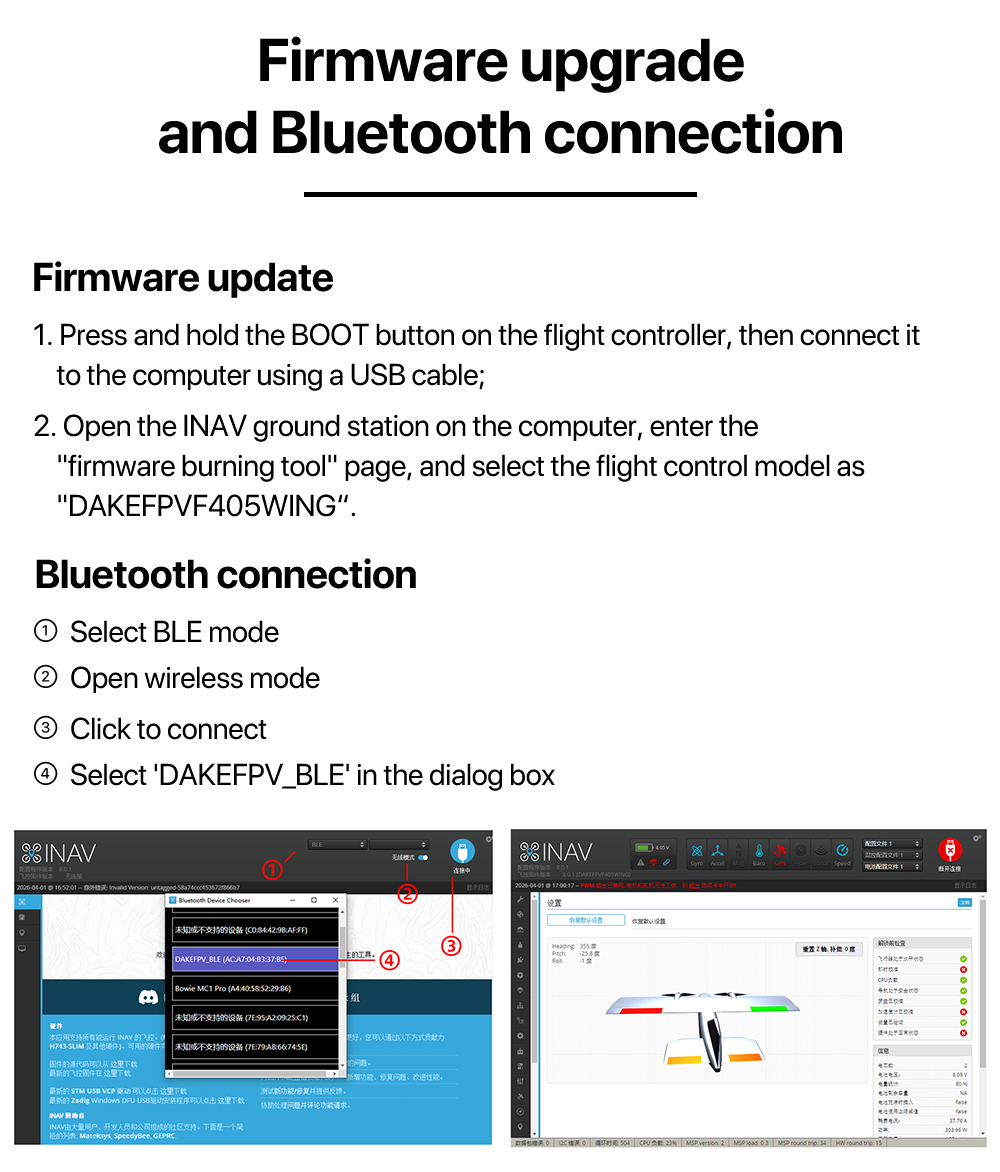

1. Support betaflight/INAV computer-based ground station, wireless parameter tuning

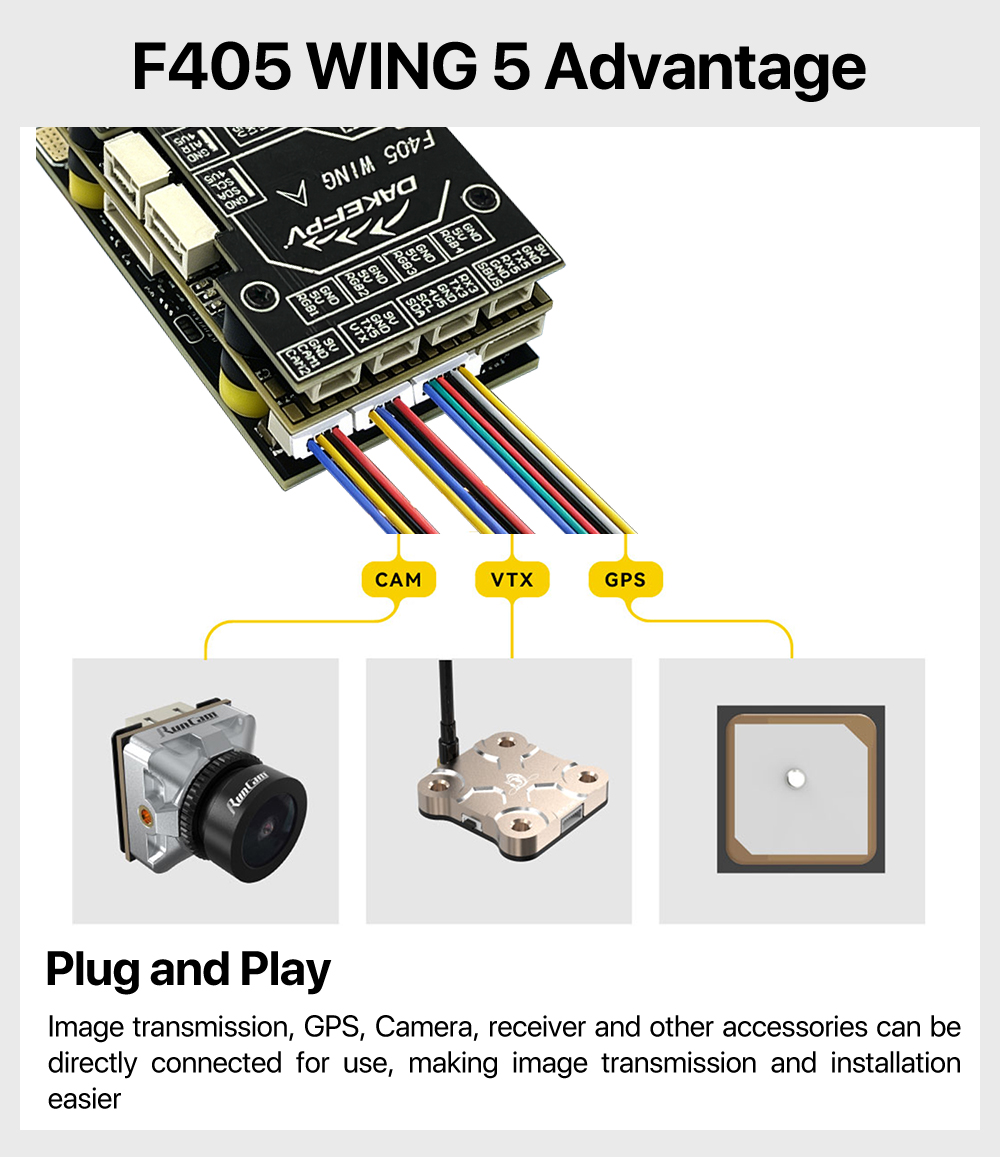

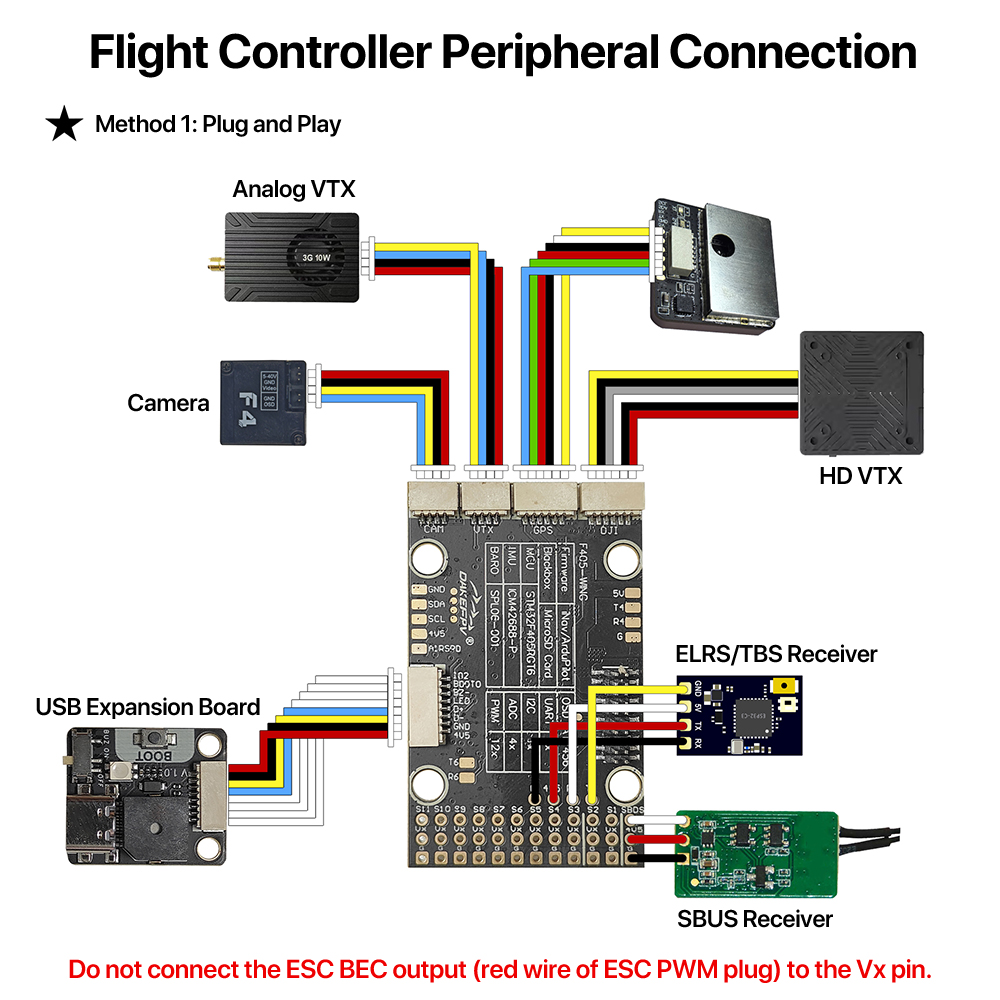

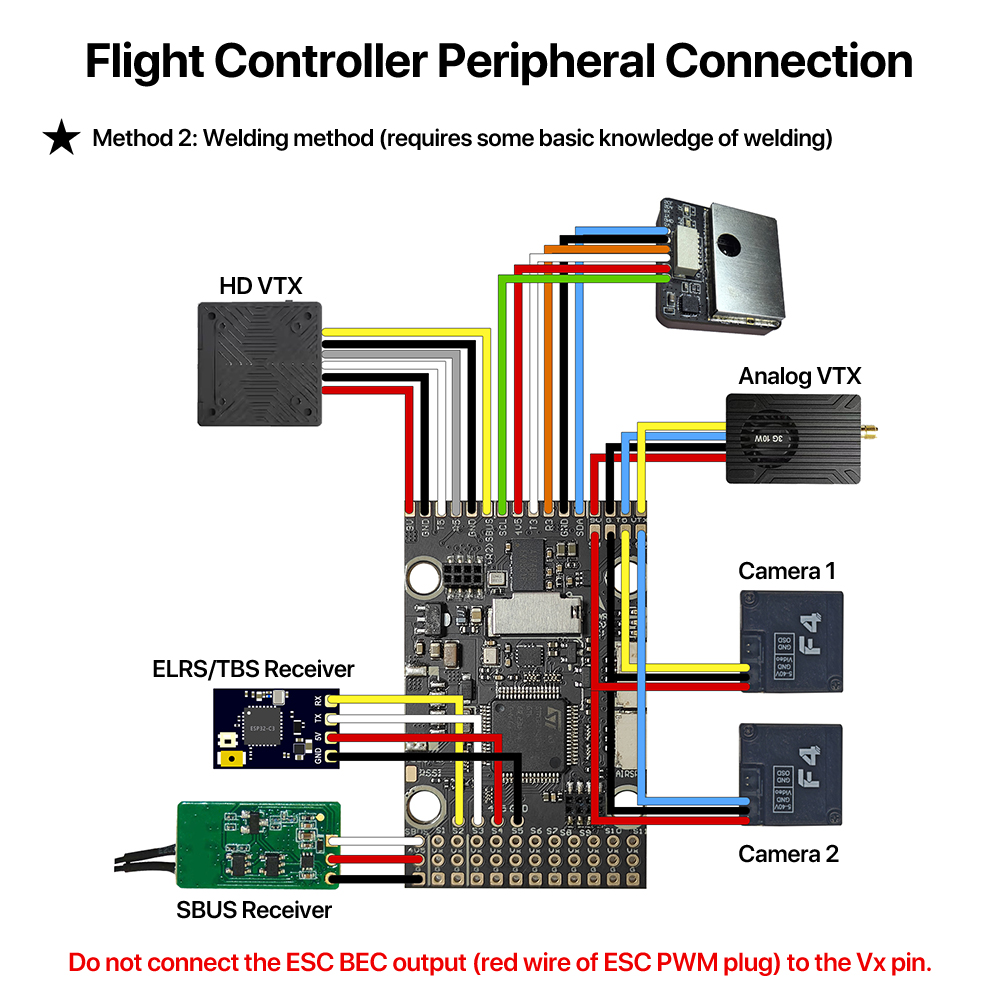

2. Image transmission, GPS， Camera, receiver and other accessories can be directly connected for use, making image transmission and installation easier

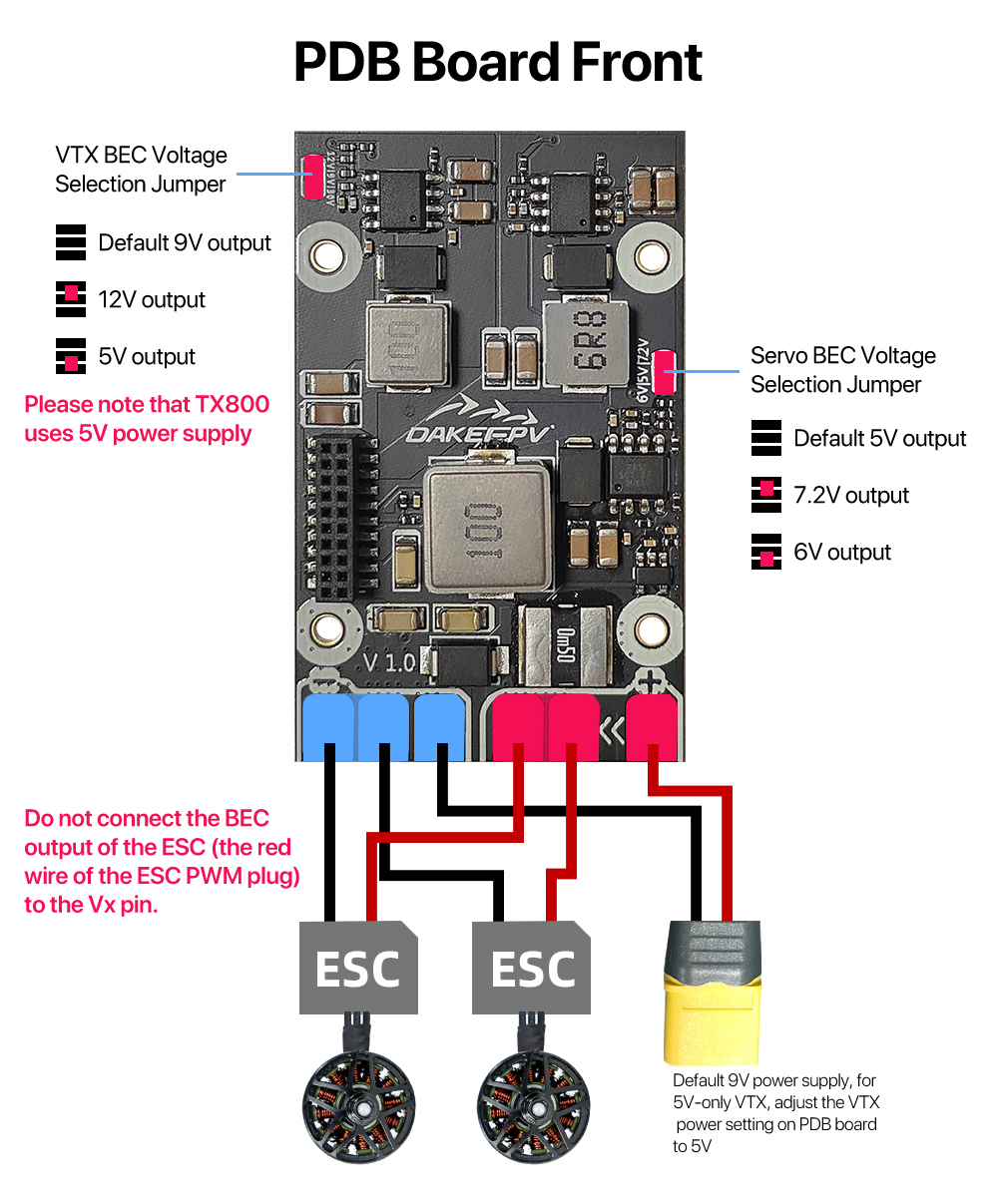

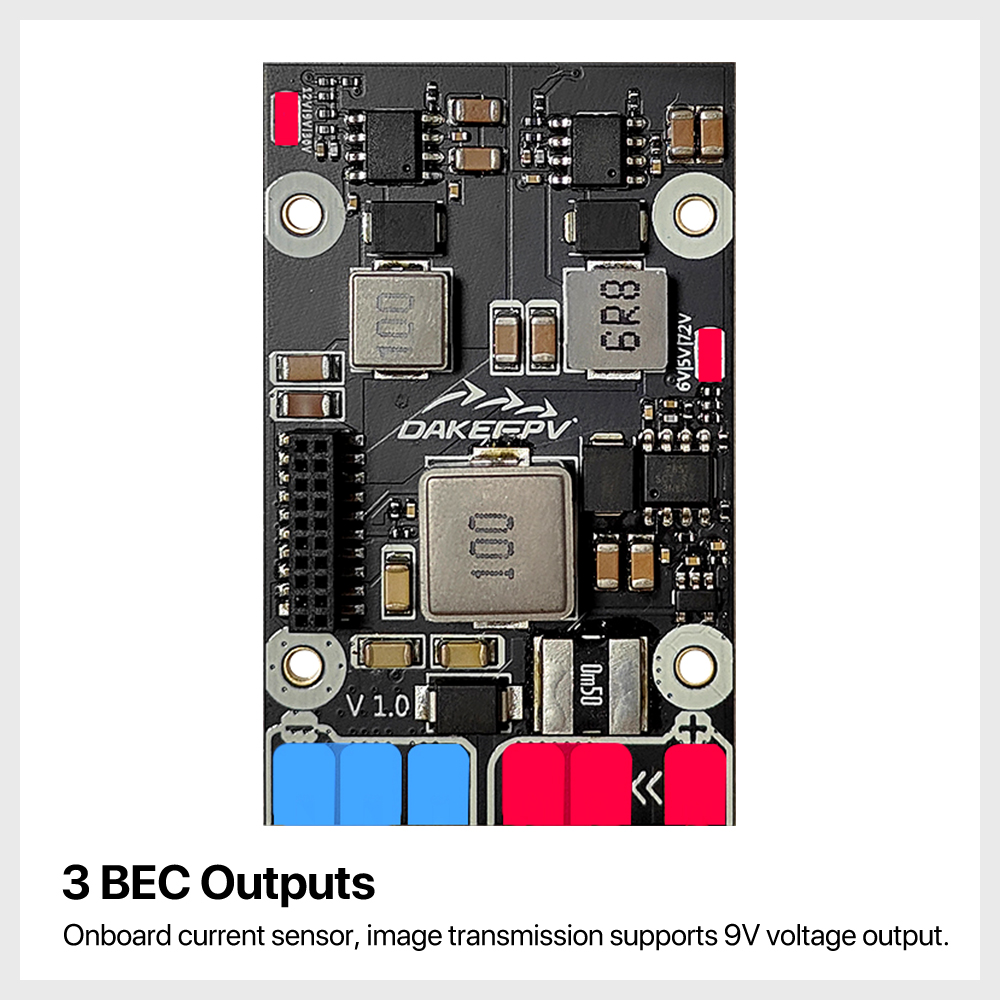

3. Onboard current sensor, image transmission supports 9V voltage output

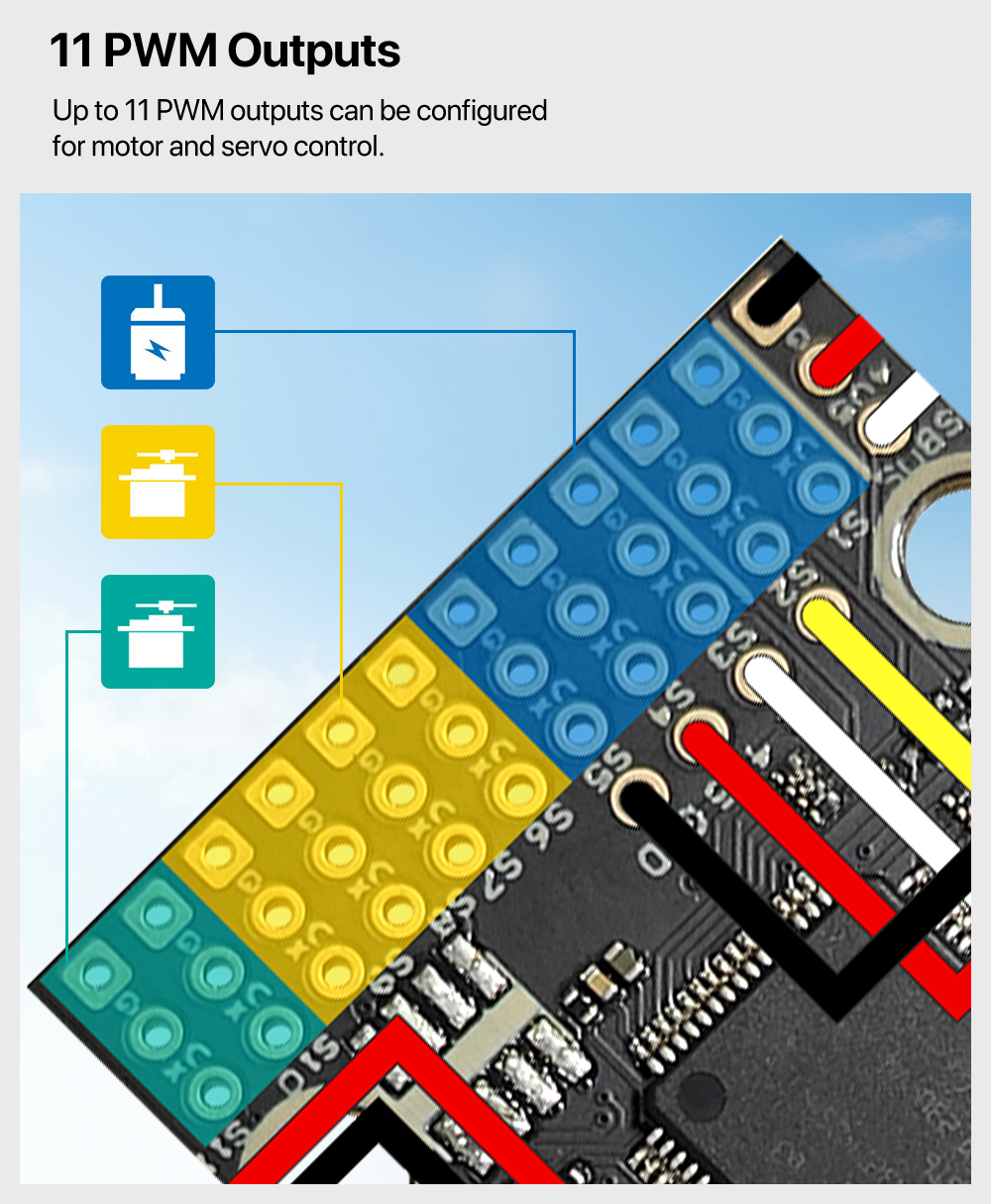

4. Up to 11 PWM outputs can be configured for motor and servo control.

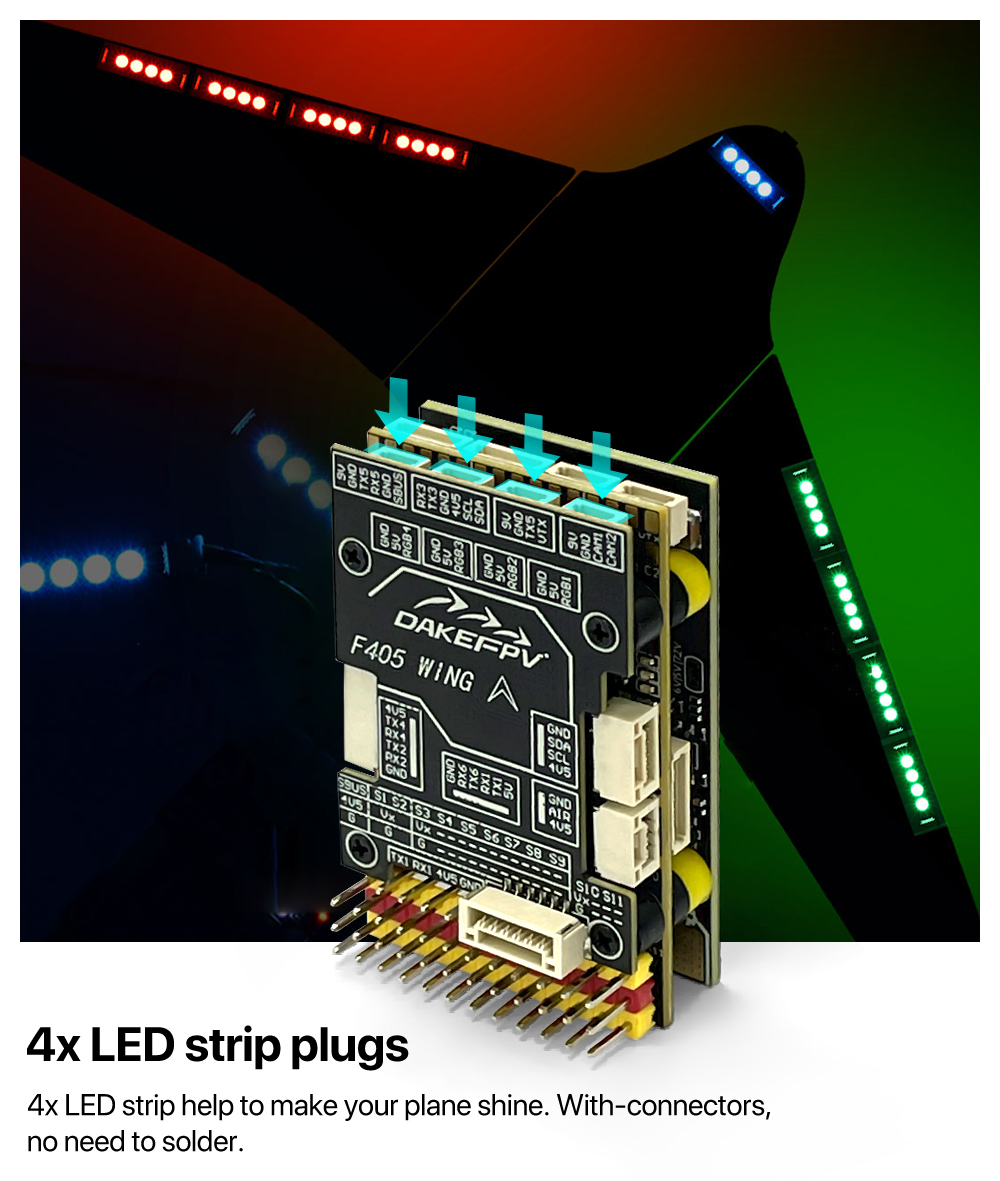

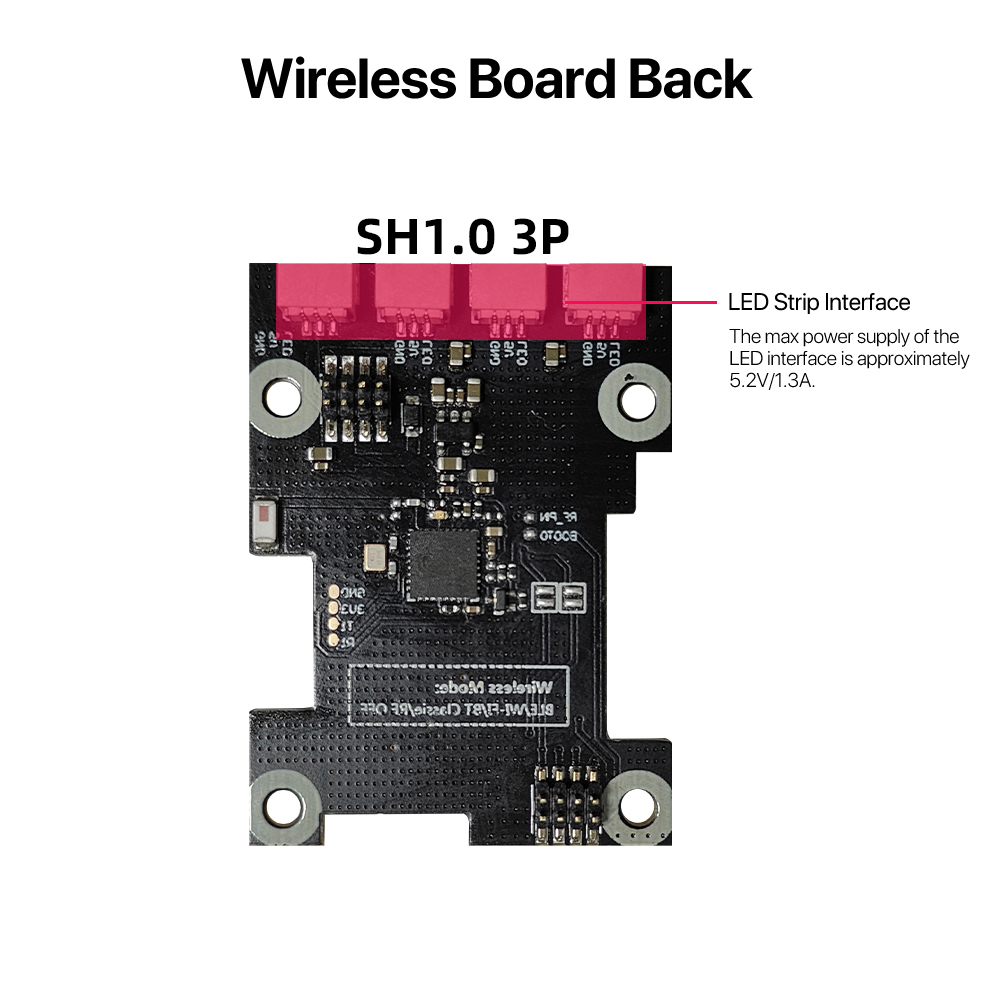

5. 4x LED strip help to make your plane shine. With-connectors, no need to solder.

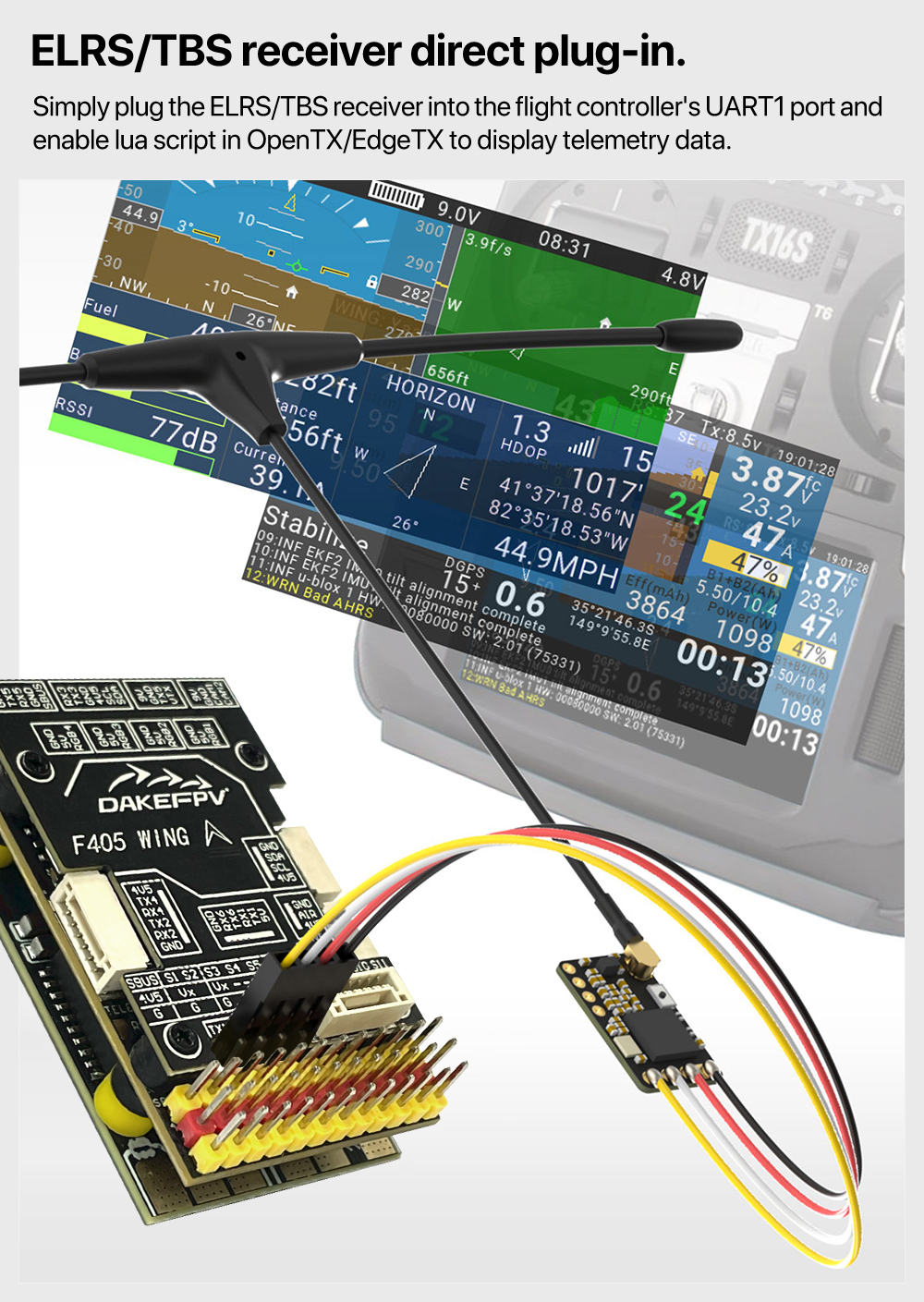

6. Simply plug the ELRS/TBS receiver into the flight controller's UART1 port and enable lua script in OpenTX/EdgeTX to display telemetry data.

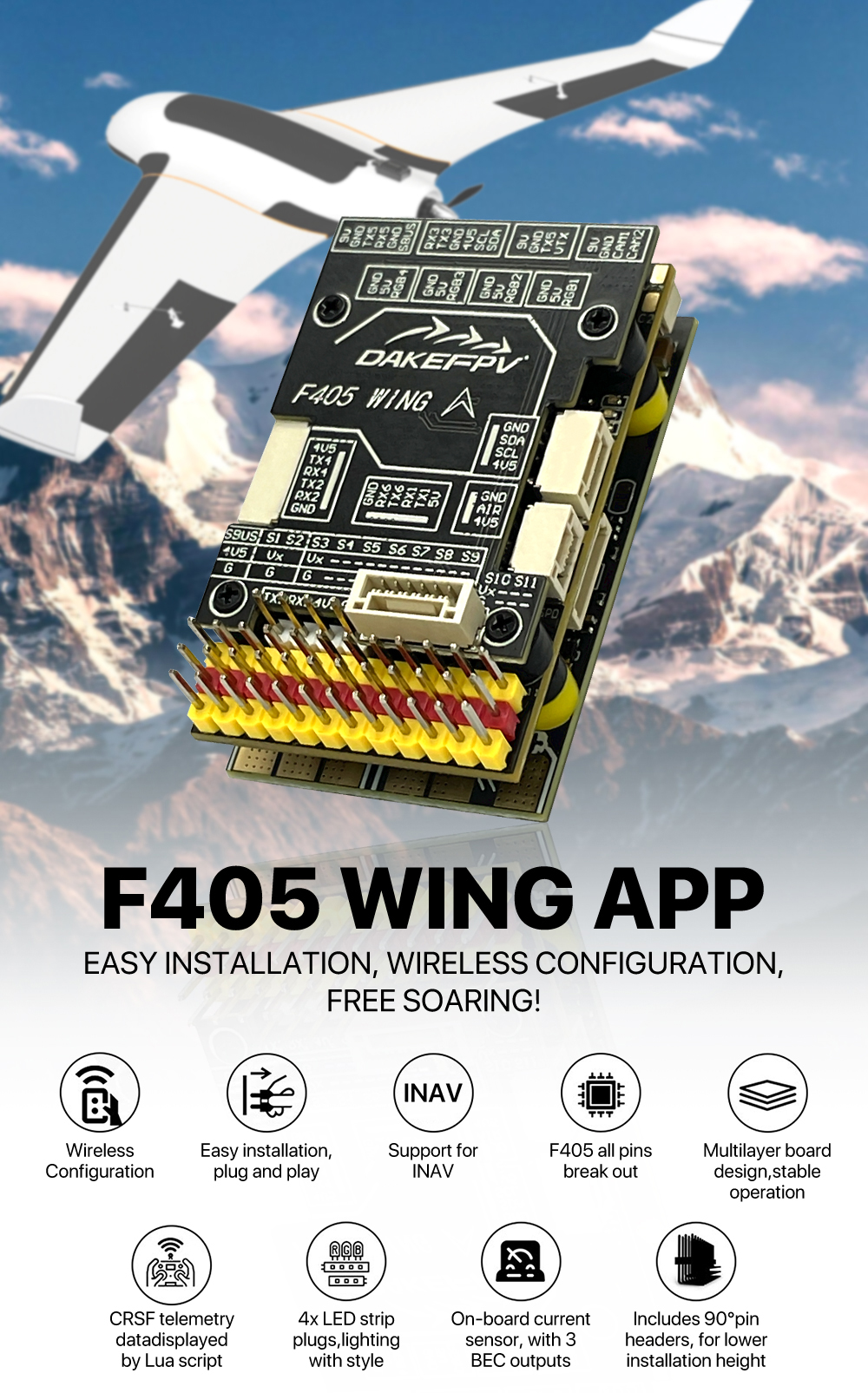

7. Suitable for a variety of fixed-wing planes
Description:
Supports Betaflight & INAV wireless tuning, features built-in current sensor, 9V VTX output, 11 configurable PWM channels, plug-and-play LED strips and easy ELRS/TBS receiver telemetry setup for convenient installation and flexible flight control.

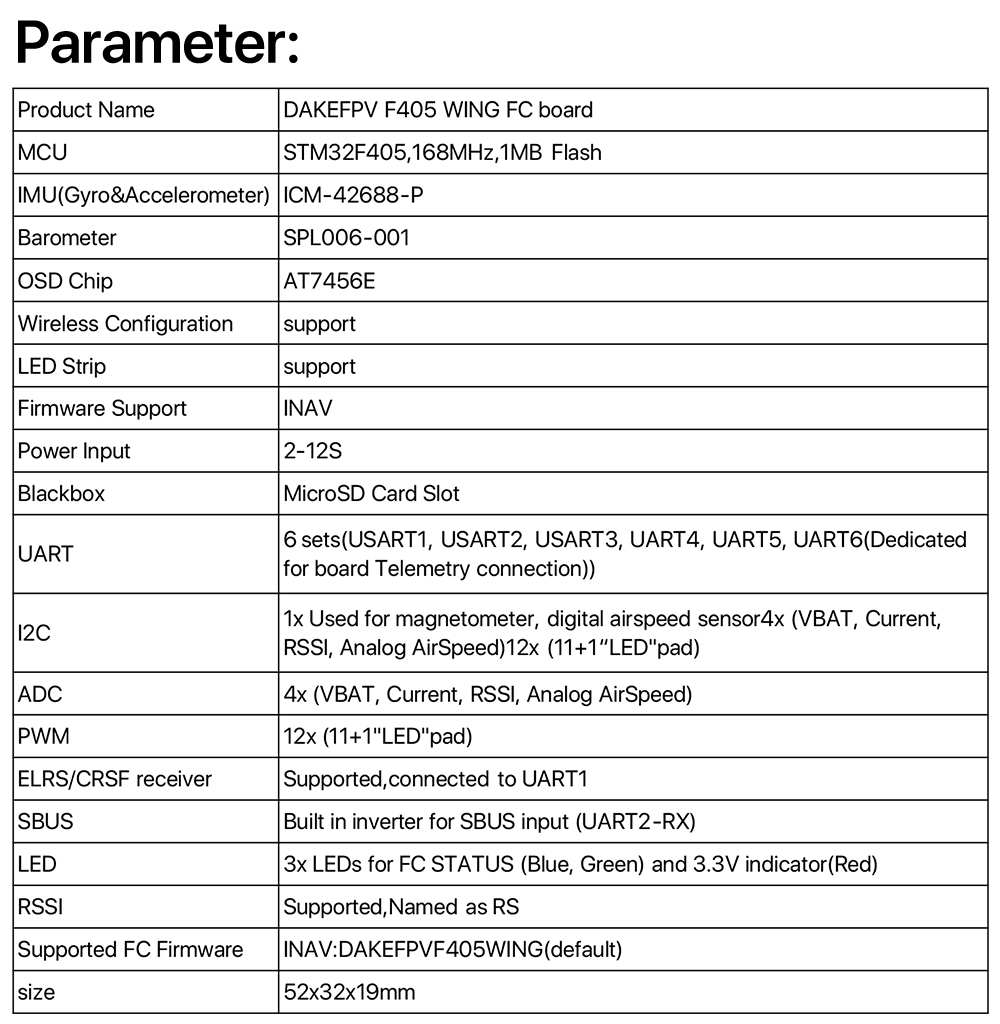

Specifications:

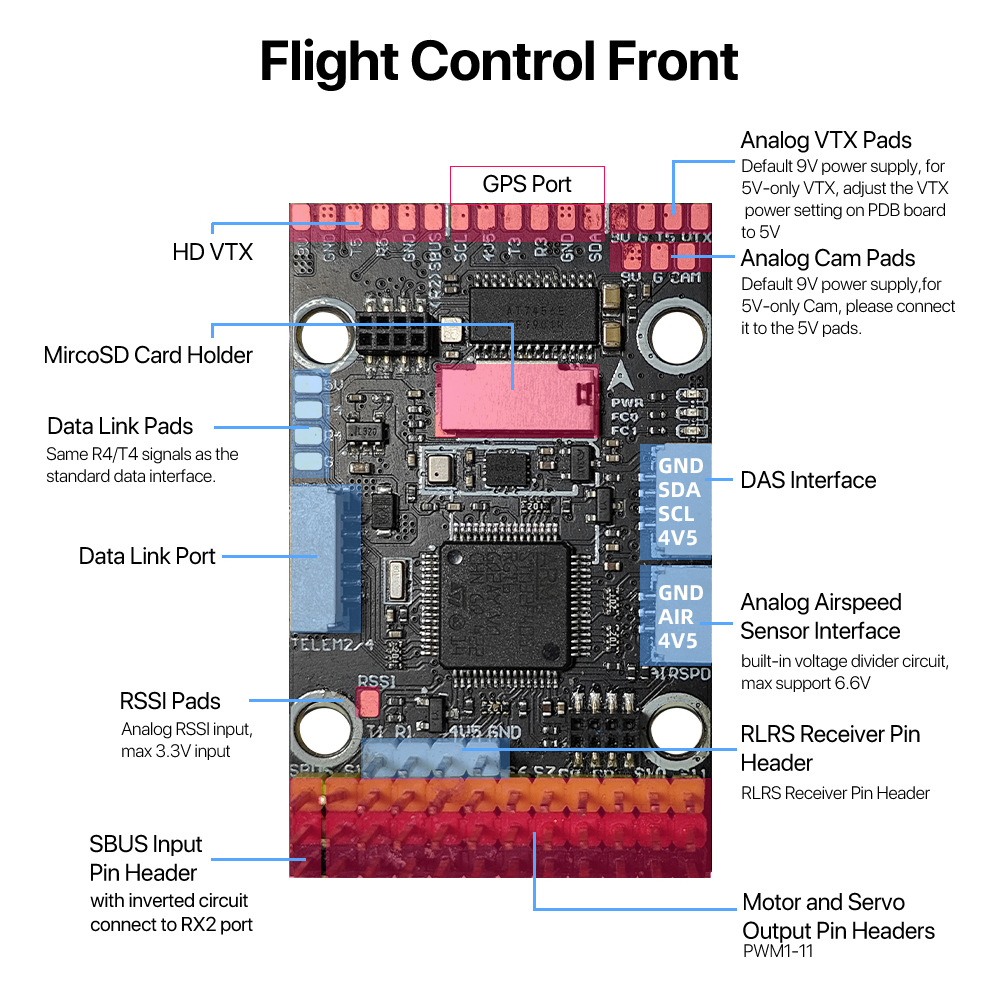

Product Name: DAKEFPV F405 WING FC board
MCU: STM32F405,168MHz,1MB Flash
IMU(Gyro&Accelerometer): ICM-42688-P
Barometer: SPL006-001
OSD Chip: AT7456E
Wireless Configuration: support
LED Strip: support
Firmware Support: INAV
Power Input: 2-12S
Blackbox: MicroSD Card Slot

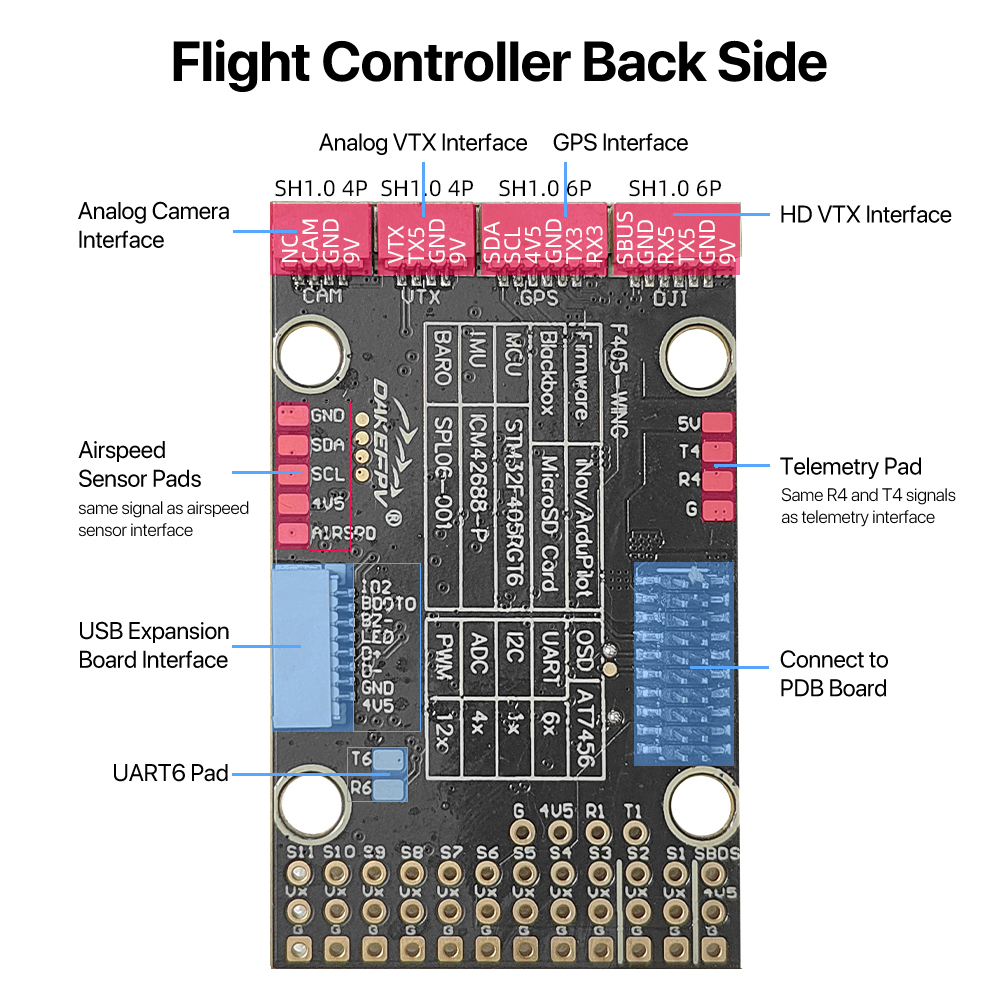

UART: 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for board Telemetry connection))
I2C: 1x Used for magnetometer, digital airspeed sensor4x (VBAT, Current, RSSI, Analog
AirSpeed)12x (11+1“LED"pad)
ADC: 4x (VBAT, Current, RSSI, Analog AirSpeed)
PWM: 12x (11+1"LED"pad)

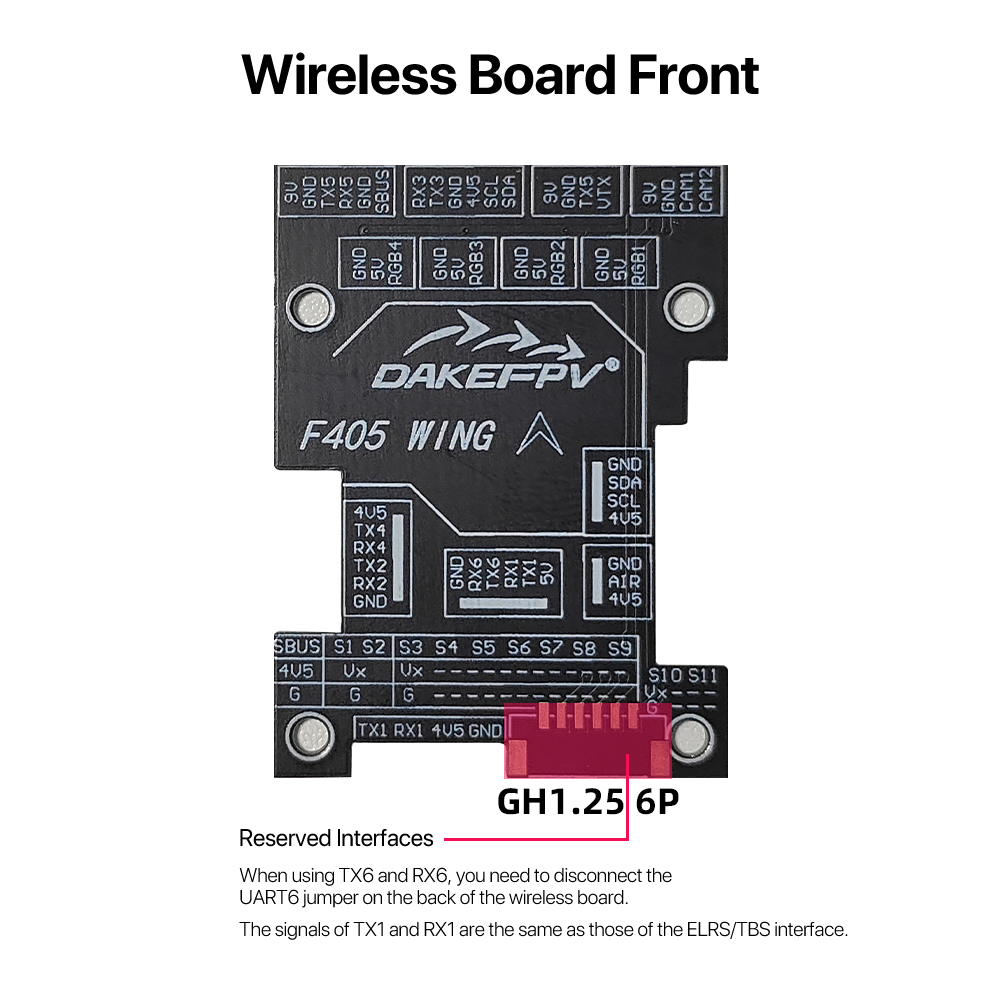

ELRS/CRSF receiver Supported,connected to UART1
SBUS: Built in inverter for SBUS input (UART2-RX)
LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
RSSI: Supported,Named as RS
Supported FC Firmware: INAV:DAKEFPVF405WING(default)

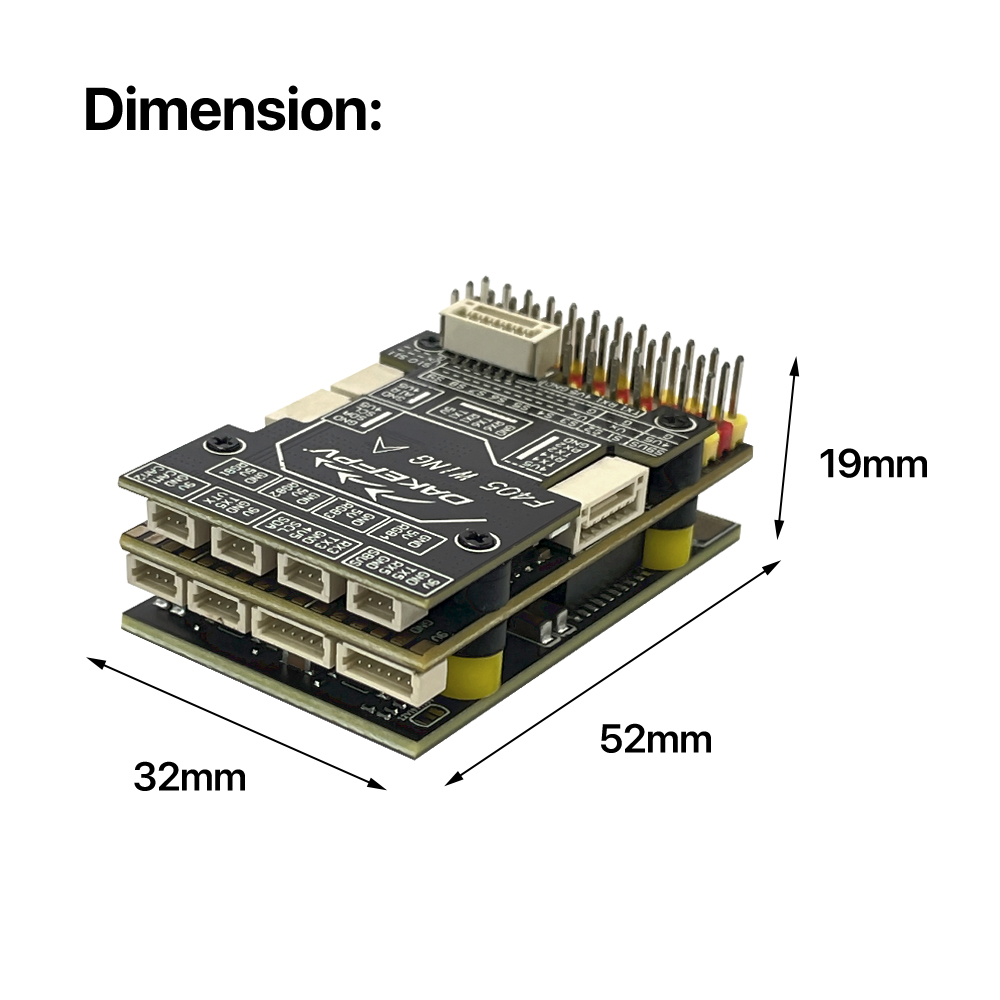

size: 52x32x19mm
Package contents:

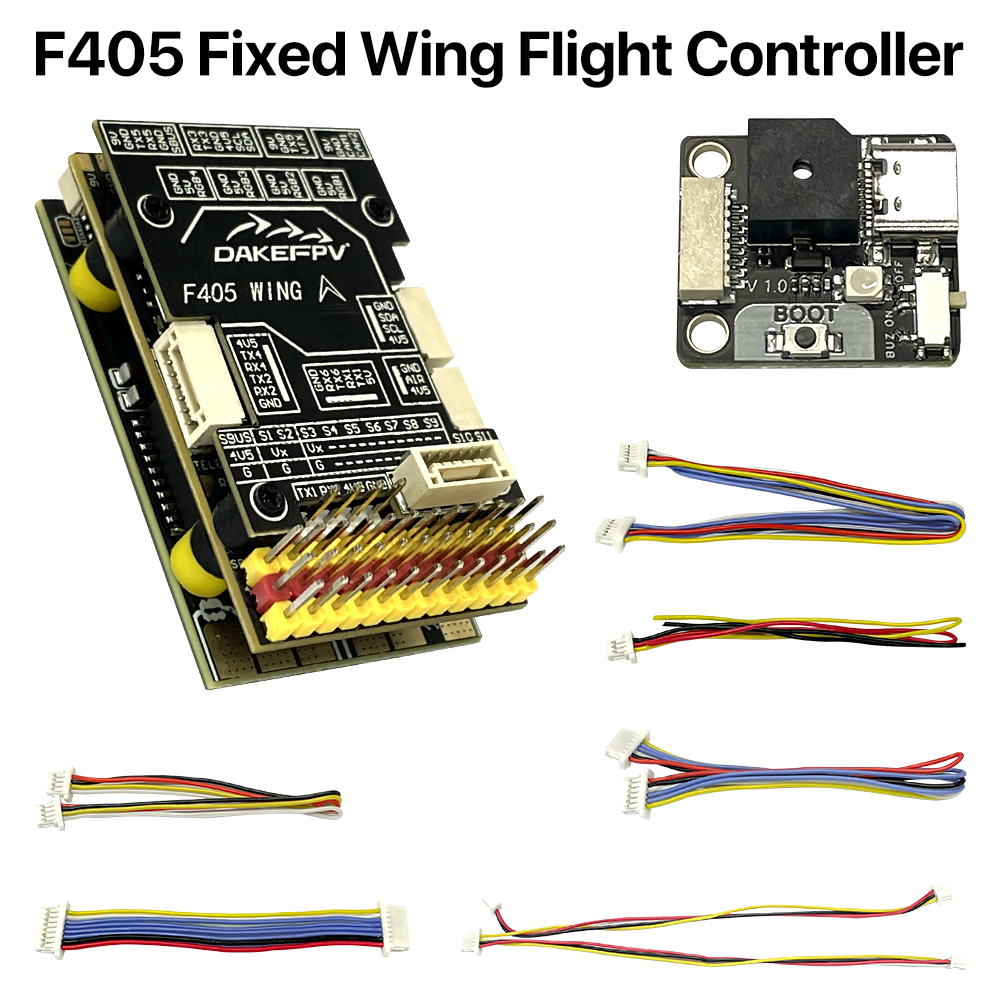

1* F405 WING Kit
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
