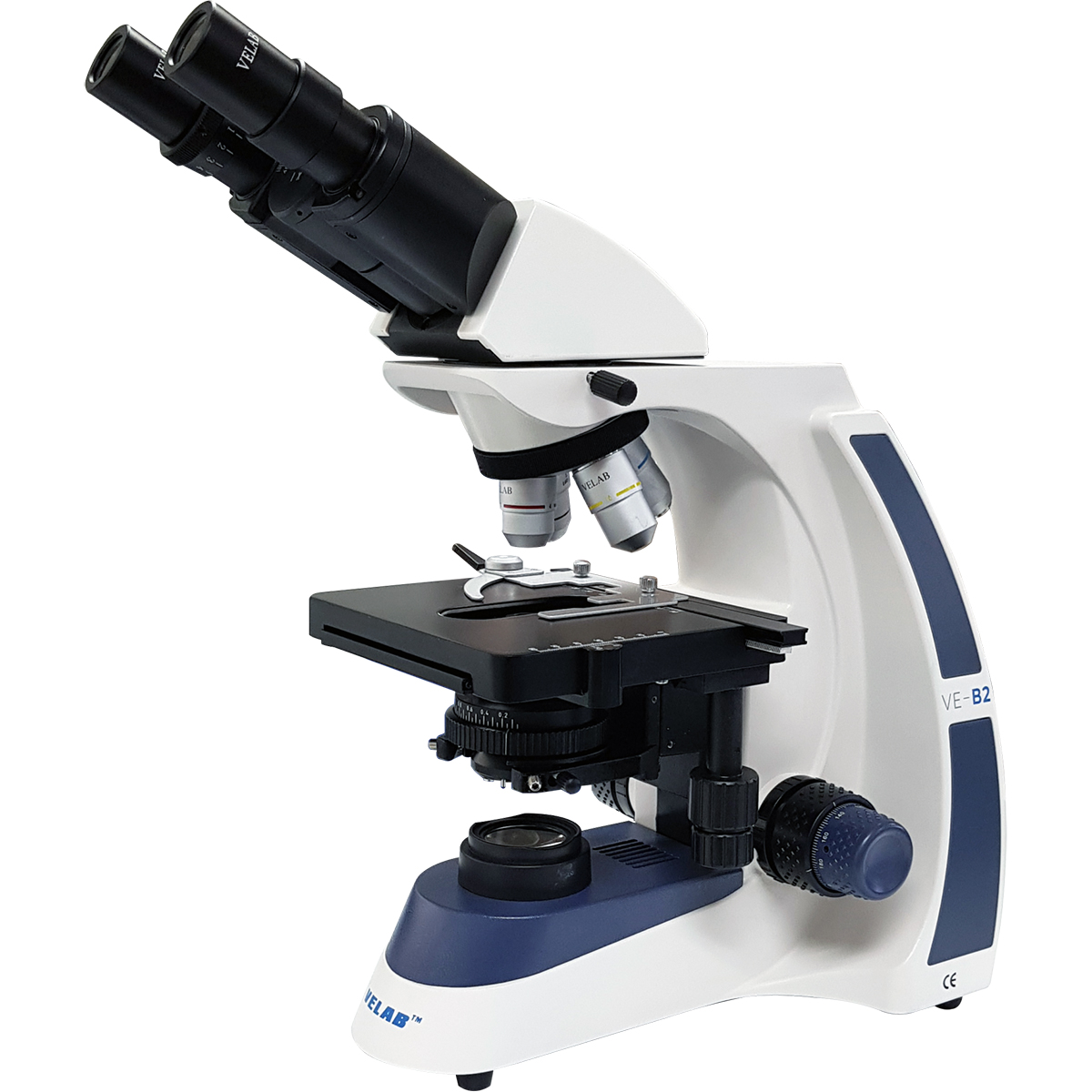

Velab VE-B2 Binocular Microscope, Quadruple Nose Piece, 5.51” x 5.19” 2-Layer Stage

The VE-B2 is an ideal microscope for all kinds of basic and advanced techniques. It complies with the necessary characteristics for routine work in clinical laboratories. Its eyepieces provide a wide field of observation and its extensive stage allows a comfortable displacement through the sample. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
This microscope uses a WF 10x/18 mm with diopter adjustment on one eyepiece. The binocular Siedentopf type head is 45° inclined with 360° rotation, with interpupillary distance adjustment between 55 - 75mm / 2.16” - 2.95”. It has a quadruple nosepiece with anti-slip grip and click-stops. The objectives are 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics, anti-slip grip and color ring for easy identification. The stand is stative, robust and reinforced with epoxy paint finish. The stage is a two-layer stage, with X-Y coaxial movement, 5.51” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop. Coarse anti-slip control knobs with tension adjustment allow you to make minor adjustments as you focus on your sample. The microscope is powered by three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.

Eyepiece: WF 10x/18 mm with diopter adjustment on one eyepiece.

Head: Binocular Siedentopf type, 45° inclined head and 360° rotatable, with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”

Objectives: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification

Condenser: Abbe, N.A. 1.25 with height adjustment

Diaphragm: Iris type with filter holder
