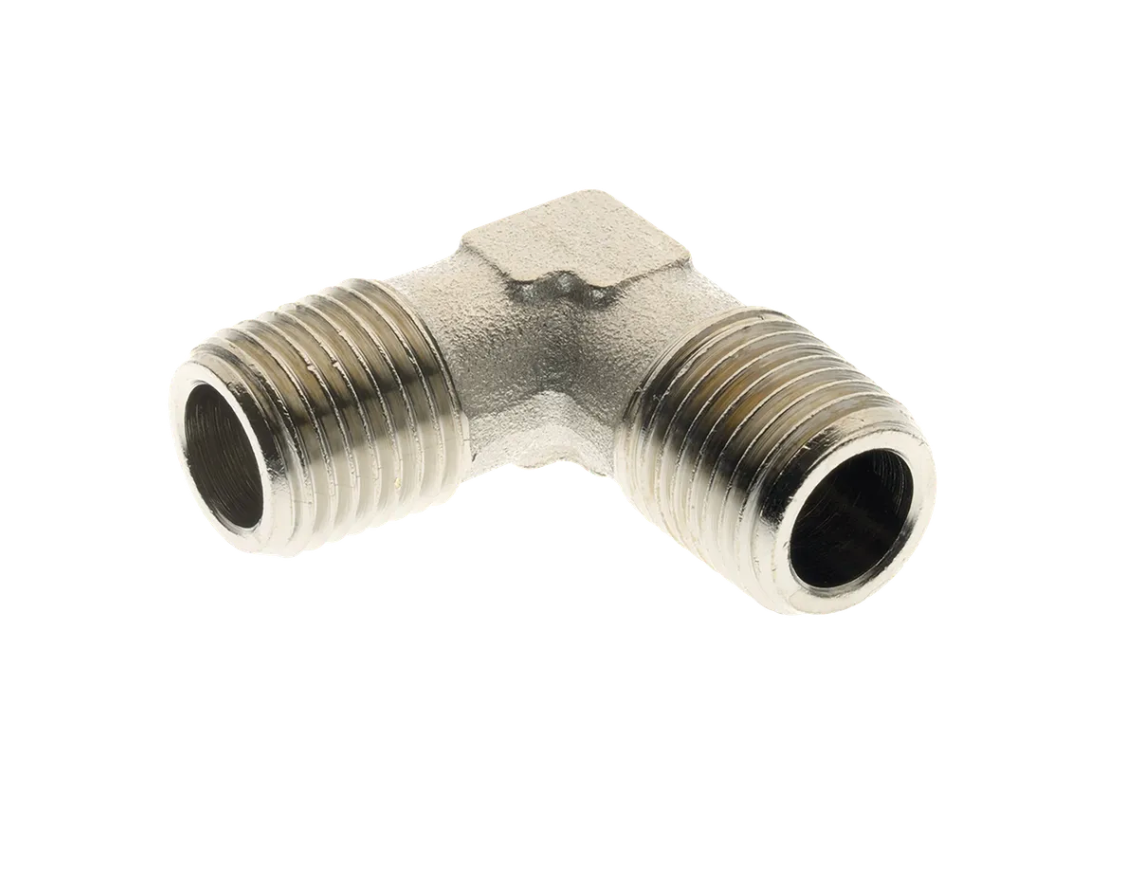

Brass Nickel Plated Equal Elbow Adaptor – 90° M5 Metric/BSPT Male
90° Equal Elbow | Brass Nickel Plated | Metric & BSPT Thread Options | Pneumatic & Fluid Systems | UK Stock
This brass nickel plated equal elbow adaptor is designed for reliable 90° directional changes in pneumatic and fluid systems. Featuring a compact and robust design, it provides secure and leak-resistant connections in confined installation spaces.
The WAM5 M5 metric male version is ideal for small bore pneumatic systems, while the wider range includes BSPT threaded variants from 1/8” to 1” for larger industrial applications. Manufactured from high-quality nickel plated brass, these adaptors offer excellent durability and corrosion resistance.
Product Specification
- Type: Equal Elbow Adaptor (90°)
- Thread Type: Metric Male (M5) & BSPT Male Variants Available
- Thread Size: M5 (WAM5) + 1/8” to 1” BSPT Options
- Material: Brass Nickel Plated for corrosion resistance
- Angle: 90° Equal Elbow
- Connection: Male x Male Equal Thread
- Design: Compact, precision-machined adaptor
- Brand: FT Pro
This range of equal elbow adaptors provides a reliable solution for changing flow direction in pneumatic, air, and fluid transfer systems. Available in multiple thread sizes, they are widely used in industrial, workshop, and maintenance environments.
Key Features
- 90° elbow design for efficient directional flow changes
- Nickel plated brass construction for durability and corrosion resistance
- Compact design ideal for tight installation spaces
- Precision threads for secure, leak-resistant connections
- Wide range of sizes including M5 and BSPT variants
- Suitable for pneumatic, air, and fluid systems
These elbow adaptors are commonly used by engineers and installers where space constraints require a clean and efficient 90° connection without compromising performance.
Applications
- Pneumatic air systems
- Compressed air installations
- Industrial fluid transfer systems
- Hydraulic and mechanical systems (low pressure)
- Workshop and maintenance applications
Why Use a 90° Equal Elbow Adaptor?
Equal elbow adaptors are essential components in pipe and pneumatic systems where a change in direction is required. The 90° design allows for efficient routing of pipework and tubing, particularly in confined or complex installations.
Using a high-quality nickel plated brass adaptor ensures long service life, improved sealing performance, and resistance to corrosion in demanding industrial environments.

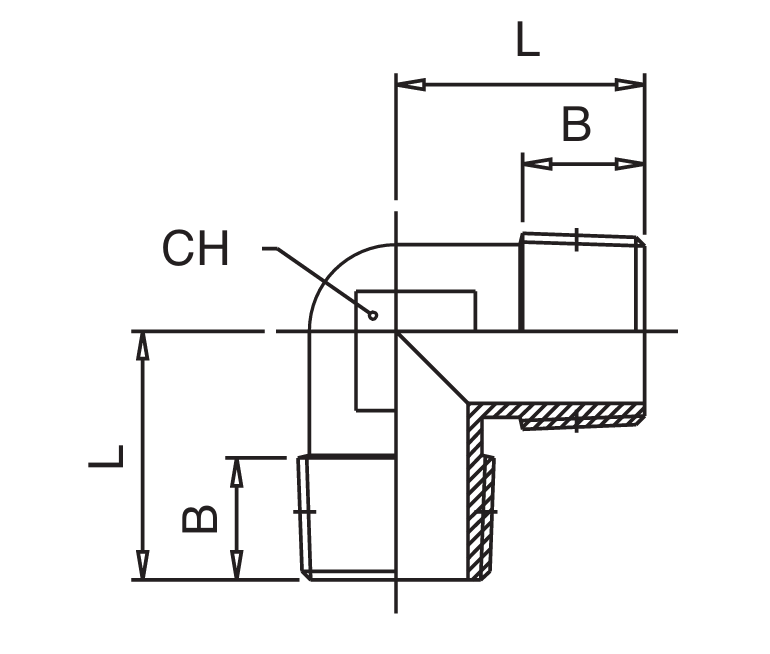

Technical Dimensions
Equal Male X Male Elbow Adapter
| Code | Thread Size | A (mm) | B (mm) | B1 (mm) | C (mm) | L (mm) | CH (mm) |
|---|---|---|---|---|---|---|---|
| WSLM5 | M5 | 4 | 5.5 | — | 11.5 | 11.5 | 9 |
| WSL10 | 1/8" | 7.5 | 8.5 | — | 21 | 18 | 11 |
| WSL13 | 1/4" | 11 | 11 | — | 25.5 | 24 | 13 |
| WSL17 | 3/8" | 11.5 | 12 | — | 28 | 27 | 17 |
| WSL21 | 1/2" | 14 | 15 | — | 32 | 29.5 | 20 |
| WSL26 | 3/4" | 14.5 | 16.5 | — | 36.5 | 32 | 27 |
| WSL33 | 1" | 16 | 19 | — | 45 | 39 | 30 |
Pressure/Temperature Specifications
| Size | Working Pressure (Bar) |
|---|---|
| 1/8" | 150 |
| 1/4" | 100 |
| 3/8" | 75 |
| 1/2" | 50 |
| 3/4" | 85 |
| 1" | 80 |
Rated to temperatures to +300°C
Material Specifications
| Component | Material |
|---|---|
| Body | Brass (Nickel Plated) |
| Finish | Corrosion-resistant nickel plating |
Why Choose Nickel Plated Brass?
- Superior corrosion resistance compared to standard brass
- Improved durability in harsh environments
- Longer service life and reduced maintenance
- Enhanced thread protection and wear resistance
- Ideal for both air and fluid applications
