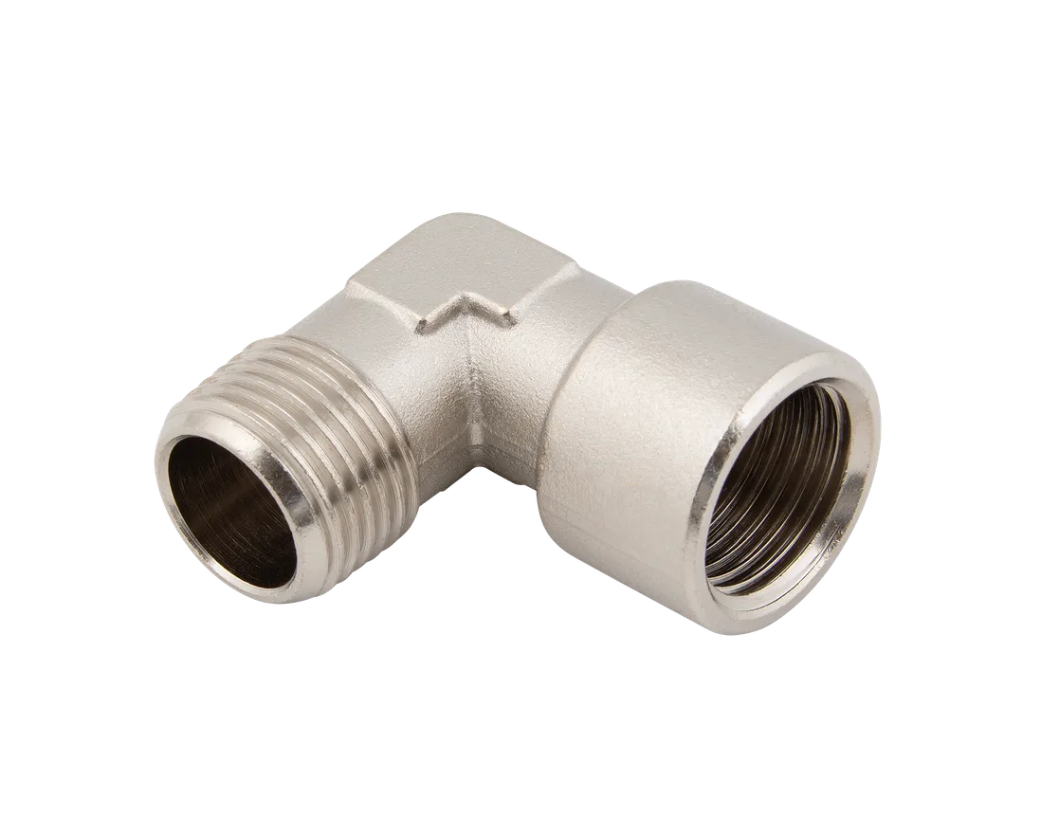

Male BSPT X Female BSPP Equal Elbow Adaptors
Brass Nickel Plated - Range of Sizes | UK Stock & Same Day Dispatch before 1pm
High-quality FT Pro 90° Male Elbow Adaptors designed for efficient directional changes in pneumatic and fluid systems. Manufactured from nickel plated brass, these fittings provide excellent corrosion resistance, durability, and long service life.
The 90° elbow design allows for compact installation in tight spaces while maintaining strong, leak-free threaded connections. Suitable for a wide range of industrial, workshop, and general engineering applications.
Product Specification
- Product Type: Male x Male Elbow Adaptor
- Angle: 90°
- Thread Type: Metric (M5) & BSPP
- Thread Gender: Male x Male
- Material: Nickel Plated Brass
- Finish: Corrosion-resistant nickel plating
- Configuration: Equal Elbow
- Suitable Media: Air, water, oils, fluids
- Brand: FT Pro
Key Features
- High-quality nickel plated brass construction
- 90° elbow design for compact installations
- Excellent corrosion and wear resistance
- Strong and durable for industrial environments
- Precision machined threads for leak-free connections
- Wide range of metric and BSP sizes available
- Easy installation with standard tools
Applications
- Compressed air systems
- Pneumatic and low pressure hydraulic installations
- Industrial pipework systems and plumbing
- Machinery and equipment connections
- Workshop and maintenance use
- Fluid transfer systems
Technical Dimensions
Equal Female X Male Elbow Adapter
| Code | Thread Size (A) | B (mm) | L (mm) | CH (mm) |
|---|---|---|---|---|
| WSLM5 | M5 | 5.5 | 11 | 9 |
| WSL10 | 1/8" | 8.5 | 21 | 11 |
| WSL13 | 1/4" | 11 | 25.5 | 13 |
| WSL17 | 3/8" | 11.5 | 28 | 17 |
| WSL21 | 1/2" | 15 | 32 | 20 |
| WSL26 | 3/4" | 16.5 | 36.5 | 27 |
| WSL33 | 1" | 20.5 | 42 | 34 |
Pressure/Temperature Specifications
| Size | Working Pressure (Bar) |
|---|---|
| 1/8" | 150 |
| 1/4" | 100 |
| 3/8" | 75 |
| 1/2" | 50 |
| 3/4" | 85 |
| 1" | 80 |
Rated to temperatures to +300°C
Why Choose Nickel Plated Brass?
- Superior corrosion resistance compared to standard brass
- Improved durability in harsh environments
- Longer service life and reduced maintenance
- Enhanced thread protection and wear resistance
- Ideal for both air and fluid applications
