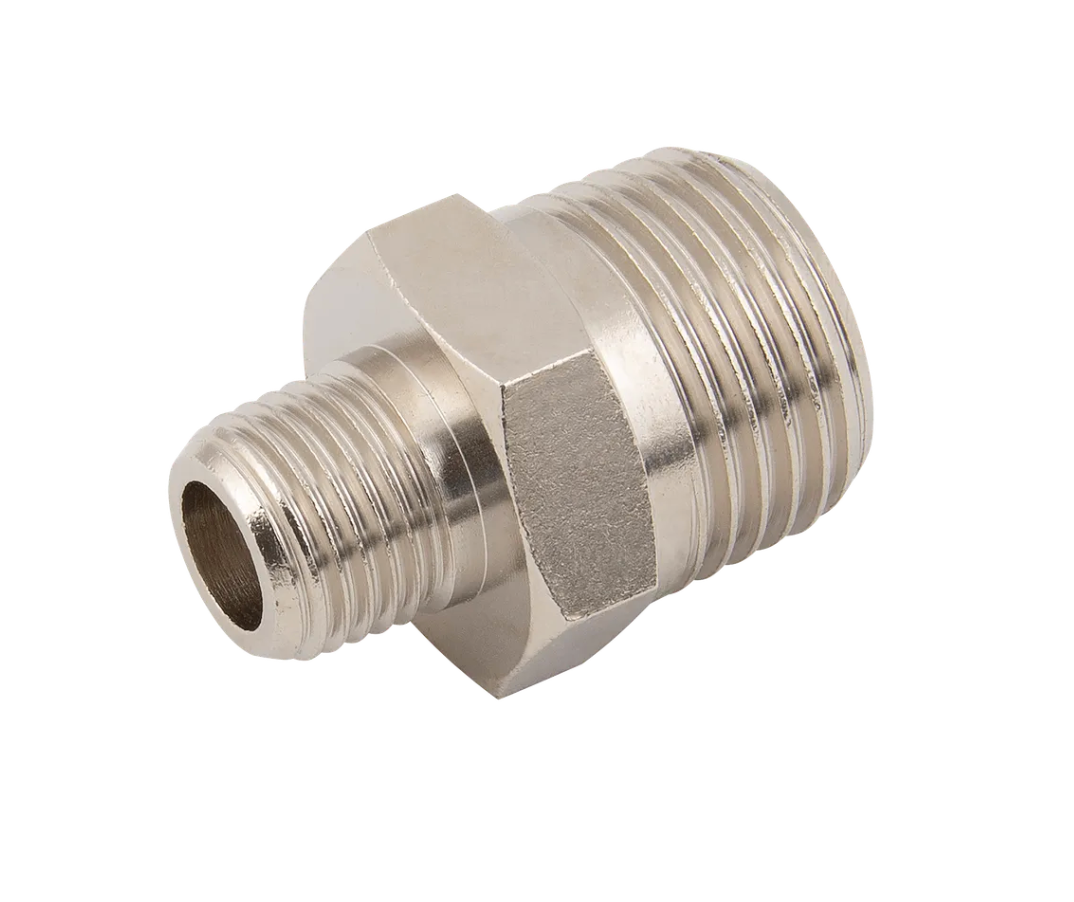

BSPT Male x Male Unequal Adaptors
Nickle Plated Brass - Multiple Sizes | UK Stock & Same Day Dispatch before 1pm
High-quality FT Pro BSPT Male x Male Unequal Adaptors designed for secure and reliable threaded connections in pneumatic and fluid systems. Manufactured from durable nickel plated brass, these adaptors provide excellent corrosion resistance, strength, and long service life.
This full range includes multiple size combinations, allowing easy connection between different BSPT thread sizes in industrial and workshop environments.
Product Specification
- Product Type: Male x Male Straight Adaptor
- Thread Type: BSPT (Tapered)
- Thread Gender: Male x Male
- Material: Nickel Plated Brass
- Configuration: Unequal Straight Adaptor
- Pressure Rating: Up to 150 bar (depending on size)
- Temperature Range: Up to +300°C
- Brand: FT Pro
Key Features
- High-quality nickel plated brass construction
- BSPT tapered male threads for secure sealing
- Excellent corrosion and wear resistance
- Strong and durable for industrial environments
- Wide range of size combinations available
- Suitable for high pressure applications
- Precision engineered threads for leak-free connections
Applications
- Compressed air systems
- Low pressure Hydraulic and pneumatic installations
- Industrial fluid transfer systems and plumbing
- Workshop and maintenance applications
- Machinery and equipment connections
- General engineering and pipework systems

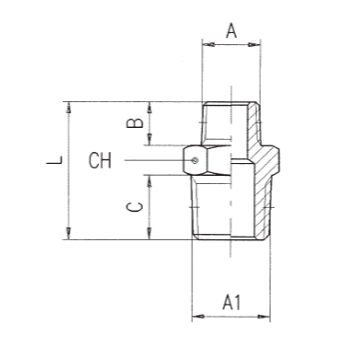

Technical Dimensions
Unequal Male Adapter
| Code | A | A1 | B (mm) | C (mm) | L (mm) | CH (mm) |
|---|---|---|---|---|---|---|
| DN10/13K | 1/8" | 1/4" | 7.5 | 11 | 23.5 | 14 |
| DN10/17K | 1/8" | 3/8" | 7.5 | 11.5 | 24 | 17 |
| DN10/21K | 1/8" | 1/2" | 7.5 | 14 | 27 | 22 |
| DN13/17K | 1/4" | 3/8" | 11 | 11.5 | 27.5 | 17 |
| DN13/21K | 1/4" | 1/2" | 11 | 14 | 30.5 | 22 |
| DN17/21K | 3/8" | 1/2" | 11.5 | 14 | 31 | 22 |
| DN21/26K | 1/2" | 3/4" | 14 | 16.5 | 37.5 | 27 |
| DN26/33K | 3/4" | 1" | 16.5 | 19 | 44 | 34 |
| DN33/42K | 1" | 1 1/4" | 20.5 | 22 | 50 | 45 |
| DN42/50K | 1 1/4" | 1 1/2" | 22 | 22 | 53 | 55 |
| DN50/55K | 1 1/2" | 2" | 24 | 25.5 | 59 | 67 |
Pressure/Temperature Specifications
| Size | Working Pressure (Bar) |
|---|---|
| 1/8" | 150 |
| 1/4" | 100 |
| 3/8" | 75 |
| 1/2" | 50 |
| 3/4" | 85 |
| 1" | 80 |
Rated to temperatures to +300°C
Why Choose Nickel Plated Brass?
- Superior corrosion resistance compared to standard brass
- Improved durability in harsh environments
- Longer service life and reduced maintenance
- Smooth plated finish protects threads from wear
- Ideal for air, water, and fluid systems
