YRMDU

MaXpeedingrods Coilover Lowering Kit For Honda Civic 1996-2000 Adjustable Height



Front+Rear Coilovers Kit For Honda Civic 1998-2000 Acura Integra 1990-2001

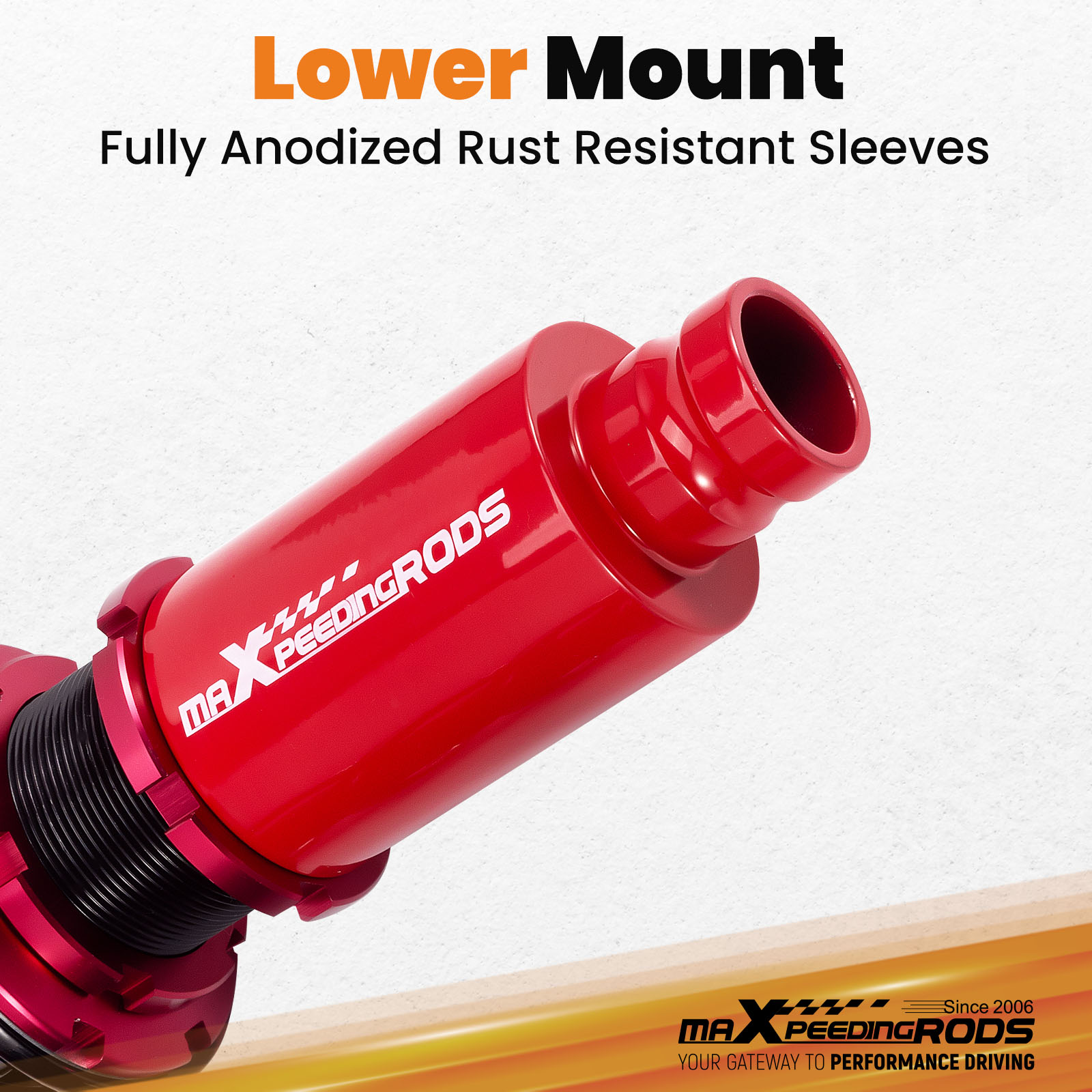

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection

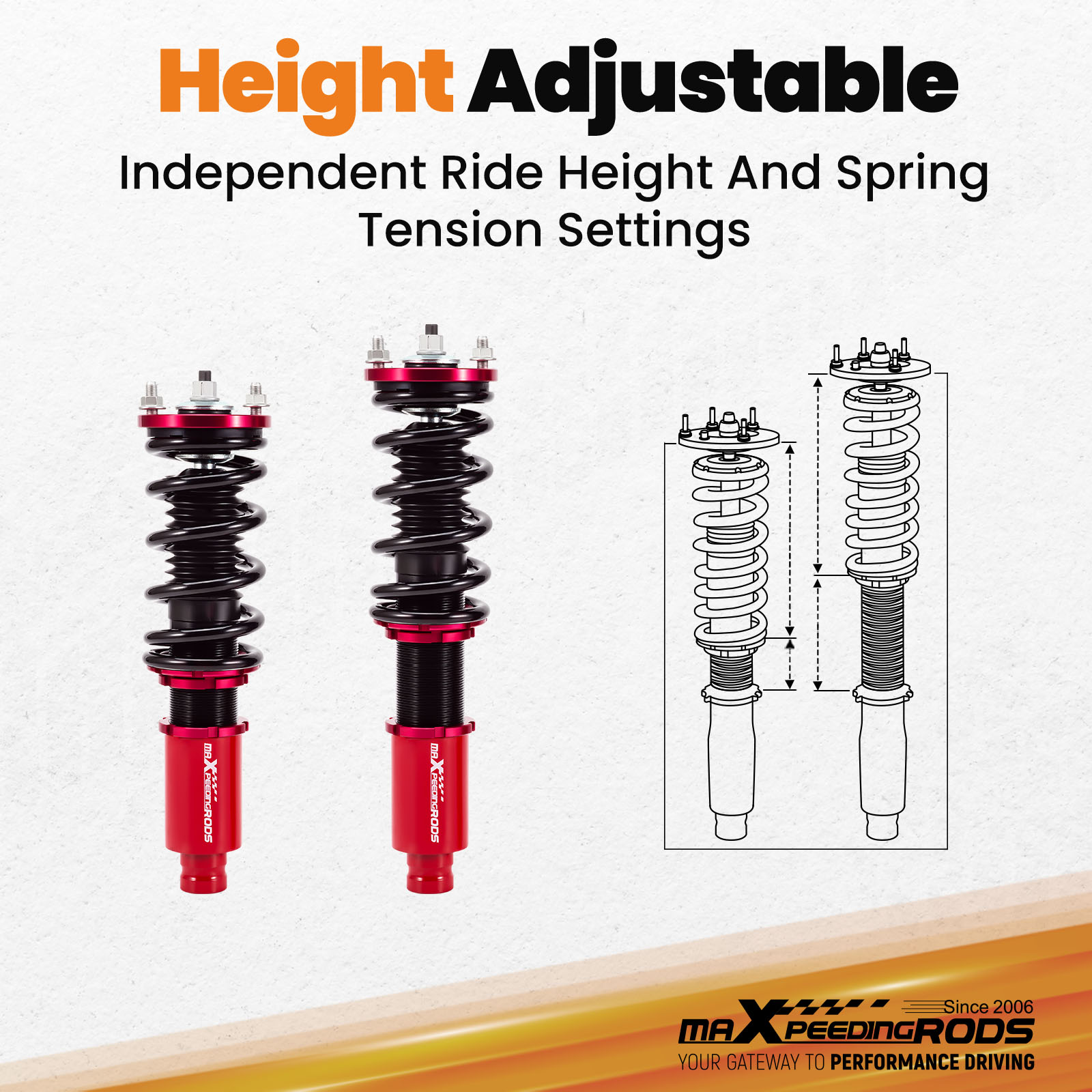

Full Threaded Absorber Tube Casing For Independent Height Adjustment

Full Threaded Absorber Tube Casing For Independent Height Adjustment

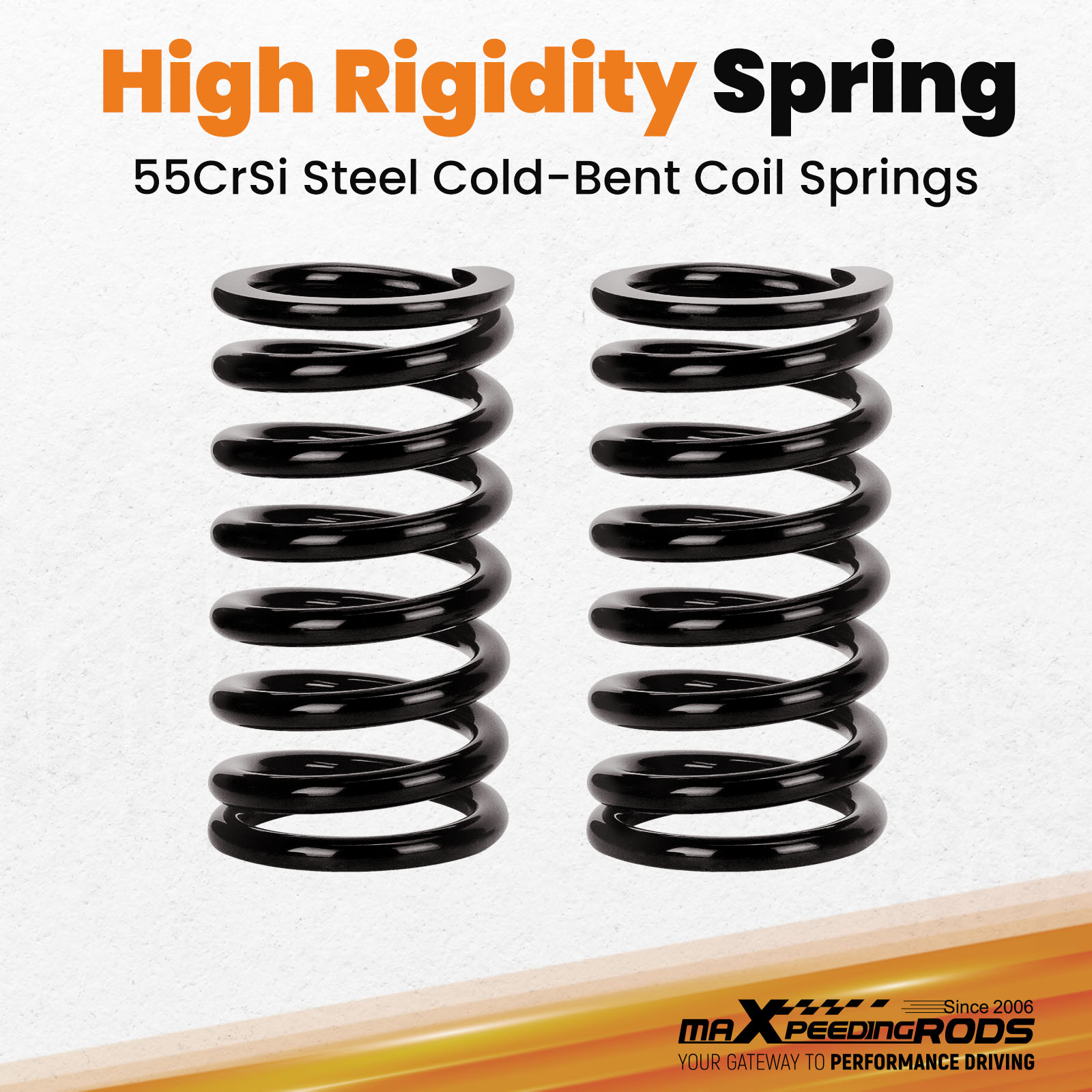

55CrSi High Strength Durable Cold Wound Steel & Heat Treated Coils

55CrSi High Strength Durable Cold Wound Steel & Heat Treated Coils



Specification


Front and Rear top mount rubber
Front Spring rate 8 kg/mm (448 lbs/in)
Rear Spring rate 5 kg/mm (280 lbs/in)
Front Spring length 180mm
Rear Spring length 180mm
Adjustable height Lowering 1-3inch (25-75mm)
Front Damper Body Diameter Φ55mm
Rear Damper Body Diameter Φ55mm
Package Included 2 Front + 2 Rear

Maxpeedingrods' street coilovers are designed and developed for all motoring enthusiasts that want excellent handling without sacrificing comfort. This suspension system is ideal for daily driving and occasional, light track use. High quality components are adopted to ensure product durability and stability. Each application is fully test fitted and completely road tested to guarantee all our customers perfect performance and comfort expectations.


Features


- Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
- 55CrSi high strength durable cold wound steel & heat treated coils
- Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.
- Improved Handling and stability without premature tire wear
- Improved Vehicle Stability and traction in hard cornering situations
- Full threaded absorber tube casing for independent height adjustment


Fitment


For HONDA CIVIC 1989-1991 ED2  ED3  ED4 ED6 ED7 EC8  EE9 Rear FORK TYPE BRACKET MODEL ONLY
For HONDA CRX 1989-1991 ED8 ED9 EE8 Rear FORK TYPE BRACKET MODEL ONLY
For HONDA CIVIC 1992-1995 EG1 EG2 EG3 EG4 EG5 EG6 EG8 EG9 EJ1 EJ2 EH2 EH3 EH9 Rear FORK TYPE BRACKET MODEL ONLY
For HONDA CIVIC 1995-2000 EK2 EK3 EK4 EJ6 EJ7 EJ8 EM1 Rear FORK TYPE BRACKET MODEL ONLY
For HONDA DELSOL 1993-1997 EG1 Rear FORK TYPE BRACKET MODEL ONLY
For ACURA INTEGRA 1990-2001 DC2 DC4 Rear FORK TYPE BRACKET MODEL ONLY


Specifications


- Front and Rear top mount: rubber
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 5 kg/mm (280 lbs/in)
- Spring length Front: 180mm
- Spring length Rear: 180mm
- Adjustable height: lowering 1-3inch
- Coilover overall length Front: 365mm-410mm
- Coilover overall length Rear: 435mm-480mm

- Front Damper Body Diameter: Φ55mm
- Rear Damper Body Diameter: Φ55mm

- Rod diameter: Front-22mm / Rear-12.5mm
- Shock type: Twin tube
- Spring Preload: 7-10 mm
- Color: Red


Package Included


- Complete coilovers assembly 2 front and 2 rear
- A pair wrench for height adjustment
- Sleeves and washers for some vehiles


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction; Adjustment spanner wrenches and pictured hardware are included.
