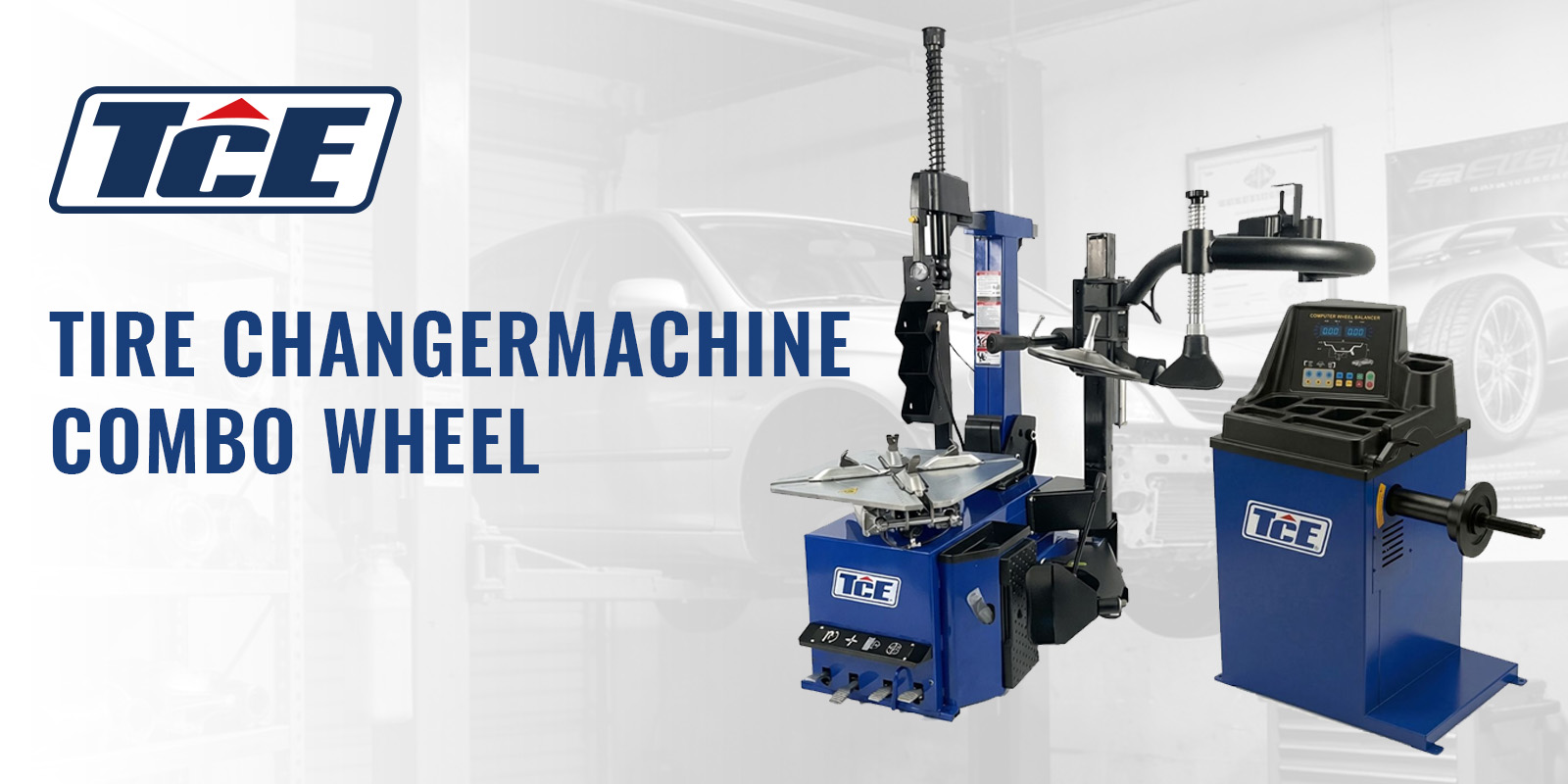

Heavy Duty Tire Changer & Wheel Balancer Combo Kit, Automotive Tire Repair Machine Set, Garage Workshop Tyre Changing Equipment for Passenger Car

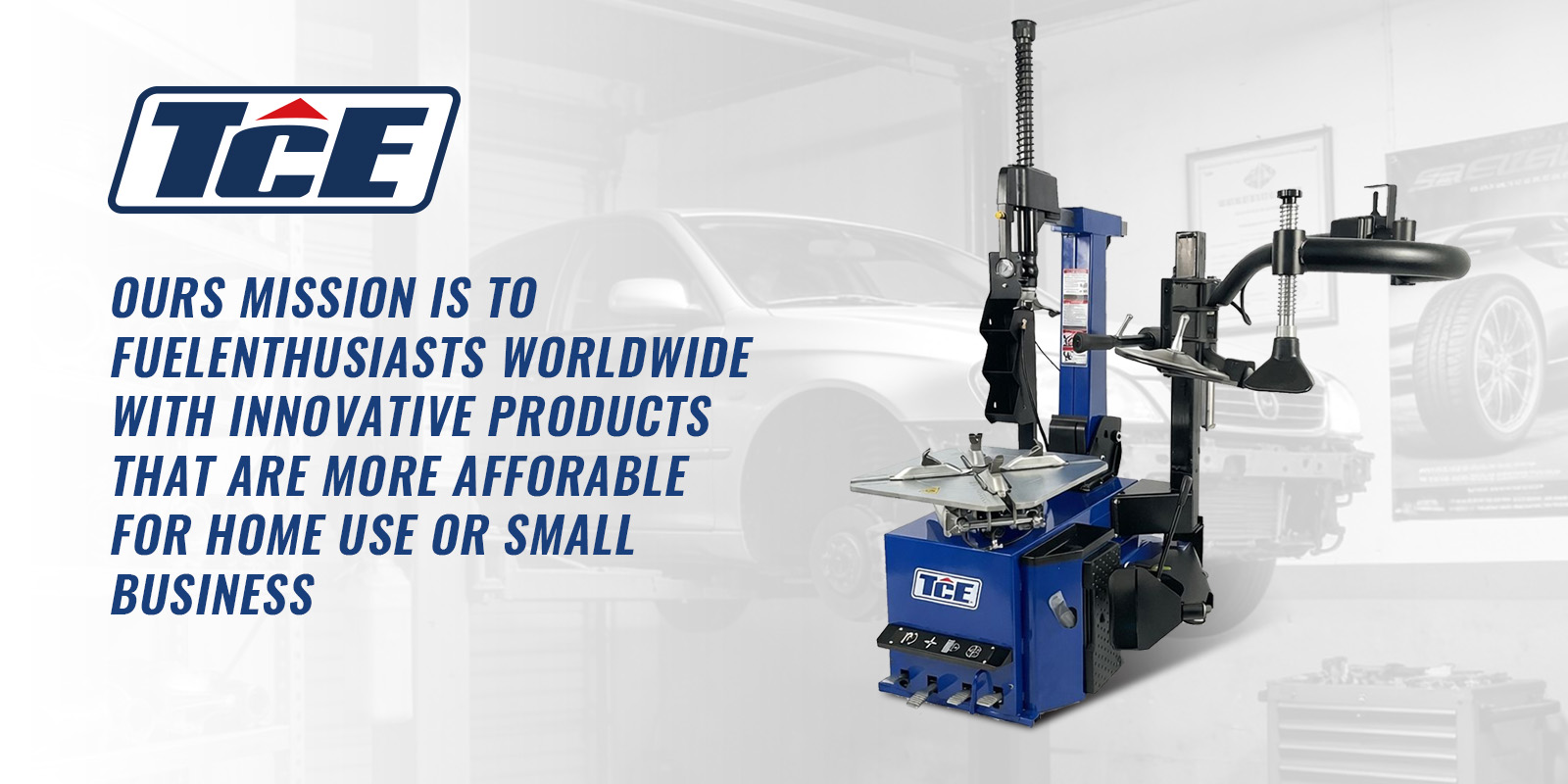

JUNY-BTJ2 Tilt-Back Assist Arm Tire Changer
installation video:https://www.youtube.com/watch?v=8edQoNGWq0A
·Perfect for stiff sidewall run‑flat and ultra low‑profile tires. Reinforced square column ensures stable, shake-free operation. Solid steel assist arm resists deformation and extends service life.
·Column tilts back 110°–120° for unobstructed access to large tires. Foot and pneumatic controls free your hands. 360° rotating pressing wheel enables smooth, flexible operation at any angle.
·Anti-collision self-locking valve secures the tilt arm automatically to avoid rim damage. Stainless steel mount head and anti-scratch jaw protectors keep wheels safe from scratches.
·Precision-marked turntable for fast centering. Integrated air lubrication filter removes moisture, reduces wear, and greatly improves overall durability.
·Automatic locking function prevents accidents caused by unsecured columns, adding safety and extra protection for high-value wheels.
·Column tilts back 110°–120° for unobstructed access to large tires. Foot and pneumatic controls free your hands. 360° rotating pressing wheel enables smooth, flexible operation at any angle.
·Anti-collision self-locking valve secures the tilt arm automatically to avoid rim damage. Stainless steel mount head and anti-scratch jaw protectors keep wheels safe from scratches.
·Precision-marked turntable for fast centering. Integrated air lubrication filter removes moisture, reduces wear, and greatly improves overall durability.
·Automatic locking function prevents accidents caused by unsecured columns, adding safety and extra protection for high-value wheels.
| Parameter | Details |
| Clamp rim size outside | 12-24”/304-609mm |
| Clamp rim size inside | 14-26”/355-660mm |
| Max. tire width | 15”/381mm |
| Max. wheel diameter | 43inch/1100mm |
| Working pressure | 8-10 bar (117-145Psi) |
| Max. inflation pressure | 3.5bar |
| Voltage | 110V60hz single phase |
| Electrical switch | 40A |
| power | 1.1kw |
| Rotation speed of turntable | 6.5r/min |
| Max. shaft torque | 1200Nm |
| Pressure of bead breaker | 2500kg / 5511lbs |
| Machine packing size | 1020 x 770 x 1020mm / 40” x 31”x 41” |
| Net weight | Machine 238kg/525lbs, Helper arm 66kg/146lbs |
| Level of noise | <75dB |

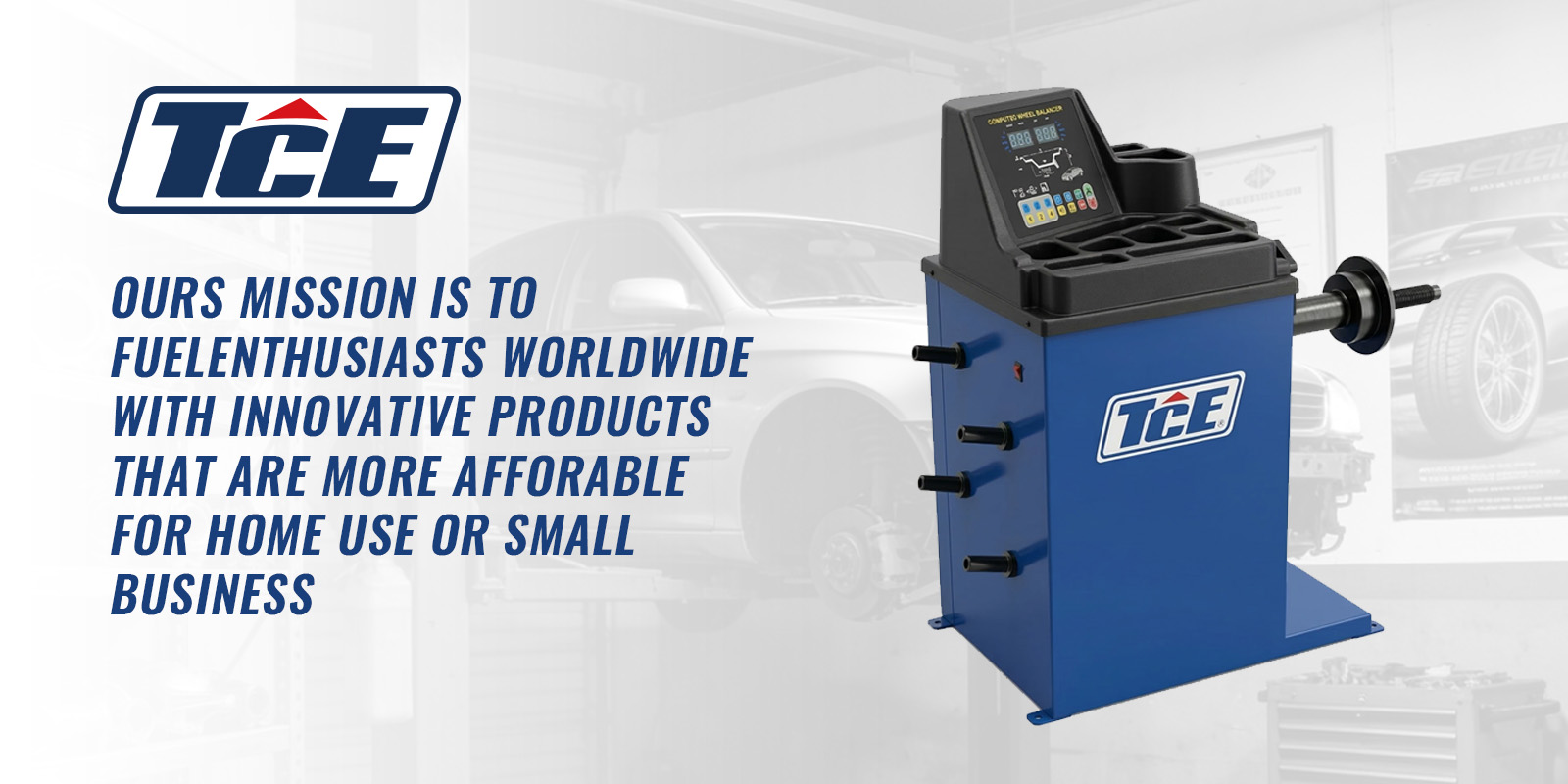

JUNY-PHJ Wheel Balancer
·Top level motor and pure copper winding, fast heat dissipation,low defect rate and longer using life.
·The computer board adopt advanced welding technology, moistureproof,dustproof and anti-static electricity, more longer life.
·Various balance mode, according different rim for different balance mode,make the balance effect more precision.
·Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters,operation more easy.
·Unit selection(Ounce/Gram, MM/Inch).
·High quality integration power board, working stable and reliable.
| Parameter | Details |
| Voltage/Power | 110V 60Hz Single Phase, 250W Motor |
| Balance Speed | 200r/min |
| Balance Cycle | 8s |
| Max Wheel Weight | 70kg / 154lbs |
| Rim Diameter | 10”～24” (254mm～610mm) |
| Max Back Space | ＜240mm / 9.5” |
| Balance Modes | 6 Modes (Standard/ALU1/ALU2/ALU3/ST/ALUS) |
| Noise Level | ＜70dB(A) |
| Net Weight/Gross Weight | 78kg / 171lbs |
| Packing Size | 33” x 23” x 46” (840 x 575 x 1150mm) |
| Working Environment | -5℃～50℃, ≤4000m altitude, ≤85% humidity |
| Compatibility | Passenger cars, light trucks, motorcycles (steel/aluminum rims) |
