New in Box GOULDS 125MS1H4D4 Stainless Steel Centrifugal Pump 3-HP Single-Phase

INV 8769

Clean, reliable, and ready to go. This Goulds Water Technology 125MS1H4D4 stainless steel centrifugal pump is brand new in the box—exactly what you’d receive if you paid more an bought from someone else. These were overstocked. Built with corrosion-resistant stainless steel and designed for consistent performance, it’s a proven choice for water transfer, boosting, and general service applications.

If you’re looking for a dependable, high-quality pump without the wait or inflated pricing, this is it.

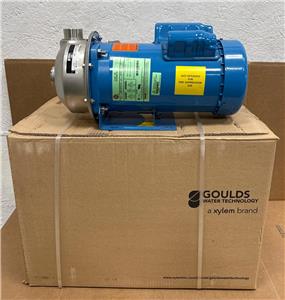

NEW GOULDS Water Technology 125MS1H4D4 Stainless Steel Centrifugal Pump
Goulds 125MS1H4D4 MCS Stainless Steel Centrifugal Pump
Pump Size: 1-1/4 x 1-1/2 - 6

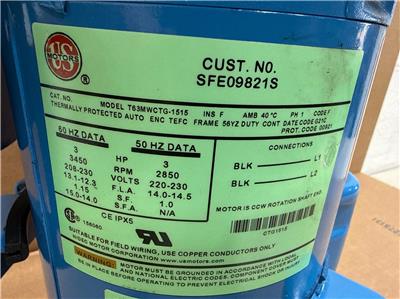

US Motor, Model: T63MWCTG-1515
3 HP, 208-230 Volts, 60 Hz
3500 RPM, 1PH (Single Phase)
TEFC - Totally Enclosed Fan Cooled Motor.
Carbon/Sil-Carbide/Viton Mechanical Shaft Seal.

Inlet Size - Pumps: 1-1/2 in NPT
Outlet Size - Pumps: 1-1/4 in NPT
Height: 8 3/4 in
Length: 17 9/16 in
Compatible Intake Pipe Size: 1 1/2 in
Overall Width: 6.7 in
Overall Length: 13.2 in
Compatible Discharge Pipe Size: 1 1/4 in
Overall Height: 8.7 in

Discharge Pump Type: Centrifugal Pump
HP - Pumps: 3 hp
Phase - Pumps: 1
Voltage - Pumps: 208/230V AC
Max. Pressure - Pumps: 125 psi
Housing Material - Pumps: Stainless Steel
Motor Enclosure - Pumps: Totally Enclosed Fan-Cooled
Best Efficiency Range GPM @ Head: 60 to 103 gpm @ 103 to 79.5 ft
Motor Enclosure: Totally Enclosed Fan Cooled
Inlet Pressure: 2 psi
Installation Position: Horizontal
Wetted Materials: 316 Stainless Steel, AISI 316L Stainless Steel, Carbon, Silicon Carbide, Viton
Max. Liquid Temp.: 212 Degrees F
GPM of Water @ 80 Ft. of Head: 102 gpm
Phase: Single
Motor Type: 1 - Phase; Totally Enclosed Fan-Cooled
Duty: Continuous
Hz: 60 Hz
Best Efficiency GPM @ PSI: 85.8 gpm @ 92 ft
Seal Material: Stainless Steel, Buna Elastomer, Carbon, Ceramic
GPM of Water @ 70 Ft. of Head: 113 gpm
Max. Case Pressure: 125 psi
Max. Specific Gravity: 1
Agency Compliance: NSF 61
Item: Centrifugal Pump
Frame: 56YZ
GPM of Water @ 100 Ft. of Head: 68.8 gpm
GPM of Water @ 110 Ft. of Head: 25.7 gpm
Amps: 10.9-11.0
GPM of Water @ 90 Ft. of Head: 88.7 gpm
Port Rotation: Top
Impeller Type: Enclosed
Max. Head: 113 ft
Impeller Material: Stainless Steel
Includes: Manual
Motor RPM: 2,850 RPM
Horsepower: 3 hp
Impeller Design: Closed
Motor Frame Designation: 56YZ
Nameplate Voltage: 208/230V AC
Frequency: 60 Hz
Flow Rate @ 80 ft of Head (Maximum): 103 gpm
Mounting Orientation: Horizontal
Duty Cycle: Continuous
Priming: Manual
Flow Rate @ 90 ft of Head (Maximum): 88 gpm
For Use With Potable Systems: Yes
Maximum Feet of Head: 113 ft
Specific Gravity (Maximum): 1
Maximum Media Temperature: 212 Degrees F
Flow Rate @ 70 ft of Head (Maximum): 114 gpm
Best Efficiency Flow: 85.8 gpm
Seal Type: Mechanical
Pump Housing Material: Stainless Steel
Series: MCS
Intake Type: NPT
Flow Rate @ 100 ft of Head (Maximum): 72 gpm
Shut Off Pressure (Maximum): 75 psi
Minimum Flow Rate: 25.7 gpm
Best Efficiency Head: 92 ft
Maximum RPM: 3,500 RPM
Standards: CSA Certified, NSF 61 Certified
Compatible with Media Type: Water
Discharge Type: NPT
Pumping Application: Air Scrubbers, Booster Service, Chillers, Filtration Systems, General Water Service, Heat Exchangers, Injection Molding Cooling, Jockey Pump, Liquid Transfer, OEM Applications, Reverse Osmosis, Spraying Systems, Washing/Cleaning Systems, Water Circulation
Maximum Flow Rate: 113 gpm
Features: Easy Accessible Vent, High Efficiency Impeller, Prime and Drain Connections, Superior Material Construction
Shaft Material: Stainless Steel

We have a quantity of (42) Units at the time of this listing.
