Key Highlights
- Industrial reflected-light microscope — designed for metal, alloy & coating surface inspection
- Optical magnification up to 2500× using 5×, 10×, 40× & 100× DRY objectives
- Total digital magnification up to 2700× with 0.35× camera adapter
- DRY objective system — no oil required, perfect for polished, coated & delicate samples
- Reflected LED illumination — bright, uniform, low-heat lighting for high contrast imaging
- Eyepieces: Supplied with both 10× & 25× wide-field eyepieces for flexible viewing range
- 5 MP USB digital camera with 2D measurement & image capture software
- All-metal, vibration-free frame with precision focus control and mechanical XY stage

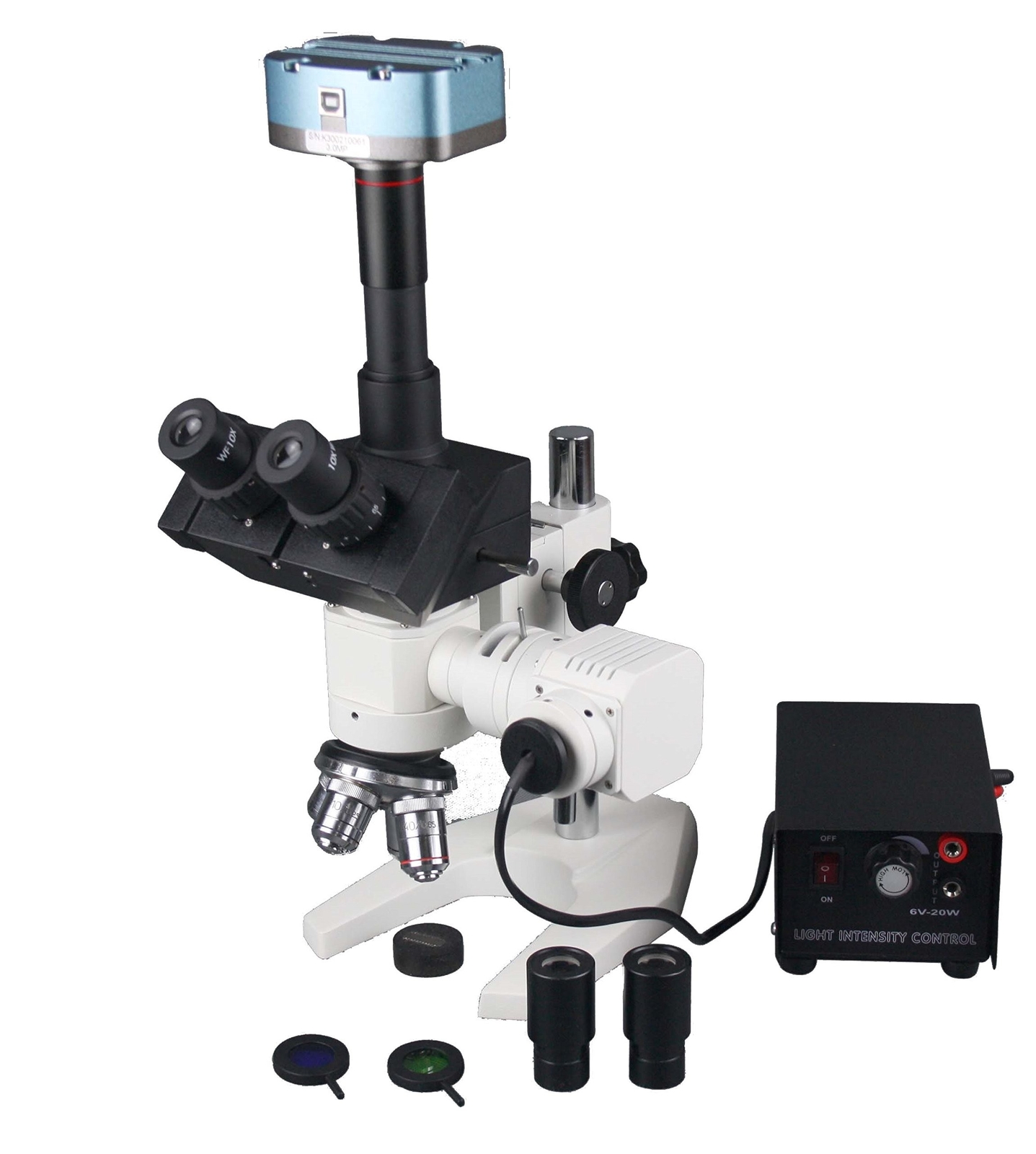

Industrial Metal Testing Microscope – 2500× DRY Objectives, 10×/25× Eyepieces, Reflected LED Light & 5 MP USB Camera
This high-performance industrial metallurgical microscope offers up to 2500× optical magnification using a full set of DRY objectives (5×, 10×, 40×, 100×) — ensuring oil-free, clean imaging on sensitive metal or PCB surfaces. The system includes both 10× and 25× eyepieces for flexibility in visual inspection and analysis, and a 5 MP USB camera with a 0.35× reduction adapter, achieving up to 2700× digital magnification for precise documentation and measurement.
Optical & Mechanical Specifications
- Objectives: DRY 5×, 10×, 40×, 100× – no oil immersion required
- Eyepieces: Wide-field 10× and 25× – anti-fungal, anti-reflective coated
- Magnification: Optical up to 2500×; total camera magnification up to 2700×
- Head: Trinocular, 45° inclined, 360° rotatable, C-mount camera port
- Illumination: Reflected LED light – adjustable intensity, bright and cool illumination
- Stage: Precision XY mechanical stage, micrometer controls
- Focusing: Coaxial coarse & fine knobs with slide protection limit
- Construction: All-metal industrial body with vibration-dampened base
Digital Camera & Measuring Software
- Camera: 5 MP USB digital camera with 0.35× optical reduction adapter
- Total Magnification: Approx. 2700× (on-screen with adapter)
- Software: Image capture, live view, linear/area measurement tools
- Compatibility: Windows (full features) & Mac (drivers included)
- Ideal for metallurgical inspection, quality control, and failure analysis documentation
Applications
- Metal & alloy microstructure and grain inspection (steel, aluminum, copper, brass, etc.)
- Surface and coating defect analysis — cracks, inclusions, porosity & polish quality
- Failure analysis and material quality control in industrial & educational labs
- PCB and micro-component inspection in electronics & manufacturing
Package Includes
- Reflected-light industrial microscope body
- DRY objective set: 5×, 10×, 40×, 100×
- Wide-field eyepieces: 10× & 25×
- Reflected LED illumination module & power supply
- 5 MP USB camera with 0.35× reduction adapter
- Measurement software, USB cable, dust cover & user manual
Quality Assurance: Each unit is optically aligned and calibrated for focus accuracy, illumination uniformity, and digital magnification performance prior to shipment.
