12V Pre-Wired Fuse Relay Box, 2 Relays and 6 ATC/ATO Blade Fuses, 4-Pin 80A Relay Block and Kit, for Cars Truck Jeep
Specification
| Part Number | FB62KA |
| Warranty Description | No |
| Minimum Switching Voltage | 12 Volts (DC) |
| Current Rating | 80 Amps |
| Mounting Type | Screw Mount |
| Unit Count | 1.0 Count |
| Contact Current Rating | 80 Amps |
| Wattage | 1.2 watts |
| Coil Voltage | 12 Volts (DC) |
| Connector Type | Plug-In |
| Style | Pre-Wired |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Model | FB62KA |
| Size | 80A 2 Relay 6 Fuses |
| Specification Met | CE |
| Included Components | FB62KA |
4.17 inches x 4.72 inches x 4.45 inches. Weight: 12.6 oz
Item Description

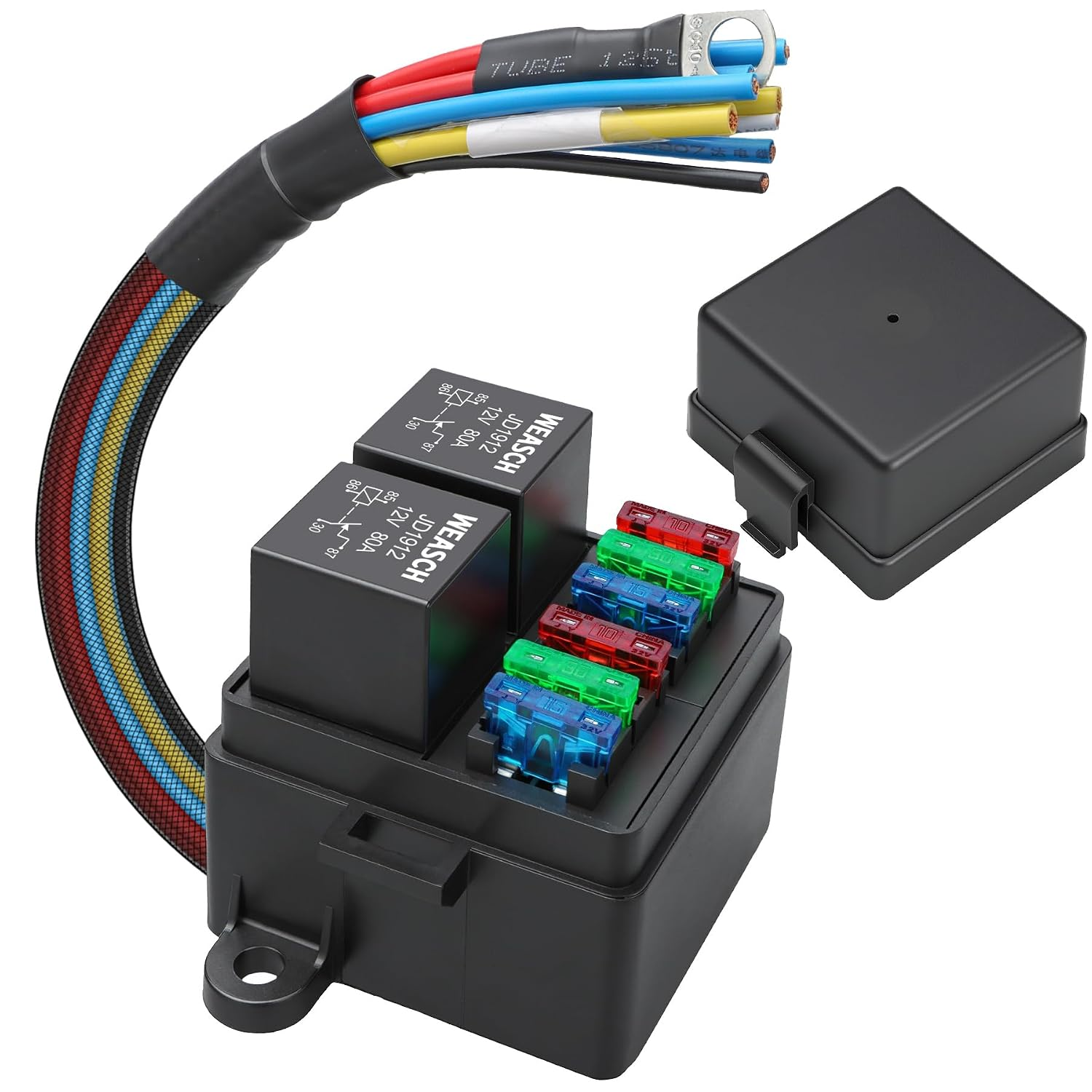

- Specifications: This 12v relay box package includes 2pcs 4Pin 80A JD1912 Relays, 6pcs 10A, 15A, 30A ATC/ATO blade fuses. You can replace these fuses according to actual needs
- Pre-Wired: 30 Power input red and 87 Normally open output pin yellow is 4mm² wire, handling about 25~32Amp; 85 Control positive pin White and 86 relay Parallel black is 0.75mm² wire 3~6Amp; 86 Control negative pin is 1.5mm² black wire 10~16Amp; Fused out is 2.5mm² blue wire 16~25Amp. Refer to the wiring diagram for details, Please carefully check if the wire gauge meets your requirements before purchasing. We also offer a wireless version for DIY projects
- Dustproof: This fuse relay box includes a top cover and bottom cover. Can block most dust from entering the 12V relay box, and protect electrical components from being touched by wires, effectively improving usage safety. Note: No waterproof bottom, Don't completely immerse the product in water!
- Double protection: The relay box is equipped with 6 fuse slots, 2 of which are wired in series with the relays to provide double overcurrent protection for the circuit. The fuses will blow first, protecting your equipment from damage and ensuring electrical safety
- Application: This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety
Product description
80A Relay Specification
| Contact Form | 4pin |
| Ambient Temperature | -40°C~+85°C |
| Contact Material | AgSnO2 |
| Operate/Release Time | ≤10ms |
| Max.Operating Current | 80A |
| Max.Operating Voltage | 27VDC |
| Release Time | ≤5ms |
| Insulation Resistance | 100MQ |
| Rated Load (Resistive load) | 80A 13.5VDC; 40A 27VDC |
| Fuse Box Size | 4.02″ x 2.8″ x 3.15″(102mm x 71mm x 80mm ) |
-
What is included in this 12v relay box package?
The package includes 2 pieces of 4-Pin 80A JD1912 Relays and 6 pieces of ATC/ATO blade fuses (10A, 15A, 30A). You can replace these fuses according to your actual needs.
-
What are the specifications of the pre-wired cables?
Power (Red/Yellow): 4mm², 25-32A
Control (Black): 0.75mm² & 1.5mm², 3-16A
Fused Output (Blue): 2.5mm², 16-25A
Please verify the wire gauge meets your needs. Refer to the diagram for details.
-
Is this relay box dustproof or waterproof?
The relay box features a top and bottom cover that block most dust and protect electrical components from contact with wires, improving safety. However, it is not waterproof—do not immerse the product in water.
-
How does the double protection feature work?
The relay box includes 6 fuse slots for ATC/ATO fuses. You can select fuses corresponding to your circuit current to protect equipment from damage caused by excessive current, providing double protection for your circuit.
-
What vehicles is this fuse relay box suitable for?
It is suitable for almost all types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, and campers, offering a versatile solution for managing electrical systems with reliable performance and safety.
12V Fuse Relay Box
| Customer Reviews | 4.4 out of 5 stars 147 | 4.4 out of 5 stars 147 | 4.4 out of 5 stars 147 | 4.4 out of 5 stars 147 | 4.4 out of 5 stars 147 | 4.7 out of 5 stars 29 | 4.7 out of 5 stars 14 |
| Price | $18.69$18.69 | $32.99$32.99 | $30.99$30.99 | $30.99$30.99 | $31.99$31.99 | $32.99$32.99 | $32.99$32.99 |
| Pre-Wired | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Waterproof | ✘ | ✘ | ✘ | ✘ | ✘ | ✔ | ✔ |
| Current Rating | 80A | 80A | 80A | 80A | 80A | 40A | 40A |
| Number of relays | 2 x JD1912 80A | 6 x JD1912 80A | 3 x JD1912 80A | 4 x JD1912 80A | 4 x JD1914 80A | 3 x JD1912 40A | 2 x JD1912 40A |
| ATC Blade Fuses | 10A, 15A, 30A | 20A, 25A, 30A | 5A, 10A, 15A, 20A, 25A, 30A | 5A, 10A, 15A, 20A, 25A, 30A | 10A, 20A, 25A, 30A | 15A, 20A, 25A | 10A, 15A, 30A |
