Quick Highlights
- Trinocular compound microscope with up to 2500× magnification
- Includes 9” 4K digital camera & integrated display for live viewing & recording
- Semi-Plan objectives with widefield eyepieces for flat, sharp images
- Top & bottom LED illumination for transmitted & reflected observation
- Battery-ready design with front LED status display

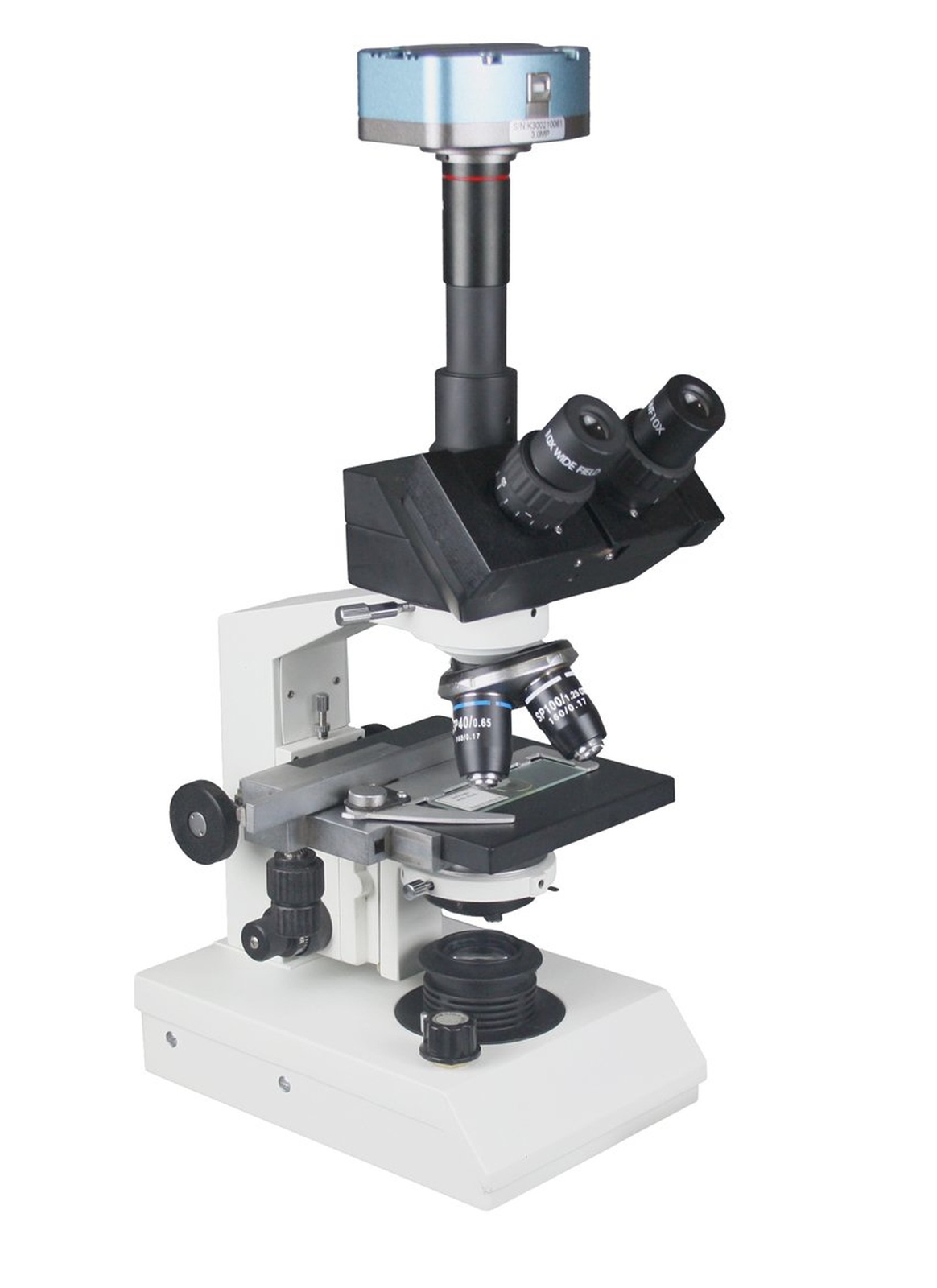

Trinocular Laboratory Microscope — 2500×, Semi-Plan Optics, 9” 4K Camera & Display
Professional-grade trinocular compound microscope designed for laboratory, clinical, teaching, and research applications. This configuration includes a 9-inch 4K digital camera and display, allowing direct live viewing, image capture, and video recording without the need for a PC. Precision optics, ergonomic controls, and dual illumination make it suitable for advanced biological and medical microscopy.
Applications & Use Cases
- Clinical & pathology labs — cells, blood smears, tissue sections
- Teaching & research — biology, microbiology, histology
- Veterinary & diagnostic laboratories
- Documentation & demonstrations using built-in 4K display
- Field or mobile microscopy (with optional battery installed)
Key Features & Technical Highlights
- Trinocular head — 30° inclined, 360° rotatable, camera-ready
- 9” 4K camera & display — live image viewing, photo & video recording
- Semi-Plan objectives — 4×, 10×, 40× (spring), 100× oil (spring)
- Widefield eyepieces — WF10× and WF25×
- Total magnification: 40× to 2500× (with WF25× eyepiece)
- Coaxial coarse & fine focusing — fine focus precision up to 3 µm
- Abbe condenser NA 1.25 — movable with iris diaphragm
- 3D mechanical XY stage — smooth, low-drive controls
- Top & bottom LED illumination — transmitted & reflected light modes
- Front LED display — temperature, illumination status, battery percentage
- Battery backup provision — supports portable operation (battery not included)
- All-metal frame — rugged construction for lab environments
Technical Specifications
| Head | Trinocular, 30° inclined, 360° rotatable |
| Eyepieces | WF10× & WF25× |
| Objectives | Semi-Plan 4×, 10×, 40× SL, 100× SL oil |
| Magnification | 40× – 2500× |
| Condenser | Abbe NA 1.25 with iris diaphragm |
| Stage | 3D mechanical XY stage |
| Illumination | Top & bottom LED, variable intensity |
| Camera | 9” 4K digital camera & display (included) |
| Power | AC adapter + battery provision |
Included in the Package
- Trinocular laboratory microscope body
- 9” 4K camera with integrated display & mounting
- WF10× & WF25× eyepiece pairs
- Semi-Plan objectives: 4×, 10×, 40× SL, 100× SL oil
- Abbe condenser NA 1.25
- 3D mechanical XY stage
- Top & bottom LED illumination system
- Slide pack, cleaning kit & dust cover
- Power adapter (battery optional, not included)
Quality Assurance: Each microscope is tested for optical clarity, focusing smoothness,
illumination performance, and stage precision before dispatch.
