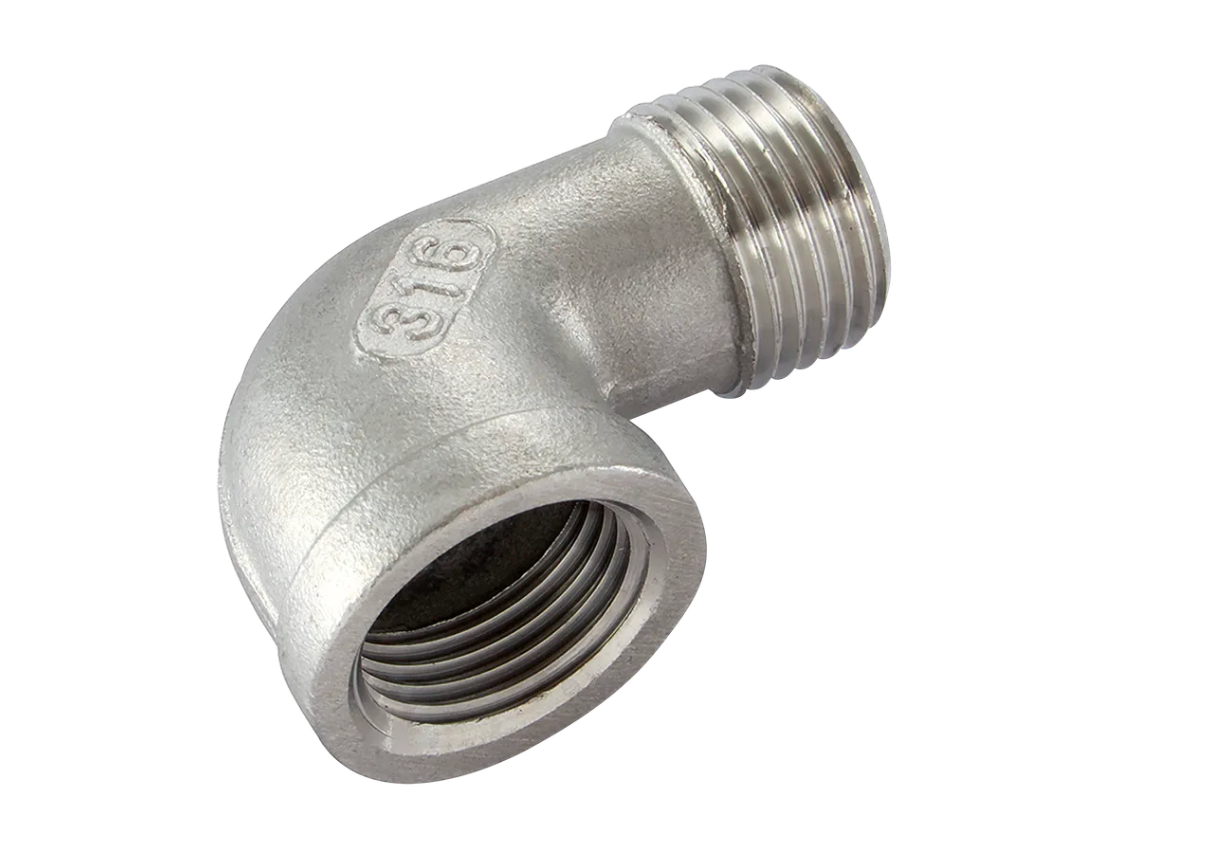

316 Stainless Steel BSPT Male × BSPP Female Street 90° Elbow
Premium 316 SS 90° Elbow Pipe Fitting – Full Range of Sizes | UK Stock & Same-Day Dispatch before 1pm
Our 316 Stainless Steel BSPT Male × BSPP Female Street 90° Elbows are precision-engineered pipe fittings designed for secure angled connections in threaded systems. With a male BSPT (tapered) end and a female BSPP (parallel) end, these elbows provide a robust 90° directional change in piping runs while ensuring excellent sealing performance and corrosion resistance.
Manufactured from premium 316 marine-grade stainless steel, these fittings are suitable for water, oil, gas, steam, and general industrial media. They are ideal for piping installations that require strong, durable transition points in hygeinic systems, ring mains, process plants, maintenance or retrofit pipework.
Product Specification
- Material: 316 Stainless Steel
- End A (Male): BSPT (British Standard Pipe Tapered)
- End B (Female): BSPP (British Standard Pipe Parallel)
- Angle: 90° Street Elbow
- Standard: conforms to ISO4144 standard and features ISO7.1
- Standards: BSPT/BSPP Threading to ISO/BS standards
- Maximum Pressure: 10 Bar/ 150PSI
- Maximum Temperature Range (°C): -20 to +220
Key Features
- 316 stainless steel construction for superior corrosion resistance
- 90° street elbow design for compact directional changes in piping
- BSPT male × BSPP female thread combination for versatile system integration
- High temperature and pressure capability suitable for demanding environments
- Ideal for industrial process, hydraulic return/none-pressure lines, and fluid handling systems
- Precision machined threads ensure reliable sealing with PTFE tape or thread sealant
Applications
- Pneumatic system installations
- Industrial process pipework
- Hydraulic return and none-pressure lines
- Ring mains systems
- Hot and cold water systems or hygeinic systems
- Marine fluid systems and corrosion-resistant installations
- Compressed air and gas distribution systems
- Water treatment and fluid transfer lines
- Plant maintenance, pipe modifications and retrofits
Technical Dimensions

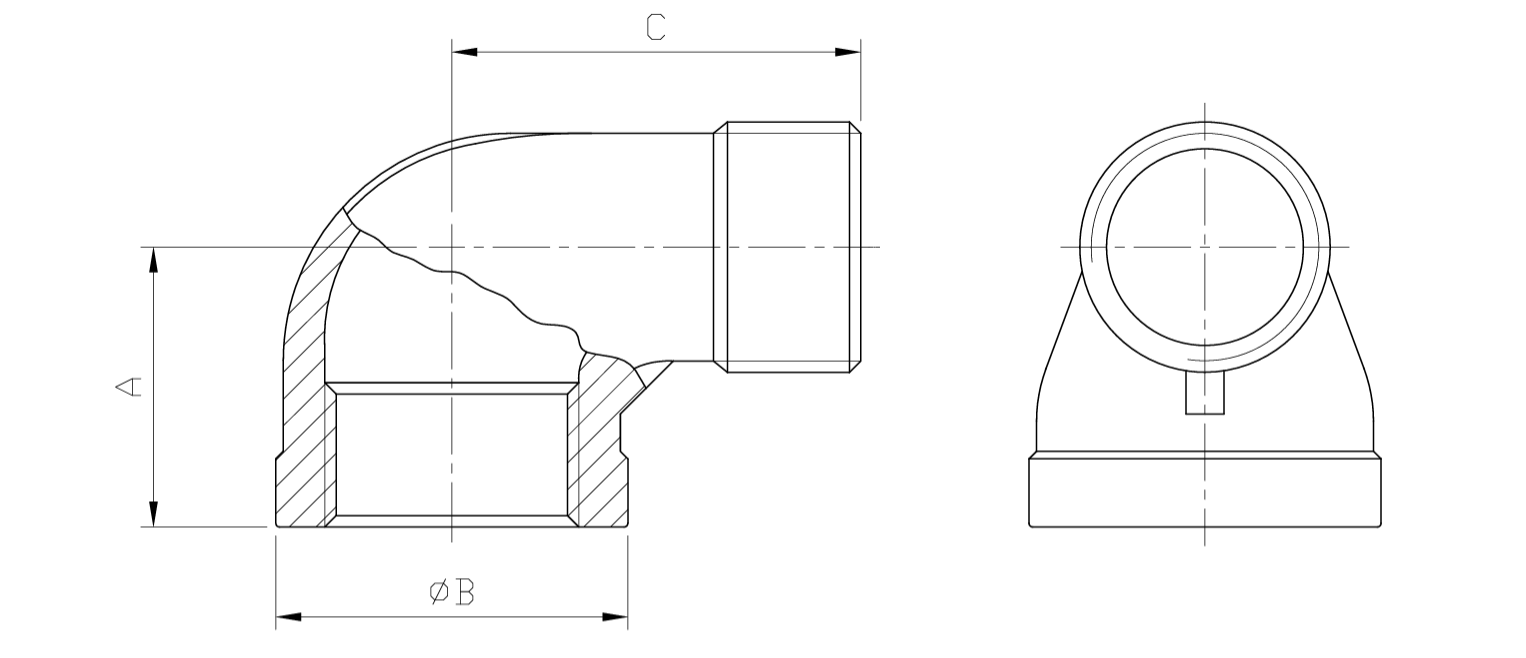

316 Stainless Steel BSPP Female half socket technical drawing
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" (NPT) | 2-1/2" (PS) | 3" | 4" | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | |
| A | 19 | 0.75 | 21.5 | 0.85 | 24.5 | 0.96 | 29 | 1.14 | 33.5 | 1.32 | 37 | 1.46 | 43 | 1.69 | 47 | 1.85 | 57.5 | 2.26 | 66 | 2.60 | 66 | 2.60 | 74 | 2.91 | 90 | 3.54 |
| B | 15 | 0.59 | 20.5 | 0.81 | 24 | 0.94 | 28.4 | 1.12 | 34 | 1.35 | 41 | 1.61 | 51 | 2.01 | 56.5 | 2.22 | 69.5 | 2.74 | 84 | 3.31 | 87.4 | 3.44 | 101.8 | 4.01 | 128 | 5.04 |
| C | 26.5 | 1.04 | 30.8 | 1.21 | 36.5 | 1.44 | 41 | 1.61 | 48 | 1.89 | 55 | 2.17 | 62 | 2.44 | 67 | 2.64 | 77.5 | 3.05 | 93 | 3.66 | 93 | 3.66 | 107 | 4.21 | 130 | 5.12 |
Tolerance: ±0.5mm (1/8"–2") | ±0.8mm (2-1/2"–4")
Pressure/Temperature Specifications
| Value | |
|---|---|
| Pressure MOP (Bar) | 10 |
| Working Temperature (°C) | -20 to 220 |
Rated to 10 bar when working within supply systems, and working temperatures from -20°C to +220°C, this 150lb fitting is designed for demanding conditions in both domestic and industrial supply systems.
