MaXpeedingrods COILOVERS Suspension Springs Kit For Chevrolet Sonic (T300) 12-20

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

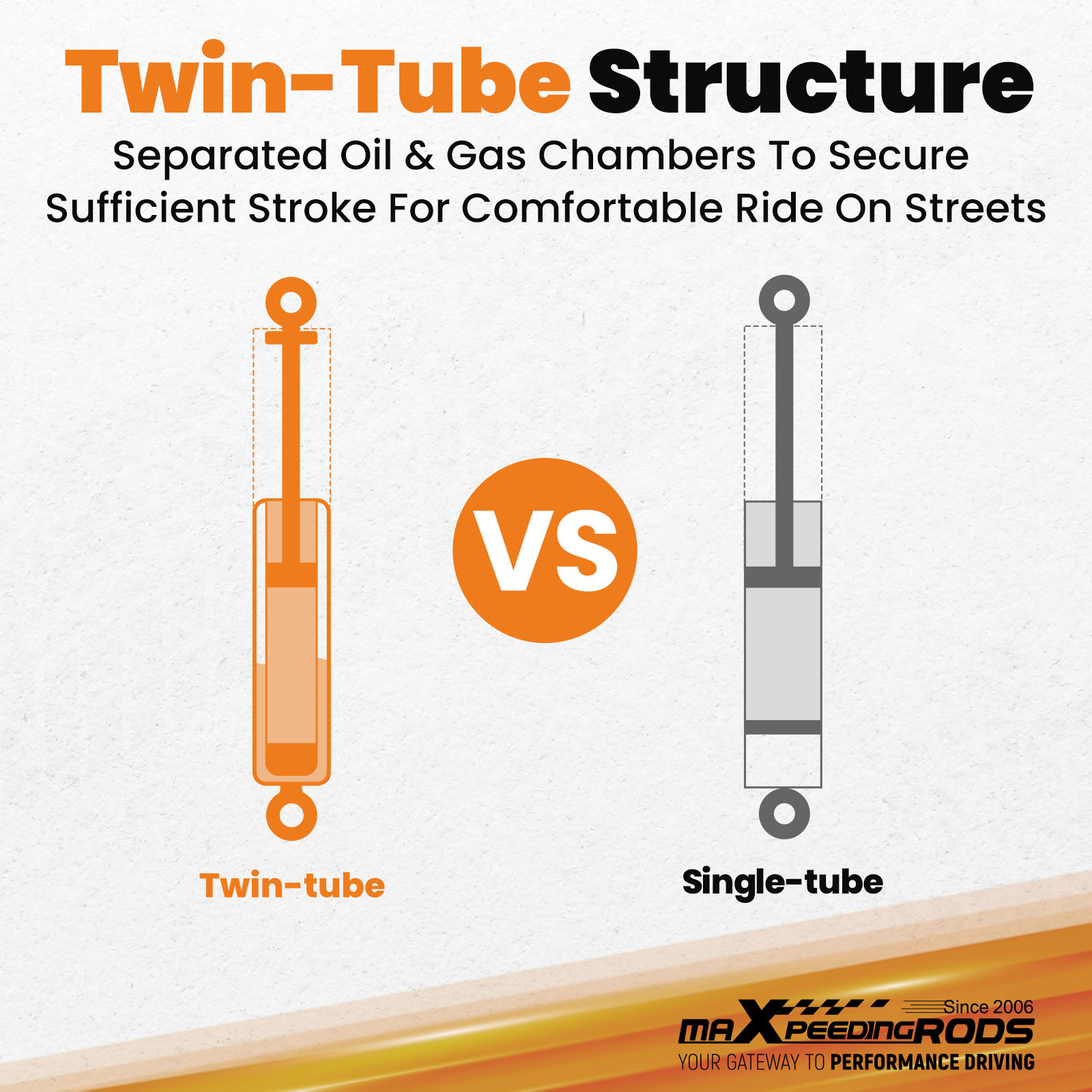

Advanced Twin-Tube Technology

Twin-Tube System for Comfortable Ride on Streets. Low Gas Pressure Avoids Stress On Seals And Keep Friction Low.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

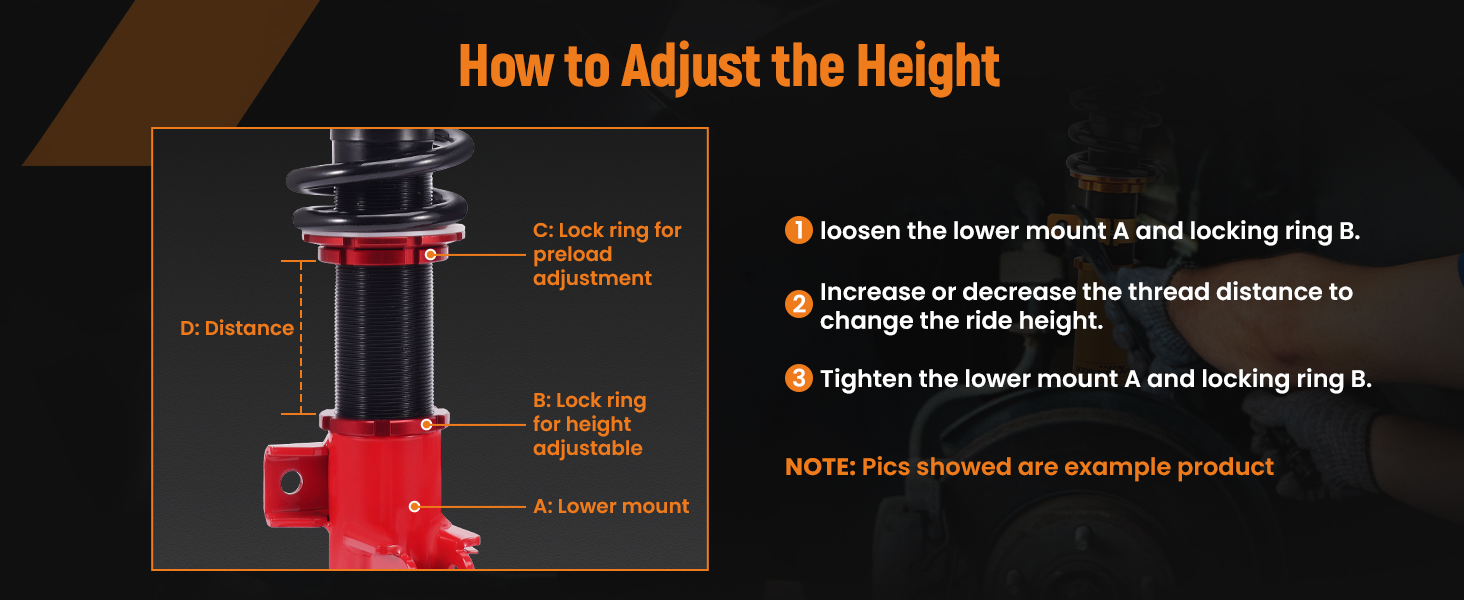

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Adjustable height	Yes, Lowering 1-3 inch
Front Spring length	210 mm
Rear Spring length	180 mm
Front spring length	6 kg/mm (336 lbs/in)
Rear spring length	3 kg/mm (168 lbs/in)
Front spring inner diameter	70.5-80 mm
Rear spring inner diameter	70.5-63 mm
Package Including	2 Front + 2 Rear
Warranty	1 Year

Features

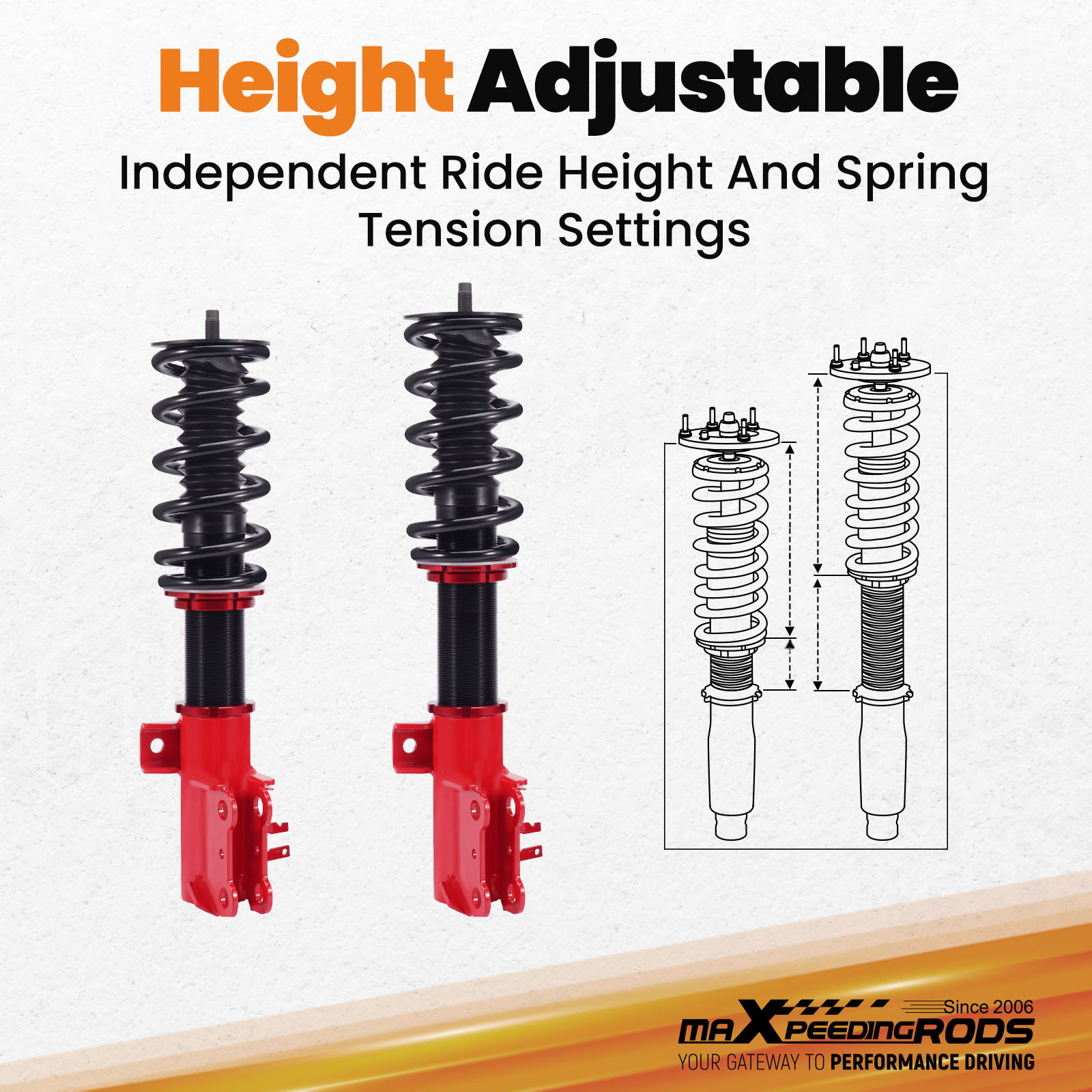

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
High Rigidity Steel Cold-bent Coil Springs

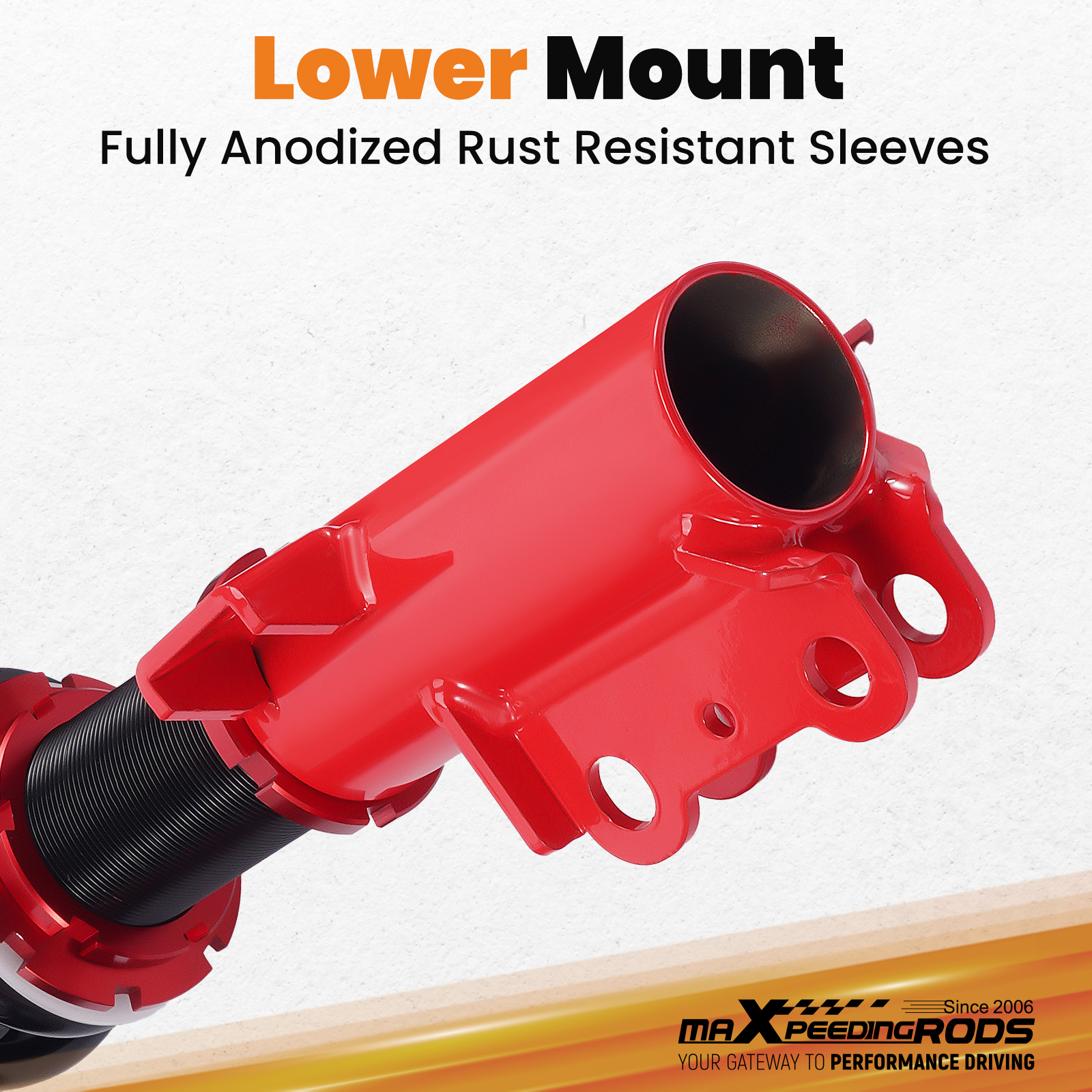

Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase

Application

For Chevrolet Sonic (T300) 2012-2020

Specification

- Front and rear top mounts: OE top mount required
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 6 kg/mm (336 lbs/in)
- Spring Rate Rear: 3 kg/mm (168 lbs/in)
- Front spring inner diameter: 70.5-80 mm
- Rear spring inner diameter: 70.5-63 mm
- Spring length Front: 210 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Color: Red

Package included

2x Front coil-overs
2x Rear coil-overs
2x Sway bar end links
2x C spanners

★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
