SPECIFICATION:

Input Voltage: AC 90V-120V; Input Frequency: 50Hz-60HZ; Input Current: ≤4A; Output: 14.6V 20A

Work Efficiency: ≥94%; Power Factor: ≥0.98; Noise:＜50dB;

Working Temperature: -22℉~+149℉; Storage Temperature: -40℉~+176℉; Humidity: 5%~95%

NOTE: 0V wake up is to activate the battery BMS protection, not the 0V battery cells. BMS cut-off protection will be triggered to prevent the battery from over-discharging and battery output voltage will be 0V. It needs the charger with activation function to wake up the battery.

3-COLOR STATUS INDICATOR

Know the battery level at a glance

8 PROTECTION FUNCTIONS

A perfect protection system prevents the charger and battery from being damaged and protect your safety. When a fault occurs, the charger will stop charging, red light and green light will flash alternately to remind you. When the fault is repaired, it will automatically resume work.

Description

Features:

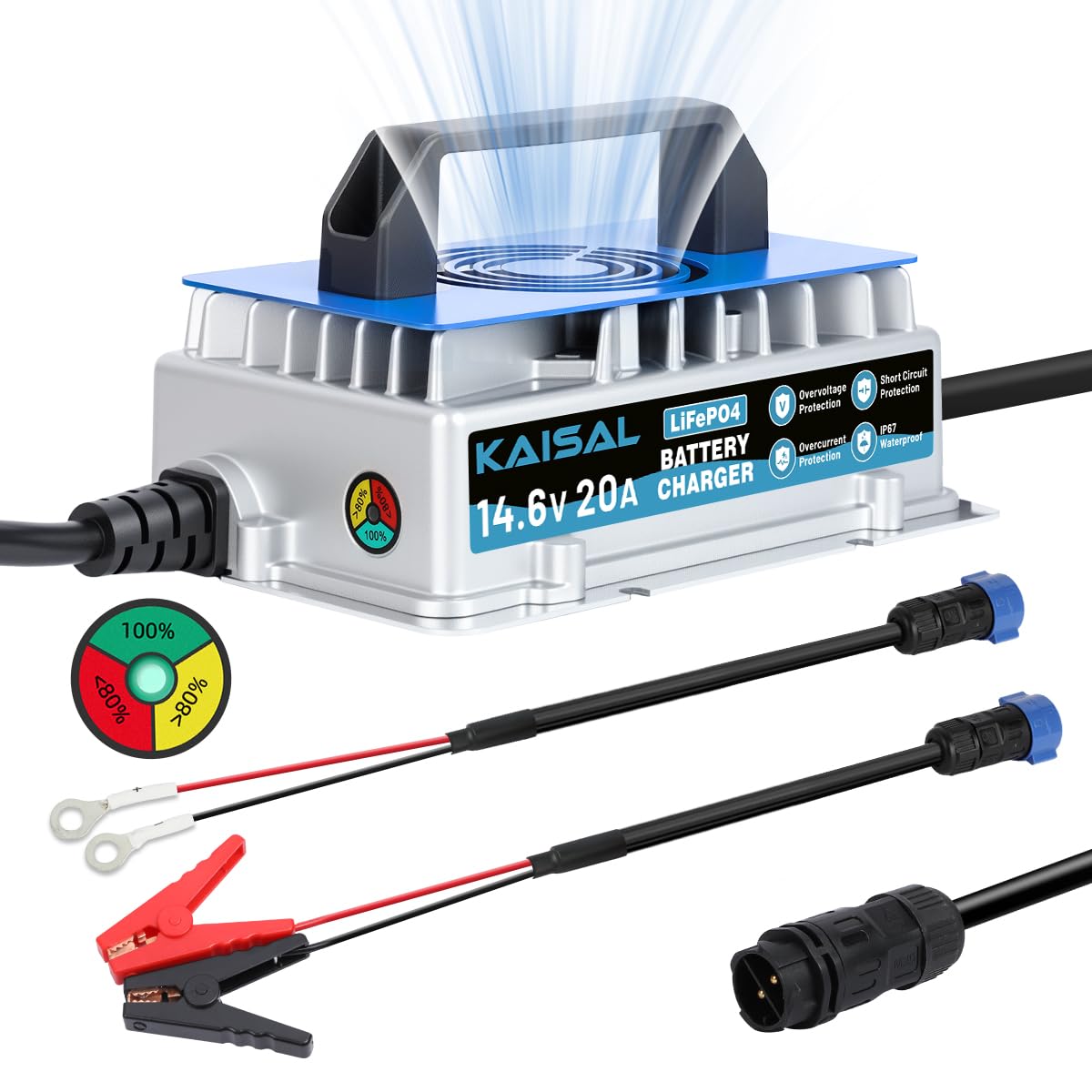

Wide ApplicationKAISAL 14.6V 20A lithium battery charger is designed for 12V (12.8V) lithium iron phosphate batteries. Charging Specs: 14.6V 20A; Rated Input Voltage: 90-120 Vac. 12V lifepo4 battery charger is widely used in RV, camper, motorcycle, marine, solar system, car battery, lighting equipment, trolling motor, electric yacht, power tool, power wheels, off grid, home energy storage, etc., providing you with reliable and quick charging solutions. Upgrade your charging experience today!
Fast & Smart LiFePO4 ChargerOur 12V lithium charger adopts 3-stage intelligent charging technology, auto switching between pre-charge, constant current (CC), and constant voltage (CV) charging modes. When battery is nearly full, it will reduce AMP output,and auto shut down when fully charged to protect battery health and extend battery life. With an efficiency of up to 94%, it only takes 5 hours to fully charge a 12V 100Ah lifepo4 battery, which is 4 times faster than traditional 5A chargers.
3-Color Status IndicatorLithium battery charger 12 volt comes with a 3-color indicator light, allowing you to easily monitor the battery level at a glance. 1. Green Light On: No-load/Standby/0V Charging Wake Up Mode; 2. Red Light Fast Flash: Precharging (0~19%); 3. Red Light Flash: Constant Current Charging (20%~79%); 4. Yellow Light Flash: Constant Voltage Charging (80%~99%); 5. Green Light Flash: Small Current Charging (100%); 6. Green Light On: Fully charged (100%).
0V Charging Wake UpOur 14.6V 20A lifepo4 battery charger can reset and repair the lifepo4 battery after BMS cut-off protection. When you forget to charge the battery regularly for a long time, our 12V lithium charger can activate your deeply sleeping 12 volt lifepo4 batteries to normal voltage.
IP67 Waterproof & 9FT Long Cable12v lithium battery charger case features a one-piece sealed die-cast aluminum construction with IP67 waterproof rating and the cable is IP68 waterproof. You don't have to worry about the charger being damaged by water, dust or vibration, making it perfect for outdoor use. Lifepo4 battery charger 12V comes with a 9ft long cable, providing great flexibility without the need for additional extension cords.
8 Protection Functions12V lithium charger has a perfect protection system: Overvoltage/Overcurrent/Overheating/No-load/Short-circuit/Reverse Connection/Overcharge/Timing Charging protection. When a fault occurs, it will auto stop charging to prevent charger and battery from being damaged and protect your safety. And when the fault is repaired, it will auto resume work.If it works continuously for 15 hours, it will auto stop working to prevent the battery from being damaged due to overcharging.
2 Connection MethodsOur 12V lithium battery charger provides 2 connection methods: M8 terminals and alligator clips. M8 terminal connector can be remained on the lifepo4 battery without frequent removal by tightening it with the battery's bolt. And the alligator battery clips can be directly clamped on the lifepo4 battery with protruding pole lugs.
Eddy Current Heat Dissipation & Lightweight Lithium battery charger 12V uses an aluminum alloy shell with good heat dissipation performance. Lifepo4 battery charger 12 volt is also equipped with an eddy current cooling fan, which greatly improves the cooling efficiency, enables it to work stably, and prolongs the service life of the charger. 12 volt lifepo4 battery charger is compact and weighs only 4 pounds, you can take it when you go traveling or camping.
FCC/ETL/CE/ROHS Certification Our 12 volt lithium battery charger is CE/FCC/ETL/ROHS certified, providing you with safer charging, lower energy consumption, higher conversion efficiency, better load capacity, less electromagnetic radiation interference and noise. You can buy with confidence!

Product Details:

Brand: KAISAL
Product Dimensions: 6.89"D x 4.88"W x 2.76"H
Input Voltage: 110 Volts
Item Weight: 4.52 pounds
