RadioMaster ERS Sensor Series 5-8.4V ERS-CV01 ERS-CU01 ERS-BA01 ERS-RB01 ERS-RC01  ERS-GPS Compatible with ER6 ER8 ER8G & ER8GV ExpressLRS PWM Receivers

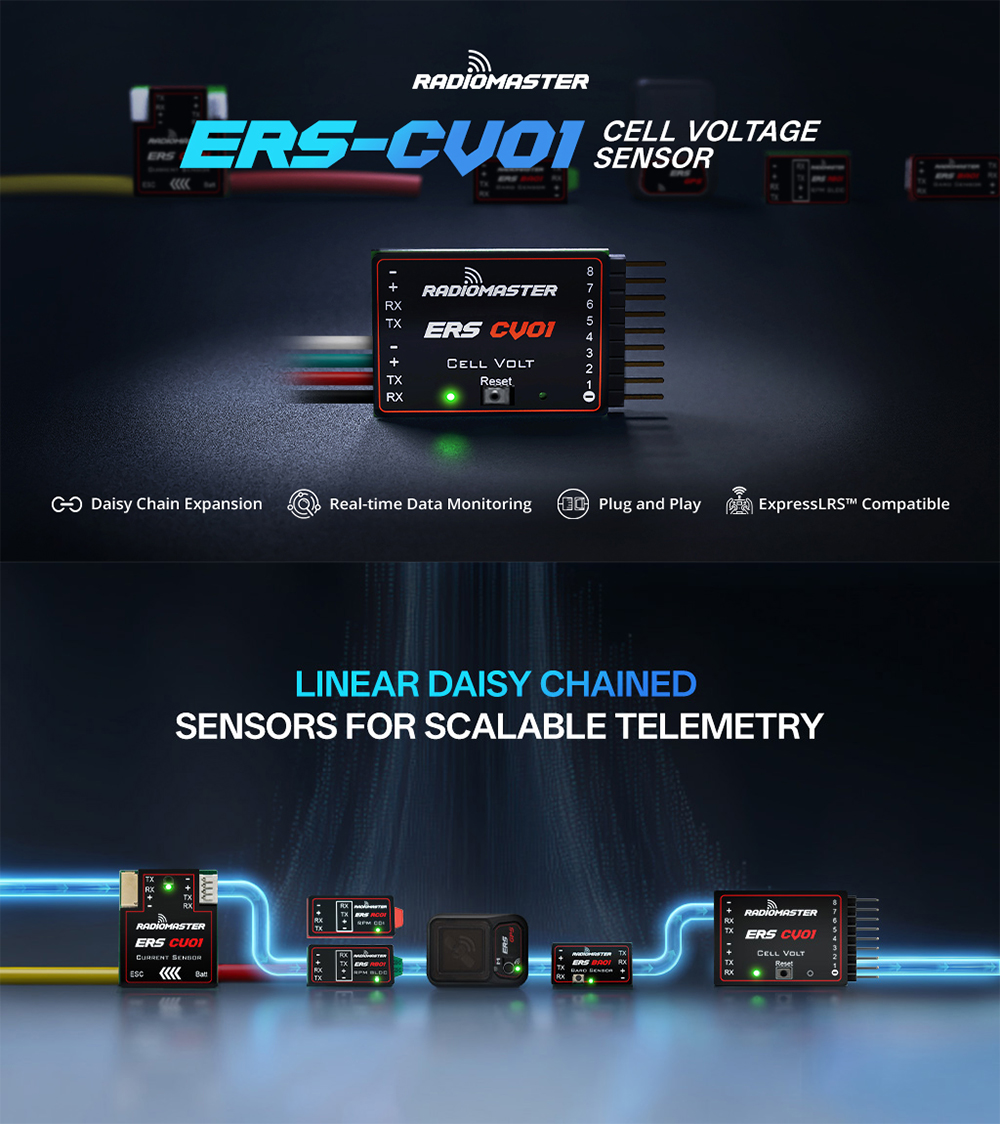

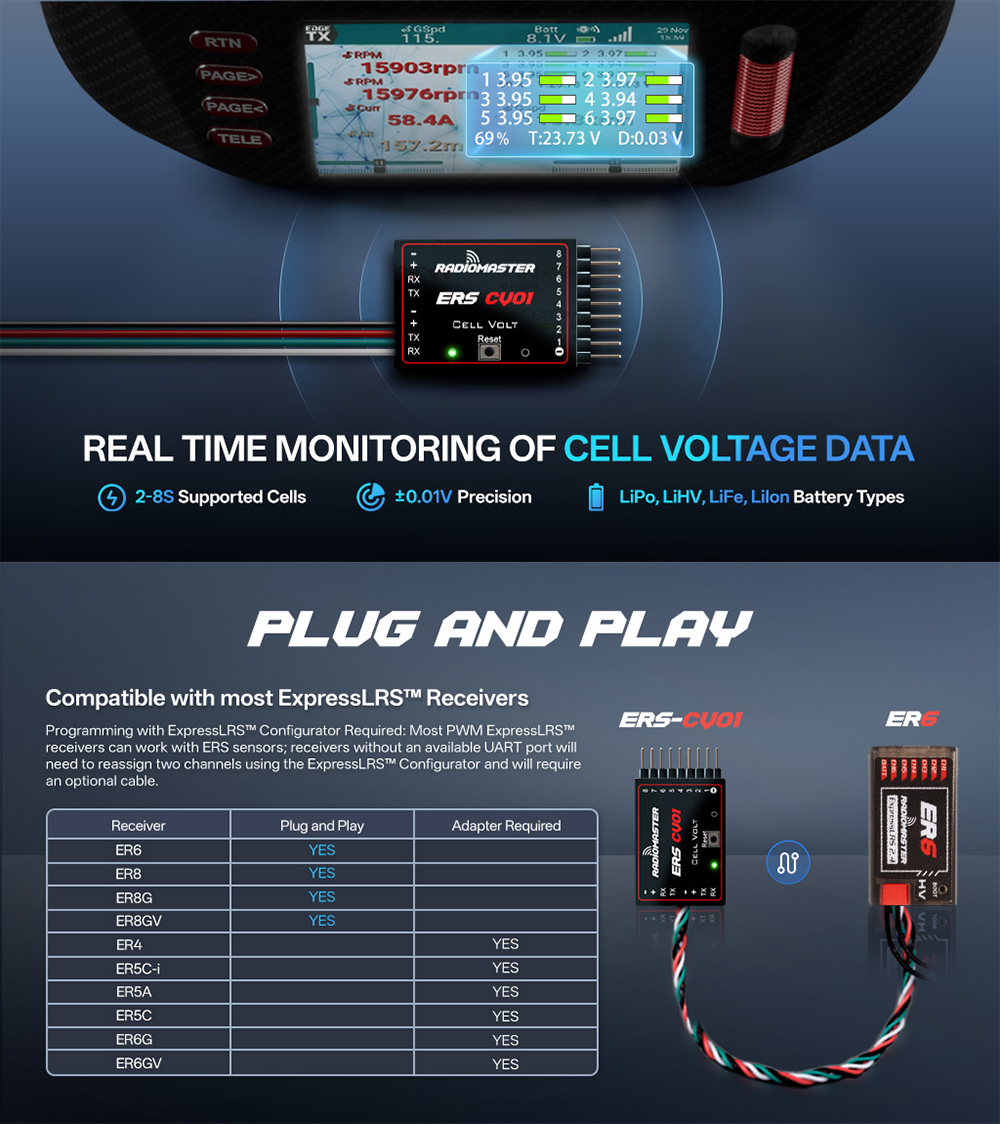

ERS-CV01 Features:
1. Real time monitoring of single cell voltage: By using a remote control, the voltage of each battery cell can be viewed in real-time, improving battery safety and performance
2. Plug and play, balanced port connection: easily connect to the battery balance port to achieve accurate cell level voltage monitoring
3. Forward looking direct expansion interface: equipped with input and output ports, capable of connecting more ERS series telemetry sensors in series
4. Seamless ExpressLRS integration: optimized for compatibility with ER series ExpressLRS PWM receivers, achieving debugging free and ready to use installation

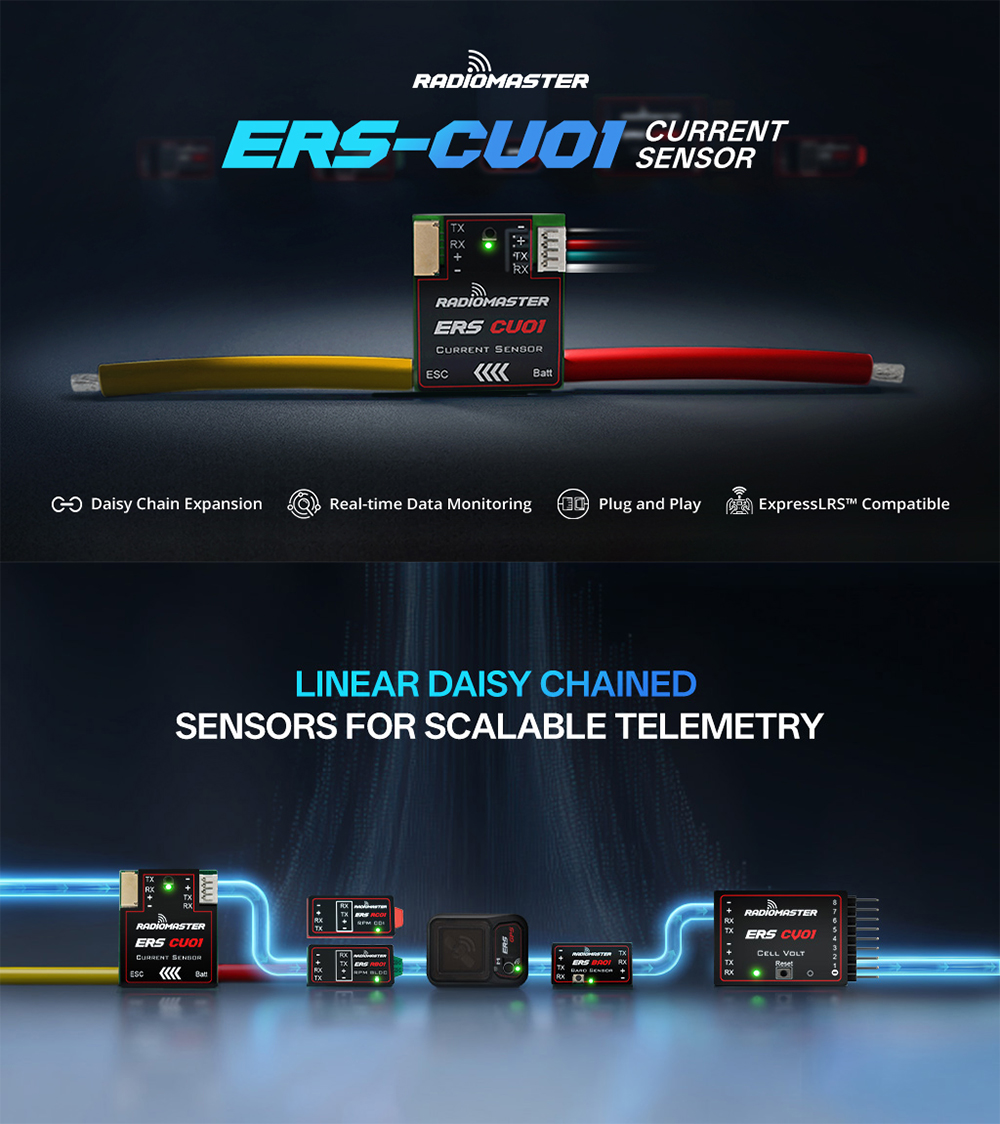

ERS-CU01 Features:
1. Real time current monitoring: Directly view real-time working current and voltage data on the remote control, accurately grasp system performance, and effectively prevent overload situations
2. Series installation design: Connected between the battery and the electrical controller through welding to achieve accurate measurement of the entire system current
3. Forward looking direct expansion interface: equipped with input and output ports, capable of connecting more ERS series telemetry sensors in series
4. Seamless ExpressLRS integration: optimized for compatibility with ER series ExpressLRS PWM receivers, ensuring smooth system collaboration

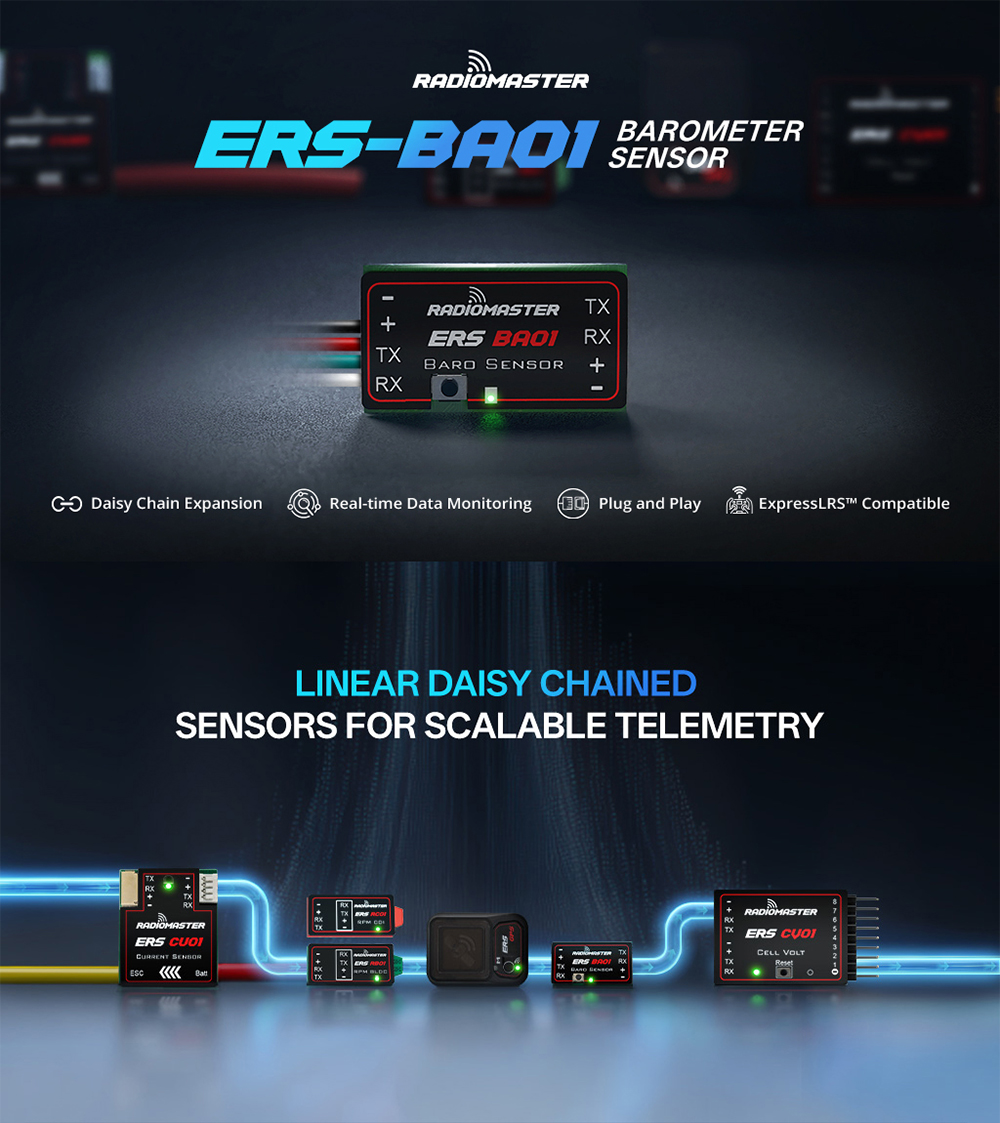

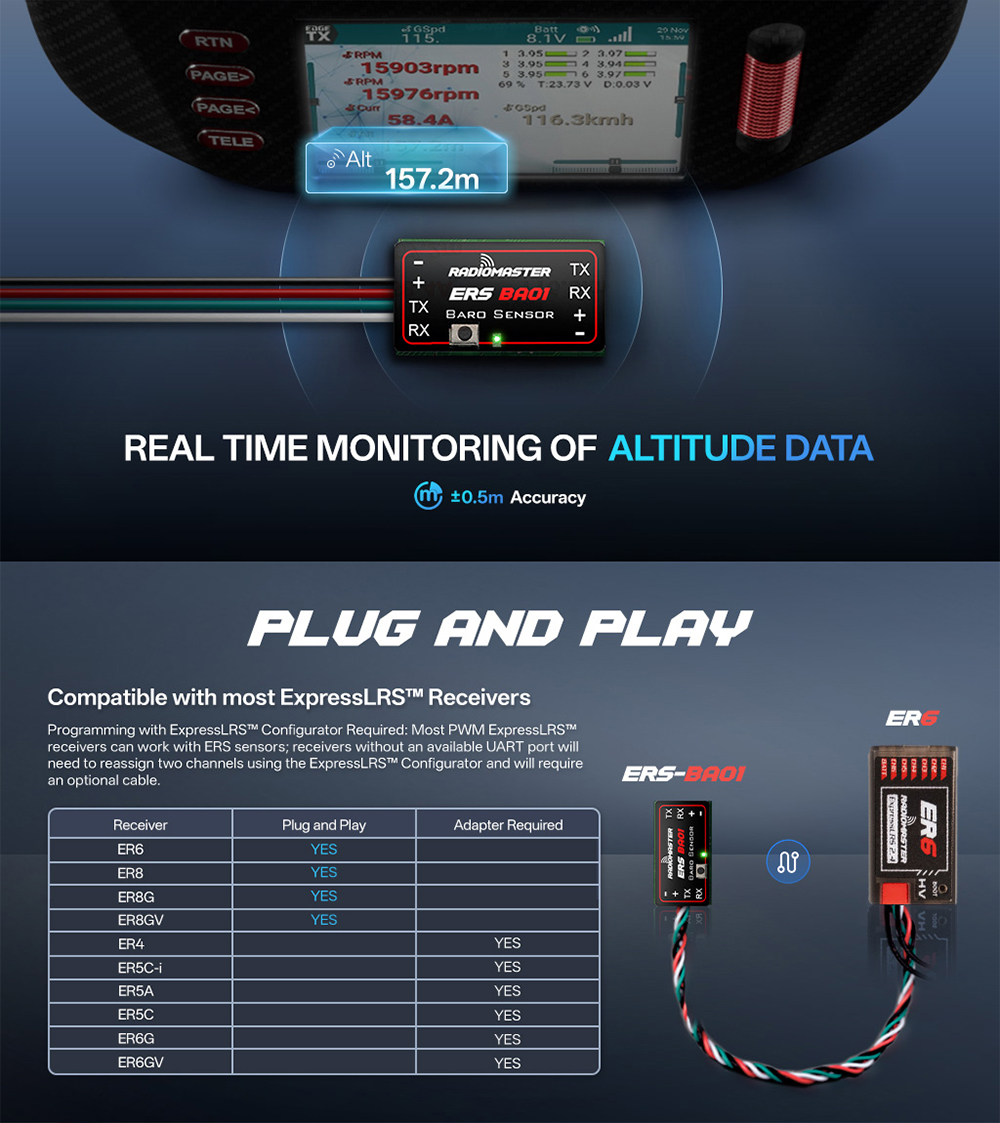

ERS-BA01 Features:
1. Real time altitude telemetry: Convert pressure measurement values into accurate relative altitude data and provide real-time feedback on the remote control
2. Forward looking direct expansion interface: equipped with input and output ports, capable of connecting more ERS series telemetry sensors in series
3. Seamless ExpressLRS integration: Easily integrate with supported ExpressLRS PWM receivers through CRSF protocol for fast and reliable data transmission

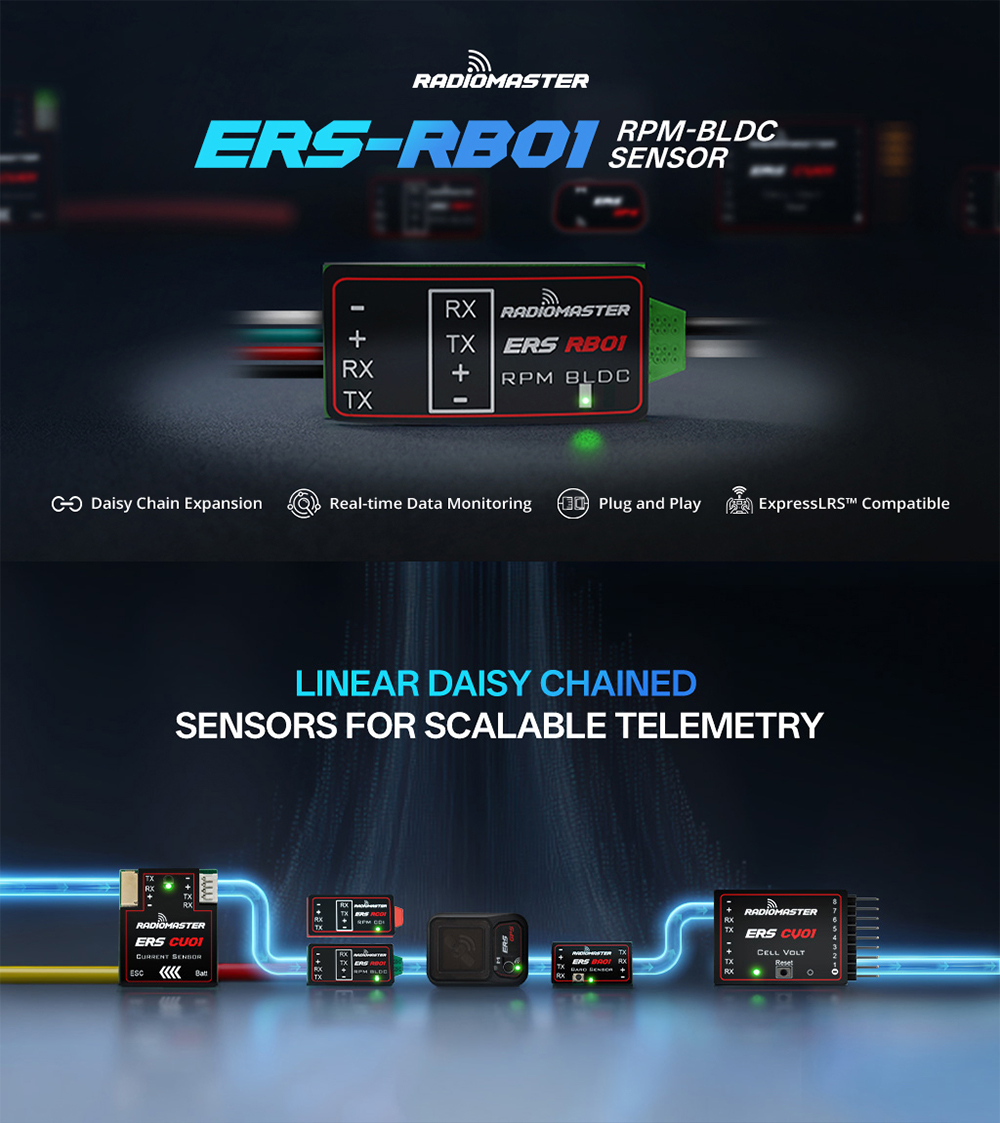

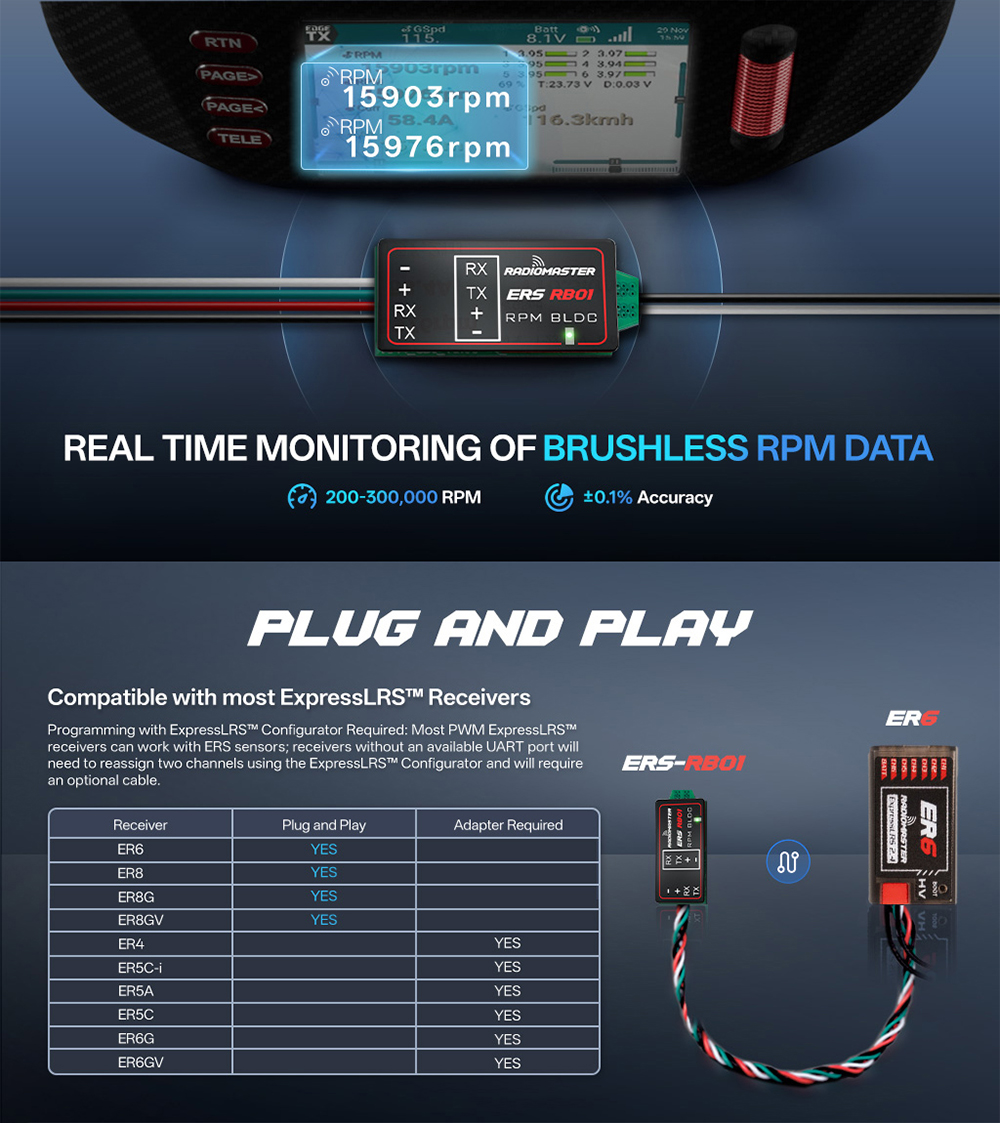

ERS-RB01 Features:
1. High precision speed monitoring: Real time acquisition of brushless motor speed data with high precision
2. ExpressLRS seamless integration: speed data is directly transmitted to compatible ER series receivers through the CRSF interface
3. Multi motor synchronization support: Multiple ERS-RB01 sensors can be connected to monitor the status of multiple motors simultaneously
4. Multi scenario applicability: Suitable for any remote control model
5. Plug and play: minimalist wiring design, plug and play

ERS-RC01 Features:
1. Precise engine speed monitoring: Real time and accurate monitoring of gasoline engine speed
2. ExpressLRS seamless integration: speed data is directly transmitted to compatible ER series receivers through the CRSF interface
3. Multi scenario applicability: Suitable for any remote control model
4. Plug and play: Connect the CDI output terminal through the JR terminal for plug and play functionality

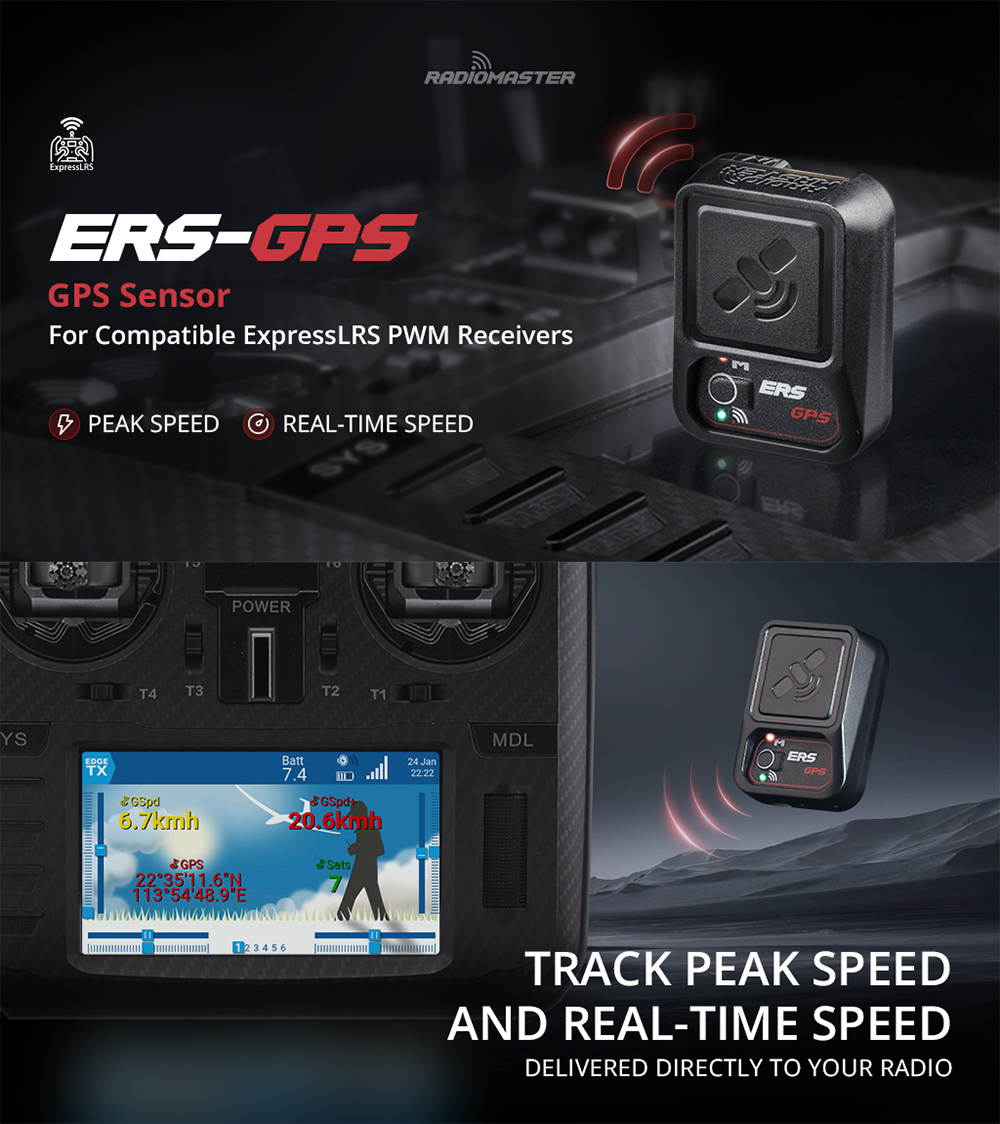

ERS-GPS Features:
1. GPS data mode and real-time tracking speed mode: Real time recording of GPS location and tracking speed, quick access to the best performance statistical data.
2. Support for future expansion features: ERS-GPS is equipped with serial ports, allowing for the free addition of more modules without the need for hardware replacement, ensuring reliable use.

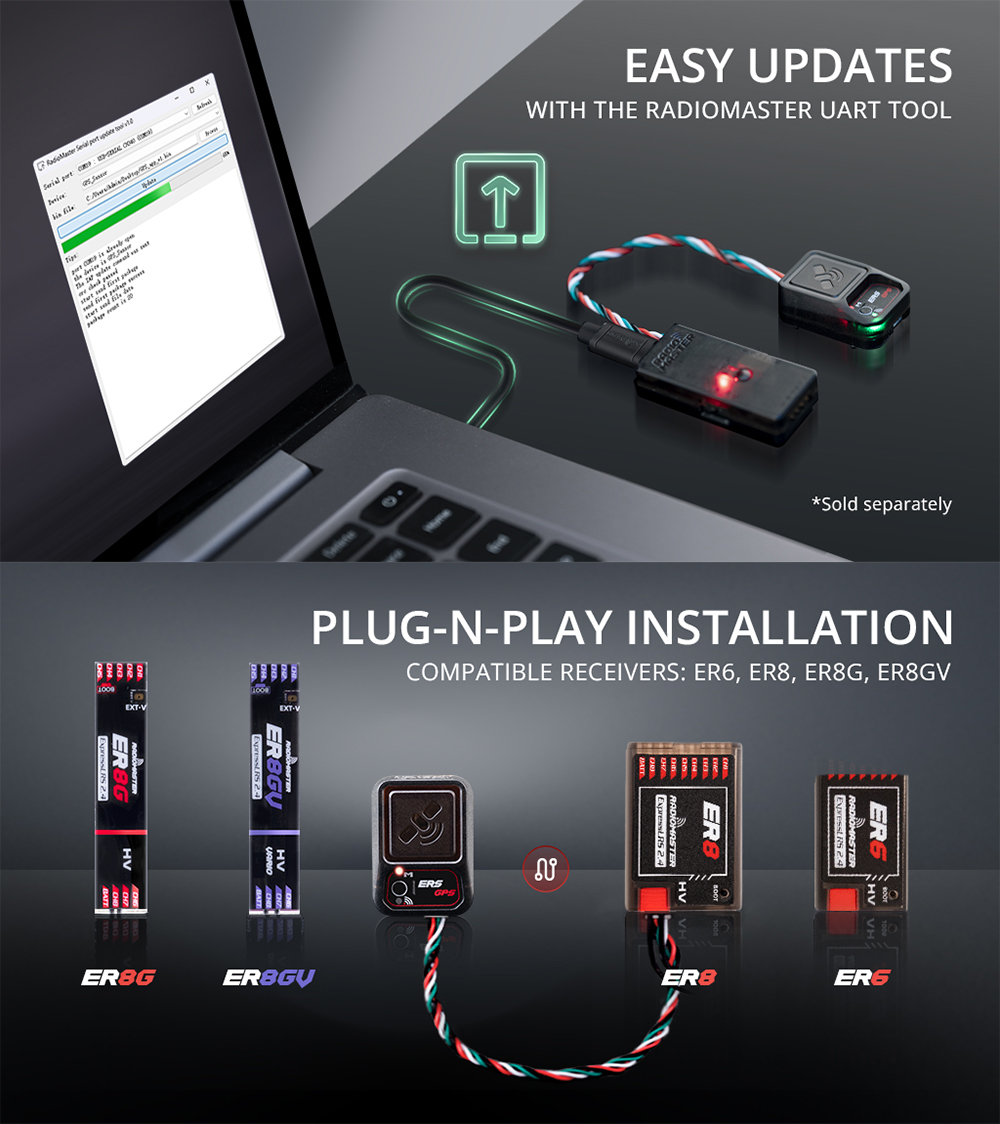

3. Perfect compatibility: ERS-GPS is compatible with the ER series ExpressLRS receiver, providing a stable and smooth telemetry experience.

Description:
ERS-CV01 multi piece voltmeter, ERS-CU01 ammeter, ERS-BA01 altimeter, ERS-RB01 brushless motor tachometer, ERS-RC01 gasoline engine tachometer, ERS-GPS module, multiple styles for you to choose from, allowing you to monitor various parameters of the aircraft in real time, plug and play.

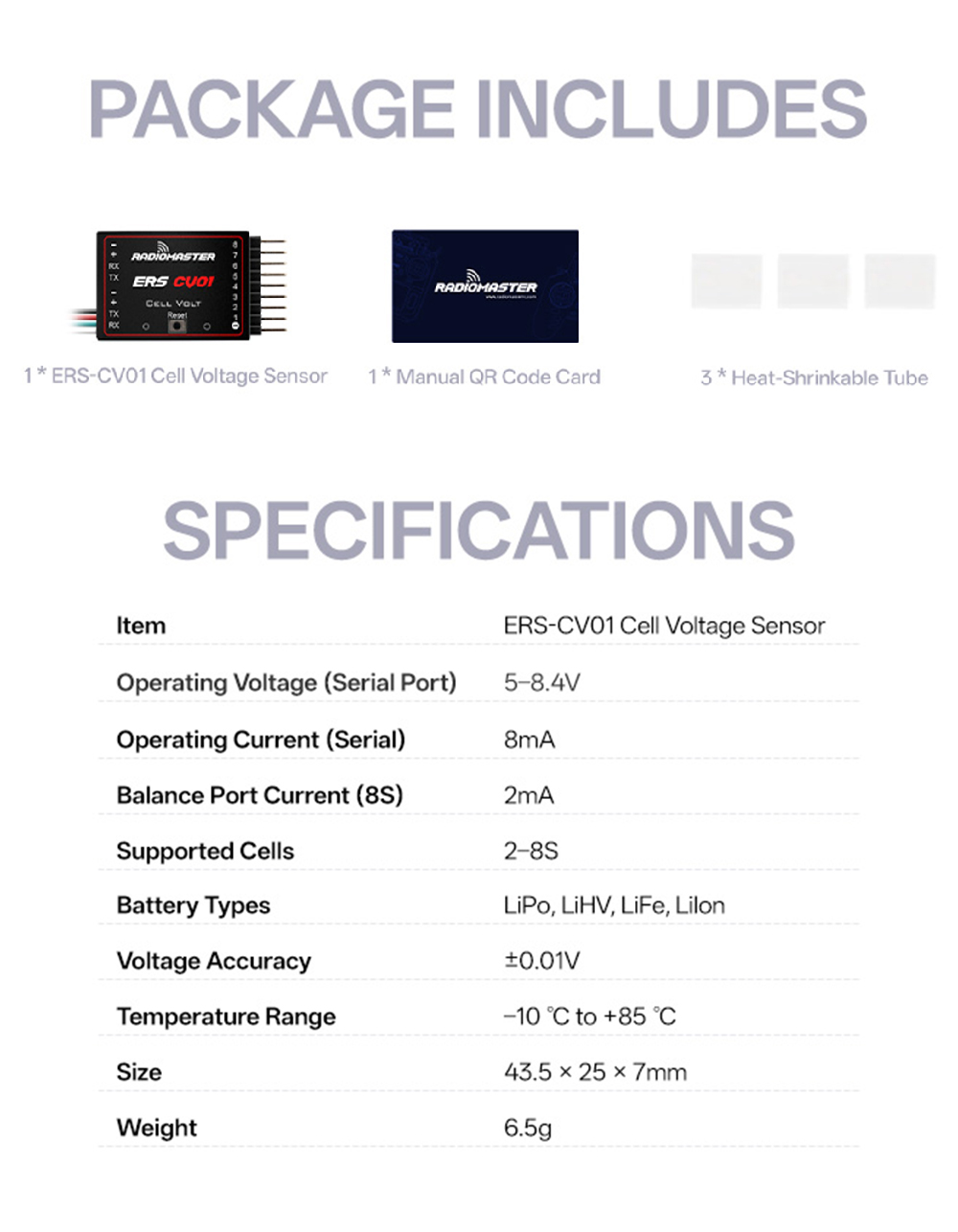

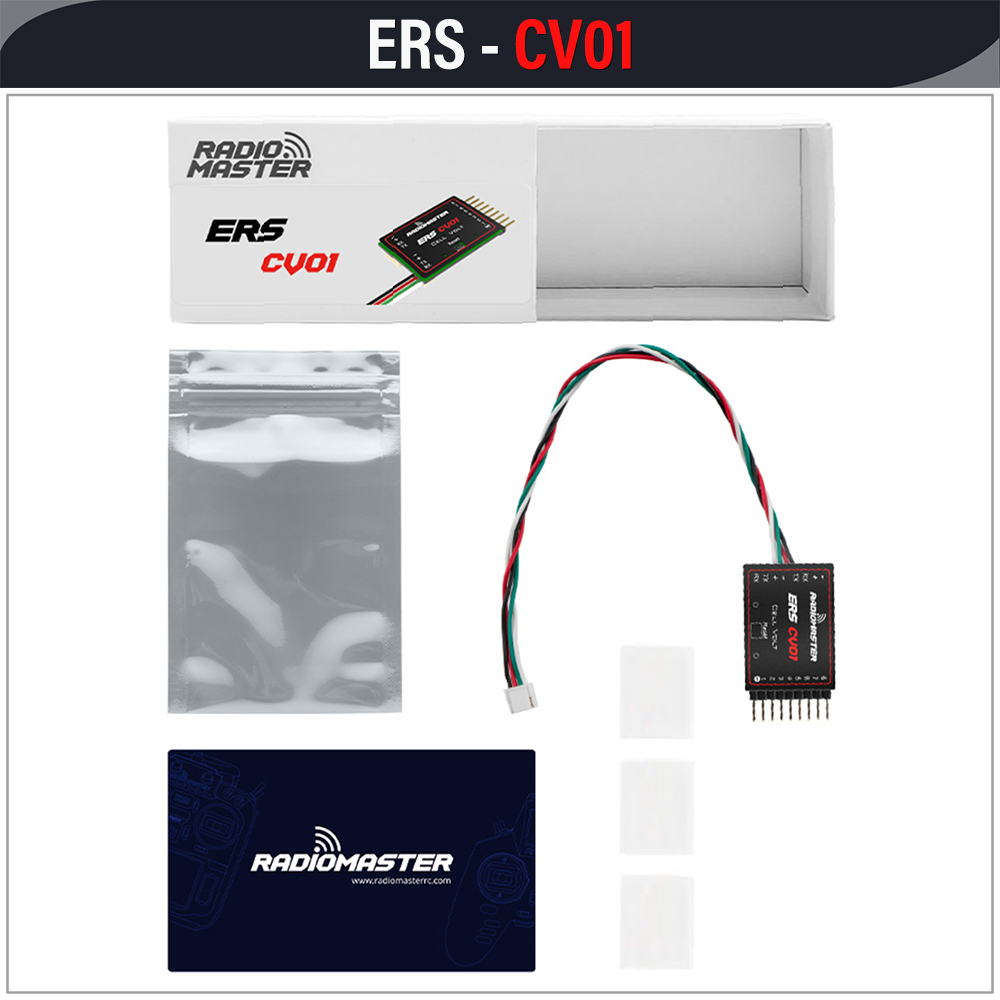

ERS-CV01 Specifications:
Model: ERS-CV01 Multi Chip Voltage Meter
Serial port working voltage: 5-8.4V
Serial port working current: 8mA
Balance port current: 2mA (8S)
Supporting battery cells: 2-8S
Supported battery types: LiPo, LiHV, LiFe, LiIon
Voltage detection accuracy: ± 0.01V
Working temperature range: -10 ℃ to+85 ℃

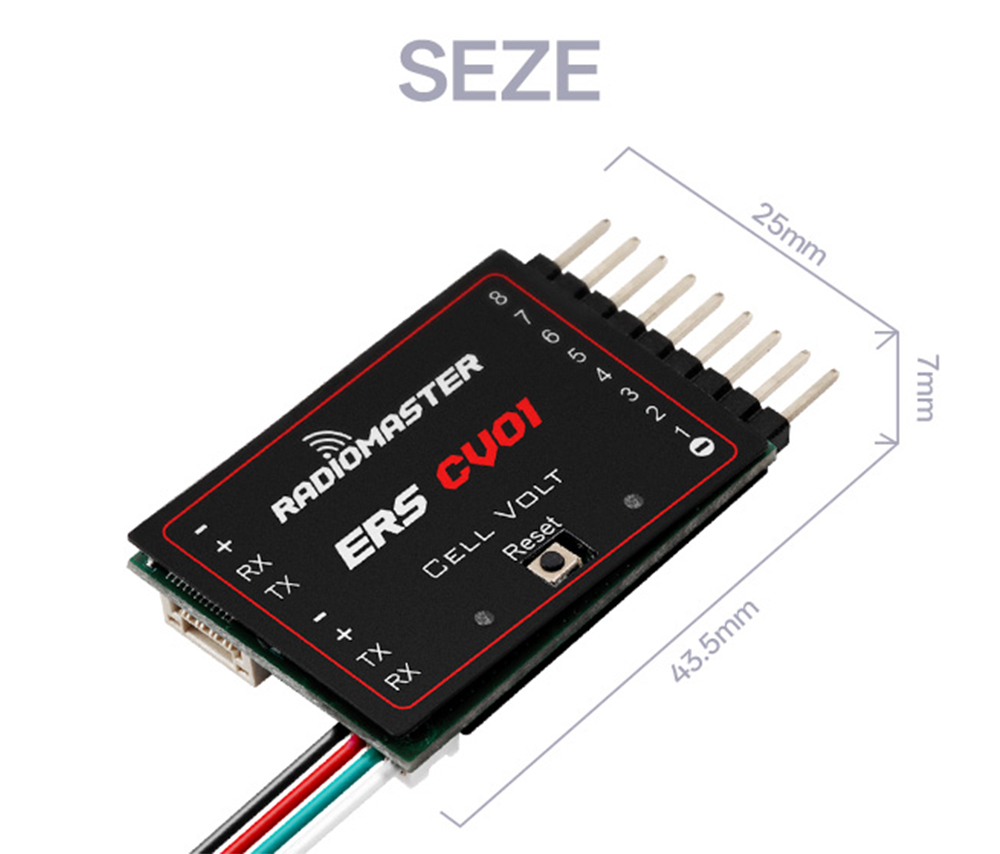

Size: 43.5 × 25 × 7mm
Weight: 6.5g

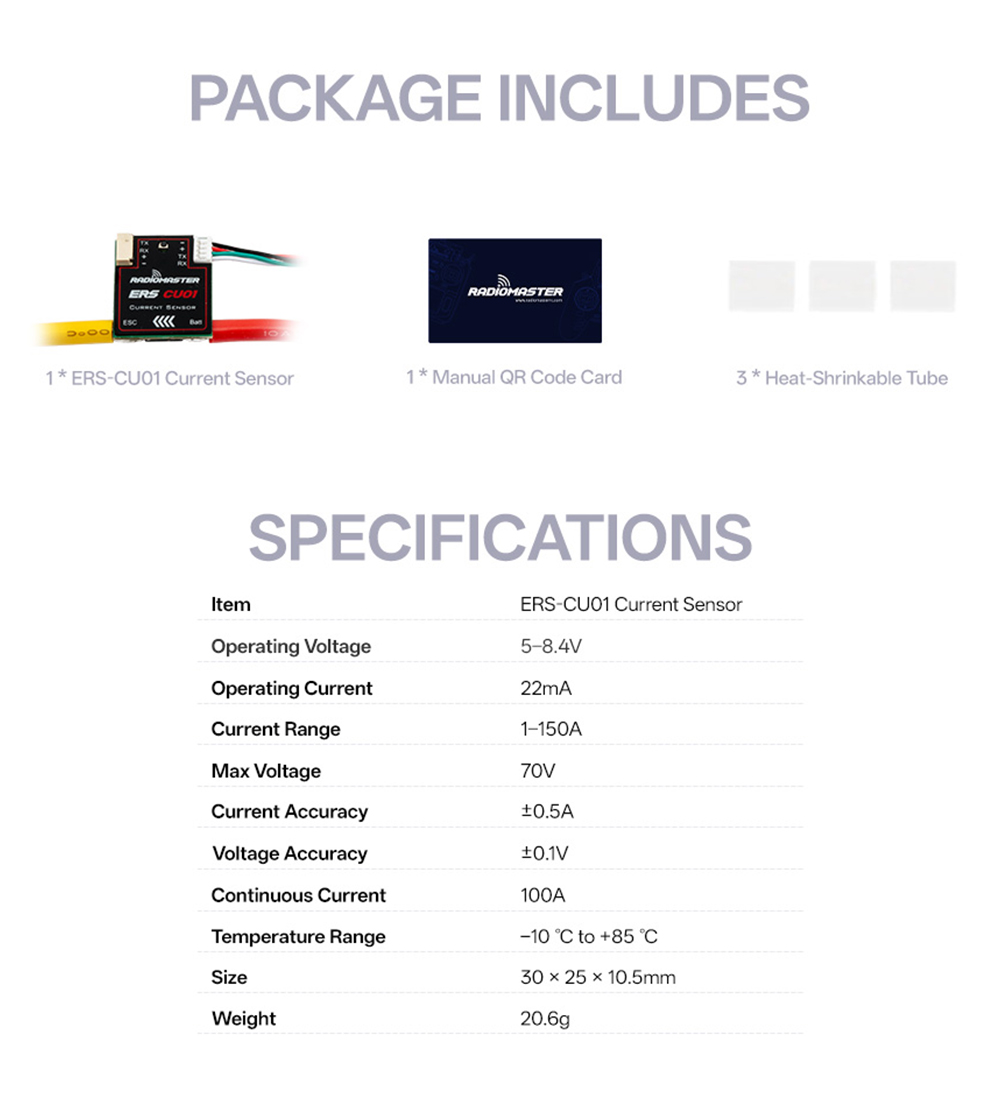

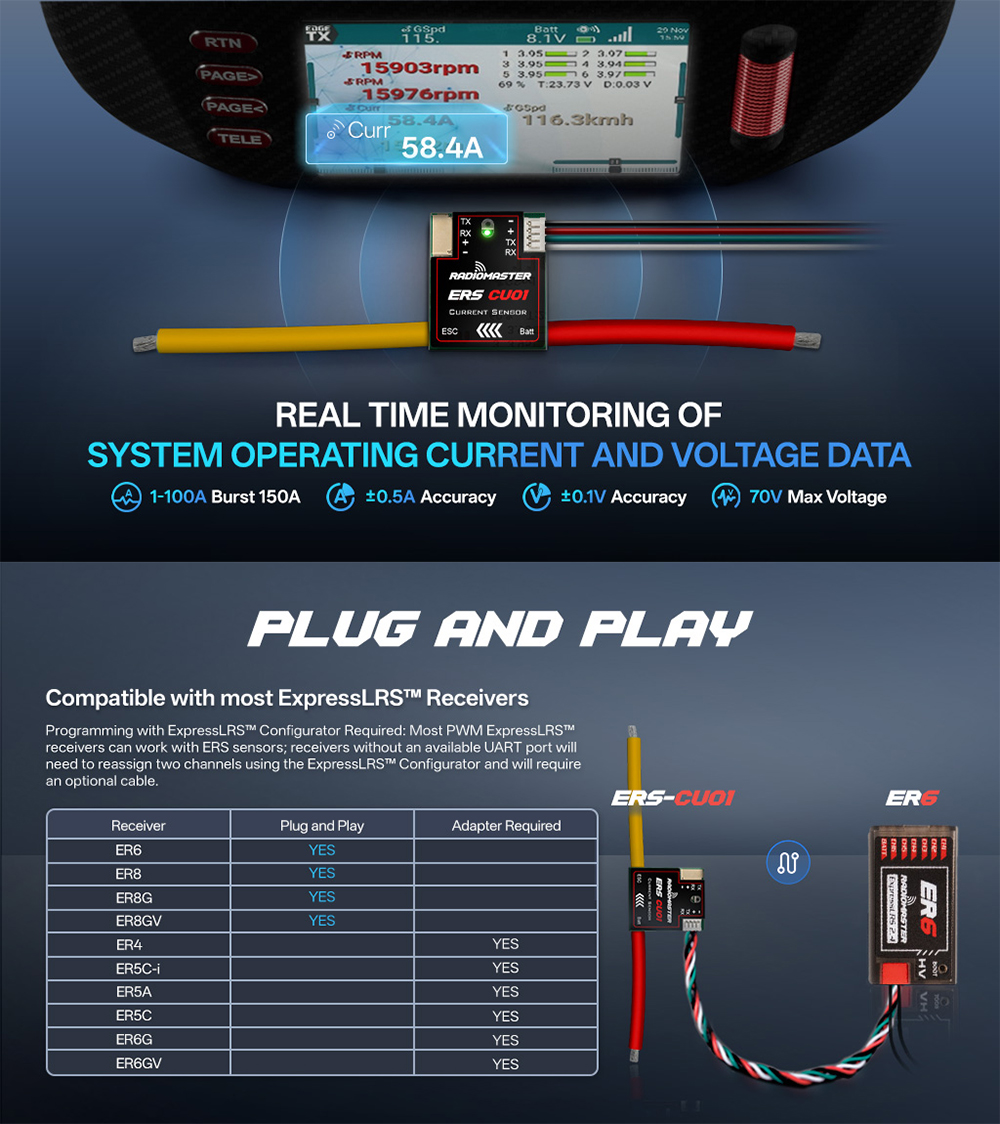

ERS-CU01 Specifications:
Model: ERS-CU01 ammeter
Working voltage: 5-8.4V
Working current: 22mA
Current detection range: 1-150A
Maximum voltage: 70V
Current detection accuracy: ± 0.5A
Voltage detection accuracy: ± 0.1V
Continuous working current: 100A
Working temperature: -10 ℃ -85 ℃

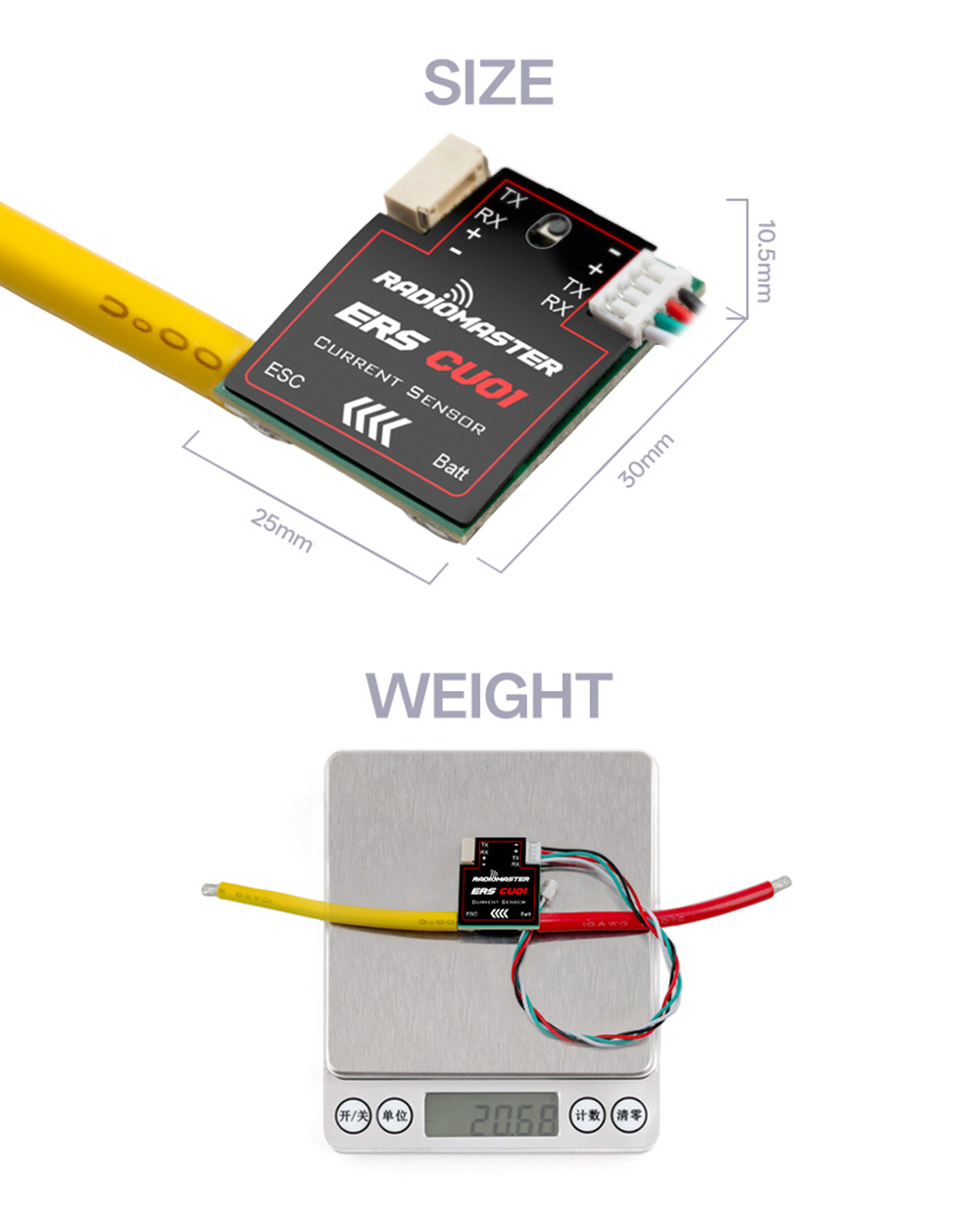

Size: 30 × 25 × 10.5mm
Weight: 20.6g

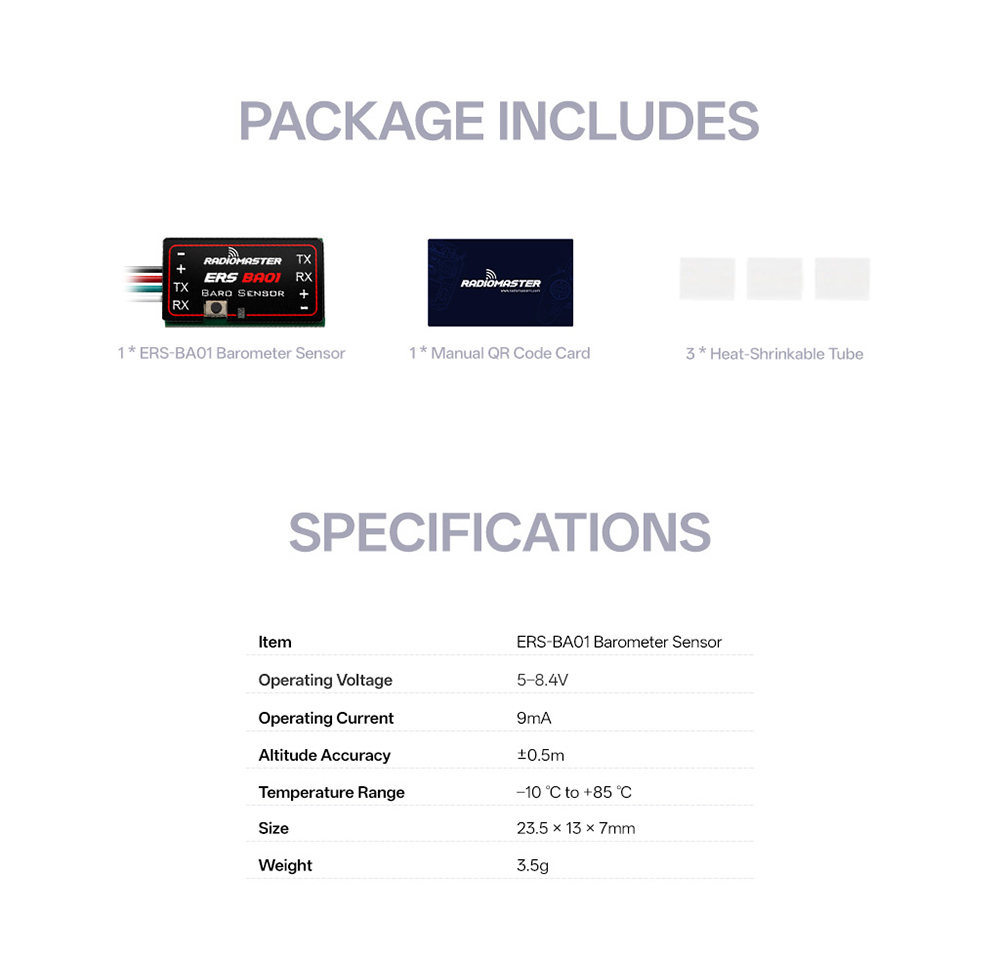

ERS-BA01 Specifications:
Model: ERS-BA01 altimeter
Working voltage: 5-8.4V
Working current: 9mA
Height measurement accuracy: ± 0.5m
Working temperature: -10 ℃ -85 ℃

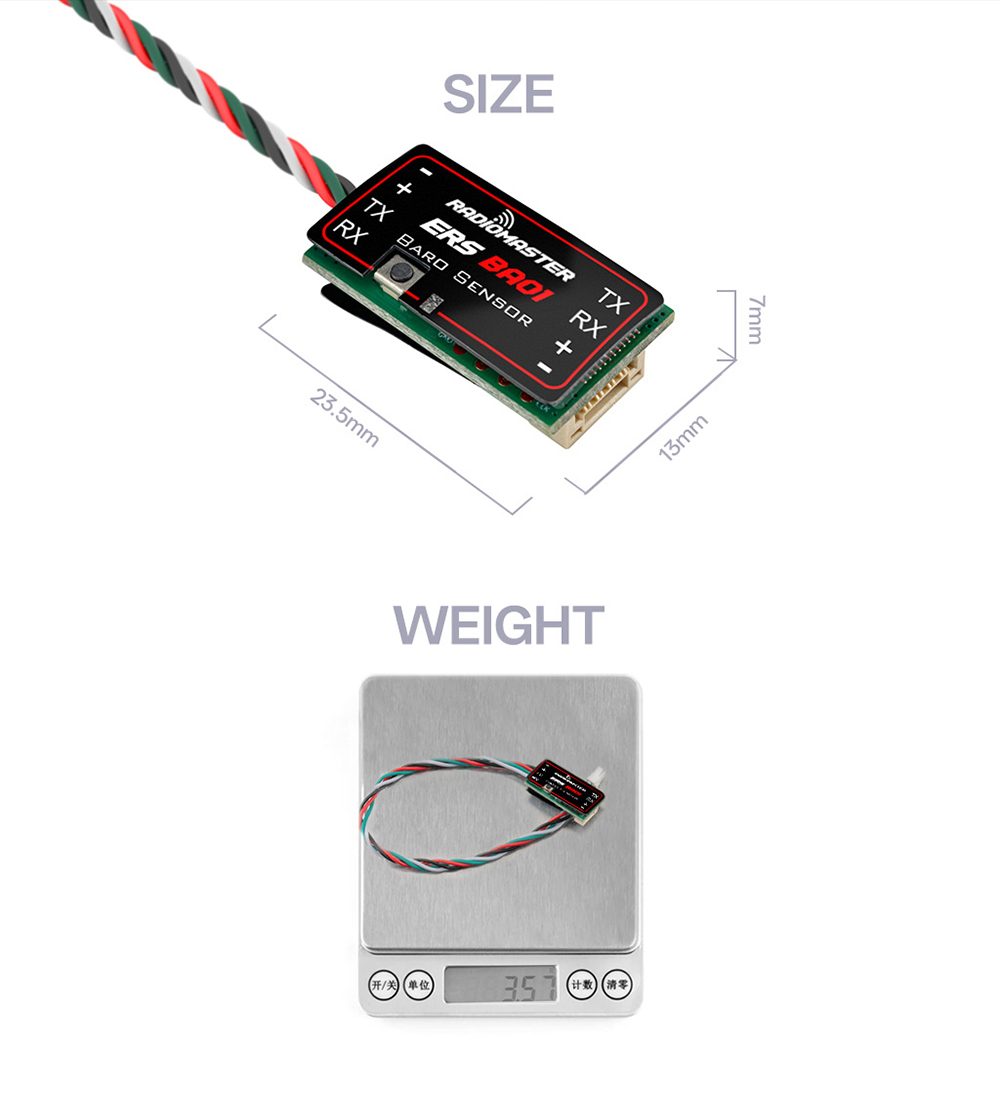

Size: 23.5 × 13 × 7mm
Weight: 3.5g

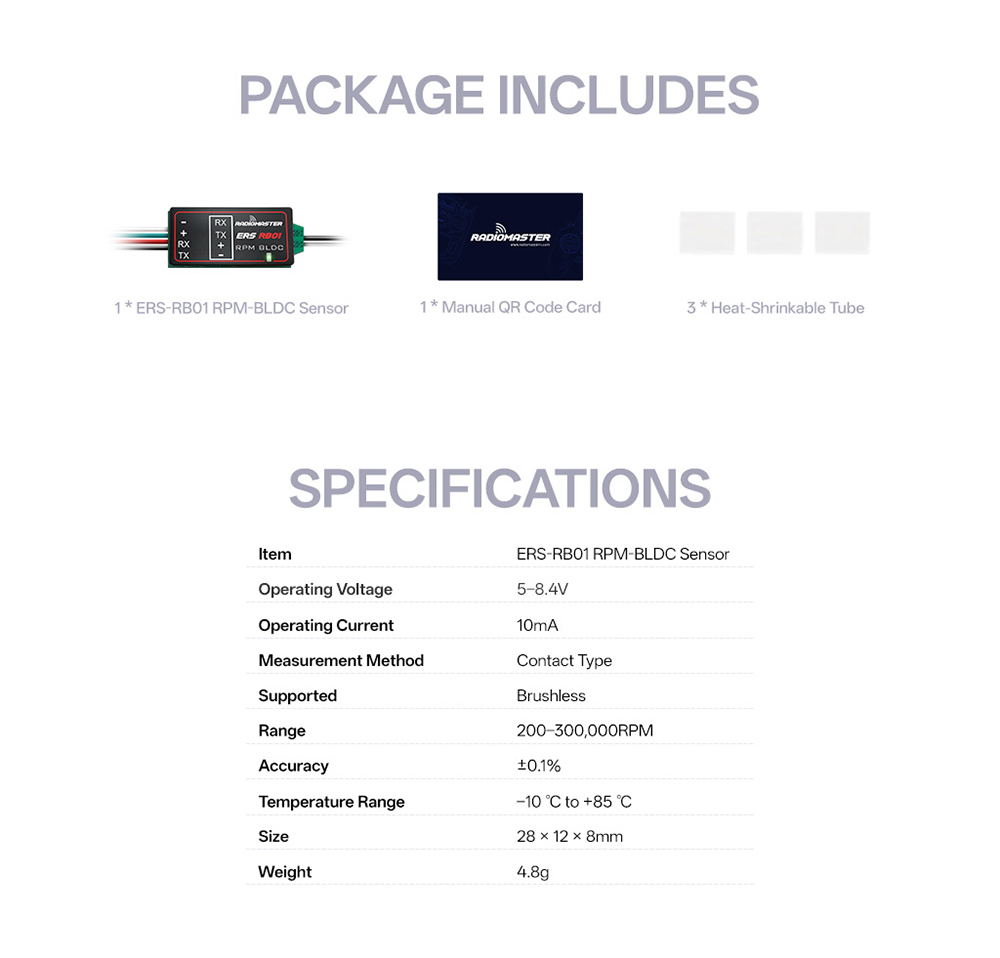

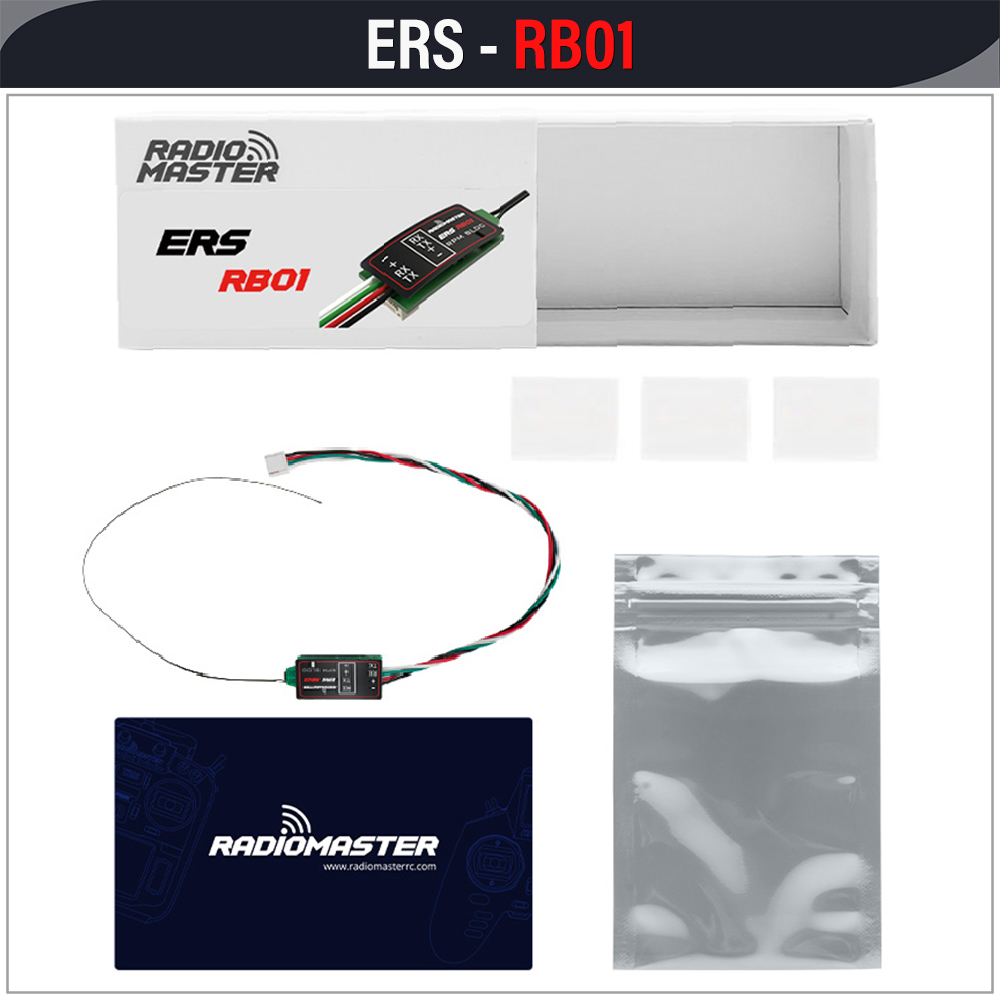

ERS-RB01 Specifications:
Model: ERS-RB01 brushless motor tachometer
Working voltage: 5-8.4V
Working current: 10mA
Measurement method: contact type
Support motor type: brushless motor
Mazda Extreme Logarithms: LUA Configuration
Measurement range: 200-300, 000RPM
Measurement accuracy: ± 0.1% RPM
Working temperature: -10 ℃ -85 ℃

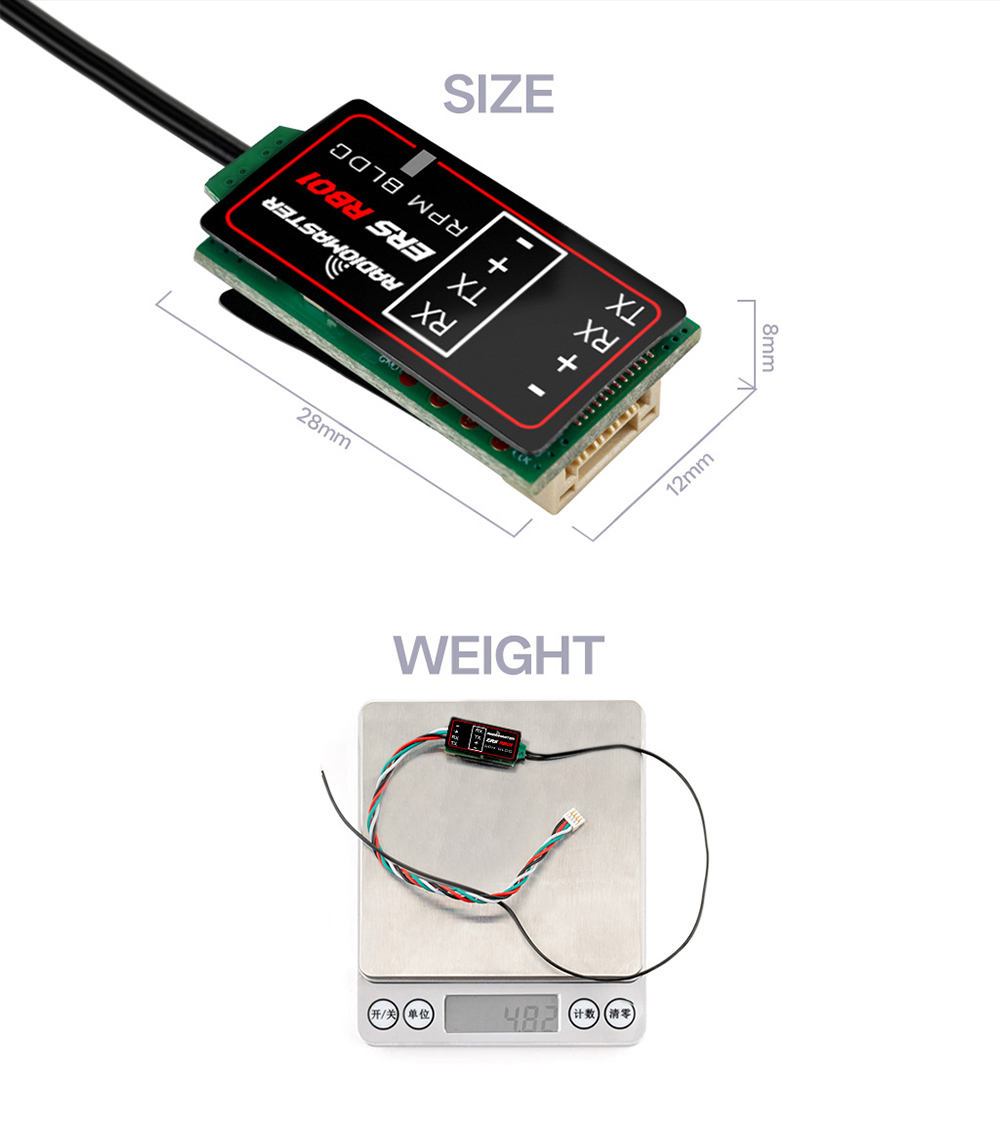

Size: 28 × 12 × 8mm
Weight: 4.8g

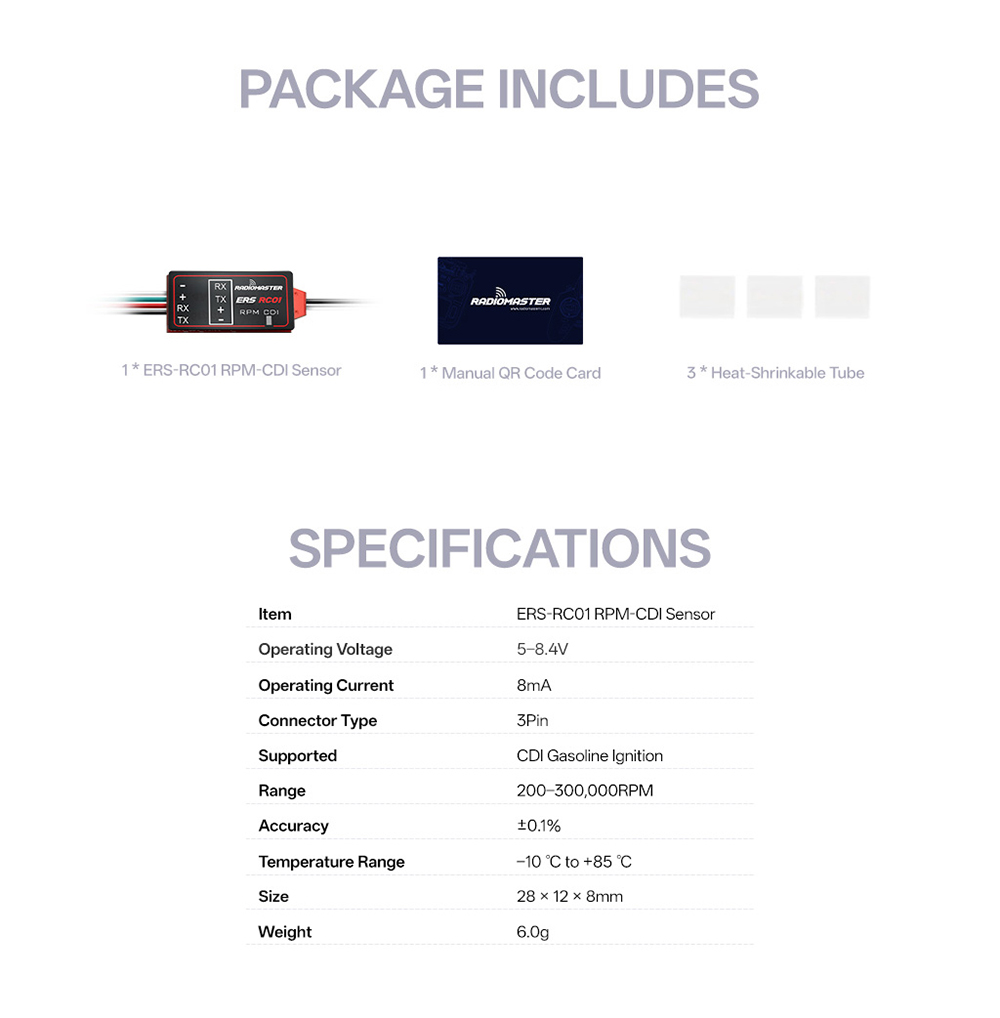

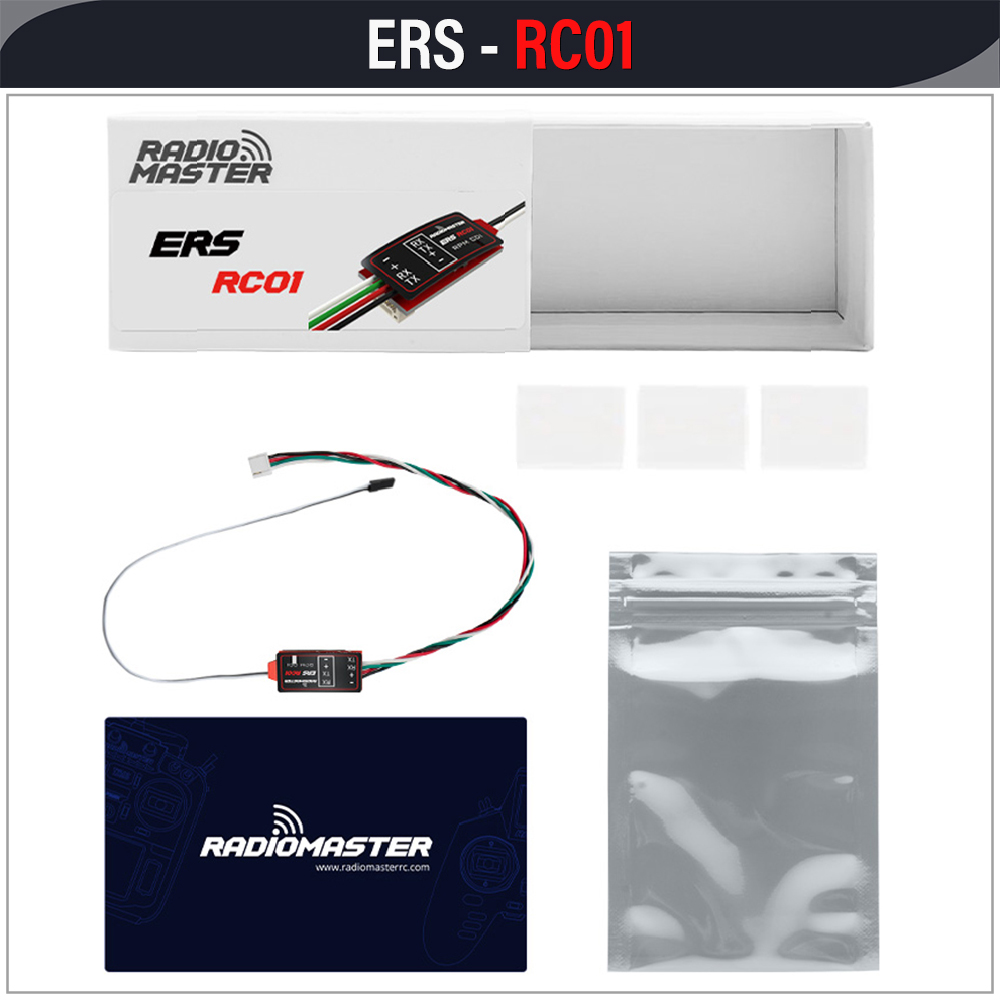

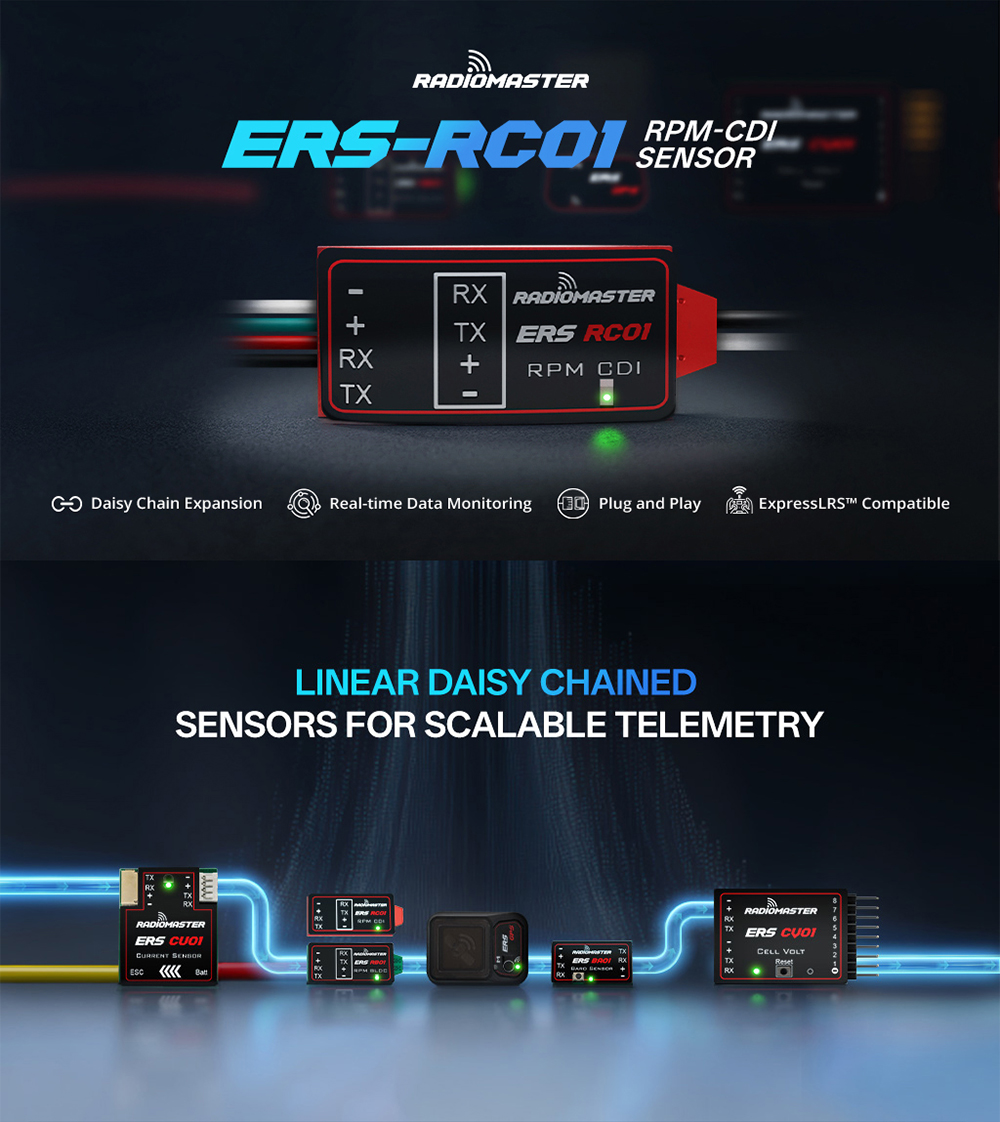

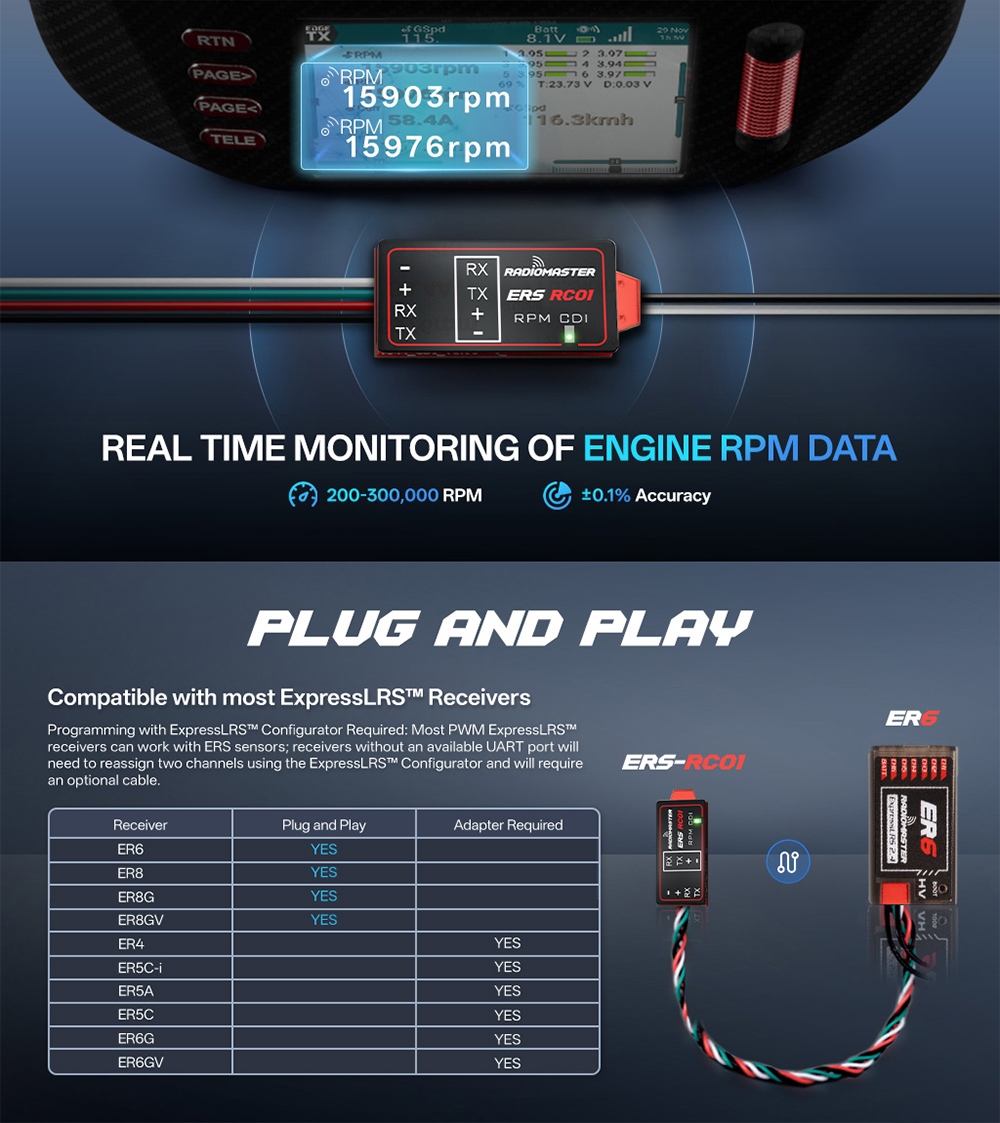

ERS-RC01 Specifications:
Model: ERS-RC01 Gasoline Engine Tachometer
Working voltage: 5-8.4V
Working current: 8mA
Interface type: 3-Pin
Support type: CDI gasoline ignition system
Measurement range: 200-300, 000RPM
Measurement accuracy: ± 0.1%
Working temperature: -10 ℃ -85 ℃

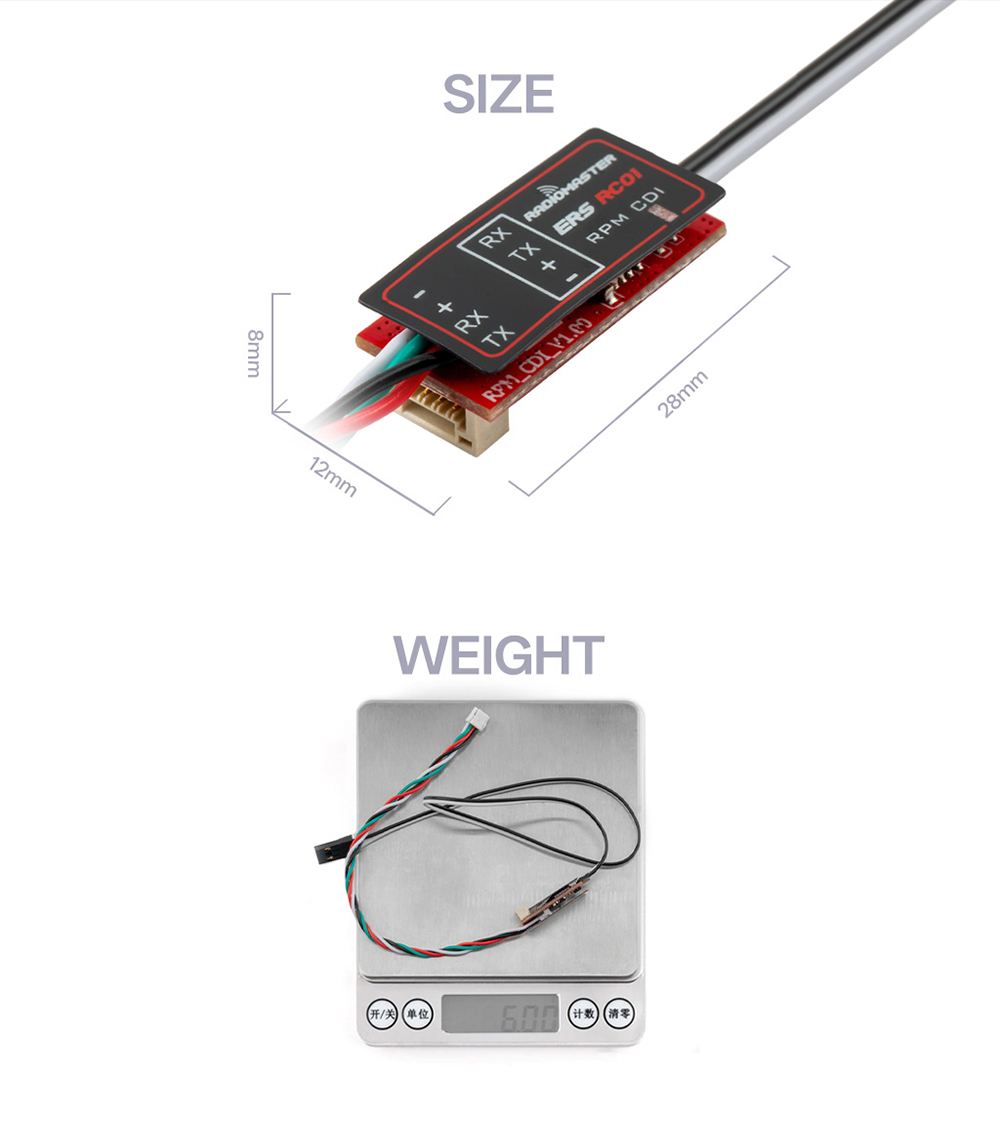

Size: 28 × 12 × 8mm
Weight: 6.0g

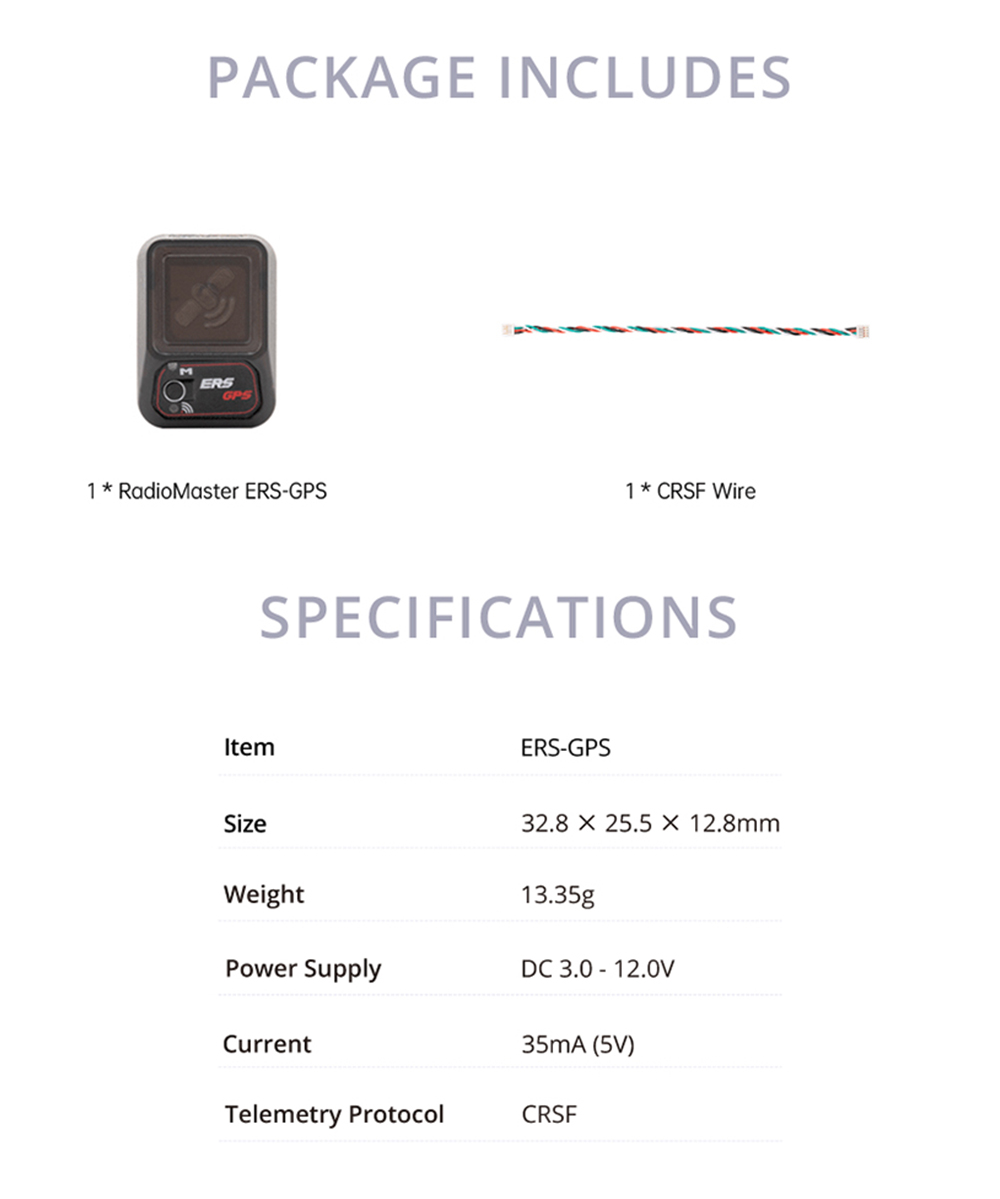

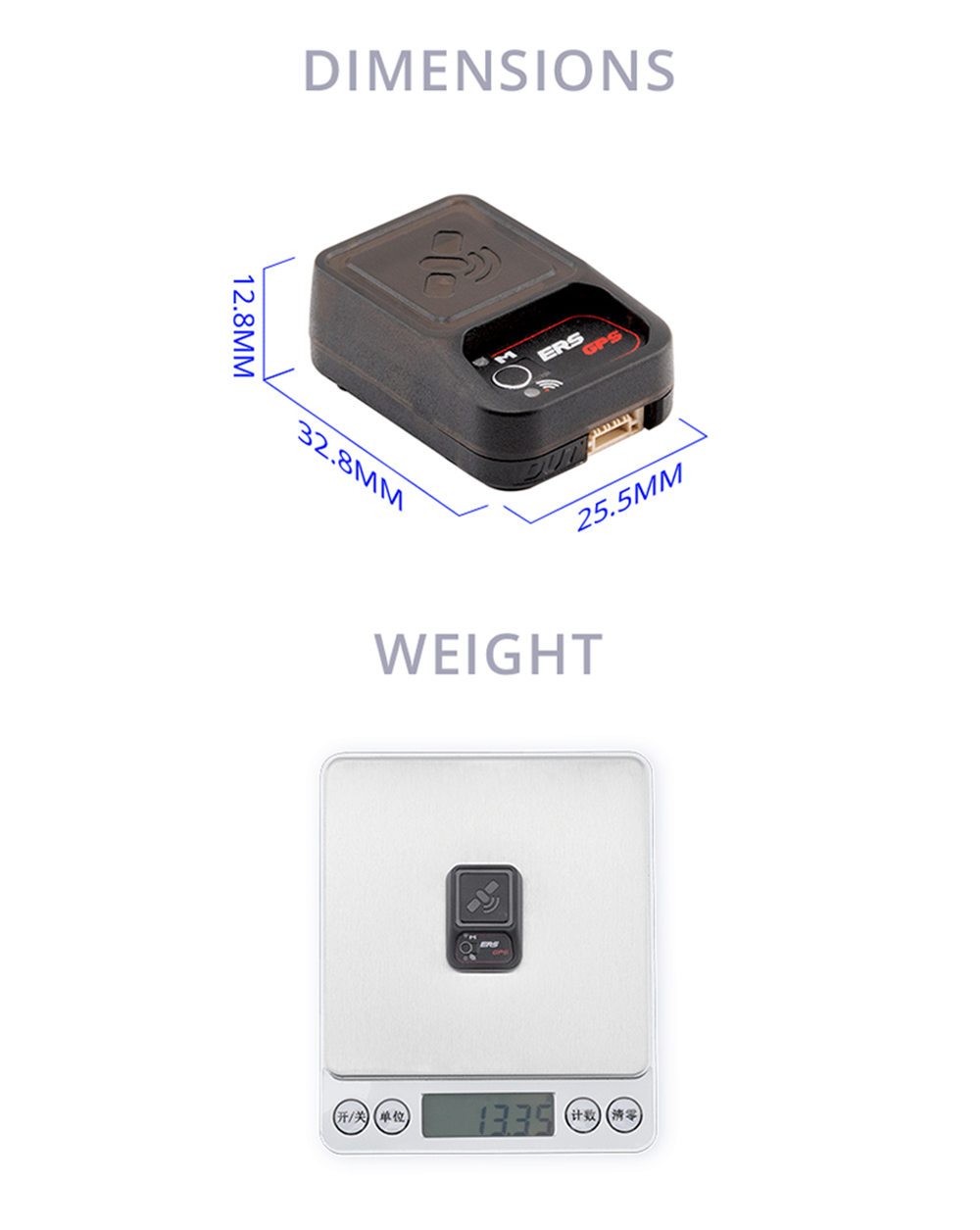

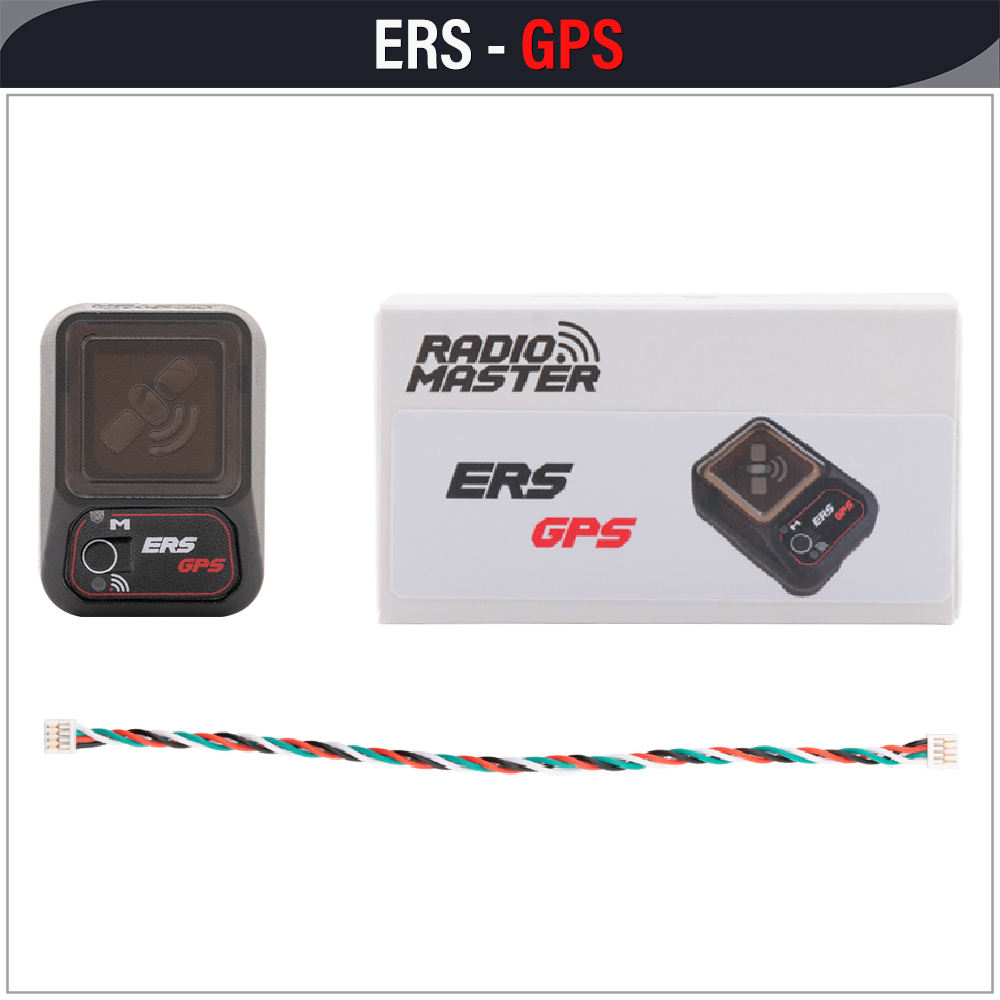

ERS-GPS Specifications:
Item: ERS-GPS
Size: 32.8 x 25.5 x 12.8mm
Weight: 13.35g
Power Supply: DC 3.0 - 12.0V
Current: 35mA (5V)
Telemetry Protocol: CRSF

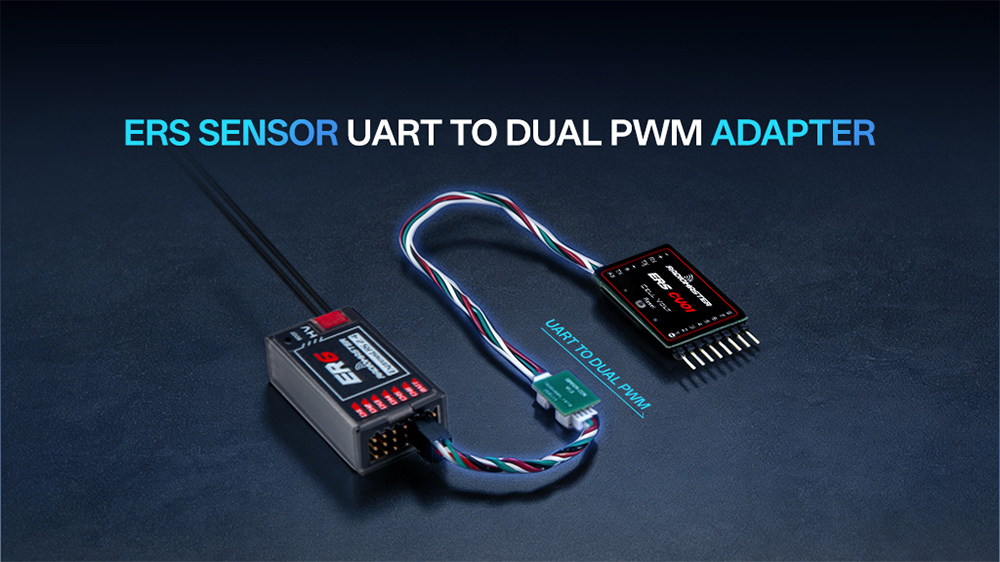

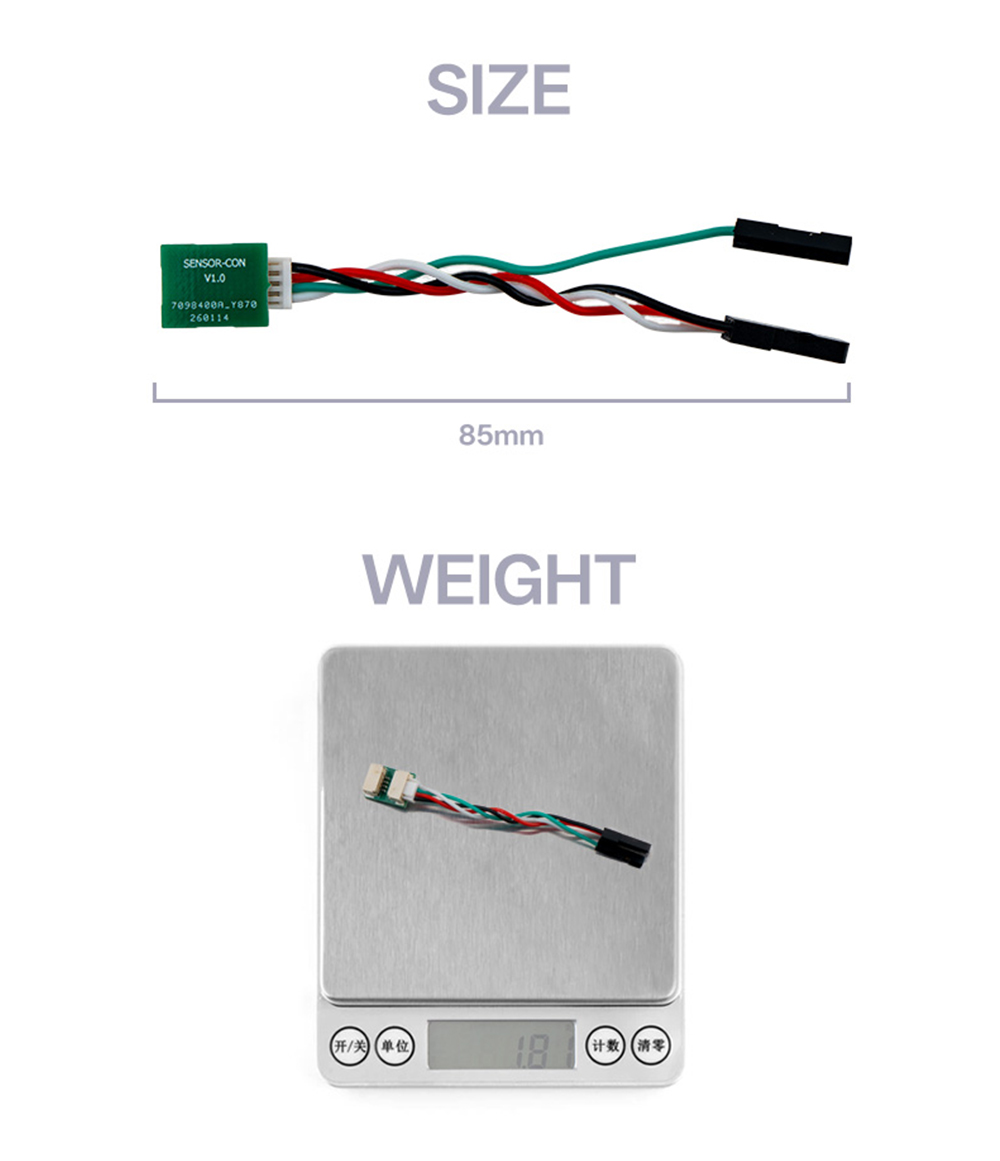

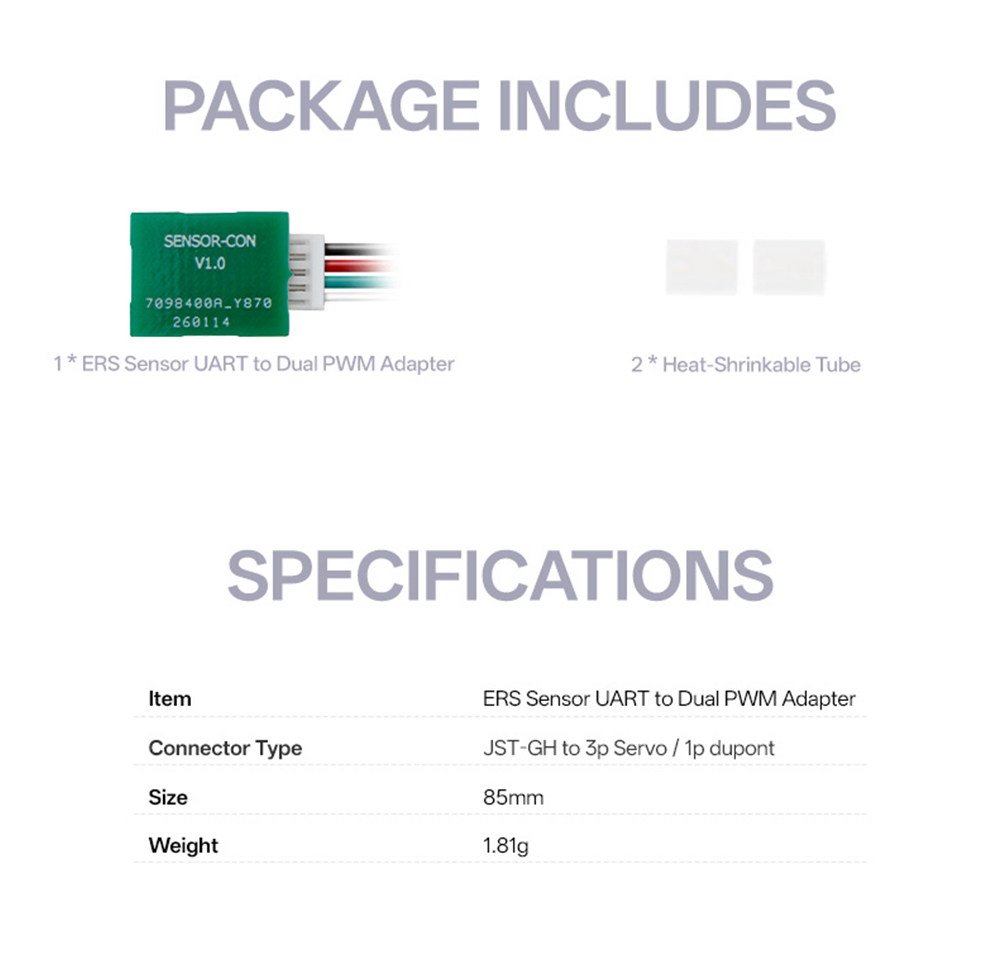

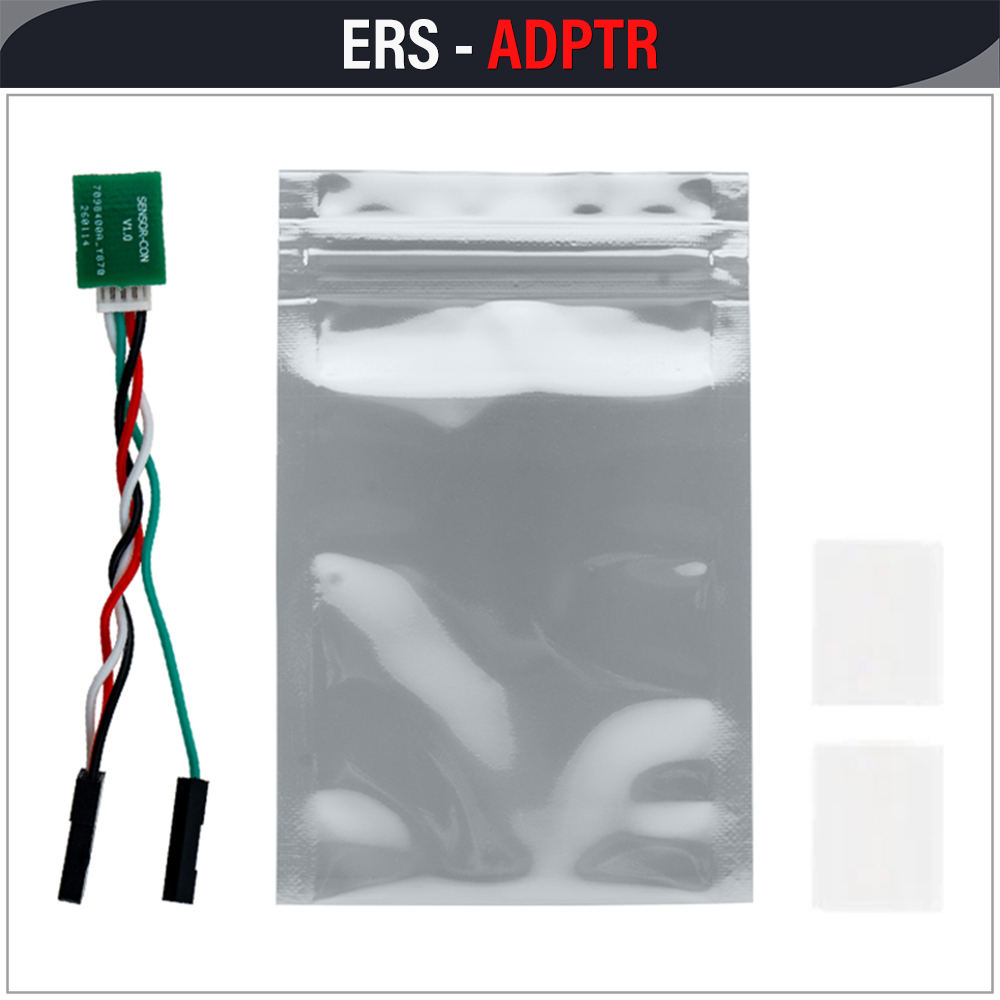

Adapter Cable Specifications:
Model: ERS series sensor adapter cable
Interface type: JST-GH to 3P servo/1P DuPont head
Size: 85mm
Weight: 1.81g

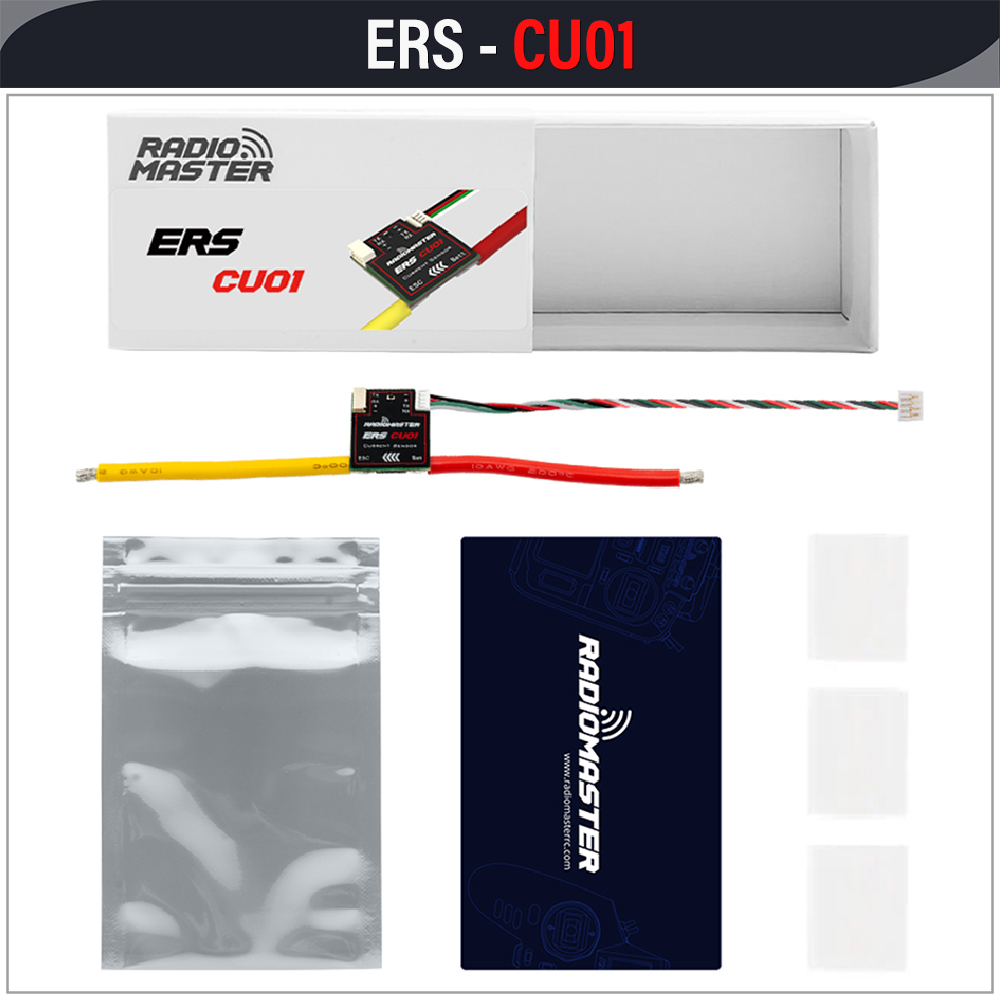

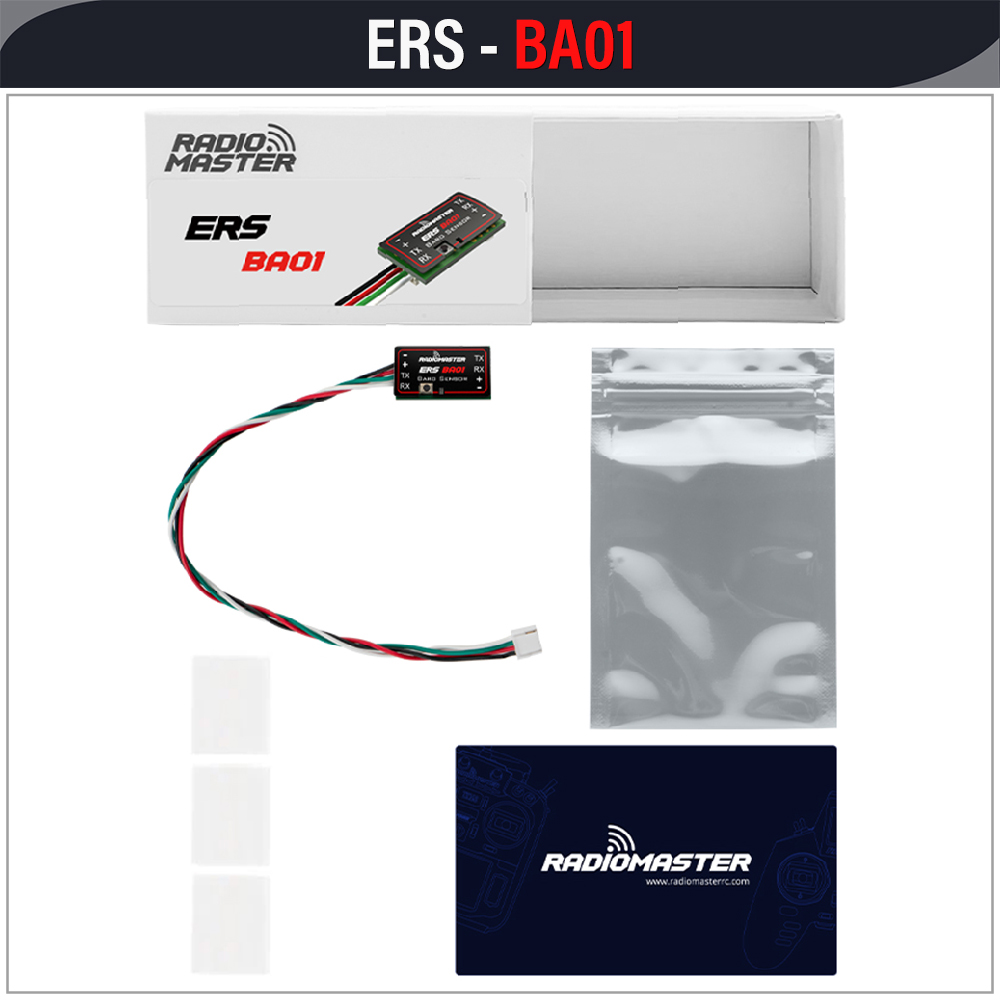

Package contents:
