HALF OFF PONDS Savio Signature 5,200 GPH Pump Pond Kit 20' x 25' EPDM Pond Liner

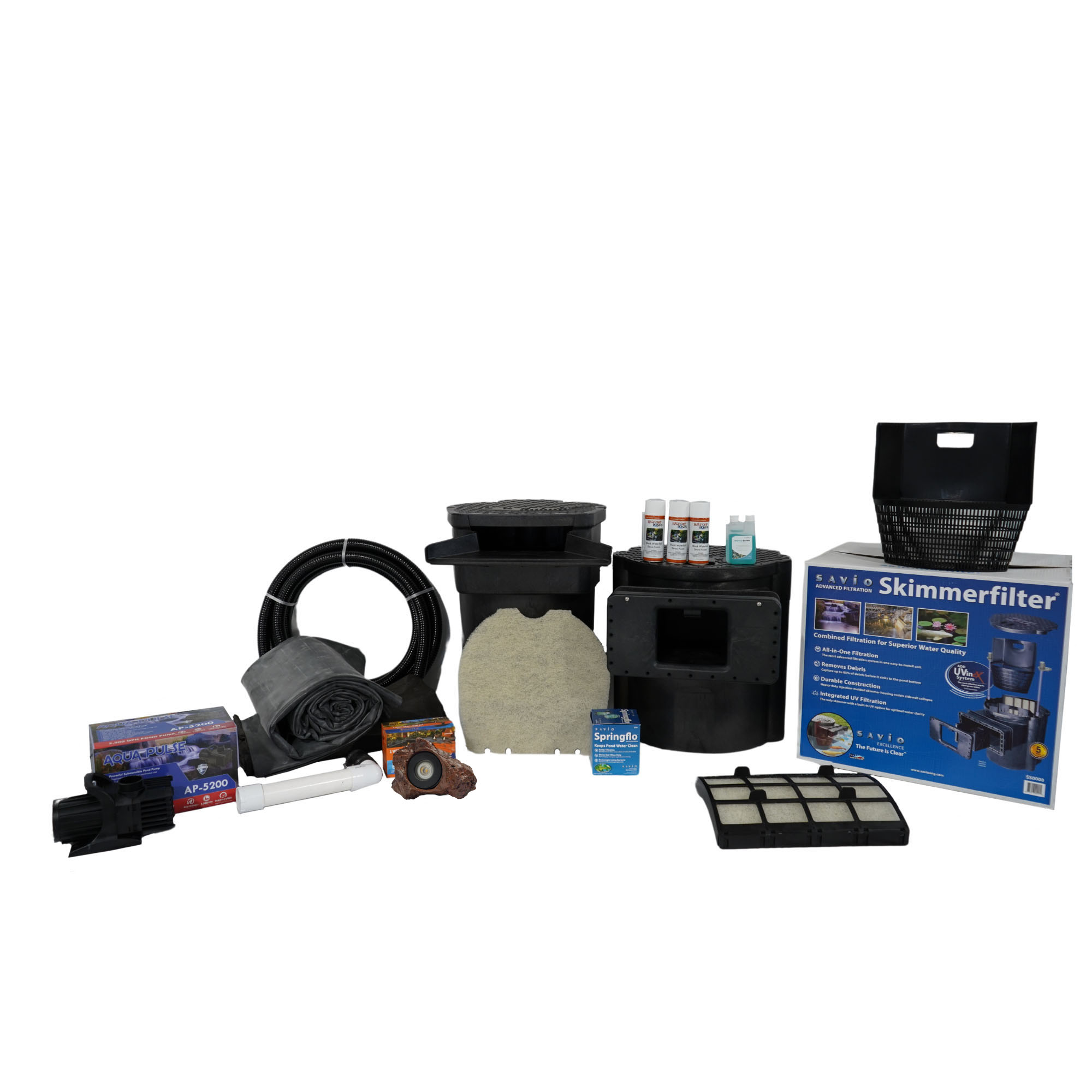

All you need to make your ponds dreams a reality!
  • 20' x 25' Liner and 500 sqft. Underlayment

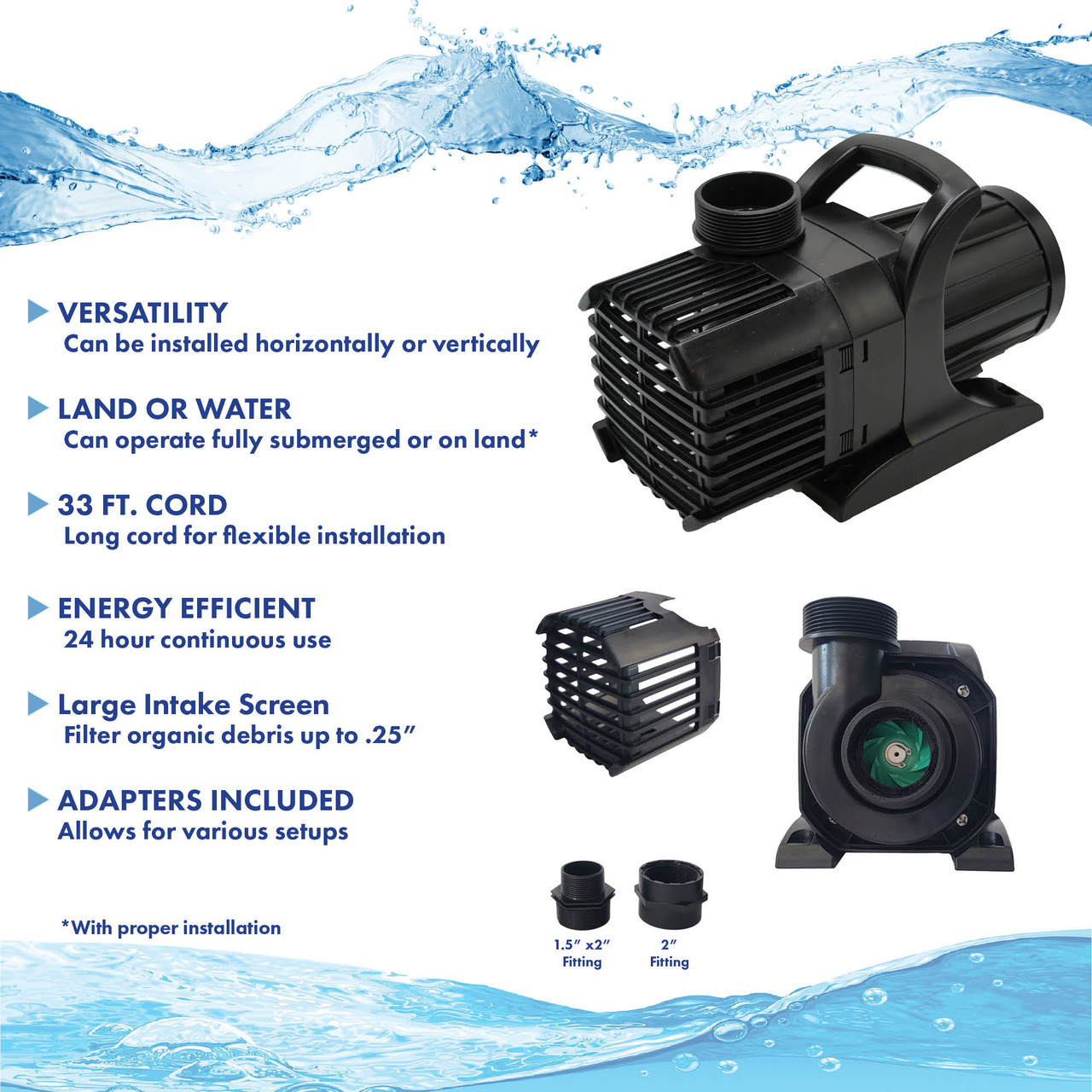

  • Aqua Pulse 5200 GPH Pump

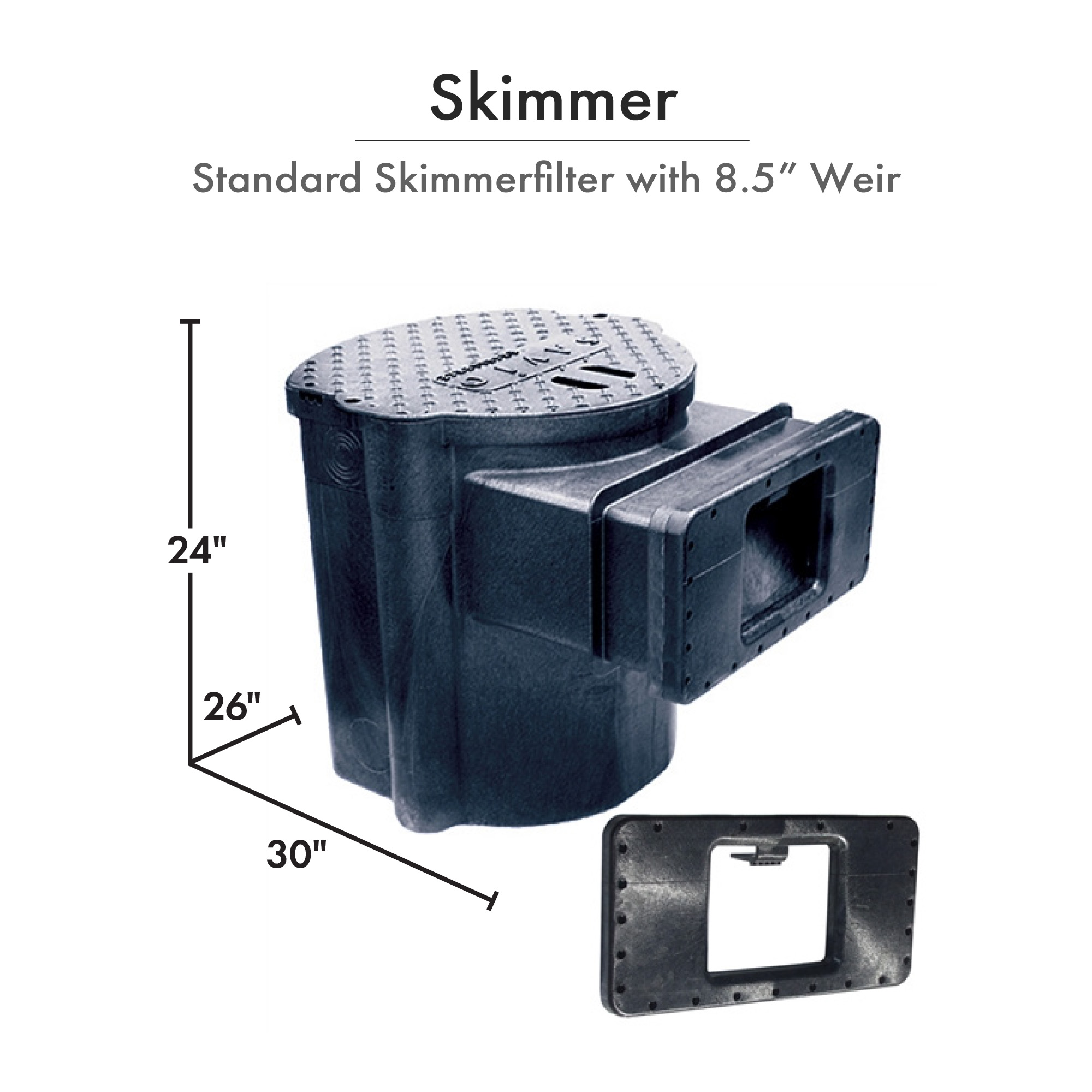

  • Savio Standard Skimmerfilter with 8.5" Weir

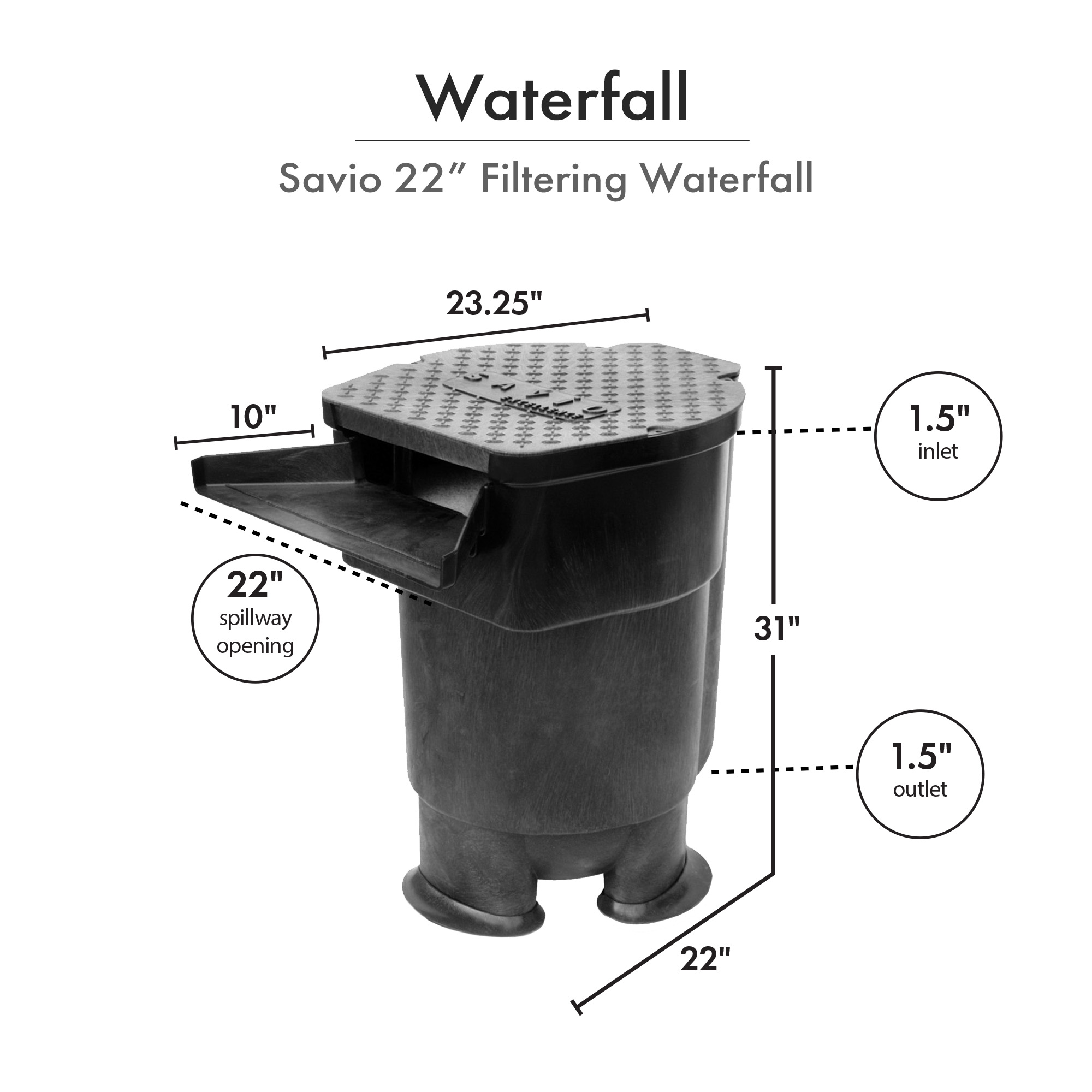

  • Savio 22" Filtering Waterfall
  • 1.5" x 25' Tubing
    Owning a pond is a rich and rewarding experience and Savio makes it easy. Our goal is to help you create a pond that looks great and requires minimal effort to maintain. The best pond designs mimic nature. Savio Signature Series utilizes Livingponds equipment in harmony, creating low-maintenance, living water gardens which stay healthy with little effort. Savio Livingponds do not require aggressive cleaning, annual draining, or excessive chemical treatments. The equipment and the pond are designed with a philosophy which emphasizes low-maintenance combined with natural beauty. LifeGuard Pond Liner is backed by a standard 25-Year Manufacturer's Warranty; when installed with UnderGuard Geotextile Underlayment, LifeGuard Pond Liner Warranted for life! LifeGuard Pond Liner is the best pond liner with the best Manufacturer's Warranty on the market today! Only Savio products harness the natural dynamics of moving water for maximum biological filtration to keep your pond clean, clear, and healthy. Build your pond right, build your pond with Savio architectural grade engineered equipment. Savio Signature Series Water Garden and Pond Kit includes the Following: Savio Engineering's LivingPonds 22" Filtering Waterfall Savio Engineering's Standard Skimmerfilter w/ 8. 5" Weir Assembly Half Off Ponds Aqua Pulse Series 5,200 GPH Submersible Pond Pump 20' x 25' 45-Mil EPDM LifeGuard Pond Liner 500 sqft of UnderGuard Underlayment, 2" x 25' Half Off Ponds Flexible PVC Tubing, (1) 1-Watt Bronze LED Spot Light w/ 6-Watt Transformer, (2) 16oz. can Savio Black Foam, 8oz. bottle Beneficial Pond Starter, (1) Weld-On Wet 'R Dry PVC Cement - 4oz. can, All Necessary Plumbing Fixtures

HALF OFF PONDS Savio Signature 5,200 GPH Pump Pond Kit 20' x 25' EPDM Pond Liner


  • Build Your Dream Pond - 20' x 25' liner builds a shallow water garden up to 16 x 21 feet at 1.5 feet deep (3,800 gallons), or a koi pond up to 13 x 18 feet at 3' deep (5,250 gallons). Finished pond dimensions can be tailored to your specific requirements.
    •
  • Everything You Need - 20' x 25' LifeGuard 45-mil EPDM Pond Liner, 500 sq ft UnderGuard Geotextile Underlayment to stabilize soil and protect from roots, rocks, & punctures, 2" x 50' Kink Free Tubing, and all plumbing fittings.
    •
  • Standard Skimmer has two filter mats and a leaf basket to collect floating debris, providing simplified maintenance and protection for energy efficient Aqua Pulse 5,200 gph pump, operating at only 294 watts.
    •
  • 22" Filtering Waterfall provides over 3 cubic feet of filtration. Includes a filter mat for mechanical filtration and Springflo Bio Filter Media for biological filtration without inhibiting water flow. 1.5 watt submersible rock light, (3) 16oz cans of waterfall foam for sealing gaps in rocks along the stream and waterfall, and pond starter for biological filtration.
    •
  • May ship in more than one box. Warranties: EPDM LifeGuard Pond Liner - Limited Lifetime; 22" Waterfall Filter and Skimmer - 5 years; 5,200 GPH Pump - 2 years; Lighting - 5 years. This item ships via LTL Freight: Accurate phone number required to schedule delivery (lift-gate service is not included).

FAQs & Calculations to Help Select the Correct Kit

1. How Many Gallons of Water does My Water Feature Hold?

Rectangular Ponds

Length x Width x Average Depth x 7.48 = Gallons

Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Oval Ponds

Length x Width x Average Depth x 0.8 x 7.48 = Gallons

Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Round Ponds

Length x Width x Average Depth x 7.48 =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons


Streams

Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:

Water Garden, Few Small Goldfish

Circulate total pond water valoume every 2 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Fish Pond, Several Small Fish

Circulate total pond water valoume every 1 hour.

Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.


Koi Pond, Several Large Fish

Circulate total pond water valoume every 3/4 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Calculating Head Height

Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.

Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure

Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.

3. What Size Tubing Do I Need?
Tubing Size Efficiency GPH Minimum GPH Maximum GPH

0.5”
< 300
60
420

0.75”
< 720
300
900

1”
< 1,200
700
1,500

1.25”
< 1,600
900
3,200

1.5”
< 2,600
2,000
4,400

2”
< 4,800
3,000
6,800

3”
< 9,000
6,000
14,000

4”
< 21,000
14,000
28,000

6”
< 42,000
33,000
60,000
