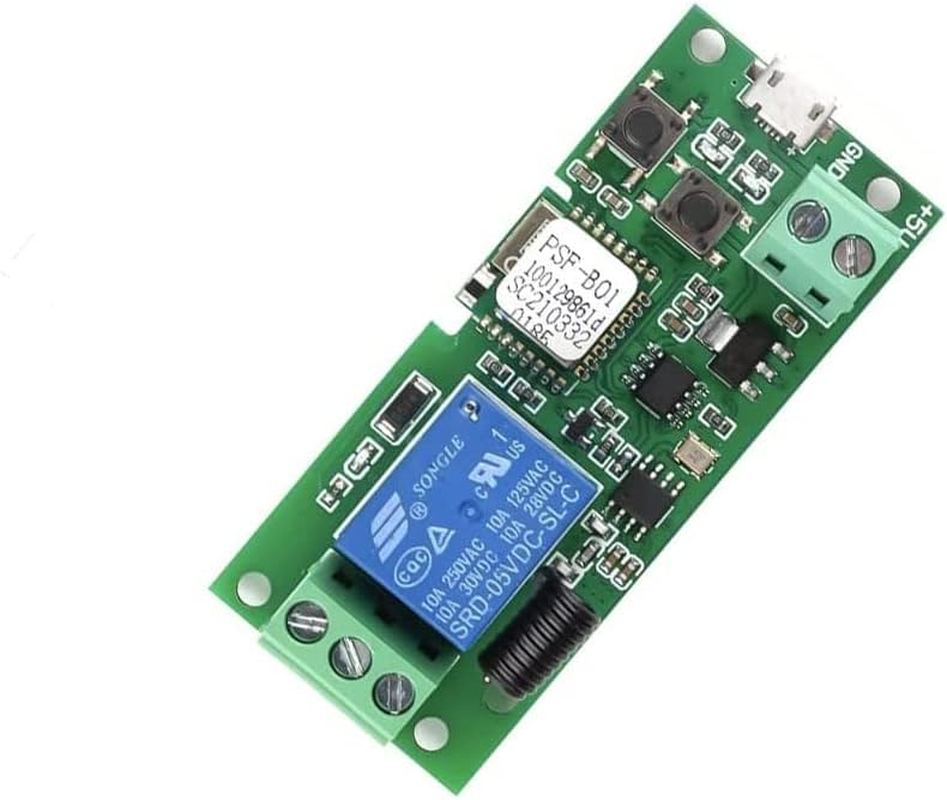

Wifi Wireless Smart Switch Relay Module for Smart Home 5V 5V/12V，Ba Applied to Access Control, Turn on PC, Garage Door (5V)
Description
| Item model number | LEDWALL01 |
| Maximum Switching Voltage | 5 Volts |
| Style | 5v |
| Current Rating | 10 Amps |
| Power Source | DC |
| Coil Voltage | 5 Volts |
| Switch Style | Remote |
| Batteries Included? | No |
| Measurement System | Imperial, Metric |
| Usage | garage door opener smart home |
| Batteries Required? | No |
| Contact Current Rating | 10 Amps |
| Description Pile | Lithium |
| Is Discontinued By Manufacturer | No |
| Item Package Quantity | 1 |
| Connector Type | Usb |
| Item Weight | 0.353 ounces |
| Maximum Switching Current | 10 Amps |
| Part Number | LEDWALL01 |
| Color | WH |
| Operation Mode | Automatic |
| Voltage | 5 Volts |
| Contact Type | Normally Open |
| Included Components | ewelink wifi relay switch board |
| Product Dimensions | 2.78 x 1.22 x 0.7 inches |
- Low voltage ewelink app wifi dry contact relay/passive output,input 5v only,USB 5V or screw terminal port 5V.
- easy setup.WIFI Relay support 2.4G WIFI only,doesn't suppor 5G WiFi network.If your router with dual bands and same SSID,please change to different SSID,or close 5G band firstly.When pairing,make sure to put it close to your router,your phone have to connect to the same 2.4G wifi. Once it's powered on,it will go to quick pairing mode,red light will circle blink 2 short 1 long,open ewelink app and it will find your SSID automatically,enter your correct wifi password.
- 2 working mode,latching and inching mode,change work mode by pressing the mode button on board,With on/off mode,work as wireless switch,DIY WIFI light switch.with inching(momentary)mode,works as wireless button, Smart existing garage door opener
- Voice contrl and WIFI APP Remote control through the App eWeLink by your phone.Work with Assistant Siri Nest smartThings
- Timer&share control&group control&create smart scene,1 channel wifi relay can set max 8 schedule,share easy control with family.one phone can control multiple smart devices,set them in a group,one tap to on/off all devices
Description:
The wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink to remote control connected home appliances or devices.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and .
Supported functions:
Remote turn on/off
Timing Schedules
Device Sharing
Group Management
Specification:
Dimensions:70.5mm*31mm*17mm
Operating current: 5V DC only(please don't power it with 12V or above power source,ordinary phone charger can be used,not included)
LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max switching voltage: <250V
Relay lifespan: more than one million times
insulation resistance 100M
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
.Rated switching voltage: <250V
KINDLY TIPS
1.The WIFI Relay support 2.4G WIFI only,doesn't support Mesh wifi system and 5G WiFi network.When pairing,make sure to put it close to your router.please use a wifi extender if wifi signal is weak.
2.Working power is DC 5V only,if you need 12V 24V 32V power source,please select our 12V item.
3.The relays are switches without output.Please refere to trouble shootings in ewelink app,there are detail problemssolution,and you can open a case in ewelink app or email us if any question.
Package included: 1 x Jog Inching Self-locking WiFi Wireless Smart Home Switch
