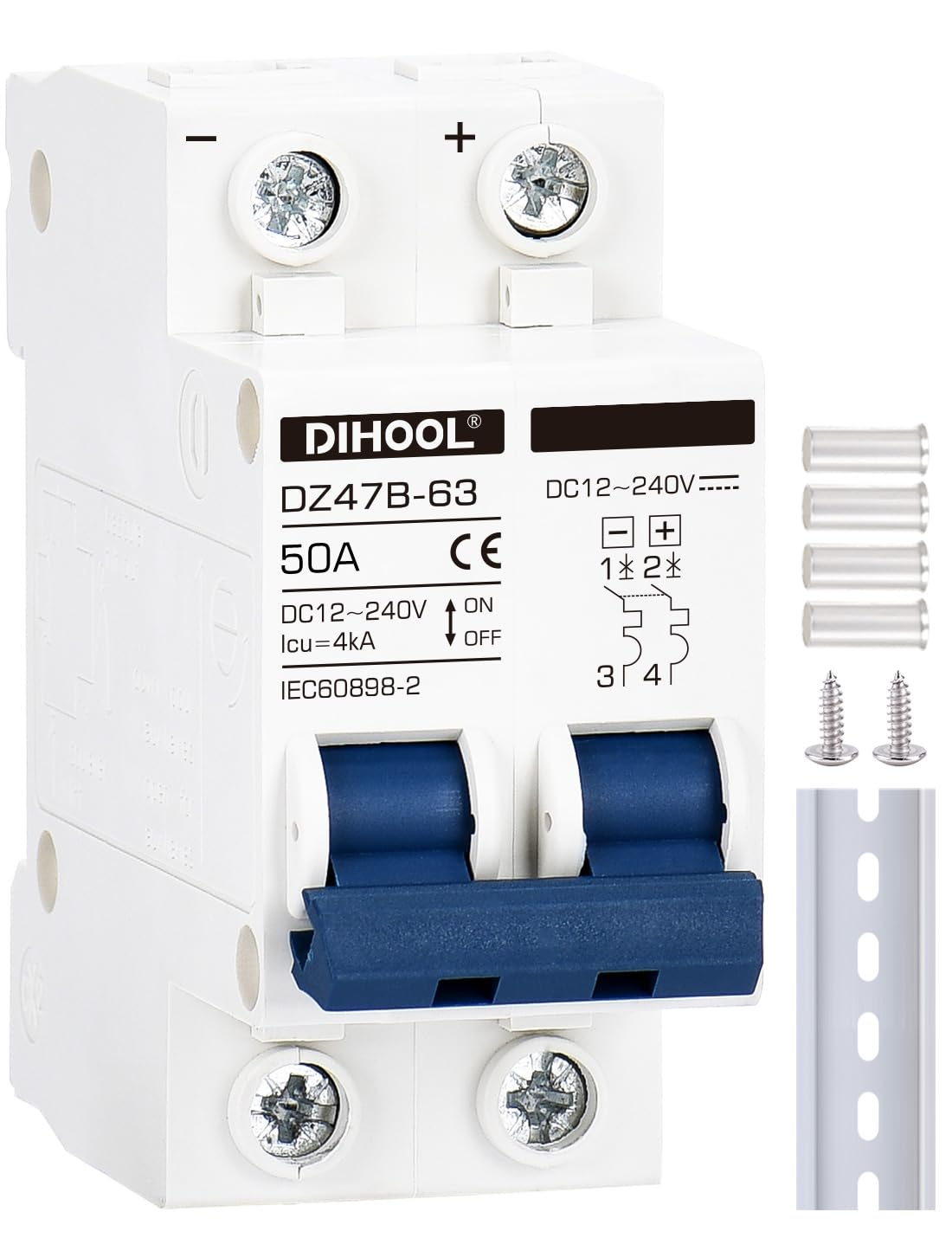

DC Circuit Breaker,50A 2 Pole,12V to 240 Volt Solar Disconnect Switch,Din Rail Mount
Description
| Current Rating | 50 Amps |
| Mounting Type | DIN Rail Mount |
| Circuit Breaker Type | Standard |
| Lens Color | 50a |
| Product Dimensions | 3"D x 3.2"W x 1.6"H |
- DC circuit breaker is made of flame-retardant enclosure, silver alloy contacts, and sufficient pure copper coils to ensure its high quality.
- Multiple protection: isolation, short circuit protection, and overload protection,B-curve trip,thermal magnetic trip,it can be used for 12V-400VDC circuit.
- Come with 1 x DIN rail, 2 x screws for easy mounting and 4 x copper crimp terminal for wiring to make sure that the wires are tightly connected.
- Size: 36MM x 80MM x 75MM, Fit for 35mm DIN rail.
- This soloar breaker is suitable for photovoltaic solar panel array,Solar Charge Controller,Batteries,Power inverter,DC motor protect.
Product description
| Model | DZ47B |
| Poles | 2P |
| Rated Current | 50/100/125 Amp |
| Rated Voltage Ue | 12~240V DC |
| Rated Breaking Capacity | 4kA |
| Trip Curve | B Curve (3-6ln) |
| Life | 10,000 times |
| Mechanical Life | 4,000 times |
| Ambient Temperature | -30°C~+70°C |
| Standard | IEC60898 / GB10936 |
| Installation Method | 35MM DIN Rail |
| Tightening Torque | 2.5-3.0N.m |
Product Comparison
| Customer Reviews | 4.7 out of 5 stars 89 | 4.7 out of 5 stars 390 | 4.7 out of 5 stars 181 | 4.7 out of 5 stars 105 | 4.6 out of 5 stars 33 | 4.4 out of 5 stars 59 |
| Price | $12.99$12.99 | $13.99$13.99 | $15.44$15.44 | $34.88$34.88 | $88.88$88.88 | $25.99$25.99 |
| Voltage | 12~240V DC | 90~400V AC/12~400V DC | 1000V DC | DC 12~1000V / AC 90~690V | 1500V DC(maximum) | 120/240V AC |
| Rate Current | 50/100/125 Amp | 6~120 Amp | 15/20/30/40/60/100/120 Amp | 100A~600A | 63A~800A | 10/15/20/25/30/40/50/60 Amp |
| Protection Grade | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Surge Protection | NO | NO | NO | NO | NO | YES (20kA) |
| Voltage Protection | NO | NO | NO | NO | NO | Yes |
| Ground Fault | NO | NO | NO | NO | NO | Yes |
| Leakage Protection | NO | NO | NO | NO | NO | A/AC Type 30mA |
| Installation Method | DIN-Rail Mounting | DIN-Rail Mounting | DIN-Rail Mounting | Panel Screw Installation | Panel Screw Installation | DIN-Rail Mounting |
