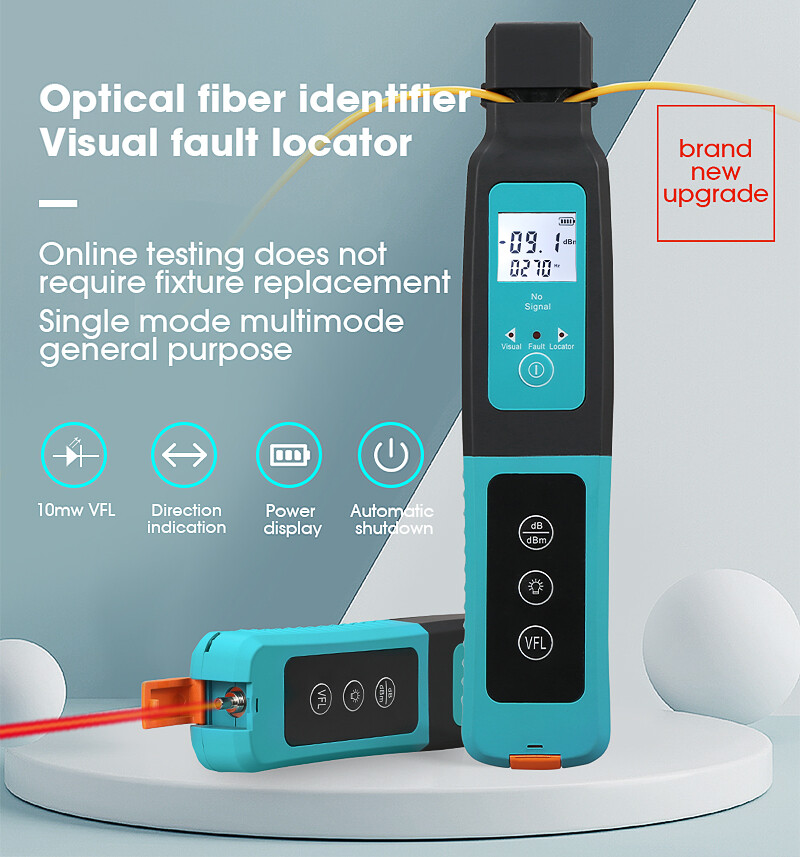

AUA-40 Live Optical Fiber Identifier Fiber Optic Detector 800-1700nm with 10mW VFL

Description:
The KomShine AUA-40 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.

Features:
1. Leading business simple test identification, direct, convenient, efficient, sending sound and light alarm.
2. Approximate core strength. It can identify 3 common test sounds.
3. Compact and practical, very easy to operate, low error detection and ins.

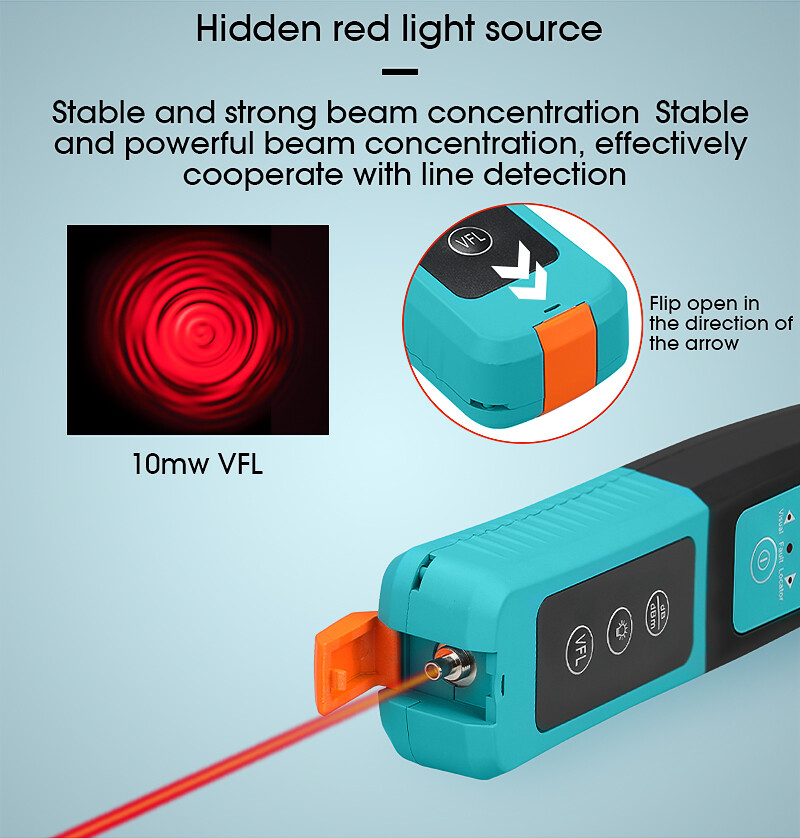

4. with  10mW 10km Visual Fault Locator Fiber
5. The fiber optic identifier can also detect the presence of 2KHz, 1kHz and 270Hz modulated tones by continuously audible tones.
6. It can quickly identify the direction of transmission fiber and display relative core power.

Specification:

Model

AUA-40

Identified Wavelength Range

800nm-1700nm

Recognizable Signal Type

CW, 270Hz±5%, 1KHz±5%, 2KHz±5%

Identified Signal Frequency

270Hz/1KHz/2KHz

Detector Type

1mm InGaAs 2PCS

1mm InGaAs 2PCS

Used for 0.25 (bare fiber), 0.9, 2.0, 3.0 universal socket for cables

Signal Direction

Left & right LED lights

Light Power Reading

-40dBm to 10dBm

Alkaline Battery

2*AA Battery(not included)

Operating Temperature

-10~60℃

Storage Temperature

-25~70℃

Weight

235g

Dimension

240*45*28mm

What's in Package:
1 x Optical Fiber Identifier
1 x Packing Bag
1 x User Manual
