Specification:

Features:
Made of high quality metal with durable construction.
High accuracy, exquisite craft, smooth surface.
Long life, low coefficient of friction, high versatility.
Linear motion, with a small frictional resistance.
Linear shaft diameter is 16mm/0.6inch, and the effective stroke is 100mm/3.9inch.
Specifications:
Material: Metal
Max. load: ＜20kg
Linear shaft: 16mm(diameter)
Motor standard: 57 Step Motor
Repeat locating standard: ±0.03
Effective stroke: 100mm / 3.9inch

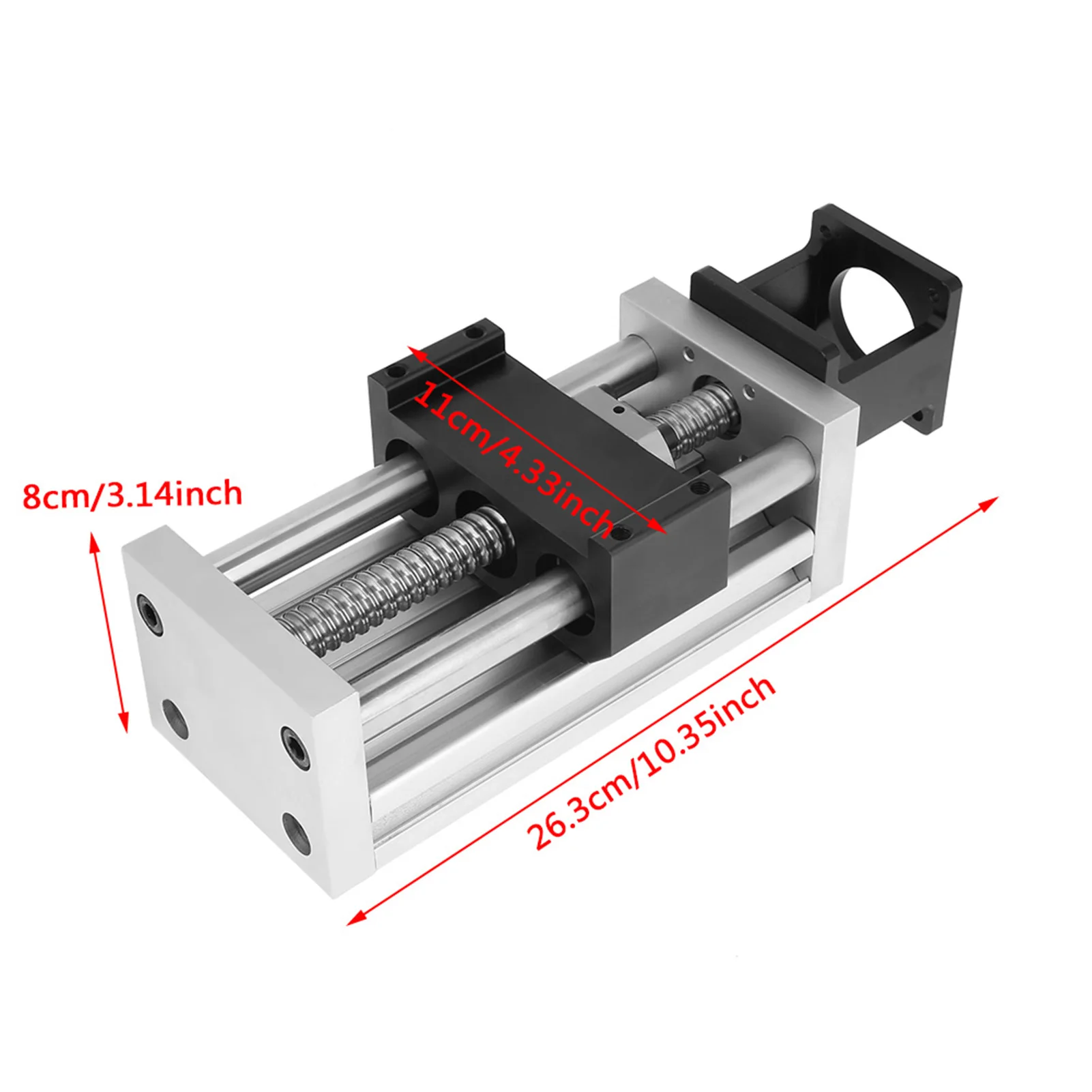

Size: Approx. 26.3 x 11 x 8cm / 10.4 x 4.3 x 3.1inch
Weight: 2947g
