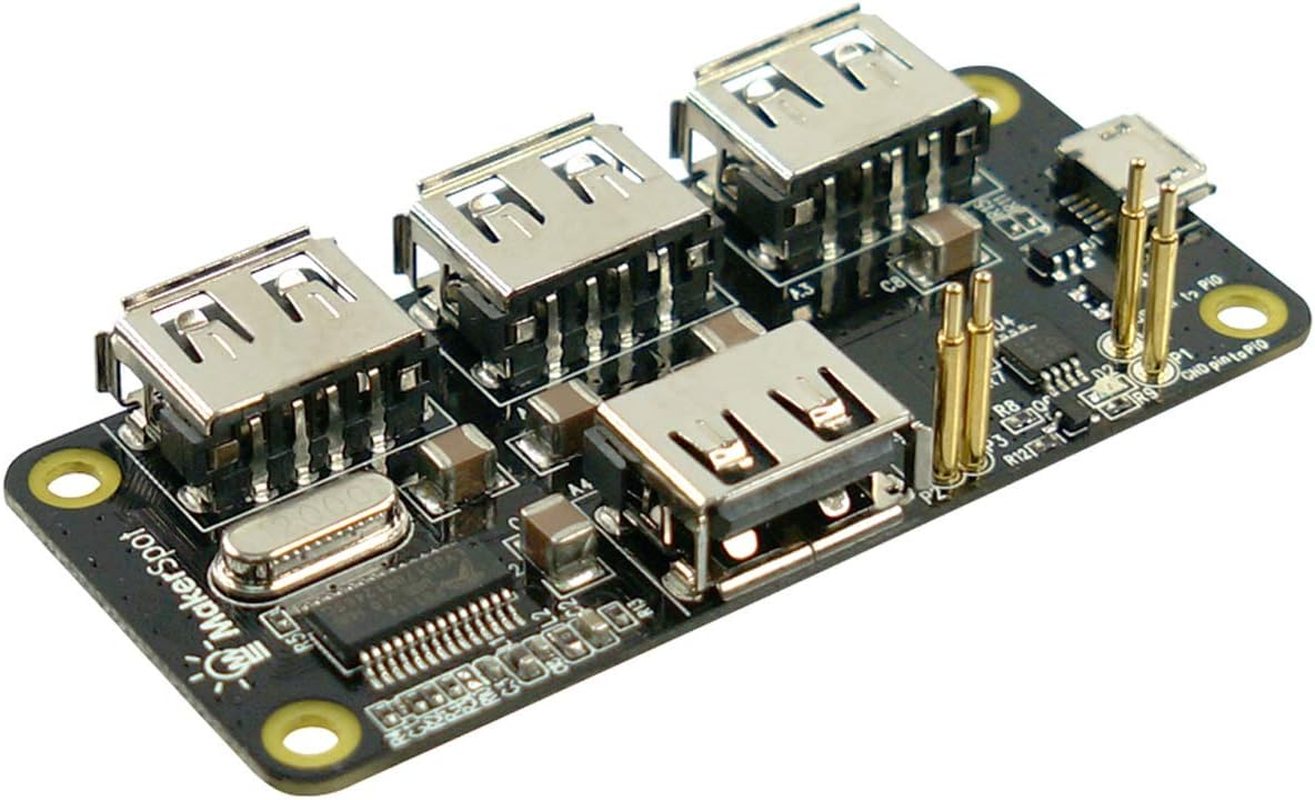

4-Port Stackable USB Hub HAT for Raspberry Pi Zero V1.3 (With Camera Connector) and Pi Zero W /2W (With Bluetooth & Wifi)
Description
| Warranty Description | 1 Year Warranty |
| Total Usb Ports | 4 |
| Operating System | Raspberry Pi OS |
| Color | BH10128 |
| Hardware Interface | Ethernet, USB, USB 1.1, USB 2.0 |
| Brand | MakerSpot |
| Compatible Devices | Keyboards |
| Model Number | BH10128 |
| Item Weight | 0.02 Kilograms |
| Number of Ports | 4 |
| Data Transfer Rate | 480 Megabits Per Second |
| Mfr Part Number | BH10128 |
| Additional Features | Powered |
| Special Feature | Powered |
| Enclosure Material | Plastic |
| Manufacturer | MakerSpot |
- 4-Port USB 2.0 Plug-and-Play Hub. Compatible with USB 1.1 and 2.0 devices
- USB 2.0 High Speed, transfer rate up to 480Mbps. Gold-plated and low-resistance spring-loaded pogo pins
- Bus-powered from Pi Zero, or powered externally via the Hub's micro-USB port. Support maximum 2.3A current if powered by external USB charger
- Over current protection and LED indication if power rail draws more than 2.3A. 2-way back-power protection circuitry on Pi Zero connection path
- Raspberry Pi Zero shown in the photos is for illustrative purpose only and is not included in this offer.
Product description
This is a 3rd Gen! A Form Fitting USB Hub for Raspberry Pi Zero
Raspberry Pi Zero only comes with a single micro USB (OTG) port, forcing you to use a traditional USB HUB if you want to connect multiple USB peripherals to it. The whole set is bulky and inconvenient to carry around.
The Stackable USB Hub for Raspberry Pi Zero is the perfect way to expand the connectivity of the Raspberry Pi Zero and add keyboards, mice, WiFi dongles, Ethernet adapters and other USB devices. No wires and no soldering work needed. Simply mount the Stackable USB Hub under the Pi Zero using the bundled spacers, screws, bolts, and the Pi Zero will get 4 new USB 2.0 ports!. The Stackable USB Hub has been carefully designed with custom-made parts, so Pi Zero fits and stacks nicely on top on it. It also has built-in a 2-way back-powering circuit to protect against power being plugged into the Pi Zero and the Stackable USB Hub simultaneously.
USB peripherals can be power hungry. Grab an optional 5V 2.4A micro USB wall charger with 1.5M micro USB cable with power switch to ensure enough juice to power your projects. You can also use our Pi Zero protectors with the Stackable USB Hub.
Compatible with the latest Pi Zero v1.3 and Pi Zero W / Pi Zero 2 W!
- Modified spring loaded pogo pin locations to support the latest Pi Zero v1.3 (the one with the camera port) and Pi Zero W / Pi Zero 2 W.
- Pogo pins and the four supporting poles have been elongated to further increase the headroom between the Pi Zero board and the USB hub board, hence, longer header pins are allowed for the Pi Zero header.
- This stackable USB hub design is NOT compatible with the older Pi Zero v1.2 (without the camera port). If you are looking for the hub version compatible with Pi Zero v1.2, check out the 2nd Gen Stackable USB Hub.
Note:
* Make sure the 4 pogo pins on the Hub Hat sits precisely and securely on the Pi Zero test pads PP1, PP6, PP22 and PP23
* Once the Hub HAT is installed, do NOT use any of the micro-USB ports on the Pi Zero, i.e always provide power through the Hub HAT and connect USB devices to the Hub HAT
* Make sure there is no OTG related driver installed in the OS that may interfere with the Hub HAT
* Cannot plug a powered Hub into any of the USB-A ports on the Hub HAT
* Make sure the power adapter used is powerful enough to drive the Pi Zero as well as the attached USB devices. 5V2A or above will be a good choice.
