Industrial 8-CH Analog Output Module 12-bit DA Conversion Modbus RTU Protocol

Popular

    Product Introduction

    Product Features:
    1. Industrial-grade 8-channel synchronous analog output, supporting both current and voltage modes
    2. Supports 12-bit high-precision DA conversion with an error of only ±0.03 mA/±0.01 V
    3. Wide-range DC 7–36 V power supply with dual isolation via on-board power supply and magnetic coupling
    4. Built-in TVS, self-resetting fuse, and watchdog for industrial-grade protection
    5. Suitable for PLC systems, sensor calibration, and industrial process control applications

    Product Specifications
    This product is an industrial-standard analog output module supporting 8-channel synchronous output. It utilizes the Modbus RTU protocol and features built-in protection circuits such as power isolation, optocoupler isolation, self-resetting fuses, and TVS diodes.

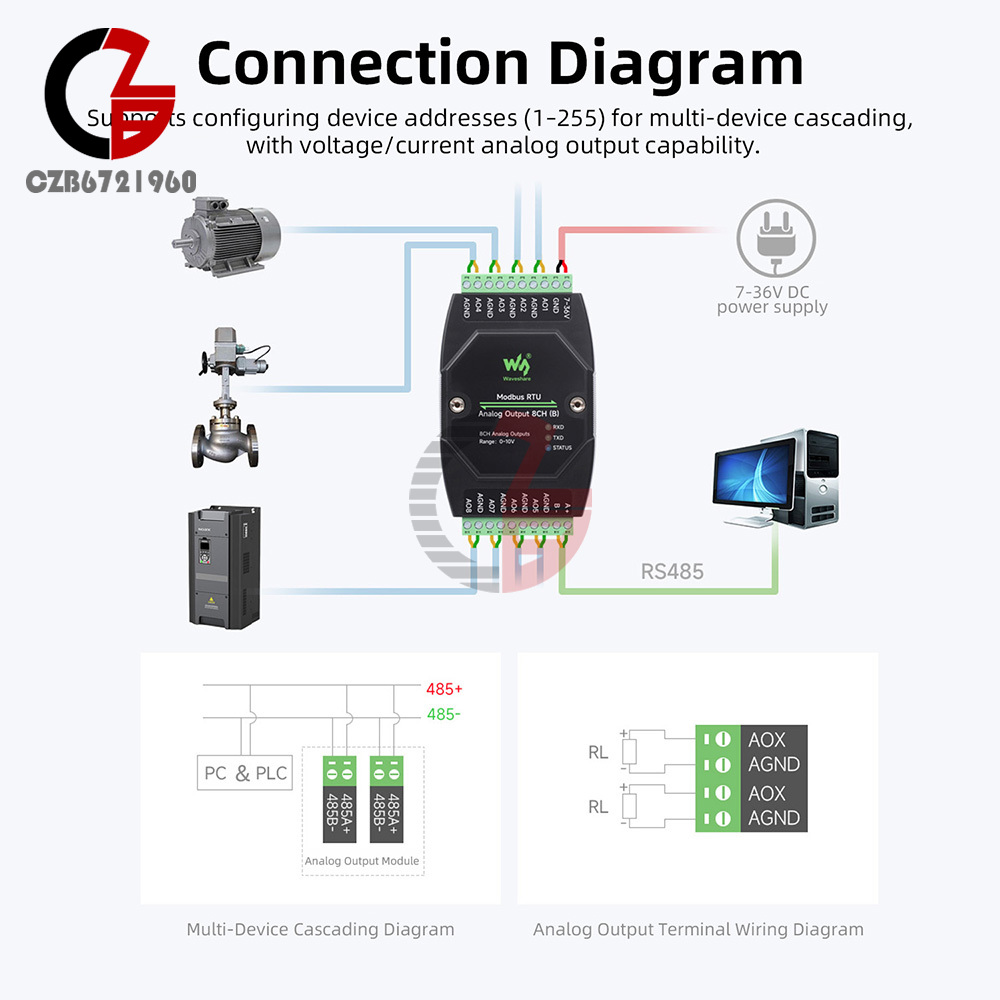

    Supports device address configuration (1–255) to allow cascading multiple devices via the RS485 bus

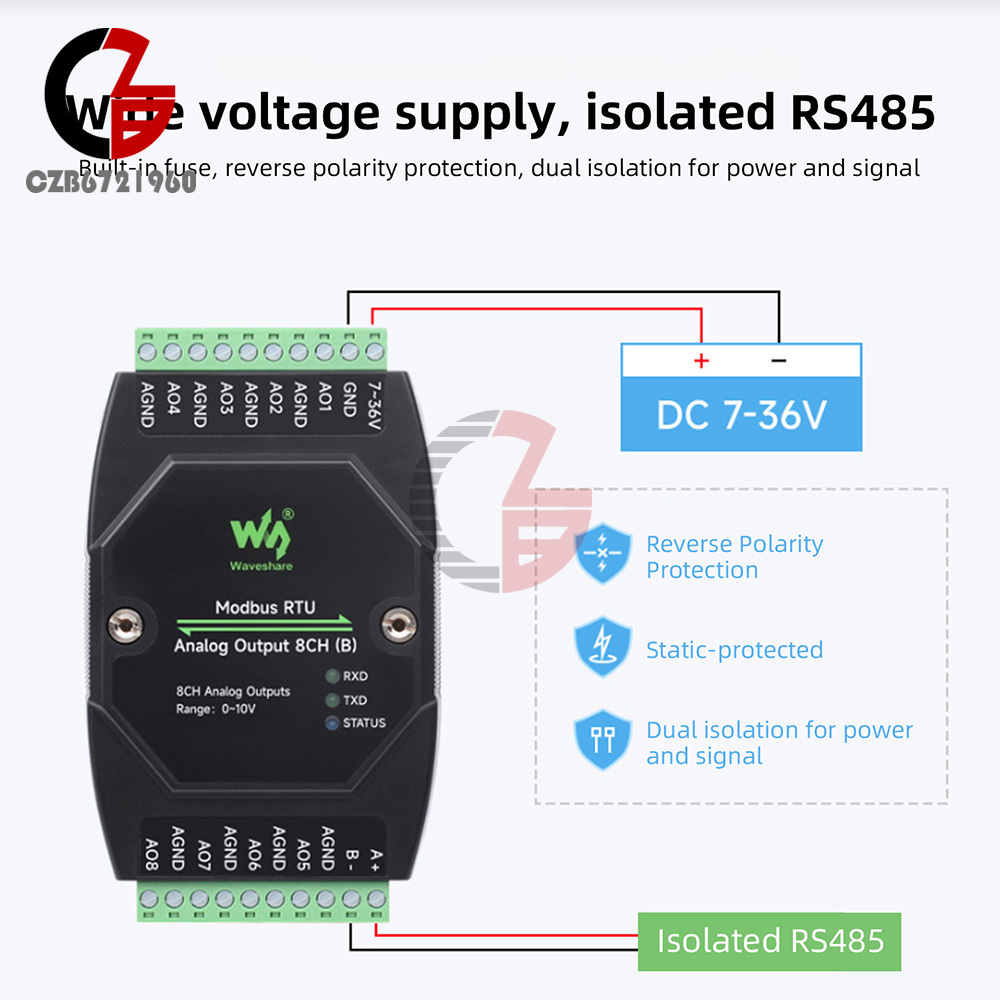

    On-board voltage regulator chip supports a wide input voltage range of 7–36 V
    On-board integrated power isolation provides a stable isolated voltage; no additional power supply is required for the isolated output
    On-board integrated optocoupler isolation ensures signal isolation with high reliability and strong anti-interference capabilities

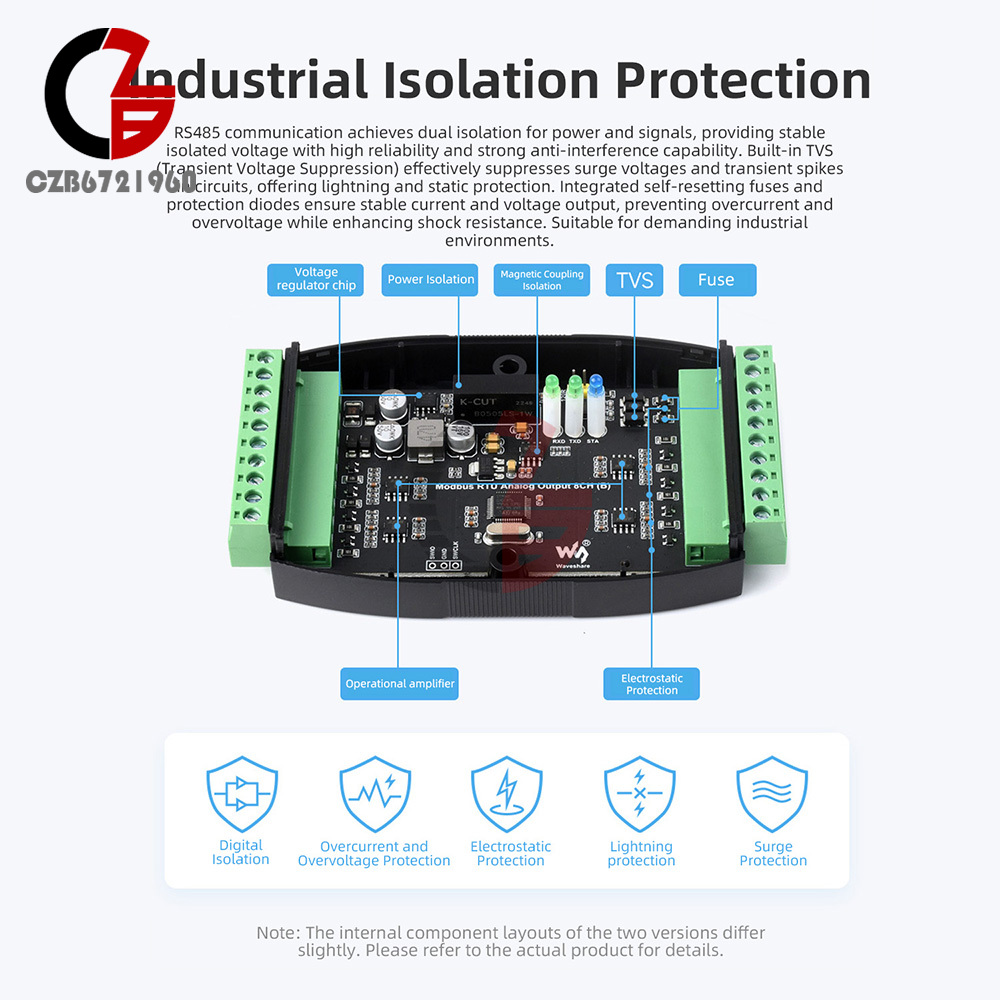

    On-board self-resetting fuses and TVS (Transient Voltage Suppressors) effectively suppress surge voltages and transient spikes in the circuit, providing protection against overcurrent, overvoltage, lightning, and static electricity
    12-bit DA conversion using high-precision resistors ensures more accurate output data
    Built-in watchdog ensures stable output and prevents system crashes

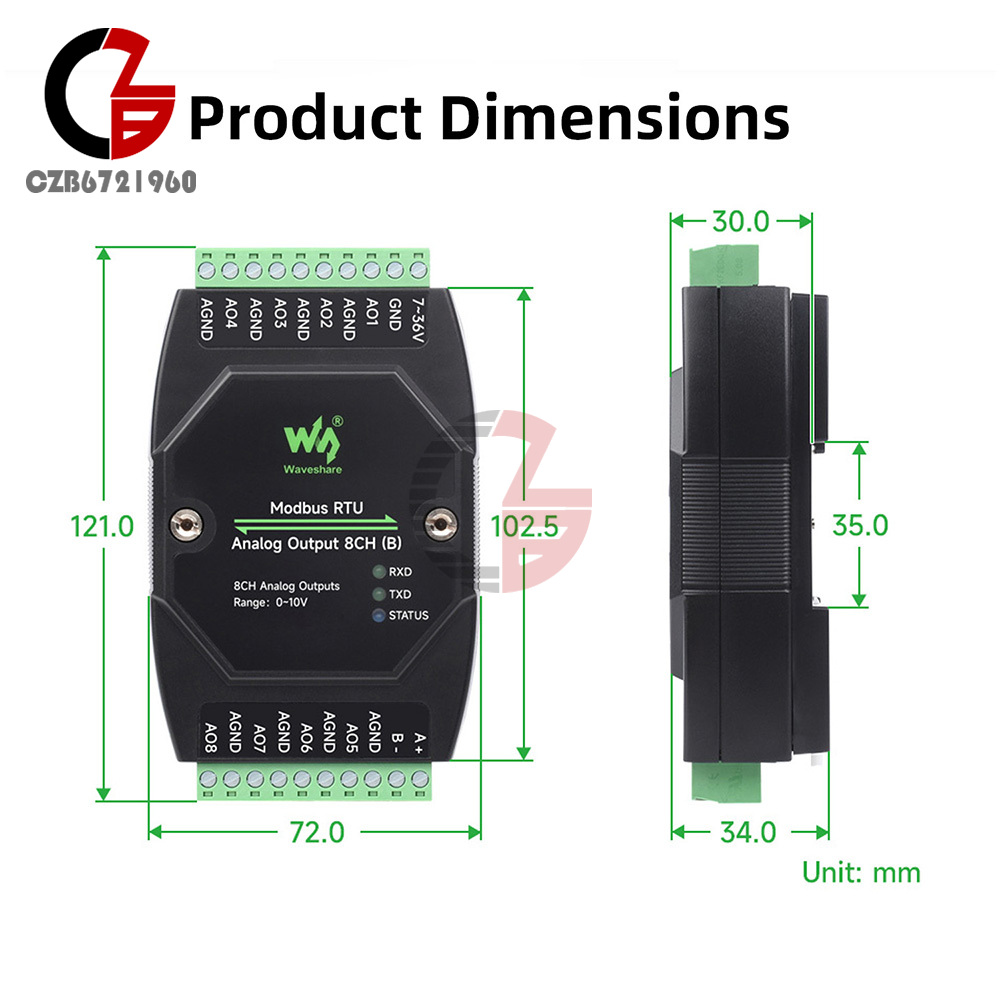

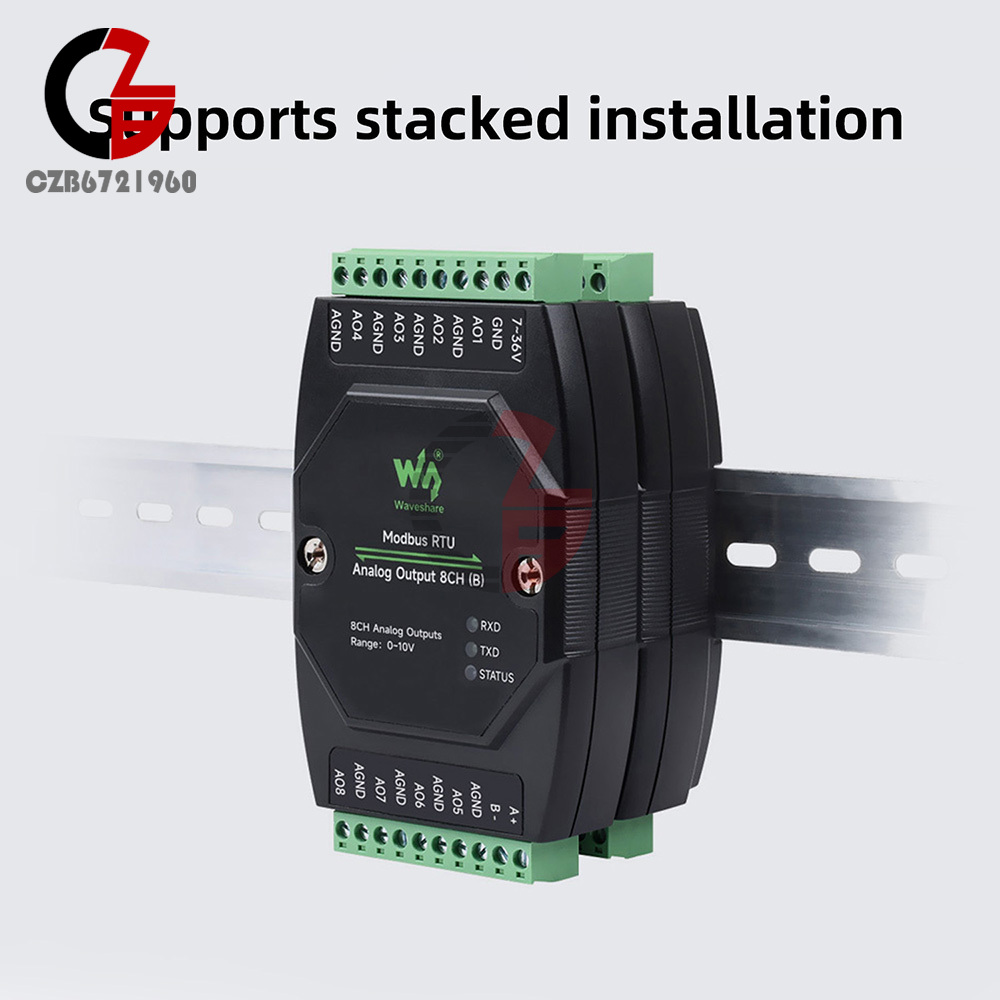

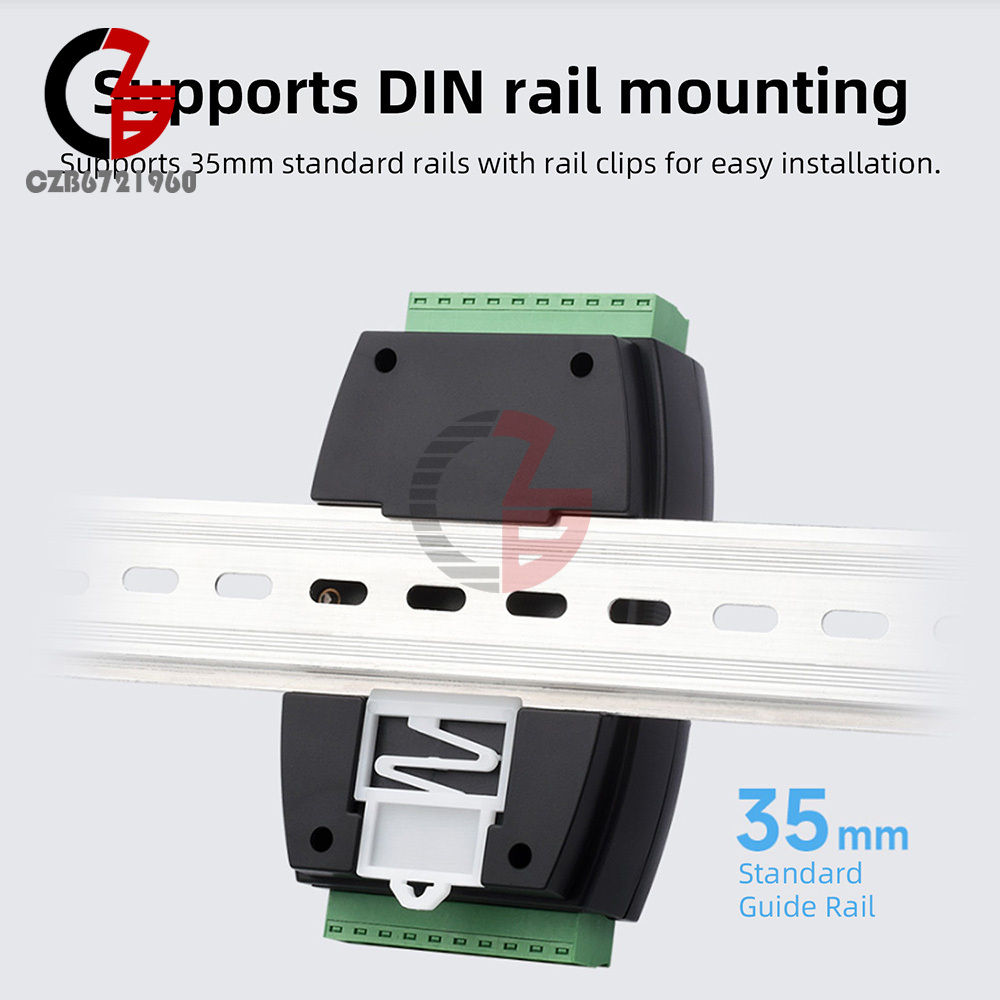

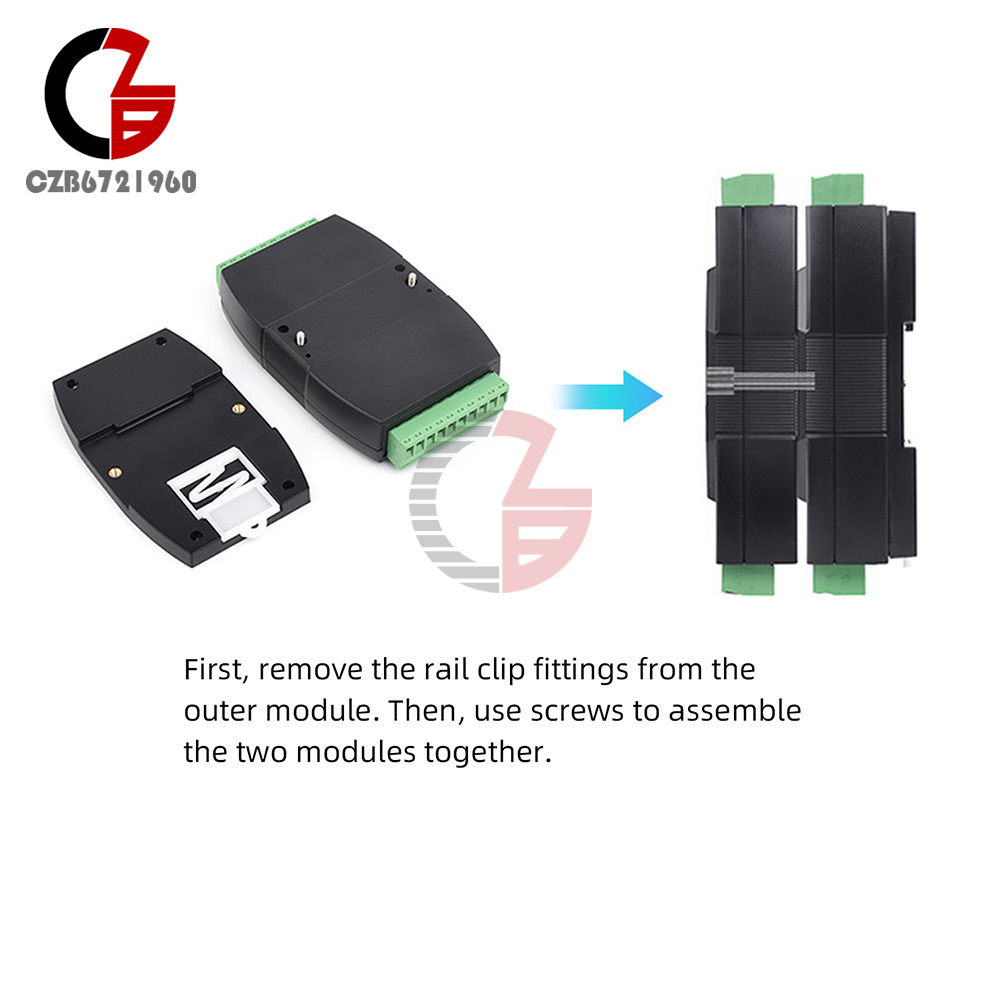

    DIN-rail housing design supports stacking and combination, ensuring easy installation and safer operation

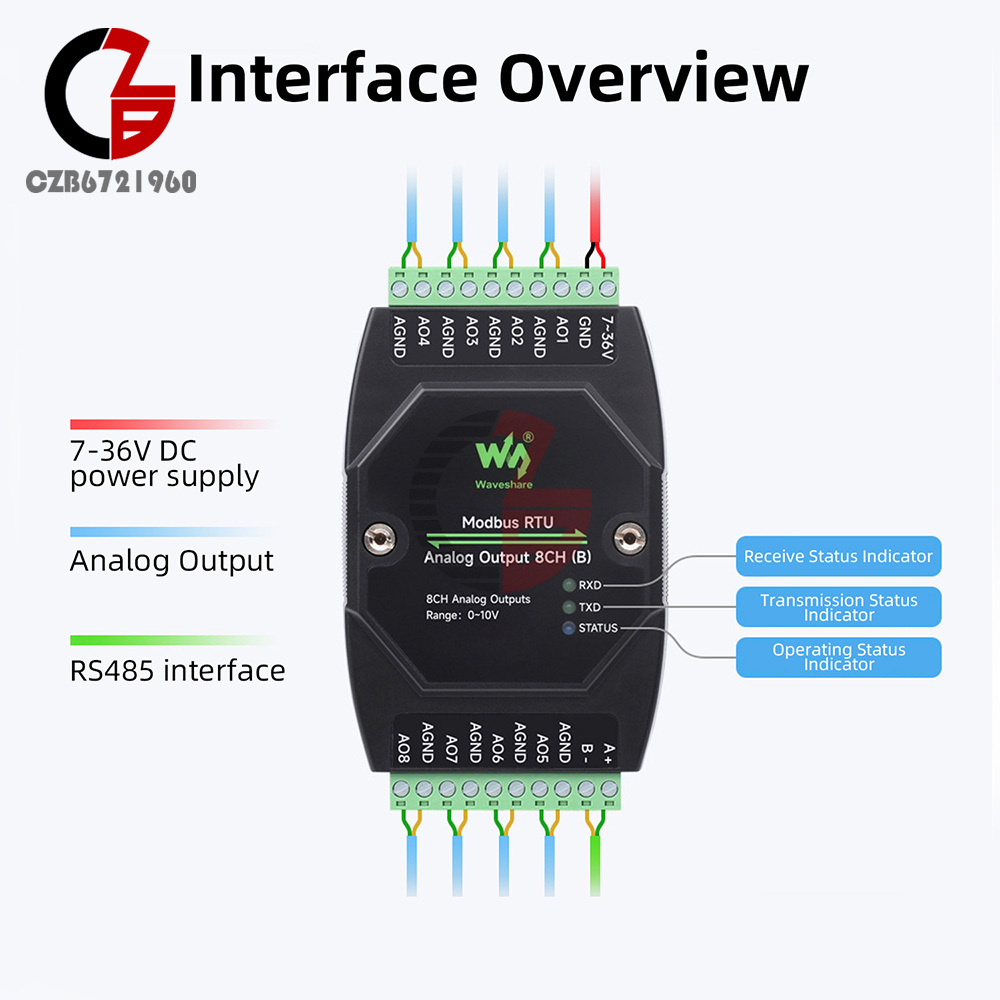

    Three external LED indicators facilitate monitoring of MCU status and signal transmission/reception status

    Product Specifications:

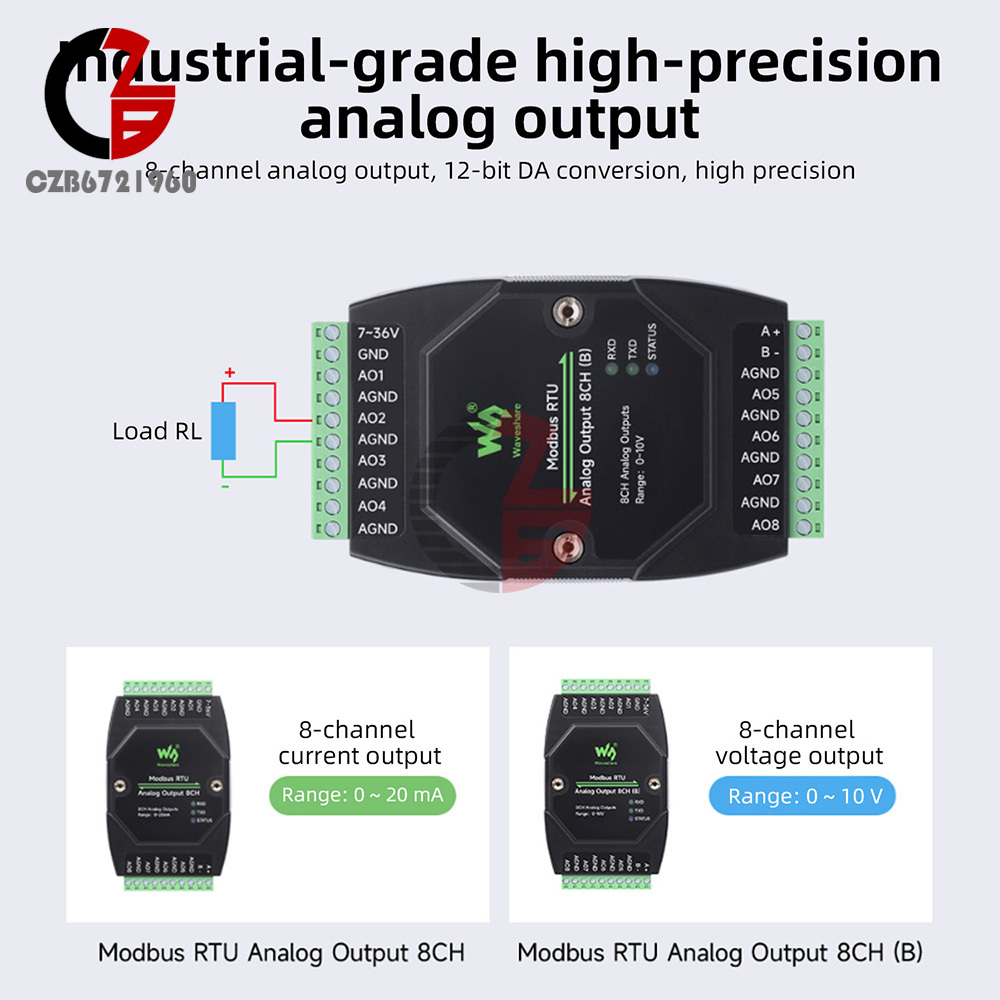

    Model Output Mode:
    Current Output, Range: 0–20 mA
    Voltage Output, Range: 0–10 V
    Communication Interface: RS485
    Communication Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
    Default Communication Format: 9600, N, 8, 1
    Modbus Protocol: Standard Modbus RTU Protocol
    Supply Voltage: DC 7–36 V
    Output Modes: 8-channel current output; 8-channel voltage output
    Resolution: 12-bit, 1 μA; 12-bit, 1 mV
    Range: 0–20 mA; 0–10 V
    Output Accuracy: ±0.03 mA; ±0.01 V
    Basic Functions: Supports sending Modbus RTU protocol commands via RS485 to output 0–10 V / 0–20 mA sensor data

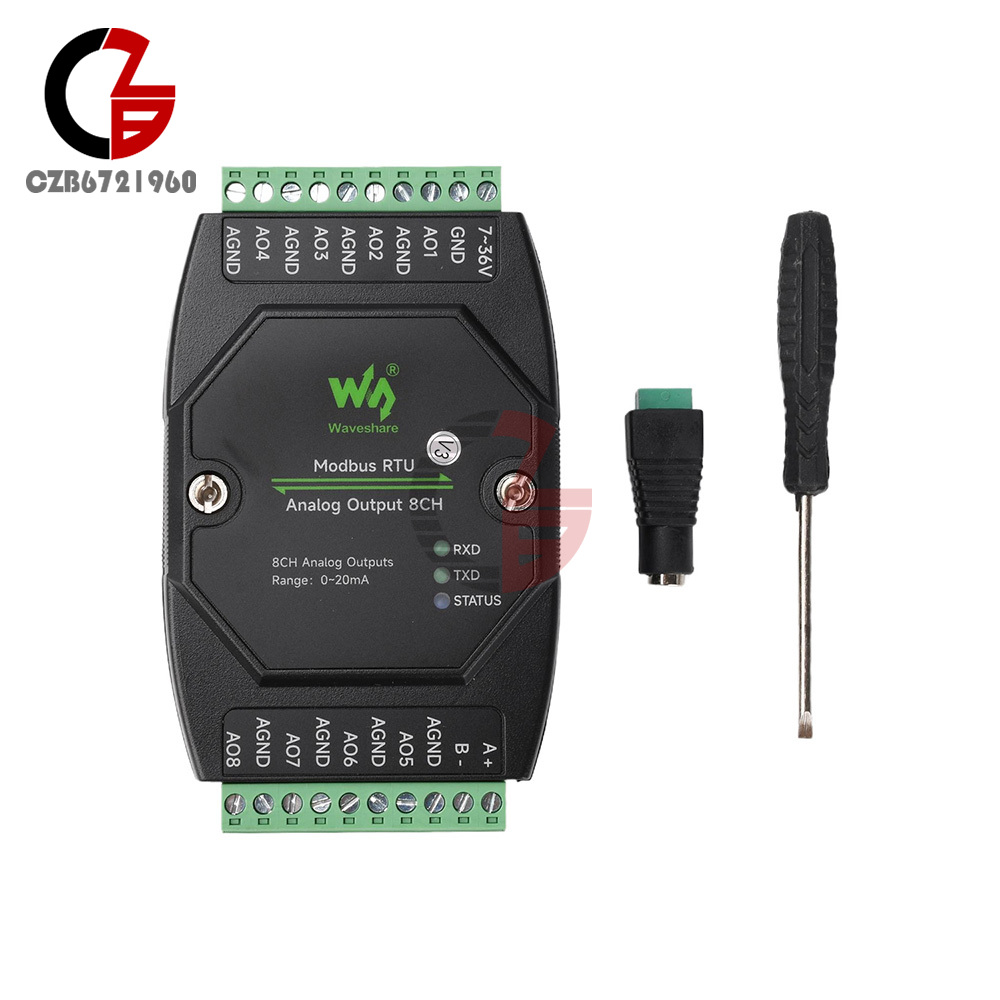

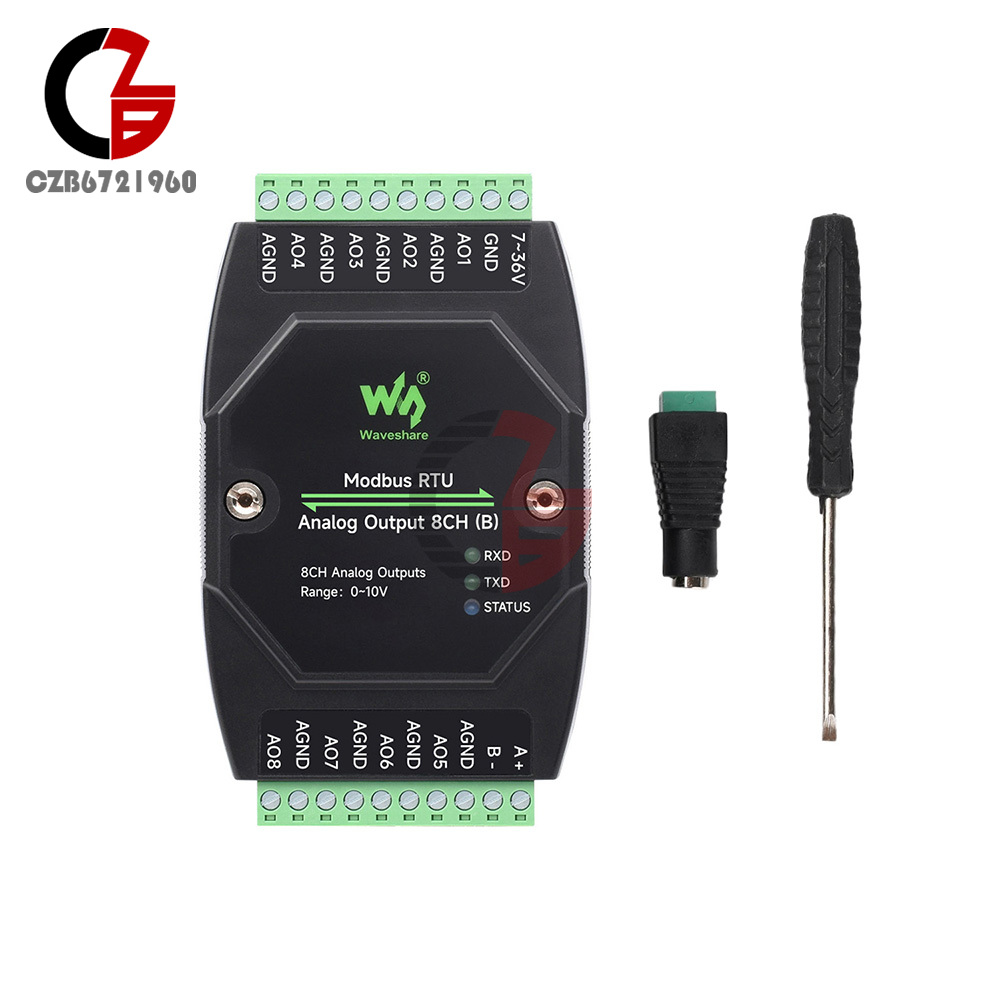

    Product List:
    8-Channel Output Module * 1
    Power Adapter * 1
    Screwdriver * 1
