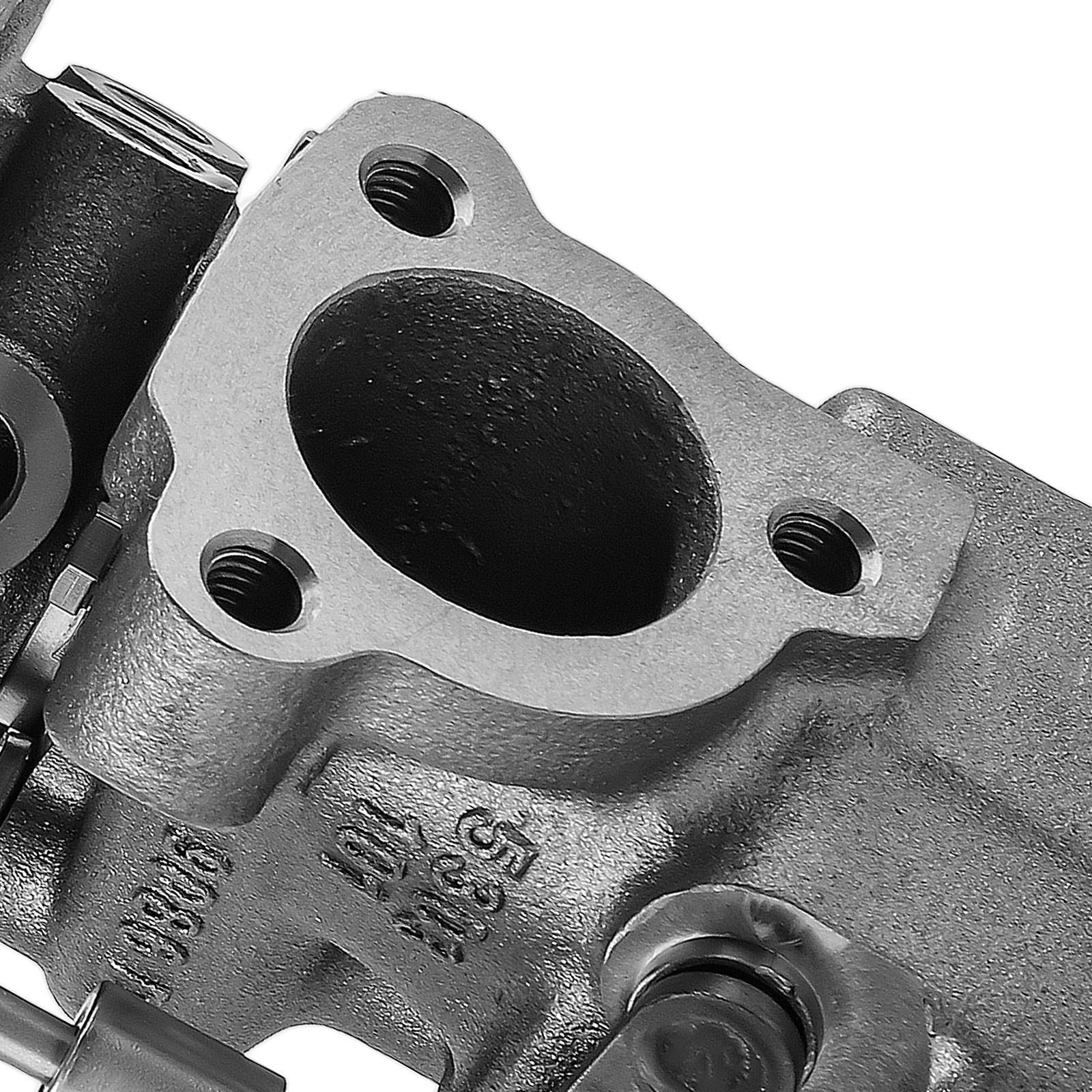

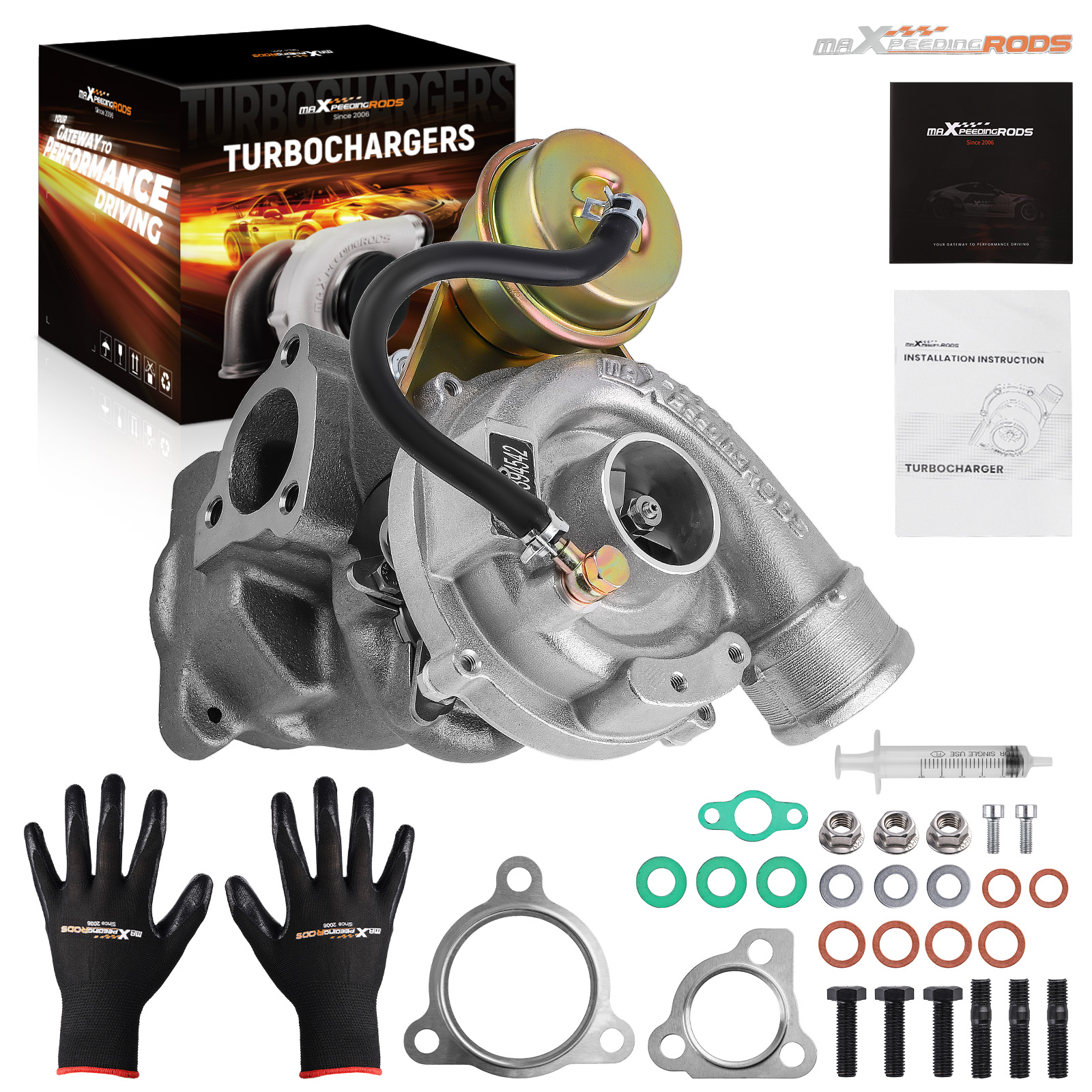

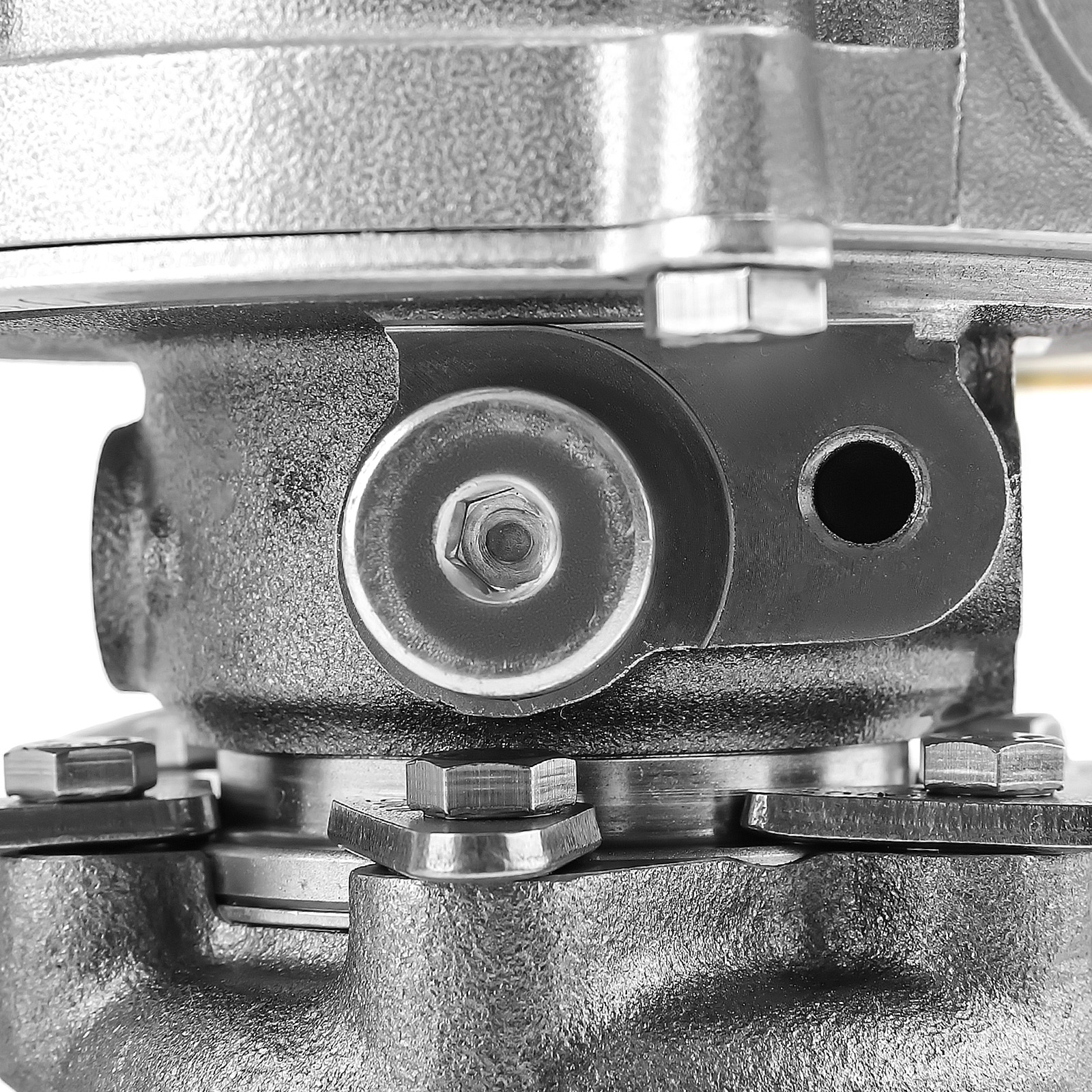

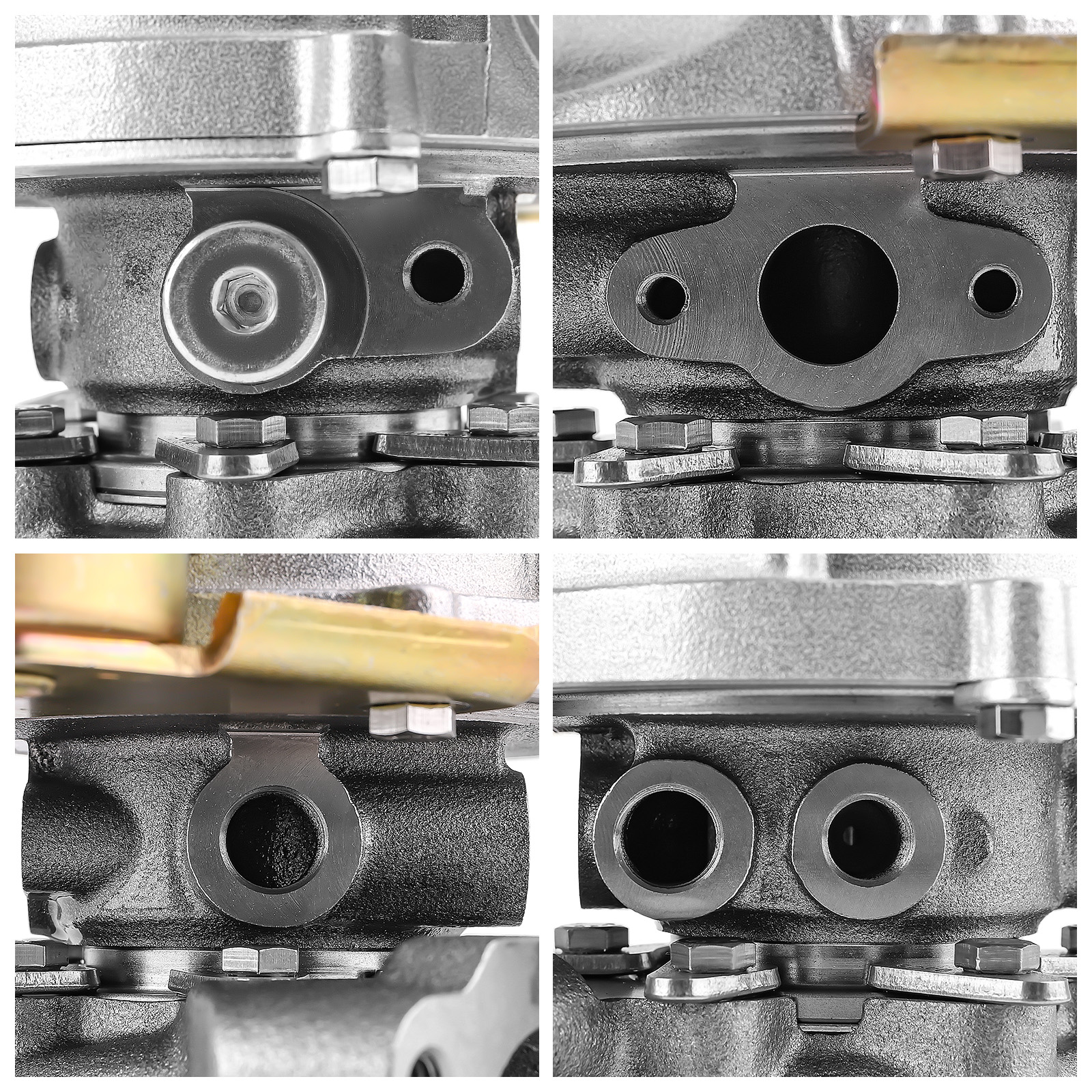

K04 Turbocharger for VW PASSAT 1.8T for Audi A4 058145703L 53049880015 K04-015
Most
Competitive Price
Manufacturer
We know our products
Easy Return
Quick, Simple
Guaranteed Fitment
Always the correct part
Description
Notice:Please double-check the OE number before purchase to ensure fitment. You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.
Application
for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ 1999 -
for Audi A4 Upgrade 1.8T 1995 -
for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T upgrade 1999 -
Turbo Model: K03 upgraded, K04
Engien Code: AEB/ANB/APU/AWT/AVJ
Cooling Type: Water & Oil Cooled
Bearing Type: Floating Bearing
Hosepower: Up to 220HP
Thrust Bearings: 270 Degrees
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 31*28*24cm
Package Weight: 5300g
Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet: 50 mm
Blades: 4 x 4 blades type Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange
Feature:
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Shipping
US Domestic Shipping Notice - All items will be dispatched within 24hrs(Mon-Fri)
Our carrier collects all the parcels at 4:30am PDT, any payment paid after 5:00am PDT will be shipped the next day at 4:30am PDT.
If you paid
Item Shipped On
Est.Delivery Time
Before Apr. 1st at 4:30am
Apr. 1st at 5:00am
Apr. 5th - Apr. 7th
After Apr. 1st at 4:30am
After Apr. 1st at 4:30am
Apr. 6th - Apr. 8th
If our estimated delivery time and eBay’s are contradictory,please refer to the standard delivery time of ours.
Estimated Delivery Time
From
To
Service
Est.Delivery Time
US
US
UPS or Fedex Ground
3-5 Business days
Outside of US
DHL FedEx
4-7 Business days
Tracking number will be updated in 24 hours after shipment
— Please provide the following shipping information for your order —
Full physical address
Telephone number
Otherwise your shipment will be deferred. We are not responsible for any shipping lost caused by wrong shipping information
Shipping rate
If our ebay item listing doesn't show the shipping cost to your place.Please contact us to calculate the shipping fee for you.
International Shipment
For international shipment, we do not cover any import taxes or duties. Import tax is charged by the government, not us. Our item price and shipping cost do not include any import tax which will be charged by the shipping company when you got the parcel. Please be noted that is not the extra shipping fee.
NO hidden charge!!!
Warranty
We aim to provide you the good buying experience, 30 days return policy is offered in our store. Please follow our return policy before you return any item(s):
If you are unhappy with your purchase for any reason, you can return it to us in an un-used condition in the original packaging within 30 days of purchase and we'll give you a refund or exchange. The refund/Exchange will not include postage/eBay costs. Please note you MUST contact us to obtain a Return Authorization Number before returning any part. Any parcel without the Return Authorization Number will be rejected.
If your item is faulty or was incorrect, you must contact our sales representative before returning the parcel and we will endeavour to solve the problem effectively. Video or picture is required to show the item condition before we issue the Return Authorization Number.
Important notice
1. Any returned item(s) without Return authorization number will be rejected.
2. Please return your item(s) in original packaging and ensure that all packages are securely wrapped
3. We will not accept responsibility for loss or damage of goods during transit, please ensure that the insurance cover option is taken where possible
4. Upon receipt, all products will be inspected at our discretion in 3-5 business days. Then, the updated result will be informed.
If you have made a mistake on purchase and wish to cancel the order before it is dispatched please contact us by ebay message as quickly as possible.
Note
All parcel will be collected by carrier at 8:00am on Monday to Friday.
FAQ
Will this fit my car?
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For US domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 5-10 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
WHY CHOOSE US
Fast Shipping
International Shipping
30 Days Return Policy
Secure Shopping
K04 Turbocharger for VW PASSAT 1.8T for Audi A4 058145703L 53049880015 K04-015
Most
Competitive Price
Manufacturer
We know our products
Easy Return
Quick, Simple
Guaranteed Fitment
Always the correct part
Notice: Please double-check the OE number before purchase to ensure fitment. You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.
Application
for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ 1999 -
for Audi A4 Upgrade 1.8T 1995 -
for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T upgrade 1999 -
Part Number
53039880005, 53039700005,
53039880013, 53039700013,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
53049880015, 5304-988-0015, 5304 988 0015,
53049700015, 5304-970-0015,5304 970 0015,
058145703L, 058145703LX, 058145703LV,
058145703K, 058145703KX, 058145703KV
058145703N,058145703NX , 058145703NV,
058145703Q，058145703QX,058145703QV
058145703B, 058145703C, 058145703D
058145703E, 058145703H,
Specification:
Turbo Model: K03 upgraded, K04
Engien Code: AEB/ANB/APU/AWT/AVJ
Cooling Type: Water & Oil Cooled
Bearing Type: Floating Bearing
Hosepower: Up to 220HP
Thrust Bearings: 270 Degrees
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 31*28*24cm
Package Weight: 5300g
Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet: 50 mm
Blades: 4 x 4 blades type
Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange
Feature:
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Shipping
US Domestic Shipping Notice - All items will be dispatched within 24hrs(Mon-Fri)
Our carrier collects all the parcels at 4:30am PDT, any payment paid after 5:00am PDT will be shipped the next day at 4:30am PDT.
Estimated Delivery Time
Tracking number will be updated in 24 hours after shipment
— Please provide the following shipping information for your order —
Otherwise your shipment will be deferred. We are not responsible for any shipping lost caused by wrong shipping information
Shipping rate
If our ebay item listing doesn't show the shipping cost to your place.Please contact us to calculate the shipping fee for you.
International Shipment
For international shipment, we do not cover any import taxes or duties. Import tax is charged by the government, not us. Our item price and shipping cost do not include any import tax which will be charged by the shipping company when you got the parcel. Please be noted that is not the extra shipping fee.
NO hidden charge!!!
We aim to provide you the good buying experience, 30 days return policy is offered in our store. Please follow our return policy before you return any item(s):
If you are unhappy with your purchase for any reason, you can return it to us in an un-used condition in the original packaging within 30 days of purchase and we'll give you a refund or exchange. The refund/Exchange will not include postage/eBay costs. Please note you MUST contact us to obtain a Return Authorization Number before returning any part. Any parcel without the Return Authorization Number will be rejected.
If your item is faulty or was incorrect, you must contact our sales representative before returning the parcel and we will endeavour to solve the problem effectively. Video or picture is required to show the item condition before we issue the Return Authorization Number.
1. Any returned item(s) without Return authorization number will be rejected.
2. Please return your item(s) in original packaging and ensure that all packages are securely wrapped
3. We will not accept responsibility for loss or damage of goods during transit, please ensure that the insurance cover option is taken where possible
4. Upon receipt, all products will be inspected at our discretion in 3-5 business days. Then, the updated result will be informed.
If you have made a mistake on purchase and wish to cancel the order before it is dispatched please contact us by ebay message as quickly as possible.
All parcel will be collected by carrier at 8:00am on Monday to Friday.
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For US domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 5-10 business days.
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
Other items you might also like
H-Beam Connecting Rods ARP 2000 For VW Audi S3 A3 A4 A6 TT 1.8T Engines 144/20mm
Titanizing Connecting Rods ARP 2000 Bolts For VW Golf Gti Audi A3 A4 A6 1.8T TUV
Titanized Connecting Rods Conrod for Audi A3 A4 A6 S4 TT 1.8 Turbo 144mm 19mm
4X Connecting Rods fit VW Golf MK4 Passat Audi TT1.8T 144mm 19mm Pin ARP Bolt
Rear Driveshaft Assembly for Audi A4 Quattro 1.8L 3.0L 3.2L 2002-2008 936-650
4340 I-Beam Connecting Rods For Audi VW EA888 2.0L TSI Gen 3 Engine ARP 5.669"
Cylinder Head Assembly for VW Jetta Beetle Passat Golf Audi A4 TT 058103351G

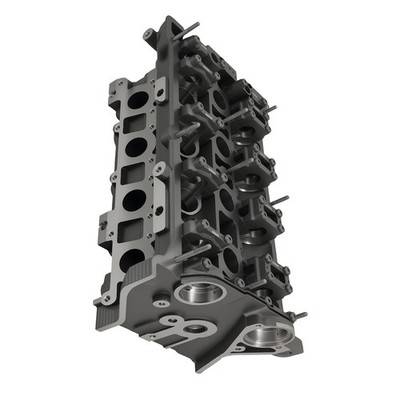

Aluminum Bare Cylinder Head for VW Jetta Beetle Passat Golf Audi A4 TT 1.8T 20V
