Wireless Universal Air Spring Bag Compressor Controller Kit For Motorhome Pickup

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

The electronic controller kit allows you to adjust the air springs from inside and outside the cab using a handheld remote controller or phone, eliminating the need for wiring and drilling holes in the cab. Moreover, it can be pre-set to meet your needs in different situations. At the same time, it can be used with any brand of air spring bags.

Wireless Control and Worry-free to Use:

———————————————————

Adjust your suspension system with great convenience via a Bluetooth-enabled mobile app and remote controller in hand, inside or outside your vehicle, allowing on-the-go adjustments for a seamless ride.

Even if your phone does not have data or wifi or singal, you can still control the compressor via our Bluetooth-enabled app. And when the command is being executed and you switch apps, the command will continue without interruption.

The connection signal between the remote control and the application APP is very stable within a range of about 20 meters from the vehicle.

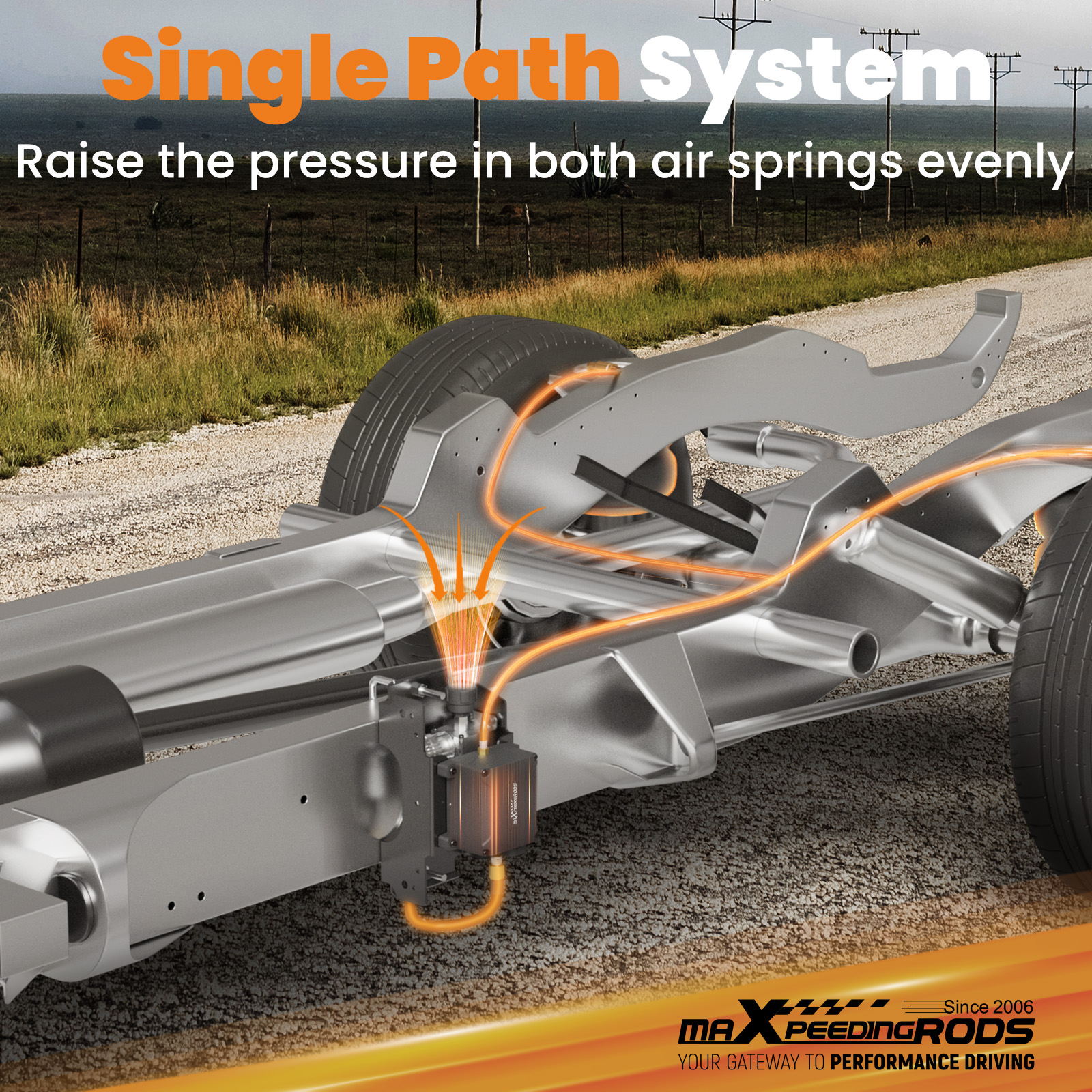

When your truck carries a heavy load or tows a trailer that requires additional ground clearance, this single path system will equally distribute air pressure to the air springs, you can enjoy a smooth ride and say goodbye to complicated manual adjusting.

Customize your ride experience with three programmable user-defined presets. Tailor and save your preferred settings for a unique, personalized ride every time, one touch pressure adjustment puts the power of air at your fingertips

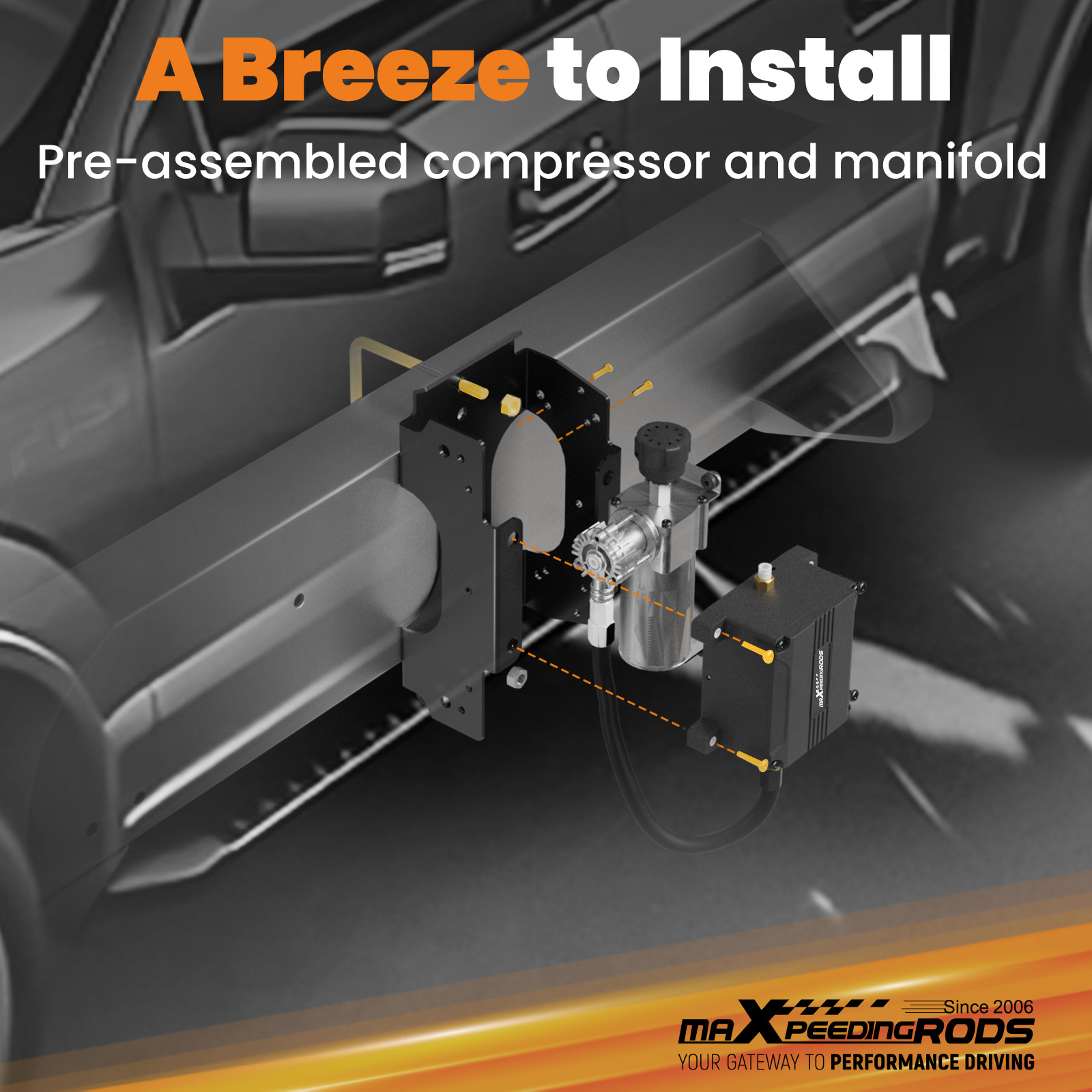

With compressor and manifold pre-assembled into one bracket, our compressor assembly is capable of being installed both vertically and horizontally to adapt to your vehicle's specific layout

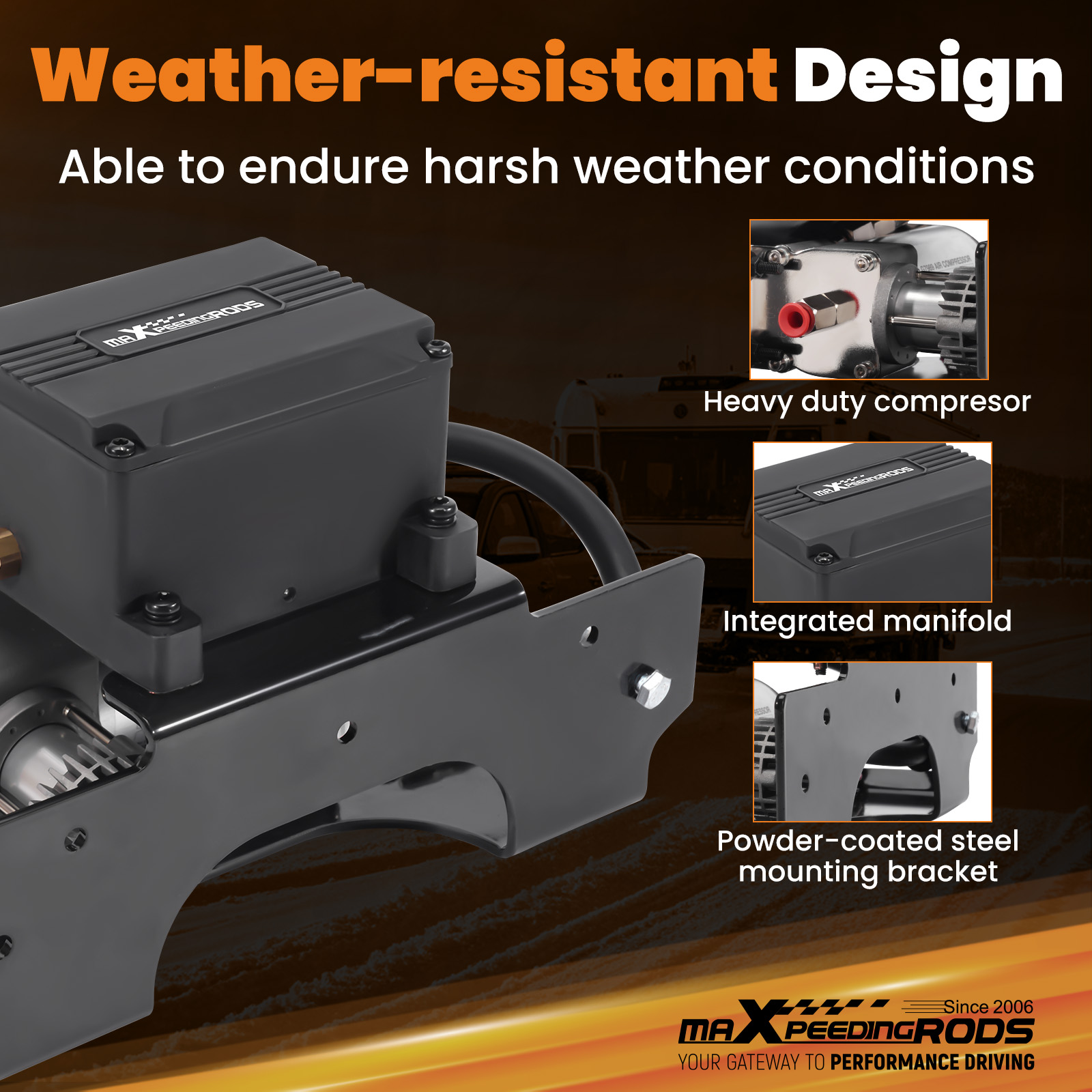

Engineered with a heavy-duty, waterproof compressor, ensures long-lasting performance in any weather conditions. With up to 120 psi pressure output, inflates faster and more efficiently

Specifications

Condition	Brand New
Maximum air pressure	120 PSI
Recommended working range	40 - 70 PSI
Application	Universal
Instruction	Included

Appliation

——————————

Universal Fit For Most 1/2, 3/4 And 1 Ton Pickups And Vans

For Ford Ranger Mazda Mitsubishi Isuzu Toyota Hilux Landcruiser etc.

Notice: Air Spring Bag is not included

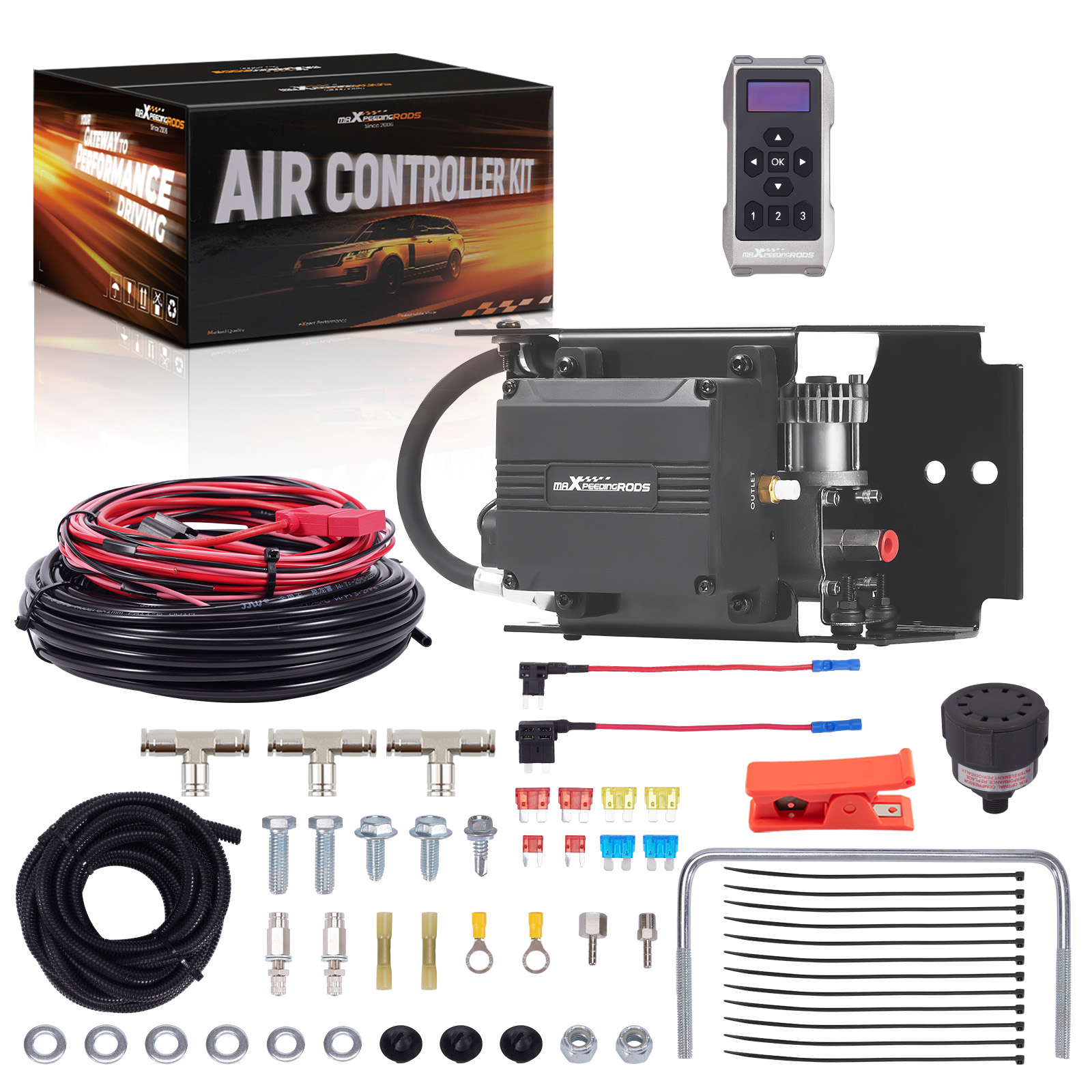

Package Includes:

1 x Compressor control system assembly

1 x Wireless controller

1 x Air Line φ6*1 (12M)

1 x Air filter

1 x Wire harness (6 M)

1 x Relay harness (1M)

3 x T Connectors

And some other accessories

Notice:

- Instruction is included. Professional installation is recommended

- Contact us please for whatever we can help

Notice:

1. All modifications must be performed by qualified personnel and in compliance with your local modification regulations.

2. It is important to read and understand the installation instruction before you install it.

3. Press any button for 3S to activate the wireless controller, and the screen will display the last working pressure.

4. Before using the remote control, be sure to install the batteries, which are included in the accessories.

5. After downloading the APP, please make sure that the permission of Nearby devices is turned on. If it is not turned on, it will definitely crash directly.

6. To prevent the vehicle battery voltage from being drained, always operate this system with the ignition on.

FAQ

Q: Why does the kit need to have a power wire to the battery and one into the fuse panel? Do they do different things or could this be 1 wire?
A: The one connected to the fuse is needed to activate the system motherboard after the car is ignited, and the one connected to the battery is the power supply line of the air pump. They have different functions and both need to be connected.

2.
Q: Why does the compressor not run after receiving the inflate command?
A: The compressor duty cycle limits the compressor running time to ensure the life of the compressor. When the compressor exceeds or accumulates a running time of about 3 minutes, the system will not inflate, you need to turn off the engine and wait 10 seconds before restarting. Then, give the pressure setting command again, and the compressor will run normally. (The best way is to wait about 15 minutes before running the compressor again.)

3.
Q: Why is the connection signal not so good?
A: Please do not operate the remote control or mobile phone APP when there are obvious obstructions (such as direct blocking walls, large corners, large vehicles, or multiple vehicles).

4.
Q: Why does the air pump stop working before reaching the set air pressure?
A: In order to prevent the compressor from continuing to work due to air leakage, if the air pressure value does not rise by 10 psi within 30 seconds compared with before, the air pump will stop working and the ignition switch will be turned back on to resume normal function.

5.
Q: Will the system automatically inflate when the actual pressure is lower than the set pressure?
A: Yes. If the actual pressure is lower than the set pressure about 4psi, the system will automatically inflate. If the actual pressure is higher than the set pressure, no correction will be made.
