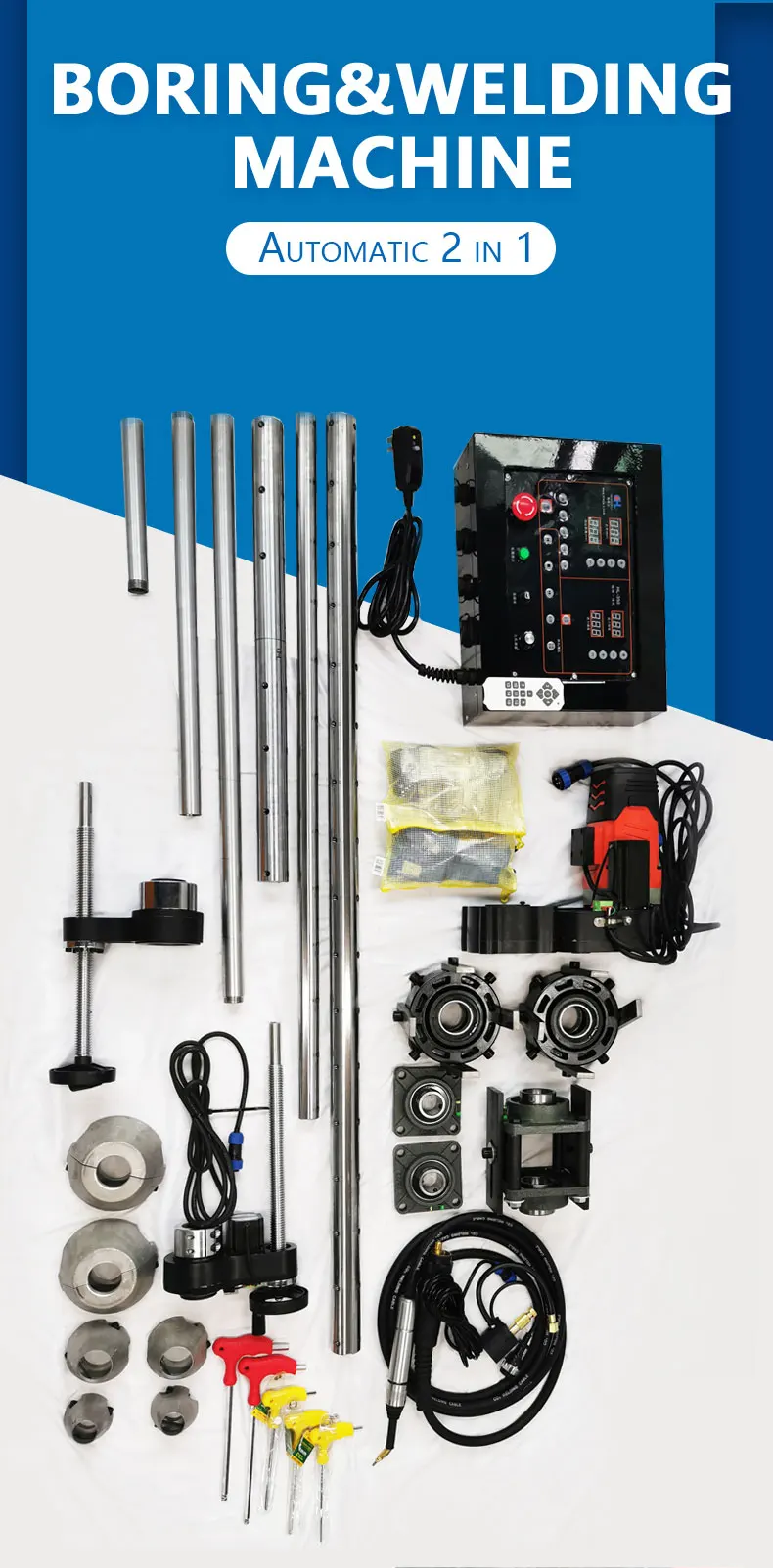

Automatic Portable 2 In 1 Line Boring and Bore Welding Machine excavator Repair Tools
Description:
1.HDL-350 Line Boring Machine is an automatic boring and welding integrated machine maintenance tool .It can repair and process the shaft holes and seat holes on the large and small arms of excavators.
Features: Light weight, Fast boring, Strong power, Easy to operate, High efficience, Universal fit for welder, Easy to fit in small working room, Cheap in price.

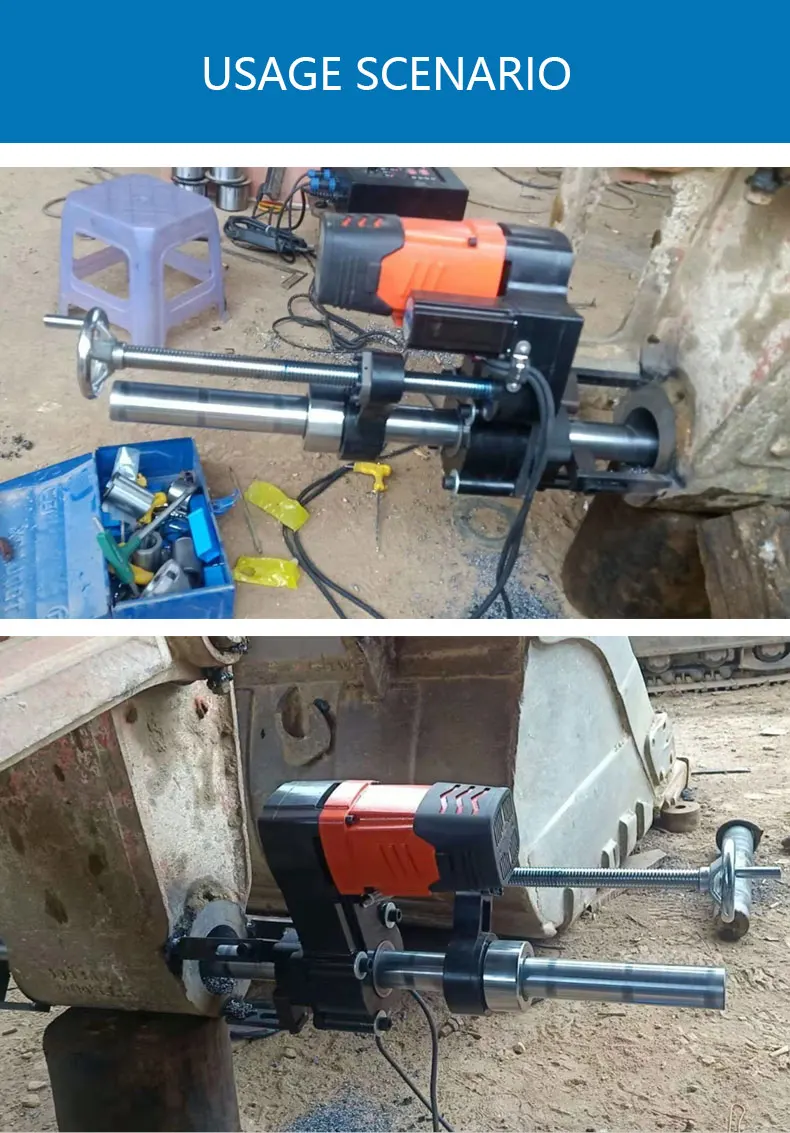

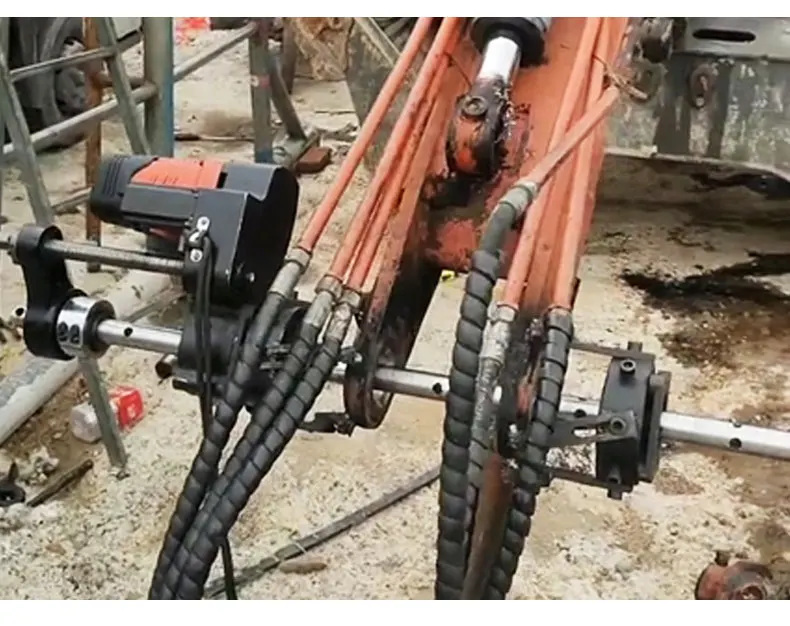

2.This machine tool set can be clamped on the large and small arms of the excavator for welding and hole repair, temporarily fixing the positioning cone on the position of the hole to be repaired, and automatically finding the center position.
3.The two processes of repair welding and hole repair can work alternately, just by replacing the boring bar and welding gun.This product has high processing accuracy, a tolerance of up to 0.01mm, and a diameter range of 37 to 150 for repair welding and boring.
Features: Light weight, Fast boring, Strong power, Easy to operate, High efficience, Universal fit for welder, Easy to fit in small working room, Cheap in price.
2.This machine tool set can be clamped on the large and small arms of the excavator for welding and hole repair, temporarily fixing the positioning cone on the position of the hole to be repaired, and automatically finding the center position.
3.The two processes of repair welding and hole repair can work alternately, just by replacing the boring bar and welding gun.This product has high processing accuracy, a tolerance of up to 0.01mm, and a diameter range of 37 to 150 for repair welding and boring.
4.This machine can be combined with various welding machines on the market, and the repair welding current can be adjusted according to the situation of individual welding machines.Only one person is required for operation, making it easier for maintenance personnel to operate the machine, greatly reducing the actual difficulty of operation.
|
Name
|
HDL-350 Boring and Welding Machine
|
|
Function
|
Boring + welding
|
|
Boring bar
|
35*1100mm x 1pcs 50*1500mm x 1pcs 50*500mm x 1pcs
|
|
Boring capacity
|
40-150mm 150-300mm (with extend holder)
|
|
Welding bar
|
35*900mm x 1pcs 35*600mm x 1pcs 35*280mm x 1pcs
|
|
Motor Power (kw)
|
4KW 220V
|
|
Rov speed (Variable)
|
50-350rpm
|
|
Boring Bar OD
|
35/50mm
|
|
Dimension(L*W*H)
|
90*43*22cm 152*23*24cm
|
|
Package
|
Wooden box
|
|
Weight
|
0.13 T
|
Title goes here.
1:Welding gun tail plate
2: Link rod
3: Cable
4: Rotating welding rod
5: locking nut
6: Goose tube
7: Conductive nozzle
8: Protective cap

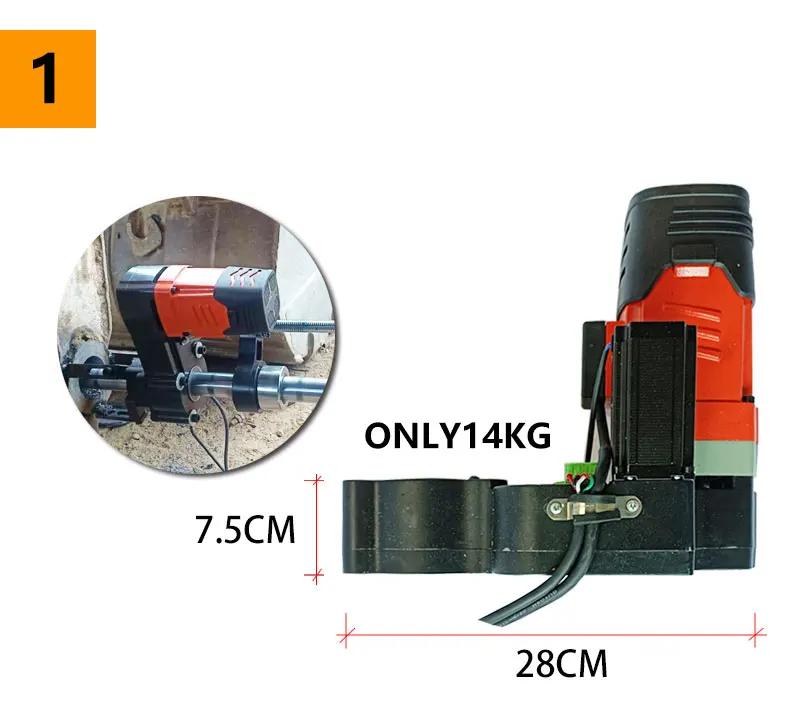

The motor weight is only 14kg, which can be easily operated by one person;
The thickness of the gearbox is only 7.5CM, making it easy to install in multiple locations;
Adopting a brush motor, it is easy to maintain in the later stage and has low cost.
The thickness of the gearbox is only 7.5CM, making it easy to install in multiple locations;
Adopting a brush motor, it is easy to maintain in the later stage and has low cost.

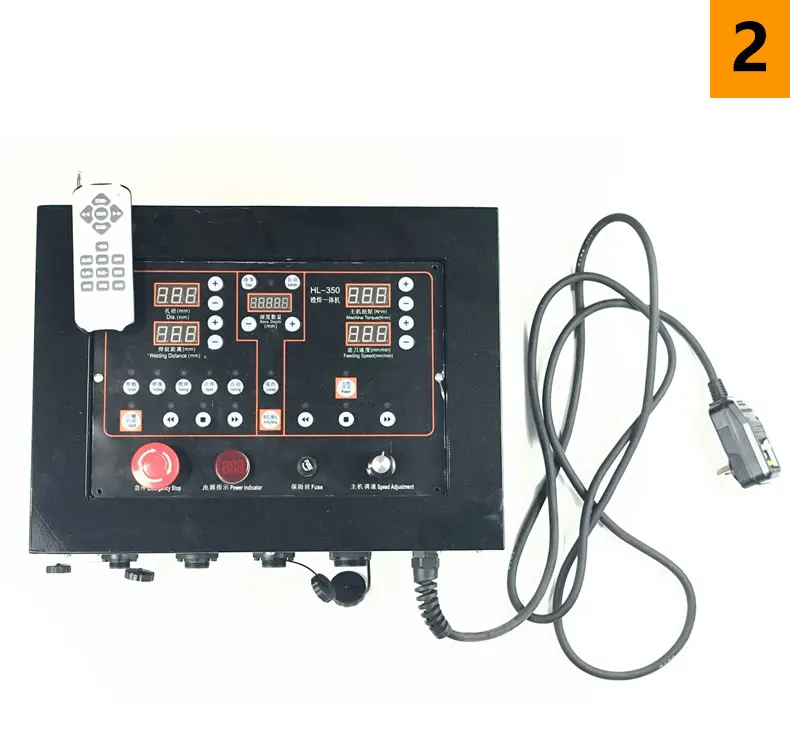

Adopting an intelligent control system, it can accurately control the welding and boring processes, and is equipped with a remote control for easy remote control

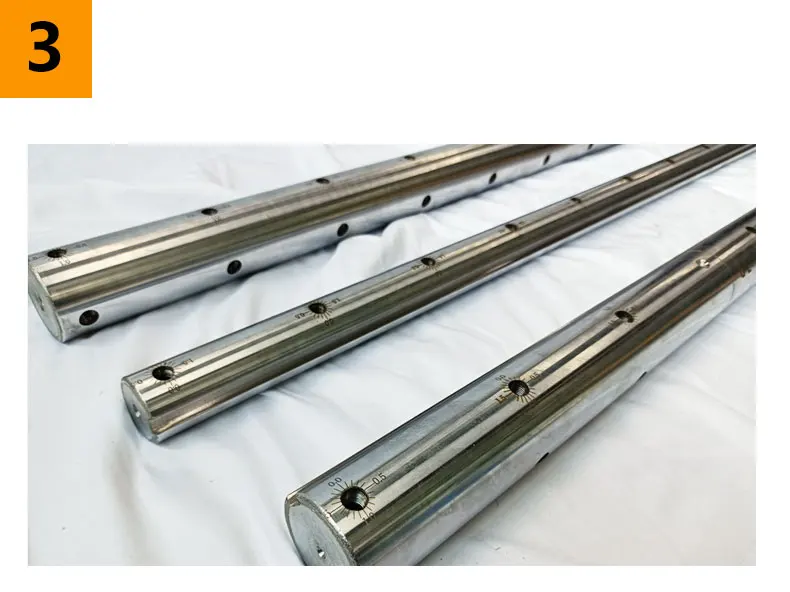

Adopting high-strength chrome plated rods with high boring accuracy and equipped with various specifications for easy use

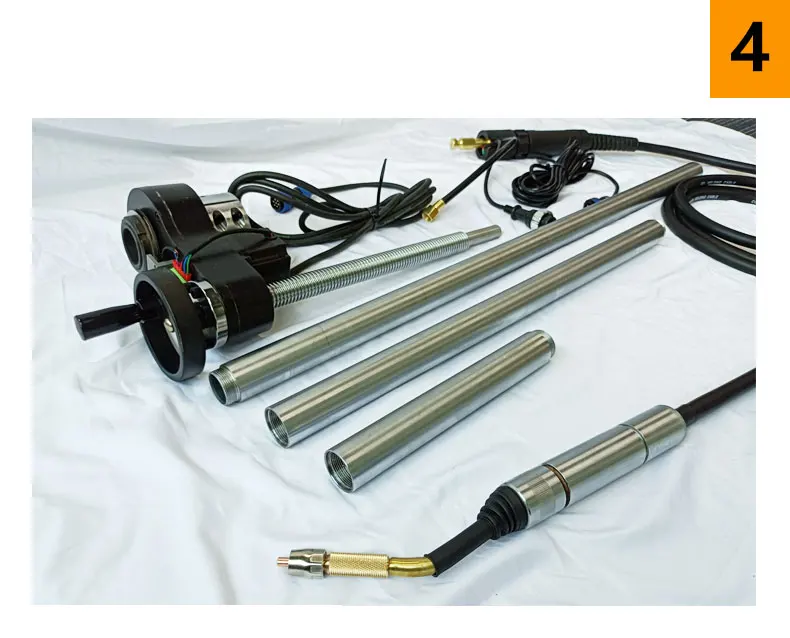

Highly compatible welding gun, replaceable adapter, compatible with various welding machines

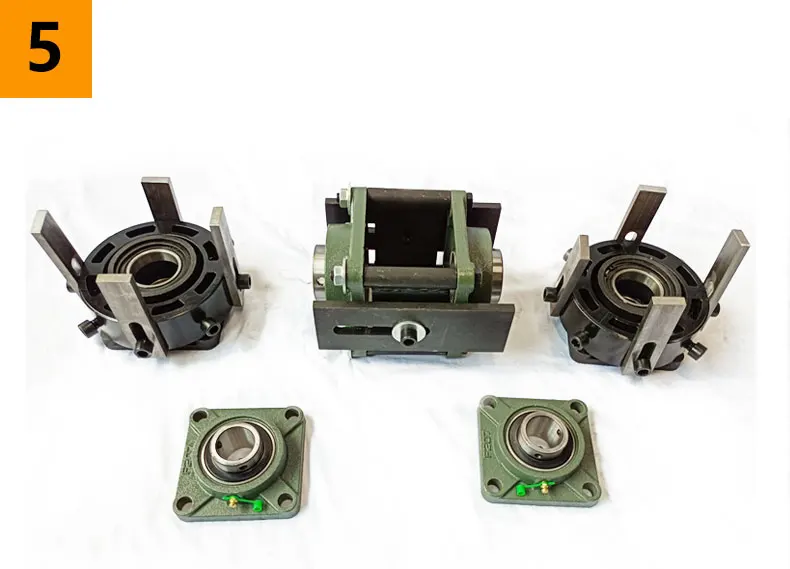

Combination shock mount and fixing bracket, easy to fix on various excavator seats
Product packaging:
NOTE:
1.shipping by sea！！！
2.If your delivery address is in AU, you don't need to clear the custom and you don't need to pay the import duty tax. We will clear the custom and we will pay all the import duty tax instead of you. We will deliver the package to your address directly.
