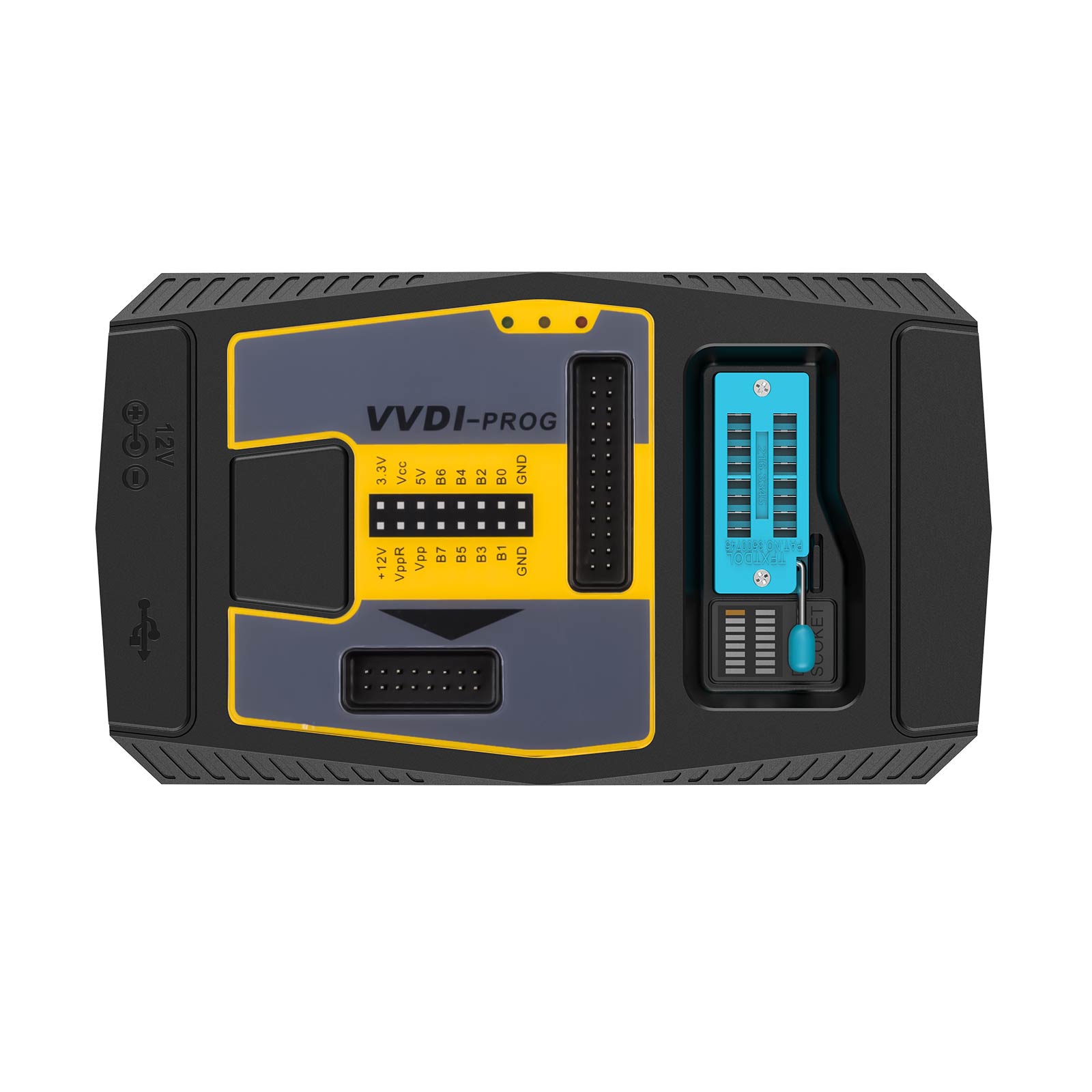

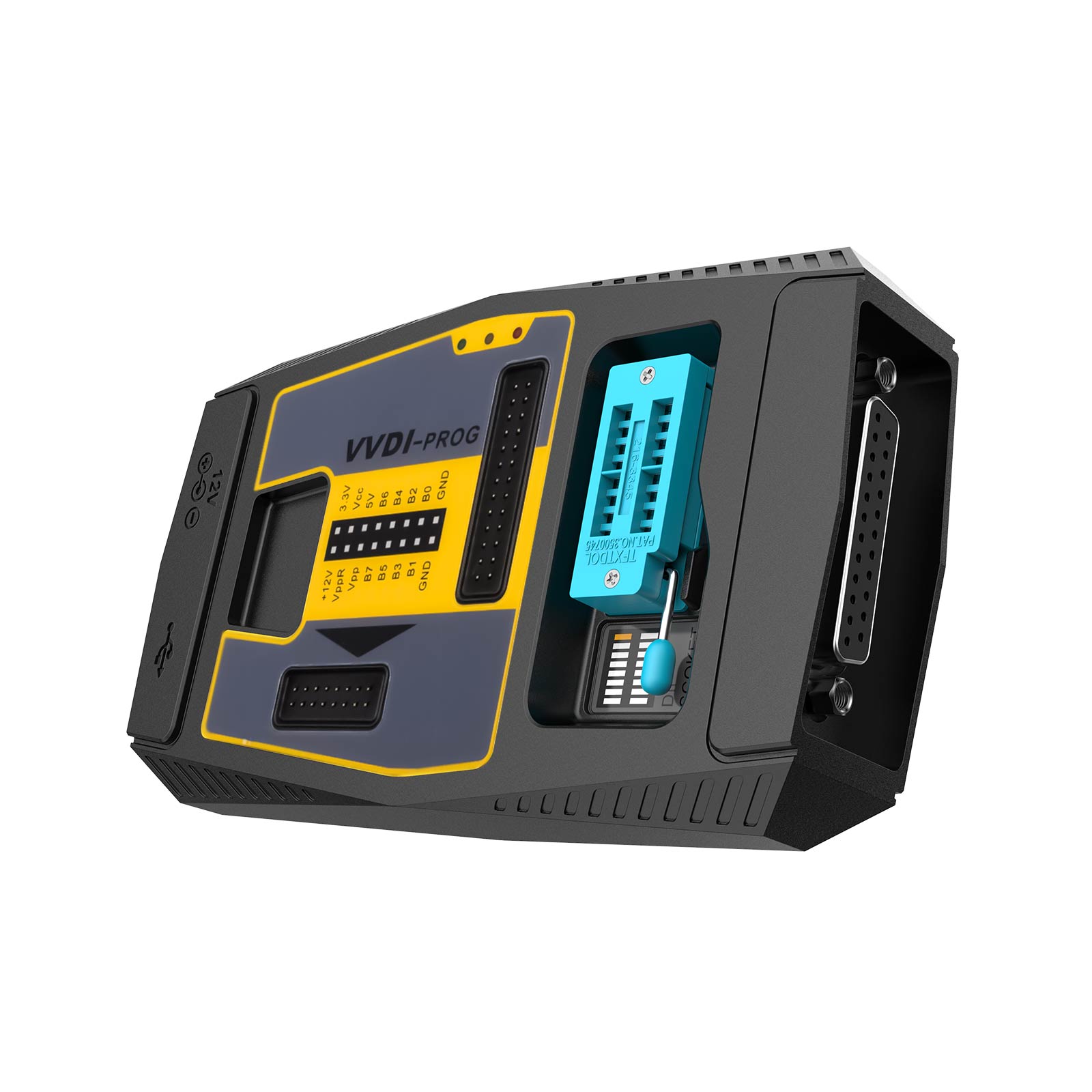

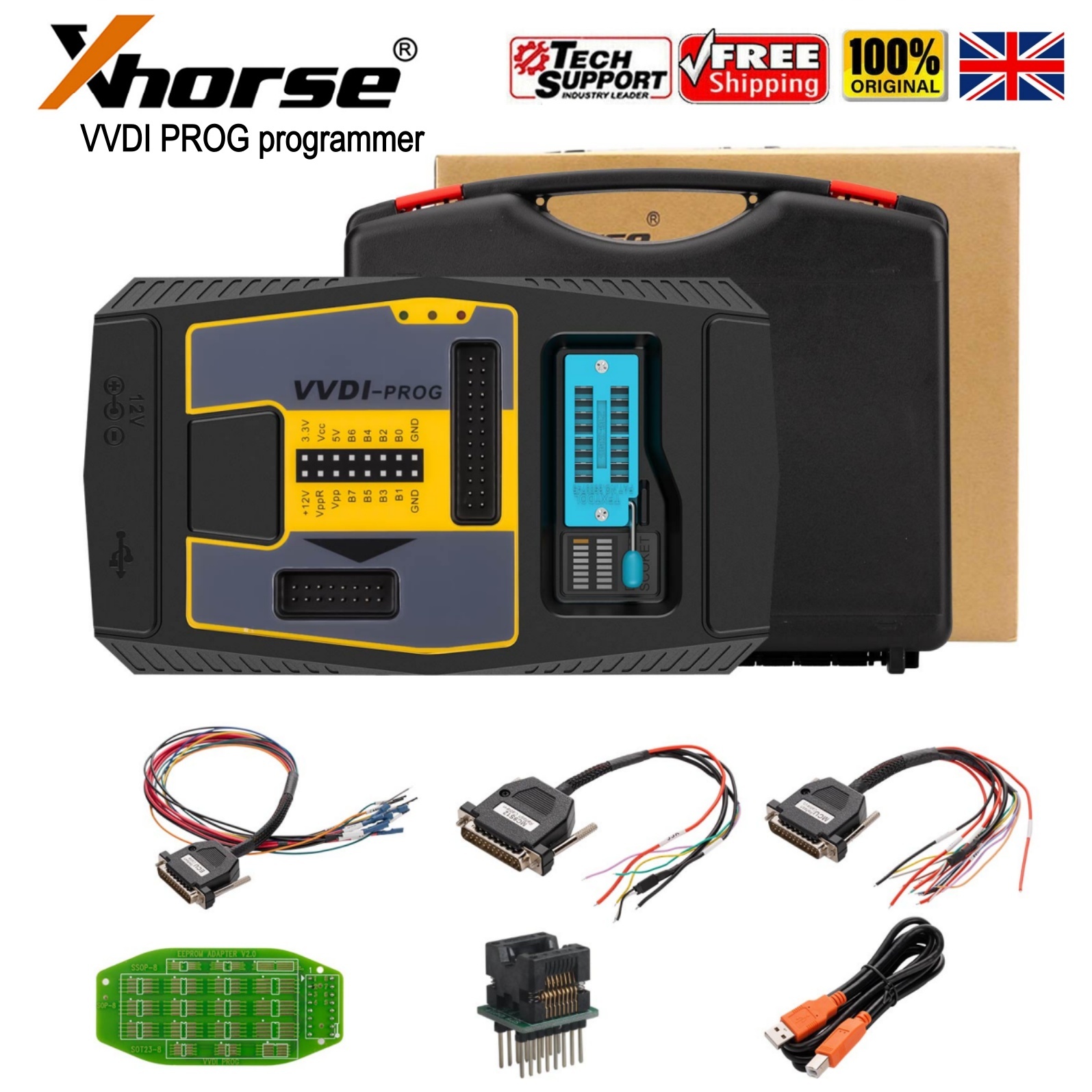

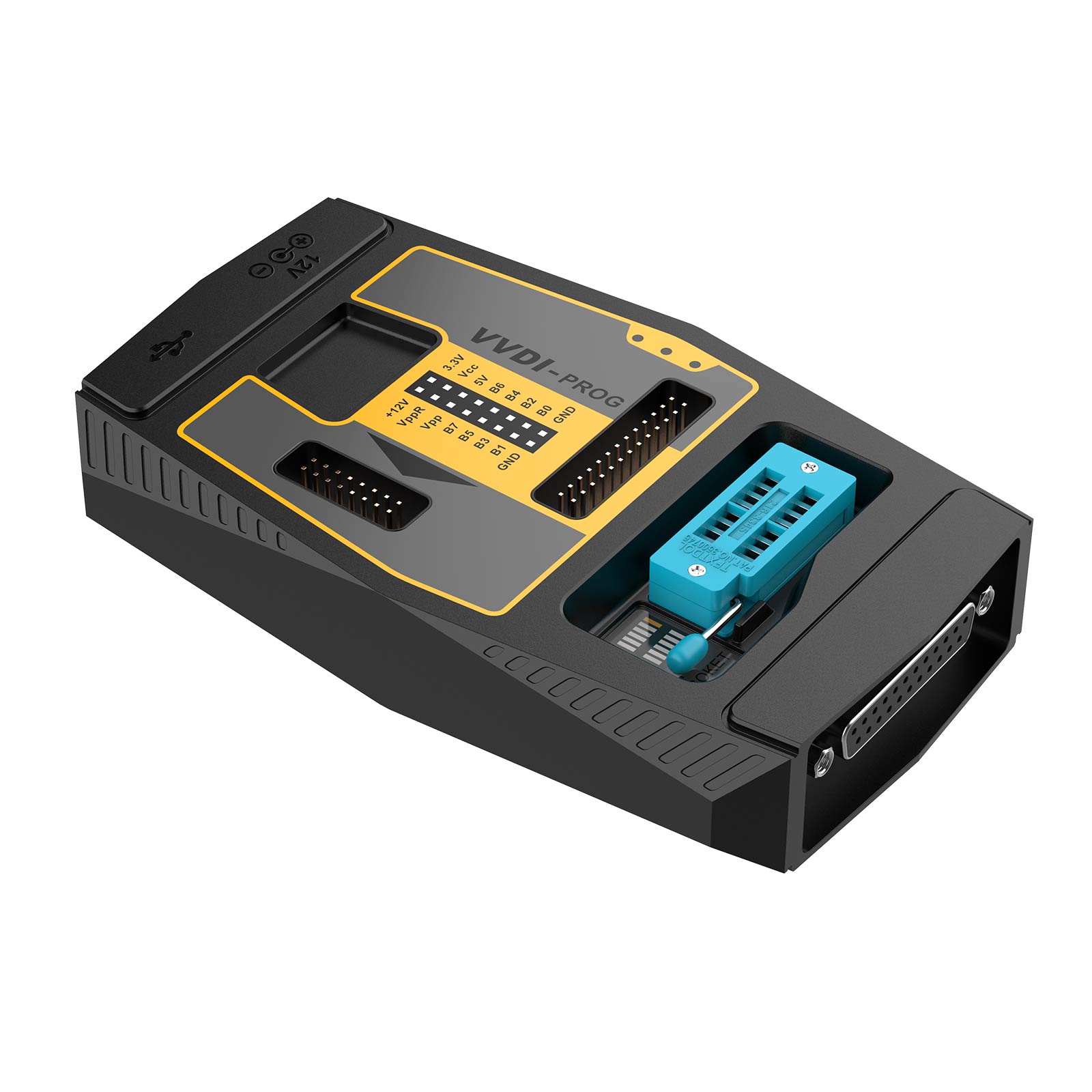

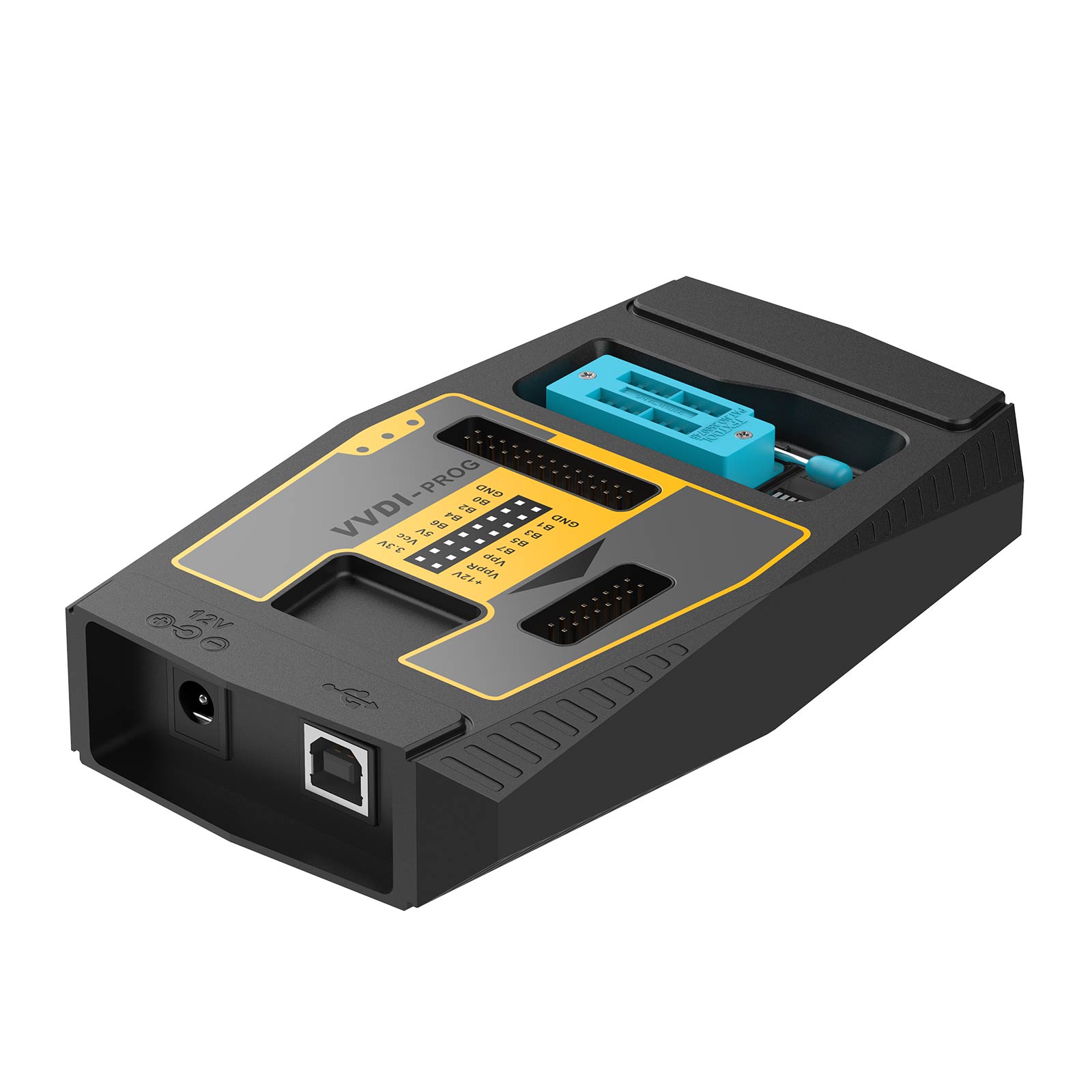

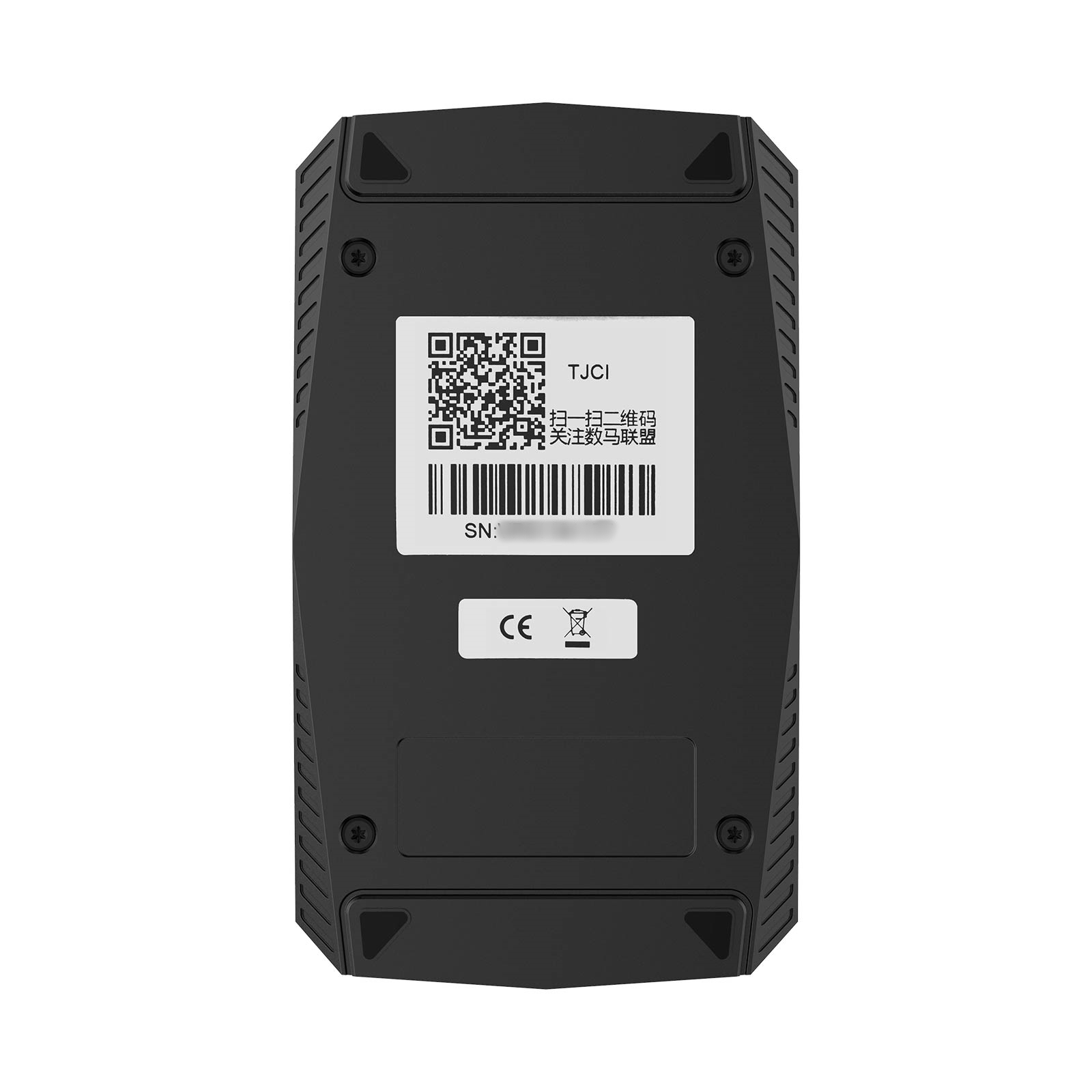

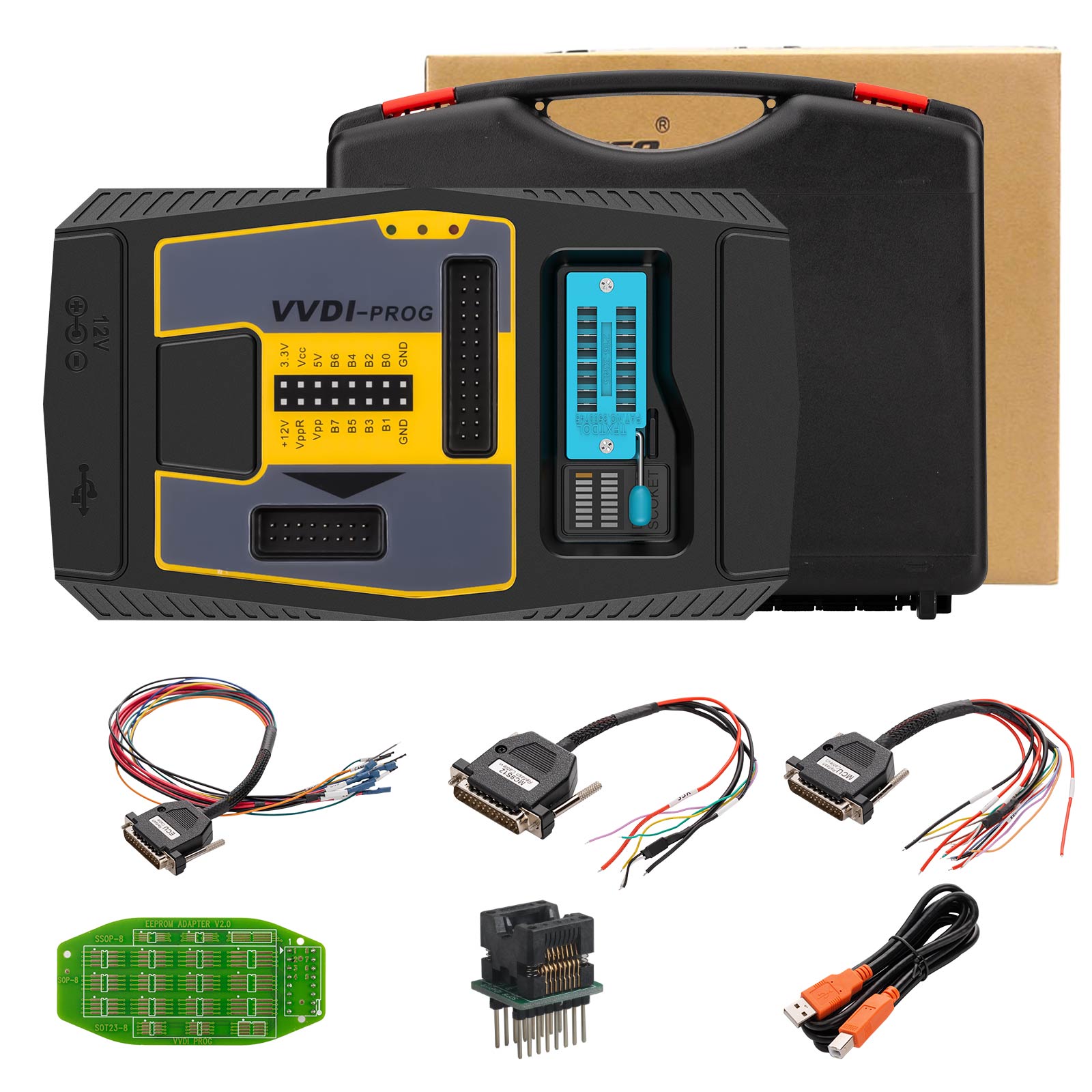

Xhorse VVDI PROG Progarmmer Update Online Multi-language VVDI PROG Language: English, French, Italian, Spanish, Arabic, Cezch, Polish, Portuguese, Russian, Turkish, Chinese. Latest Software Version: V5.3.8 TOP 10 Reasons to Get Xhorse VVDI PROG: 1. Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips 10. Buy VVDI-Prog programmer, get free for BMW ISN read function and NEC, MPC, Infineon etc chip continously update service. VVDI Prog Progarmmer Introduction: 1. Do Not click firmware upgrade in VVDI Prog software, or it will give communication server error. The firmware is fixed at 2.0 version, no need to update. 2. Please do wiring 100% same like the connection diagram in VVDI Prog software, DO NOT lengthen the connection lines with other parts. Or will fail to read. 3. Voltage require: 12V/3-5A Where to find the software download link ? This function require internet support Click the "Upgrade" button enter the upgrade interface, show as following picture Enter update interface, if software show ”communication with server failed”,please close your Anti-virus and computer firewall and retry. If software show “unable to find equipment”, please reconnect device Tip information show the latest software version and upgrade information Device information show the device SN, device firmware version and the latest firmware version Firmware upgrade steps: 1. Select the firmware version 2. Click“Start Firmware Upgrade” button 3. Don't close or pull out USB cable before upgrade finished Software upgrade steps: 1. Click“Software Link 1" or "Software Link 2" button, download software from the web 2. Extract the file VVDI Prog Main Feature: 1. Built-in update software: Make VVDI Prog update timely. Operation options File : Load data file Buffer : Support copy, paste, search, fill function Device : Support chip read, write, erase operation Window : Compare two data files Setting : Read&Verify, Write&Verify, Erase&Check Blank configuration Language : Change the language, current support English, Chinese,Polish, Arabic, Czech, Spanish, French, Italian, Portuguese, Russian,Turkish(You can change the language you want.) 1.2. General options: Provide General function buttons, simple and easy for operation, include: new, open, save, read, write, verify, check blank,erase,calculator & upgrade 1.3. Read range: Parts of chips include several data areas, for example EEPROM, FLASH and etc. click on the button select read range 1.4. Data display: Display the read data or load data, include hex and ASCII format 1.5. Power configuration: Display the status of power ( VCC, VPP, 12V), support change the voltage of VCC and VPP (The default voltage usually not need to change) 1.6. Special function options Provide chips special function, for example parts of chips have read chip ID, set security, reset security etc . 1.7. Chip option Select right option according to type,brand and chip 1.8. Option Information: Display parameter information of current option 1.9. Connection diagram button: Click on button, get the connection diagram of current chip 1.10. adapter Type:Display needed adapter of current option 1.11. Operation Information:Display operation information and saved in "log.bin" file VVDI Prog Cables and Function: 16Pin Lo-cking Socket Read the common EEPROOM, note: please insert the chip by following the below picture. 1.3.2 MCU Reflash Cable Used to progarm MCU on board 1.3.3 E-C-U Reflash Cable Used to progarm E-C-U 1.3.4 MC9S12 Reflash Cable Used to progarm MC9S12 series chip VVDI Prog Supported chip list EEPROM Note: R means the type is supported, £ means the type will be supported soon in the future MCU Note: R means the type is supported £ means the type will be supported soon in the future. E-C-U TC1796 Note: R means the type is supported £ means the type will be supported soon in the future. VVDI PROG CHIP LIST VVDI Prog Latest Update Information: Xhorse VVDI Prog V5.3.4 (2024-06-4) Internal chip upgrade, version 5.3.4 supports the new VVDI PROG Progarmmer with serial number VP05 ***** vvdi prog v5.3.3 (2024-01-24) * This version DON't need update v5.3.2 (2023-12-11) Package List: 1. Plastic Package Box 2. VVDI PROG Main unit 3. EEPROM Socket 4. EEPROM adapter 5. MC9S12 Reflash Cable V1 6. MCU Reflash Cable V3 7. E-CU Reflash Cable 8. USB Type-B Cable
2. Support chip data verify, check blank function
3. Support data file compare function
4. Support R&W for BMW N20, N55 EC-U (show ISN directly)
5. Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6. Support renew PCF79XX remote, currently support for BMW E/F series
7. Lots of connection diagram
8. VVDI Prog Read for BMW ISN. Read ECU data and show the ISN automatically
9. Multi-language: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish & Chinese Simplified
Notice:
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
Manufactures Types Support Remark ATMEL AT24CXX R AT25XXX R AT93CX6 R B-O-SCH B3XX R B4XX R B5XX R B58XXX R CATALYST CAT24CXX R CAT24WXX R CAT93CX6[A] R EXEL XL[S]24CXX R XL[S]93CX6 R FAIRCHILD FM24CXX R NM24CXX R NM93CX6 R GRUNDIG GRXX R HOLTEK HT93CX6 R MICROCHIP 24AAXX R 24[L]CXX R 93[L]CX6 R 93AAX6 R MITSUBISHI M6M800X1 R SEIKO S-24CXX R S-93CX6 R ST D80/D160 R Can erase the first 32 bytes M35080 R Can erase the first 32 bytes NEC M24CXX R ST ST24CXX R ST24EXX R ST24WXX R ST25CXX R ST25EXX R ST95P0X R Manufactures Types Support Remark MOTOROLA MC9S12XEP R Can automatically determine D-FLASH/EEE space MC9S12XA R MC9S12XB R MC9S12XD R MC9S12XDT R MC9S12XDP R MC9S12XDQ R MC9S12DG R MC9S12DT R MC9S12P R MC9S12H R MC9S12HY £ MC9S12HA £ MC9S12HZ £ MC9S12XHZ £ MC9S12B £ MC9S12GC £ MC9S12XS £ MC9S12K £ MC9S12Q £ MC9S12C £ MC9S12P £ MC9HC(9)08 £ ATMEL ATTINY £ ATMEGEA £ NEC uPD70F £ ST TMS370 £ Manufactures Types Support Remark V*A*G MED17.1-TC1796 £ MED17.11-TC1796 £ V*A*G MEG17.5-TC1766 £ V*A*G MED17.5.1-TC1796 £ V*A*G MED17.5.2-TC1767 £ V*A*G MED17.5.5-TC1766 £ V*A*G MED17.5.20-TC1766 £ V*A*G EDC17 CP14/CP20-TC1796 £ V*A*G EDC17 CP04-TC1796 £ V*A*G EDC17 C46-TC1767 £ V*A*G EDC17 CP24-TC1796 £ V*A*G EDC17 CP44-TC1797 £ V*A*G EDC17 U01-TC1766 £ V*A*G EDC17 U05-TC1796 £ V*A*G/Porsche Siemens Continental SDI 3- £ BMW MEVD172(N55) R MEVD172P(N20) R MEVD172G(N55) R MEVD172S(N55) R MEVD1724(N20) R MEVD1725(N13) R MEVD1726(N55) R MEVD1729(N20) R MEVD1728(N63/S63) R
Software versions prior to 5.3.4 do not support VP05**** serial number products
firmware
* Some E-CU options process
optimization
* Land Rover RFA Adapter
options process optimization
* RH850 series Some options
wiring diagram updated
* Modify LO-CK_BCM2
options in
<4-IMMOBILIZER>-><AUDI>:
Erasing failure repair and
prompt message modification
* Modify CAVALIER(2018)
option in
<7-AIRBAG>-><CHEVROLET>:
Wiring diagram update
* Modify LITHIUM BATTERY MODULE
option in
<8-OTHER>-><Porsche>:
Wiring diagram update
* This version DON't need update
firmware
* Optimization of ISN calculation
for some E-CU modules.
* V-W MQB dashboard process
optimization.
* BMW CAS4, Porsche BCM,
Land Rover RFA options
adapter detected illegal repair
* Modify ENGINE-341
option in <3-E-CU>-><Hyundai>:
Optimize the process and
Wiring diagram update.
* Modify PIC12F1822
option in
<2-MCU>-><MICROCHIP-PIC12F>:
Wiring diagram update.
* Modify XINGMA 315
option in <8-OTHER>-><CAMC>:
Optimize the process and
Wiring diagram update.
* Modify QILIN VH
option in <8-OTHER>-><FAW>:
Optimize the process and
Wiring diagram update.
* Modify YingJie 500 315,
ZhuHong 500 315
option in <8-OTHER>-><SANY>:
Optimize the process.
