22kW Smart EV Charging for Suitable Three-Phase Installations
A fixed, tethered wallbox combining high-output AC charging, connected control and clear at-a-glance status for compatible EVs at homes, workplaces and private parking locations.
Three-phase electrical supply required
EV22 EVO is not designed for a standard single-phase connection. Three-phase supply is not available at every UK property. Before ordering, ask a qualified electrician to confirm your supply type, available capacity, installation requirements and proposed charger location.
Your vehicle must also support the required AC charging rate. Charger output does not override the vehicle’s onboard charging limit.
Power, control and everyday convenience
High-output AC charging
Delivers up to 22kW where the vehicle, three-phase supply and installation support it.
Connected charging control
Use the techtron® Smart App to view charging status, schedule sessions and adjust available current.
Controlled RFID access
Authorise charging with the supplied RFID items—useful for shared or managed private parking.
See charging information where you need it
The integrated 2.8-inch display provides clear charger information, while Wi-Fi and Bluetooth connectivity support convenient control through the techtron® Smart App.
Charging status Session scheduling Current adjustment RFID authorisation
IP65-rated enclosure for suitable locations
The enclosure is rated IP65 for protection against dust and water ingress. It must still be installed correctly in a suitable location by a qualified electrician and used in accordance with the supplied instructions.
Multi-layer monitoring and protection
Designed with multiple electrical protection functions and an accessible emergency-stop control.
Final circuit design, protective devices, earthing arrangements and regulatory compliance must be assessed by the installer for the specific property.
For compatible Type 2 EVs and plug-in hybrids
The fixed Type 2 connector is compatible with many UK and European electric vehicles. Always check the vehicle inlet and maximum AC charging rate before ordering. A vehicle with a lower onboard charging limit will charge at that lower rate.
EV22 EVO specifications
| Maximum charging output | Up to 22kW AC* |
|---|---|
| Electrical supply | Three phase, 32A |
| Vehicle connector | Tethered Type 2 |
| Cable length | 5 metres |
| Connectivity | Wi-Fi and Bluetooth |
| Access control | RFID |
| Display | 2.8-inch display |
| Enclosure rating | IP65 |
*Actual output depends on the vehicle’s onboard charger, electrical supply, installation design and operating conditions.

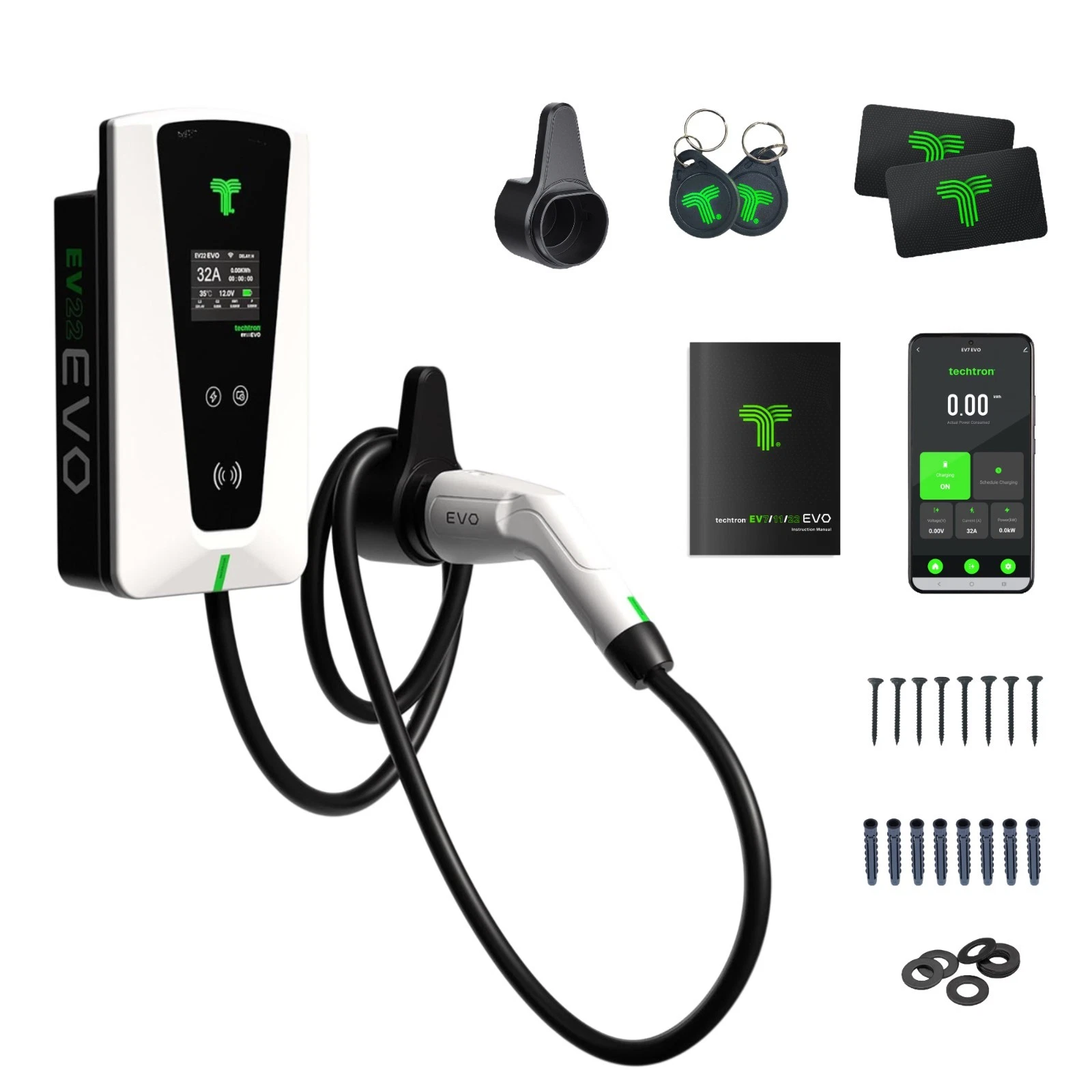

Exactly what is included
- 1 × EV22 EVO charger with 5 m fixed cable and Type 2 connector
- 1 × installation plate with screws
- 1 × Type 2 connector holder bracket
- 2 × RFID cards and key fobs
- 1 × instruction manual
- 1 × tools and accessories box
Supported by techtron® UK customer service. Warranty eligibility, exclusions and claims are subject to the terms applicable to this eBay listing and correct professional installation.
Frequently asked questions
Will EV22 EVO work with a standard UK home supply?
Not on a standard single-phase connection. EV22 EVO requires a suitable three-phase supply. Ask a qualified electrician to confirm your property before purchase.
Will every Type 2 vehicle charge at 22kW?
No. The vehicle must support 22kW three-phase AC charging. If its onboard charger accepts a lower rate, charging will occur at that lower rate.
Does the charger need professional installation?
Yes. It is a fixed electrical appliance and must be installed and commissioned by a qualified electrician in accordance with applicable UK requirements.
Can EV22 EVO be installed outdoors?
Its enclosure is IP65 rated. The installer must still select an appropriate location and install the unit correctly in accordance with the instructions.
How do I check vehicle compatibility?
Confirm that your vehicle has a Type 2 inlet and check its maximum supported AC charging rate in the vehicle handbook or manufacturer specifications.
22kW three-phase smart EV charging with a tethered Type 2 cable, connected control and RFID access for compatible vehicles and suitable private installations.
*Charging output and functionality depend on the vehicle, electrical supply, network connection, installation and operating conditions. Warranty, delivery and returns are governed by the terms displayed on this eBay listing. Product images are illustrative; refer to the listing variation and box-contents section for the exact item supplied.
