4in Drop Lowering Kit For Chevy C10 GMC C15 C1500 Pickup 2WD 1973-1987

Most

Competitive Price

Manufacturer

We know our products

Easy Return

Quick, Simple

Guaranteed Fitment

Always the correct part

Description



Fitment:

  • For Chevrolet C10/R10 1973 - 1987
  • for GMC C15 /C1500 / C1500 Pickup 1973-1987
  • Note: for 2WD and short box only

Specification:

  • Placement on Vehicle: Left, Right, Rear
  • Drop Length: 4in.
  • Drive Model: 2WD Only
  • Material: Steel
  • Package Size: 36.5*19*15.5cm
  • Package weight: 7kg
  • Surface: Powder coating

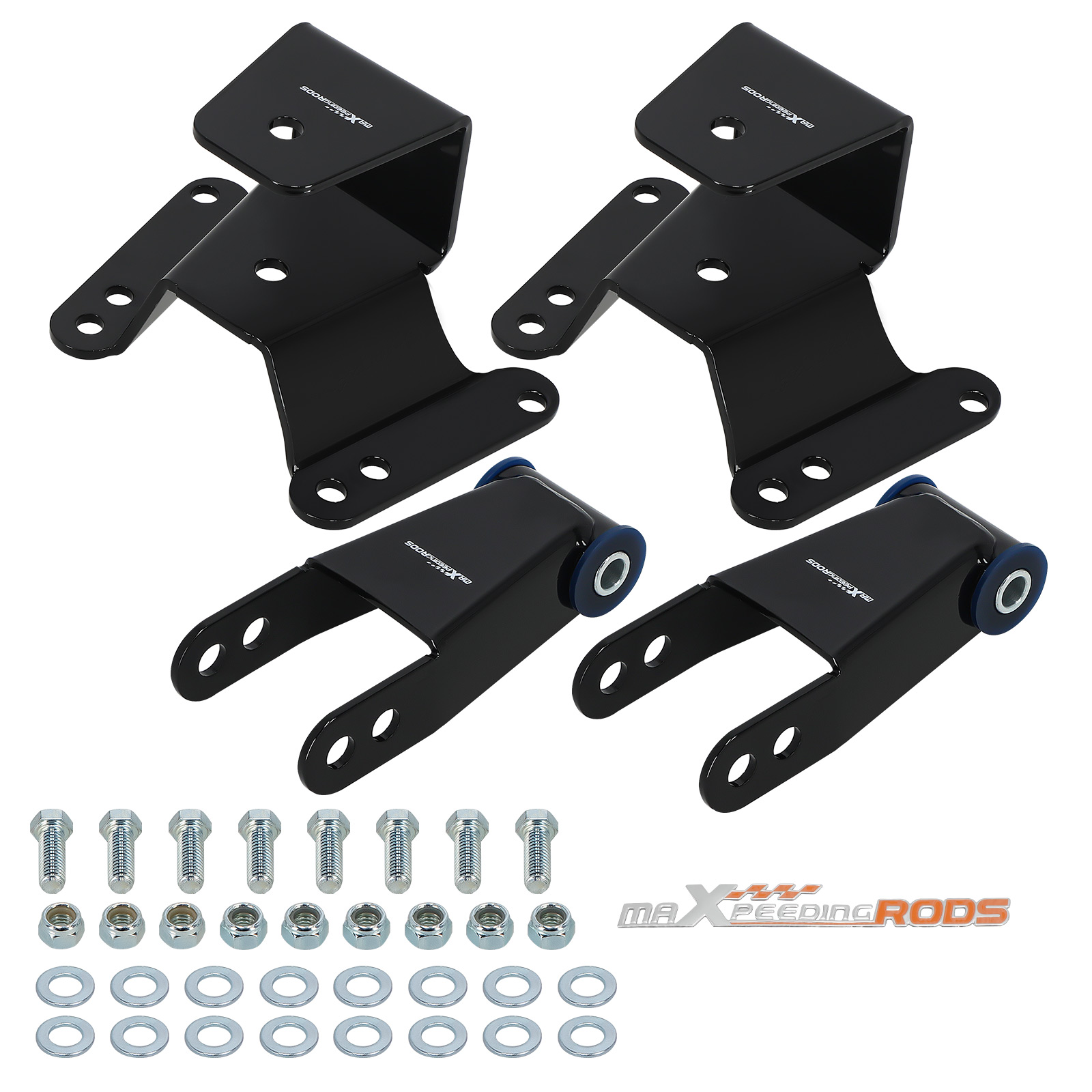

Package Includes:

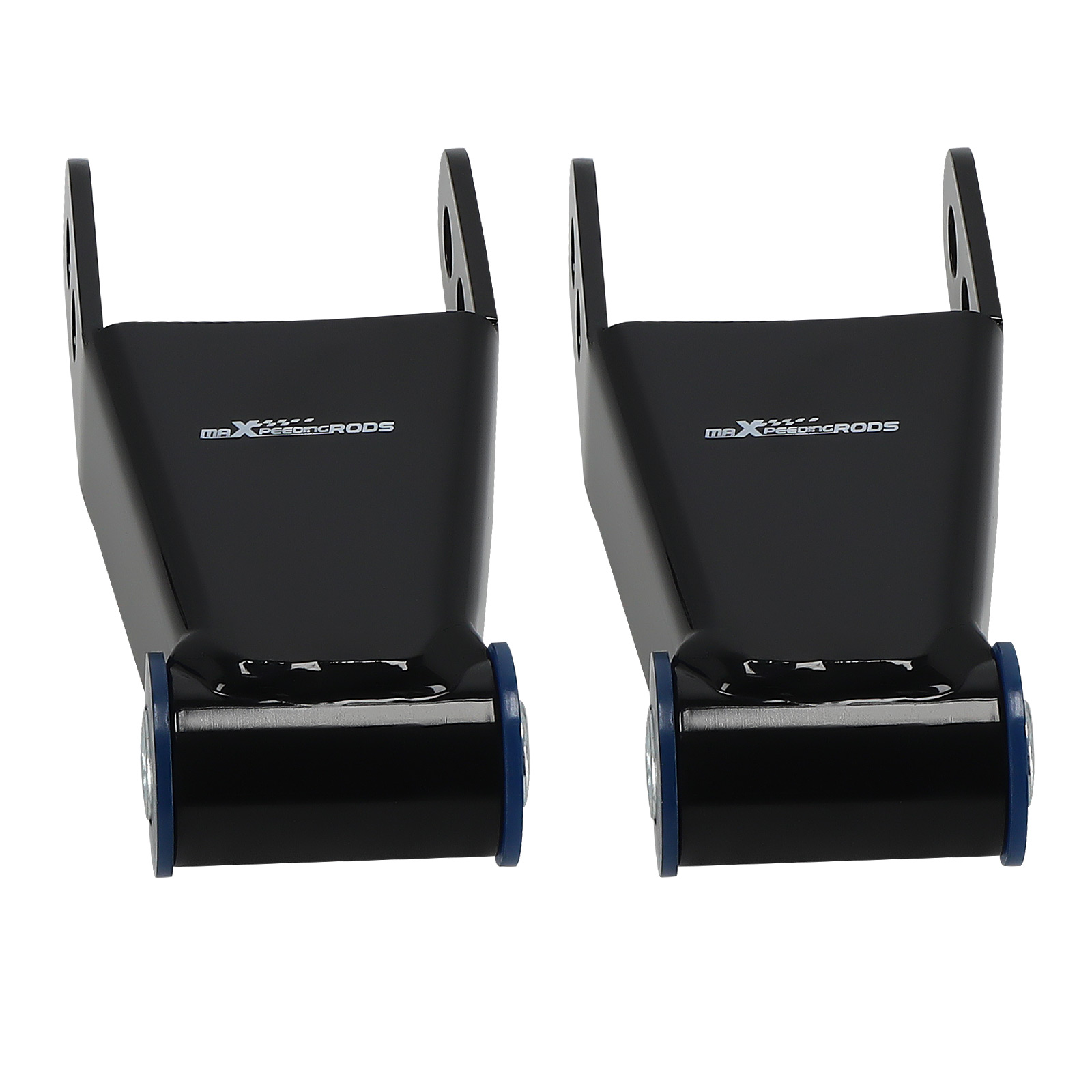

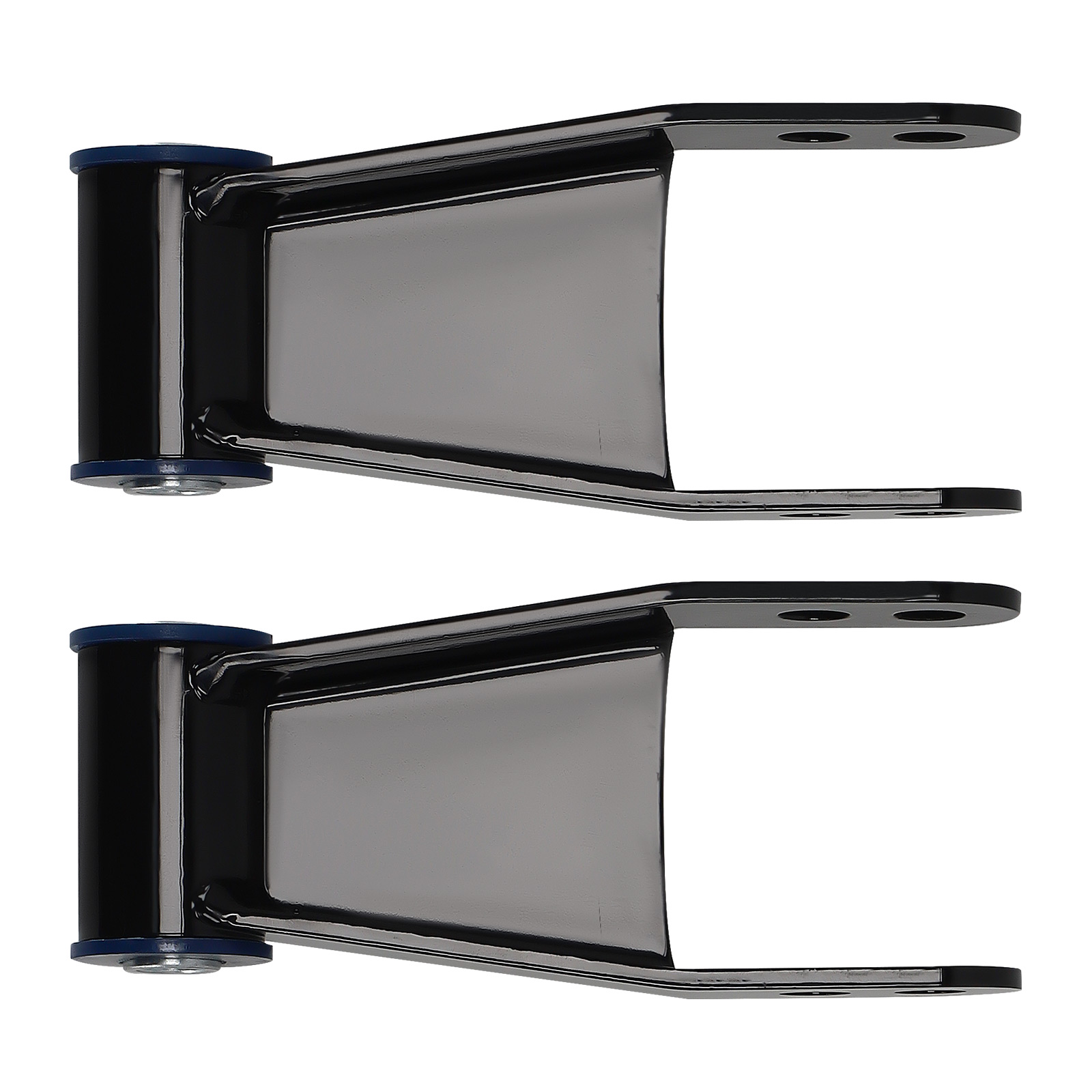

  • 2x Rear Drop Shackles (1.5" / 2" Adjustable)
  • 2x Rear 2" Drop Leaf Spring (Gunmetal Gray Steel)

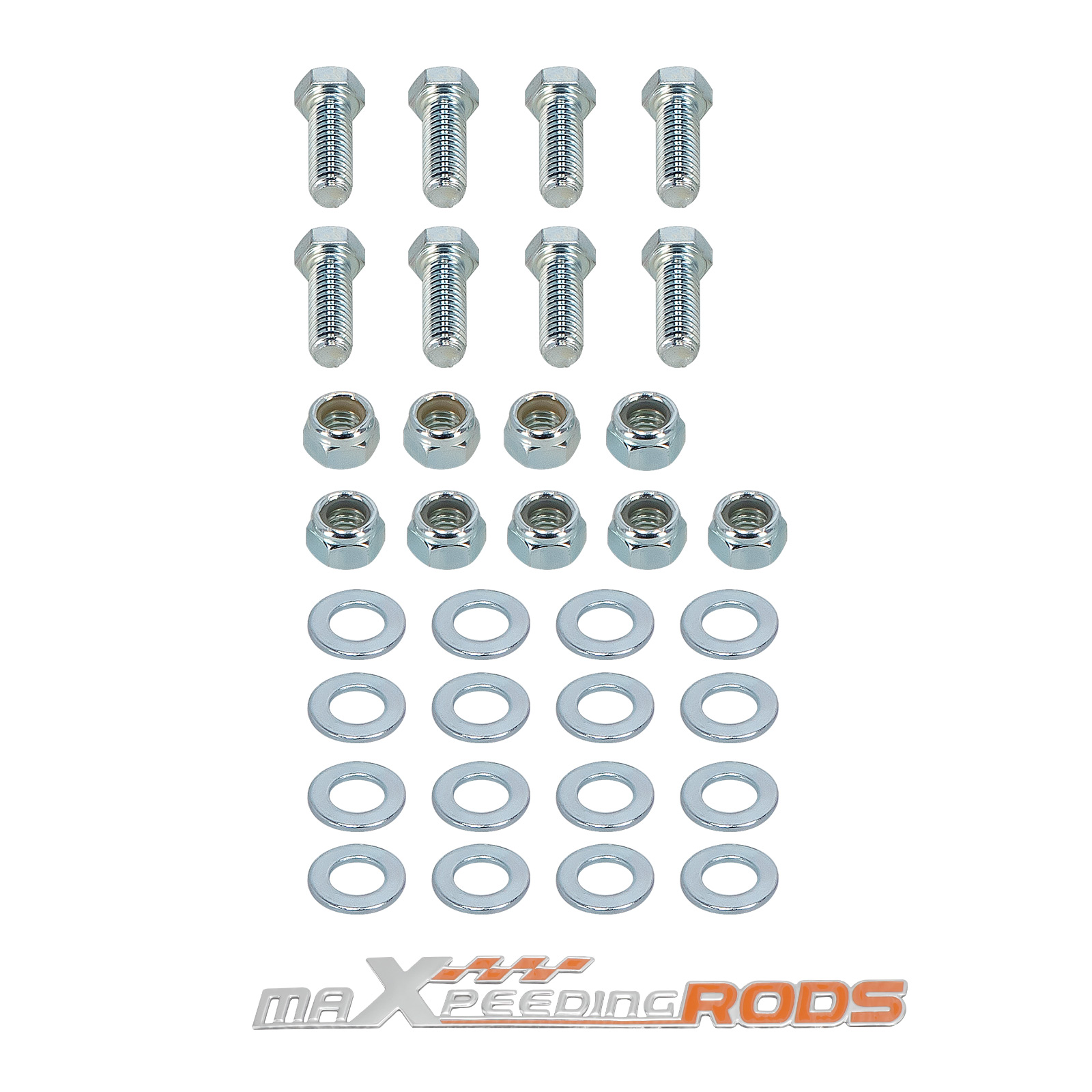

  • Necessary hardware included

Installation Tips:

How to Install a Leaf Spring Hanger?

  • Replacing a leaf spring hanger is rather easy. The leaf spring hanger installation consists of a few simple steps.
  • You should lift your truck with a jack and place it onto jack stands.
  • Then you should remove the front leaf spring from the hanger.
  • Grind off the rivets that are holding the hanger and then hammer them out.
  • Bolt the leaf spring hanger kit into the frame where the previous rivet holes were.
  • Bolt the leaf spring to the hanger. The tricky part of the installation will be taking the rivets off.

How to Install or Replace Leaf Spring Shackles?

  • Using a floor jack, raise the rear differential of your vehicle off the ground, Use jack stands under the frame to support the vehicle
  • Lower the jack so that the suspension "droops", this will take the weight of the vehicle off the shackle and allow for removal of the mounting bolts
  • Remove the lower mounting bolt from the shackle and spring and then lower the axle so that the spring drops out of the shackle
  • Remove the upper mounting bolt which attaches the shackle to the mount on the frame then remove the existing shackle
  • Insert the new shackle and mounting bolt.
  • Leave the bolt loose to allow alignment of the shackle with the spring
  • Raise the rear axle and align the spring eye with the shackle. Slowly work the spring back into the shackle, raising the jack a little at a time until the holes in the shackle and the spring eye line up.
  • Install the mounting bolts through the shackle and the spring. Make sure to tighten accordingly
  • Jack up the car to remove the jack stands then lower the vehicle back down
  • Make sure the bolts stay tightened with weight on them
