YRMDU

Racing Coilover Suspension Lowering Kits For HONDA CIVIC 12-15 LX/EX/HYBRID



Adjustable Camber Plate with Pillow Ball Mount

Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

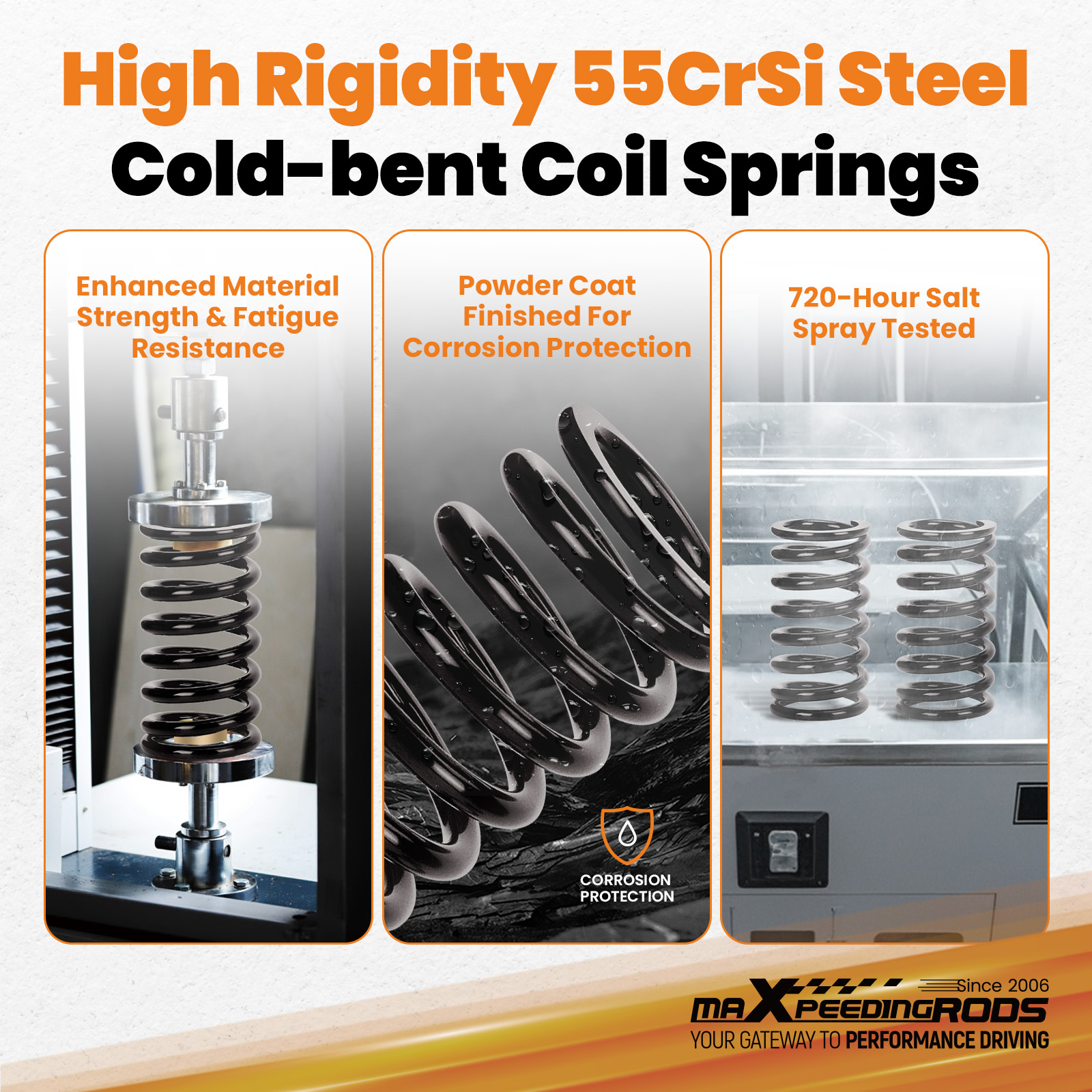

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Front Top mounts Adjustable Camber Plate
Adjustable height Yes, Lowering 1-3 inch
Front spring length 7 kg/mm (392 in/lbs)
Rear spring length 7 kg/mm (392 in/lbs)
Front spring inner diameter 70.5 mm
Rear spring inner diameter 63 mm
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features

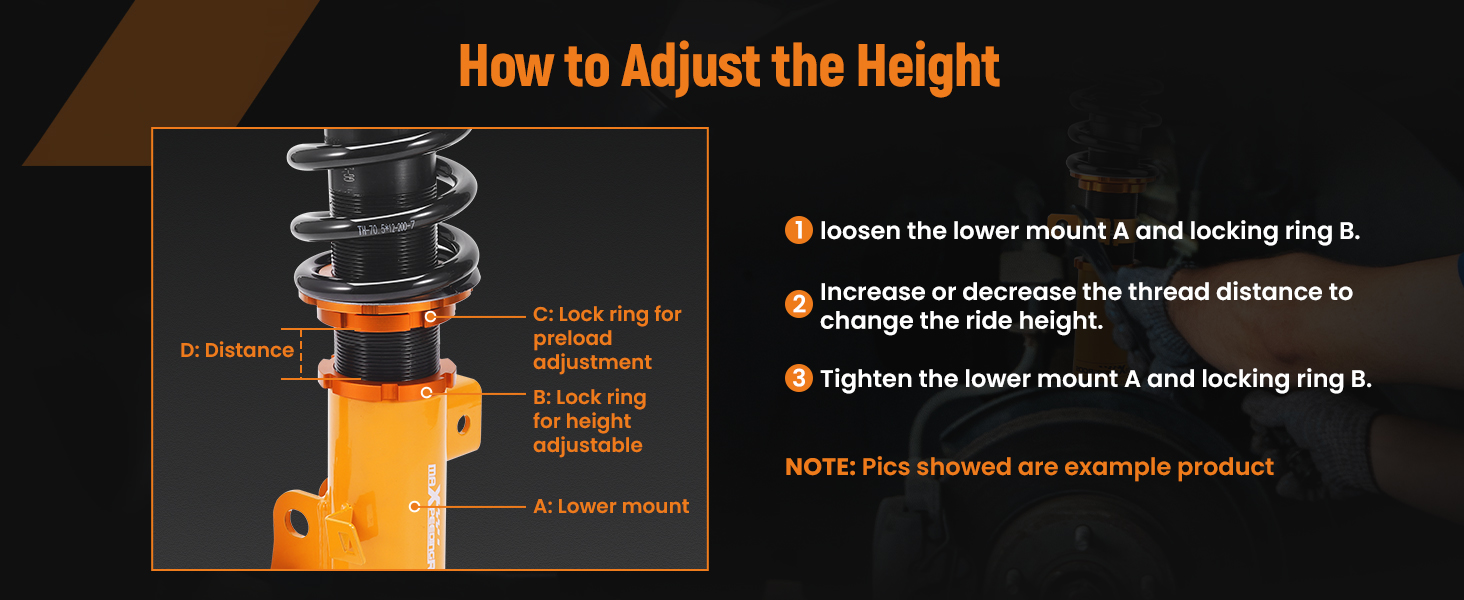

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

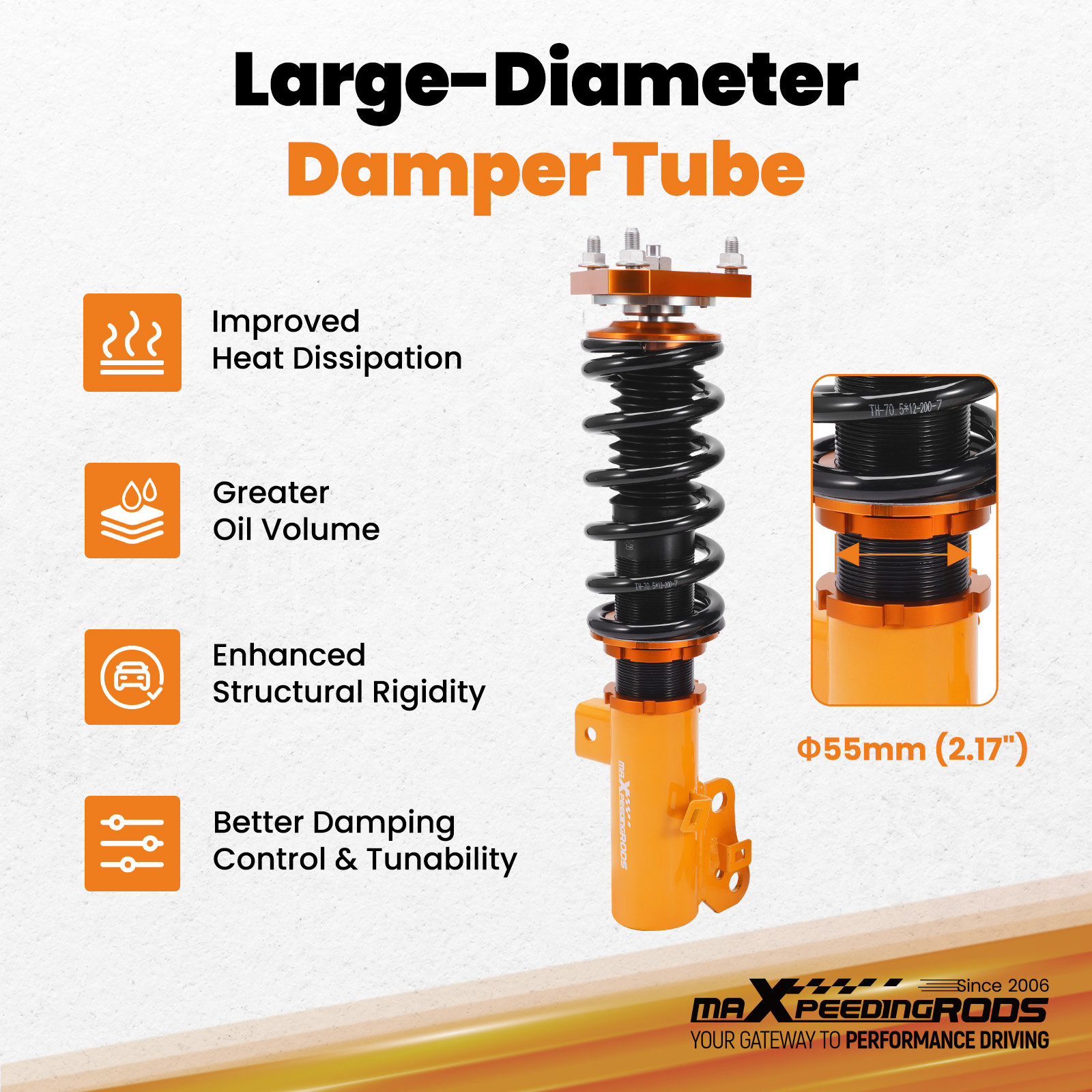

- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars. Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

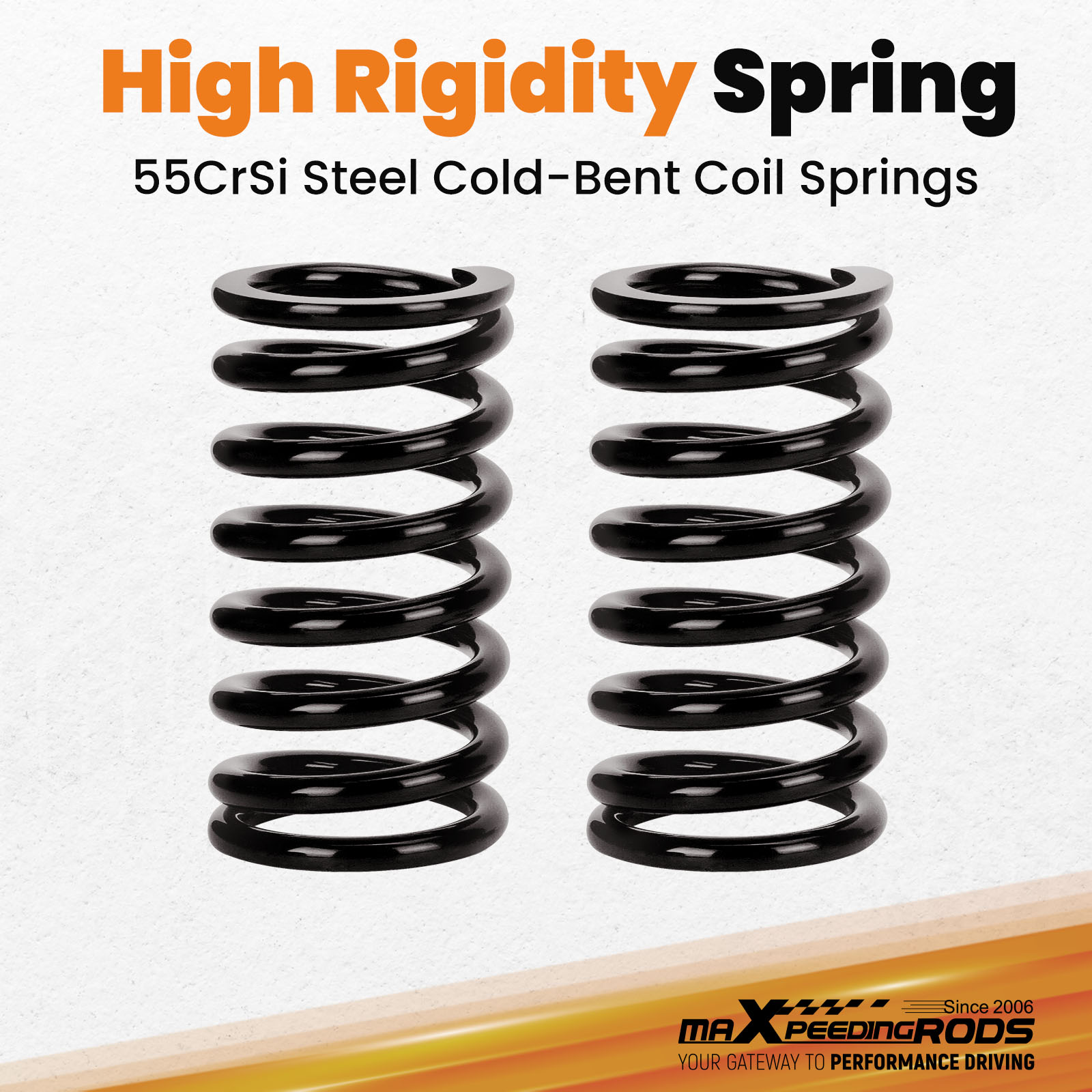

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.


Fitment


For HONDA CIVIC 2012-2015 (FG3) USA 2 door coupe excluding Si model
For HONDA CIVIC 2012-2015 (FB2) USA 4 door sedan excluding Si model


Specifications


- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")

- Front top mount: Pillow ball with camber plate
- Rear top mount: OE top mounts required
- Damping adjustable: No. Optimal preset damping (no adjustment required)
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 7 kg/mm (392 lbs/in)
- Spring Rate Rear: 7 kg/mm (392 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 63 mm
- Spring length Front: 200 mm
- Spring length Rear: 160 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring

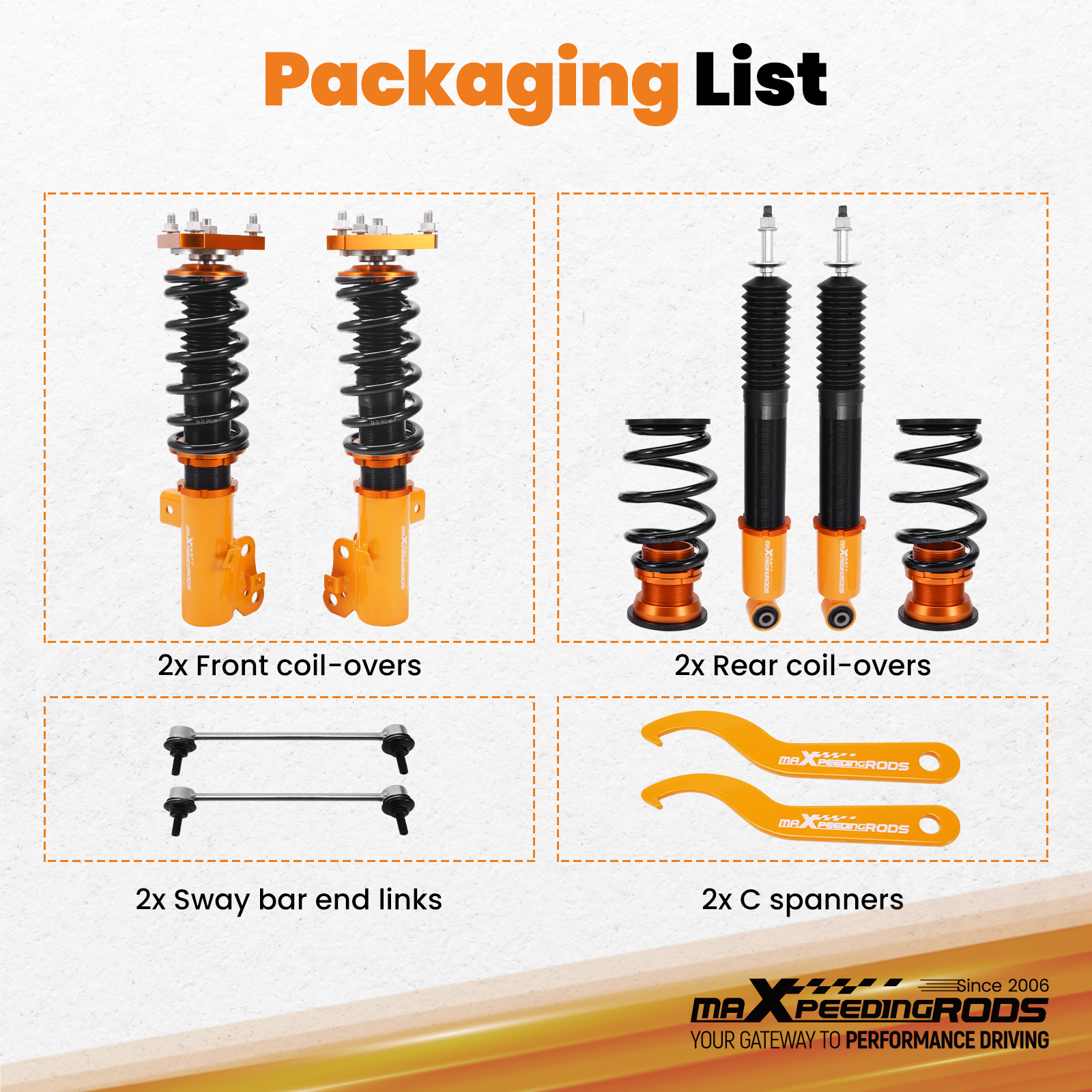

Package Included


2x Front coil-overs
2x Rear coil-overs
2x Sway bar end links
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

100% Brand New, Never Used Or Installed; - Independent ride height adjustable; -55mm Large Diameter Damper Body; -High Durability Bearing and Thrust Seat; - Reinforced Rubber Bushing with T-6061 Billet Aluminum Upper Mount; -55CrSi Steel Cold-bent Spring; -Balanced Comfort & Performance. - Full 1 Year Limited Warranty From Date of Purchase.
