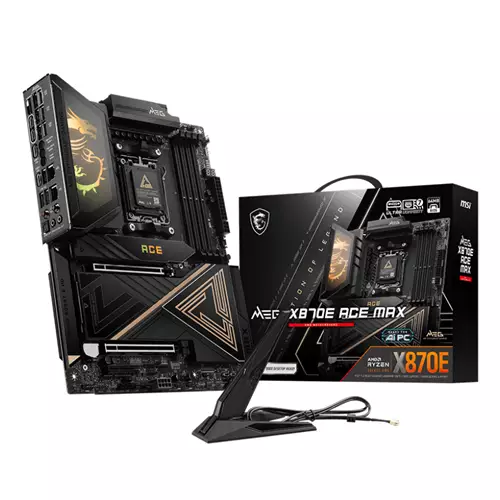

MSI MEG X870E ACE MAX Motherboard Socket AM5 AMD X870E ATX DDR5 PCIe 5.0 Wi-Fi 7
Fast & Free UK Mainland Delivery*
MSI MEG X870E ACE MAX AMD Socket AM5 AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series Socket AM5 DDR5-SDRAM 256 GB
MSI MEG X870E ACE MAX AMD Socket AM5 AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series Socket AM5 DDR5-SDRAM 256 GB
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 18+2+1 Duet Rail Power System 110A SPS OC Engine dual 8-pin CPU power connectors Core Boost Memory Boost 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Wavy fin design Direct Touch Cross Heat-pipe MOSFET Baseplate 9W/mK thermal pads Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature
- EZ DIY: EZ PCIe Release EZ Magnetic M.2 Shield Frozr II EZ M.2 Clip II EZ Antenna and EZ Conn-Design
MSI's flagship MEG series exemplifies relentless
| Feature | Value |
|---|---|
| Brand | MSI |
| Manufacturer Product Type | AMD Motherboards |
| Manufacturer Product Type | MSI Motherboards |
| Product Type | Motherboards |
| Product Family | MEG X870E ACE MAX |
| Form Factor | ATX Motherboards |
| Collection Model | MSI MEG X870E ACE MAX |
| Motherboard chipset | AMD X870E |
| Features | RGB Lighting |
| Colour of product | Black |
| Connectivity | Wireless |
| MPN | MEG X870E ACE MAX |
| Product colour | Multicoloured |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 9 |
| Ethernet LAN | Yes |
| HDMI version | 2.1 |
| Number of storage drives supported | 9 |
| HDMI ports quantity | 0 |
| Motherboard form factor | ATX |
| On-board graphics card | No |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Product colour | Black |
| Connectivity technology | Wireless |
| Component for | PC |
| Processor socket | Socket AM5 |
| Motherboard chipset family | AMD |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 5 |
| Number of HDDs supported | 4 |
| System management BIOS (SMBIOS) version | 3.7 |
| Width | 243.8 mm |
| Depth | 30438 mm |
| Memory channels | Dual-channel |
| EPS power connector (8-pin) | Yes |
| Supported memory clock speed (max) | 9000 MHz |
| PC health monitoring | CPU Fan Temperature Voltage |
| Supported memory clock speeds | 4800560064009000 MHz |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Bluetooth Version | 5.4 |
| ECC ompatibility | Non-ECC |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| ACPI version | 6.4 |
| BIOS memory size | 512 Mbit |
| Windows operating systems supported | Windows 11 x64 |
| BIOS type | UEFI AMI |
| Memory slots type | DIMM |
| RAID levels | 0 1 10 |
| USB4 Gen 2x2 ports quantity | 2 |
| Supported storage drive interfaces | M.2 SATA III |
| Supported storage drive types | HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory | 256 GB |
| Total number of SATA connectors | 4 |
| Number of SATA connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| RAID support | Yes |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Compatible processor series | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
MEG X870E ACE MAX
4x DDR5 DDR5 9000 (OC) MT/s AMD X870E ATX Socket AM5 5x M.2 4x SATA 6G 10G LAN + 5G LAN Wi-Fi 7
